SUBARU FORESTER 2004 Service Repair Manual

EN(H4DOTC)-88
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK OUTPUT SIGNAL FROM ECM.
1) Turn the ignition switch to ON.
2) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B134) No. 2 (+) — Chassis ground (
−):
(B134) No. 3 (+) — Chassis ground (
−):Is the voltage more than 8 V? Go to step 3.Go to step 2.
2 CHECK FRONT OXYGEN (A/F) SENSOR
HEATER CURRENT.
1) Turn the ignition switch to OFF.
2) Repair the battery short circuit in harness
between ECM and front oxygen (A/F) sensor
connector.
3) Turn the ignition switch to ON.
4) Read the data of front oxygen (A/F) sensor
heater current using Subaru Select Monitor or
OBD-II general scan tool.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 33, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the current more than 2.3 A? Replace the ECM.
FU(H4DOTC)-50,
Engine Control
Module (ECM).>END.
3 CHECK OUTPUT SIGNAL FROM ECM.
Measure the voltage between ECM connector
and chassis ground.
Connector & terminal
(B134) No. 2 (+) — Chassis ground (
−):
(B134) No. 3 (+) — Chassis ground (
−):Does the voltage change by
shaking the harness and con-
nector of ECM while monitor-
ing the value with voltage
meter?Repair the battery
short circuit in har-
ness between
ECM and front
oxygen (A/F) sen-
sor connector.END.

EN(H4DOTC)-89
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
F: DTC P0037 HO2S HEATER CONTROL CIRCUIT LOW (BANK 1 SENSOR 2)
DTC DETECTING CONDITION:
Detect as soon as the malfunction occurs.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .

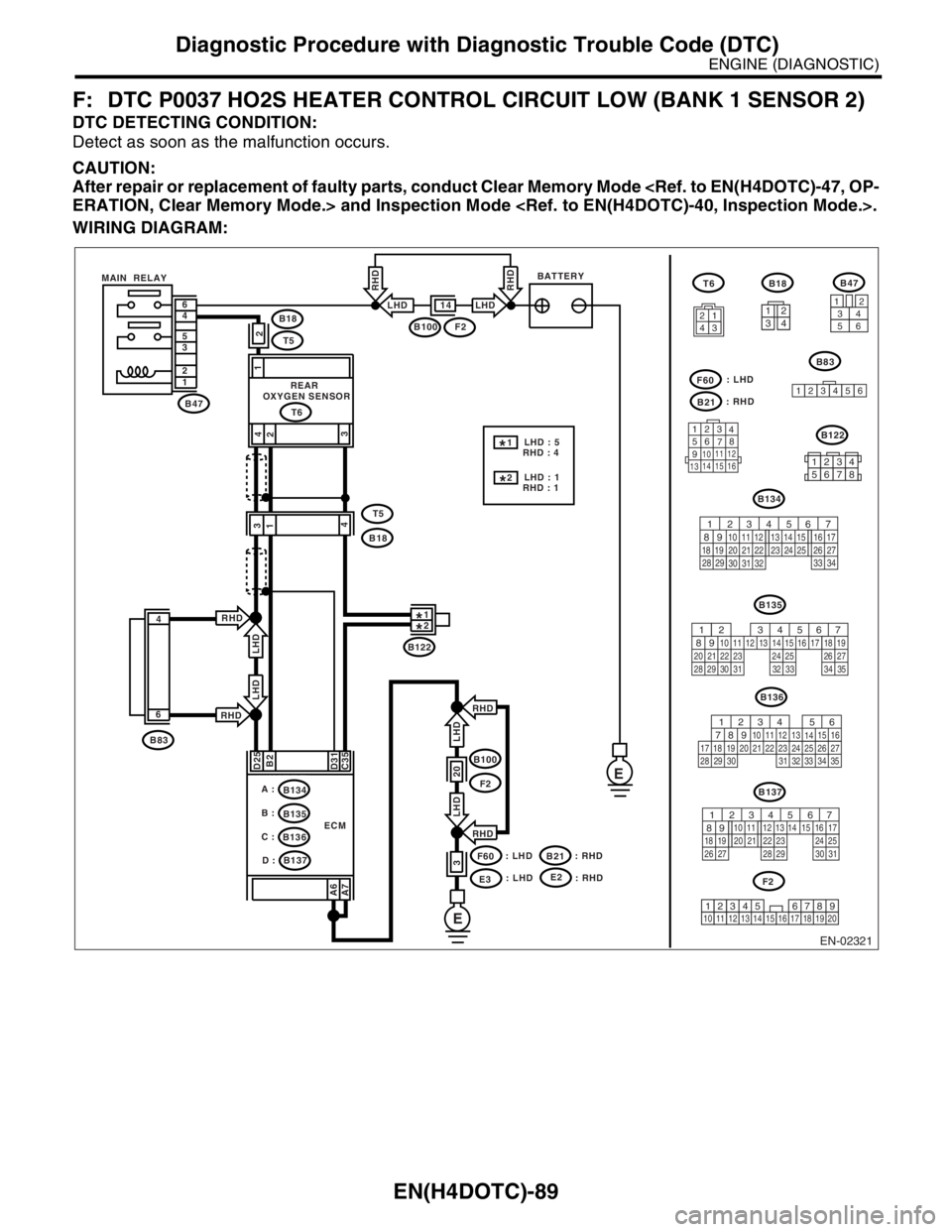

WIRING DIAGRAM:
MAIN RELAY
B47 1 2 3 5 4 6
E
T5
*1
*2 B18
3
B122
1
3
T6 REAR
OXYGEN SENSOR
A6
A7D31
C35
ECMB135
B136 B :
B134 A :
C :
1
4
B83
B2 D25
B137D :
EN-02321
: LHD
: RHD34
12
56
B21
B134
B135
F60
B83
B47T6
B1361
23456
F2
2143
LHD : 5
RHD : 4
LHD : 1
RHD : 1*1
*2
BATTERY
B100F2 14LHD
RHD
LHD
RHD LHD
RHD
LHD
RHD 4
6
E
B100
F2
F60
E3
20 3
RHD
LHD
RHD
: LHD
B21: RHD
LHD
: LHDE2
: RHD
B18
B122
B137
2345 678911 12 13 14 17 18 19 201101516
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
12345678
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
123
4
56
78
9
1011 12
1314 15 16
1234
4
22
T5
B18
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31

EN(H4DOTC)-90
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK GROUND CIRCUIT FOR ECM.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Measure the resistance of harness
between ECM connector and chassis ground.
Connector & terminal
(B134) No. 6 — Chassis ground:
(B134) No. 7 — Chassis ground:Is the resistance less than 5
Ω?Go to step 2.Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
ECM and engine
ground cable
 Poor contact in
ECM connector.
 Poor contact in
coupling connector
2 CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of rear oxygen (A/F) sensor
heater current using Subaru Select Monitor or
OBD-II general scan tool.
NOTE:
 Subaru Select Monitor
For detailed operation procedure, refer to the
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 33, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the current more than 0.2 A? Repair the con-
nector.
NOTE:
In this case repair
the following:
 Poor contact in
rear oxygen sen-
sor connector
 Poor contact in
rear oxygen sen-
sor connecting
harness connector
 Poor contact in
ECM connector.Go to step 3.
3 CHECK OUTPUT SIGNAL FROM ECM.
1) Start and idle the engine.
2) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B135) No. 2 (+) — Chassis ground (
−):Is the voltage less than 1 V? Go to step 6.Go to step 4.
4 CHECK OUTPUT SIGNAL FROM ECM.
Measure the voltage between ECM connector
and chassis ground.
Connector & terminal
(B135) No. 2 (+) — Chassis ground (
−):Does the voltage change by
shaking the harness and con-
nector of ECM while monitor-
ing the value with voltage
meter?Repair the poor
contact in ECM
connector.Go to step 5.
5 CHECK OUTPUT SIGNAL FROM ECM.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from rear oxygen
sensor.
3) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B135) No. 2 (+) — Chassis ground (
−):Is the voltage less than 1 V? Replace the ECM.
FU(H4DOTC)-50,
Engine Control
Module (ECM).>Repair battery
short circuit in har-
ness between
ECM and rear oxy-
gen sensor con-
nector.After repair,
replace the ECM.
FU(H4DOTC)-50,
Engine Control
Module (ECM).>

EN(H4DOTC)-91
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
6 CHECK POWER SUPPLY TO REAR OXY-
GEN SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from rear oxygen
sensor.
3) Turn the ignition switch to ON.
4) Measure the voltage between rear oxygen
sensor connector and engine ground or chas-
sis ground.
Connector & terminal
(T6) No. 1 (+) — Chassis ground (
−):Is the voltage more than 10 V? Go to step 7.Repair the power
supply line.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
main relay and
rear oxygen sen-
sor connector
 Poor contact in
rear oxygen sen-
sor connector
 Poor contact in
coupling connector
7 CHECK REAR OXYGEN SENSOR.
1) Turn the ignition switch to OFF.
2) Measure the resistance between rear oxy-
gen sensor connector terminals.
Te r m i n a l s
No. 1 — No. 2:Is the resistance less than 30
Ω?Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
 Open circuit in
harness between
rear oxygen sen-
sor and ECM con-
nector
 Poor contact in
rear oxygen sen-
sor connector
 Poor contact in
ECM connector.
 Poor contact in
coupling connectorReplace the rear
oxygen sensor.
FU(H4DOTC)-47,
Rear Oxygen Sen-
sor.> Step Check Yes No

EN(H4DOTC)-92
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
G: DTC P0038 HO2S HEATER CONTROL CIRCUIT HIGH (BANK 1 SENSOR 2)
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .
WIRING DIAGRAM:
MAIN RELAY
B47 1 2 3 5 4 6
E
T5
*1
*2 B18
3
B122
1
3
T6 REAR
OXYGEN SENSOR
A6
A7D31
C35
ECMB135
B136 B :
B134 A :
C :
1
4
B83
B2 D25
B137D :
EN-02321
: LHD
: RHD34
12
56
B21
B134
B135
F60
B83
B47T6
B1361
23456
F2
2143
LHD : 5
RHD : 4
LHD : 1
RHD : 1*1
*2
BATTERY
B100F2 14LHD
RHD
LHD
RHD LHD
RHD
LHD
RHD 4
6
E
B100
F2
F60
E3
20 3
RHD
LHD
RHD
: LHD
B21: RHD
LHD
: LHDE2
: RHD
B18
B122
B137
2345 678911 12 13 14 17 18 19 201101516
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
12345678
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
123
4
56
78
9
1011 12
1314 15 16
1234
4
22
T5
B18
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31

EN(H4DOTC)-93
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK INPUT SIGNAL FROM ECM.
1) Turn the ignition switch to OFF.
2) Measure the voltage between ECM con-
nector and chassis ground.
Connector & terminal
(B135) No. 2 (+) — Chassis ground (
−):Is the voltage more than 8 V? Go to step 2.Go to step 3.
2 CHECK CURRENT DATA.
1) Repair battery short circuit in harness
between ECM and rear oxygen sensor con-
nector.
2) Turn the ignition switch to ON.
3) Read the data of rear oxygen (A/F) sensor
heater current using Subaru Select Monitor or
OBD-II general scan tool.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”. 33, Subaru Select Monitor.>
 OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the current more than 7 A? Replace the ECM.
FU(H4DOTC)-50,
Engine Control
Module (ECM).>END.
3 CHECK POOR CONTACT.
Check poor contact in ECM connector.Is there poor contact in ECM
connector?Repair the poor
contact in ECM
connector.END.

EN(H4DOTC)-94
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
H: DTC P0068 MANIFOLD PRESSURE SENSOR RANGE/PERFORMANCE
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Failure of engine to start
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .

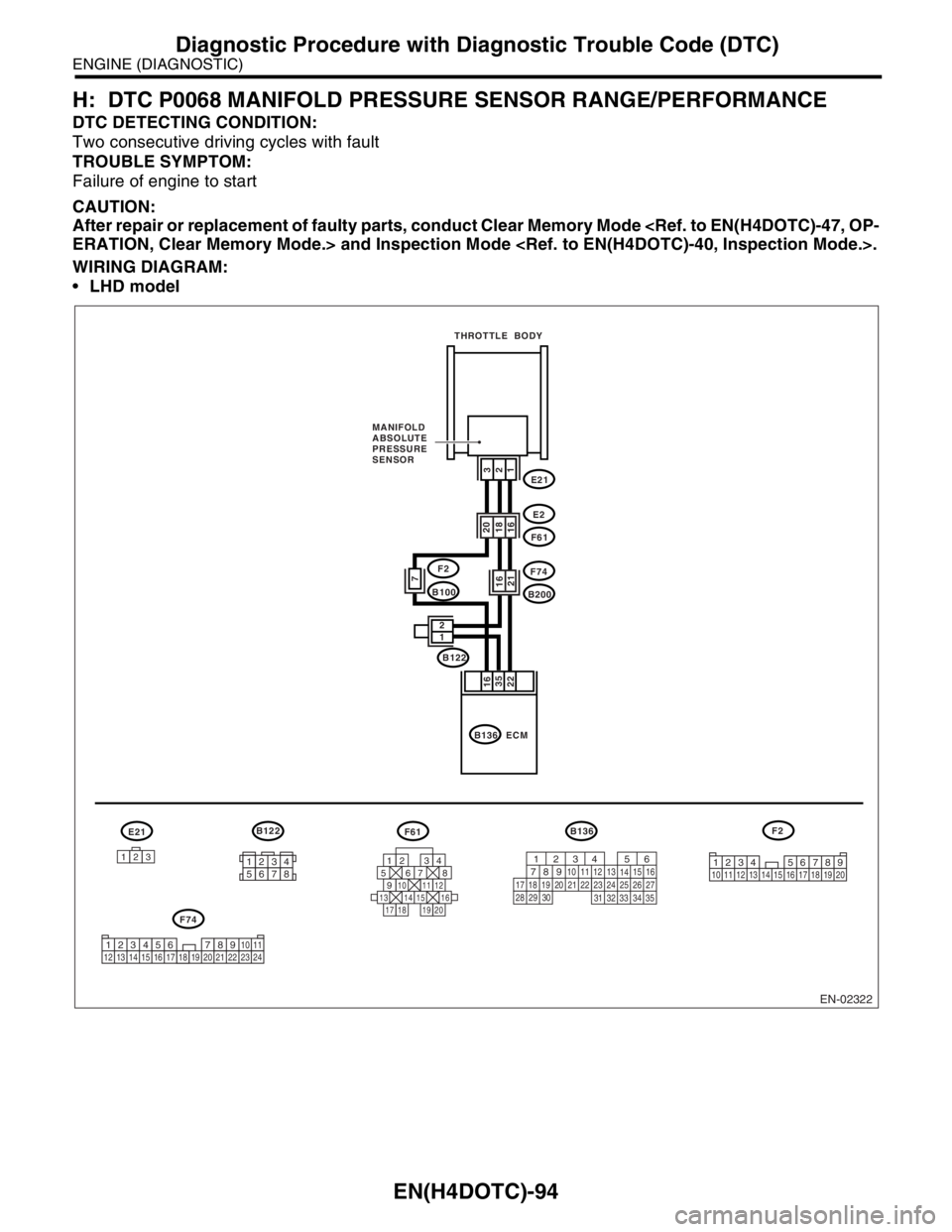

WIRING DIAGRAM:
LHD model
EN-02322
B122 MANIFOLD
ABSOLUTE
PRESSURE
SENSORTHROTTLE BODY
2 3
1 16
35
22
ECMB136
E21
E2
F61
2
118 20
16
F74
B20016
21
123
F61E21
1
25678
131415169101112
34
17181920
B136F2B122
F74
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
34
12 8910 11
12 13 14 15 16 17 18 19 20 21 22 23 2456 7
123456781234 5678910 11 12 13 14 15 16 17 18 19 20
F2
B1007

EN(H4DOTC)-95
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)

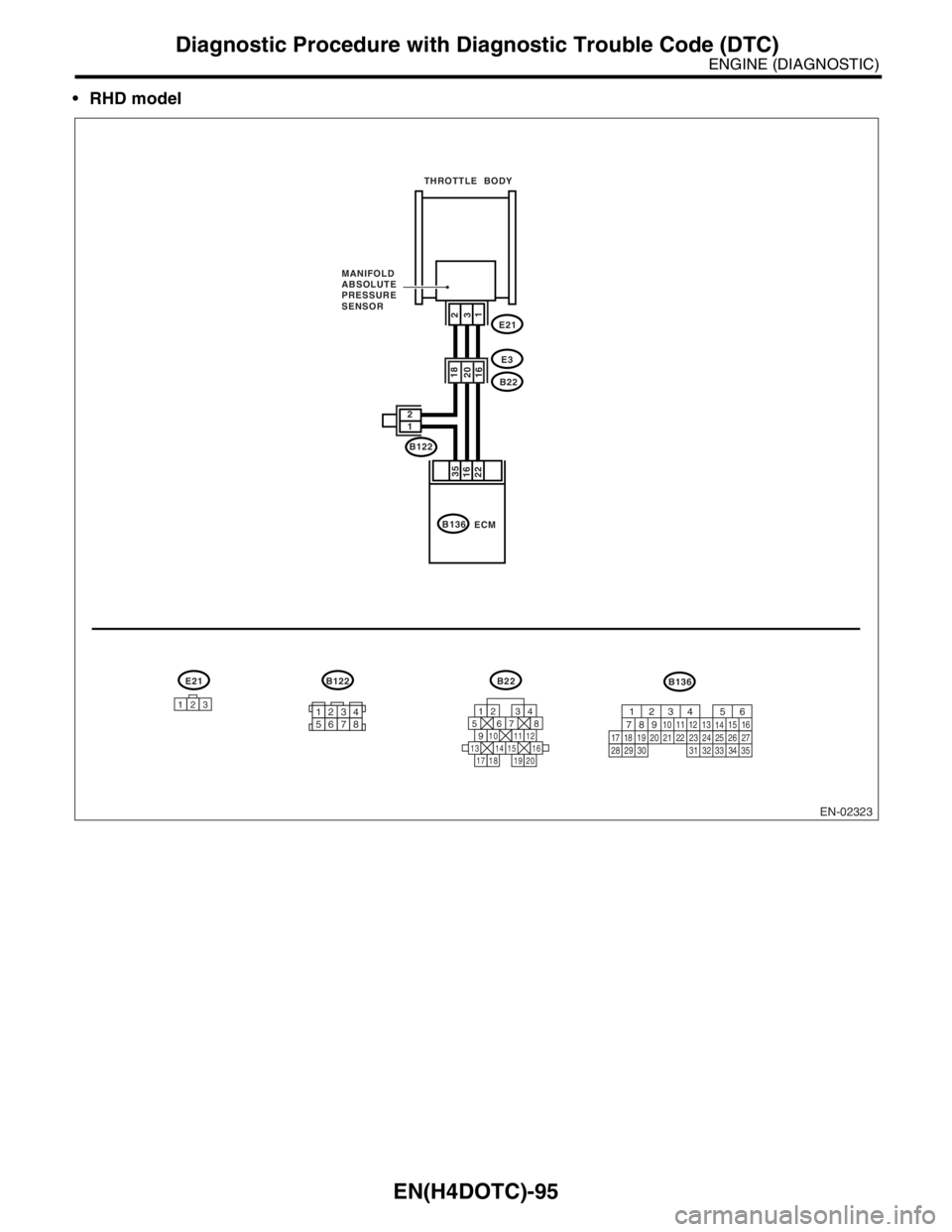

RHD model
EN-02323
B122
MANIFOLD
ABSOLUTE
PRESSURE
SENSORTHROTTLE BODY
3 2
1 35
16
22
ECMB136
E21
E3
B22
2
120 18
16
123
B122B22E21
1
25678
131415169101112
34
17181920
B136
1234567856
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35

EN(H4DOTC)-96
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK IDLE SWITCH SIGNAL.
1) Turn the ignition switch to ON.
2) Operate the LED operation mode for
engine using Subaru Select Monitor.
N
OTE:
 Subaru Select Monitor
For detailed operation procedure, refer to the
“LED OPERATION MODE FOR ENGINE”.
itor.>Does the LED of {Idle Switch
Signal} come on?Go to step 2.Check the throttle
position sensor cir-
cuit. EN(H4DOTC)-
122, DTC P0121
THROTTLE/
PEDAL POSI-
TION SENSOR/
SWITCH “A” CIR-
CUIT RANGE/
PERFORMANCE,
Diagnostic Proce-
dure with Diagnos-
tic Trouble Code
(DTC).>
N
OTE:
In this case, it is
not necessary to
inspect DTC
P0106.
2 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check related
DTC.“List of Diag-
nostic Trouble
Code (DTC)” to EN(H4DOTC)-
74, List of Diag-
nostic Trouble
Code (DTC).>
NOTE:
In this case, it is
not necessary to
inspect DTC
P0106.Go to step 3.
3 CHECK MANIFOLD ABSOLUTE PRESSURE
SENSOR CONDITION.Is the manifold absolute pres-
sure sensor installation bolt
tightened securely?Go to step 4.Tighten manifold
absolute pressure
sensor installation
bolt securely.
4 CHECK CONDITION OF THROTTLE BODY.Is the throttle body installation
bolt tightened securely?Replace the mani-
fold absolute pres-
sure sensor. to FU(H4DOTC)-
36, Manifold Abso-
lute Pressure Sen-
sor.>Tighten throttle
body installation
bolt securely.

EN(H4DOTC)-97
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
I: DTC P0101 MASS OR VOLUME AIR FLOW CIRCUIT RANGE/PERFOR-
MANCE
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
 Erroneous idling
 Engine stalls.
 Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode ERATION, Clear Memory Mode.> and Inspection Mode .

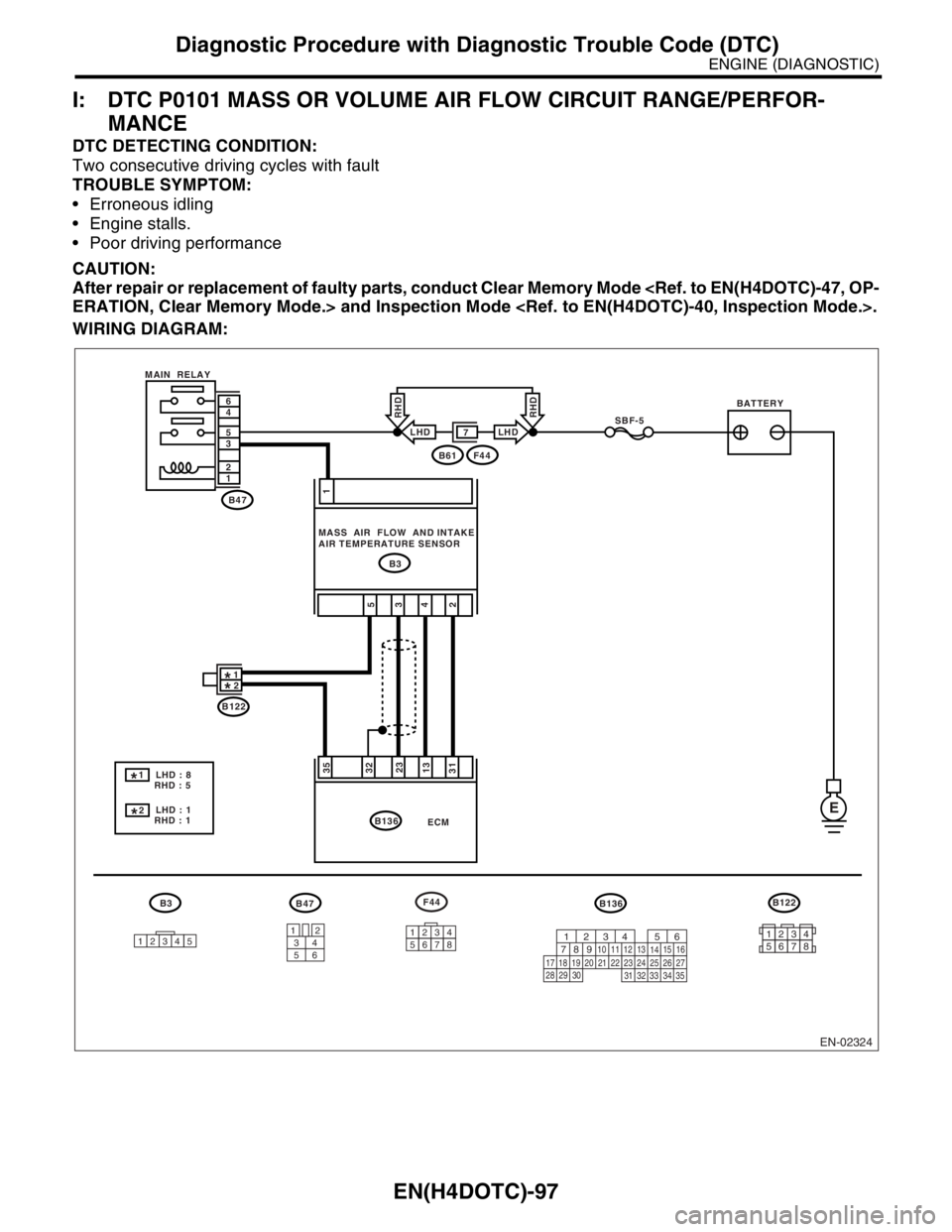

WIRING DIAGRAM:
EN-02324
B122B3
BATTERY
E
B61F44
7LHD
RHD
LHD
RHD
1
B3
MASS AIR FLOW AND INTAKE
AIR TEMPERATURE SENSOR
ECMB136
SBF-5
123453412
56
B47 1
2
*
*
2 4 3 5
311323 3532LHD : 8
RHD : 5
LHD : 1
RHD : 1*1
*2
F44
12345678
MAIN RELAY
B47 1 2 3 5 4 6
12345678
B136 B122
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
