SUBARU IMPREZA 2017 5.G Navigation Manual

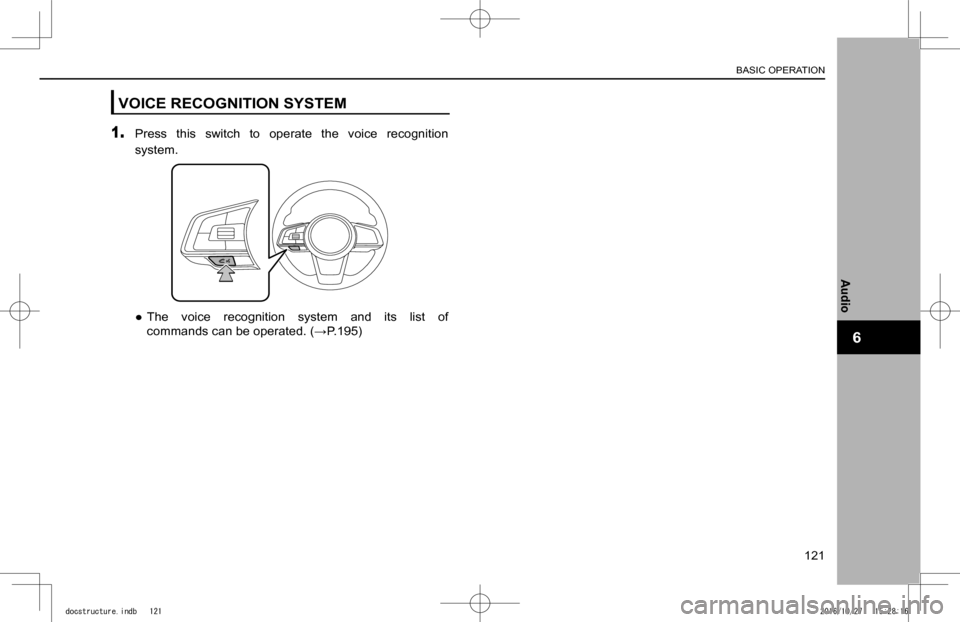

VOICE RECOGNITION SYSTEM
1. Press this switch to operate the voice recognition
system.

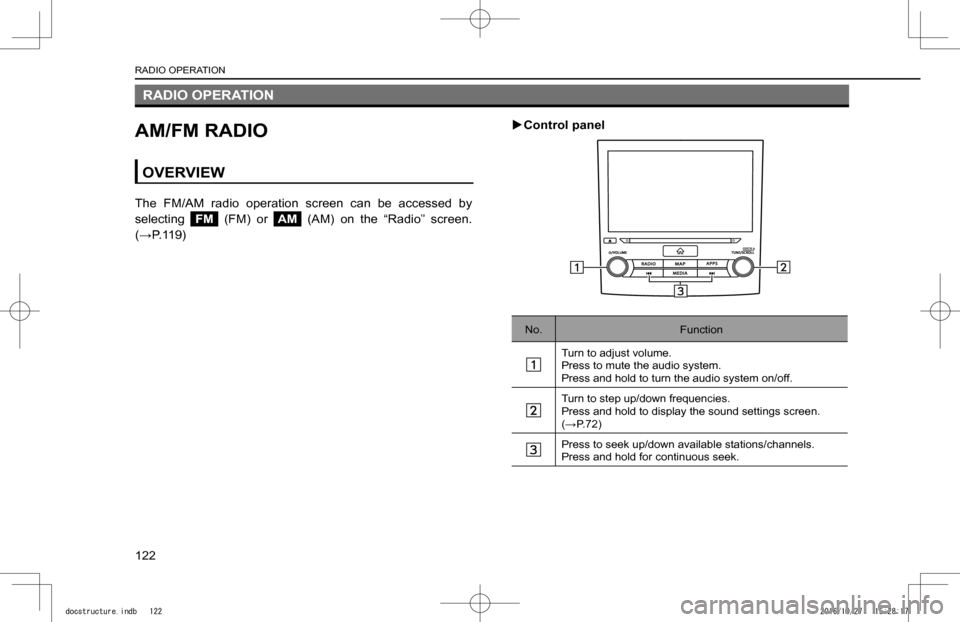

RADIO OPERATION
AM/FM RADIO
OVERVIEW
The FM/AM radio operation screen can be accessed by
selecting FM (FM) or AM (AM) on the “Radio” screen.
(
WP.119)
XControl panel
No.Function
Turn to adjust volume.Press to mute the audio system.Press and hold to turn the audio system on/off.
Turn to step up/down frequencies.Press and hold to display the sound settings screen. (
WP.72)
Press to seek up/down available stations/channels.Press and hold for continuous seek.
RADIO OPERATION
122
docstructure.indb 1222016/10/27 15:28:17

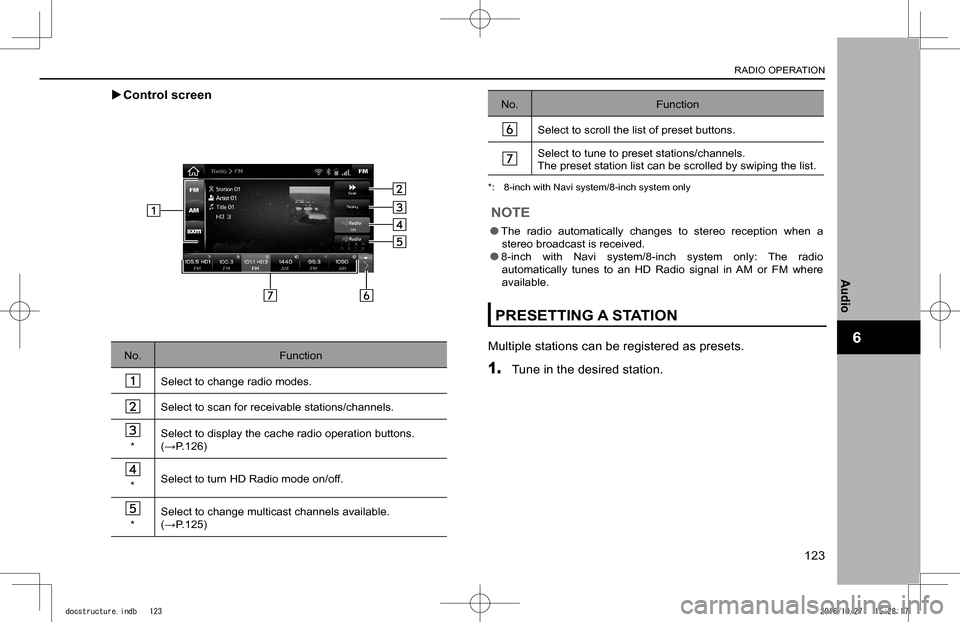

XControl screen
No.Function
Select to change radio modes.
Select to scan for receivable stations/channels.
*Select to display the cache radio operation buttons. (
WP.126)
*Select to turn HD Radio mode on/off.
*Select to change multicast channels available. (
WP.125)
No.Function
Select to scroll the list of preset buttons.
Select to tune to preset stations/channels.The preset station list can be scrolled by swiping the list.
*: 8-inch with Navi system/8-inch system only
NOTE
lThe radio automatically changes to stereo reception when a stereo broadcast is received. l8-inch with Navi system/8-inch system only: The radio automatically tunes to an HD Radio signal in AM or FM where available.
PRESETTING A STATION
Multiple stations can be registered as presets.
1. Tune in the desired station.
RADIO OPERATION
123
Audio
6
docstructure.indb 1232016/10/27 15:28:17

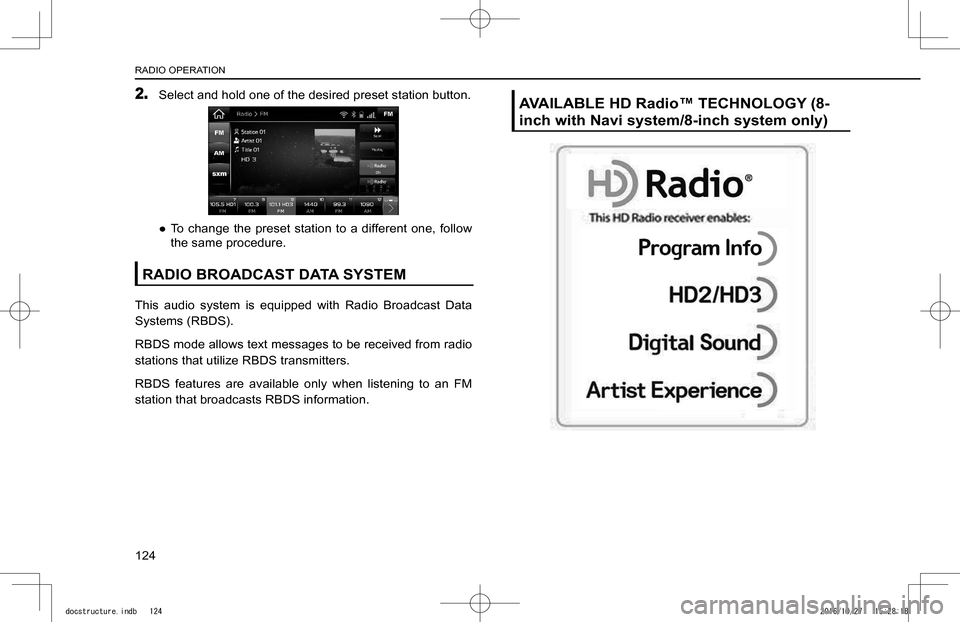

2. Select and hold one of the desired preset station button.

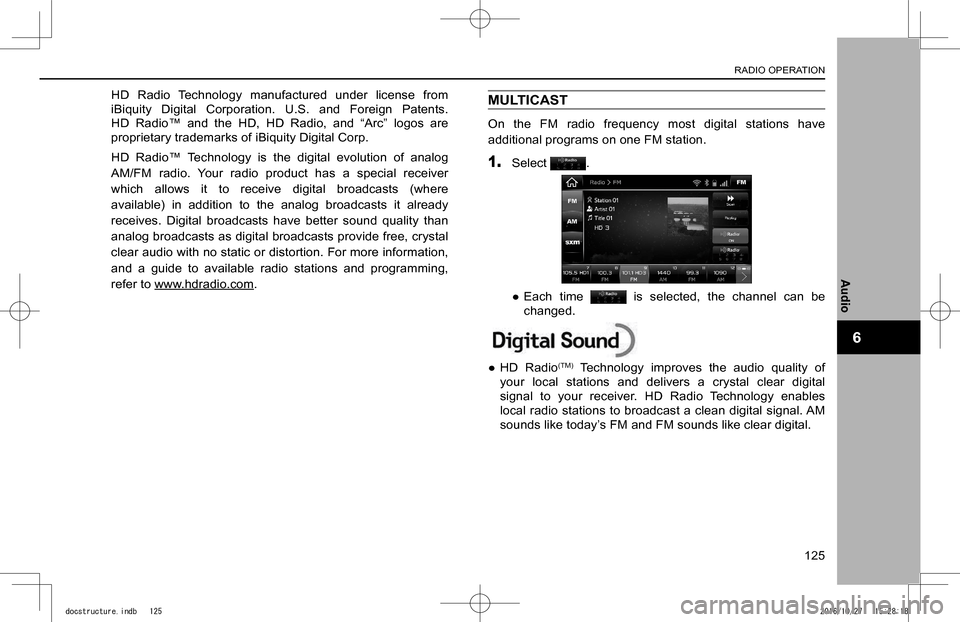

HD Radio Technology manufactured under license from
iBiquity Digital Corporation. U.S. and Foreign Patents.
HD Radio™ and the HD, HD Radio, and “Arc” logos are
proprietary trademarks of iBiquity Digital Corp.
HD Radio™ Technology is the digital evolution of analog
AM/FM radio. Your radio product has a special receiver
which allows it to receive digital broadcasts (where
available) in addition to the analog broadcasts it already
receives. Digital broadcasts have better sound quality than
analog broadcasts as digital broadcasts provide free, crystal
clear audio with no static or distortion. For more information,
and a guide to available radio stations and programming,
refer to www.hdradio.com.
MULTICAST
On the FM radio frequency most digital stations have
additional programs on one FM station.
1. Select .

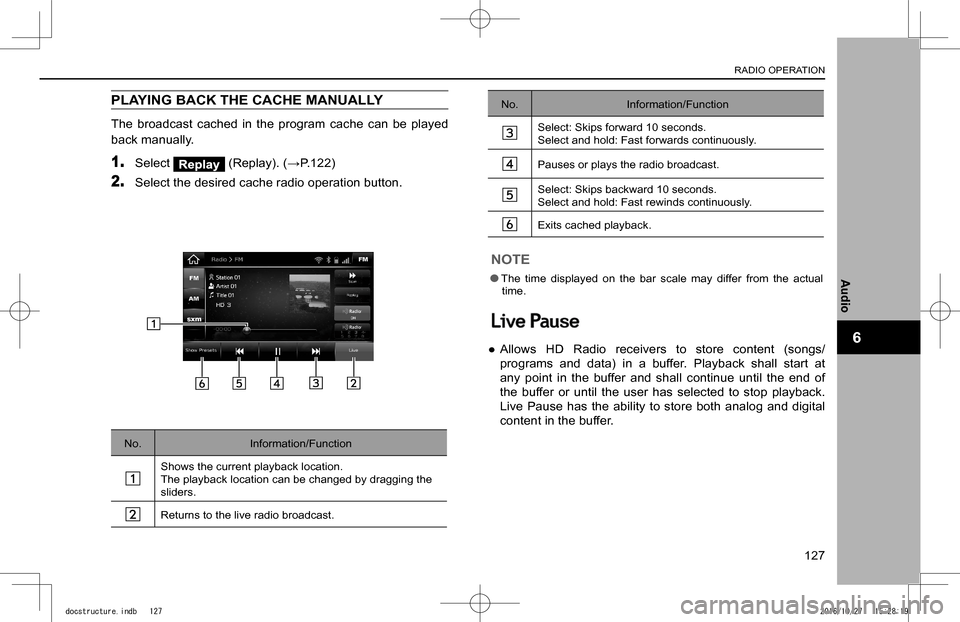

PLAYING BACK THE CACHE MANUALLY
The broadcast cached in the program cache can be played
back manually.
1. Select (Replay). (
WP.122)
2. Select the desired cache radio operation button.
No.Information/Function
Shows the current playback location.The playback location can be changed by dragging the sliders.
Returns to the live radio broadcast.
No.Information/Function
Select: Skips forward 10 seconds.Select and hold: Fast forwards continuously.
Pauses or plays the radio broadcast.
Select: Skips backward 10 seconds.Select and hold: Fast rewinds continuously.
Exits cached playback.
NOTE
lThe time displayed on the bar scale may differ from the actual time.

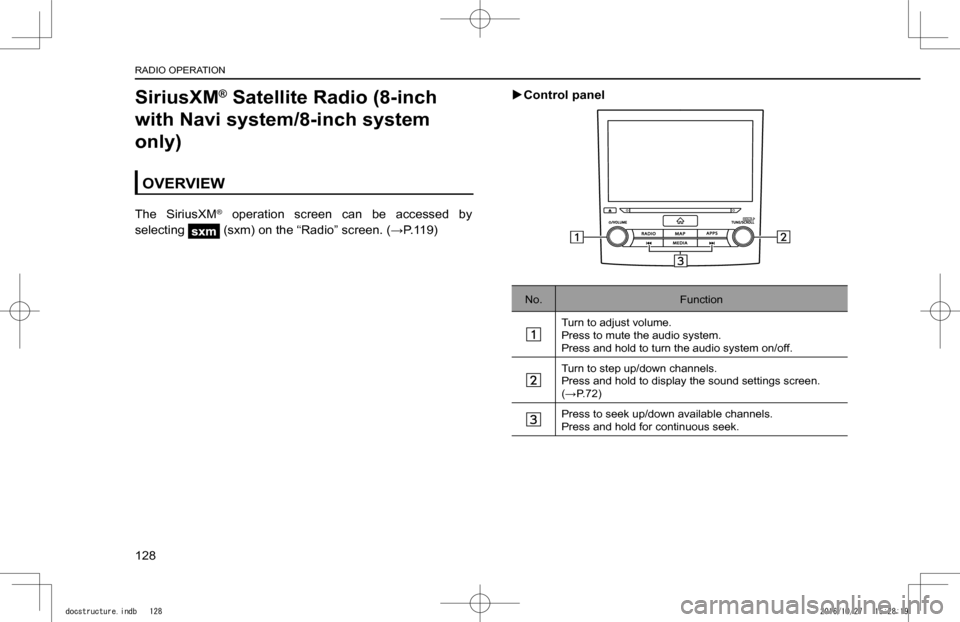

SiriusXM® Satellite Radio (8-inch
with Navi system/8-inch system
only)
OVERVIEW
The SiriusXM® operation screen can be accessed by
selecting (sxm) on the “Radio” screen. (
WP.119)
XControl panel
No.Function
Turn to adjust volume.Press to mute the audio system.Press and hold to turn the audio system on/off.
Turn to step up/down channels.Press and hold to display the sound settings screen. (
WP.72)
Press to seek up/down available channels.Press and hold for continuous seek.
RADIO OPERATION
128
docstructure.indb 1282016/10/27 15:28:19

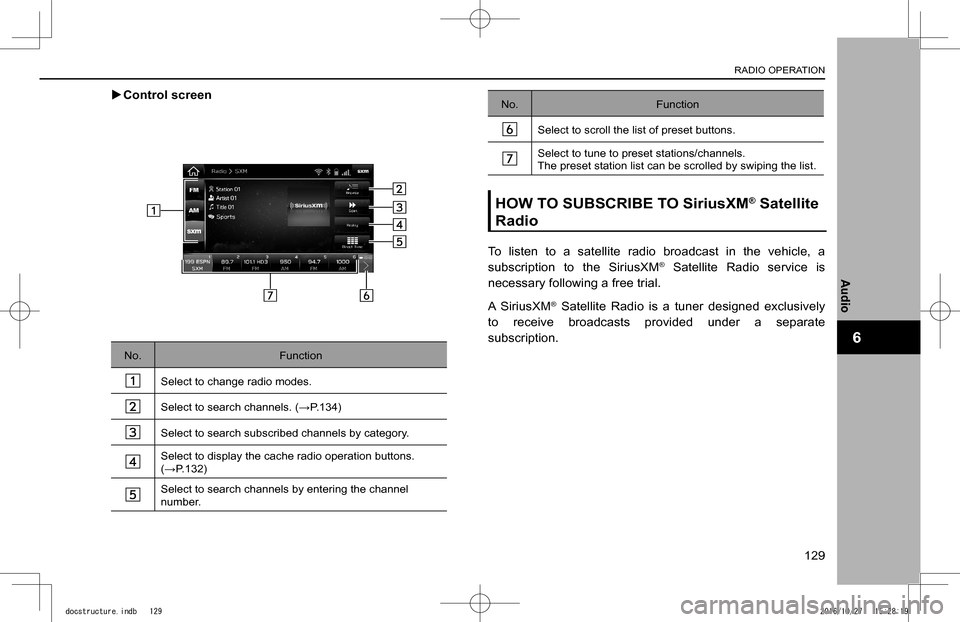

XControl screen
No.Function
Select to change radio modes.
Select to search channels. (
WP.134)
Select to search subscribed channels by category.
Select to display the cache radio operation buttons. (
WP.132)
Select to search channels by entering the channel number.
No.Function
Select to scroll the list of preset buttons.
Select to tune to preset stations/channels.The preset station list can be scrolled by swiping the list.
HOW TO SUBSCRIBE TO SiriusXM® Satellite
Radio
To listen to a satellite radio broadcast in the vehicle, a
subscription to the SiriusXM® Satellite Radio service is
necessary following a free trial.
A SiriusXM® Satellite Radio is a tuner designed exclusively
to receive broadcasts provided under a separate
subscription.
RADIO OPERATION
129
Audio
6
docstructure.indb 1292016/10/27 15:28:19

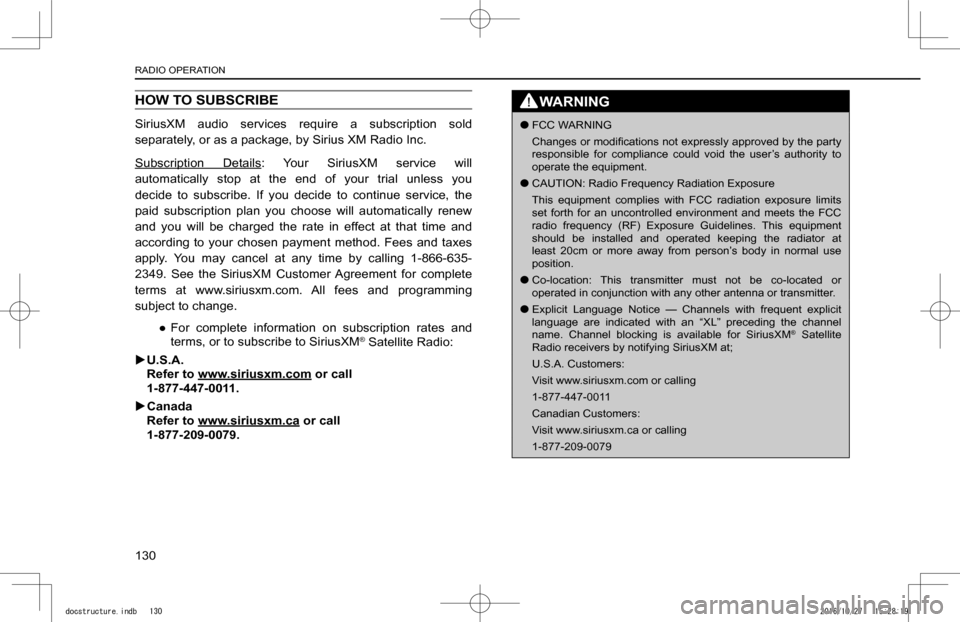

HOW TO SUBSCRIBE
SiriusXM audio services require a subscription sold
separately, or as a package, by Sirius XM Radio Inc.
Subscription Details: Your SiriusXM service will
automatically stop at the end of your trial unless you
decide to subscribe. If you decide to continue service, the
paid subscription plan you choose will automatically renew
and you will be charged the rate in effect at that time and
according to your chosen payment method. Fees and taxes
apply. You may cancel at any time by calling 1-866-635-
2349. See the SiriusXM Customer Agreement for complete
terms at www.siriusxm.com. All fees and programming
subject to change.
