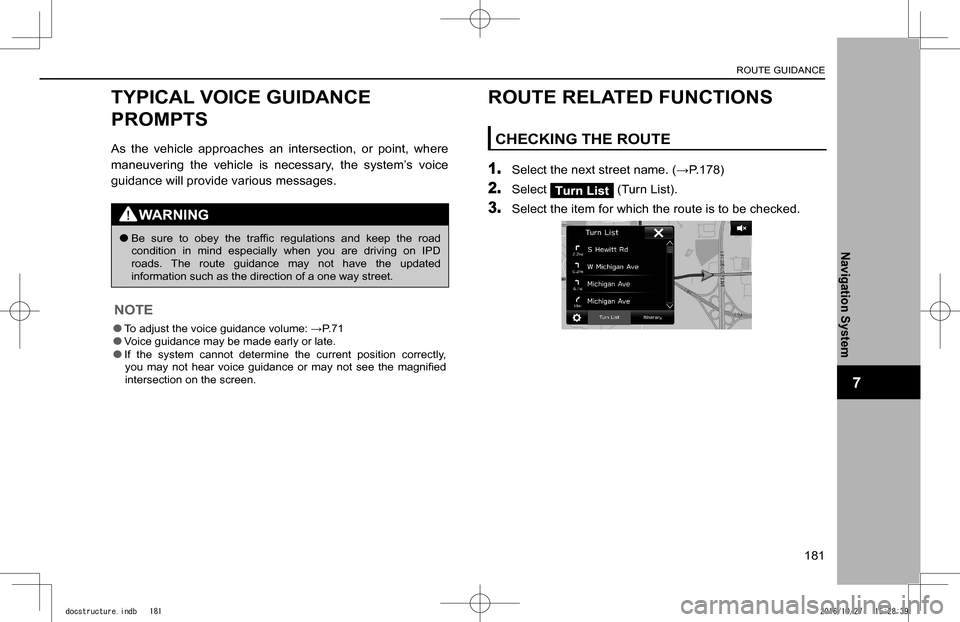

TYPICAL VOICE GUIDANCE
PROMPTS
As the vehicle approaches an intersection, or point, where
maneuvering the vehicle is necessary, the system’s voice
guidance will provide various messages.
WARNING
lBe sure to obey the traf

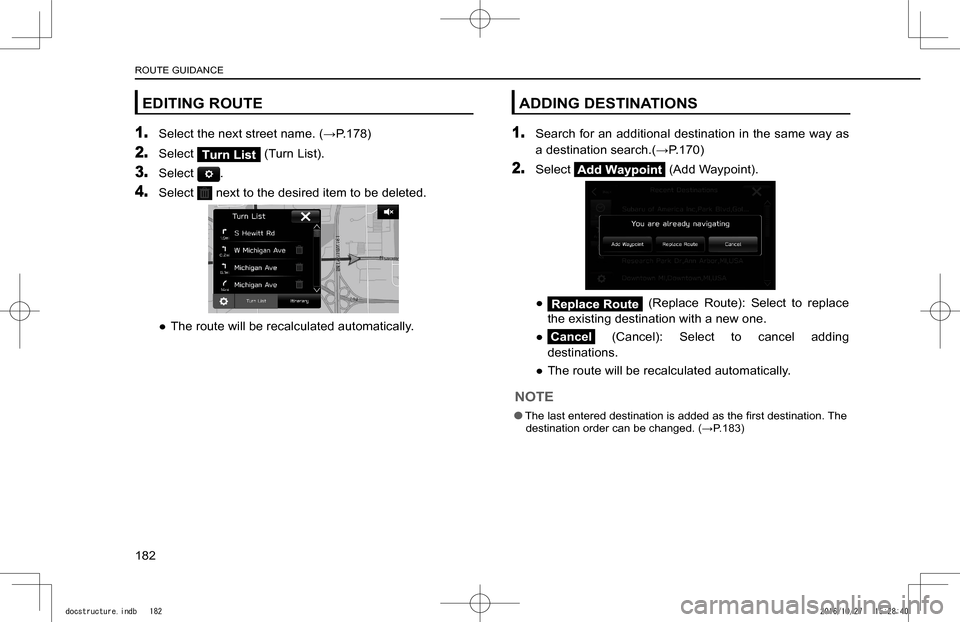

EDITING ROUTE
1. Select the next street name. (
WP.178)
2. Select (Turn List).
3. Select .
4. Select next to the desired item to be deleted.

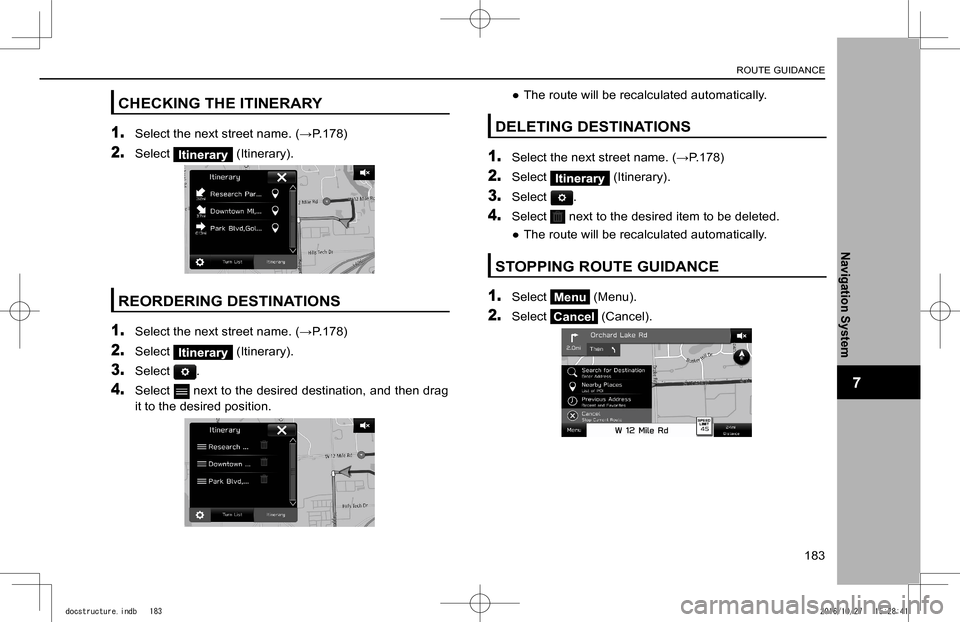

CHECKING THE ITINERARY
1. Select the next street name. (
WP.178)
2. Select (Itinerary).
REORDERING DESTINATIONS
1. Select the next street name. (
WP.178)
2. Select (Itinerary).
3. Select .
4. Select next to the desired destination, and then drag
it to the desired position.

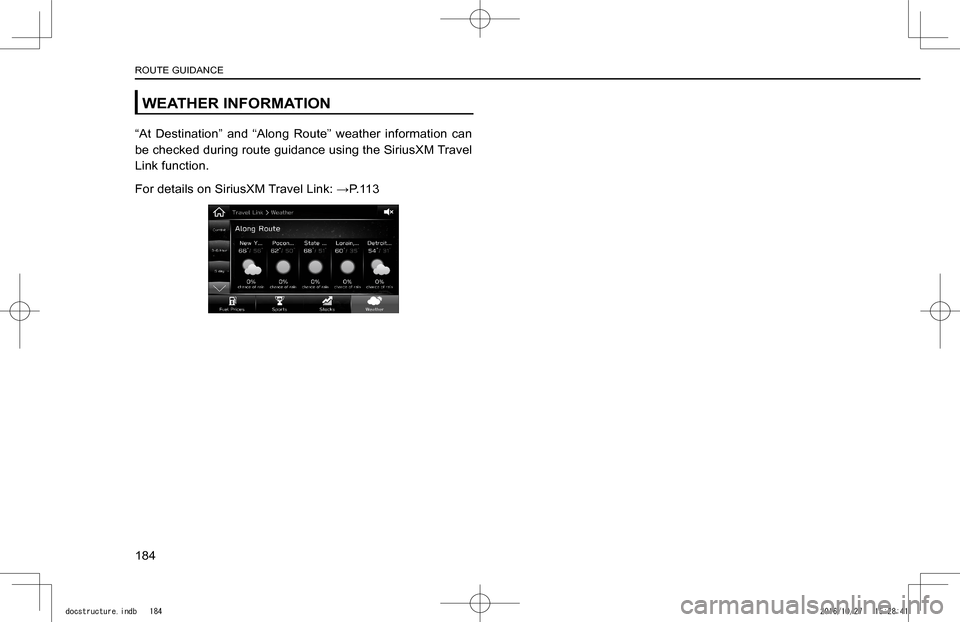

WEATHER INFORMATION
“At Destination” and “Along Route” weather information can
be checked during route guidance using the SiriusXM Travel
Link function.
For details on SiriusXM Travel Link:
WP.113
ROUTE GUIDANCE
184
docstructure.indb 1842016/10/27 15:28:41

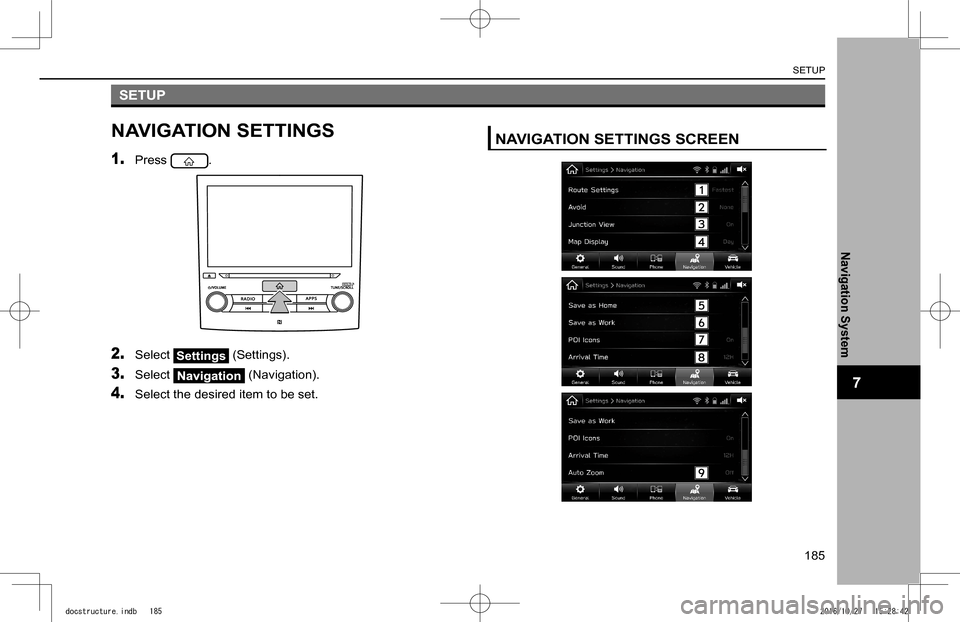

SETUP
NAVIGATION SETTINGS
1. Press .
2. Select Settings (Settings).
3. Select (Navigation).
4. Select the desired item to be set.
NAVIGATION SETTINGS SCREEN
SETUP
185
Navigation System
7
docstructure.indb 1852016/10/27 15:28:42

SETUP
186

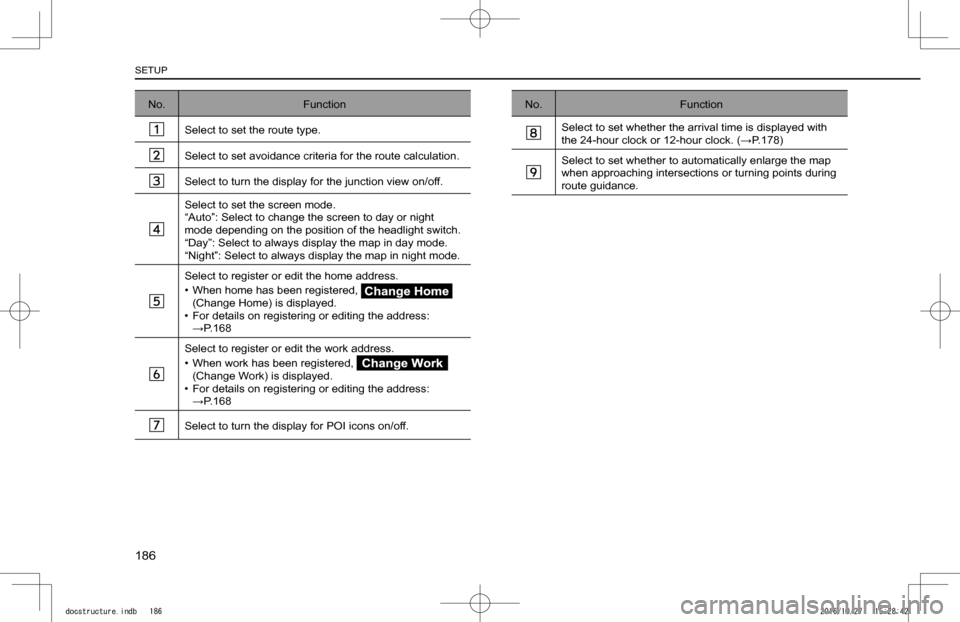

No.Function
Select to set the route type.
Select to set avoidance criteria for the route calculation.
Select to turn the display for the junction view on/off.
Select to set the screen mode.“Auto”: Select to change the screen to day or night mode depending on the position of the headlight switch.“Day”: Select to always display the map in day mode.“Night”: Select to always display the map in night mode.
Select to register or edit the home address.
• When home has been registered, (Change Home) is displayed.• For details on registering or editing the address:
WP.168
Select to register or edit the work address.
• When work has been registered, (Change Work) is displayed.• For details on registering or editing the address:
WP.168
Select to turn the display for POI icons on/off.
No.Function
Select to set whether the arrival time is displayed with the 24-hour clock or 12-hour clock. (
WP.178)
Select to set whether to automatically enlarge the map when approaching intersections or turning points during route guidance.
docstructure.indb 1862016/10/27 15:28:42

TIPS FOR THE NAVIGATION SYSTEM
187
Navigation System
7
TIPS FOR THE NAVIGATION SYSTEM
GPS (GLOBAL POSITIONING
SYSTEM)
REGARDING ERRORS IN CURRENT
POSITION DISPLAY
The system displays the vehicle current position based on
GPS information and data from various sensors and road
maps. However, when the radiowave signals from GPS
satellites are weak or when signals are received from only
two satellites or less, errors may occur in the position.
Modifying or adjusting the system will not prevent these
errors.
LIMITATIONS OF THE NAVIGATION SYSTEM
This navigation system calculates the current position using
satellite signals, various vehicle signals, map data, etc.
However, an accurate position may not be shown depending
on satellite conditions, road con

TIPS FOR THE NAVIGATION SYSTEM
188

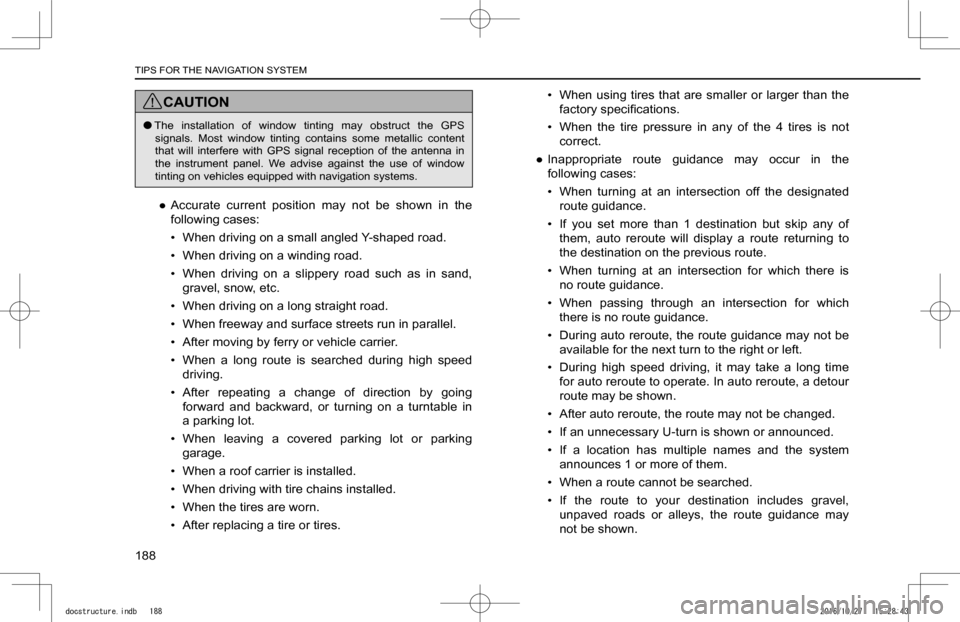

CAUTION
lThe installation of window tinting may obstruct the GPS signals. Most window tinting contains some metallic content that will interfere with GPS signal reception of the antenna in the instrument panel. We advise against the use of window tinting on vehicles equipped with navigation systems.

TIPS FOR THE NAVIGATION SYSTEM
189
Navigation System
7

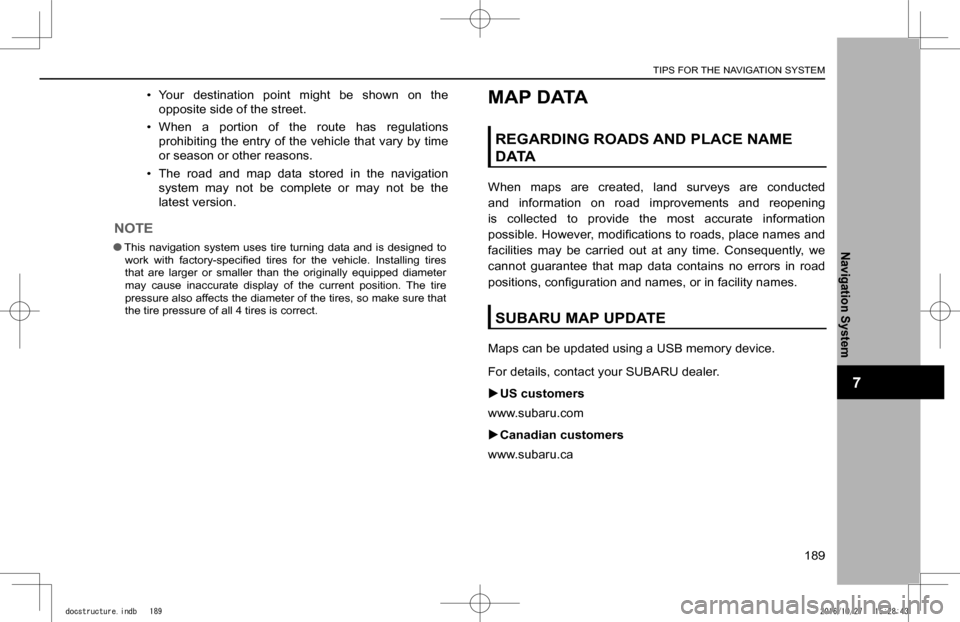

• Your destination point might be shown on the
opposite side of the street.
• When a portion of the route has regulations
prohibiting the entry of the vehicle that vary by time
or season or other reasons.
• The road and map data stored in the navigation
system may not be complete or may not be the
latest version.
NOTE
lThis navigation system uses tire turning data and is designed to work with factory-speci

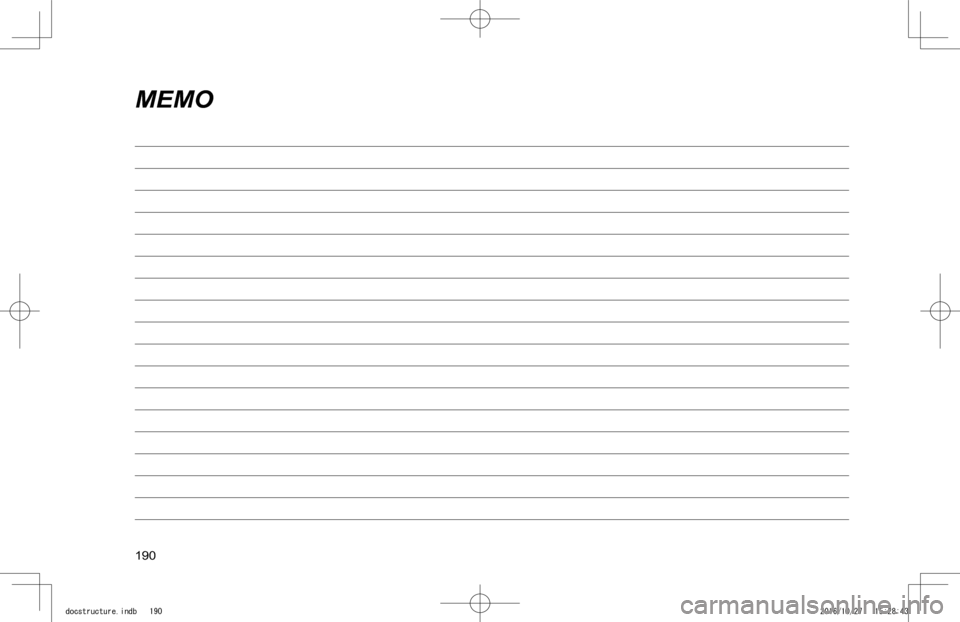

MEMO
