SUBARU IMPREZA 2017 5.G Navigation Manual

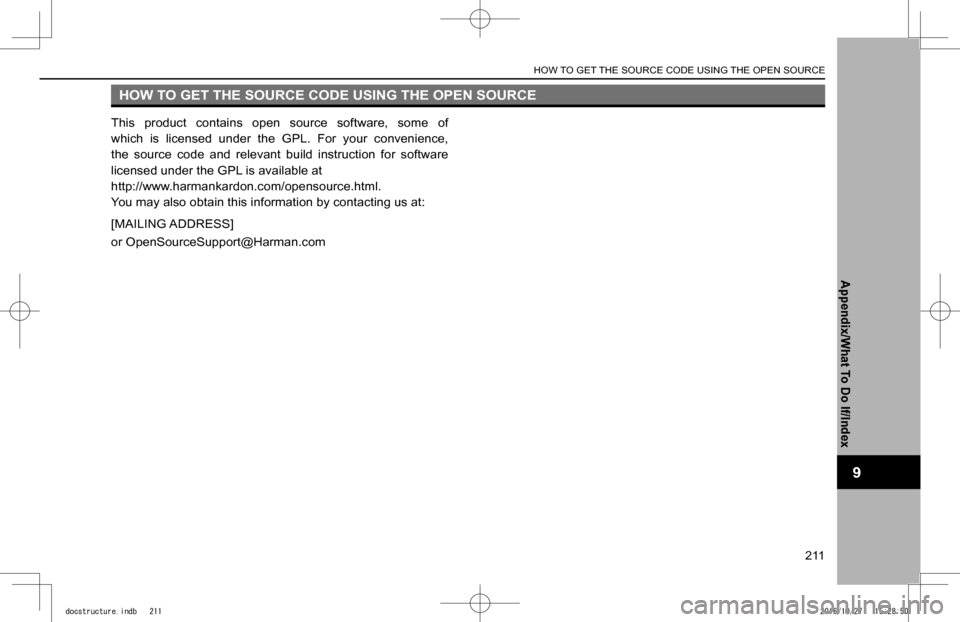

HOW TO GET THE SOURCE CODE USING THE OPEN SOURCE
This product contains open source software, some of
which is licensed under the GPL. For your convenience,
the source code and relevant build instruction for software
licensed under the GPL is available at
http://www.harmankardon.com/opensource.html.
You may also obtain this information by contacting us at:
[MAILING ADDRESS]
or [email protected]
HOW TO GET THE SOURCE CODE USING THE OPEN SOURCE
211
Appendix/What To Do If/Index
9
docstructure.indb 2112016/10/27 15:28:50

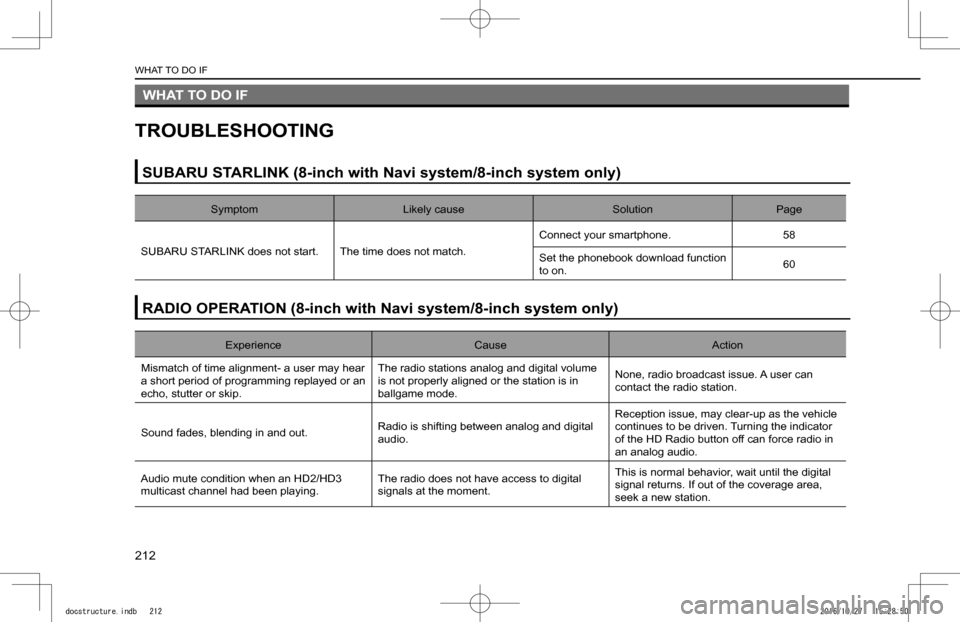

WHAT TO DO IF
TROUBLESHOOTING
SUBARU STARLINK (8-inch with Navi system/8-inch system only)
SymptomLikely causeSolutionPage
SUBARU STARLINK does not start. The time does not match.
Connect your smartphone.58
Set the phonebook download function to on.60
RADIO OPERATION (8-inch with Navi system/8-inch system only)
ExperienceCauseAction
Mismatch of time alignment- a user may hear a short period of programming replayed or an echo, stutter or skip.
The radio stations analog and digital volume is not properly aligned or the station is in ballgame mode.
None, radio broadcast issue. A user can contact the radio station.
Sound fades, blending in and out.Radio is shifting between analog and digital audio.
Reception issue, may clear-up as the vehicle continues to be driven. Turning the indicator of the HD Radio button off can force radio in an analog audio.
Audio mute condition when an HD2/HD3 multicast channel had been playing.The radio does not have access to digital signals at the moment.
This is normal behavior, wait until the digital signal returns. If out of the coverage area, seek a new station.
WHAT TO DO IF
212
docstructure.indb 2122016/10/27 15:28:50

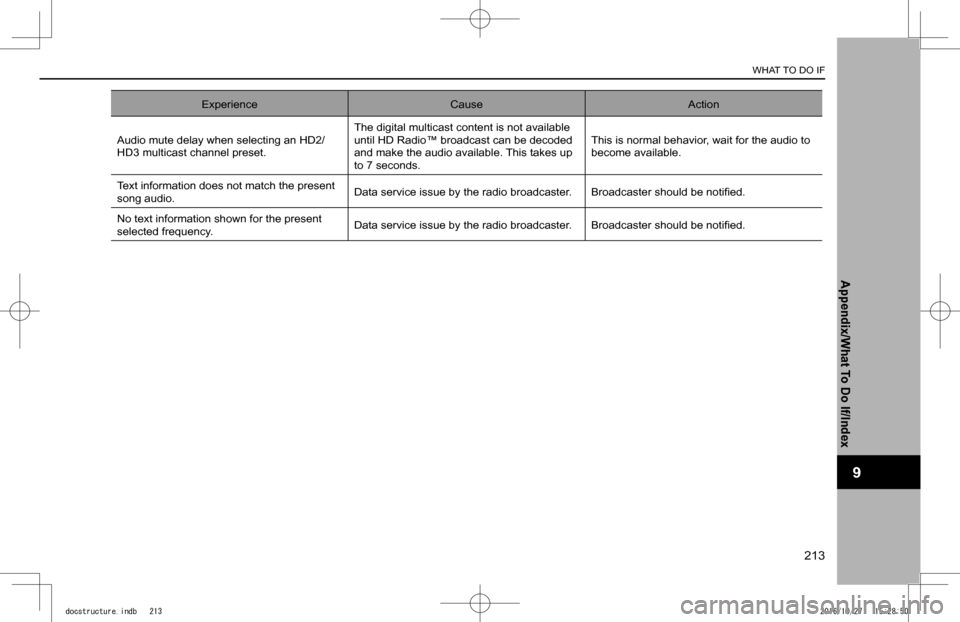

ExperienceCauseAction
Audio mute delay when selecting an HD2/HD3 multicast channel preset.
The digital multicast content is not available until HD Radio™ broadcast can be decoded and make the audio available. This takes up to 7 seconds.
This is normal behavior, wait for the audio to become available.
Text information does not match the present song audio.Data service issue by the radio broadcaster.Broadcaster should be noti

PHONE
If there is a problem with the hands-free system or a Bluetooth phone,

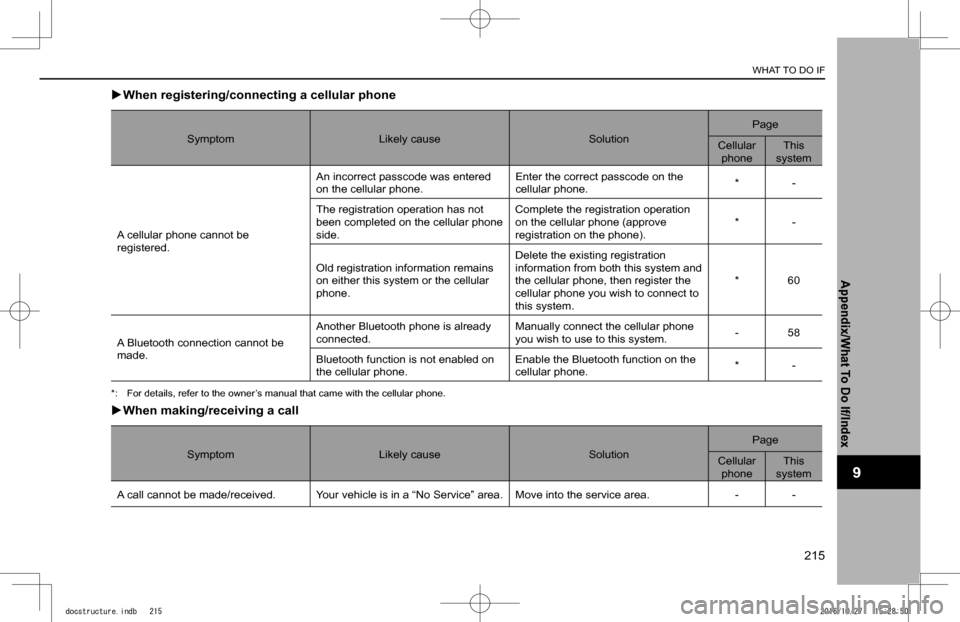

XWhen registering/connecting a cellular phone
SymptomLikely causeSolution
Page
Cellular phoneThis system
A cellular phone cannot be registered.
An incorrect passcode was entered on the cellular phone.Enter the correct passcode on the cellular phone.*-
The registration operation has not been completed on the cellular phone side.
Complete the registration operation on the cellular phone (approve registration on the phone).*-
Old registration information remains on either this system or the cellular phone.
Delete the existing registration information from both this system and the cellular phone, then register the cellular phone you wish to connect to this system.
* 60
A Bluetooth connection cannot be made.
Another Bluetooth phone is already connected.Manually connect the cellular phone you wish to use to this system.- 58
Bluetooth function is not enabled on the cellular phone.Enable the Bluetooth function on the cellular phone.*-
*: For details, refer to the owner’s manual that came with the cellular phone.
XWhen making/receiving a call
SymptomLikely causeSolution
Page
Cellular phoneThis system
A call cannot be made/received. Your vehicle is in a “No Service” area. Move into the service area.--
WHAT TO DO IF
215
Appendix/What To Do If/Index
9
docstructure.indb 2152016/10/27 15:28:50

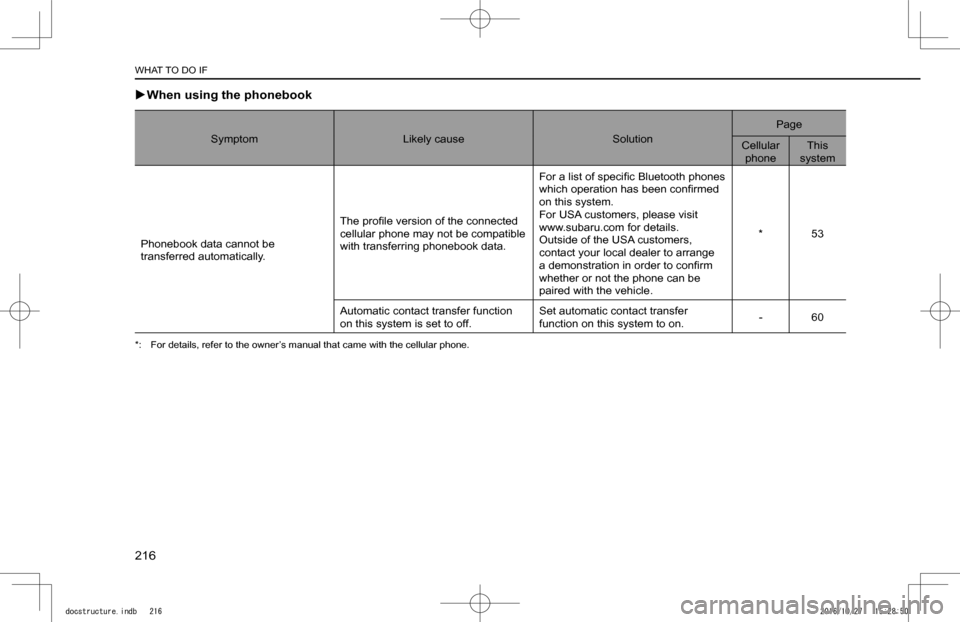

XWhen using the phonebook
SymptomLikely causeSolution
Page
Cellular phoneThis system
Phonebook data cannot be transferred automatically.
The pro

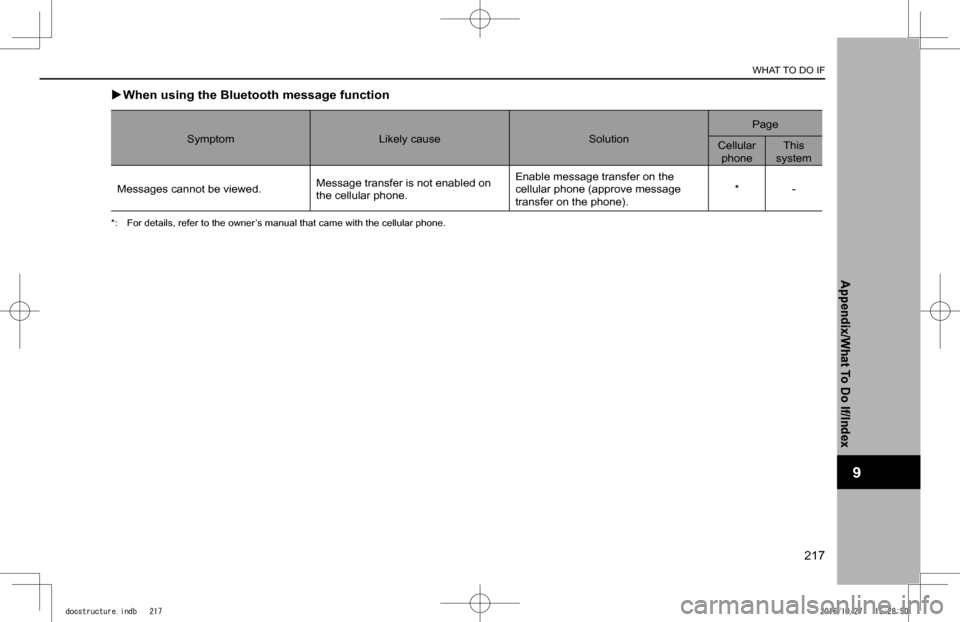

XWhen using the Bluetooth message function
SymptomLikely causeSolution
Page
Cellular phoneThis system
Messages cannot be viewed.Message transfer is not enabled on the cellular phone.
Enable message transfer on the cellular phone (approve message transfer on the phone).*-
*: For details, refer to the owner’s manual that came with the cellular phone.
WHAT TO DO IF
217
Appendix/What To Do If/Index
9
docstructure.indb 2172016/10/27 15:28:50

XIn other situations
SymptomLikely causeSolution
Page
Cellular phoneThis system
Even though all conceivable measures have been taken, the symptom status does not change.
The cellular phone is not close enough to this system.Bring the cellular phone closer to this system.--
The cellular phone is the most likely cause of the symptom.
Turn the cellular phone off, remove and reinstall the battery pack, and then restart the cellular phone.*-
Enable the cellular phone’s Bluetooth connection.*-
Stop the cellular phone’s security software and close all applications.*-
Before using an application installed on the cellular phone, carefully check its source and how its operation might affect this system.
*-
*: For details, refer to the owner’s manual that came with the cellular phone.
WHAT TO DO IF
218
docstructure.indb 2182016/10/27 15:28:50

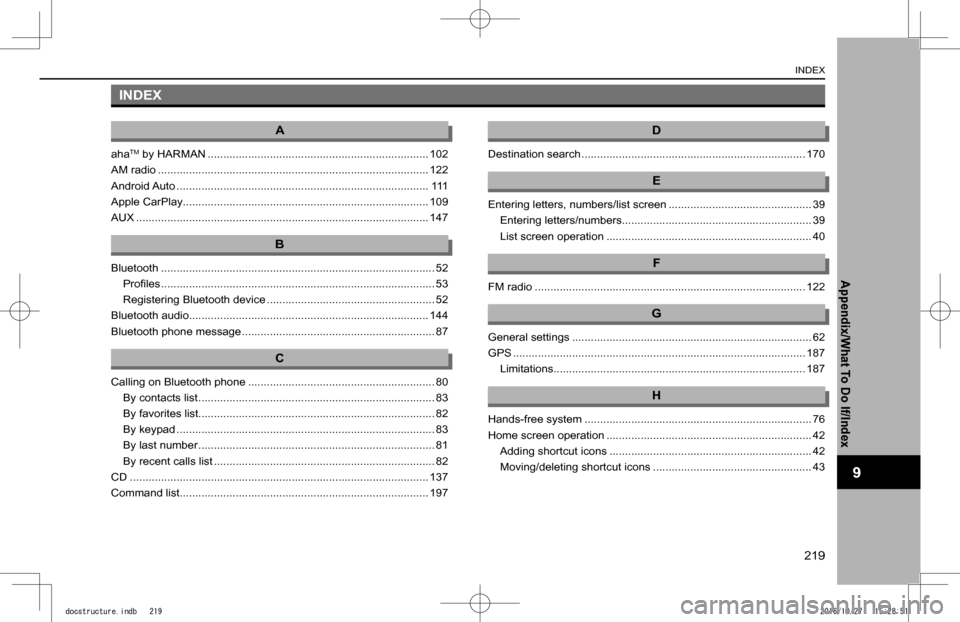

INDEX
A
ahaTM by HARMAN .......................................................................102
AM radio .......................................................................................122
Android Auto .................................................................................111
Apple CarPlay............................................................................... 109
AUX ..............................................................................................147
B
Bluetooth ........................................................................................52
Pro

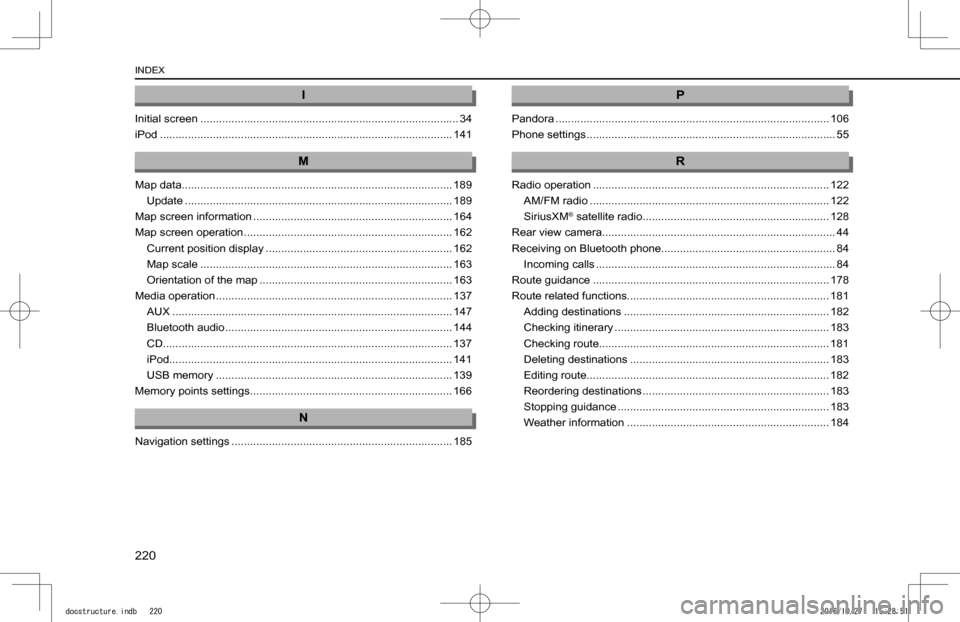

I
Initial screen ...................................................................................34
iPod ..............................................................................................141
M
Map data....................................................................................... 189
Update ......................................................................................189
Map screen information ................................................................164
Map screen operation ...................................................................162
Current position display ............................................................162
Map scale .................................................................................163
Orientation of the map ..............................................................163
Media operation ............................................................................137
AUX ..........................................................................................147
Bluetooth audio .........................................................................144
CD............................................................................................. 137
iPod........................................................................................... 141
USB memory ............................................................................139
Memory points settings................................................................. 166
N
Navigation settings .......................................................................185
P
Pandora ........................................................................................106
Phone settings ................................................................................55
R
Radio operation ............................................................................122
AM/FM radio .............................................................................122
SiriusXM® satellite radio ............................................................128
Rear view camera........................................................................... 44
Receiving on Bluetooth phone........................................................ 84
Incoming calls .............................................................................84
Route guidance ............................................................................178
Route related functions................................................................. 181
Adding destinations ..................................................................182
Checking itinerary .....................................................................183
Checking route.......................................................................... 181
Deleting destinations ................................................................183
Editing route.............................................................................. 182
Reordering destinations ............................................................183
Stopping guidance ....................................................................183
Weather information .................................................................184
INDEX
220
docstructure.indb 2202016/10/27 15:28:51
