SUBARU IMPREZA 2017 5.G Navigation Manual

BASIC FUNCTION
21
1
Quick Guide

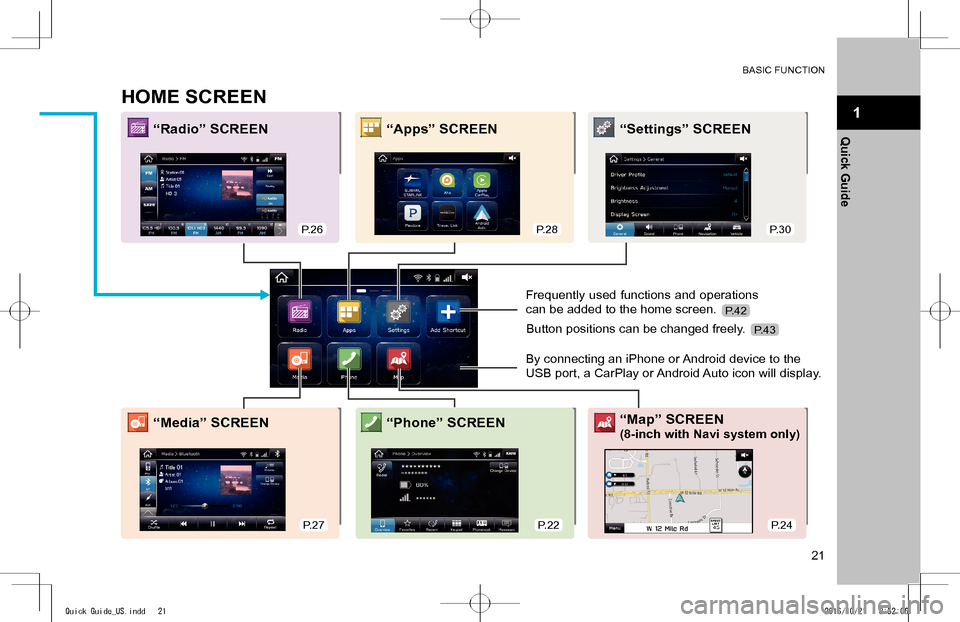

HOME SCREEN
“Radio” SCREEN“Apps” SCREEN“Settings” SCREEN
“Media” SCREEN“Map” SCREEN
(8-inch with Navi system only)“Phone” SCREEN
Frequently used functions and operations
can be added to the home screen.
By connecting an iPhone or Android device to the
USB port, a CarPlay or Android Auto icon will display.
Button positions can be changed freely.
P.26P.28P.30
P.27P.22P.24
P.42
P.43
Quick Guide_US.indd 212016/10/21 8:52:06

BASIC FUNCTION
22

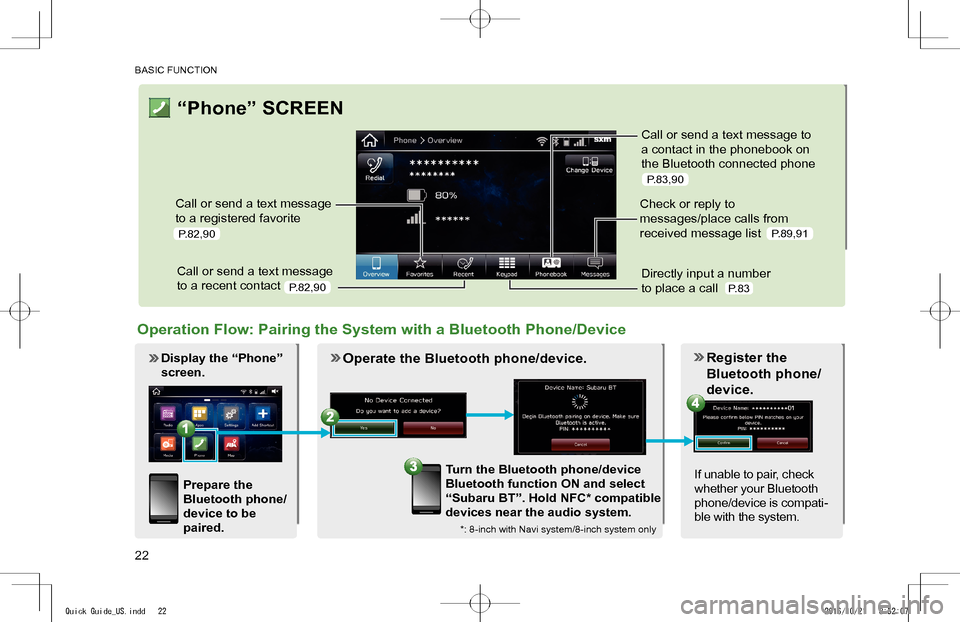

“Phone” SCREEN
Call or send a text message
to a registered favorite
Call or send a text message
to a recent contact
Call or send a text message to
a contact in the phonebook on
the Bluetooth connected phone
Check or reply to
messages/place calls from
received message list
Directly input a number
to place a call
Display the “Phone”
screen.
P.82,90
P.82,90
P.83,90
P.89,91
P.83
Operation Flow: Pairing the System with a Bluetooth Phone/Device
Prepare the
Bluetooth phone/
device to be
paired.
Operate the Bluetooth phone/device.
Turn the Bluetooth phone/device
Bluetooth function ON and select
“Subaru BT”. Hold NFC* compatible
devices near the audio system.
Register the
Bluetooth phone/
device.
If unable to pair, check
whether your Bluetooth
phone/device is compati-
ble with the system.*: 8-inch with Navi system/8-inch system only
Quick Guide_US.indd 222016/10/21 8:52:07

BASIC FUNCTION
23
1
Quick Guide

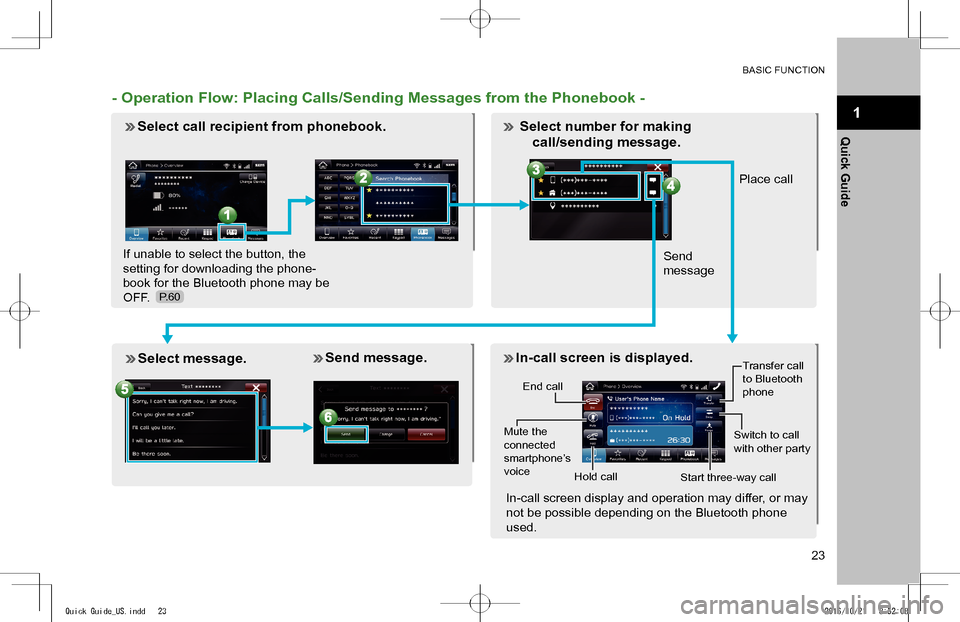

- Operation Flow: Placing Calls/Sending Messages from the Phonebook -
Select call recipient from phonebook.
If unable to select the button, the
setting for downloading the phone-
book for the Bluetooth phone may be
OFF.
Place call
Send
message
Select message. Send message. In-call screen is displayed.
End call
Mute the connected smartphone’s voice
Transfer call to Bluetooth phone
Hold call
Switch to call with other party
Start three-way call
In-call screen display and operation may differ, or may
not be possible depending on the Bluetooth phone
used.
P.60
Select number for making
call/sending message.
Quick Guide_US.indd 232016/10/21 8:52:08

BASIC FUNCTION
24

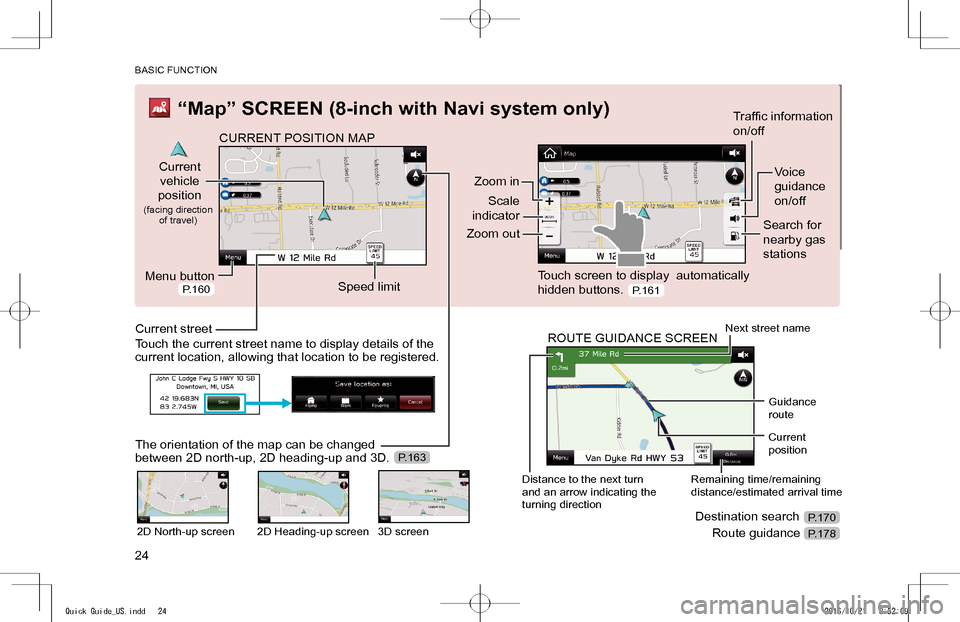

“Map” SCREEN (8-inch with Navi system only)
CURRENT POSITION MAP
Current
vehicle
position
(facing direction of travel)
Menu buttonSpeed limit
Zoom in
Scale
indicator
Zoom out
Traf

BASIC FUNCTION
25
1
Quick Guide

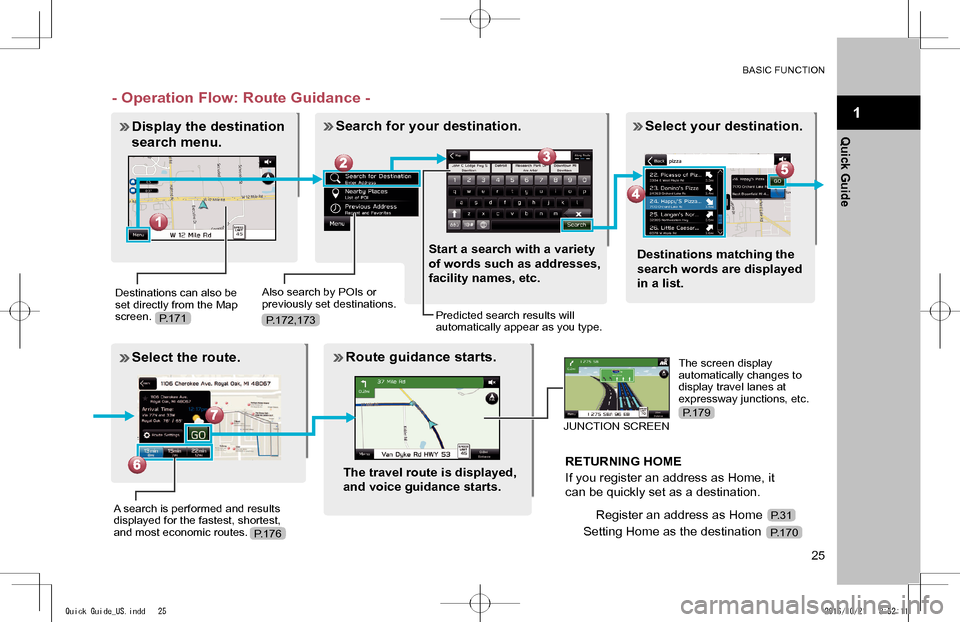

- Operation Flow: Route Guidance -
Display the destination
search menu.
Destinations can also be set directly from the Map screen.
Also search by POIs or previously set destinations.
Search for your destination.
Start a search with a variety
of words such as addresses,
facility names, etc.
Predicted search results will automatically appear as you type.
Select your destination.
Destinations matching the
search words are displayed
in a list.
Select the route.
A search is performed and results displayed for the fastest, shortest, and most economic routes.
Route guidance starts.
The travel route is displayed,
and voice guidance starts.
The screen display automatically changes to display travel lanes at expressway junctions, etc.
JUNCTION SCREEN
RETURNING HOME
If you register an address as Home, it
can be quickly set as a destination.
Register an address as Home
Setting Home as the destinationP.176
P.171
P.179
P.172,173
P.31
P.170
Quick Guide_US.indd 252016/10/21 8:52:11

BASIC FUNCTION
26

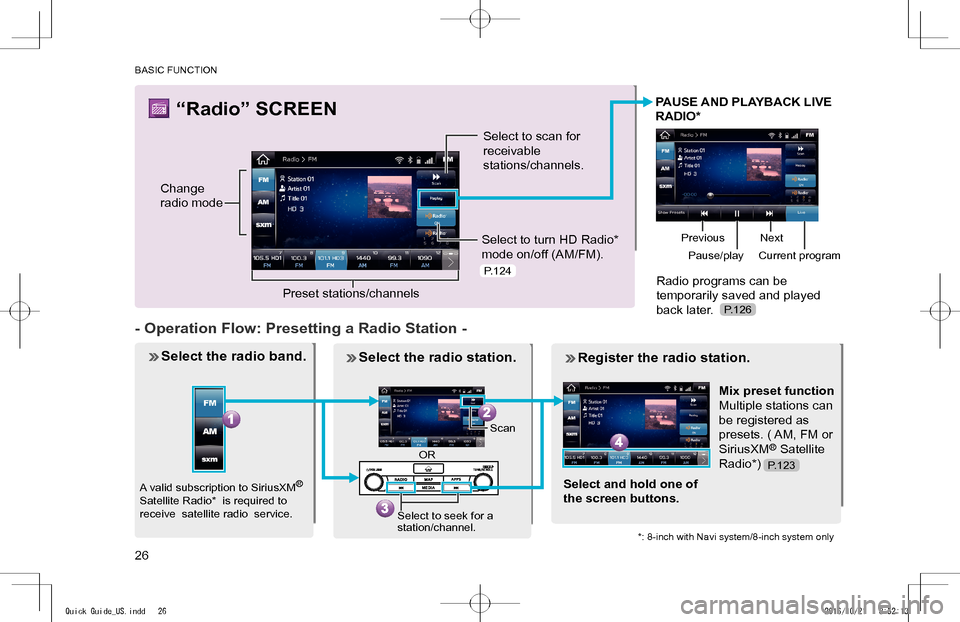

“Radio” SCREEN
Change
radio mode
Select to scan for
receivable
stations/channels.
Select to turn HD Radio*
mode on/off (AM/FM).
Preset stations/channels
- Operation Flow: Presetting a Radio Station -
Select the radio band.
PAUSE AND PLAYBACK LIVE
RADIO*
Radio programs can be
temporarily saved and played
back later.
A valid subscription to SiriusXM® Satellite Radio* is required to receive satellite radio service.
Select the radio station.
Mix preset function
Multiple stations can
be registered as
presets. ( AM, FM or
SiriusXM® Satellite
Radio*)
Register the radio station.
Select and hold one of
the screen buttons.
PreviousNext
Pause/playCurrent program
Scan
OR
Select to seek for a station/channel.*: 8-inch with Navi system/8-inch system only
P.126
P.124
P.123
Quick Guide_US.indd 262016/10/21 8:52:13

BASIC FUNCTION
27
1
Quick Guide

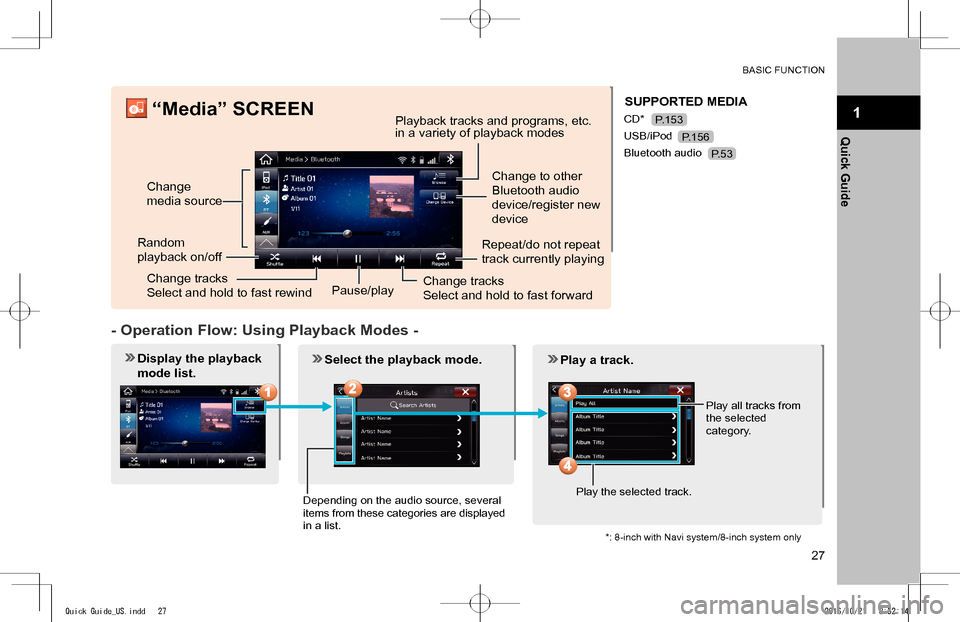

“Media” SCREEN
Change
media source
Random
playback on/off
Change tracks
Select and hold to fast rewind
Change to other
Bluetooth audio
device/register new
device
Change tracks
Select and hold to fast forward
Repeat/do not repeat
track currently playing
Pause/play
- Operation Flow: Using Playback Modes -
Display the playback
mode list.
Select the playback mode. Play a track.
Depending on the audio source, several items from these categories are displayed in a list.
Play the selected track.
Play all tracks from the selected category.
Playback tracks and programs, etc. in a variety of playback modes
SUPPORTED MEDIA
CD*
USB/iPod
Bluetooth audio
P.153
P.156
P.53
*: 8-inch with Navi system/8-inch system only
Quick Guide_US.indd 272016/10/21 8:52:14

BASIC FUNCTION
28

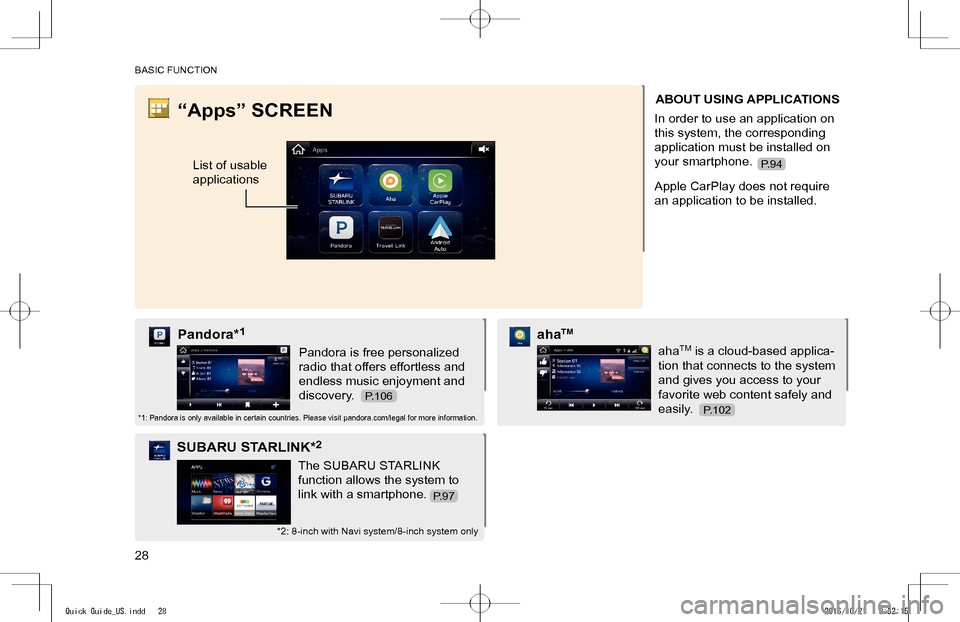

“Apps” SCREEN
List of usable
applications
ABOUT USING APPLICATIONS
In order to use an application on
this system, the corresponding
application must be installed on
your smartphone.
Apple CarPlay does not require
an application to be installed.
Pandora is free personalized
radio that offers effortless and
endless music enjoyment and
discovery.
Pandora*1
*1: Pandora is only available in certain countries. Please visit pandora.com/legal for more information.
The SUBARU STARLINK
function allows the system to
link with a smartphone.
SUBARU STARLINK*2
*2: 8-inch with Navi system/8-inch system only
ahaTM is a cloud-based applica-
tion that connects to the system
and gives you access to your
favorite web content safely and
easily.
ahaTM
P.106
P.94
P.102
P.97
Quick Guide_US.indd 282016/10/21 8:52:15

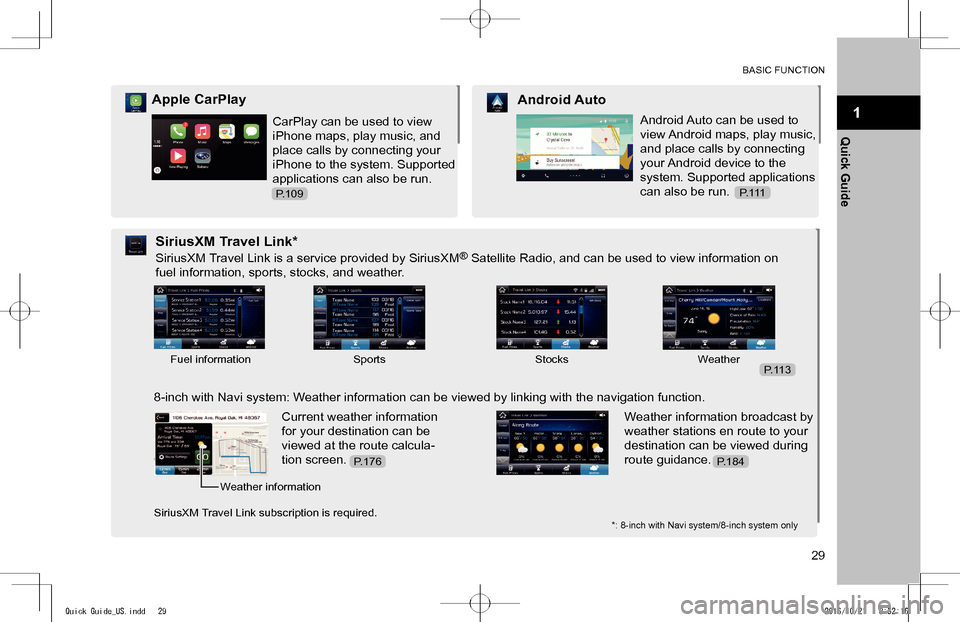

BASIC FUNCTION
29
1
Quick GuideCarPlay can be used to view
iPhone maps, play music, and
place calls by connecting your
iPhone to the system. Supported
applications can also be run.
Apple CarPlay
Android Auto can be used to
view Android maps, play music,
and place calls by connecting
your Android device to the
system. Supported applications
can also be run.
Android Auto
SiriusXM Travel Link is a service provided by SiriusXM® Satellite Radio, and can be used to view information on
fuel information, sports, stocks, and weather.
SiriusXM Travel Link*
8-inch with Navi system: Weather information can be viewed by linking with the navigation function.
Current weather information
for your destination can be
viewed at the route calcula-
tion screen.
Weather information broadcast by
weather stations en route to your
destination can be viewed during
route guidance.
*: 8-inch with Navi system/8-inch system only
Fuel informationSportsStocksWeather
Weather information
SiriusXM Travel Link subscription is required.
P.109P. 1 1 1
P.113
P.184P.176
Quick Guide_US.indd 292016/10/21 8:52:16

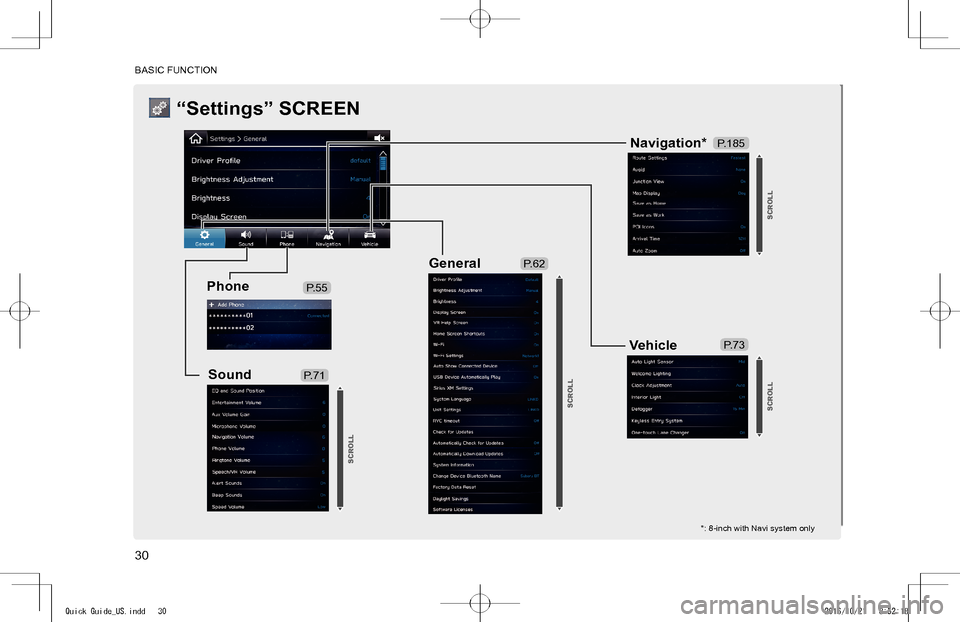

BASIC FUNCTION
30
“Settings” SCREEN
Phone
Sound
General
Navigation*
Vehicle
P.55
P.71
P.62
P.73
P.185
SCROLL
SCROLL
SCROLL
*: 8-inch with Navi system only
SCROLL
