Page 16 of 463
27
26
Getting
Started Instrument
Panel Gauges
Personalize Controls While
OperatingSafety / In Case
of Emergency Additional
Information

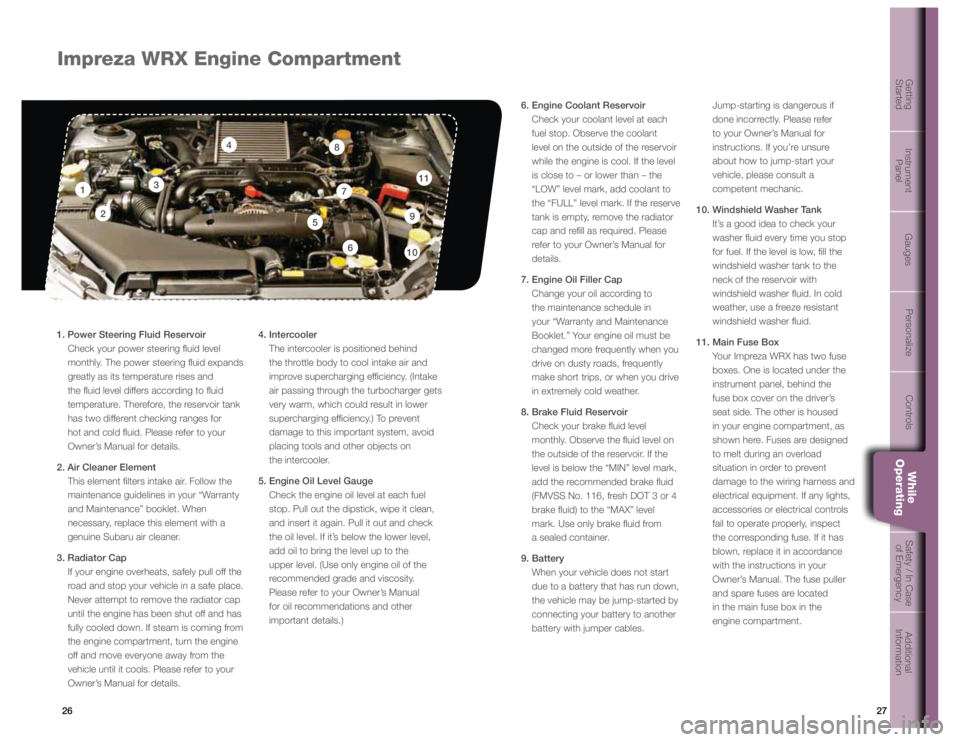

Impreza WRX Engine Compartment
1
1. Power Steering Fluid Reservoir Check your power steering fluid level
monthly. The power steering fluid expands
greatly as its temperature rises and
the fluid level differs according to fluid
temperature. Therefore, the reservoir tank
has two different checking ranges for
hot and cold fluid. Please refer to your
Owner’s Manual for details.
2. Air Cleaner Element This element filters intake air. Follow the
N B J O U F O B O D F H V J E F M J O F T J O Z P V S i 8 B S S B O U Z
B O E . B J O U F O B O D F w C P P L M F U 8 I F O
necessary, replace this element with a
genuine Subaru air cleaner.
3. Radiator Cap If your engine overheats, safely pull off the
road and stop your vehicle in a safe place.
/ F W F S B U U F N Q U U P S F N P W F U I F S B E J B U P S D B Q
until the engine has been shut off and has
fully cooled down. If steam is coming from
the engine compartment, turn the engine
off and move everyone away from the
vehicle until it cools. Please refer to your
Owner’s Manual for details. 4. Intercooler
The intercooler is positioned behind
the throttle body to cool intake air and
improve supercharging efficiency. (Intake
air passing through the turbocharger gets
very warm, which could result in lower
supercharging efficiency.) To prevent
damage to this important system, avoid
placing tools and other objects on
the intercooler.
5. Engine Oil Level Gauge Check the engine oil level at each fuel
stop. Pull out the dipstick, wipe it clean,
and insert it again. Pull it out and check
the oil level. If it’s below the lower level,
add oil to bring the level up to the
upper level. (Use only engine oil of the
recommended grade and viscosity.
Please refer to your Owner’s Manual
for oil recommendations and other
important details.) 6. Engine Coolant Reservoir
Check your coolant level at each
fuel stop. Observe the coolant
level on the outside of the reservoir
while the engine is cool. If the level
J T D M P T F U P o P S M P X F S U I B O o U I F
i - 0 8 w M F W F M N B S L
B E E D P P M B O U U P
U I F i ' 6 - - w M F W F M N B S L * G U I F S F T F S W F
tank is empty, remove the radiator
cap and refill as required. Please
refer to your Owner’s Manual for
details.
7. Engine Oil Filler Cap Change your oil according to
the maintenance schedule in
Z P V S i 8 B S S B O U Z B O E . B J O U F O B O D F
# P P L M F U w : P V S F O H J O F P J M N V T U C F
changed more frequently when you
drive on dusty roads, frequently
make short trips, or when you drive
in extremely cold weather.
8. Brake Fluid Reservoir Check your brake fluid level
monthly. Observe the fluid level on
the outside of the reservoir. If the
M F W F M J T C F M P X U I F i . * / w M F W F M N B S L
add the recommended brake fluid
' . 7 4 4 / P
G S F T I % 0 5 P S
C S B L F þ V J E
U P U I F i . " 9 w M F W F M
mark. Use only brake fluid from
a sealed container.
9. Battery When your vehicle does not start
due to a battery that has run down,
the vehicle may be jump-started by
connecting your battery to another
battery with jumper cables. Jump-starting is dangerous if
done incorrectly. Please refer
to your Owner’s Manual for
instructions. If you’re unsure
about how to jump-start your
vehicle, please consult a
competent mechanic.
10. Windshield Washer Tank It’s a good idea to check your washer fluid every time you stop
for fuel. If the level is low, fill the
windshield washer tank to the
neck of the reservoir with
windshield washer fluid. In cold
weather, use a freeze resistant
windshield washer fluid.
11. Main Fuse Box Your Impreza WRX has two fuse boxes. One is located under the
instrument panel, behind the
fuse box cover on the driver’s
seat side. The other is housed
in your engine compartment, as
shown here. Fuses are designed
to melt during an overload
situation in order to prevent
damage to the wiring harness and
electrical equipment. If any lights,
accessories or electrical controls
fail to operate properly, inspect
the corresponding fuse. If it has
blown, replace it in accordance
with the instructions in your
Owner’s Manual. The fuse puller
and spare fuses are located
in the main fuse box in the
engine compartment.
119
3
8
5
7
10
2
4
6
27
GetGttintigStartedInsItrument PanelGauGgesPerPsonalilizeConCtrotlslWhile OperatingSafSfetyt / /In ICasCeof EmergencyAddAdditiiional lInformation
While
Operating
Page 17 of 463
29
28
Getting
Started Instrument
Panel Gauges
Personalize Controls While
OperatingSafety / In Case
of Emergency Additional
Information

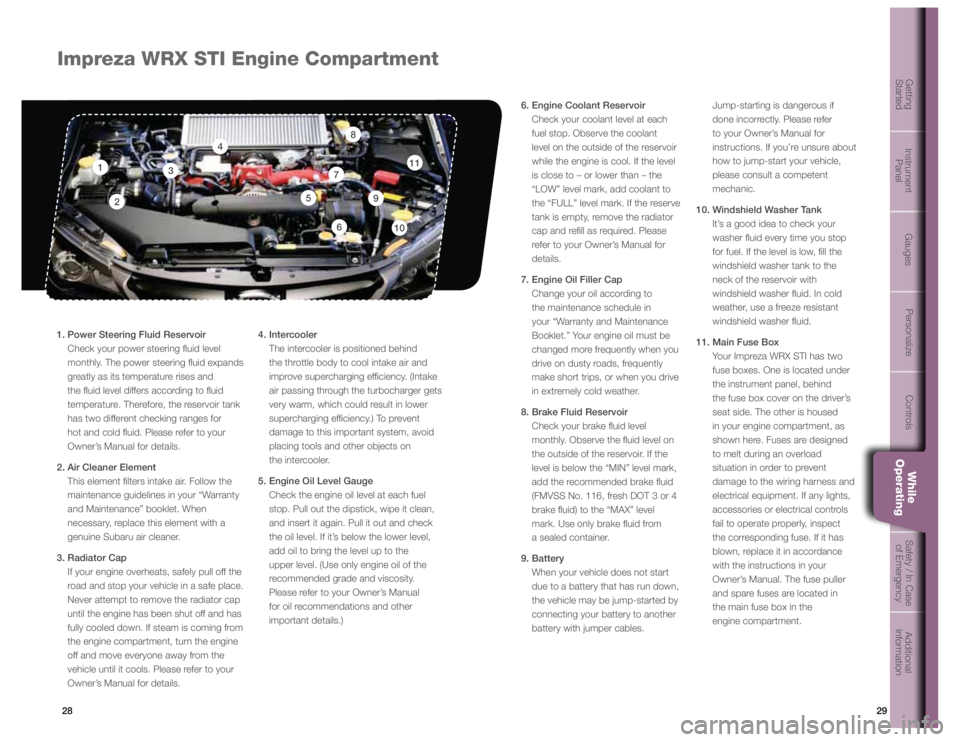

Impreza WRX STI Engine Compartment
1
1. Power Steering Fluid Reservoir Check your power steering fluid level
monthly. The power steering fluid expands
greatly as its temperature rises and
the fluid level differs according to fluid
temperature. Therefore, the reservoir tank
has two different checking ranges for
hot and cold fluid. Please refer to your
Owner’s Manual for details.
2. Air Cleaner Element This element filters intake air. Follow the
N B J O U F O B O D F H V J E F M J O F T J O Z P V S i 8 B S S B O U Z
B O E . B J O U F O B O D F w C P P L M F U 8 I F O
necessary, replace this element with a
genuine Subaru air cleaner.
3. Radiator Cap If your engine overheats, safely pull off the
road and stop your vehicle in a safe place.
/ F W F S B U U F N Q U U P S F N P W F U I F S B E J B U P S D B Q
until the engine has been shut off and has
fully cooled down. If steam is coming from
the engine compartment, turn the engine
off and move everyone away from the
vehicle until it cools. Please refer to your
Owner’s Manual for details. 4. Intercooler
The intercooler is positioned behind
the throttle body to cool intake air and
improve supercharging efficiency. (Intake
air passing through the turbocharger gets
very warm, which could result in lower
supercharging efficiency.) To prevent
damage to this important system, avoid
placing tools and other objects on
the intercooler.
5. Engine Oil Level Gauge Check the engine oil level at each fuel
stop. Pull out the dipstick, wipe it clean,
and insert it again. Pull it out and check
the oil level. If it’s below the lower level,
add oil to bring the level up to the
upper level. (Use only engine oil of the
recommended grade and viscosity.
Please refer to your Owner’s Manual
for oil recommendations and other
important details.) 6. Engine Coolant Reservoir
Check your coolant level at each
fuel stop. Observe the coolant
level on the outside of the reservoir
while the engine is cool. If the level
J T D M P T F U P o P S M P X F S U I B O o U I F
i - 0 8 w M F W F M N B S L
B E E D P P M B O U U P
U I F i ' 6 - - w M F W F M N B S L * G U I F S F T F S W F
tank is empty, remove the radiator
cap and refill as required. Please
refer to your Owner’s Manual for
details.
7. Engine Oil Filler Cap Change your oil according to
the maintenance schedule in
Z P V S i 8 B S S B O U Z B O E . B J O U F O B O D F
# P P L M F U w : P V S F O H J O F P J M N V T U C F
changed more frequently when you
drive on dusty roads, frequently
make short trips, or when you drive
in extremely cold weather.
8. Brake Fluid Reservoir Check your brake fluid level
monthly. Observe the fluid level on
the outside of the reservoir. If the
M F W F M J T C F M P X U I F i . * / w M F W F M N B S L
add the recommended brake fluid
' . 7 4 4 / P
G S F T I % 0 5 P S
C S B L F þ V J E
U P U I F i . " 9 w M F W F M
mark. Use only brake fluid from
a sealed container.
9. Battery When your vehicle does not start
due to a battery that has run down,
the vehicle may be jump-started by
connecting your battery to another
battery with jumper cables. Jump-starting is dangerous if
done incorrectly. Please refer
to your Owner’s Manual for
instructions. If you’re unsure about
how to jump-start your vehicle,
please consult a competent
mechanic.
10. Windshield Washer Tank It’s a good idea to check your washer fluid every time you stop
for fuel. If the level is low, fill the
windshield washer tank to the
neck of the reservoir with
windshield washer fluid. In cold
weather, use a freeze resistant
windshield washer fluid.
11. Main Fuse Box Your Impreza WRX STI has two fuse boxes. One is located under
the instrument panel, behind
the fuse box cover on the driver’s
seat side. The other is housed
in your engine compartment, as
shown here. Fuses are designed
to melt during an overload
situation in order to prevent
damage to the wiring harness and
electrical equipment. If any lights,
accessories or electrical controls
fail to operate properly, inspect
the corresponding fuse. If it has
blown, replace it in accordance
with the instructions in your
Owner’s Manual. The fuse puller
and spare fuses are located in
the main fuse box in the
engine compartment.
11
9
3
8
5
7
10
2
4
6
29
GetGttintigStartedInsItrument PanelGauGgesPerPsonalilizeConCtrotlslWhile OperatingSafSfetyt / /In ICasCeof EmergencyAddAdditiiional lInformation
While
Operating
Page 95 of 463
Black plate (47,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

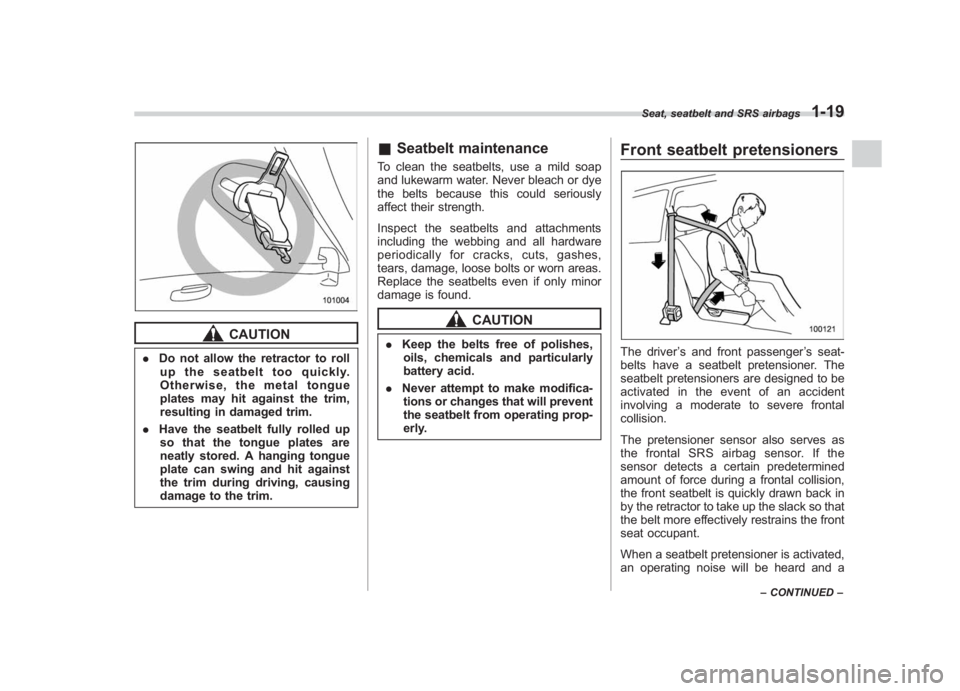

CAUTION
. Do not allow the retractor to roll
up the seatbelt too quickly.
Otherwise, the metal tongue
plates may hit against the trim,
resulting in damaged trim.
. Have the seatbelt fully rolled up
so that the tongue plates are
neatly stored. A hanging tongue
plate can swing and hit against
the trim during driving, causing
damage to the trim.
& Seatbelt maintenanceTo clean the seatbelts, use a mild soap
and lukewarm water. Never bleach or dye
the belts because this could seriously
affect their strength.
Inspect the seatbelts and attachments
including the webbing and all hardware
periodically for cracks, cuts, gashes,
tears, damage, loose bolts or worn areas.
Replace the seatbelts even if only minor
damage is found.
CAUTION
. Keep the belts free of polishes,
oils, chemicals and particularly
battery acid.
. Never attempt to make modifica-
tions or changes that will prevent
the seatbelt from operating prop-
erly.
Front seatbelt pretensionersThe driver ’s and front passenger ’s seat-
belts have a seatbelt pretensioner. The
seatbelt pretensioners are designed to be
activated in the event of an accident
involving a moderate to severe frontal
collision.
The pretensioner sensor also serves as
the frontal SRS airbag sensor. If the
sensor detects a certain predetermined
amount of force during a frontal collision,
the front seatbelt is quickly drawn back in
by the retractor to take up the slack so that
the belt more effectively restrains the front
seat occupant.
When a seatbelt pretensioner is activated,
an operating noise will be heard and a
Seat, seatbelt and SRS airbags
1-19
– CONTINUED –
1
Page 269 of 463
Black plate (225,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

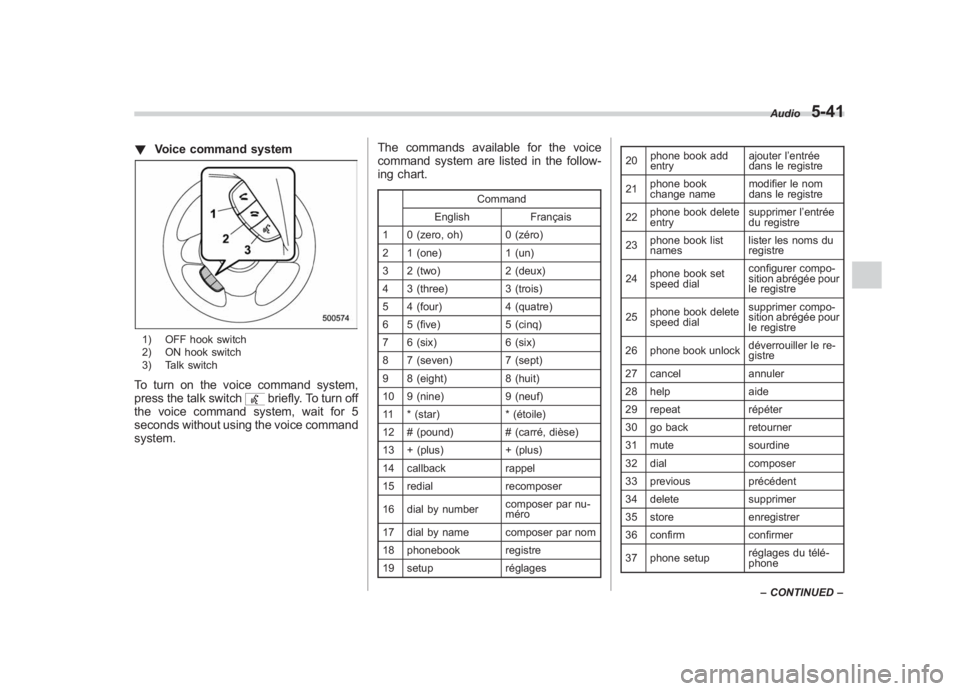

! Voice command system1) OFF hook switch
2) ON hook switch
3) Talk switchTo turn on the voice command system,
press the talk switch
briefly. To turn off
the voice command system, wait for 5
seconds without using the voice command
system. The commands available for the voice
command system are listed in the follow-
ing chart.
Command
English Français
1 0 (zero, oh) 0 (zéro)
2 1 (one) 1 (un)
3 2 (two) 2 (deux)
4 3 (three) 3 (trois)
5 4 (four) 4 (quatre)
6 5 (five) 5 (cinq)
7 6 (six) 6 (six)
8 7 (seven) 7 (sept)
9 8 (eight) 8 (huit)
10 9 (nine) 9 (neuf)
11 * (star) * (étoile)
12 # (pound) # (carré, dièse)
13 + (plus) + (plus)
14 callback rappel
15 redial recomposer
16 dial by number composer par nu-
méro
17 dial by name composer par nom
18 phonebook registre
19 setup réglages20
phone book add
entry ajouter l
’entrée
dans le registre
21 phone book
change name modifier le nom
dans le registre
22 phone book delete
entry supprimer l
’entrée
du registre
23 phone book list
names lister les noms du
registre
24 phone book set
speed dial configurer compo-
sition abrégée pour
le registre
25 phone book delete
speed dial supprimer compo-
sition abrégée pour
le registre
26 phone book unlock déverrouiller le re-
gistre
27 cancel annuler
28 help aide
29 repeat répéter
30 go back retourner
31 mute sourdine
32 dial composer
33 previous précédent
34 delete supprimer
35 store enregistrer
36 confirm confirmer
37 phone setup réglages du télé-
phoneAudio
5-41
–
CONTINUED –
5
Page 376 of 463
Black plate (338,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

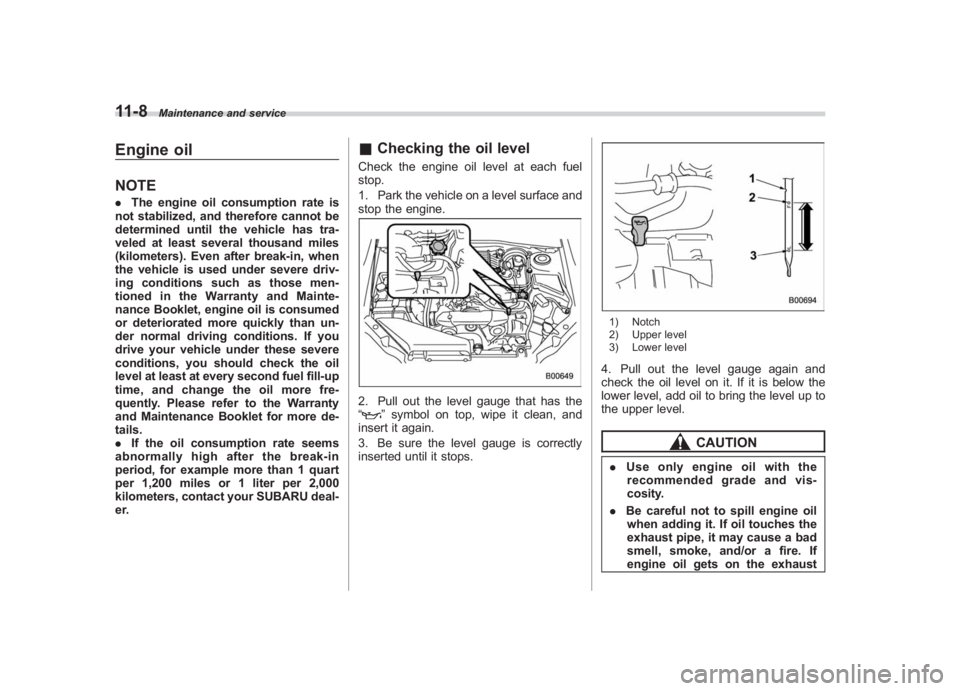

11-8
Maintenance and service
Engine oilNOTE. The engine oil consumption rate is
not stabilized, and therefore cannot be
determined until the vehicle has tra-
veled at least several thousand miles
(kilometers). Even after break-in, when
the vehicle is used under severe driv-
ing conditions such as those men-
tionedintheWarrantyandMainte-
nance Booklet, engine oil is consumed
or deteriorated more quickly than un-
der normal driving conditions. If you
drive your vehicle under these severe
conditions, you should check the oil
level at least at every second fuel fill-up
time, and change the oil more fre-
quently. Please refer to the Warranty
and Maintenance Booklet for more de-
tails.
. If the oil consumption rate seems
abnormally high after the break-in
period, for example more than 1 quart
per 1,200 miles or 1 liter per 2,000
kilometers, contact your SUBARU deal-
er.
& Checking the oil levelCheck the engine oil level at each fuel
stop.
1. Park the vehicle on a level surface and
stop the engine.2. Pull out the level gauge that has the
“
”symbol on top, wipe it clean, and
insert it again.
3. Be sure the level gauge is correctly
inserted until it stops.
1) Notch
2) Upper level
3) Lower level4. Pull out the level gauge again and
check the oil level on it. If it is below the
lower level, add oil to bring the level up to
the upper level.
CAUTION
. Use only engine oil with the
recommended grade and vis-
cosity.
. Be careful not to spill engine oil
when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
Page 377 of 463
Black plate (339,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

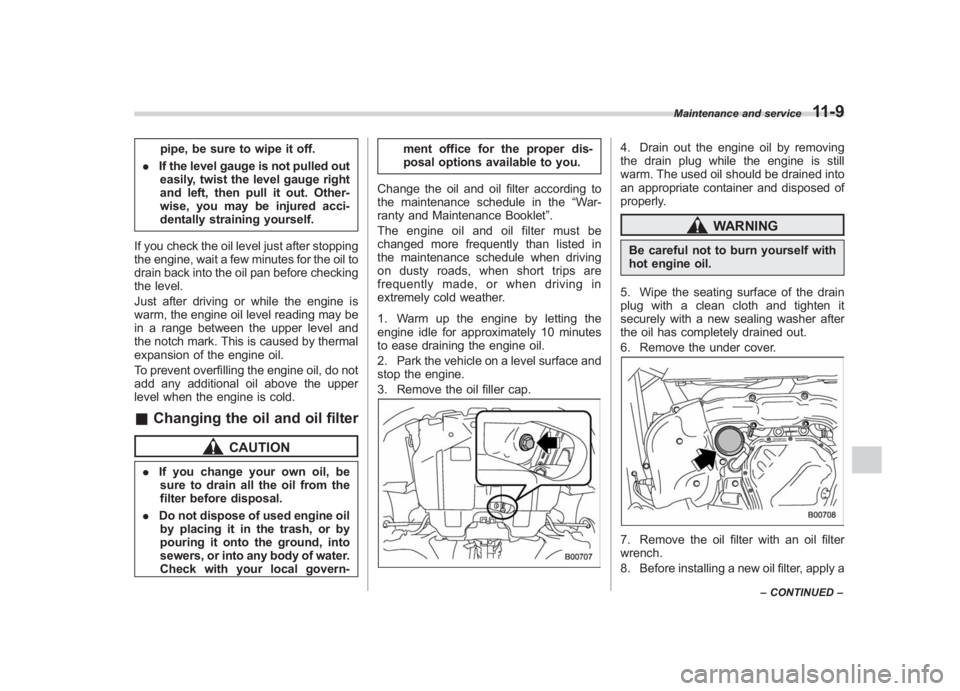

pipe, be sure to wipe it off.
. If the level gauge is not pulled out
easily, twist the level gauge right
and left, then pull it out. Other-
wise, you may be injured acci-
dentally straining yourself.
If you check the oil level just after stopping
the engine, wait a few minutes for the oil to
drain back into the oil pan before checking
the level.
Just after driving or while the engine is
warm, the engine oil level reading may be
in a range between the upper level and
the notch mark. This is caused by thermal
expansion of the engine oil.
To prevent overfilling the engine oil, do not
add any additional oil above the upper
level when the engine is cold.
& Changing the oil and oil filter
CAUTION
. If you change your own oil, be
sure to drain all the oil from the
filter before disposal.
. Do not dispose of used engine oil
by placing it in the trash, or by
pouring it onto the ground, into
sewers, or into any body of water.
Check with your local govern- ment office for the proper dis-
posal options available to you.
Change the oil and oil filter according to
the maintenance schedule in the “War-
ranty and Maintenance Booklet ”.
The engine oil and oil filter must be
changed more frequently than listed in
the maintenance schedule when driving
on dusty roads, when short trips are
frequently made, or when driving in
extremely cold weather.
1. Warm up the engine by letting the
engine idle for approximately 10 minutes
to ease draining the engine oil.
2. Park the vehicle on a level surface and
stop the engine.
3. Remove the oil filler cap.
4. Drain out the engine oil by removing
the drain plug while the engine is still
warm. The used oil should be drained into
an appropriate container and disposed of
properly.
WARNING
Be careful not to burn yourself with
hot engine oil.
5. Wipe the seating surface of the drain
plug with a clean cloth and tighten it
securely with a new sealing washer after
the oil has completely drained out.
6. Remove the under cover.7. Remove the oil filter with an oil filter
wrench.
8. Before installing a new oil filter, apply a
Maintenance and service
11-9
– CONTINUED –
11
Page 379 of 463
Black plate (341,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

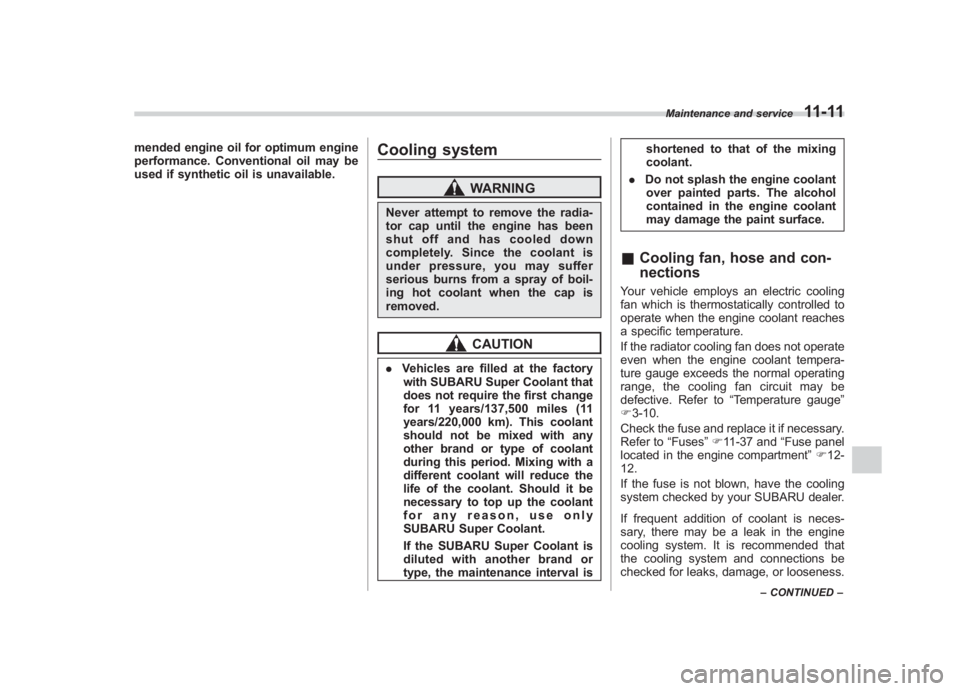

mended engine oil for optimum engine
performance. Conventional oil may be
used if synthetic oil is unavailable.
Cooling system
WARNING
Never attempt to remove the radia-
tor cap until the engine has been
shut off and has cooled down
completely. Since the coolant is
under pressure, you may suffer
serious burns from a spray of boil-
ing hot coolant when the cap is
removed.
CAUTION
. Vehicles are filled at the factory
with SUBARU Super Coolant that
does not require the first change
for 11 years/137,500 miles (11
years/220,000 km). This coolant
should not be mixed with any
other brand or type of coolant
during this period. Mixing with a
different coolant will reduce the
life of the coolant. Should it be
necessary to top up the coolant
for any reason, use only
SUBARU Super Coolant.
If the SUBARU Super Coolant is
diluted with another brand or
type, the maintenance interval is shortened to that of the mixing
coolant.
. Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
& Cooling fan, hose and con-
nectionsYour vehicle employs an electric cooling
fan which is thermostatically controlled to
operate when the engine coolant reaches
a specific temperature.
If the radiator cooling fan does not operate
even when the engine coolant tempera-
ture gauge exceeds the normal operating
range, the cooling fan circuit may be
defective. Refer to “Temperature gauge ”
F 3-10.
Check the fuse and replace it if necessary.
Refer to “Fuses”F 11-37 and “Fuse panel
located in the engine compartment” F12-
12.
If the fuse is not blown, have the cooling
system checked by your SUBARU dealer.
If frequent addition of coolant is neces-
sary, there may be a leak in the engine
cooling system. It is recommended that
the cooling system and connections be
checked for leaks, damage, or looseness.
Maintenance and service
11-11
– CONTINUED –
11
Page 380 of 463
Black plate (342,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

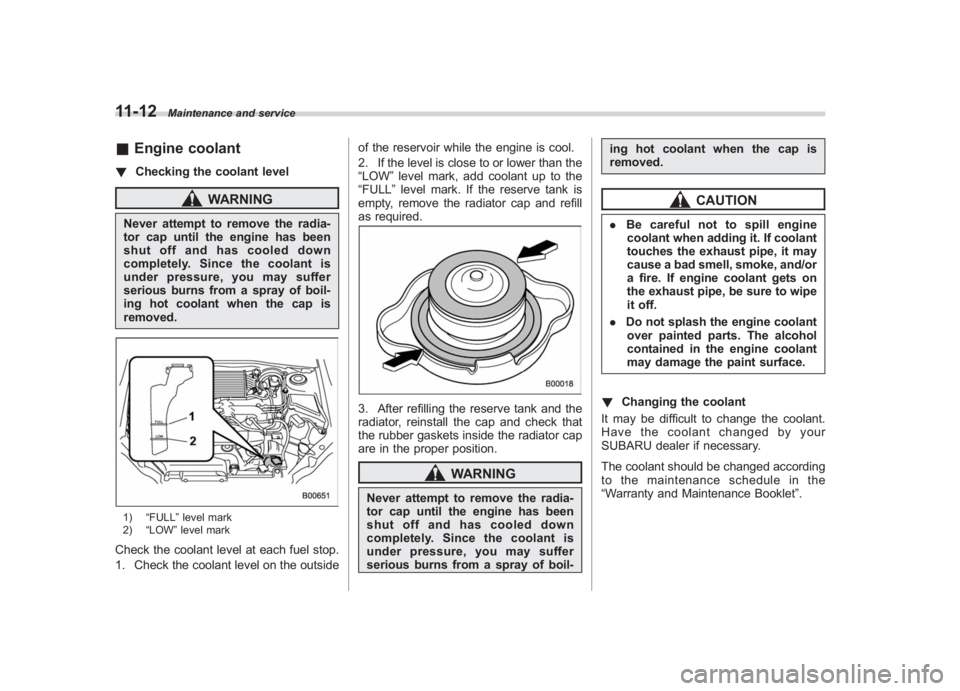

11-12
Maintenance and service
& Engine coolant! Checking the coolant level
WARNING
Never attempt to remove the radia-
tor cap until the engine has been
shut off and has cooled down
completely. Since the coolant is
under pressure, you may suffer
serious burns from a spray of boil-
ing hot coolant when the cap is
removed.1) “FULL ”level mark
2) “LOW ”level markCheck the coolant level at each fuel stop.
1. Check the coolant level on the outside of the reservoir while the engine is cool.
2. If the level is close to or lower than the
“LOW
”level mark, add coolant up to the
“FULL ”level mark. If the reserve tank is
empty, remove the radiator cap and refill
as required.
3. After refilling the reserve tank and the
radiator, reinstall the cap and check that
the rubber gaskets inside the radiator cap
are in the proper position.
WARNING
Never attempt to remove the radia-
tor cap until the engine has been
shut off and has cooled down
completely. Since the coolant is
under pressure, you may suffer
serious burns from a spray of boil- ing hot coolant when the cap is
removed.
CAUTION
.
Be careful not to spill engine
coolant when adding it. If coolant
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If engine coolant gets on
the exhaust pipe, be sure to wipe
it off.
. Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
! Changing the coolant
It may be difficult to change the coolant.
Have the coolant changed by your
SUBARU dealer if necessary.
The coolant should be changed according
to the maintenance schedule in the
“Warranty and Maintenance Booklet ”.
Page 398 of 463
Black plate (360,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

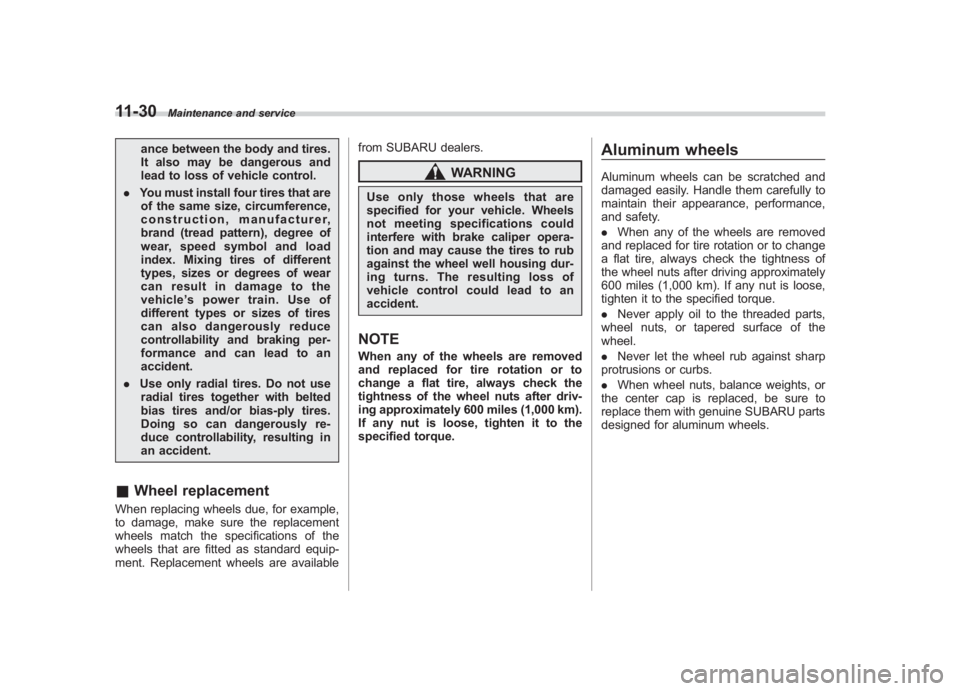

11-30
Maintenance and service
ance between the body and tires.
It also may be dangerous and
lead to loss of vehicle control.
. You must install four tires that are
of the same size, circumference,
construction, manufacturer,
brand (tread pattern), degree of
wear, speed symbol and load
index. Mixing tires of different
types, sizes or degrees of wear
can result in damage to the
vehicle’ s power train. Use of
different types or sizes of tires
can also dangerously reduce
controllability and braking per-
formance and can lead to an
accident.
. Use only radial tires. Do not use
radial tires together with belted
bias tires and/or bias-ply tires.
Doing so can dangerously re-
duce controllability, resulting in
an accident.
& Wheel replacementWhen replacing wheels due, for example,
to damage, make sure the replacement
wheels match the specifications of the
wheels that are fitted as standard equip-
ment. Replacement wheels are available from SUBARU dealers.
WARNING
Use only those wheels that are
specified for your vehicle. Wheels
not meeting specifications could
interfere with brake caliper opera-
tion and may cause the tires to rub
against the wheel well housing dur-
ing turns. The resulting loss of
vehicle control could lead to an
accident.NOTEWhen any of the wheels are removed
and replaced for tire rotation or to
change a flat tire, always check the
tightness of the wheel nuts after driv-
ing approximately 600 miles (1,000 km).
If any nut is loose, tighten it to the
specified torque.
Aluminum wheelsAluminum wheels can be scratched and
damaged easily. Handle them carefully to
maintain their appearance, performance,
and safety.
.
When any of the wheels are removed
and replaced for tire rotation or to change
a flat tire, always check the tightness of
the wheel nuts after driving approximately
600 miles (1,000 km). If any nut is loose,
tighten it to the specified torque.
. Never apply oil to the threaded parts,
wheel nuts, or tapered surface of the
wheel.
. Never let the wheel rub against sharp
protrusions or curbs.
. When wheel nuts, balance weights, or
the center cap is replaced, be sure to
replace them with genuine SUBARU parts
designed for aluminum wheels.
Page 421 of 463
Black plate (383,1)
北米Model "A1130BE-A" EDITED: 2011/ 6/ 7

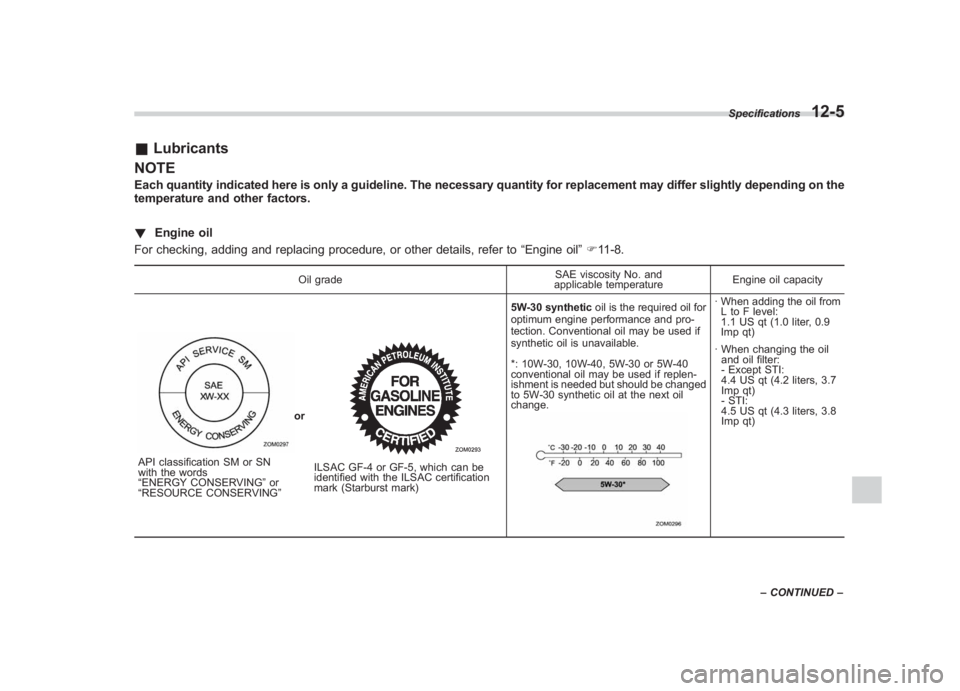

& Lubricants
NOTEEach quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
! Engine oil
For checking, adding and replacing procedure, or other details, refer to “Engine oil”F 11-8.
Oil grade SAE viscosity No. and
applicable temperature Engine oil capacity
API classification SM or SN
with the words
“
ENERGY CONSERVING ”or
“ RESOURCE CONSERVING ”or
ILSAC GF-4 or GF-5, which can be
identified with the ILSAC certification
mark (Starburst mark) 5W-30 synthetic
oil is the required oil for
optimum engine performance and pro-
tection. Conventional oil may be used if
synthetic oil is unavailable.
*: 10W-30, 10W-40, 5W-30 or 5W-40
conventional oil may be used if replen-
ishment is needed but should be changed
to 5W-30 synthetic oil at the next oil
change.
· When adding the oil from L to F level:
1.1 US qt (1.0 liter, 0.9
Imp qt)
· When changing the oil and oil filter:
- Except STI:
4.4 US qt (4.2 liters, 3.7
Imp qt)
- STI:
4.5 US qt (4.3 liters, 3.8
Imp qt) Specifications
12-5
–
CONTINUED –
12
