AudioAntenna system „
Printed antenna
Do not use sharp instruments or window clean-
er containing abrasives to clean the inner sur-
face of the window on which the antenna is
printed. Doing so may damage the antenna
printed on the window.

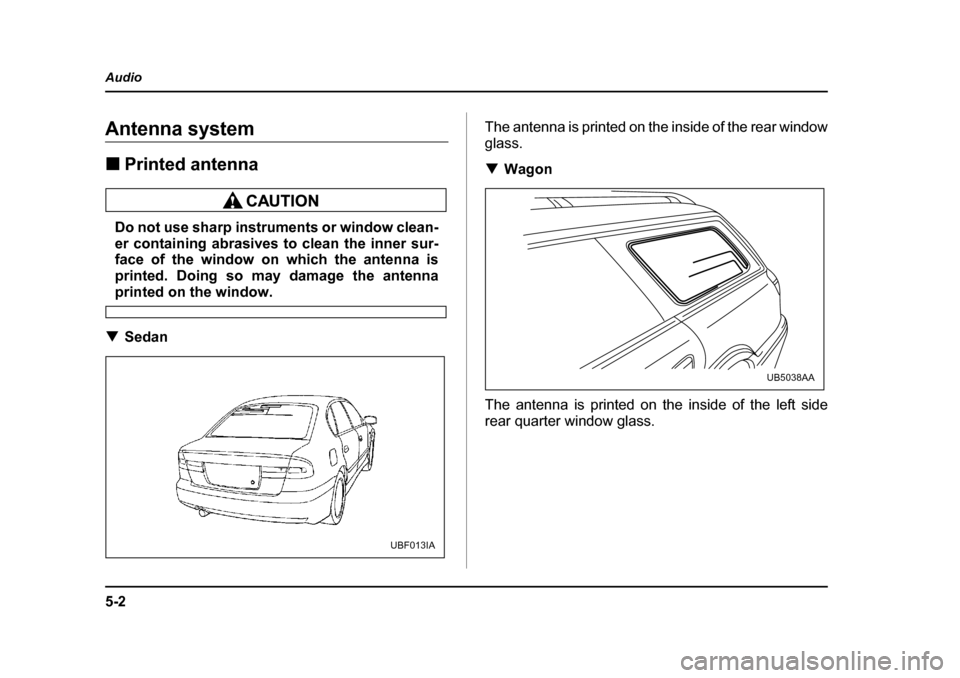

T Sedan The antenna is printed on the inside of the rear window glass. T
Wagon
The antenna is printed on the inside of the left side
rear quarter window glass.
UBF013IA
UB5038AA

5-3
Audio
– CONTINUED –
„Pillar mounted antenna

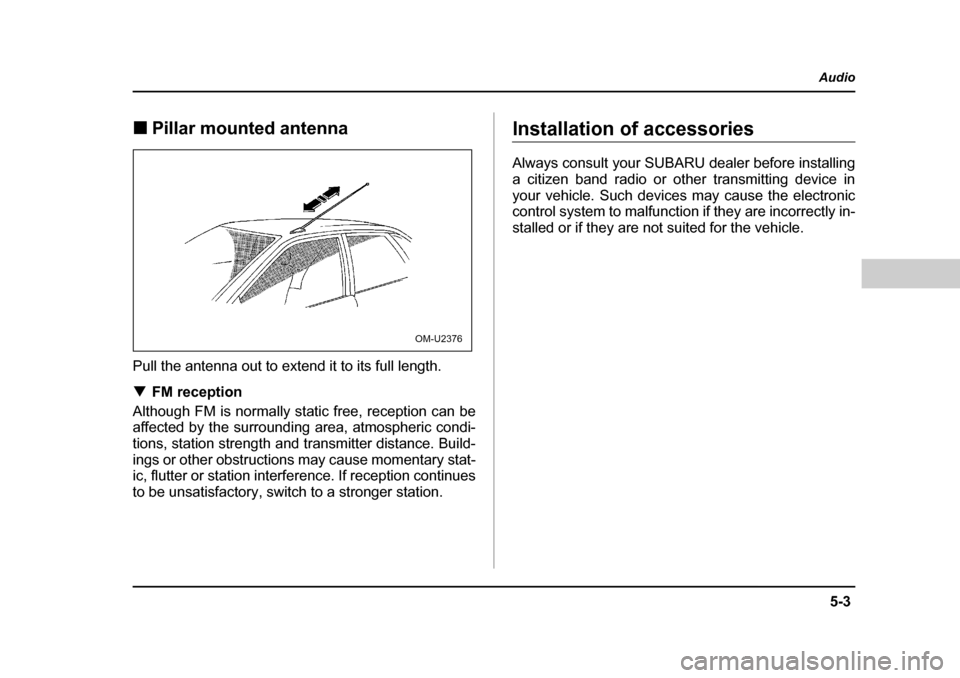

Pull the antenna out to extend it to its full length. T FM reception
Although FM is normally static free, reception can be
affected by the surrounding area, atmospheric condi-
tions, station strength and transmitter distance. Build-
ings or other obstructions may cause momentary stat-
ic, flutter or station interference. If reception continues
to be unsatisfactory, switch to a stronger station.Installation of accessories
Always consult your SUBARU dealer before installing
a citizen band radio or other transmitting device in
your vehicle. Such devices may cause the electronic
control system to malfunction if they are incorrectly in-
stalled or if they are not suited for the vehicle.
OM-U2376

5-4
Audio
Audio set
Your SUBARU may be equipped with one of the fol-
lowing audio sets. See the pages indicated in this sec-
tion for operating details. „
Type A and type B audio set
y Radio operation: refer to page 5-6
y CD (compact disc) player operation: refer to page 5-
11 y CD changer control: refer to page 5-14 „
Type C audio set
y Radio operation: refer to page 5-17
y Built-in CD changer operation: refer to page 5-23

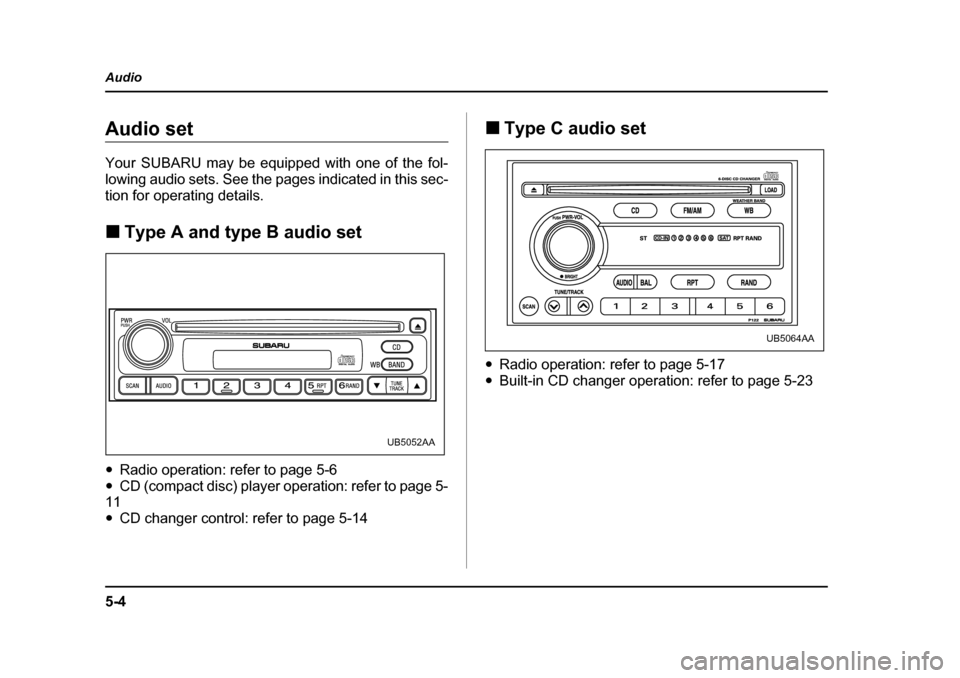

UB5052AA
UB5064AA

5-5
Audio
– CONTINUED –
„McIntosh audio set
y Radio operation: refer to page 5-28
y B uilt-in CD cha nger op era tion: re fe r to p a ge 5-34 „
In-dash 6 CD auto changer (Optional
audio unit – if equipped)
y Inserting and removing a disc or all discs: refer
t o pa ge 5-39

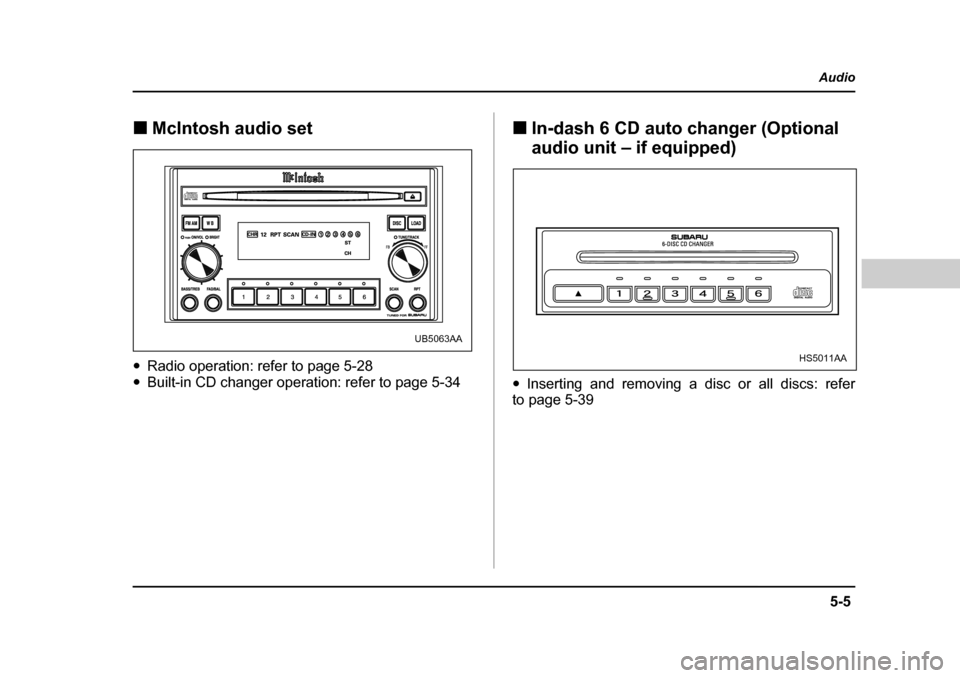

UB5063AA
HS5011AA

5-6
Audio
Type A and B audio set (if equipped)
Type A: Without weather band
Type B: With weather band
The audio set will operate only when the ignition switch is in the “ACC” or
“ON” position. „
Radio operation
(1)
(2)
(3)
(4)
(5)
(6)

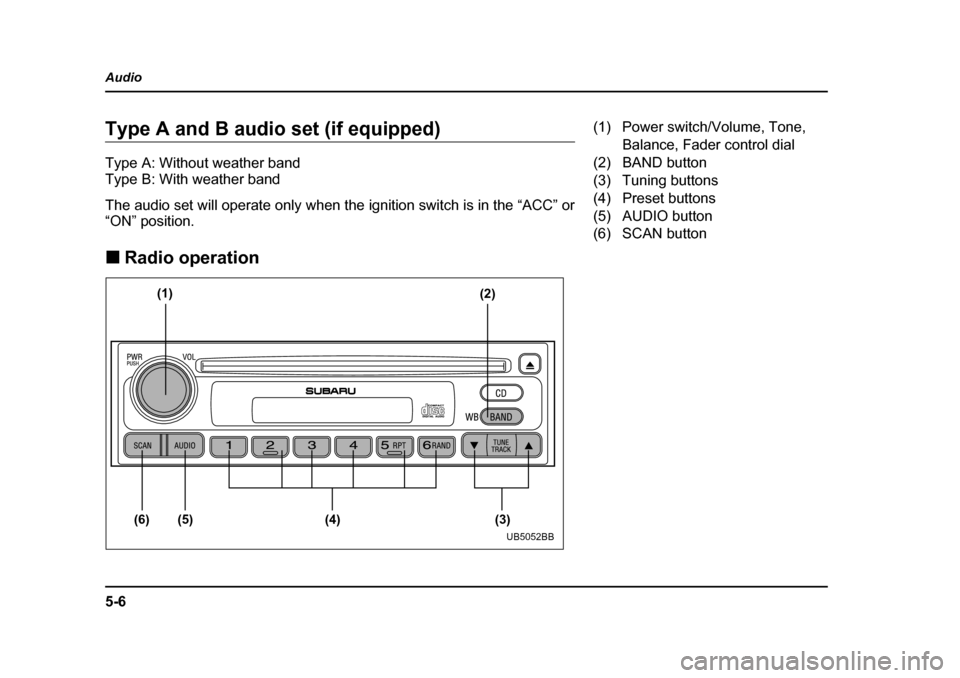

UB5052BB
(1) Power switch/Volume, Tone,
Balance, Fader control dial
(2) BAND button
(3) Tuning buttons
(4) Preset buttons
(5) AUDIO button
(6) SCAN button

5-7
Audio
– CONTINUED –
TPower switch and volume/bass/treble/fader/
balance control
V Power switch and volume control (PWR/VOL)
The dial (1) is used for both power (ON/OFF) and vol-
ume control. The radio is turned ON and OFF by push-
ing the dial and the volume is controlled by turning the
dial. V Tone and balance control (AUDIO)
The volume control dial (1) normally functions as a vol-
ume control. This dial becomes a control for Bass,
Treble, Fader or Balance when you select the appro-
priate tone and balance control mode.
Choose desired volume level for each mode by turning
the volume control dial. The control function returns to
volume control mode after about 5 seconds.
To change control modes: Each brief press of the
“AUDIO” button (5) changes control modes in the fol-
lowing sequence starting from volume control mode.
(When the radio is first turned on, the control mode is

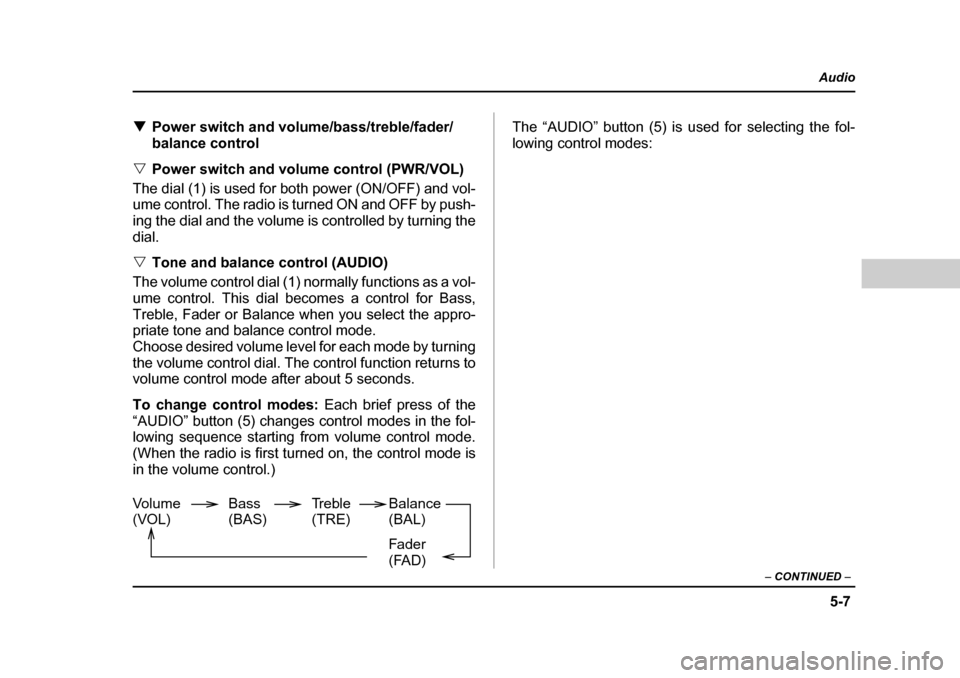

in the volume control.) The “AUDIO” button (5) is used for selecting the fol-
lowing control modes:
Volume
(VOL)
Bass(BAS)Treble(TRE)Balance(BAL)
Fader
(FAD)

5-8
Audio
Display Control mode
Turn counterclockwise Turn clockwise
BAS Bass control For less bass For more bass
TRE Treble control For less treble For more treble
FAD Fader control To increase rear speaker volume and
decrease front speaker volume To increase front speaker volume and
decrease rear speaker volume
BAL Balance control To increase left speaker volume and
decrease right speaker volume To increase right speaker volume and
decrease left speaker volume
VOL Volume control For less volume For more volume

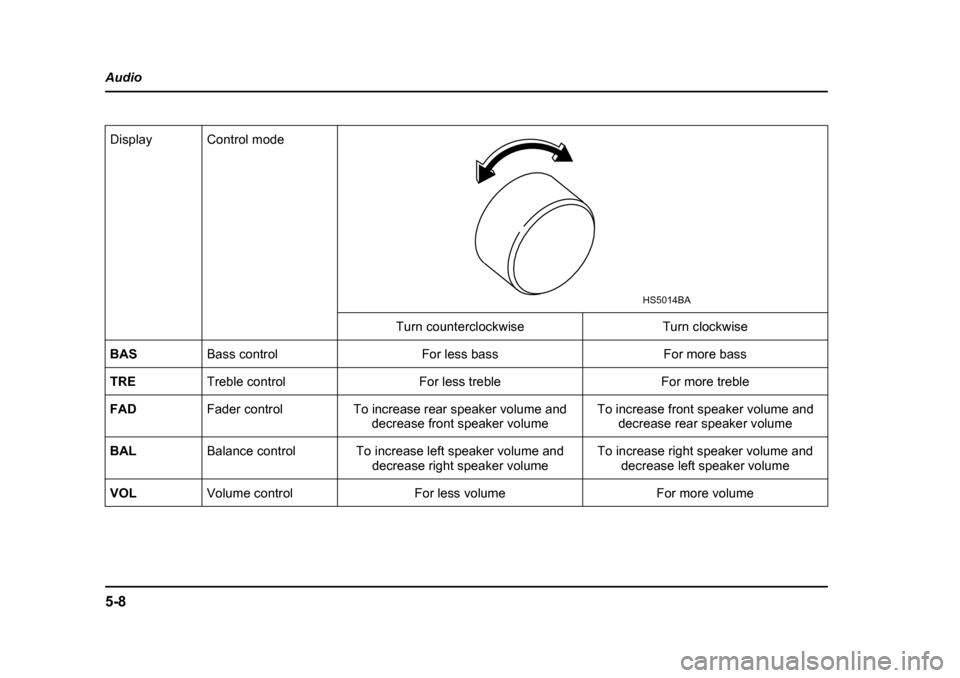

HS5014BA

5-9
Audio
– CONTINUED –
TWaveband selection
V FM/AM selection
Push the “BAND” button (2) to select FM1, FM2 or AM
reception. The display indicates which one is currently selected. V FM/AM/Weather band selection
Push the “BAND” button (2) to select FM1, FM2, AM
or Weather band (WB) reception. The display indi-
cates which is currently selected. T Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. T Tuning (TUNE)
V Manual tuning (TUNE)
Press the tuning button (3) marked “ ” to increase
the tuning frequency and press the tuning button
marked “ ” to decrease it.
Each time the button is pressed, the frequency interval
can be changed between 10 kHz in the AM mode and
0.2 MHz in the FM mode. V Seek tuning
If the tuning button (3) is pressed for longer than half
of a second, the radio will begin to automatically search for receivable frequencies and will stop at the
first one found. This function may not be available,
however, when radio signals are weak. In such a situ-
ation, perform manual tuning to select the desired sta-
tion. V
Manual tuning for weather band
When weather band mode is selected, press the tun-
ing button (3) marked “ ” to change the WB chan-
nel up and press the tuning button marked “ ” to
change the WB channel down. Each time the button is
pressed, the WB channel changes to the next chan-
nel. V Automatic tuning (SCAN)
Press the “SCAN” button (6) to change the radio to the
SCAN mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
Automatic tuning may not function properly if the sta-
