SUBARU OUTBACK 2016 6.G Driving Assist Manual

EyeSight malfunction and temporary stop
87

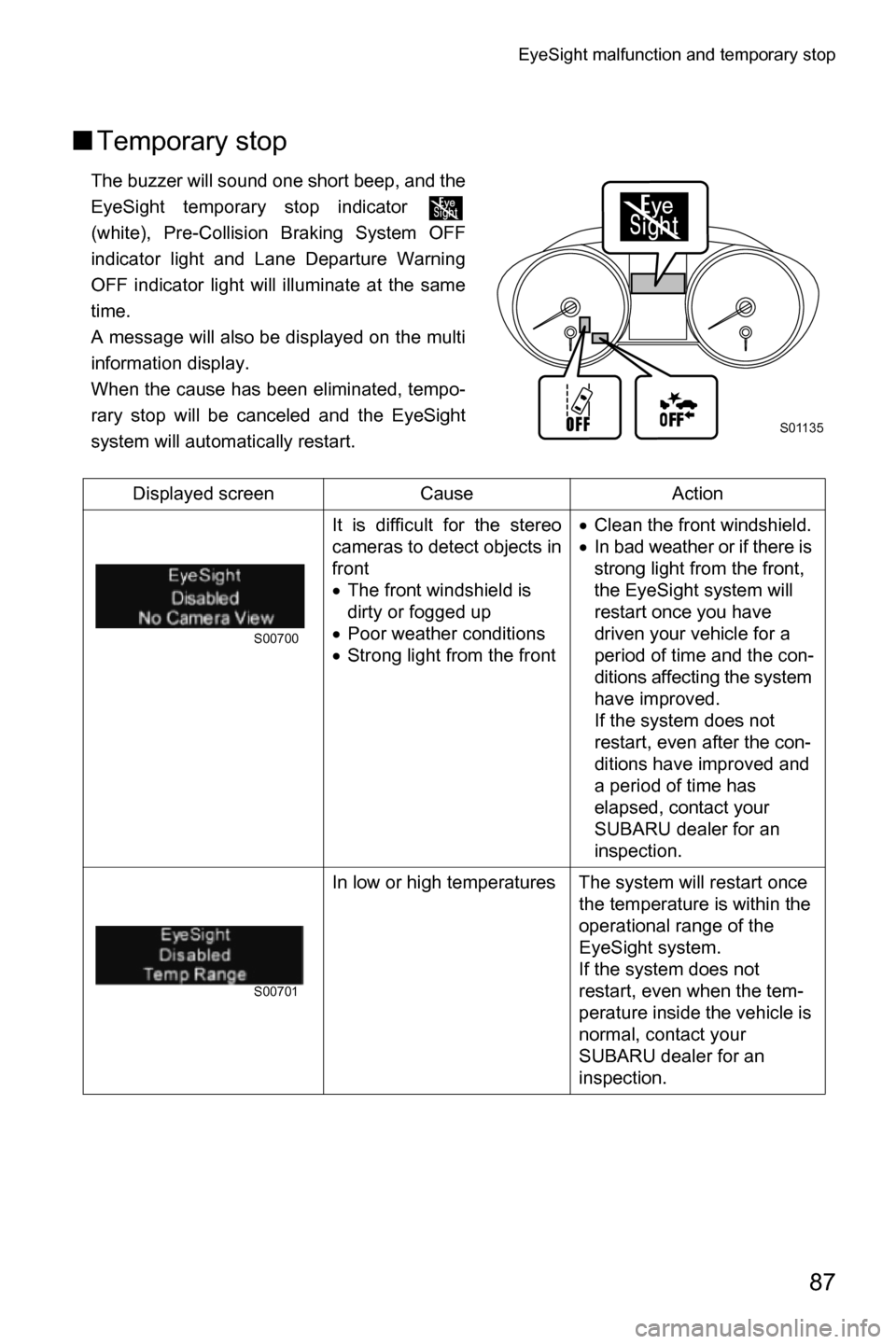

■Temporary stop
The buzzer will sound one short beep, and the
EyeSight temporary stop indicator
(white), Pre-Collision Braking System OFF
indicator light and Lane Departure Warning
OFF indicator light will illuminate at the same
time.
A message will also be displayed on the multi
information display.
When the cause has been eliminated, tempo-
rary stop will be canceled and the EyeSight
system will automatically restart.
Displayed screen Cause Action
It is difficult for the stereo
cameras to detect objects in
front
xThe front windshield is
dirty or fogged up
xPoor weather conditions
xStrong light from the frontxClean the front windshield.
xIn bad weather or if there is
strong light from the front,
the EyeSight system will
restart once you have
driven your vehicle for a
period of time and the con-
ditions affecting the system
have improved.
If the system does not
restart, even after the con-
ditions have improved and
a period of time has
elapsed, contact your
SUBARU dealer for an
inspection.
In low or high temperatures The system will restart once
the temperature is within the
operational range of the
EyeSight system.
If the system does not
restart, even when the tem-
perature inside the vehicle is
normal, contact your
SUBARU dealer for an
inspection.
S01135
S00700
S00701

EyeSight malfunction and temporary stop
88
Displayed screen Cause Action
xWhen the EyeSight sys-
tem is starting
xWhen the system has
determined that the vehi-
cle is extremely inclined
xWhen the pre-collision
secondary braking has
operated 3 times after the
engine was started
xWhen the engine is
stopped
xWhen the electronic
power steering system is
in the overheating preven-
tion status because the
steering wheel has been
operated while the vehicle
is at a standstill or driving
at an extremely slow
speed
xWhen the EyeSight sys-
tem judged a different
value due to the removal
or installation of the steer-
ing wheel
xWhen wheel alignments
are deviatedThe system will restart once
the cause has been elimi-
nated. At this time, it may
take some time for the sys-
tem to restart.
If the system does not
restart, even after the condi-
tions have improved and a
period of time has elapsed,
contact your SUBARU dealer
for an inspection.
NOTE
When the EyeSight temporary stop indicator has illuminated, no EyeSight
functions can be used except for Conventional Cruise Control.
S00694

Customizing functions
89

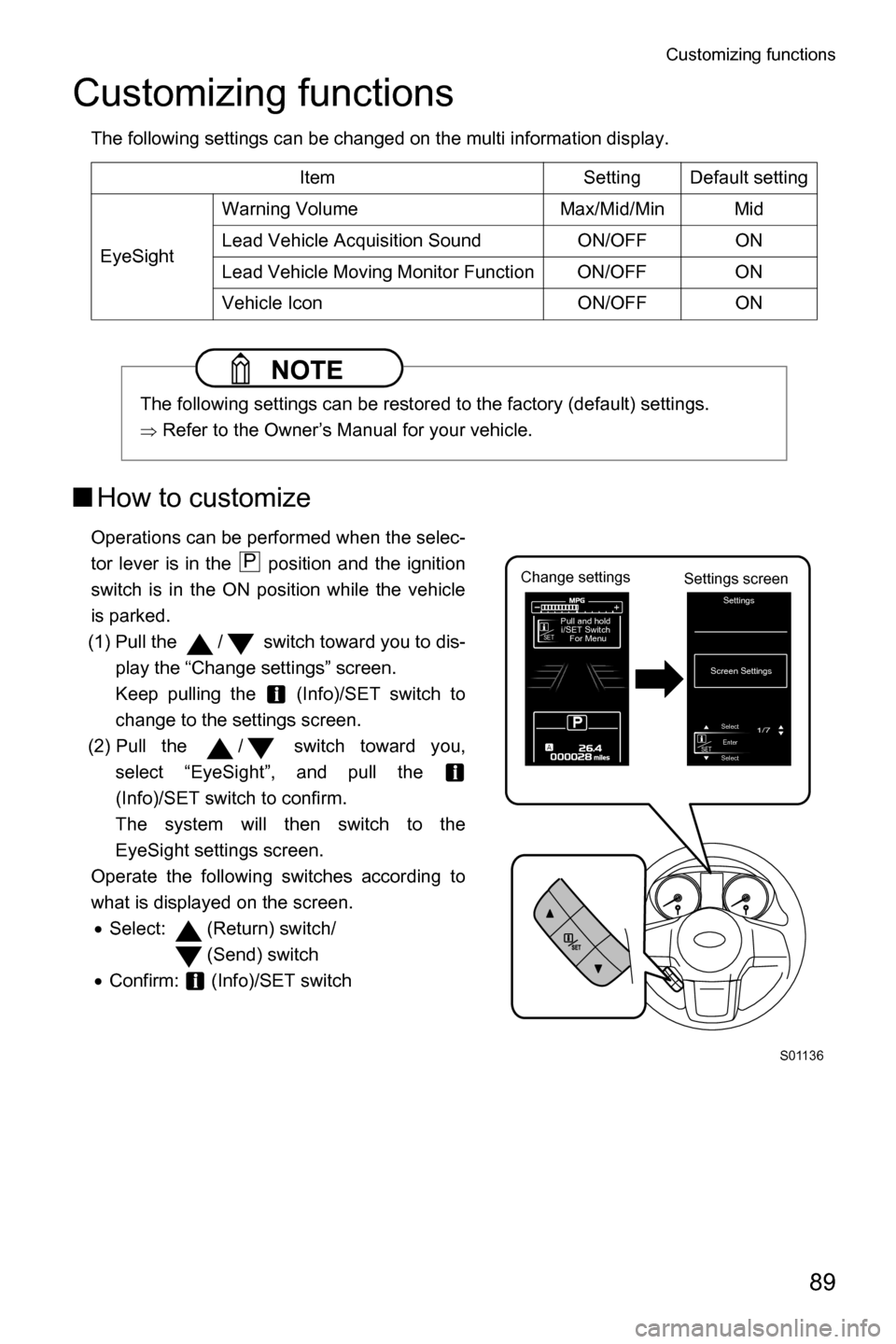

Customizing functions
The following settings can be changed on the multi information display.
■How to customize
Operations can be performed when the selec-
tor lever is in the position and the ignition
switch is in the ON position while the vehicle
is parked.
(1) Pull the / switch toward you to dis-
play the “Change settings” screen.
Keep pulling the (Info)/SET switch to
change to the settings screen.
(2) Pull the / switch toward you,
select “EyeSight”, and pull the
(Info)/SET switch to confirm.
The system will then switch to the
EyeSight settings screen.
Operate the following switches according to
what is displayed on the screen.
xSelect: (Return) switch/
(Send) switch
xConfirm: (Info)/SET switchItem Setting Default setting
EyeSightWarning Volume Max/Mid/Min Mid
Lead Vehicle Acquisition Sound ON/OFF ON
Lead Vehicle Moving Monitor Function ON/OFF ON
Vehicle Icon ON/OFF ON
NOTE
The following settings can be restored to the factory (default) settings.
Ÿ Refer to the Owner’s Manual for your vehicle.
SETEnter1/7Select
Select
SET
S01136
Change settings
Settings screen
Pull and hold
i/SET Switch
For MenuSettings
Screen Settings
P

Customizing functions
90
●Warning Volume setting
The volume can be set to Max/Mid/Min.
When on the Warning Volume settings screen, if the volume is selected with the /
switch, 3 short beeps will sound.
●Lead Vehicle Acquisition Sound setting
The Lead Vehicle Acquisition Sound setting can be activated (ON) or deactivated (OFF).
●Lead Vehicle Moving Monitor Function
The Lead Vehicle Start Alert function setting can be activated (ON) or deactivated (OFF).
●Vehicle Icon setting
Your vehicle indicator setting can be activated (ON) or deactivated (OFF).
●Cancelling the custom functions
In the following cases, the custom functions will be canceled and the “Change settings”
screen will be displayed.
xWhen you keep pulling the (Info)/SET switch toward you
xWhen the engine is turned off
xWhen the switch is not operated for approximately 30 seconds
NOTE
When “Return” is selected, the system will return to the screen directly above
the current one.

Message screen list

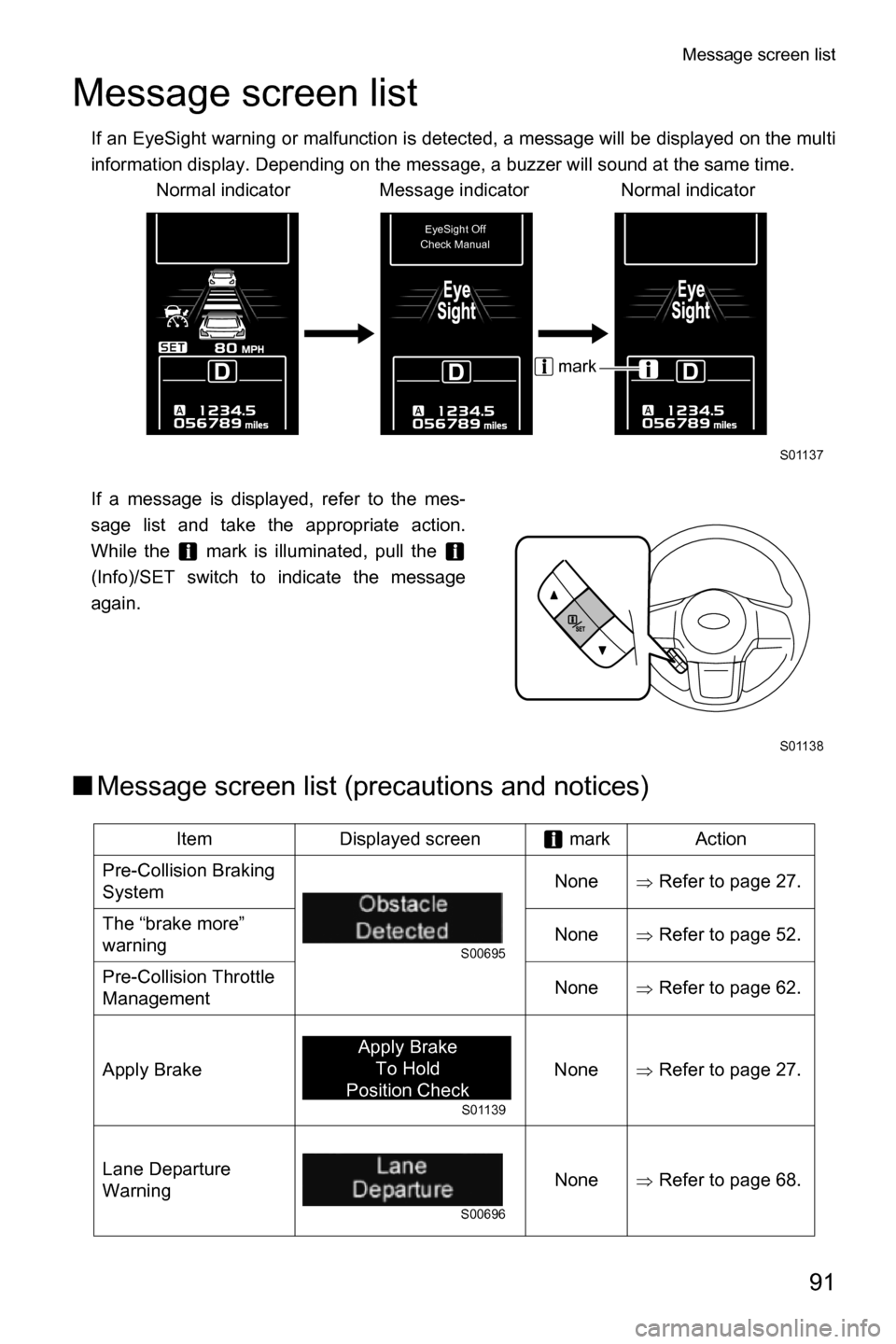

91
Message screen list
If an EyeSight warning or malfunction is detected, a message will be displayed on the multi
information display. Depending on the message, a buzzer will sound at the same time.
If a message is displayed, refer to the mes-
sage list and take the appropriate action.
While the mark is illuminated, pull the
(Info)/SET switch to indicate the message
again.
■Message screen list (precautions and notices)
Item Displayed screen mark Action
Pre-Collision Braking
SystemNone
ŸRefer to page 27.
The “brake more”
warningNone
ŸRefer to page 52.
Pre-Collision Throttle
ManagementNone
ŸRefer to page 62.
Apply Brake None
ŸRefer to page 27.
Lane Departure
WarningNone
ŸRefer to page 68.
Normal indicator Normal indicatorMessage indicator
S01137
EyeSight Off
Check Manual
mark
S01138
S00695
S01139
Apply Brake
To Hold
Position Check
Manual
S00696

Message screen list
92
■Message screen list (malfunction, temporary stop)
Steering operation not
detected by Lane
Keep AssistNoneŸRefer to page 54.
Lane Sway Warning None
ŸRefer to page 71.
Lead Vehicle Start
AlertNone
ŸRefer to page 74.
Adaptive Cruise
Control/Conventional
Cruise Control
automatic cancellation
(when the grade of the
road is very steep)None
ŸRefer to pages
49 and 82.
Item Displayed screen mark Action
EyeSight System
MalfunctionYes
(yellow)
ŸRefer to page 86.
EyeSight system
temporary stopYes
(white)
ŸRefer to page 87.
Yes
(white)
ŸRefer to page 87.
Yes
(white)
ŸRefer to page 88. Item Displayed screen mark Action
Keep Hands On
Steering Wheel
S01997
S00697
S00698
S01139
Cruise Control
Cancelled Steep Hill
Check Manual
S00699
S00700
S00701
S00694

Troubleshooting
93
Troubleshooting
Adaptive Cruise control cannot be set.
Did you remember to press the (CRUISE) switch?
If you have not pressed the (CRUISE) switch, (Adaptive Cruise
Control) will not be shown.
Is EyeSight operation temporarily stopped?
When EyeSight is temporarily stopped, is displayed on the multi information
display.
Set cruise control again after the reason for the temporary stop has been cor-
rected.
Is displayed?
Cruise control cannot be set when is not displayed. Set cruise control when
is displayed.
is not displayed.
Are the requirements for setting cruise control met?
In any of the following cases, will not be displayed.
xThe brake pedal is depressed.
xThe vehicle speed is not between approximately 0 MPH (0 km/h) and 90
MPH (145 km/h) (when Adaptive Cruise Control is operating).
xThe vehicle speed is not between approximately 25 MPH (40 km/h) and 90
MPH (145 km/h) (when Conventional Cruise Control is operating).
xThe combination meter indicates a position other than . (The select
lever or paddle shift switches are manually operated.)
xThe driver’s seatbelt is unfastened.
xAny door is opened (except the rear gate/trunk).
xThe electronic parking brake is applied (The brake system warning light is
illuminated or flashing.)
*.
xThe vehicle is on a steep grade.
xThe X-mode is turned on. (The X-mode indicator illuminates.)
xThe steering wheel is turned significantly in either direction.
*For details of how to release the Electronic Parking Brake, refer to the
Owner’s Manual for your vehicle.
D

Troubleshooting
94
A vehicle (in front of your vehicle) is not detected, is detected later or detection is
lost quickly.
Is the vehicle in front stopped, moving slowly relative to your vehicle or moving
extremely slowly?
Detection of stopped vehicles, vehicle moving slowly relative to your vehicle, and
vehicles moving extremely slowly may be difficult.
Is the windshield dirty or fogged?
If the windshield is dirty or fogged, it may not be possible to detect object or vehi-
cles. Clean off the dirt or fog from the windshield, and then try using the system
again.
Is the vehicle in front far away?
The maximum detection distance of EyeSight’s stereo cameras is approximately
360 ft (110 m). Detection is not possible if the vehicle is farther away.
Is the vehicle on a curve?
The detection range is limited in the left and right directions when the cameras are
properly aimed.
Is the vehicle on a road with repeated uphill and downhill grades (such as an over-
pass), or on a banked road?
The detection range is limited in the up and down directions.
Did the vehicle detected in front change?
Detection may be delayed after the vehicle in front has changed.
Have water, snow or other substances been kicked up by the vehicle in front as it
drives?
When water or snow have been kicked up, it may not be possible to detect the
vehicle in front.
Control is activated even though no vehicle in front is detected?
Is there a vehicle in the neighboring lane?
Depending on the road conditions, vehicles in neighboring lanes may be detected
as well as a vehicle directly in front.
Are you driving on or near a curve?
When driving on a curve, braking control may be activated in response to guard
rails, the angle of the steering wheel, or roadside structures.
The Lead Vehicle Start Alert activates, even though there is no vehicle in front.
Depending on surrounding objects, traffic environment and weather, the Lead
Vehicle Start Alert may issue a warning in response to objects other than a vehicle
that appear in front of your vehicle.

Troubleshooting
95
EyeSight does not restart after a temporary stop.
Is the X-mode turned on?
EyeSight cannot be activated when the X-mode is turned on.
Are you driving in the rain with old wipers or is there an oily film on the windshield?
Replace the wipers with new ones, or clean the oily film off the windshield.
Are you driving in poor weather conditions with heavy rain, snow, fog, or dust? In
these cases, EyeSight may temporarily stop operating while visibility is very low.
Is your vehicle subject to sunlight from the front (sunset or sunrise, etc.) or to
bright headlights from oncoming vehicles at nighttime?
In these cases, EyeSight may temporarily stop operating.
Has the vehicle been parked in a cold or hot place? In either of these cases,
EyeSight may temporarily stop operating until the temperature increases or
decreases to a temperature at which the camera is operable.
The timing of the “brake more” warning is sometimes earlier and sometimes later
than what seems to be normal operation.
The “brake more” warning sounds when the system determines that more braking
is necessary, based on conditions such as the distance from the vehicle in front
and the difference in speed compared to it. As a result, timing may vary depend-
ing on how the brakes are applied in relation to the vehicle in front, and your rela-
tive speed to that vehicle.
When the vehicle in front has turned off the road away or the distance from the
vehicle in front has increased, acceleration is sometimes slower or faster.
Depending on the timing of when the detection of the vehicle in front is lost,
EyeSight’s ability to react may be slower, causing the start of acceleration to feel
delayed and braking time to feel longer than what seems to be normal operation.

Troubleshooting
96
Cruise control is canceled automatically.
Did you perform one of the following operations?
xManually depressing the brake pedal
xPressing the (CRUISE) switch
- If the (CRUISE) switch is pressed while the cruise control is set,
the cruise control will be canceled.
xStaying on a steep slope
xTurning the steering wheel sharply
xOperating the paddle shift lever
xShifting the selector lever to the position
xPressing the X-mode switch (The X-mode indicator illuminates.)
Has the EyeSight system temporarily stopped?
A noise occurs when automatic braking control activates.
This is the sound of the automatic braking control operating - there are some
mechanical components to the system, and they do occasionally make audible
sounds during automatic braking control. It is not necessarily a malfunction.
Braking control activates frequently when driving in heavy traffic.
Unlike a human driving, the EyeSight system performs control based only on the
actions of vehicles or objects in front. As a result, acceleration and deceleration
may be more frequent while the system adjusts to vehicles or objects the camera
system is detecting. If it is difficult to maintain a consistent following distance
under certain conditions (like in bad weather or urban environments, etc.), do not
use Adaptive Cruise Control.
The Electronic Parking Brake is applied automatically while the stay-stopped func-
tion is operating.
The electronic parking brake will be applied in the following cases.
xThe stay-stopped function is continuously applied for approximately 2 min-
utes.
xAutomatic cancel conditions (
Ÿ refer to page 49.) have been met.
M
