DESTINATION SEARCH
213
NAVIGATION SYSTEM
8
SEARCHING BY INTERSECTION
1. Select Intersecting Street (Intersecting Street).
2. Select from the list.

”If there are only a few roads at the intersection, the
list is displayed immediately.

”If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.

”Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
LQIRUPDWLRQRQTXLFNHUVHDUFKLQJ
:3
HINTS FOR QUICK ADDRESS ENTRY

”When entering a city/town name or a street name:
‡Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡While entering text, the most likely search result is
DOZD\VGLVSOD\HGLQWKHWH[WHQWU\

DESTINATION SEARCH
215
NAVIGATION SYSTEM
8

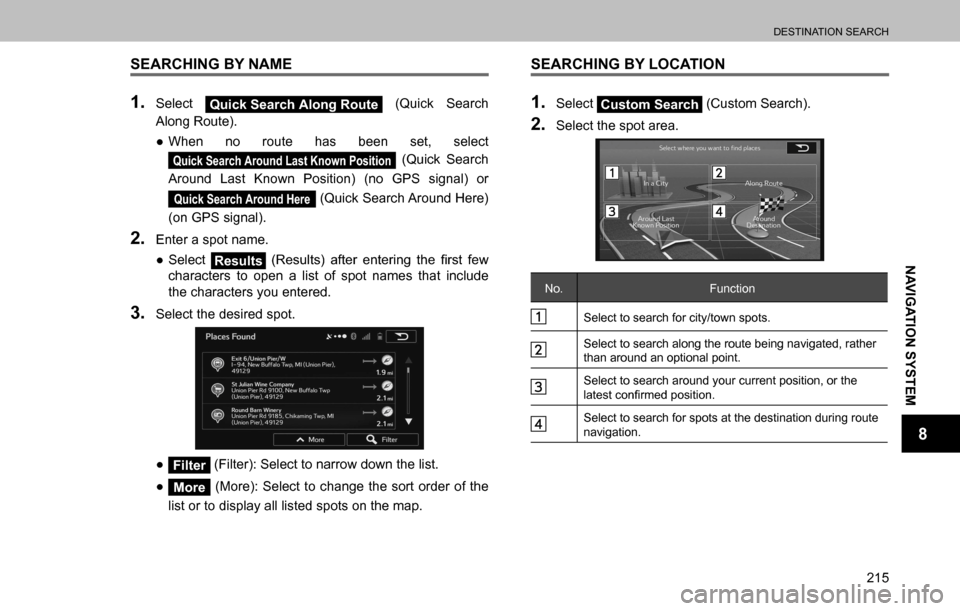

SEARCHING BY NAME
1. Select Quick Search Along Route (Quick Search
Along Route).

”When no route has been set, select
Quick Search Around Last Known Position (Quick Search
Around Last Known Position) (no GPS signal) or
Quick Search Around Here (Quick Search Around Here)
(on GPS signal).
2. Enter a spot name.

”Select
Results 5HVXOWV  DIWHU HQWHULQJ WKH

DESTINATION SEARCH
217
NAVIGATION SYSTEM
8

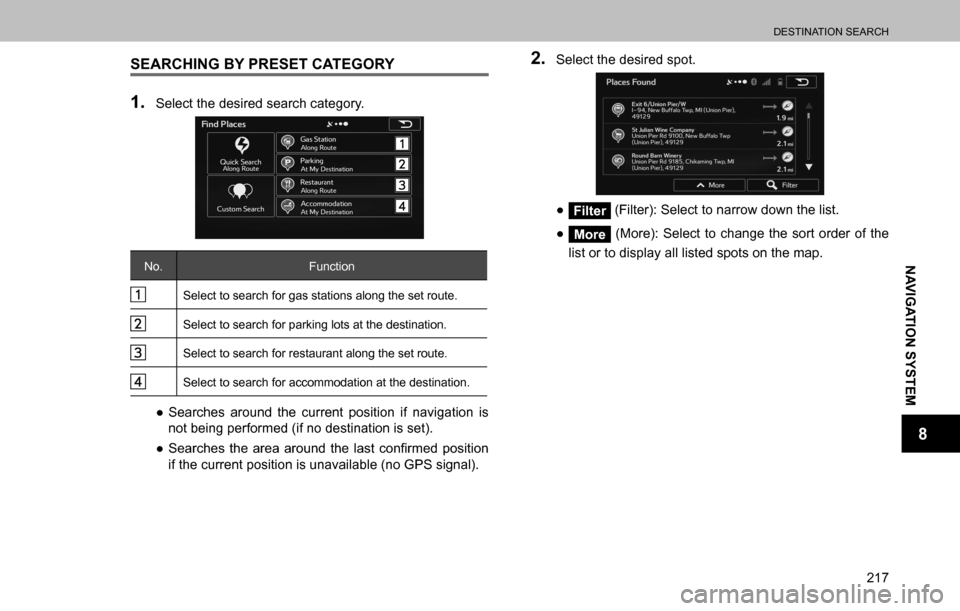

SEARCHING BY PRESET CATEGORY
1. Select the desired search category.
No. Function
Select to search for gas stations along the set route.
Select to search for parking lots at the destination.
Select to search for restaurant along the set route.
Select to search for accommodation at the destination.

”Searches around the current position if navigation is
not being performed (if no destination is set).

DESTINATION SEARCH
219
NAVIGATION SYSTEM
8

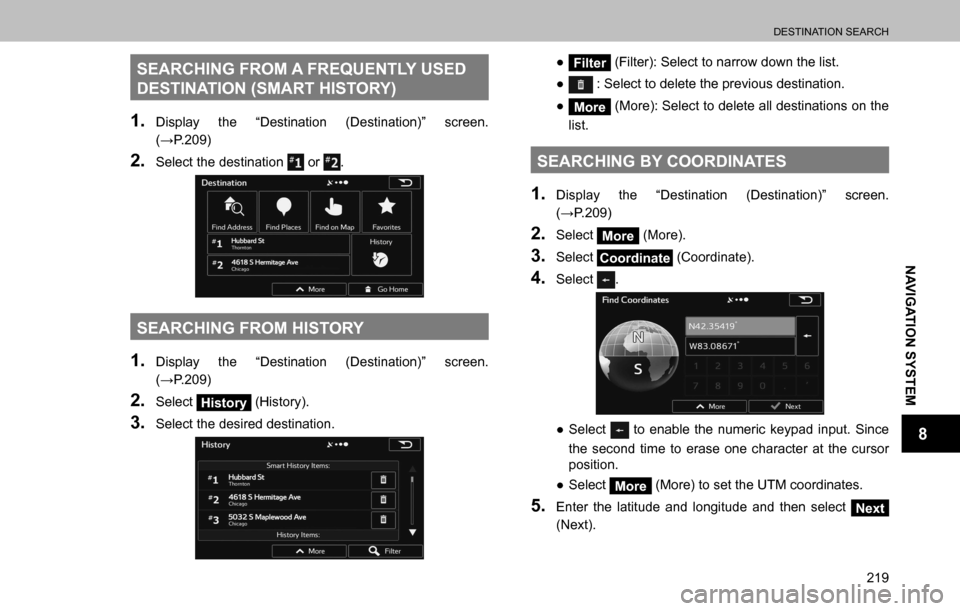

SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1. Display the “Destination (Destination)” screen.

:3
2. Select the destination or .
SEARCHING FROM HISTORY
1. Display the “Destination (Destination)” screen.

:3
2. Select History (History).
3. Select the desired destination.

”Filter (Filter): Select to narrow down the list.

”
: Select to delete the previous destination.

”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1. Display the “Destination (Destination)” screen.

:3
2. Select More (More).
3. Select Coordinate (Coordinate).
4. Select .

”Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.

”Select
More (More) to set the UTM coordinates.
5. Enter the latitude and longitude and then select Next
(Next).

DESTINATION SEARCH
221
NAVIGATION SYSTEM
8
SEARCHING GAS STATION IN LOW FUEL
WARNING
A nearby gas station can be selected as a destination.
1. Select Yes (Yes) when the low fuel warning appears.
2. Select the desired nearby gas station.
SEARCHING FOR A REST AREA
FOLLOWING PERIODIC REST
NOTIFICATION
PERIODIC REST NOTIFICATION POP-UP
When you have been driving for a long time, a warning
message will pop up on the screen.
1. Display the “General Settings (General Settings)”
VFUHHQ
:3
2. Select Periodic Rest Notification (Periodic Rest
1RWL¿FDWLRQ
SEARCHING FOR A REST AREA FOLLOWING
PERIODIC REST NOTIFICATION
A nearby place to rest can be selected as a destination.
1. Select Yes (Yes) when the long time drive warning
appears.
2. Select the desired nearby place to rest.

DESTINATION SEARCH
223
NAVIGATION SYSTEM
8
2. Select More (More).
3. Select Simulate Navigation (Simulate Navigation).
4. Check that the route simulation is displayed.

”The simulation begins from the start point and works
through the entire route at the recommended speed.

”You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No. Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1. Select Menu (Menu) on the map screen.
2. Select Cancel Route (Cancel Route).

”You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5RXWH&KDQJH5RXWH

ROUTE GUIDANCE
225
NAVIGATION SYSTEM
8

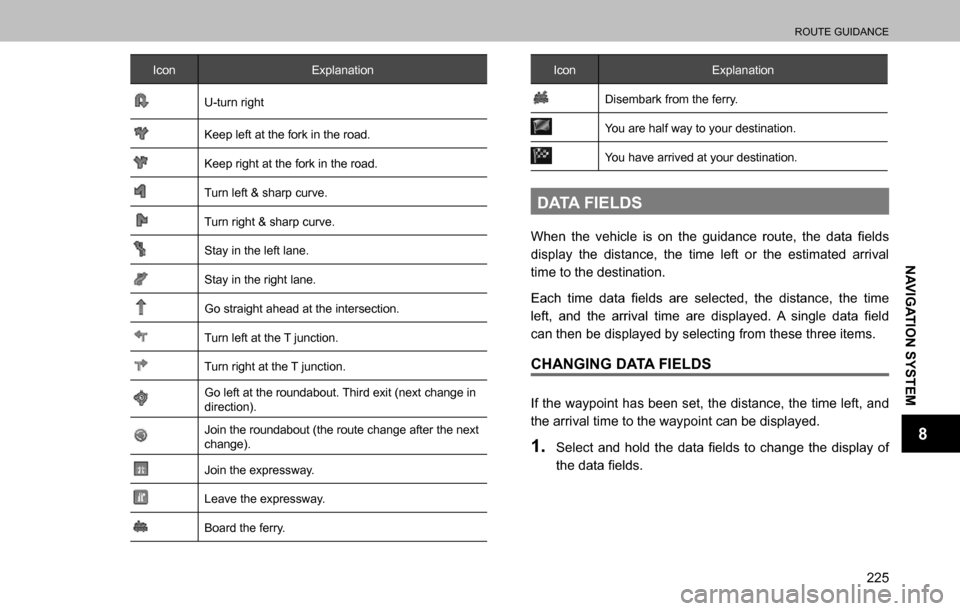

Icon Explanation
U-turn right
Keep left at the fork in the road.
Keep right at the fork in the road.
Turn left & sharp curve.
Turn right & sharp curve.
Stay in the left lane.
Stay in the right lane.
Go straight ahead at the intersection.
Turn left at the T junction.
Turn right at the T junction.
Go left at the roundabout. Third exit (next change in
direction).
Join the roundabout (the route change after the next
change).
Join the expressway.
Leave the expressway.
Board the ferry.
Icon Explanation
Disembark from the ferry.
You are half way to your destination.
You have arrived at your destination.
DATA FIELDS
:KHQ WKH YHKLFOH LV RQ WKH JXLGDQFH URXWH WKH GDWD

ROUTE GUIDANCE
227
NAVIGATION SYSTEM
8

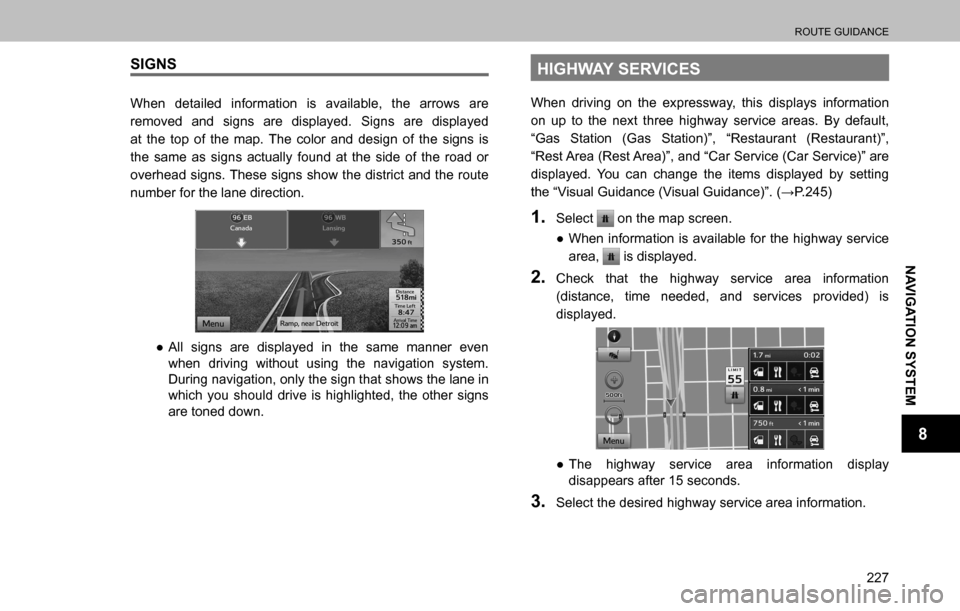

SIGNS
When detailed information is available, the arrows are
removed and signs are displayed. Signs are displayed
at the top of the map. The color and design of the signs is
the same as signs actually found at the side of the road or
overhead signs. These signs show the district and the route
number for the lane direction.

”All signs are displayed in the same manner even
when driving without using the navigation system.
During navigation, only the sign that shows the lane in
which you should drive is highlighted, the other signs
are toned down.
HIGHWAY SERVICES
When driving on the expressway, this displays information
on up to the next three highway service areas. By default,
“Gas Station (Gas Station)”, “Restaurant (Restaurant)”,
“Rest Area (Rest Area)”, and “Car Service (Car Service)” are
displayed. You can change the items displayed by setting
WKH

ROUTE GUIDANCE
229
NAVIGATION SYSTEM
8

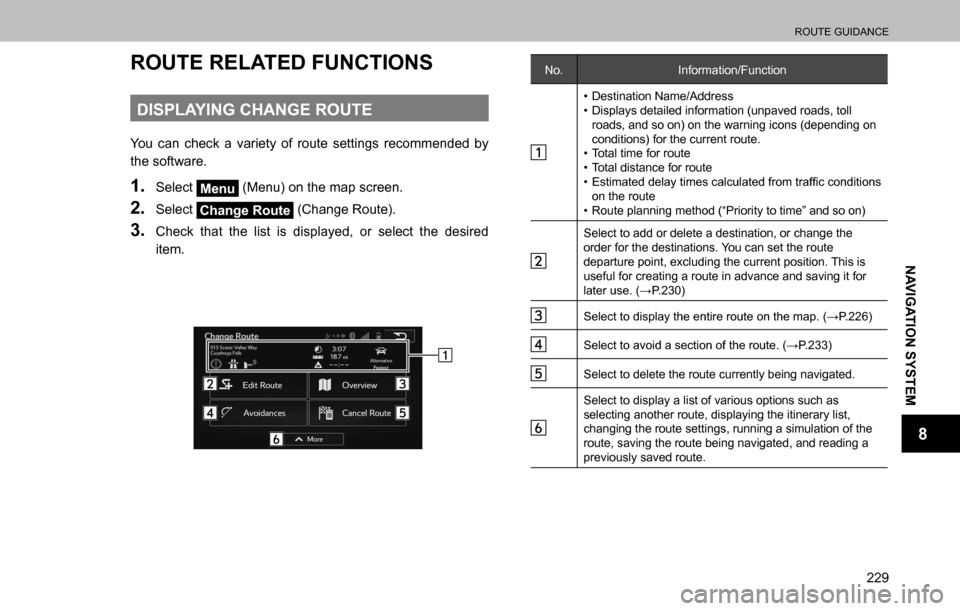

ROUTE RELATED FUNCTIONS
DISPLAYING CHANGE ROUTE
You can check a variety of route settings recommended by
the software.
1. Select Menu (Menu) on the map screen.
2. Select Change Route (Change Route).
3. Check that the list is displayed, or select the desired
item.
No. Information/Function
‡Destination Name/Address
‡Displays detailed information (unpaved roads, toll
roads, and so on) on the warning icons (depending on
conditions) for the current route.
‡Total time for route
‡Total distance for route

ROUTE GUIDANCE
231
NAVIGATION SYSTEM
8

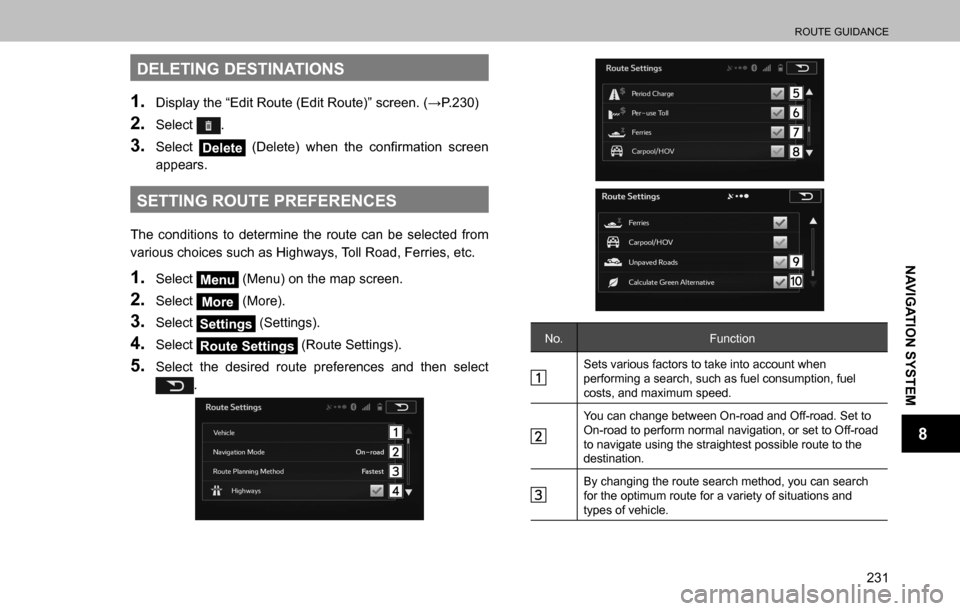

DELETING DESTINATIONS
1. 'LVSOD\WKH
