SUBARU OUTBACK 2016 6.G Owners Manual

&Internal trunk lid release
handle
The internal trunk lid release handle is a
device designed to open the trunk lid from
inside the trunk. In the event children or
adults become locked inside the trunk, the
handle allows them to open the lid. The
handle is located on the inside of the trunk
lid.

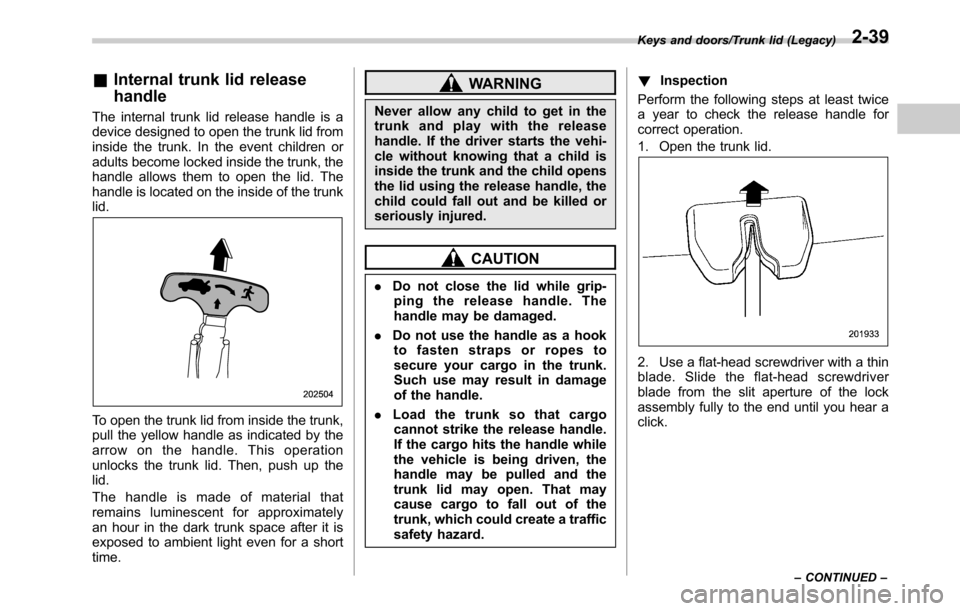

To open the trunk lid from inside the trunk,
pull the yellow handle as indicated by the
arrow on the handle. This operation
unlocks the trunk lid. Then, push up the
lid.
The handle is made of material that
remains luminescent for approximately
an hour in the dark trunk space after it is
exposed to ambient light even for a short
time.
WARNING
Never allow any child to get in the
trunk and play with the release
handle. If the driver starts the vehi-
cle without knowing that a child is
inside the trunk and the child opens
the lid using the release handle, the
child could fall out and be killed or
seriously injured.
CAUTION
.Do not close the lid while grip-
ping the release handle. The
handle may be damaged.
.Do not use the handle as a hook
to fasten straps or ropes to
secure your cargo in the trunk.
Such use may result in damage
of the handle.
.Load the trunk so that cargo
cannot strike the release handle.
If the cargo hits the handle while
the vehicle is being driven, the
handle may be pulled and the
trunk lid may open. That may
cause cargo to fall out of the
trunk, which could create a traffic
safety hazard.!Inspection
Perform the following steps at least twice
a year to check the release handle for
correct operation.
1. Open the trunk lid.
2. Use a flat-head screwdriver with a thin
blade. Slide the flat-head screwdriver
blade from the slit aperture of the lock
assembly fully to the end until you hear a
click.
Keys and doors/Trunk lid (Legacy)
–CONTINUED–2-39

Keys and doors/Rear gate (Outback)
This places the latch in the locked posi-
tion.
3. Move the release handle, from outside
the vehicle, in the direction of the arrow to
check if the latch is released.If the latch is not released, contact your
SUBARU dealer.
In that case, use the key to release the
latch, then close the trunk lid.
Also, if the movement of the release
handle feels restricted or not entirely
smooth during operation, or the handle
and/or handle base is cracked, contact
your SUBARU dealer.
Rear gate (Outback)
&Manual rear gate (if
equipped)
The rear gate can be locked and unlocked
using any of the following systems.
.Power door locking switch: Refer to
“Power door locking switches”F2-9.
.Keyless access with the push-button
start system (if equipped): Refer to“Key-
less access with push-button start system”
F2-10.
.Remote keyless entry system: Refer to
“Remote keyless entry system”F2-23.

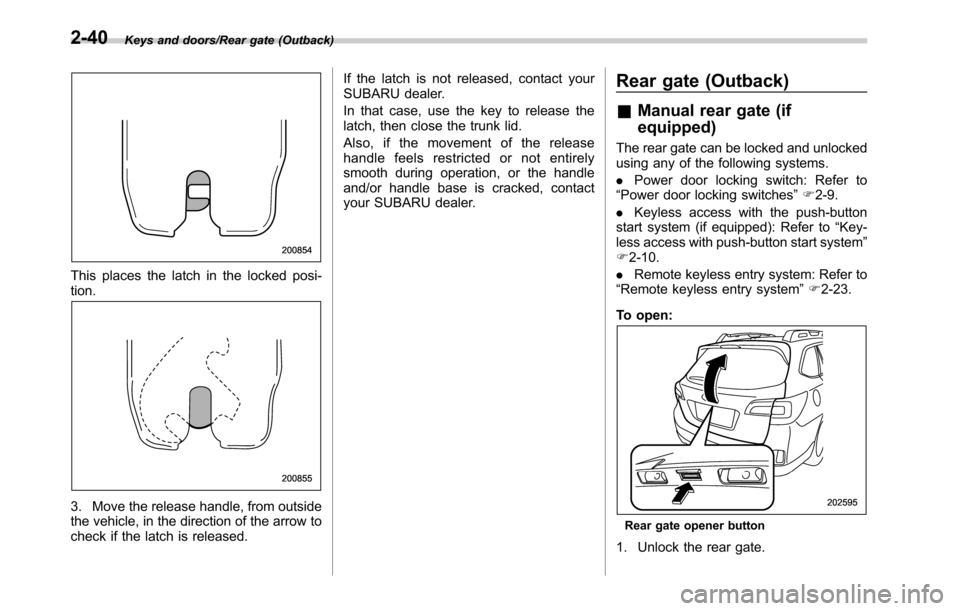

To open:
Rear gate opener button
1. Unlock the rear gate.
2-40

2. Press and hold the rear gate opener
button. The rear gate will open slightly.
3. Hold the rear gate and lift it up slowly.
NOTE
If the rear gate cannot be opened due
to a discharged vehicle battery, a
malfunction in the door locking/unlock-
ing system or other causes, you can
unlock it by manually operating the
rear gate lock release lever. For the
procedure, refer to“Rear gate
(Outback)–if the rear gate cannot be
opened”F9-20.

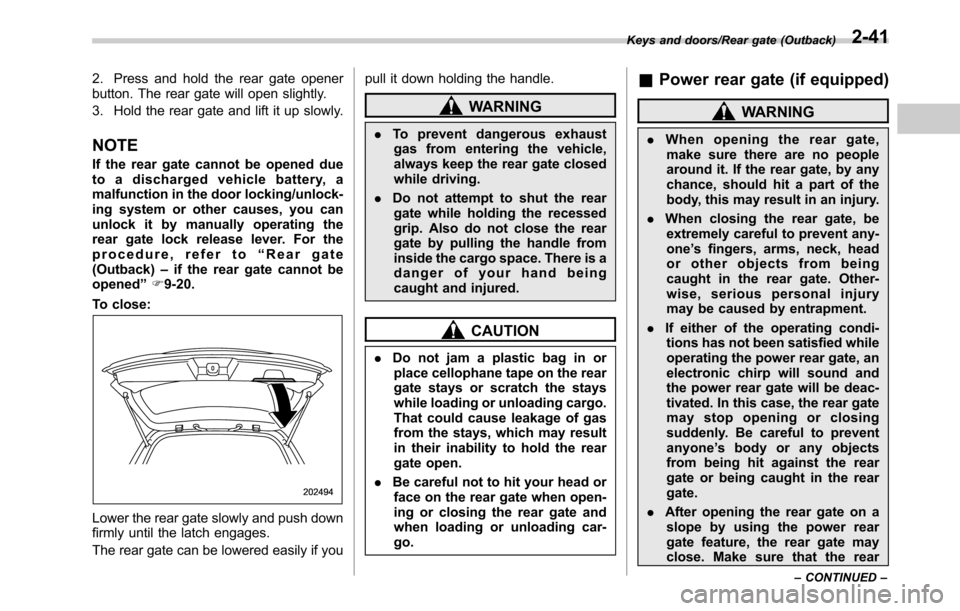

To close:
Lower the rear gate slowly and push down
firmly until the latch engages.
The rear gate can be lowered easily if youpull it down holding the handle.
WARNING
.To prevent dangerous exhaust
gas from entering the vehicle,
always keep the rear gate closed
while driving.
.Do not attempt to shut the rear
gate while holding the recessed
grip. Also do not close the rear
gate by pulling the handle from
inside the cargo space. There is a
danger of your hand being
caught and injured.
CAUTION
.Do not jam a plastic bag in or
place cellophane tape on the rear
gate stays or scratch the stays
while loading or unloading cargo.
That could cause leakage of gas
from the stays, which may result
in their inability to hold the rear
gate open.
.Be careful not to hit your head or
face on the rear gate when open-
ing or closing the rear gate and
when loading or unloading car-
go.
&Power rear gate (if equipped)
WARNING
.When opening the rear gate,
make sure there are no people
around it. If the rear gate, by any
chance, should hit a part of the
body, this may result in an injury.
.When closing the rear gate, be
extremely careful to prevent any-
one’s fingers, arms, neck, head
or other objects from being
caught in the rear gate. Other-
wise, serious personal injury
may be caused by entrapment.
.If either of the operating condi-
tions has not been satisfied while
operating the power rear gate, an
electronic chirp will sound and
the power rear gate will be deac-
tivated. In this case, the rear gate
may stop opening or closing
suddenly. Be careful to prevent
anyone’s body or any objects
from being hit against the rear
gate or being caught in the rear
gate.
.After opening the rear gate on a
slope by using the power rear
gate feature, the rear gate may
close. Make sure that the rear
Keys and doors/Rear gate (Outback)
–CONTINUED–2-41

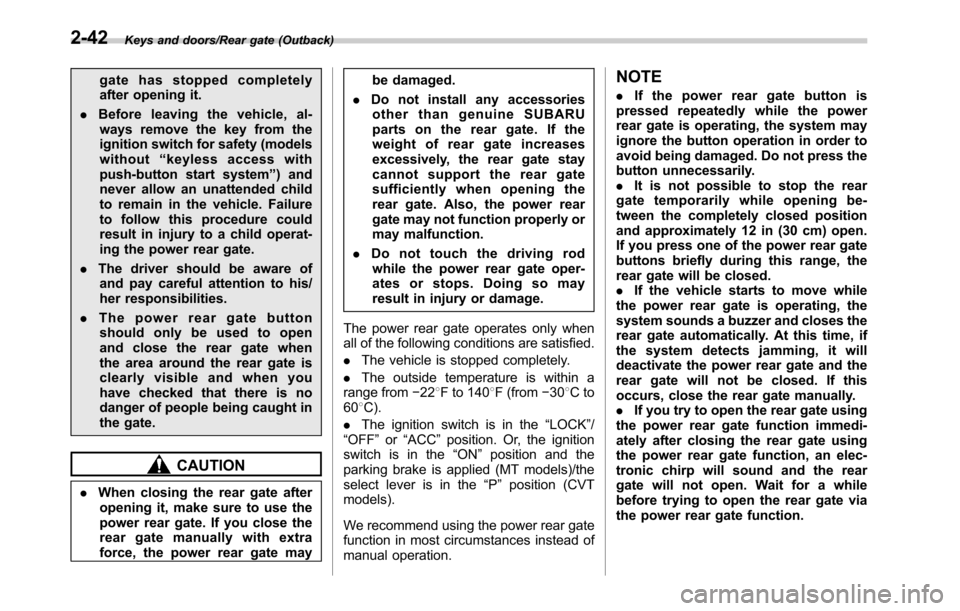

Keys and doors/Rear gate (Outback)
gate has stopped completely
after opening it.
.Before leaving the vehicle, al-
ways remove the key from the
ignition switch for safety (models
without“keyless access with
push-button start system”) and
never allow an unattended child
to remain in the vehicle. Failure
to follow this procedure could
result in injury to a child operat-
ing the power rear gate.
.The driver should be aware of
and pay careful attention to his/
her responsibilities.
.The power rear gate button
should only be used to open
and close the rear gate when
the area around the rear gate is
clearly visible and when you
have checked that there is no
danger of people being caught in
the gate.
CAUTION
.When closing the rear gate after
opening it, make sure to use the
power rear gate. If you close the
rear gate manually with extra
force, the power rear gate maybe damaged.
.Do not install any accessories
other than genuine SUBARU
parts on the rear gate. If the
weight of rear gate increases
excessively, the rear gate stay
cannot support the rear gate
sufficiently when opening the
rear gate. Also, the power rear
gate may not function properly or
may malfunction.
.Do not touch the driving rod
while the power rear gate oper-
ates or stops. Doing so may
result in injury or damage.
The power rear gate operates only when
all of the following conditions are satisfied.
.The vehicle is stopped completely.
.The outside temperature is within a
range from−228F to 1408F (from−308Cto
608C).
.The ignition switch is in the“LOCK”/
“OFF”or“ACC”position. Or, the ignition
switch is in the“ON”position and the
parking brake is applied (MT models)/the
select lever is in the“P”position (CVT
models).
We recommend using the power rear gate
function in most circumstances instead of
manual operation.
NOTE
.If the power rear gate button is
pressed repeatedly while the power
rear gate is operating, the system may
ignore the button operation in order to
avoid being damaged. Do not press the
button unnecessarily.
.It is not possible to stop the rear
gate temporarily while opening be-
tween the completely closed position
and approximately 12 in (30 cm) open.
If you press one of the power rear gate
buttons briefly during this range, the
rear gate will be closed.
.If the vehicle starts to move while
the power rear gate is operating, the
system sounds a buzzer and closes the
rear gate automatically. At this time, if
the system detects jamming, it will
deactivate the power rear gate and the
rear gate will not be closed. If this
occurs, close the rear gate manually.
.If you try to open the rear gate using
the power rear gate function immedi-
ately after closing the rear gate using
the power rear gate function, an elec-
tronic chirp will sound and the rear
gate will not open. Wait for a while
before trying to open the rear gate via
the power rear gate function.
2-42

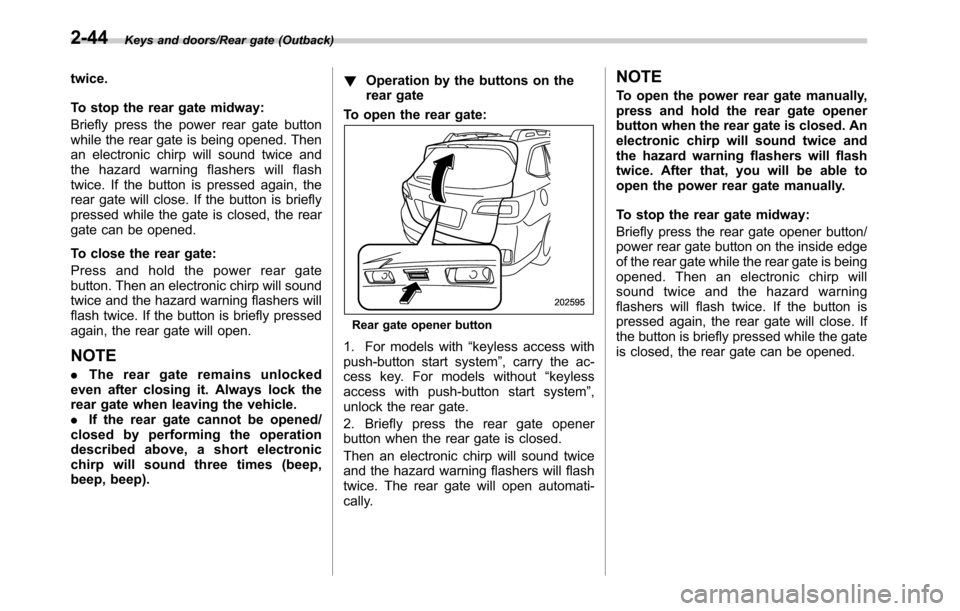

!Operation by the button on the
instrument panel
Power rear gate button
To open the rear gate:
Press and hold the power rear gate button
when the rear gate is closed. Then an
electronic chirp will sound twice and the
hazard warning flashers will flash twice.
The rear gate will open automatically.
To stop the rear gate midway:
Briefly press the power rear gate button
while the rear gate is being opened. Then
an electronic chirp will sound twice and
the hazard warning flashers will flash
twice. If the button is pressed and held
again, the rear gate will close. If the button
is briefly pressed while the gate is closed,
the rear gate can be opened.To close the rear gate:
Press and hold the power rear gate
button. Then an electronic chirp will sound
twice and the hazard warning flashers will
flash twice. If the button is briefly pressed
again, the rear gate will open.
NOTE
If the rear gate cannot be opened/
closed by performing the operation
described above, a short electronic
chirp will sound three times.

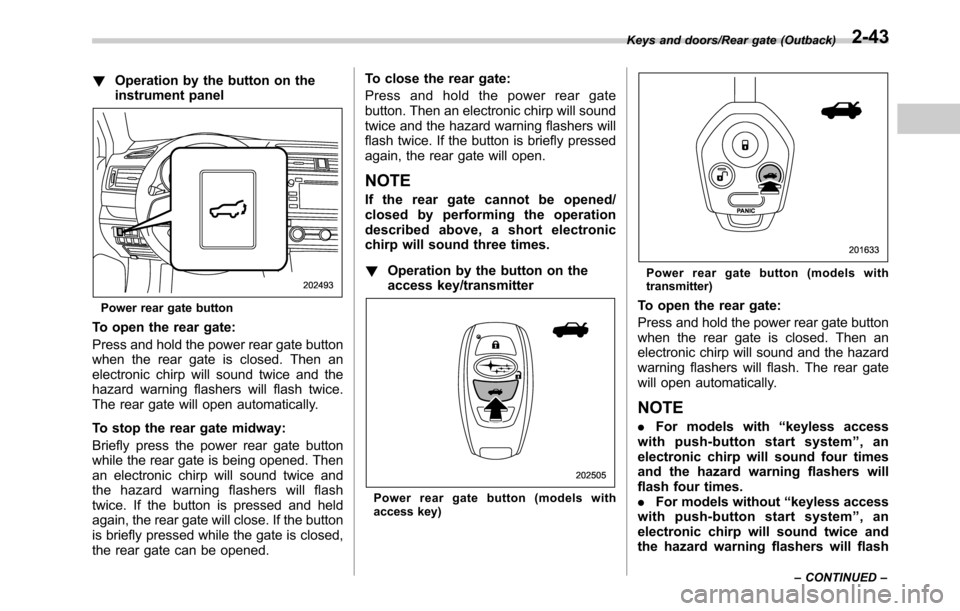

!Operation by the button on the
access key/transmitter
Power rear gate button (models with
access key)
Power rear gate button (models with
transmitter)
To open the rear gate:
Press and hold the power rear gate button
when the rear gate is closed. Then an
electronic chirp will sound and the hazard
warning flashers will flash. The rear gate
will open automatically.
NOTE
.For models with“keyless access
with push-button start system”,an
electronic chirp will sound four times
and the hazard warning flashers will
flash four times.
.For models without“keyless access
with push-button start system”,an
electronic chirp will sound twice and
the hazard warning flashers will flash
Keys and doors/Rear gate (Outback)
–CONTINUED–2-43

Keys and doors/Rear gate (Outback)
twice.
To stop the rear gate midway:
Briefly press the power rear gate button
while the rear gate is being opened. Then
an electronic chirp will sound twice and
the hazard warning flashers will flash
twice. If the button is pressed again, the
rear gate will close. If the button is briefly
pressed while the gate is closed, the rear
gate can be opened.
To close the rear gate:
Press and hold the power rear gate
button. Then an electronic chirp will sound
twice and the hazard warning flashers will
flash twice. If the button is briefly pressed
again, the rear gate will open.
NOTE
.The rear gate remains unlocked
even after closing it. Always lock the
rear gate when leaving the vehicle.
.If the rear gate cannot be opened/
closed by performing the operation
described above, a short electronic
chirp will sound three times (beep,
beep, beep).!Operation by the buttons on the
rear gate
To open the rear gate:
Rear gate opener button
1. For models with“keyless access with
push-button start system”, carry the ac-
cess key. For models without“keyless
access with push-button start system”,
unlock the rear gate.
2. Briefly press the rear gate opener
button when the rear gate is closed.
Then an electronic chirp will sound twice
and the hazard warning flashers will flash
twice. The rear gate will open automati-
cally.
NOTE
To open the power rear gate manually,
press and hold the rear gate opener
button when the rear gate is closed. An
electronic chirp will sound twice and
the hazard warning flashers will flash
twice. After that, you will be able to
open the power rear gate manually.
To stop the rear gate midway:
Briefly press the rear gate opener button/
power rear gate button on the inside edge
of the rear gate while the rear gate is being
opened. Then an electronic chirp will
sound twice and the hazard warning
flashers will flash twice. If the button is
pressed again, the rear gate will close. If
the button is briefly pressed while the gate
is closed, the rear gate can be opened.
2-44

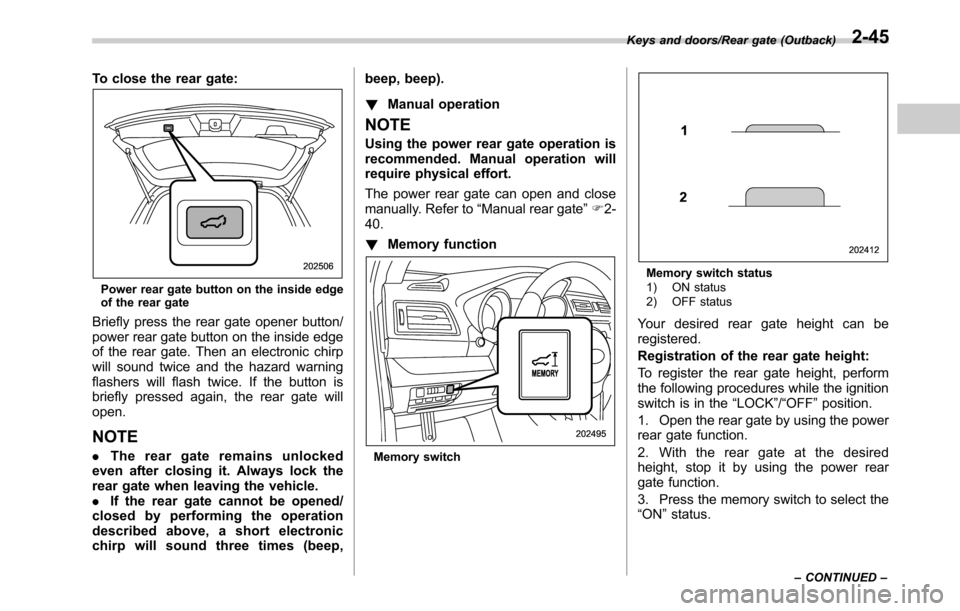

To close the rear gate:
Power rear gate button on the inside edge
of the rear gate
Briefly press the rear gate opener button/
power rear gate button on the inside edge
of the rear gate. Then an electronic chirp
will sound twice and the hazard warning
flashers will flash twice. If the button is
briefly pressed again, the rear gate will
open.
NOTE
.The rear gate remains unlocked
even after closing it. Always lock the
rear gate when leaving the vehicle.
.If the rear gate cannot be opened/
closed by performing the operation
described above, a short electronic
chirp will sound three times (beep,beep, beep).
!Manual operation
NOTE
Using the power rear gate operation is
recommended. Manual operation will
require physical effort.
The power rear gate can open and close
manually. Refer to“Manual rear gate”F2-
40.
!Memory function
Memory switch
Memory switch status
1) ON status
2) OFF status
Your desired rear gate height can be
registered.
Registration of the rear gate height:
To register the rear gate height, perform
the following procedures while the ignition
switch is in the“LOCK”/“OFF”position.
1. Open the rear gate by using the power
rear gate function.
2. With the rear gate at the desired
height, stop it by using the power rear
gate function.
3. Press the memory switch to select the
“ON”status.
Keys and doors/Rear gate (Outback)
–CONTINUED–2-45

Keys and doors/Rear gate (Outback)

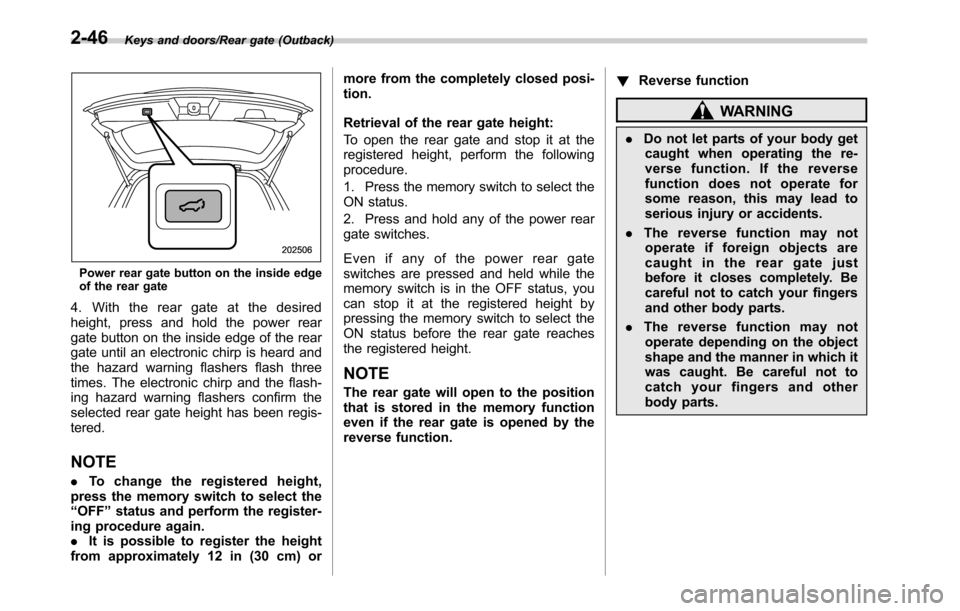

Power rear gate button on the inside edge
of the rear gate
4. With the rear gate at the desired
height, press and hold the power rear
gate button on the inside edge of the rear
gate until an electronic chirp is heard and
the hazard warning flashers flash three
times. The electronic chirp and the flash-
ing hazard warning flashers confirm the
selected rear gate height has been regis-
tered.
NOTE
.To change the registered height,
press the memory switch to select the
“OFF”status and perform the register-
ing procedure again.
.It is possible to register the height
from approximately 12 in (30 cm) ormore from the completely closed posi-
tion.
Retrieval of the rear gate height:
To open the rear gate and stop it at the
registered height, perform the following
procedure.
1. Press the memory switch to select the
ON status.
2. Press and hold any of the power rear
gate switches.
Even if any of the power rear gate
switches are pressed and held while the
memory switch is in the OFF status, you
can stop it at the registered height by
pressing the memory switch to select the
ON status before the rear gate reaches
the registered height.
NOTE
The rear gate will open to the position
that is stored in the memory function
even if the rear gate is opened by the
reverse function.!Reverse function
WARNING
.Do not let parts of your body get
caught when operating the re-
verse function. If the reverse
function does not operate for
some reason, this may lead to
serious injury or accidents.
.The reverse function may not
operate if foreign objects are
caught in the rear gate just
before it closes completely. Be
careful not to catch your fingers
and other body parts.
.The reverse function may not
operate depending on the object
shape and the manner in which it
was caught. Be careful not to
catch your fingers and other
body parts.
2-46

CAUTION
.If the reverse function is operated
3 times consecutively, automatic
opening and closing of the power
rear gate function will be can-
celed and the rear gate will stop
opening or closing suddenly.
Whether the rear gate opens or
closes depends on the rear gate
height when automatic operation
is ceased. Be careful that the rear
gate does not hit anyone’s head
or face, etc. and that fingers and
baggage, etc. are not caught in it.
.Take care not to damage the
touch sensors. Otherwise, the
reverse function may cease to
operate.
If, while opening or closing using power
rear gate, the rear gate catches persons
or baggage or hits an obstacle, an
electronic chirp will sound 3 times and
the rear gate will operate as follows.
When opening the rear gate:The rear
gate will automatically close.
When closing the rear gate:The rear
gate will automatically open.
1) Touch sensor
Touch sensors are attached on the left
and right edges of the rear gate. If the
touch sensors detect fingers, baggage,
etc. while closing by the power rear gate
function, an electronic chirp will sounds 3
times and the rear gate will open auto-
matically.
NOTE
When the rear gate is opened using the
reverse function, it will be opened fully
or to the height registered in the
memory function.!Rear gate drop prevention function
If, while fully opened via the power rear
gate function, the rear gate is lowered by
the weight of snow and such, an electronic
chirp will sound and the rear gate drop
prevention function will apply braking to
the rear gate so that it prevents a rapid
closure of the rear gate.
NOTE
.If there is snow on the rear gate,
only use the power rear gate function
after removing the snow.
.If you close the rear gate manually
just after the rear gate is fully opened
using the power rear gate function, the
rear gate drop prevention function will
detect a rapid closure of the rear gate
and apply braking to the rear gate. In
this case, this is not a malfunction.
!Selecting audible signal operation
Using an electronic chirp, the power rear
gate will give you an audible signal before
starting its operation. If desired, the
audible signal can be turned off by a
SUBARU dealer. Consult your SUBARU
dealer for details.
For models with“keyless access with
push-button start system”, you can turn
the audible signal off by operating the
multi information display. For details, refer
Keys and doors/Rear gate (Outback)
–CONTINUED–2-47

Keys and doors/Moonroof
to“Keyless Entry System”F3-42.
The ON/OFF setting of the audible signal
also works as the audible signal settings
for the“remote keyless entry system”and
the“keyless access with push-button start
system”. However, for the warning chime
such as that caused by“Reverse function”
F2-46 or“Rear gate drop prevention
function”F2-47, it cannot be set as non-

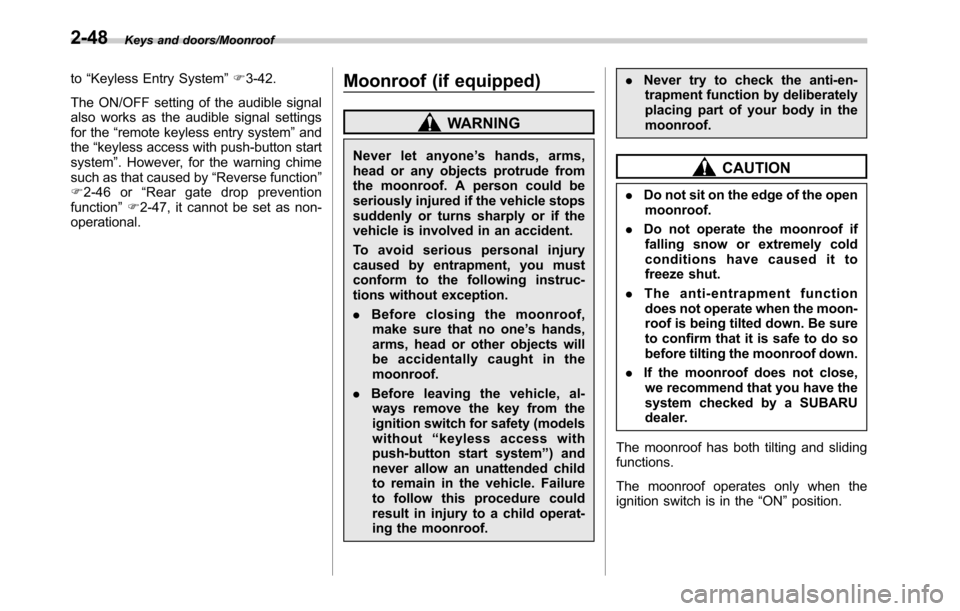

operational.Moonroof (if equipped)
WARNING
Never let anyone’s hands, arms,
head or any objects protrude from
the moonroof. A person could be
seriously injured if the vehicle stops
suddenly or turns sharply or if the
vehicle is involved in an accident.
To avoid serious personal injury
caused by entrapment, you must
conform to the following instruc-
tions without exception.
.Before closing the moonroof,
make sure that no one’s hands,
arms, head or other objects will
be accidentally caught in the
moonroof.
.Before leaving the vehicle, al-
ways remove the key from the
ignition switch for safety (models
without“keyless access with
push-button start system”) and
never allow an unattended child
to remain in the vehicle. Failure
to follow this procedure could
result in injury to a child operat-
ing the moonroof..Never try to check the anti-en-
trapment function by deliberately
placing part of your body in the
moonroof.CAUTION
.Do not sit on the edge of the open
moonroof.
.Do not operate the moonroof if
falling snow or extremely cold
conditions have caused it to
freeze shut.
.The anti-entrapment function
does not operate when the moon-
roof is being tilted down. Be sure
to confirm that it is safe to do so
before tilting the moonroof down.
.If the moonroof does not close,
we recommend that you have the
system checked by a SUBARU
dealer.
The moonroof has both tilting and sliding
functions.
The moonroof operates only when the
ignition switch is in the“ON”position.
2-48
