buttons SUBARU OUTBACK 2016 6.G Quick Reference Guide

10

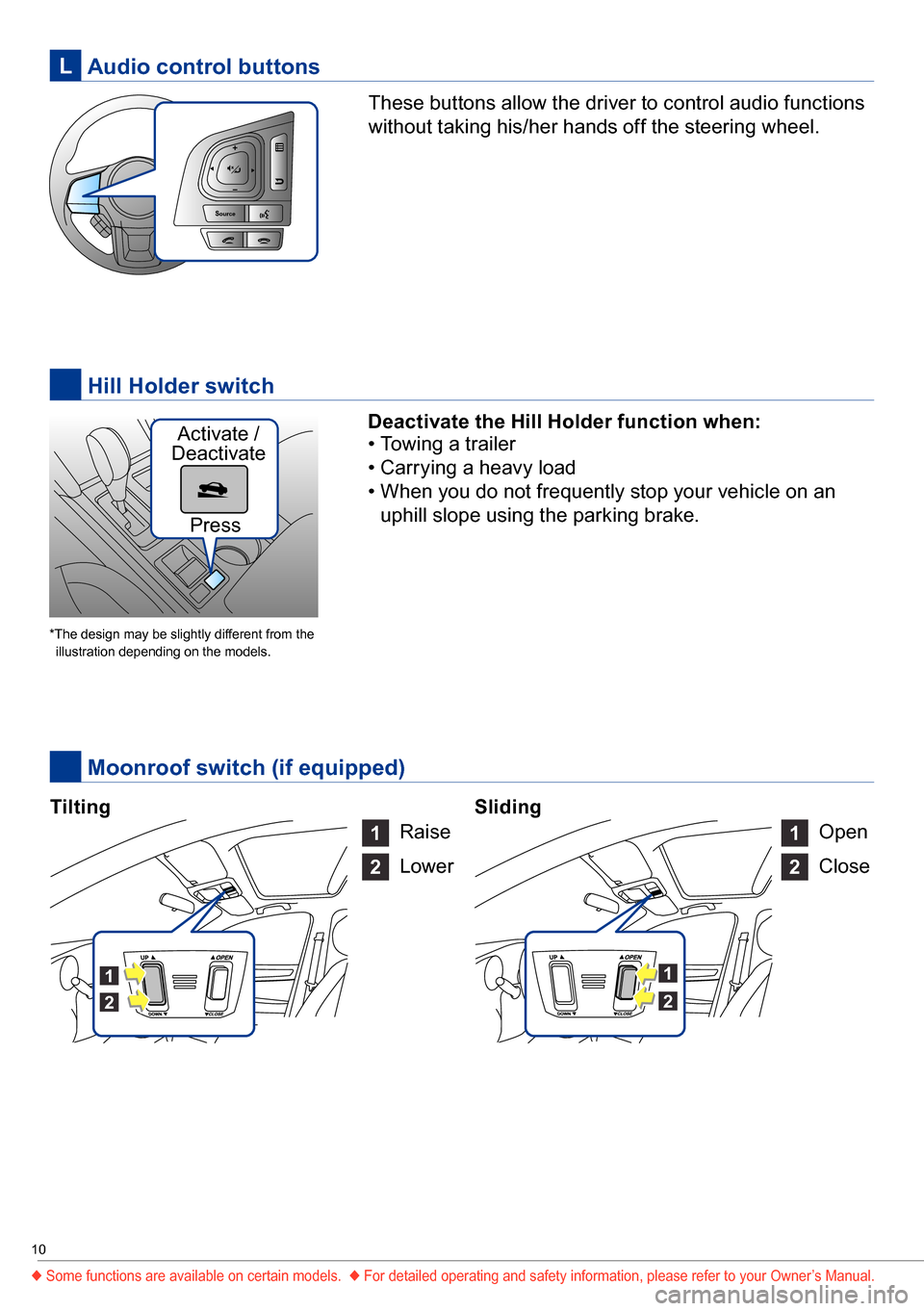

Deactivate the Hill Holder function when:
• Towing a trailer
• Carrying a heavy load
• When you do not frequently stop your vehicle on an
uphill slope using the parking brake.
Tilting Sliding
Moonroof switch (if equipped)
1 Raise
2 Lower
1 Open
2 Close
Hill Holder switch
*The design may be slightly different from the illustration depending on the models.
Audio control buttonsL
These buttons allow the driver to control audio functions
without taking his/her hands off the steering wheel.
2
1
2
1
Activate / Deactivate
Press
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.

13
1 Cruise control main button: To activate and
deactivate
2 RES/ SET switch
▲RES/+ side: To increase the speed/ To resume
▼SET/- side: To set speed/ To decrease the speed
3 CANCEL button: To temporarily cancel
Cruise control enables you to maintain a constant vehicle
speed without holding your foot on the accelerator pedal
and it is operative when the vehicle speed is 40 km/h
or more.
Cruise control buttonsB
Information displayC
1 Clock
2 Climate control mode indicators
3 Outside temperature indicator
Control switch: To adjust the time shown by the clock,
press the + button or the - button.OUT TEMP
PMMAX
A/C
1 ECO gauge
2 Basic screen
3 Cruise control information
4 Select lever/ gear position indicator
5 Warning screen
6 Odometer/ double trip meter
Control switch: By operating ▲ or ▼ of the control
switch, the screens and selection items
can be switched. When the /SET
switch is pulled toward you, the item
can be selected and set.
km/h
km
Multi information displayD
1
2
3
123
Control switch
Control switch
1
2
3
4
6
5
