remote control SUBARU OUTBACK 2016 6.G Quick Reference Guide

3
Ignition switch must be in ACC or ON position.
1 Select side to adjust
2 To adjust the mirror, move the switch in the
direction of your desired position.

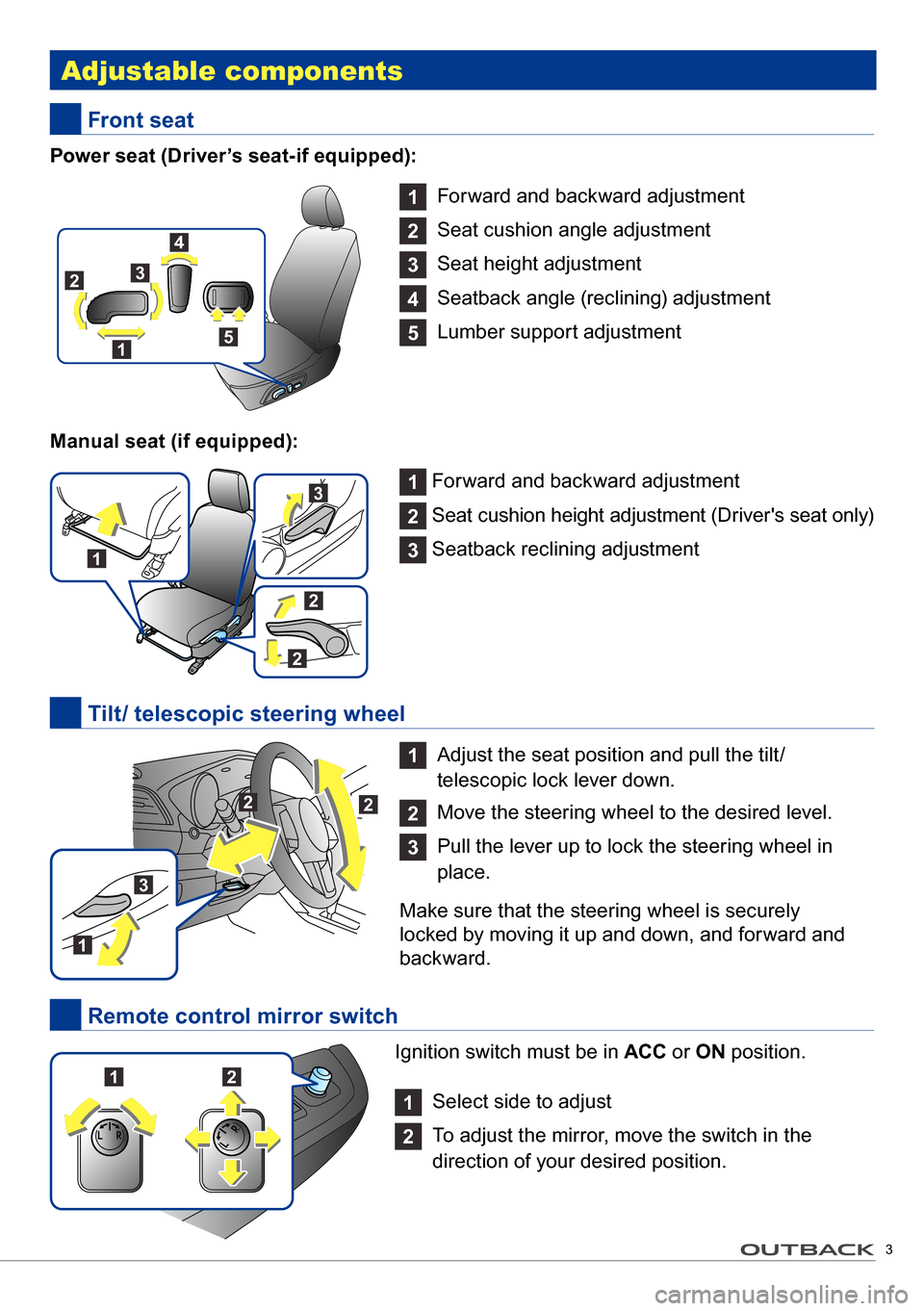

Adjustable components
1 Forward and backward adjustment
2 Seat cushion angle adjustment
3 Seat height adjustment
4 Seatback angle (reclining) adjustment
5 Lumber support adjustment
1 Forward and backward adjustment
2 Seat cushion height adjustment (Driver's seat only)
3 Seatback reclining adjustment
Power seat (Driver’s seat-if equipped):
Manual seat (if equipped):
Front seat
Tilt/ telescopic steering wheel
Remote control mirror switch
1 Adjust the seat position and pull the tilt/
telescopic lock lever down.
2 Move the steering wheel to the desired level.
3 Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
1
2
3
2
1
2
3
2
12
1
2
4
3
5
