Overview of Touch Screen and Switches
Switch operation
This system is operated mainly by the
switches on the screen. To prevent
damage to the screen, lightly touch
switches on the screen with your fin-
ger. When you touch a switch on the
screen or push a button, a beep
sounds.
INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the sur-
face of the display using a glass
cleaning cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.

4Runner_Navi_U (L/O 0308)
2
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00004
You can adjust the angle of the dis-
play by pushing the
“TILT” button.
Each push of the
“TILT” button will
tilt the display to position 1, 2, 3 and
then back to 0 in that order.
If you turn the ignition switch off, the
display will automatically move back to
position 0. The display will automatically
resume the previous position you used
when the ignition switch is turned to the
“ACC” or “ON” position.
CAUTION
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your nav-
igation system.
The navigation system is operated by
switches on the screen and the but-
tons located on the front face around
the screen. When you touch a switch
or push a button, a beep sounds.
When using the switches on the touch
screen, please use only light pressure
with your finger to protect the screen
from damage. Do not use objects other
than your finger to touch the screen.
L00013
To type in an address etc., directly touch
alphabet keys on the screen. If you touch
a wrong letter, delete it using the
switch. Touching the switch erases
one letter.
Your navigation system Inputting letters and numbers

4Runner_Navi_U (L/O 0308)
25
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
After you input the destination, the
screen changes and displays the map
location of the selected destination
and the route preference.
L00050
You can move and set the cursor at
a desired point. (For the method of how
to move the cursor, see page 4.)
When you touch the
“Enter” switch,
the system starts searching for a route to
your destination using the conditions en-
tered.
Route preference
Touch the
“Change” switch to change
the conditions which are to determine the

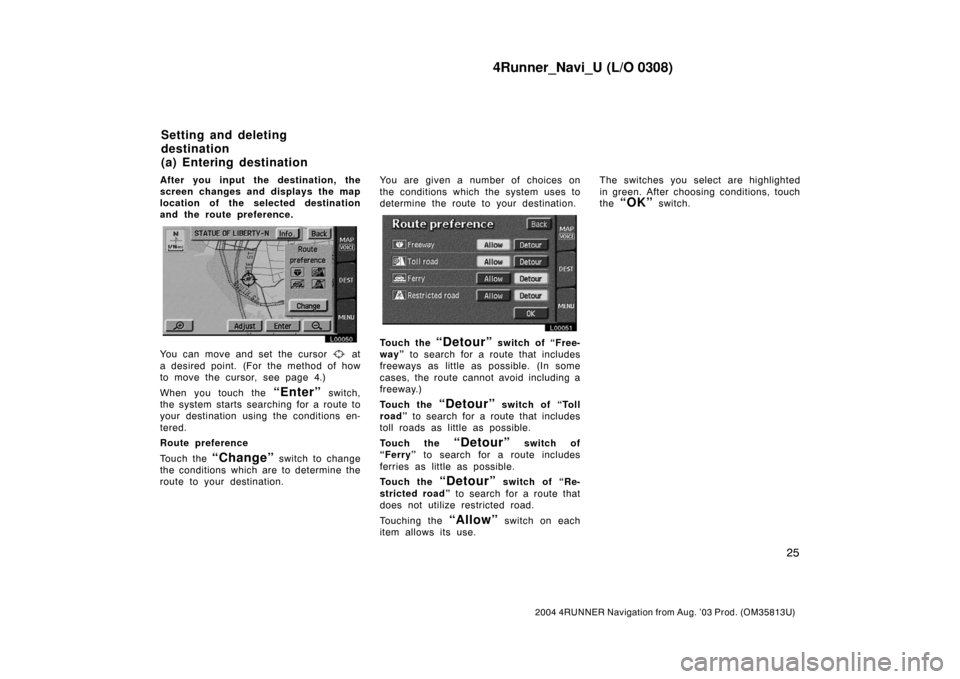

route to your destination.You are given a number of choices on
the conditions which the system uses to
determine the route to your destination.
L00051
Touch the “Detour” switch of “Free-
way” to search for a route that includes
freeways as little as possible. (In some
cases, the route cannot avoid including a
freeway.)
Touch the
“Detour” switch of “Toll
road” to search for a route that includes
toll roads as little as possible.
Touch the
“Detour” switch of
“Ferry” to search for a route includes
ferries as little as possible.
Touch the
“Detour” switch of “Re-
stricted road” to search for a route that
does not utilize restricted road.
Touching the
“Allow” switch on each
item allows its use.The switches you select are highlighted
in green. After choosing conditions, touch
the
“OK” switch.
Setting and deleting
destination
(a) Entering destination

4Runner_Navi_U (L/O 0308)
95
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
You can set the values shown on the
Setup screen.

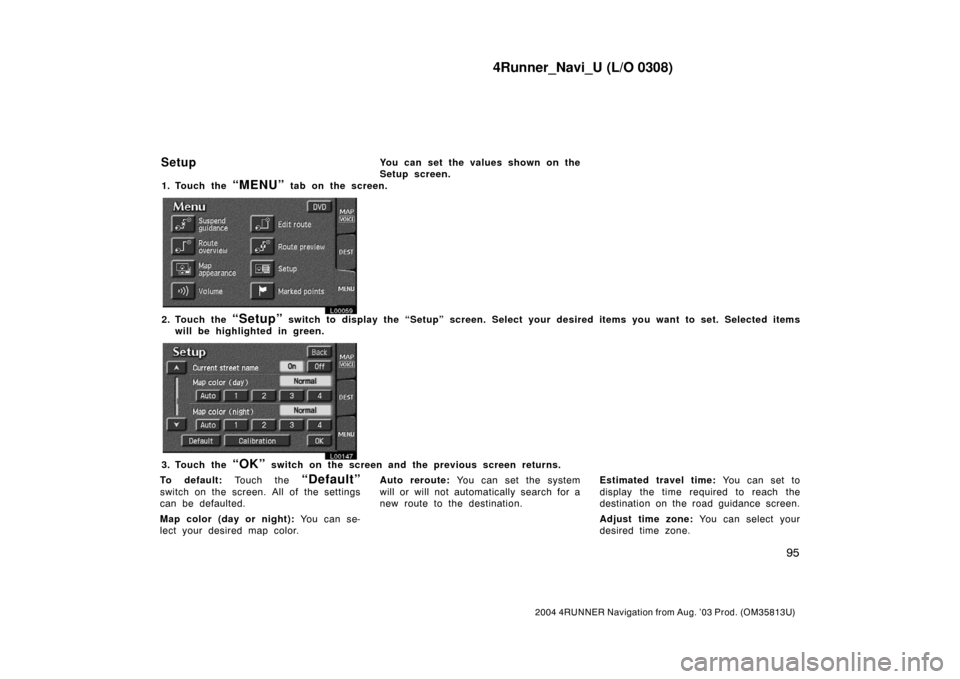

1. Touch the
“MENU” tab on the screen.
L00059
2. Touch the “Setup” switch to display the “Setup” screen. Select your desired items you want to set. Selected items
will be highlighted in green.
L00147
3. Touch the “OK” switch on the screen and the previous screen returns.
To default: Touch the
“Default”
switch on the screen. All of the settings
can be defaulted.
Map color (day or night): You can se-
lect your desired map color.Auto reroute: You can set the system
will or will not automatically search for a
new route to the destination.Estimated travel time: You can set to
display the time required to reach the
destination on the road guidance screen.
Adjust time zone: You can select your
desired time zone.
Setup

4Runner_Navi_U (L/O 0308)
104
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

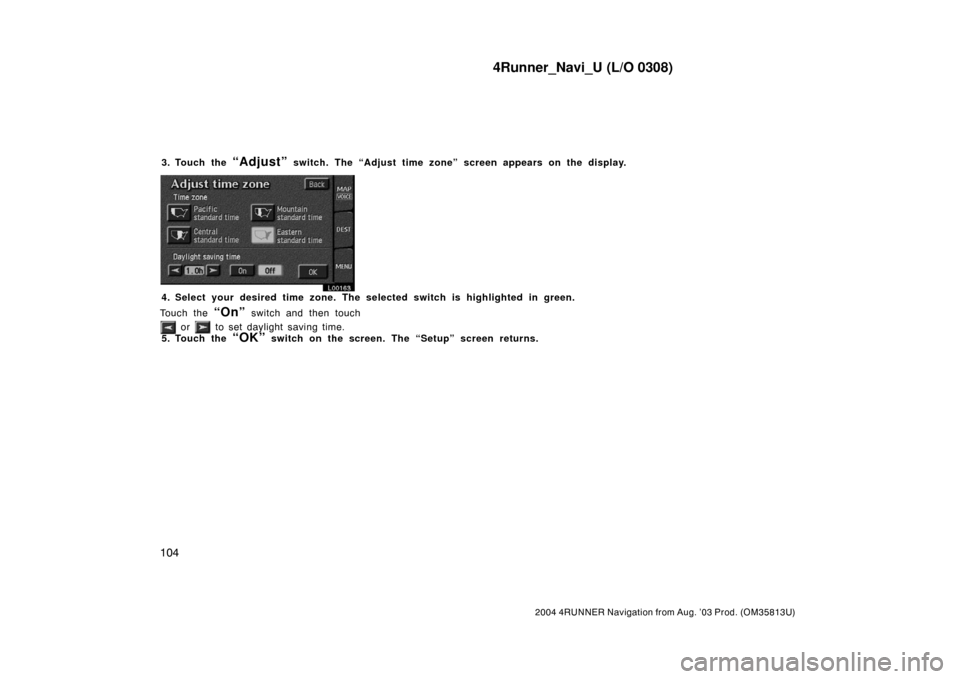

3. Touch the “Adjust” switch. The “Adjust time zone” screen appears on the display.
L00163
4. Select your desired time zone. The selected switch is highlighted in green.
Touch the
“On” switch and then touch
or to set daylight saving time.
5. Touch the
“OK” switch on the screen. The “Setup” screen returns.

4Runner_Navi_U (L/O 0308)
124
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
You can adjust the brightness or con-
trast of the screen depending on the
brightness of your surroundings. You
also can turn the screen off.

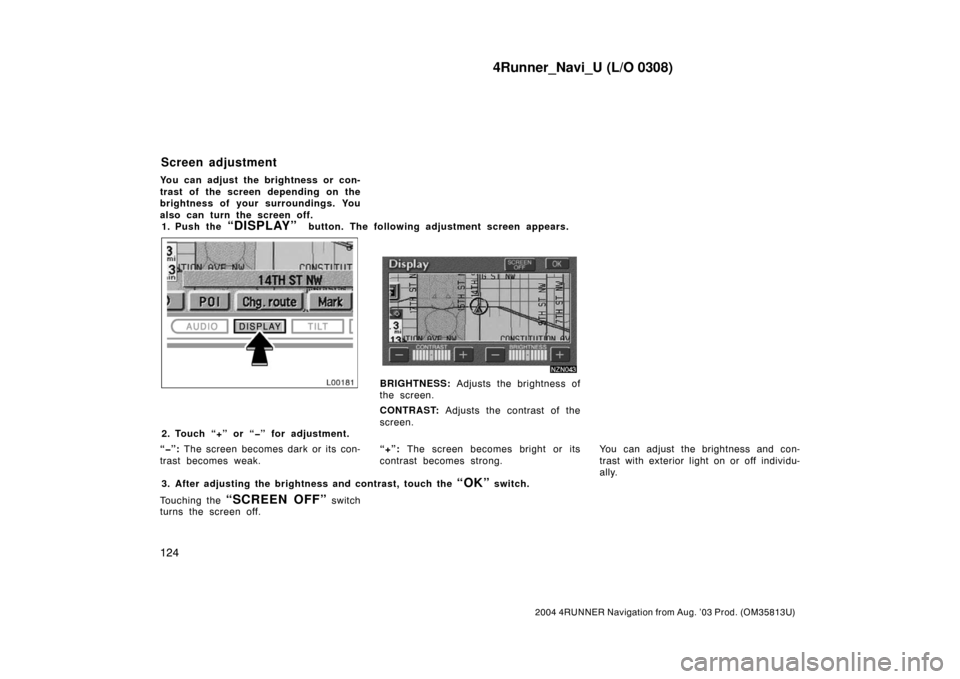

1. Push the
“DISPLAY” button. The following adjustment screen appears.
L00181NZN043
BRIGHTNESS: Adjusts the brightness of
the screen.
CONTRAST: Adjusts the contrast of the
screen.
2. Touch “+” or “” for adjustment.
“”: The screen becomes dark or its con-
trast becomes weak.“+”: The screen becomes bright or its
contrast becomes strong.You can adjust the brightness and con-
trast with exterior light on or off individu-
ally.
3. After adjusting the brightness and contrast, touch the
“OK” switch.
Touching the
“SCREEN OFF” switch
turns the screen off.
Screen adjustment

4Runner_Navi_U (L/O 0308)
125
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
NZN065
Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.

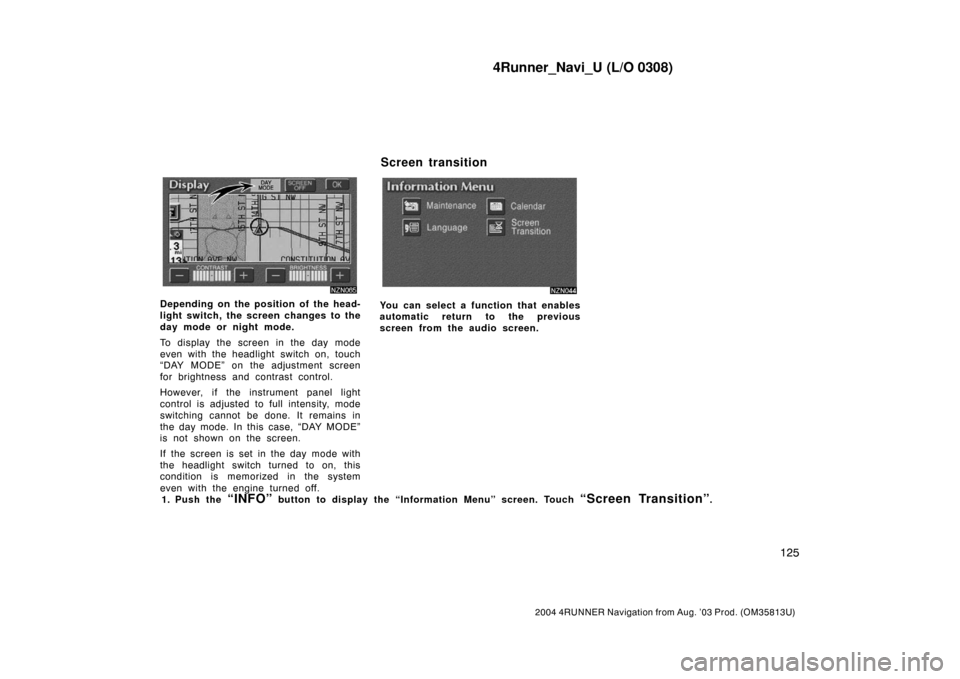

To display the screen in the day mode
even with the headlight switch on, touch
“DAY MODE” on the adjustment screen
for brightness and contrast control.
However, if the instrument panel light
control is adjusted to full intensity, mode
switching cannot be done. It remains in
the day mode. In this case, “DAY MODE”
is not shown on the screen.
If the screen is set in the day mode with
the headlight switch turned to on, this
condition is memorized in the system
even with the engine turned off.
NZN044
You can select a function that enables
automatic return to the previous
screen from the audio screen.
1. Push the
“INFO” button to display the “Information Menu” screen. Touch “Screen Transition”.
Screen transition

4Runner_Navi_U (L/O 0308)
132
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

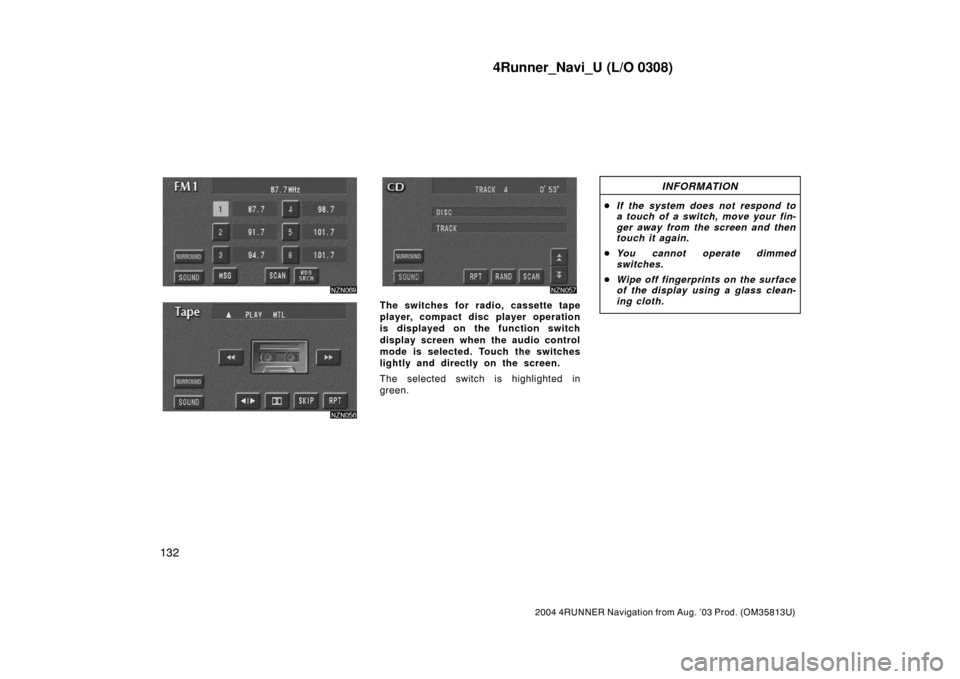

The switches for radio, cassette tape
player, compact disc player operation
is displayed on the function switch
display screen when the audio control
mode is selected. Touch the switches
lightly and directly on the screen.
The selected switch is highlighted in
green.
INFORMATION
If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.

4Runner_Navi_U (L/O 0308)
136
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the
preset station to a different one, follow
the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Touch the switch (1−6) for
the station you want. The switch is high-
lighted in green and the station frequency
appears on the screen.
Seek tuning: Push the “SEEK/TRACK”
button on either side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched automatically
one after another.
To scan all the frequencies: Touch the
“SCAN” switch on the screen or push the
“SCAN” button briefly. “SCAN” appears on
the screen. The radio will find the next
station and stay there for a few seconds,
and then scan again. To select a station,
touch the “SCAN” switch or push the
“SCAN” button again.To scan the preset stations: Touch the
“SCAN” switch on the screen or push the
“SCAN” button for longer than 2 seconds.
“P. SCAN” appears on the screen. The
radio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, touch the “SCAN” switch or
push the “SCAN” button again.

4Runner_Navi_U (L/O 0308)
139
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00172

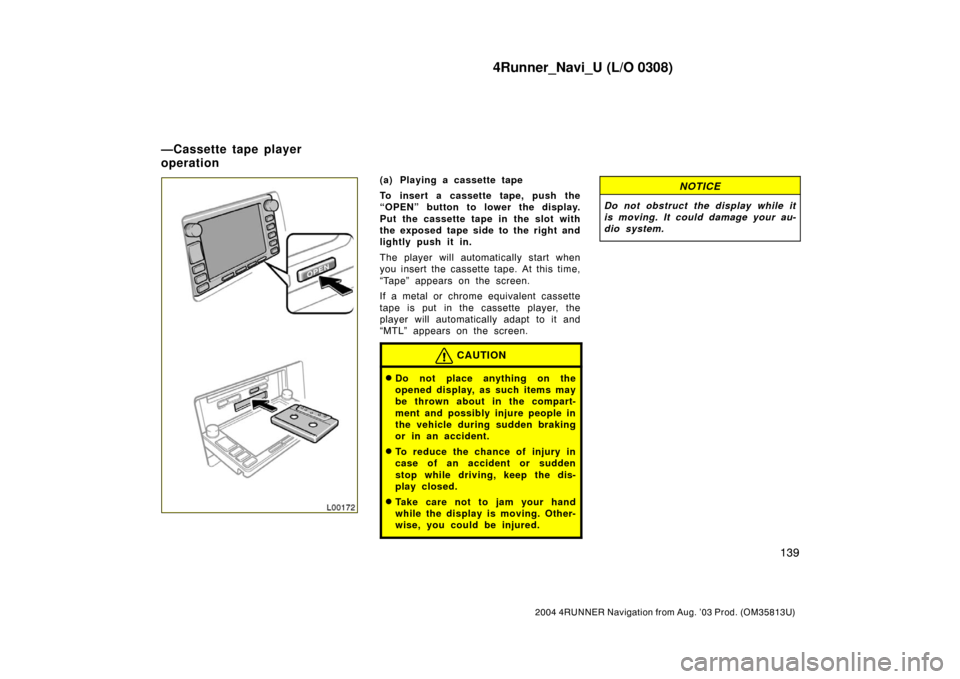

(a) Playing a cassette tape
To insert a cassette tape, push the
“OPEN” button to lower the display.
Put the cassette tape in the slot with
the exposed tape side to the right and
lightly push it in.
The player will automatically start when
you insert the cassette tape. At this time,
“Tape” appears on the screen.
If a metal or chrome equivalent cassette
tape is put in the cassette player, the
player will automatically adapt to it and
“MTL” appears on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about in the compart-
ment and possibly injure people in
the vehicle during sudden braking
or in an accident.
To reduce the chance of injury in
case of an accident or sudden
stop while driving, keep the dis-
play closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it
is moving. It could damage your au-
dio system.
—Cassette tape player
operation
