Page 11 of 470
’06 4Runner_U (L/O 0508)
1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 12 of 470
’06 4Runner_U (L/O 0508)
2

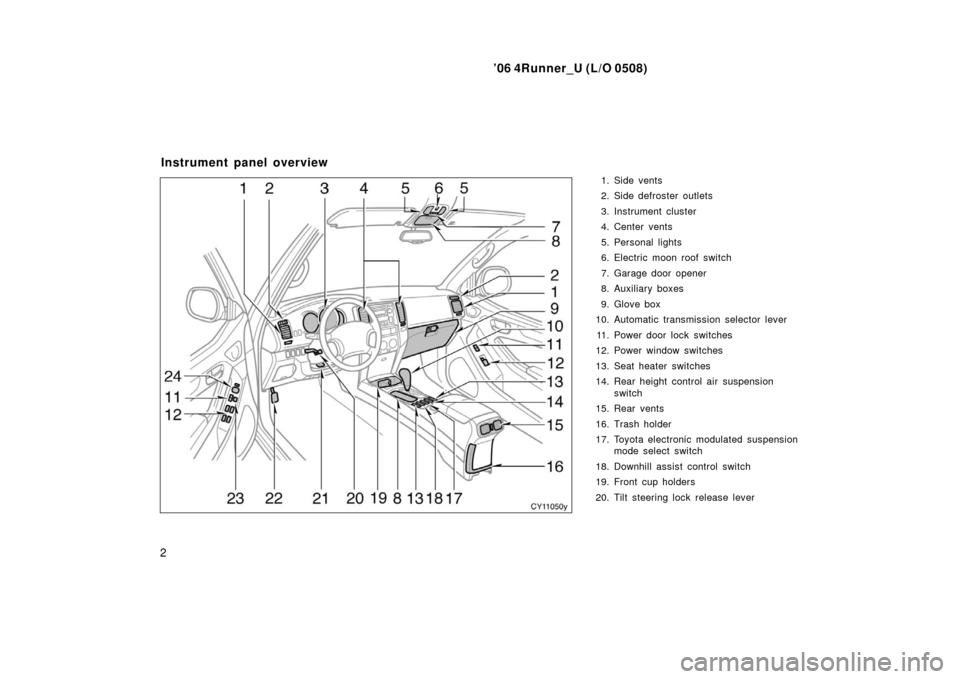

1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Glove box
10. Automatic transmission selector lever
11. Power door lock switches
12. Power window switches
13. Seat heater switches
14. Rear height control air suspension switch
15. Rear vents
16. Trash holder
17. Toyota electronic modulated suspension mode select switch
18. Downhill assist control switch
19. Front cup holders
20. Tilt steering lock release lever
Instrument panel overview
Page 13 of 470
’06 4Runner_U (L/O 0508)
3
21. Telescopic steering lock release lever
22. Parking brake pedal
23. Window lock switch
24. Power rear view mirror control switches

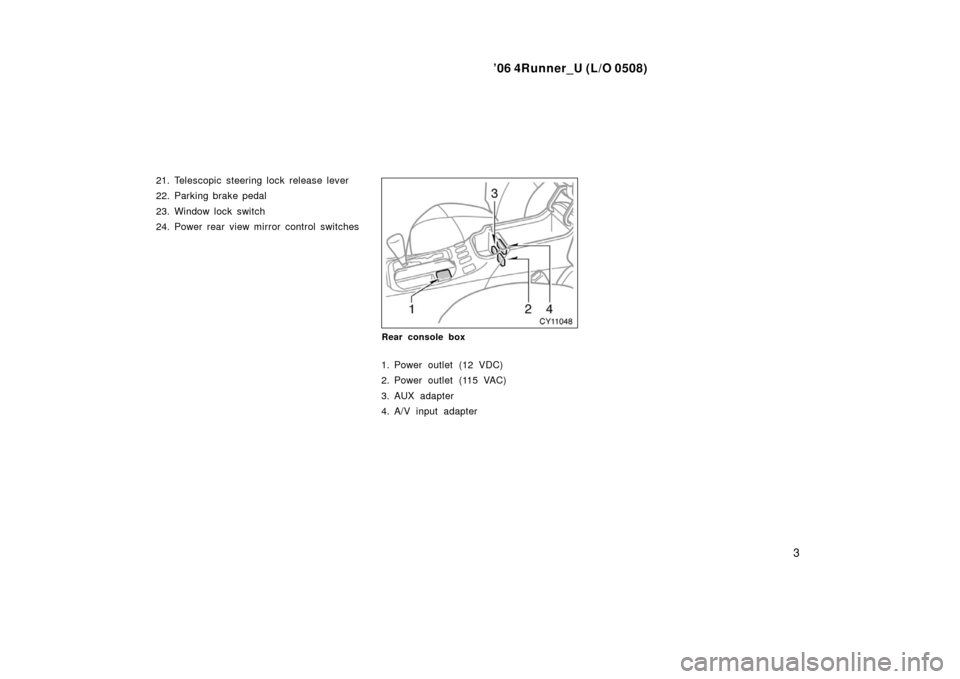

Rear console box
1. Power outlet (12 VDC)
2. Power outlet (115 VAC)
3. AUX adapter
4. A/V input adapter
Page 14 of 470
’06 4Runner_U (L/O 0508)
4
1. Driving position memory switches
2. Headlight, turn signal and front fog
light switches
3. Wiper and washer switches
4. Power back window switch
5. Audio system/rear view monitor system and navigation system including audio
system (For the navigation system, see
the separate “Navigation System
Owner ’s Manual”.)
6. Front passenger ’s seat belt reminder light
7. Engine immobilizer/theft deterrent system indicator light
8. Front passenger occupant classification indicator light
9. Multi −information display
10. Emergency flasher switch
11. Air conditioning controls
12. Auxiliary box
13. Back window and outside rear view mirror defogger switch
14. Four −wheel drive control switch knob
(full −time four −wheel drive models) or
multi −mode control switch knob
(multi −mode four −wheel drive models)
Page 15 of 470
’06 4Runner_U (L/O 0508)
5
15. Ignition switch
16. Cruise control switch
17. Hood lock release lever
18. Fuel filler door opener
19. Roll sensing of curtain shield airbags off switch
20. “AUTO LSD” switch
21. Center differential lock switch
22. Power outlet main switch
23. Instrument panel light control dial
1. Volume control switches for audio system/hands −free system (For the
hands −free system, see the separate
“Navigation System Owner ’s Manual”.)
2. “ ” switch
3. “MODE” switch
4. Telephone switches (See the separate “Navigation System Owner ’s Manual”.)
5. Speech command switch (See the separate “Navigation System Owner ’s
Manual”.)
Steering switches
Page 16 of 470
’06 4Runner_U (L/O 0508)
6
1. Tachometer
2. Speedometer
3. Service reminder indicators and
indicator lights 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters

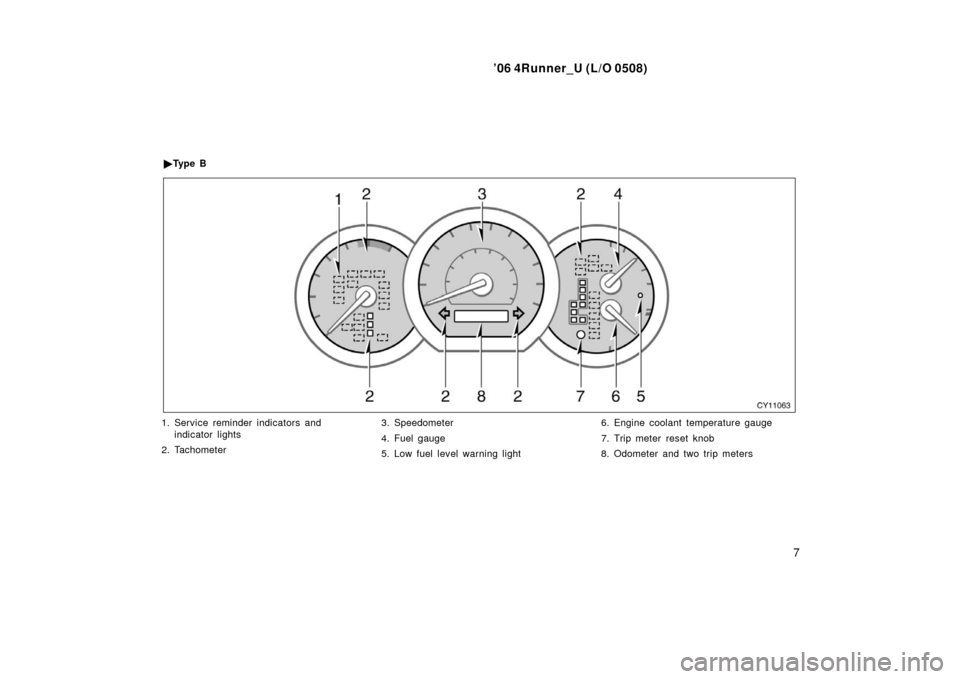

Instrument cluster overview
Ty p e A
Page 17 of 470
’06 4Runner_U (L/O 0508)
7
1. Service reminder indicators and
indicator lights
2. Tachometer 3. Speedometer
4. Fuel gauge
5. Low fuel level warning light6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
Ty p e B
Page 18 of 470
’06 4Runner_U (L/O 0508)
8
or
Driver ’s seat belt reminder light∗
1
Low engine oil pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.) Brake system warning light
∗ 1
Malfunction indicator lamp∗1
Charging system warning light∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
Open door warning light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
(two −wheel drive models)
Active traction control system warning light∗
1
(four− wheel drive models)
“AUTO LSD” system warning light∗
1
(two −wheel drive models)
Downhill assist control system warning
light∗
1 (four −wheel drive models)
Hill −start assist control system warning
light∗ 1
Automatic transmission fluid temperature
warning light∗1 (four −wheel drive models)
Low tire pressure warning light∗
1
Indicator symbols on the instrument panel
Page 19 of 470
’06 4Runner_U (L/O 0508)
9
Center differential lock indicator light∗
3
(four −wheel drive models)
Automatic transmission indicator lights
Slip indicator light
Turn signal indicator lights
Low speed four
−wheel drive indicator light∗
3
(four −wheel drive models)
Downhill assist control system indicator light
(four −wheel drive models)
Headlight high beam indicator light
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shield airbags off
indicator light∗
2
Headlight low beam indicator light
Tail light indicator light
“AUTO LSD” indicator light
(two −wheel drive models)
Low windshield washer fluid level warning
light∗
1 (for vehicles sold in Canada)
Front passenger occupant classification indicator
light
Vehicle stability control system off indicator light
(four−wheel drive models)
Four −wheel drive indicator light∗
3
(multi −mode four −wheel drive models)
Front fog light indicator light
Page 20 of 470
’06 4Runner_U (L/O 0508)
10
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 147 in Section 1 −6.
∗
2: For details, see “Roll sensing of curtain shield airbags off
switch” on page 95 in Section 1 −3.
∗
3: If this light flashes, see “Four −wheel drive system” on page
164 in Section 1− 7.
∗
4: If this light flashes, see “Rear height control air suspension”
on page 184 in Section 1 −7.
∗
5: If this light flashes, see “Cruise control” on page 195 in
Section 1 −7.
Cruise control indicator light∗
5
Height control “OFF” indicator light∗4
Height control indicator lights
