vi
1“Address”
A house number and the street address can
be input by using the input keys. 27. . . . . .
2“POI Name”
Select one of the many POIs (Points of Inter-
est) that have already been stored in the sys-
tem’s database. 31. . . . . . . . . . . . . . . . . . . .
3“POI Category”
A destination can be selected from the POI
category. 35. . . . . . . . . . . . . . . . . . . . . . . . . .
4“Previous”
A destination can be selected from any of the
last 100 previously set destinations and from
the previous starting point. 39. . . . . . . . . . .
5“Memory”
The location can be selected from the regis-
tered “Memory points”. (To register memory
points, see “ — Registering memory points”
on page 70.) 39. . . . . . . . . . . . . . . . . . . . . . .
6“Emergency”
One of the four categories of emergency ser-
vice points that are already stored in the sys-
tem’s database can be selected. 38. . . . . .
— “Destination” screen

ix

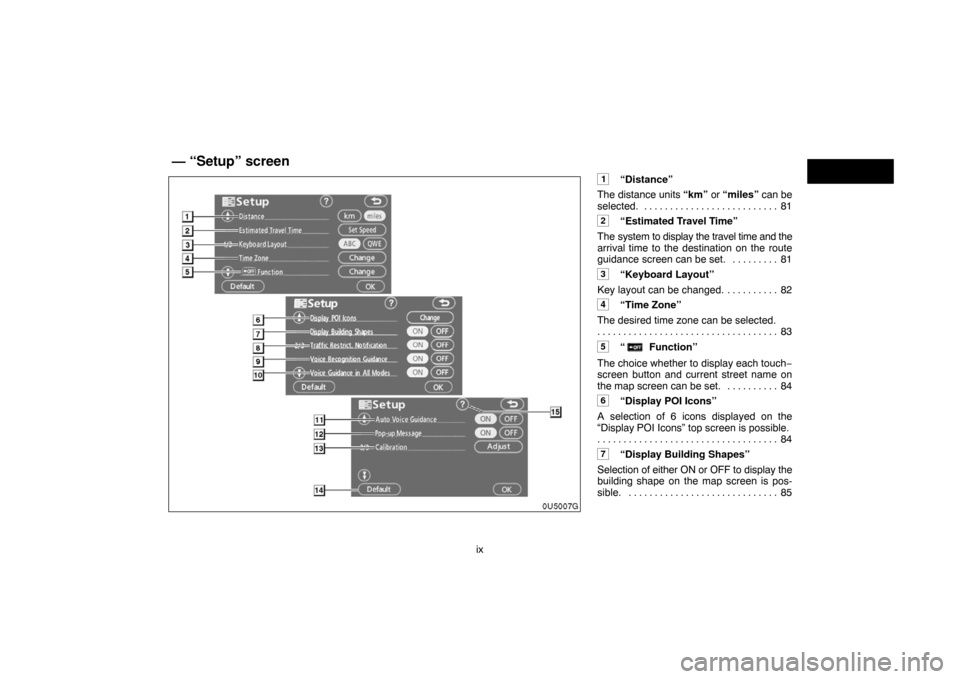

1“Distance”
The distance units “km” or “miles” can be
selected. 81. . . . . . . . . . . . . . . . . . . . . . . . . .
2“Estimated Travel Time”
The system to display the travel time and the
arrival time to the destination on the route
guidance screen can be set. 81. . . . . . . . .
3“Keyboard Layout”
Key layout can be changed. 82. . . . . . . . . .
4“Time Zone”
The desired time zone can be selected.
83 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5“ Function”
The choice whether to display each touch−
screen button and current street name on
the map screen can be set. 84. . . . . . . . . .
6“Display POI Icons”
A selection of 6 icons displayed on the
“Display POI Icons” top screen is possible.
84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7“Display Building Shapes”
Selection of either ON or OFF to display the
building shape on the map screen is pos-
sible. 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— “Setup” screen

4
Touch screen operation
This system is operated mainly by the touch−
screen buttons on the screen.
To prevent damage to the screen, lightly
touch the touchscreen buttons on the
screen with the finger. When a touch
screen button on the screen is touched, a
beep sounds.
Do not use objects other than the finger to
touch the screen.
INFORMATION
If the system does not respond to a
touch on a touchscreen button,
move the finger away from the screen
and then touch it again.
Dimmed touchscreen buttons can-
not be operated.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the touchscreen buttons may
be harder than usual to depress.
When you look at the screen through
polarised material such as polarised
sunglasses, the screen may be dark
and hard to see. If so, change the
angle of the screen, adjust the screen
settings on the “Display” screen, or
take off your sunglasses.Inputting letters and
numbers/list screen operation
When searching for an address or a name, or
entering a memo, letters and numbers can be
input via the touch screen.
INFORMATION
Key layout can be changed. (See “Input key layout” on page 82.)

5

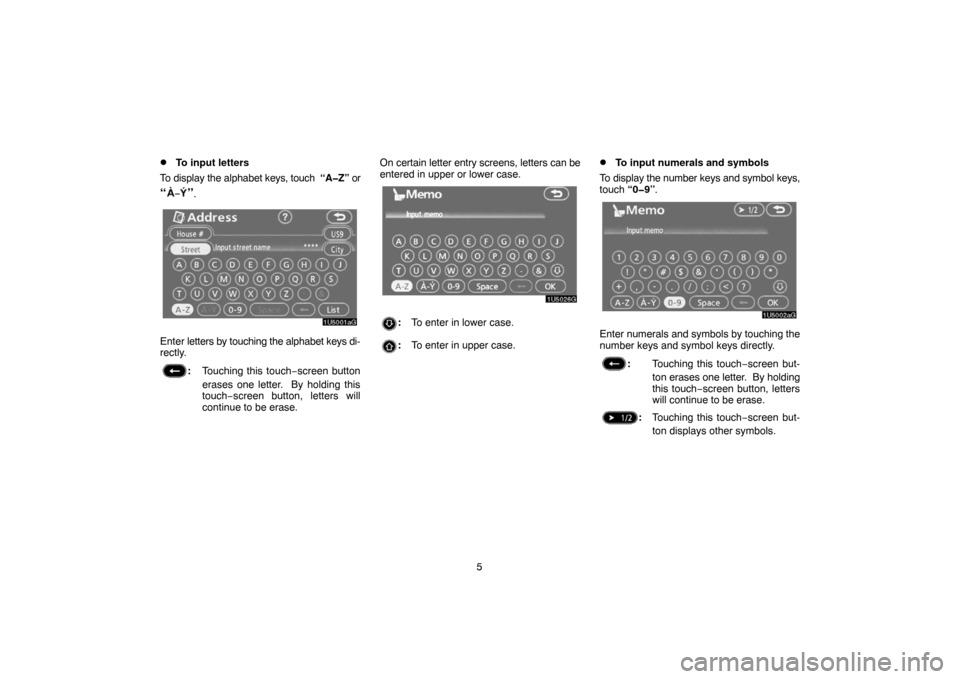

To input letters
To display the alphabet keys, touch “AZ” or
“”.
1U5001aG
Enter letters by touching the alphabet keys di-
rectly.
:Touching this touch−screen button
erases one letter. By holding this
touch−screen button, letters will
continue to be erase.On certain letter entry screens, letters can be
entered in upper or lower case.
1U5026G
:To enter in lower case.
:To enter in upper case.
To input numerals and symbols
To display the number keys and symbol keys,
touch “09”.
1U5002aG
Enter numerals and symbols by touching the
number keys and symbol keys directly.
:Touching this touch−screen but-
ton erases one letter. By holding
this touch−screen button, letters
will continue to be erase.
:Touching this touch−screen but-
ton displays other symbols.

19
1U5037aG

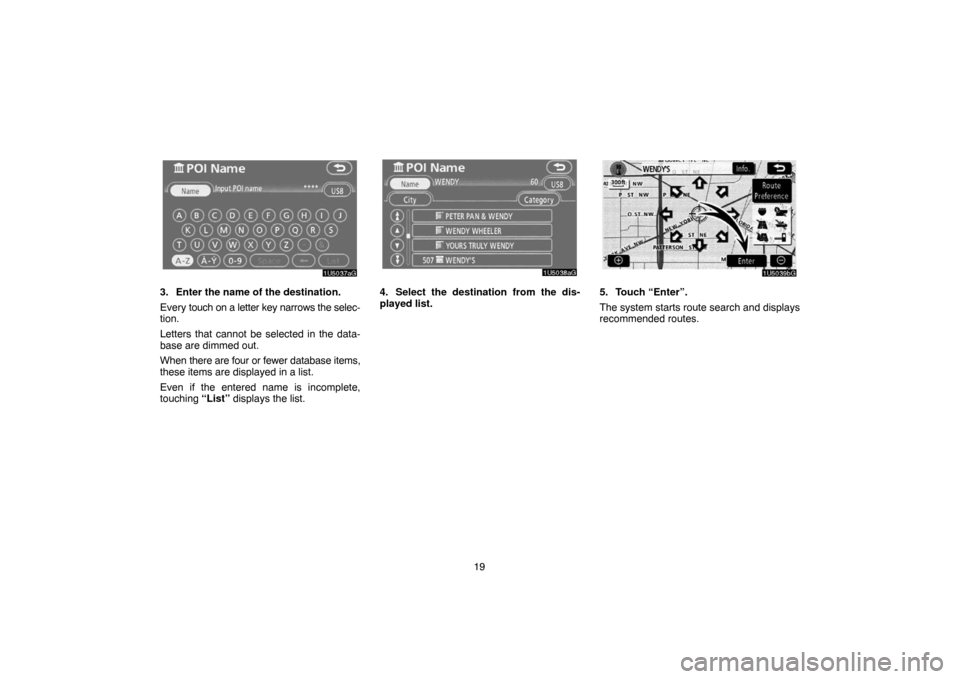

3. Enter the name of the destination.
Every touch on a letter key narrows the selec-
tion.
Letters that cannot be selected in the data-
base are dimmed out.
When there are four or fewer database items,
these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.
1U5038aG
4. Select the destination from the dis-
played list.
1U5039bG
5. Touch “Enter”.
The system starts route search and displays
recommended routes.

21
1U5043aG

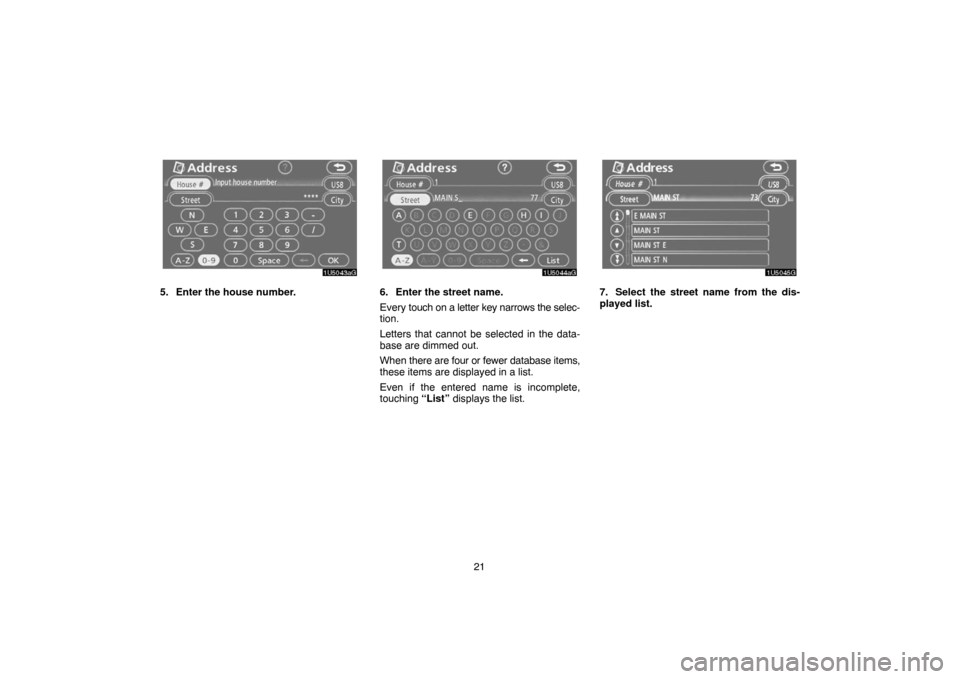

5. Enter the house number.
1U5044aG
6. Enter the street name.
Every touch on a letter key narrows the selec-
tion.
Letters that cannot be selected in the data-
base are dimmed out.
When there are four or fewer database items,
these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.
1U5045G
7. Select the street name from the dis-
played list.

74

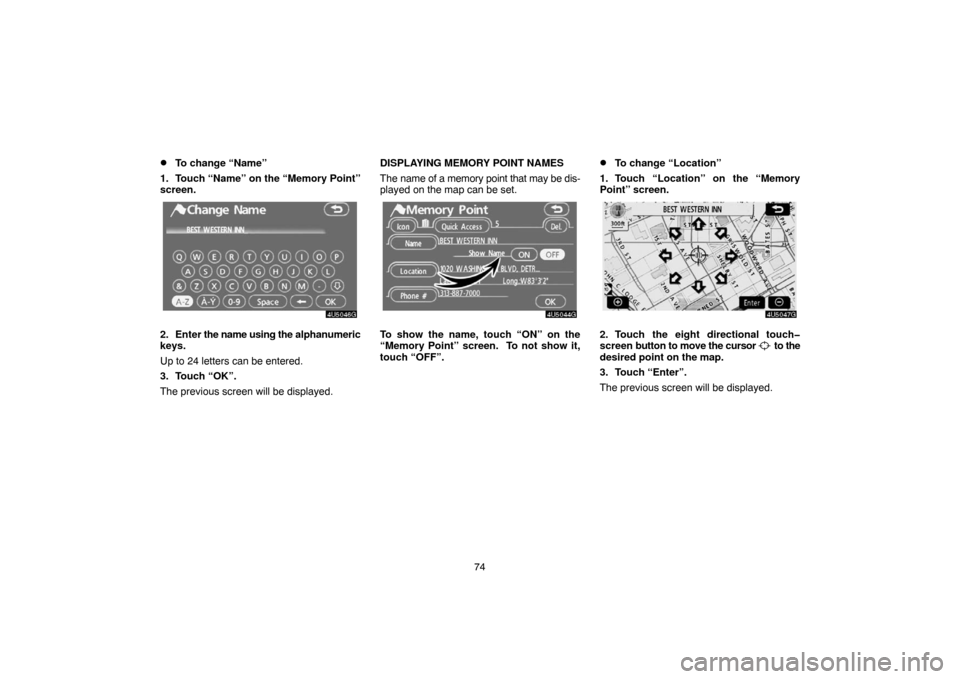

To change “Name”
1. Touch “Name” on the “Memory Point”
screen.
4U5046G
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be dis-
played on the map can be set.
4U5044G
To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
4U5047G
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

75

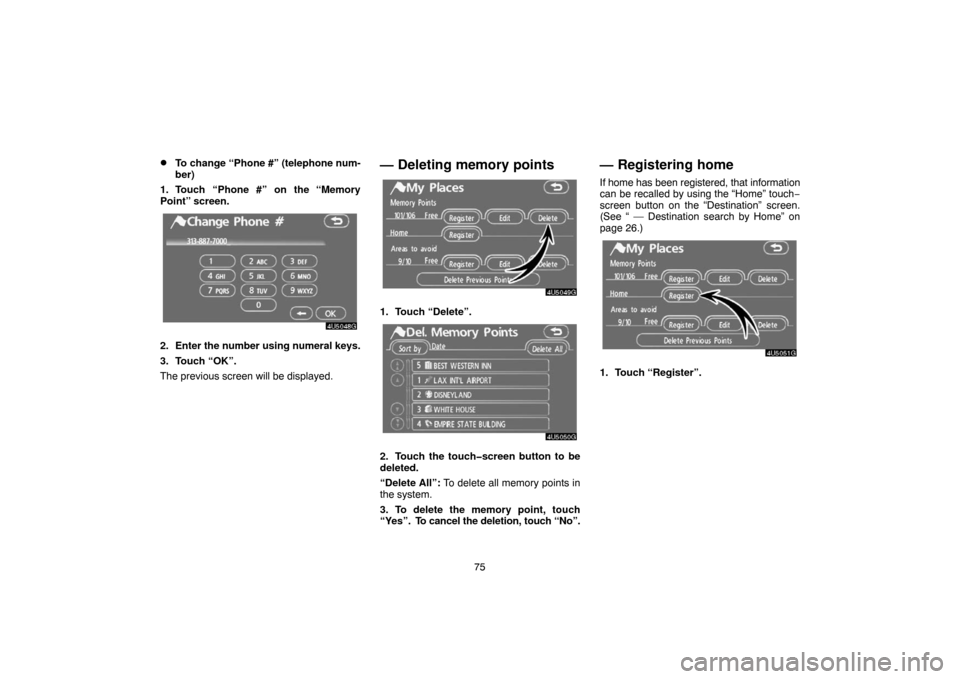

To change “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Memory
Point” screen.
4U5048G
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting memory points
4U5049G
1. Touch “Delete”.
4U5050G
2. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all memory points in
the system.
3. To delete the memory point, touch
“Yes”. To cancel the deletion, touch “No”.
— Registering home
If home has been registered, that information
can be recalled by using the “Home” touch−
screen button on the “Destination” screen.
(See “ — Destination search by Home” on
page 26.)
4U5051G
1. Touch “Register”.

78

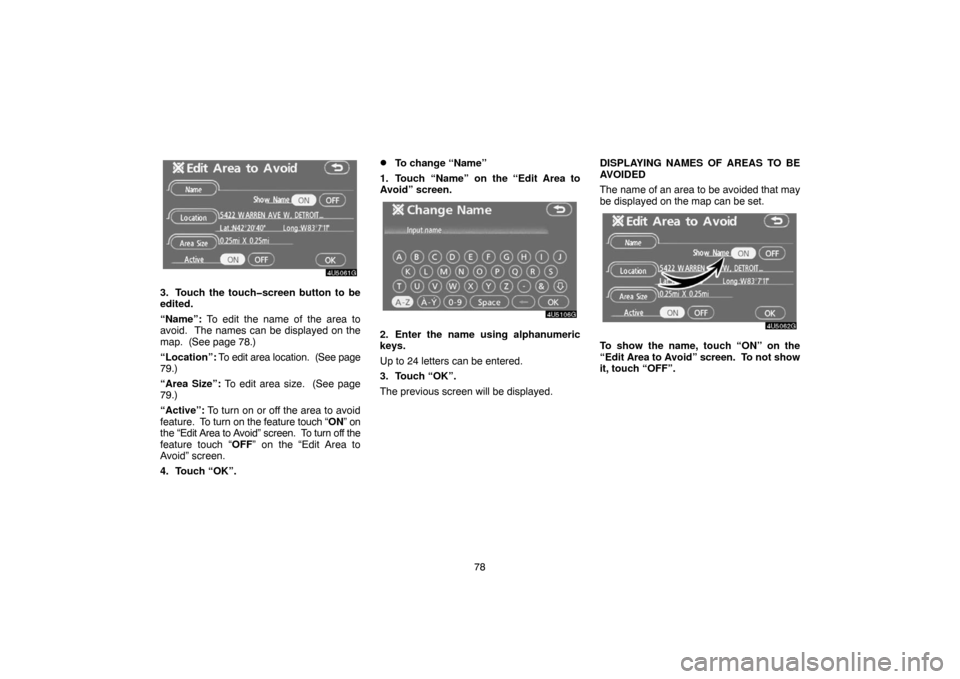

4U5061G
3. Touch the touchscreen button to be
edited.
“Name”: To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 78.)
“Location”: To edit area location. (See page
79.)
“Area Size”: To edit area size. (See page
79.)
“Active”: To turn on or off the area to avoid
feature. To turn on the feature touch “ON” on
the “Edit Area to Avoid” screen. To turn off the
feature touch “OFF” on the “Edit Area to
Avoid” screen.
4. Touch “OK”.
To change “Name”
1. Touch “Name” on the “Edit Area to
Avoid” screen.
4U5106G
2. Enter the name using alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING NAMES OF AREAS TO BE
AVOIDED
The name of an area to be avoided that may
be displayed on the map can be set.
4U5062G
To show the name, touch “ON” on the
“Edit Area to Avoid” screen. To not show
it, touch “OFF”.

82
4U5069G

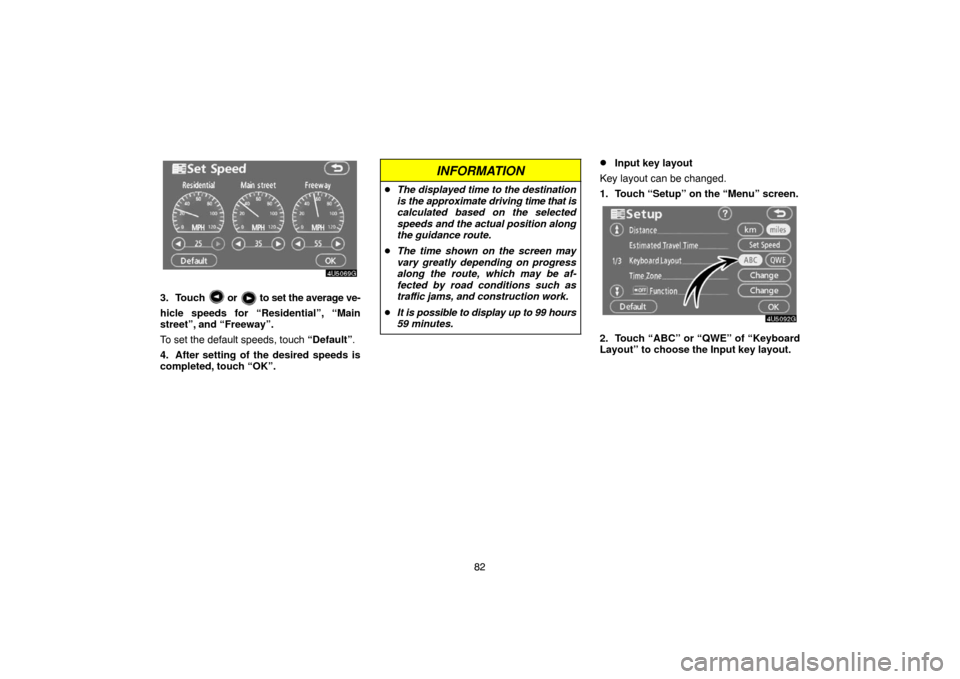

3. Touch or to set the average ve-
hicle speeds for “Residential”, “Main
street”, and “Freeway”.
To set the default speeds, touch “Default”.
4. After setting of the desired speeds is
completed, touch “OK”.
INFORMATION
The displayed time to the destination
is the approximate driving time that is
calculated based on the selected
speeds and the actual position along
the guidance route.
The time shown on the screen may
vary greatly depending on progress
along the route, which may be af-
fected by road conditions such as
traffic jams, and construction work.
It is possible to display up to 99 hours
59 minutes.
Input key layout
Key layout can be changed.
1. Touch “Setup” on the “Menu” screen.
4U5092G
2. Touch “ABC” or “QWE” of “Keyboard
Layout” to choose the Input key layout.
