key TOYOTA AURIS 2011 (in English) Workshop Manual

5
445 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Once

(Flashes)The driver's
door was
opened and
closed with the
“POWER”
switch turned off
and then the
“POWER”
switch was put
in ACCES-
SORY mode
twice without
the hybrid sys-
tem being
started.Press the
“POWER”
switch while
depressing the
brake pedal.
During a hybrid
system starting
procedure in the
event that the
electronic key
was not func-
tioning properly
(P. 472), the
“POWER”
switch was
touched with
the electronic
key.Press the
“POWER”
switch within 10
seconds of the
buzzer sound-
ing.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
469
5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
If the hybrid system will not start
If the hybrid system still does not start after following the correct
starting procedure (P. 173), confirm the following points.
The hybrid system will not start even if you are carrying the
correct key.
One of the following may be the cause of the problem.
The electronic key may not be functioning properly.*
(P. 472)
There may not be sufficient fuel in the vehicle’s tank. Refuel
the vehicle.
The electronic key battery may be discharged. (P. 472)
There may be a malfunction in the P position control system.
The hybrid system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However,
depending on the type of malfunction, an interim measure is
available to start the hybrid system. (P. 470)
There may be a malfunction in the immobilizer system.*
(P. 106)
*: It may not be possible to shift out of P.
The interior lights and headlights are dim, or the horn does
not sound or sounds at a low volume.
One of the following may be the cause of the problem.
The 12-volt battery may be discharged. (P. 474)
The 12-volt battery terminal connections may be loose or cor-
roded.

5
471
5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
If you lose your keys
New genuine Toyota keys can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional, using the other key and the key number stamped on your key
number plate.

472
5-2. Steps to take in an emergency
UK_AURIS_HV_EE
If the electronic key does not operate properly
Locking and unlocking the doors
Use the mechanical key (P. 42)
in order to perform the following
operations from the driver’s door:
Locks all doors
Unlocks all doors
With an alarm: An alarm will
sound if the alarm is set.
(P. 114)
Changing “POWER” switch modes and starting the hybrid system
Apply the brakes.
Touch the Toyota emblem side of
the electronic key to the
“POWER” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “POWER” switch if
any of the doors is opened and
closed while the key is touched to
the switch.
If communication between the electronic key and vehicle is inter-
rupted (P. 48, 61) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system, push button start
and wireless remote control cannot be used. In such cases, the
doors can be opened or the hybrid system can be started by follow-
ing the procedure below.
STEP1
STEP2

5
473 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EETo change “POWER” switch modes: Within 5 seconds of the
buzzer sounding, release the brake pedal and press the
“POWER” switch. Modes can be changed each time the
switch is pressed. (P. 174)
To start the hybrid system: Press the “POWER” switch within
5 seconds after the buzzer sounds, keeping the brake pedal
depressed.
In the event that the “POWER” switch still cannot be operated, con-
tact any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Stopping the hybrid system
Push the P position switch and press the “POWER” switch as you normally
do when stopping the hybrid system.
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 397)
Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system. If a
door is unlocked using the mechanical key when the alarm system is set, the
alarm may be triggered. (P. 114)
STEP3

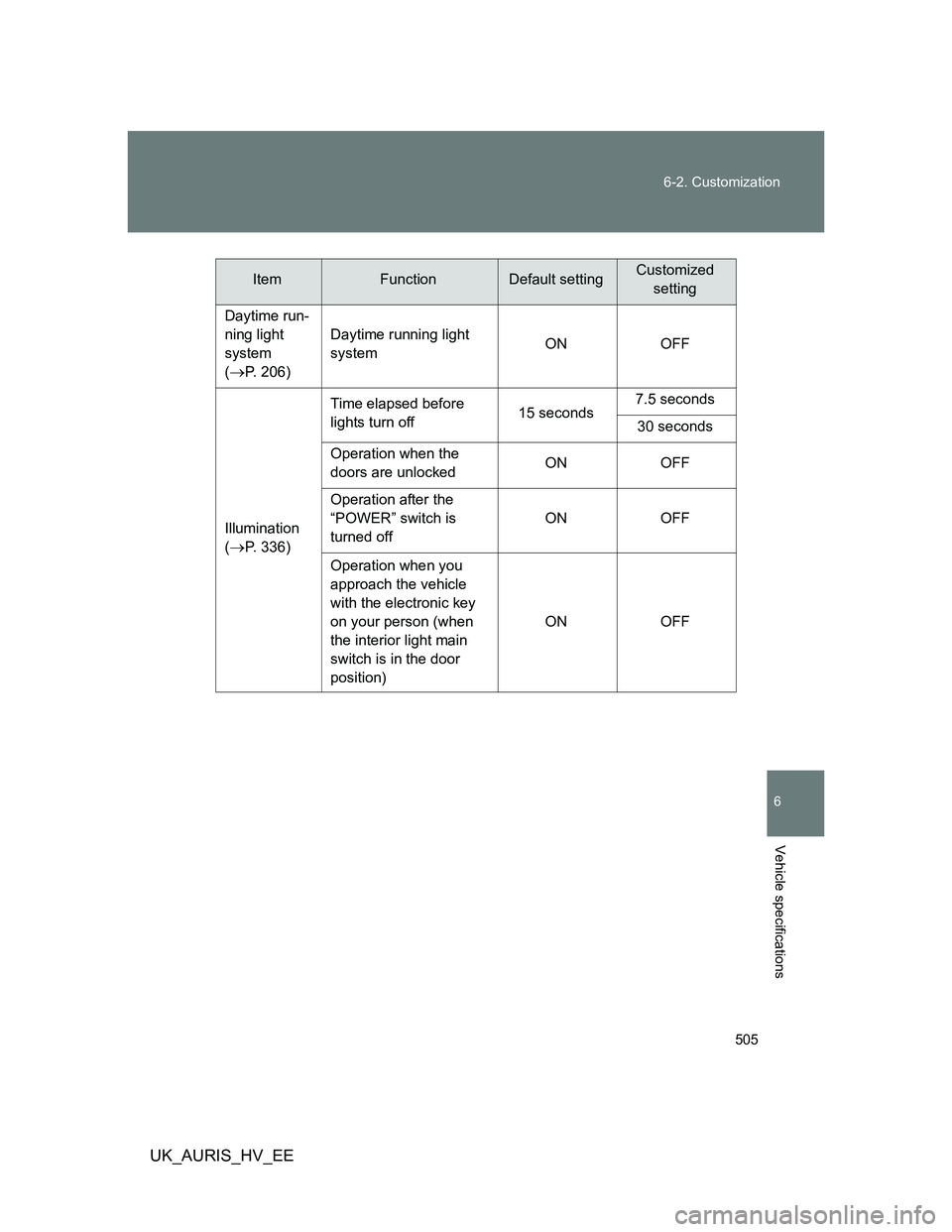

505 6-2. Customization
6
Vehicle specifications
UK_AURIS_HV_EE
Daytime run-
ning light
system
(
P. 206)Daytime running light
systemON OFF
Illumination
(
P. 336)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlockedON OFF
Operation after the
“POWER” switch is
turned offON OFF
Operation when you
approach the vehicle
with the electronic key
on your person (when
the interior light main
switch is in the door
position)ON OFF
ItemFunctionDefault settingCustomized
setting

511 Alphabetical index
UK_AURIS_HV_EE
Child safety
Airbag precautions ................ 134
Back door ................................ 76
Child restraint system ........... 139
Child-protectors....................... 73
How your child should wear
the seat belt .......................... 88
Installing child restraints........ 149
Moon roof precautions .......... 102
Power window lock switch ...... 96
Power window precautions ..... 98
Removed key battery
precautions ......................... 398
Seat belt precautions .............. 88
Seat heater
precautions ......................... 350
12-volt battery
precautions ................. 385, 477
Child-protectors ......................... 73
Cigarette lighter ....................... 347Cleaning
Exterior ................................. 356
Interior................................... 360
Seat belts .............................. 361
Clock ......................................... 345
Condenser ................................ 379
Console box ............................. 340
Cooling system
Hybrid system overheating ... 479
Cruise control .......................... 217
Cup holder................................ 341
Curtain shield airbags ............. 128
Customizable features ............ 504

512 Alphabetical index
UK_AURIS_HV_EE
Daytime running light
system .................................... 206
Defogger
Rear window ......................... 254
Side mirror ............................ 254
Dimension ................................ 490
Display
Trip information ..................... 198
Warning message ................. 436
Do-it-yourself maintenance .... 366
Doors
Door lock ..................... 44, 70, 72
Door windows ......................... 96
Double locking system .......... 112
Side mirrors............................. 93
Driver's seat belt reminder
light ......................................... 433
Driving
Break-in tips .......................... 163
Correct posture ..................... 126
Procedures............................ 162
Winter driving tips ................. 241“ECO MODE” switch ............... 184
Electric power steering ........... 233
Electronic key
If the electronic key does
not operate properly ........... 472
Replacing battery .................. 397
Emergency flashers
Switch ................................... 422
Emergency, in case of
If a warning message is
displayed ............................ 436
If the electronic key does
not operate properly ........... 472
If the hybrid system will
not start .............................. 469
If the vehicle has a
discharged 12-volt
battery ................................ 474
If the warning buzzer
sounds ................................ 430
If the warning light
turns on .............................. 430
If you have a flat tire .... 447, 457
If you lose your keys ............. 471
If you think something is
wrong.................................. 429
If your vehicle becomes
stuck ................................... 484
If your vehicle has to be
stopped in an emergency ... 486
If your vehicle needs to be
towed .................................. 423
If your vehicle overheats ....... 479
Emergency shut off system...... 35DE

514 Alphabetical index
UK_AURIS_HV_EE
Gas station information .......... 524
Gauges...................................... 191
Glove box ................................. 340
Hands-free phone system
(for cellular phone) ................ 309
Hazard lights
Switch ................................... 422
Head restraints
Adjusting ................................ 83
Headlight cleaner ..................... 216
Headlights
Discharge headlight
precautions ......................... 420
Replacing light bulbs ............. 411
Switch ................................... 204
Wattage................................. 501
Heaters
Seat heaters.......................... 350
Side mirror ............................ 254
Hood.......................................... 369
Horn .......................................... 190
Hybrid system
Emergency shut off system..... 35
Energy monitor........................ 36
High-voltage components ....... 34
If the hybrid system will not
start..................................... 469
Ignition switch ....................... 173
Indicator ................................ 193
Overheating .......................... 479
“POWER” switch ................... 173Identification
Engine................................... 491
Vehicle .................................. 491
Ignition switch ......................... 173
Illuminated entry system ........ 336
Immobilizer system ................. 106
Indicator lights ......................... 195
Inside rear view mirror .............. 91
Interior light
Interior light ........................... 336
Switch ................................... 337
Wattage ................................ 501
Jack
Positioning a floor jack .......... 371
Vehicle-equipped
jack ............................. 447, 457
Jack handle ...................... 447, 457
Keyless entry ............................. 44
Keys
Electronic key ......................... 42
Engine switch........................ 173
If the electronic key does
not operate properly ........... 472
If you lose your keys ............. 471
Ignition switch ....................... 173
Key number plate.................... 42
Keyless entry .......................... 44
Keys ........................................ 42
Mechanical key ....................... 42
“POWER” switch ................... 173
Wireless remote control key ... 70G
H
I
J
K

516 Alphabetical index
UK_AURIS_HV_EE
Odometer .................................. 192
Oil
Engine oil .............................. 374
Opener
Back door ................................ 74
Fuel filler door ....................... 103
Hood ..................................... 369
Outside rear view mirrors
Adjusting and folding............... 93
Outside temperature
display .................................... 199
Overheating, Hybrid
system .................................... 479
P position switch ..................... 183
Parking brake ........................... 189
Personal lights
Switch ................................... 338
Wattage................................. 501
Power outlet ............................. 349
“POWER” switch ..................... 173
Power windows .......................... 96
Push button start
Push button start ..................... 59
Starting the hybrid system .... 173
“PWR MODE” switch ............... 184Radiator .................................... 379
Radio......................................... 257
RDS (Radio Data System) ....... 258
Rear fog light
Replacing light bulbs............. 411
Switch ................................... 209
Wattage ................................ 501
Rear seat
Folding down .......................... 80
Rear turn signal lights
Replacing light bulbs............. 411
Wattage ................................ 501
Rear view monitor system ...... 226
Rear window defogger ............ 254
Rear window wiper .................. 215
Replacing
Fuses .................................... 400
Key battery............................ 397
Light bulbs ............................ 411
Tires ...................................... 447O
P
R
