192
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
■EDITING QUICK REPLY MESSAG-
ES
1Select “Quick Message” .
2Select corresponding to the de-
sired message to edit.
3Select “OK” when editing is complet-
ed.
*: Entune Premium Audio only
■CALLING FROM E-MAIL/SMS/MMS
MESSAGE DISPLAY
1Display the message inbox screen.
(→ P.189)
2Select the desired message.
3Select .
If there are 2 or more phone numbers,
select the desired number.
4Check that the “Call” screen is dis-
played.
This operation cannot be performed
while driving.
INFORMATION
●To reset the editquick reply messages,
select “Default” .
● “Quick Message 1” (“I am driving and
will arrive in approximately [ETA]
minutes.”)* :
This message cannot be edited and will
automatically fill in [ETA] with the
navigation calculated estimated time of
arrival on the confirm message screen.
If there are waypoints set, [ETA] to the
next waypoint will be shown.
If there is no route currently set in the
navigation system, “Quick Message 1”
cannot be selected.
CALLING THE MESSAGE
SENDER
Calls can be made to an e-mail/SMS/
MMS message sender’s phone num-
ber.
This operation can be performed while
driving.

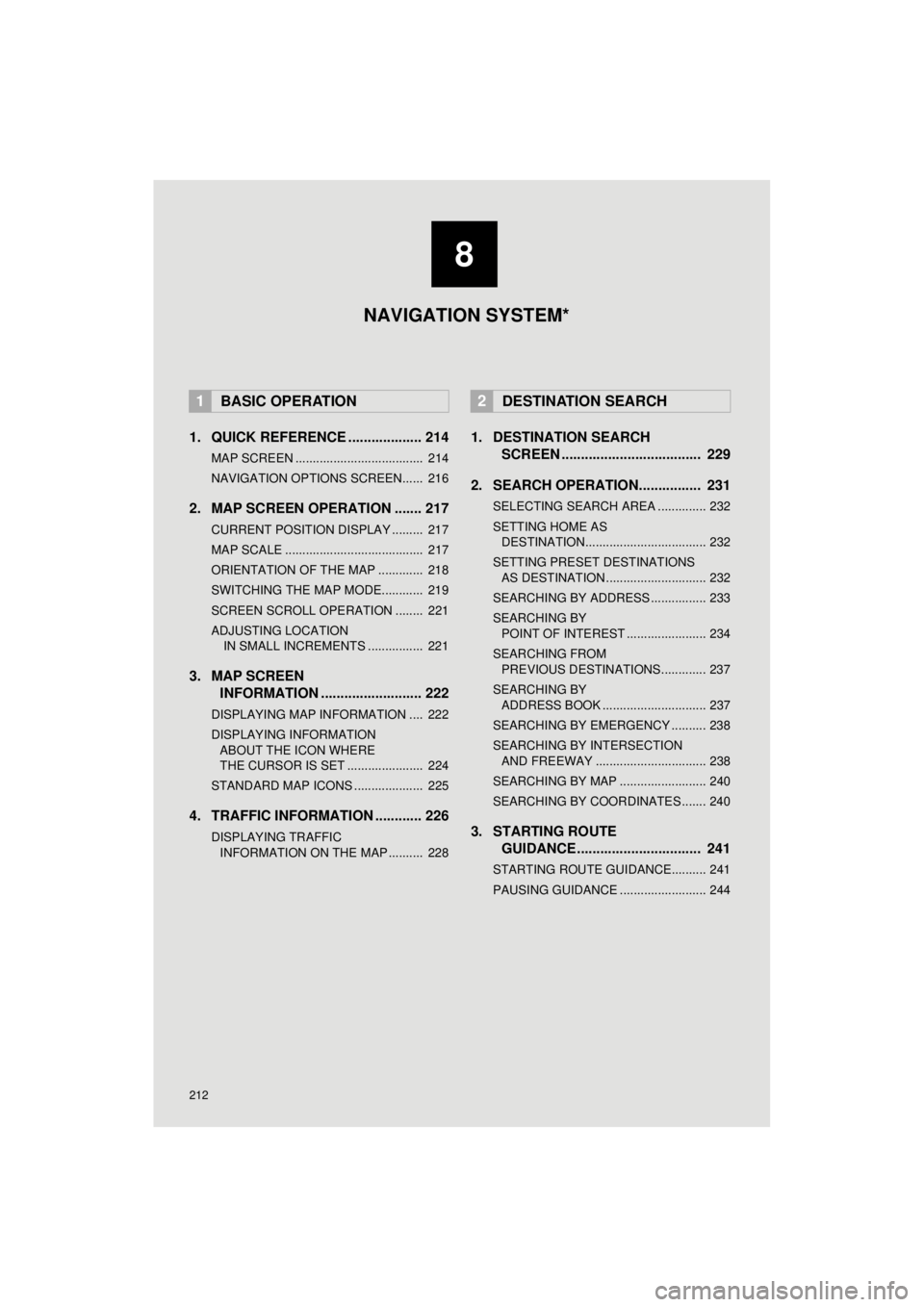

212
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1. QUICK REFERENCE ................... 214
MAP SCREEN ..................................... 214
NAVIGATION OPTIONS SCREEN...... 216
2. MAP SCREEN OPERATION ....... 217
CURRENT POSITION DISPLAY ......... 217
MAP SCALE ........................................ 217
ORIENTATION OF THE MAP ............. 218
SWITCHING THE MAP MODE............ 219
SCREEN SCROLL OPERATION ........ 221
ADJUSTING LOCATION IN SMALL INCREMENTS ................ 221
3. MAP SCREEN INFORMATION .......................... 222
DISPLAYING MAP INFORMATION .... 222
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 224
STANDARD MAP ICONS .................... 225
4. TRAFFIC INFORMATION ............ 226
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 228
1. DESTINATION SEARCH SCREEN .................................... 229
2. SEARCH OPERATION.. .............. 231
SELECTING SEARCH AREA .............. 232
SETTING HOME AS
DESTINATION................................... 232
SETTING PRESET DESTINATIONS AS DESTINATION ............................. 232
SEARCHING BY ADDRESS ................ 233
SEARCHING BY POINT OF INTEREST ....................... 234
SEARCHING FROM PREVIOUS DESTINATIONS............. 237
SEARCHING BY ADDRESS BOOK .............................. 237
SEARCHING BY EMERGENCY .......... 238
SEARCHING BY INTERSECTION AND FREEWAY ................................ 238
SEARCHING BY MAP ......................... 240
SEARCHING BY COORDINATES ....... 240
3. STARTING ROUTE GUIDANCE ....... ......................... 241
STARTING ROUTE GUIDANCE.......... 241
PAUSING GUIDANCE ......................... 244
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM*

8

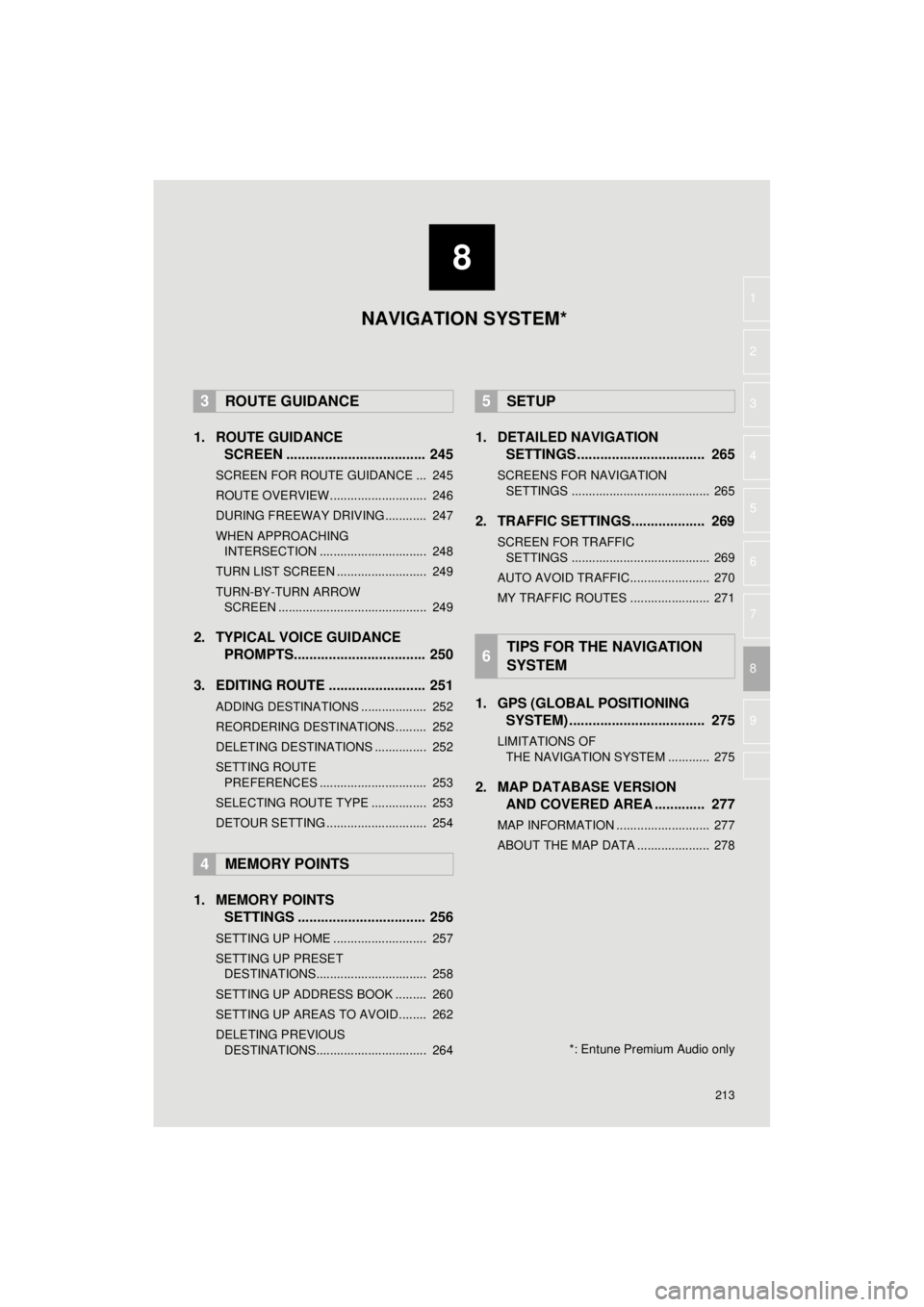

213
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
4
5
6
7
9
1
2
3
8
1. ROUTE GUIDANCESCREEN .................................... 245
SCREEN FOR ROUTE GUIDANCE ... 245
ROUTE OVERVIEW............................ 246
DURING FREEWAY DRIVING............ 247
WHEN APPROACHING
INTERSECTION ............................... 248
TURN LIST SCREEN .......................... 249
TURN-BY-TURN ARROW SCREEN ........................................... 249
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 250
3. EDITING ROUTE ......................... 251
ADDING DESTINATIONS ................... 252
REORDERING DESTINATIONS ......... 252
DELETING DESTINATIONS ............... 252
SETTING ROUTE PREFERENCES ............................... 253
SELECTING ROUTE TYPE ................ 253
DETOUR SETTING ............................. 254
1. MEMORY POINTS SETTINGS ................................. 256
SETTING UP HOME ........................... 257
SETTING UP PRESET
DESTINATIONS................................ 258
SETTING UP ADDRESS BOOK ......... 260
SETTING UP AREAS TO AVOID ........ 262
DELETING PREVIOUS DESTINATIONS................................ 264
1. DETAILED NAVIGATION SETTINGS ................................. 265
SCREENS FOR NAVIGATION
SETTINGS ........................................ 265
2. TRAFFIC SETTINGS................... 269
SCREEN FOR TRAFFIC SETTINGS ........................................ 269
AUTO AVOID TRAFFIC....................... 270
MY TRAFFIC ROUTES ....................... 271
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 275
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 275
2. MAP DATABASE VERSION AND COVERED AREA ............. 277
MAP INFORMATION ........................... 277
ABOUT THE MAP DATA ..................... 278
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: Entune Premium Audio only

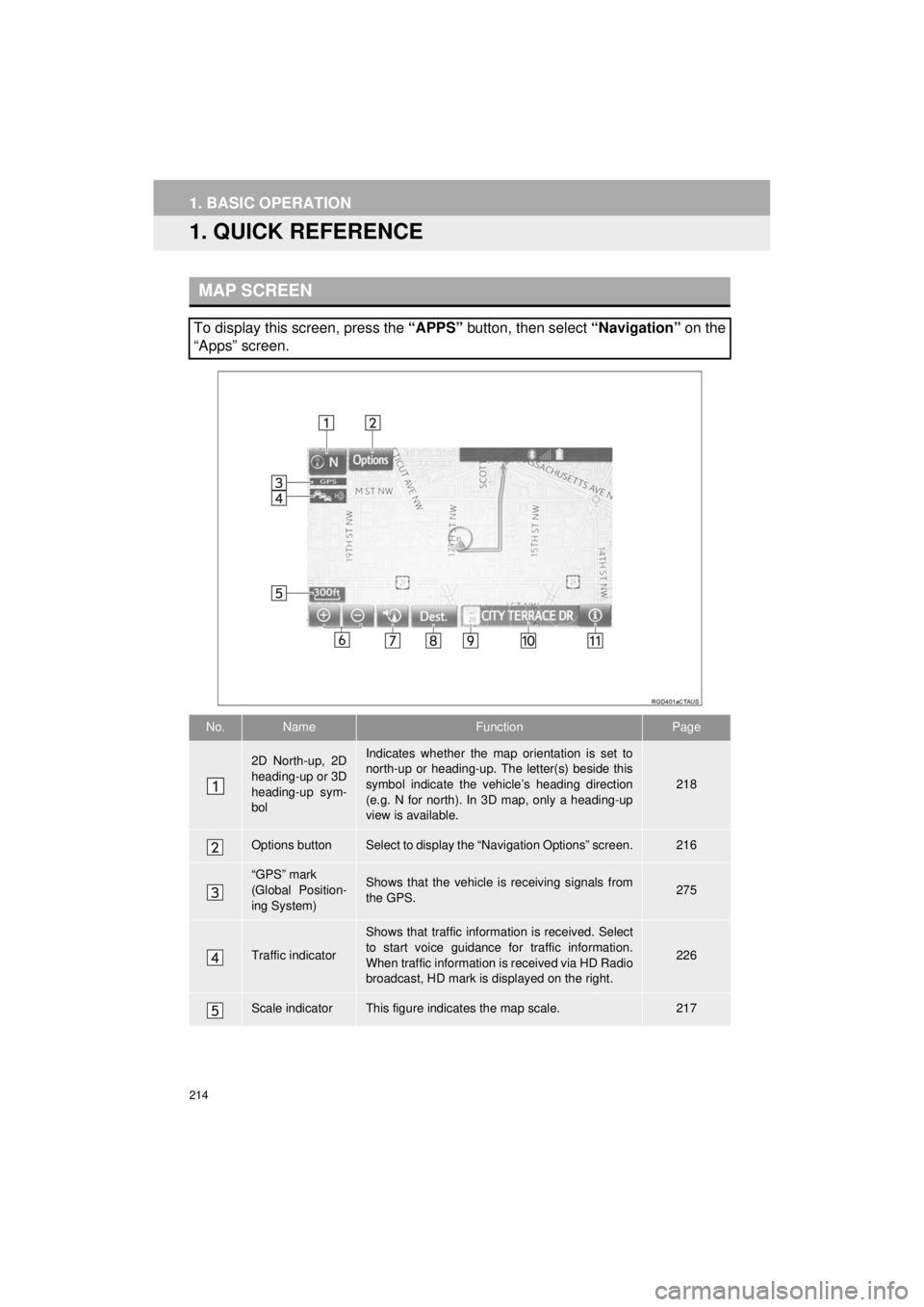

214
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
218
Options buttonSelect to display the “Navigation Options” screen.216
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.275
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
226
Scale indicatorThis figure indicates the map scale.217

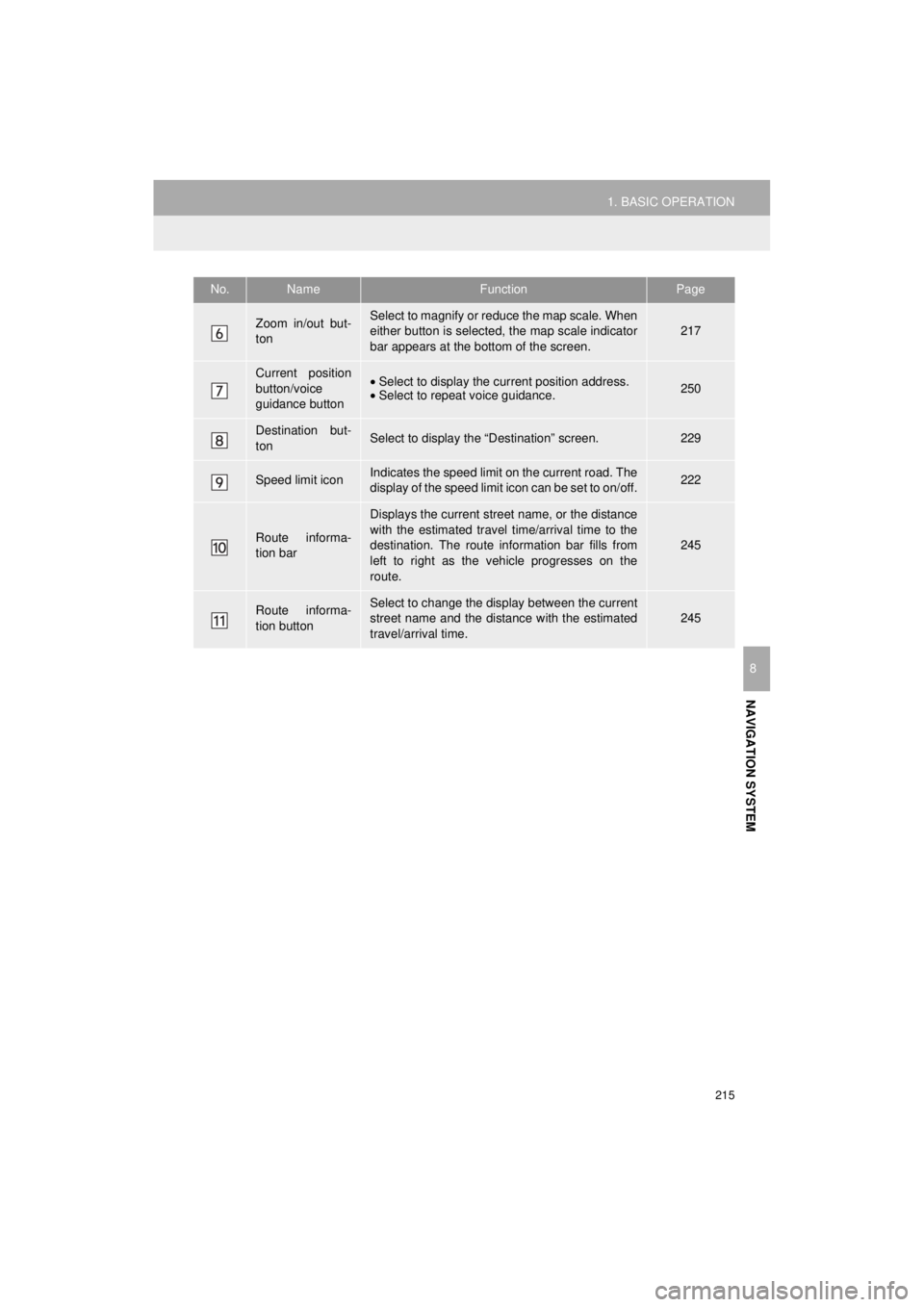

215
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.217
Current position
button/voice
guidance button•Select to display the current position address.
• Select to repeat voice guidance.250
Destination but-
tonSelect to display the “Destination” screen.229
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.222
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
245
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
245
No.NameFunctionPage

217
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
→P. 2 6 7
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

219
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8

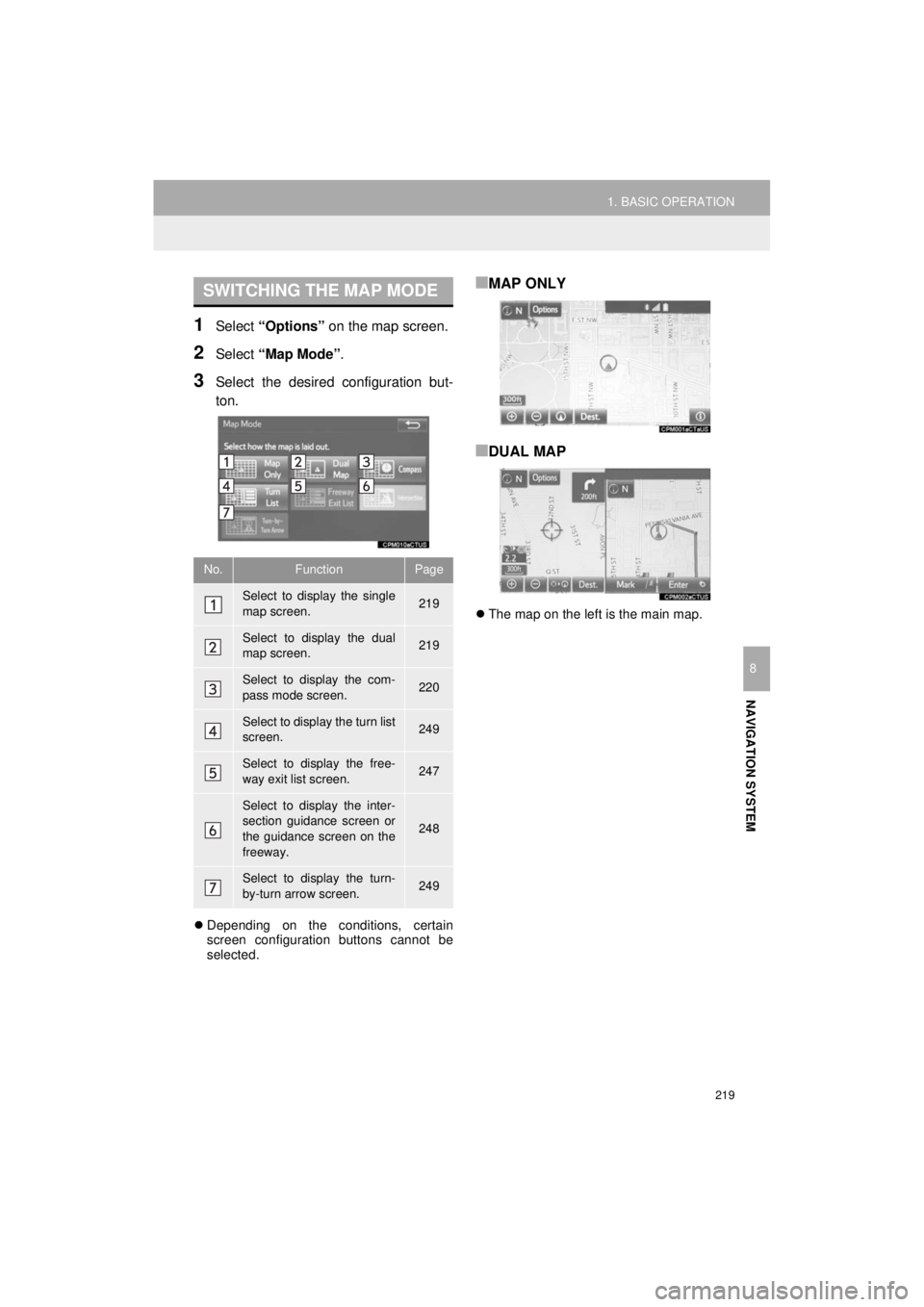

1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 219
Select to display the dual
map screen.219
Select to display the com-
pass mode screen.220
Select to display the turn list
screen.249
Select to display the free-
way exit list screen.247
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
248
Select to display the turn-
by-turn arrow screen.249

221
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
To scroll over the map screen, place the
cursor mark in the desired position and
then touch and hold the map screen. The
map will continue scrolling in that direction
until the finger is released.
1Select one of the 8 directional arrows
to move the cursor to the desired point
and then select “OK”.

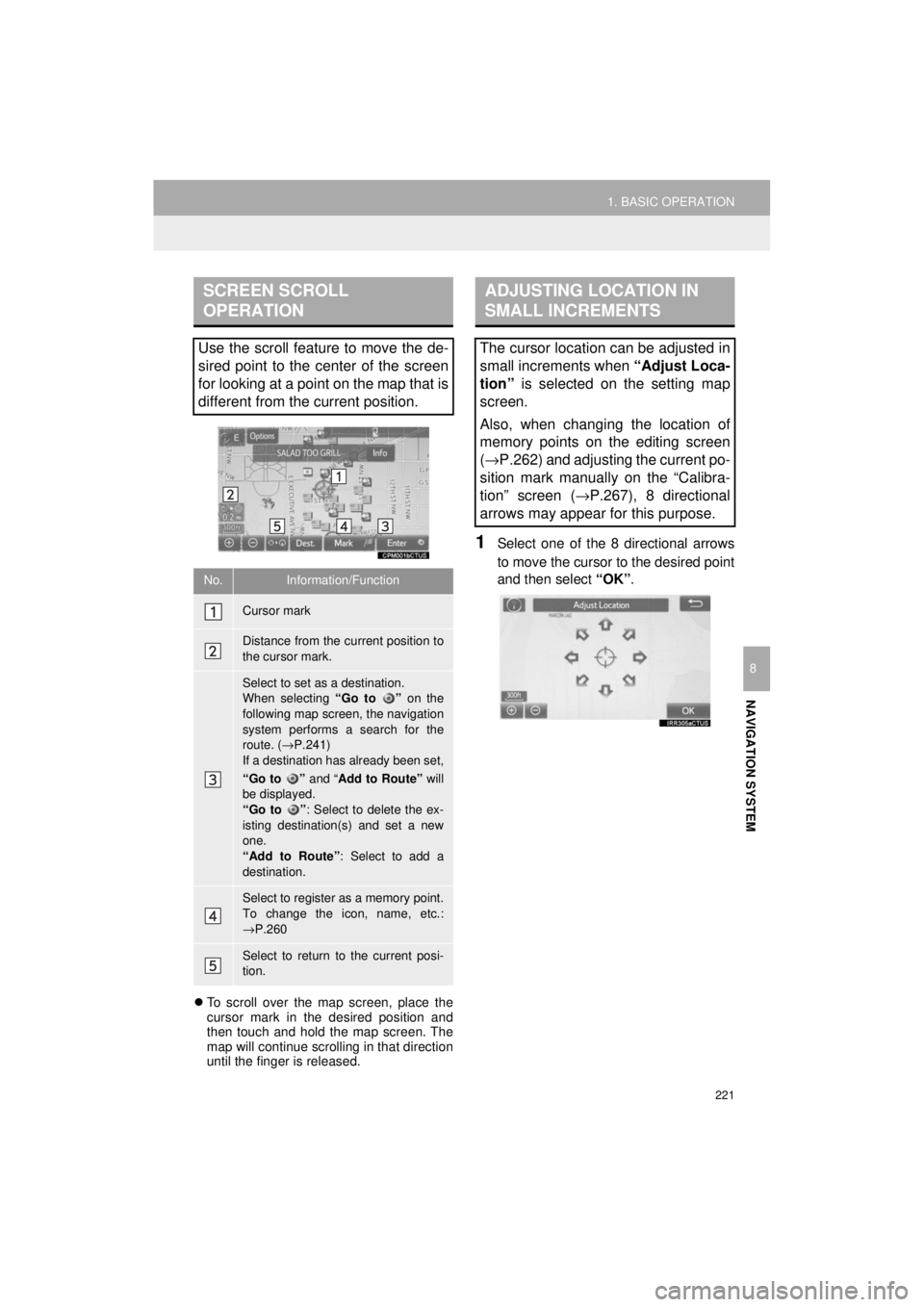

SCREEN SCROLL
OPERATION
Use the scroll feature to move the de-
sired point to the center of the screen
for looking at a point on the map that is
different from the current position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to set as a destination.
When selecting “Go to ” on the
following map screen, the navigation
system performs a search for the
route. ( →P.241)
If a destination has already been set,
“Go to ” and “Add to Route” will
be displayed.
“Go to ” : Select to delete the ex-
isting destination(s) and set a new
one.
“Add to Route” : Select to add a
destination.
Select to register as a memory point.
To change the icon, name, etc.:
→ P.260
Select to return to the current posi-
tion.
ADJUSTING LOCATION IN
SMALL INCREMENTS
The cursor location can be adjusted in
small increments when “Adjust Loca-
tion” is selected on the setting map
screen.
Also, when changing the location of
memory points on the editing screen
( → P.262) and adjusting the current po-
sition mark manually on the “Calibra-
tion” screen ( →P.267), 8 directional
arrows may appear for this purpose.

223
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
■SELECTING OTHER POI ICONS TO
BE DISPLAYED
1Select “Other POIs” .
2Select the desired POI categories and
select “OK”.
“List All Categories” : Select to display all
POI categories. To add more POI catego-
ries, select “More”.
■DISPLAYING THE LOCAL POI LIST
1Select “Find Local POI” .
2Select the desired POI.
“Near...” : Select to search for POIs near
the current position or along the route.
3Check that the selected POI is dis-
played on the map screen. ( →P.221)
 When “Near...” is selected
1Select the desired item.
“Near Here” : Select to search for POIs
near the current position.
“Along My Route” : Select to search for
POIs along the route.
POIs that are within 20 miles (32 km) of
the current position will be listed from
among the selected categories.

225
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
Destination information
No.Function
Select to register as a memory point.
To change the icon, name, etc.:
→P.260
Select to set as a destination.
Select to call the registered number.
Select to delete destination or mem-
ory point.
Select to display the edit memory
point screen.
INFORMATION
● Even when traffic information is not cur-
rently being received, traffic information
and “Info” will be displayed for a while
after traffic information has been
received.
STANDARD MAP ICONS
IconName
Island
Park
Industry
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf
