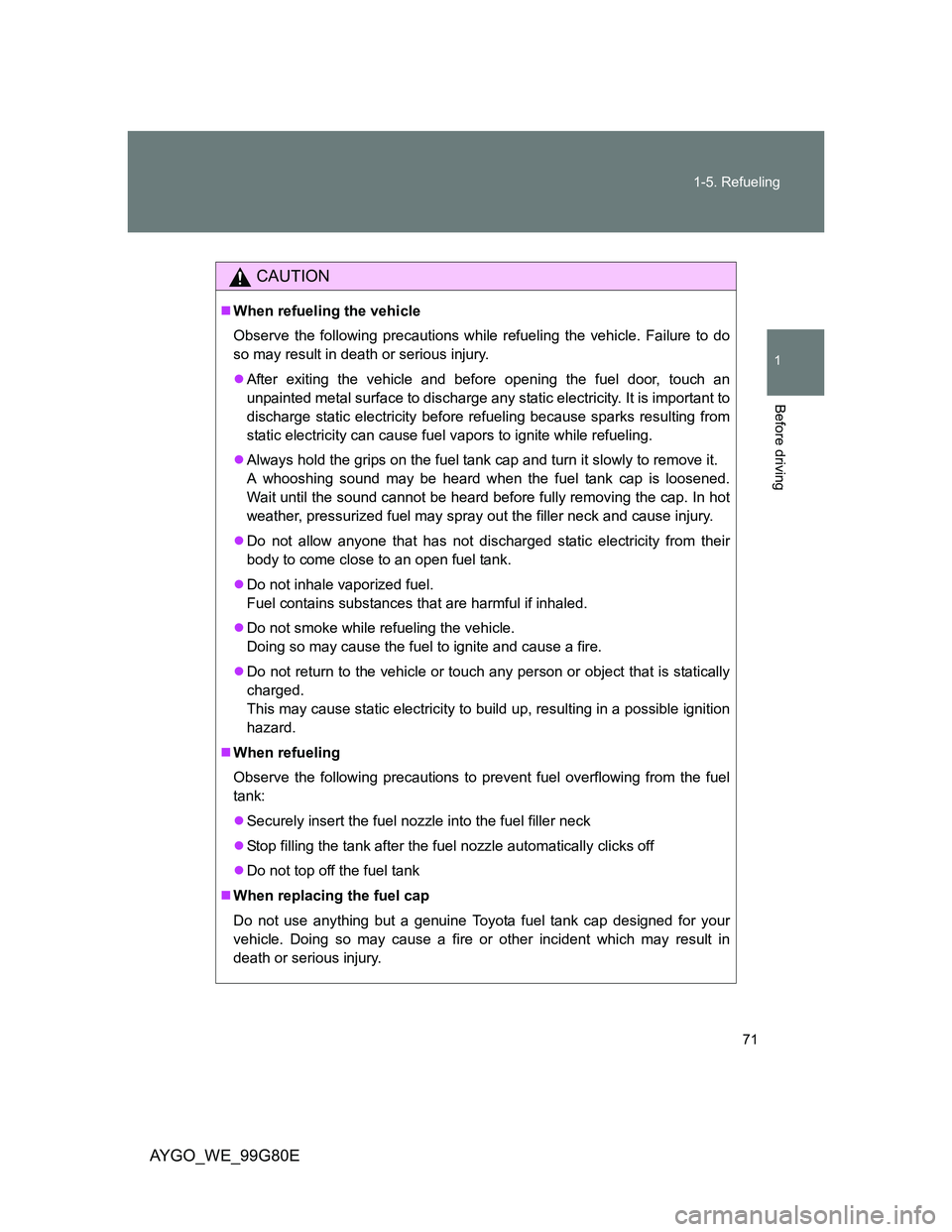

71 1-5. Refueling
1
Before driving
AYGO_WE_99G80E
CAUTION
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
Securely insert the fuel nozzle into the fuel filler neck
Stop filling the tank after the fuel nozzle automatically clicks off
Do not top off the fuel tank
When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

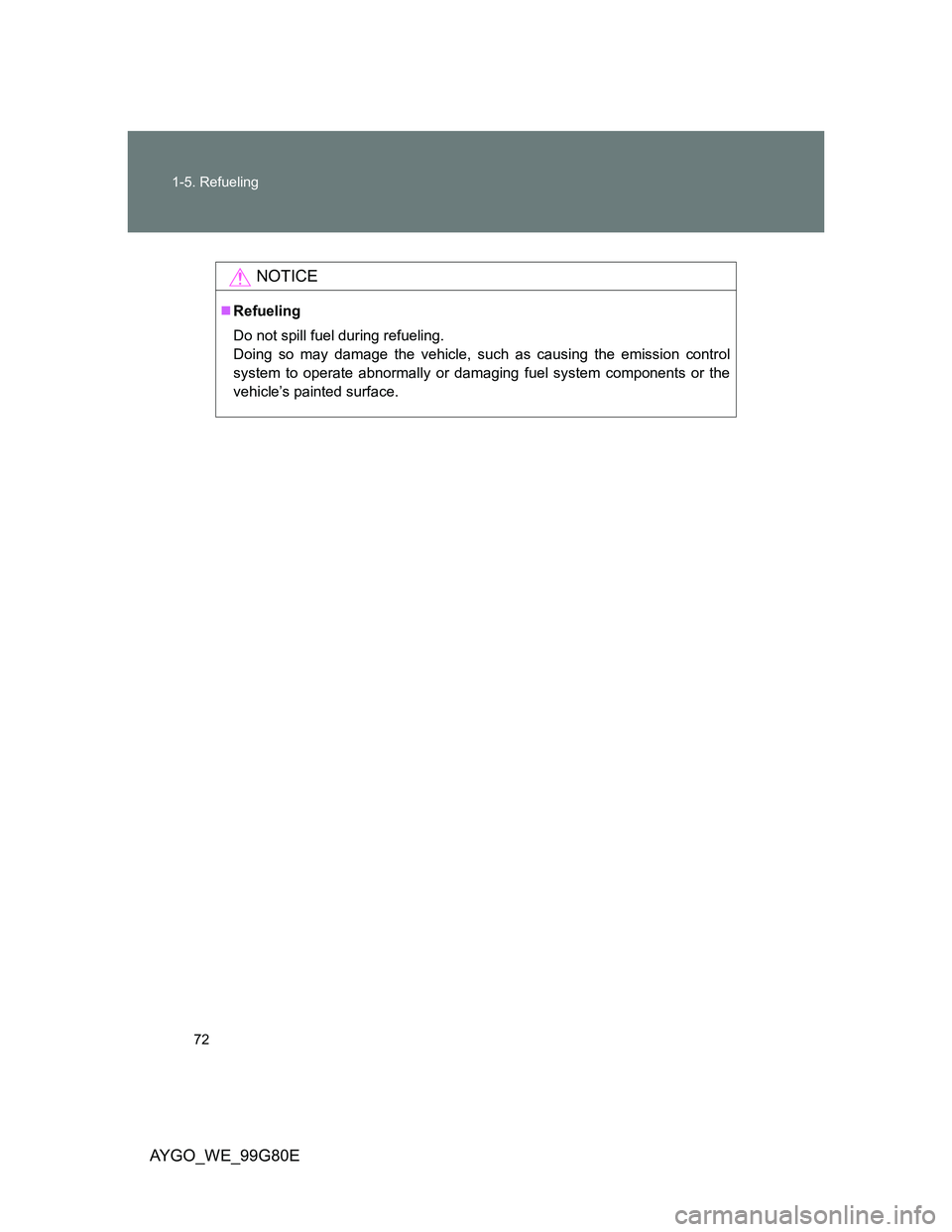

72 1-5. Refueling
AYGO_WE_99G80E
NOTICE
Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

73
1
Before driving
AYGO_WE_99G80E

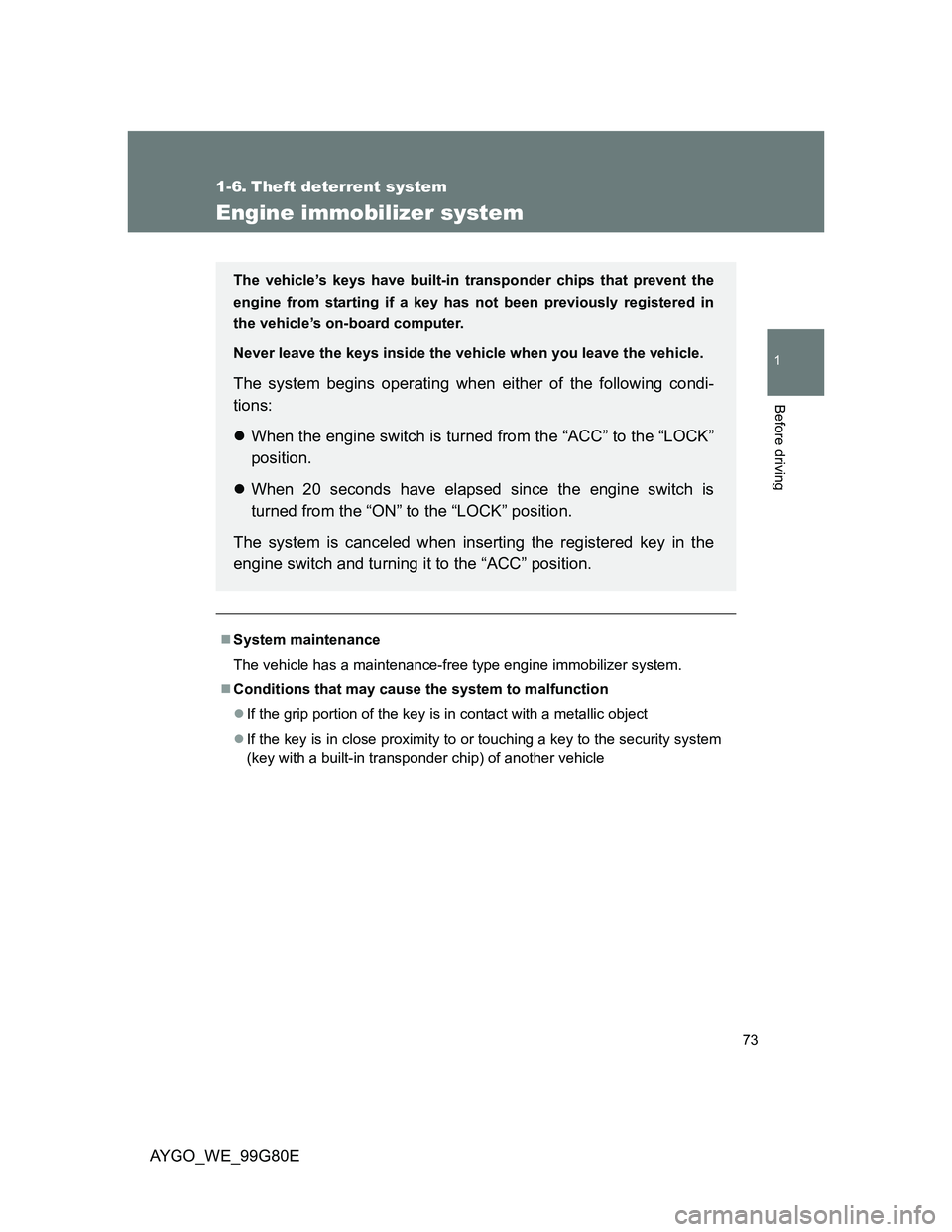

1-6. Theft deterrent system
Engine immobilizer system
System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not been previously registered in
the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The system begins operating when either of the following condi-
tions:
When the engine switch is turned from the “ACC” to the “LOCK”
position.
When 20 seconds have elapsed since the engine switch is
turned from the “ON” to the “LOCK” position.
The system is canceled when inserting the registered key in the
engine switch and turning it to the “ACC” position.

74 1-6. Theft deterrent system
AYGO_WE_99G80E

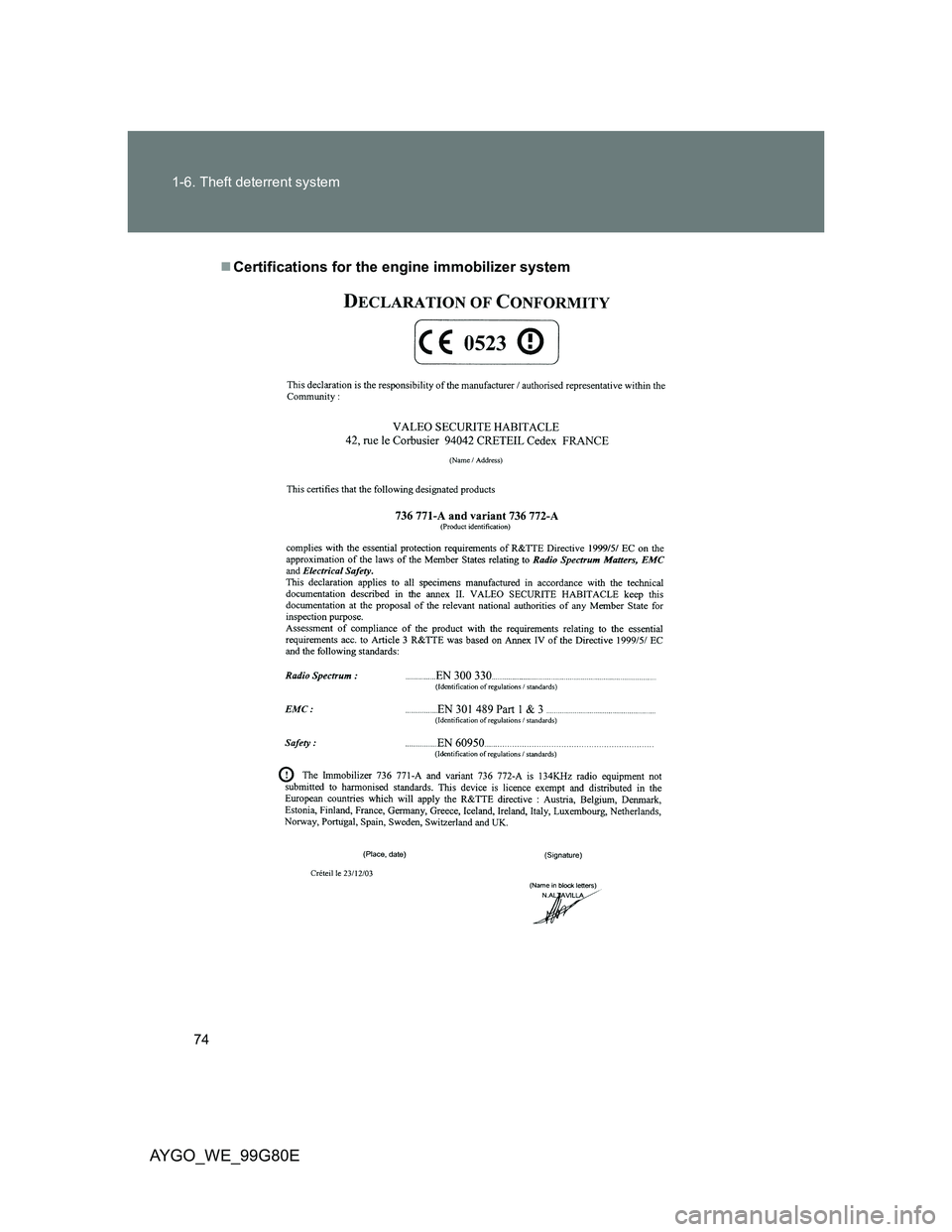

Certifications for the engine immobilizer system

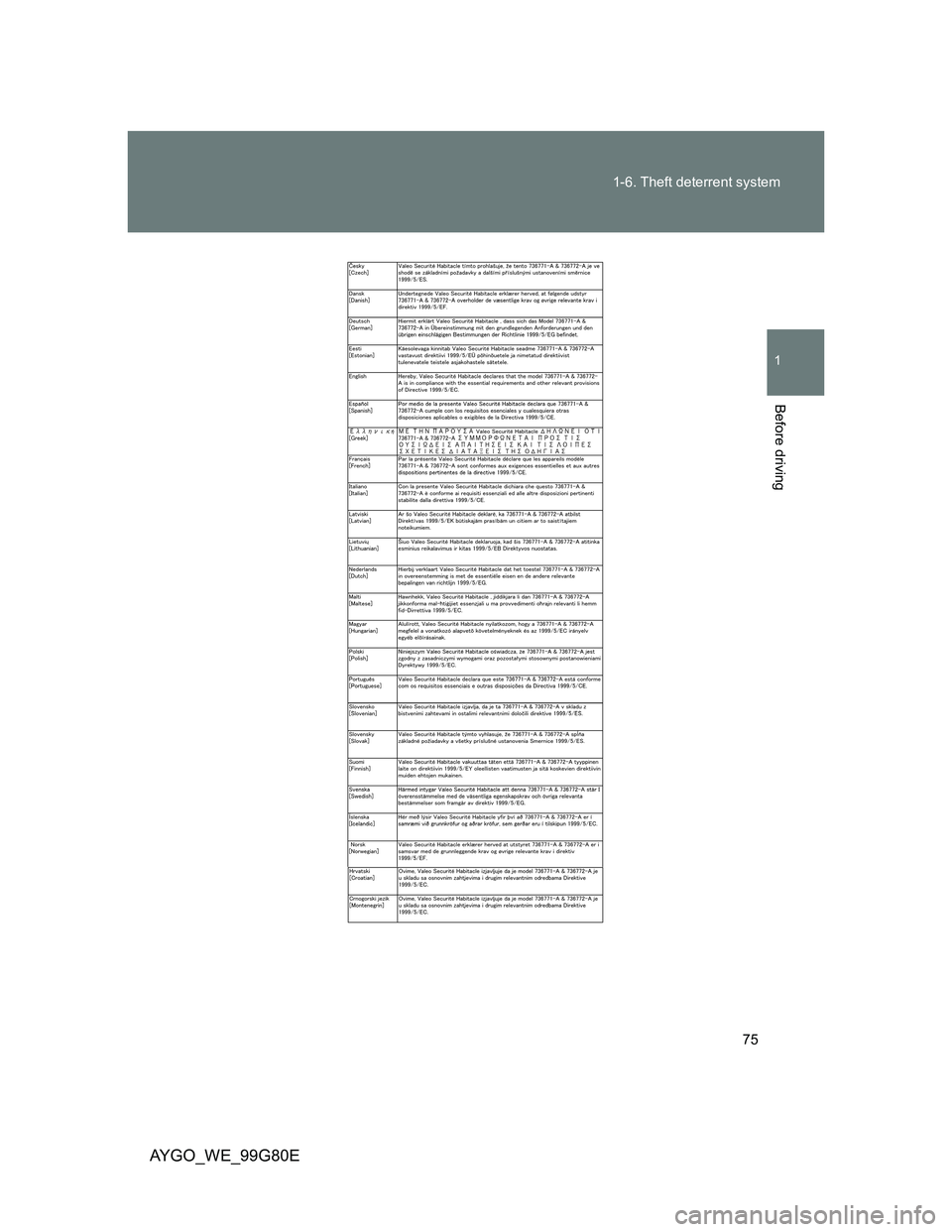

75 1-6. Theft deterrent system
1
Before driving
AYGO_WE_99G80E

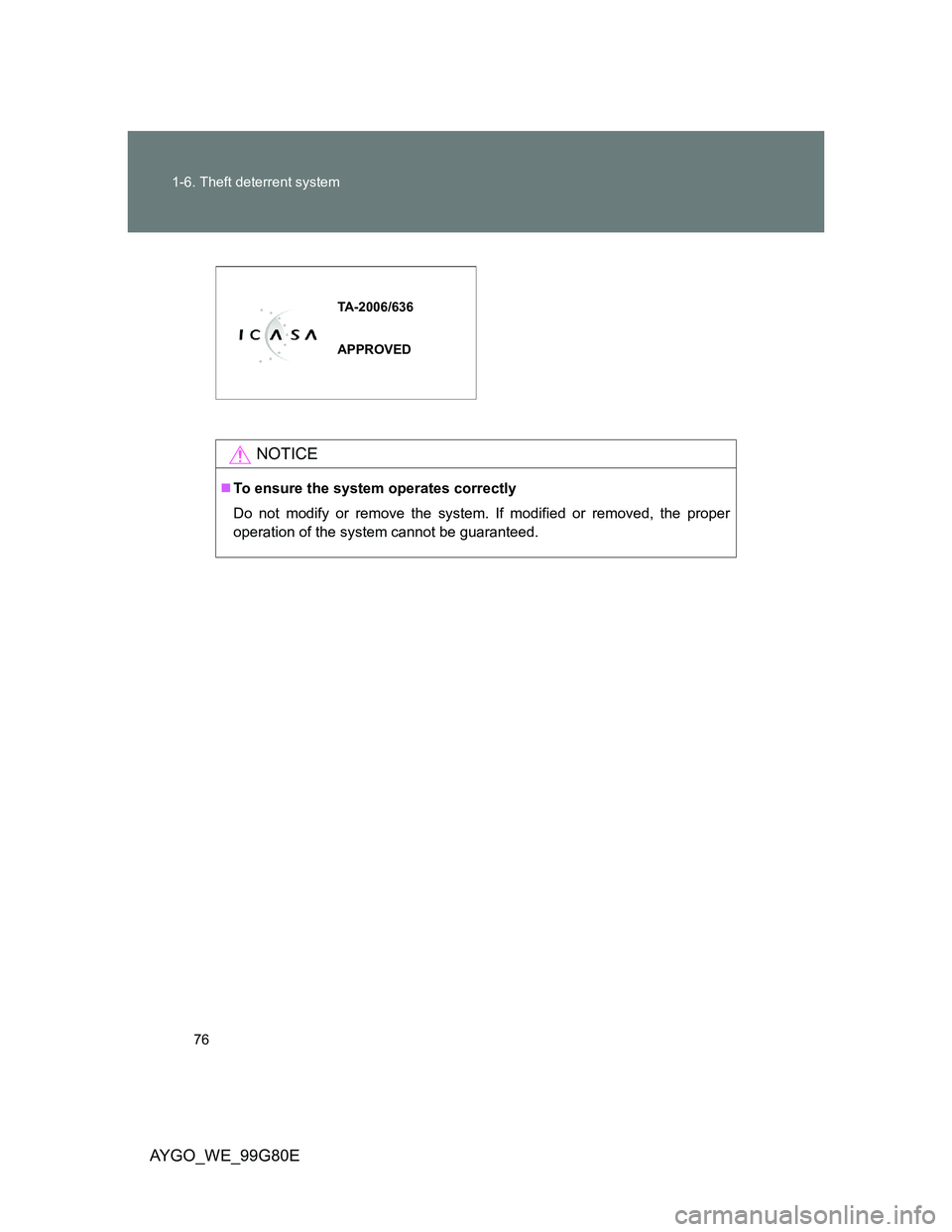

76 1-6. Theft deterrent system
AYGO_WE_99G80E
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
TA-2006/636
APPROVED

77
1
Before driving
AYGO_WE_99G80E

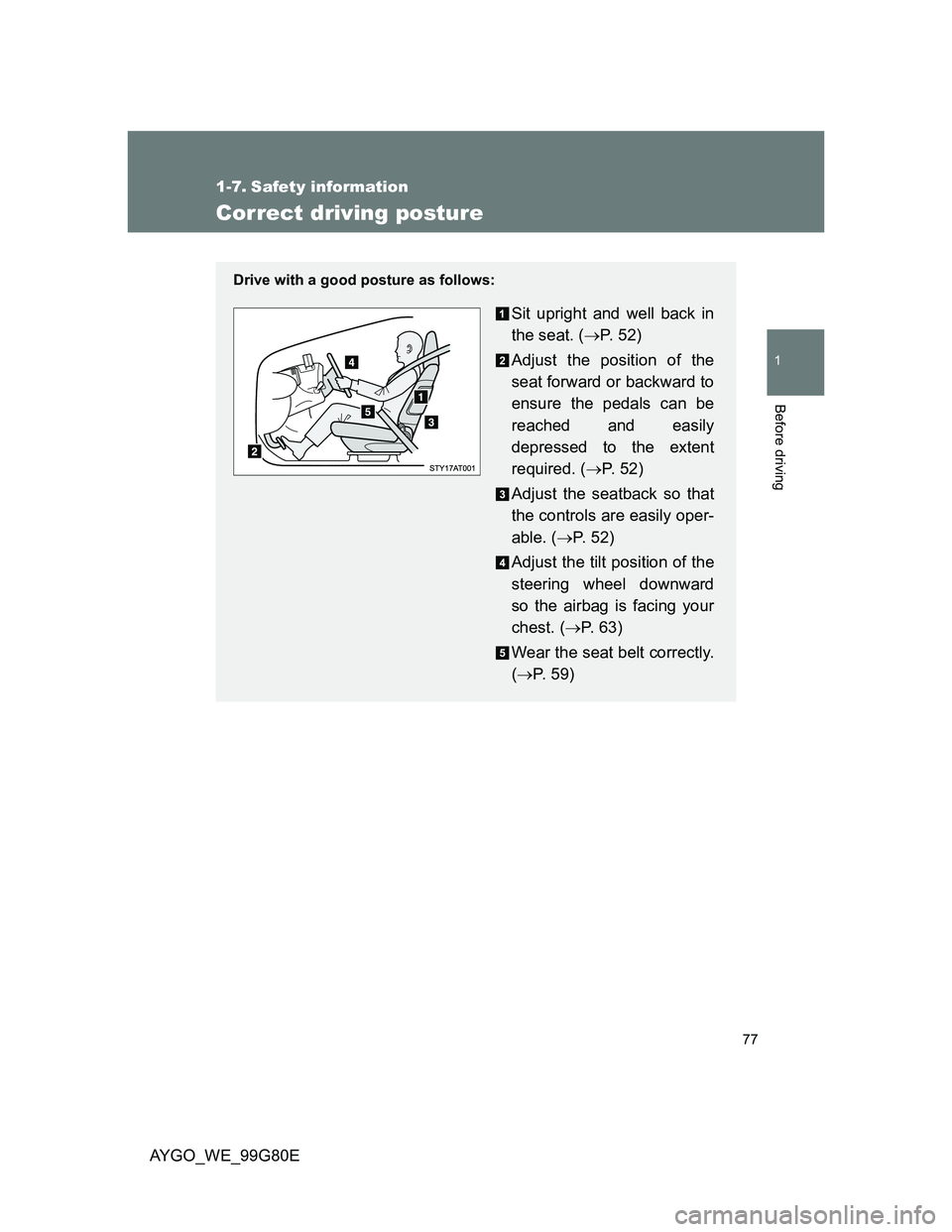

1-7. Safety information
Correct driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat. (P. 5 2 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. (P. 52)
Adjust the seatback so that
the controls are easily oper-
able. (P. 52)
Adjust the tilt position of the
steering wheel downward
so the airbag is facing your
chest. (P. 6 3 )
Wear the seat belt correctly.
(P. 59)

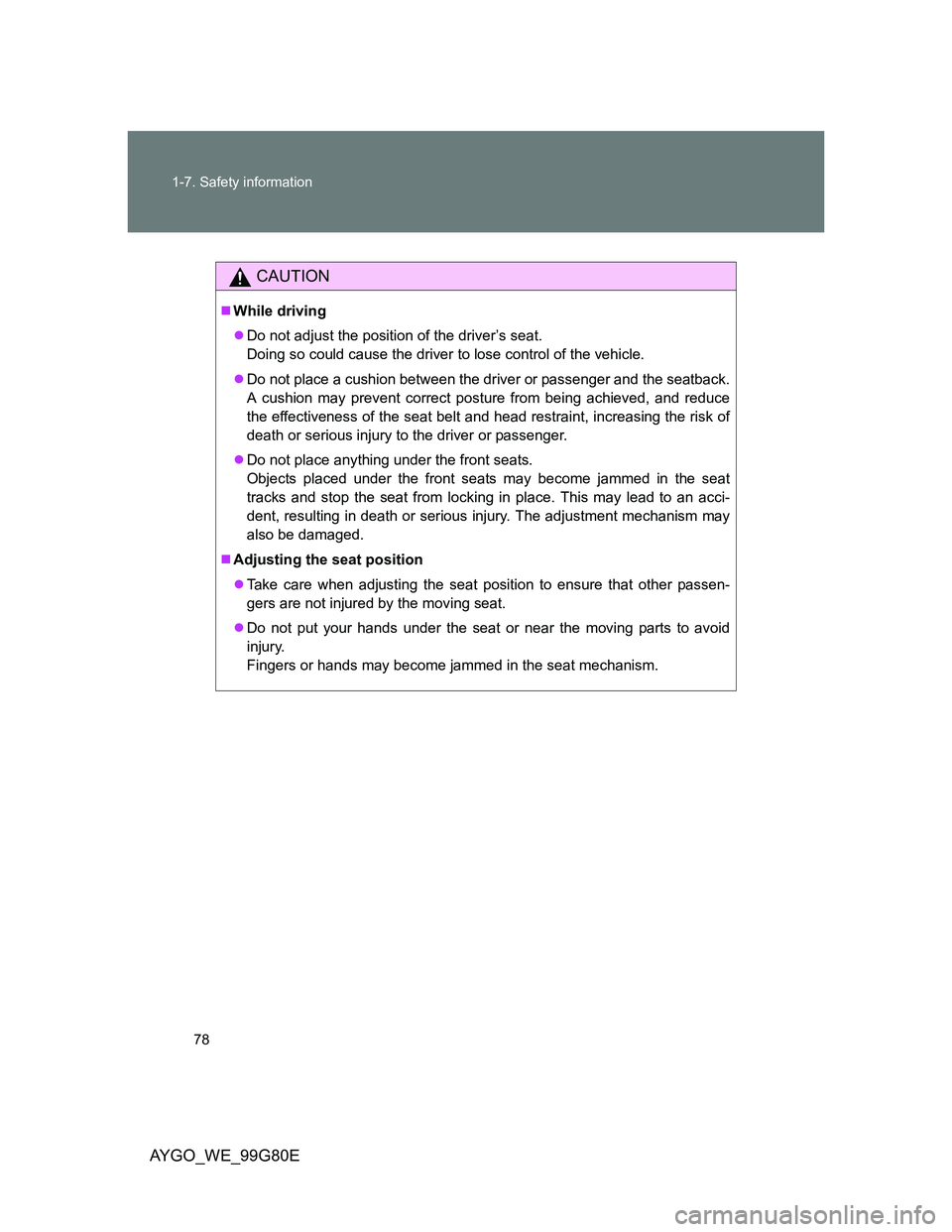

78 1-7. Safety information
AYGO_WE_99G80E
CAUTION
While driving
Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent, resulting in death or serious injury. The adjustment mechanism may
also be damaged.
Adjusting the seat position
Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

79
1
1-7. Safety information
Before driving
AYGO_WE_99G80E

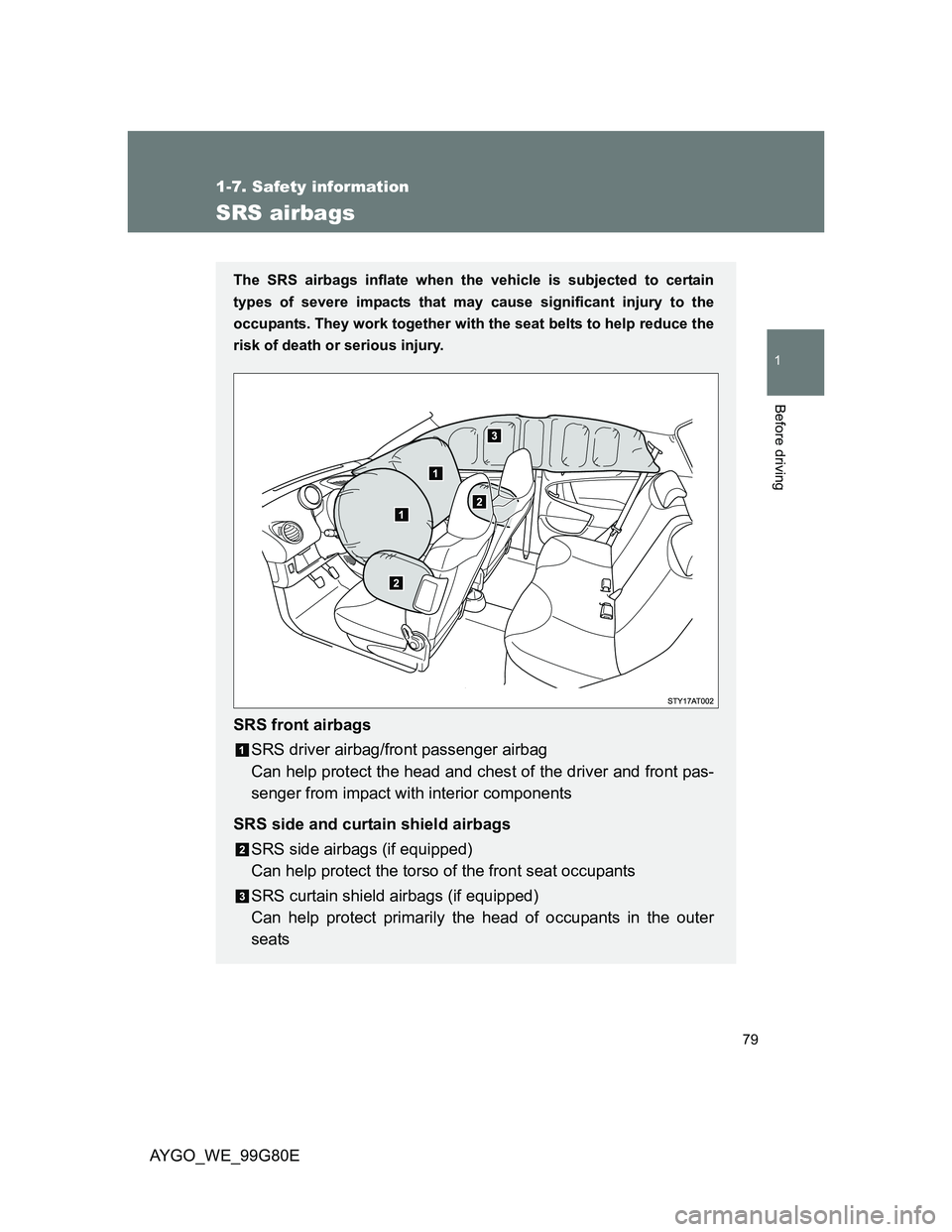

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components
SRS side and curtain shield airbags
SRS side airbags (if equipped)
Can help protect the torso of the front seat occupants
SRS curtain shield airbags (if equipped)
Can help protect primarily the head of occupants in the outer
seats

80 1-7. Safety information
AYGO_WE_99G80E
SRS airbag system components
Front passenger airbag
Seat belt pretensioners and
force limiters
Side airbags (if equipped)
SRS warning light
Vehicles with side airbags
(5-door models): Side air-
bag sensors
Vehicles with side and cur-
tain shield airbags (5-door
models): Side and curtain
shield airbag sensorsCurtain shield airbags
(if equipped)
Vehicles with side airbags
(3-door models): Side air-
bag sensors
Vehicles with side and cur-
tain shield airbags (3-door
models): Side and curtain
shield airbag sensors
Airbag manual on-off switch
Driver airbag
Airbag sensor assembly
