Page 395 of 480

3958-2. Steps to take in an emergency
8
When trouble arises
AYGO_OM_Europe_OM99Q24E
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empt y, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
■ When the tire pressure warning light comes on (vehicles with the tire
pressure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 399, 412
If the tire is not punctured:
Check the tire inflation pressure after the tire temperature has lowered suffi-
ciently. Adjust the inflation pressure to the appropriate level and carry out ini-
tialization. ( P. 3 4 5 )
■ The tire pressure warning light may come on due to natural causes
(vehicles with the tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure is at the specified level and
carry out initialization. ( P. 345)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

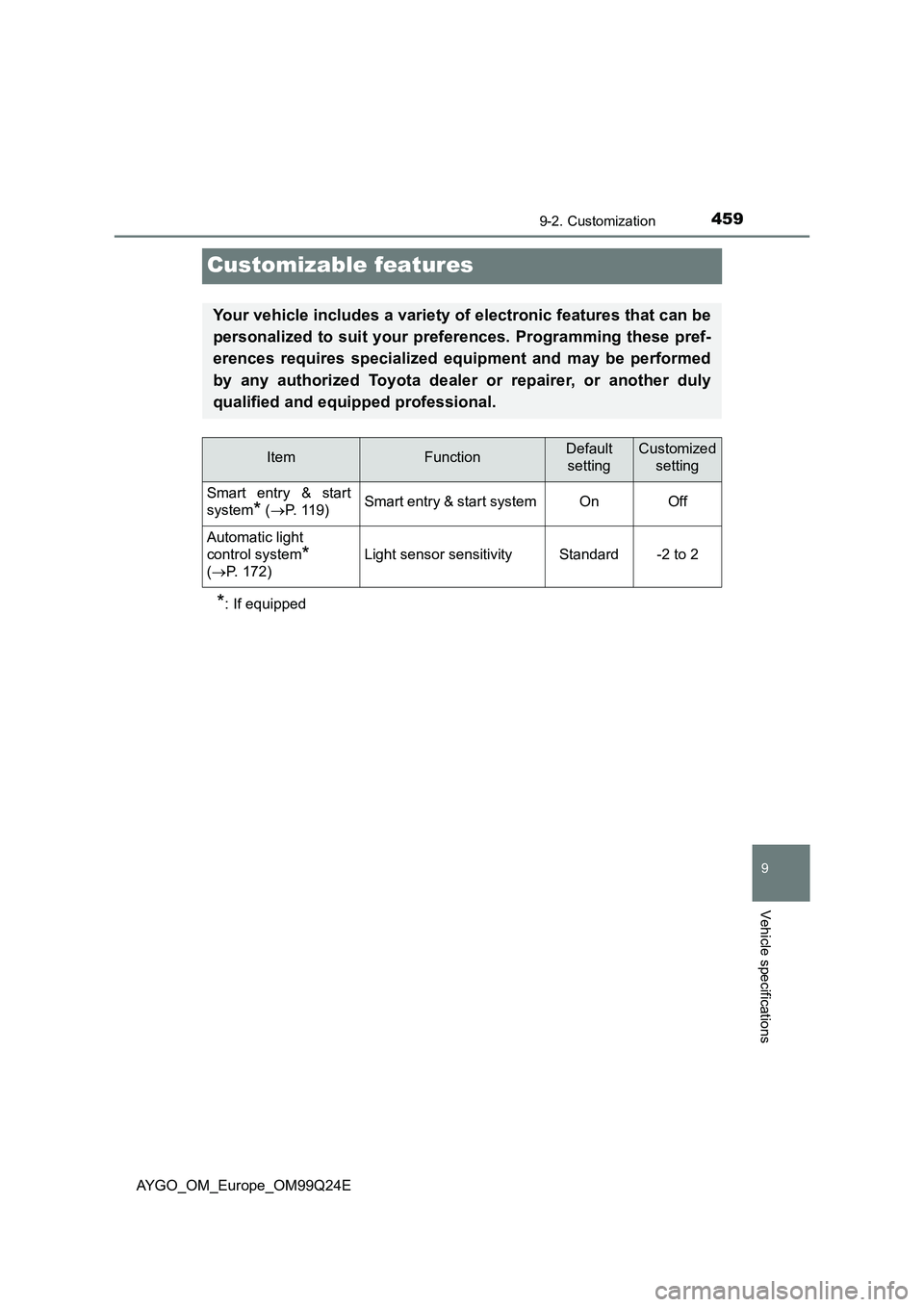

Page 459 of 480

4599-2. Customization
9
Vehicle specifications
AYGO_OM_Europe_OM99Q24E
Customizable features
*: If equipped
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
ItemFunctionDefault
setting
Customized
setting
Smart entry & start
system* ( P. 119)Smart entry & start systemOnOff
Automatic light
control system*
( P. 172)
Light sensor sensitivityStandard-2 to 2
Page 474 of 480

474Alphabetical index
AYGO_OM_Europe_OM99Q24E
Seat belts .................................... 30
Child restraint system
installation............................. 55
Cleaning and maintaining
the seat belt ........................ 321
Emergency Locking
Retractor............................... 31
How to wear your seat belt ..... 30
How your child should wear
the seat belt .......................... 31
Pregnant women, proper
seat belt use ......................... 32
Reminder light and buzzer .... 393
Seat belt pretensioners ........... 31
SRS warning light ................. 391
Seat heaters ............................. 302
Seats ................................. 127, 129
Adjustment ............................ 127
Adjustment
precautions ................. 128, 130
Child seats/child restraint
system installation ................ 55
Cleaning ................................ 320
Folding down the rear
seatbacks ........................... 129
Head restraint ....................... 131
Properly sitting in the seat....... 28
Seat heaters.......................... 302
Sensor
Automatic headlight
system ................................ 174
LDA
(Lane Departure Alert)........ 188
PCS (Pre-Crash Safety
system)............................... 188
Service reminder indicators ..... 84
Shift lever
If the shift lever cannot be
shifted ................................. 428
Manual transmission ............. 168
Multi-mode manual
transmission ....................... 163
Shift lock system ..................... 428
Shopping bag hooks ............... 309
Side airbags ............................... 34
Side mirrors ............................. 135
Adjusting and folding ............ 135
Side turn signal lights ............. 170
Replacing light bulbs............. 374
Turn signal lever ................... 170
Smart entry & start system ..... 119
Antenna location ................... 119
Entry functions .............. 109, 113
Starting the engine................ 158
Warning light ................. 393, 397
Snow tires ................................ 231
Spare tire .................................. 399
Inflation pressure .................. 454
Storage location .................... 400
S
