dimensions TOYOTA BZ4X 2023 Owners Manual

5509-1. Specifications
Owners Manual_USA_M42C01_en
9-1.Specifications
*: Unladen vehicle
■Vehicle identification num-
ber
The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is on the top left of
the instrument panel. This number is also stamped
under the right-hand front seat.

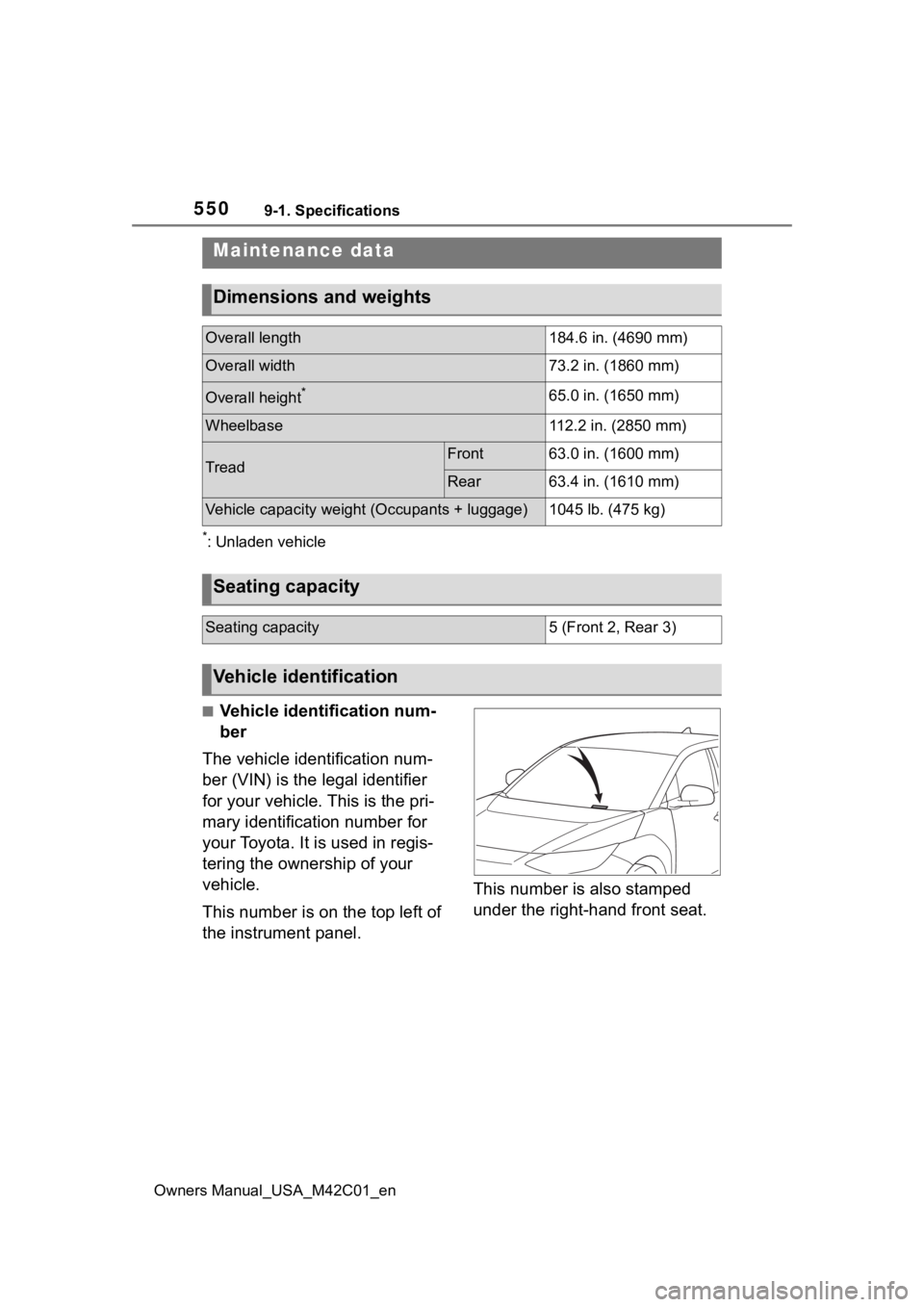

Maintenance data
Dimensions and weights
Overall length184.6 in. (4690 mm)
Overall width73.2 in. (1860 mm)
Overall height*65.0 in. (1650 mm)
Wheelbase112.2 in. (2850 mm)
TreadFront63.0 in. (1600 mm)
Rear63.4 in. (1610 mm)
Vehicle capacity weigh
t (Occupants + luggage)1045 lb. (475 kg)
Seating capacity
Seating capacity5 (Front 2, Rear 3)
Vehicle identification

5589-1. Specifications
Owners Manual_USA_M42C01_en
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)
Speed symbol (alphabet with
one letter)
■Tire dimensionsSection width
Tire height
Wheel diameter Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
Tire section names
Uniform Tire Quality
Grading
