oil pressure TOYOTA C-HR 2016 Owners Manual

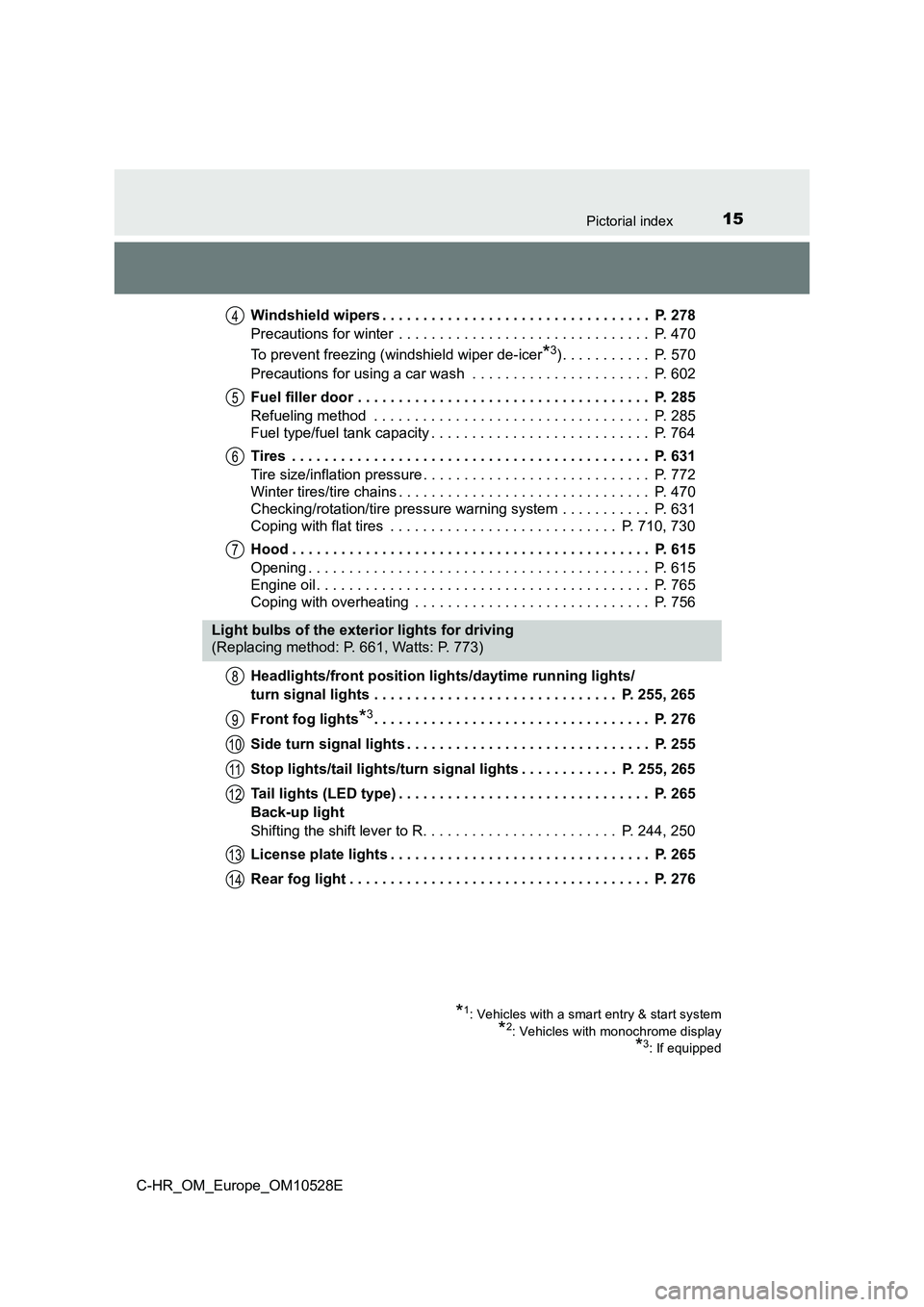

15Pictorial index
C-HR_OM_Europe_OM10528E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
To prevent freezing (windshield wiper de-icer*3) . . . . . . . . . . . P. 570
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 602
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 764
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 631
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 772
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 631
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 710, 730
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 765
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 756
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255, 265
Front fog lights*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255
Stop lights/tail lights/turn signal lights . . . . . . . . . . . . P. 255, 265
Tail lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Back-up light
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 244, 250
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 661, Watts: P. 773)
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: If equipped
8
9
10
11
12
13
14

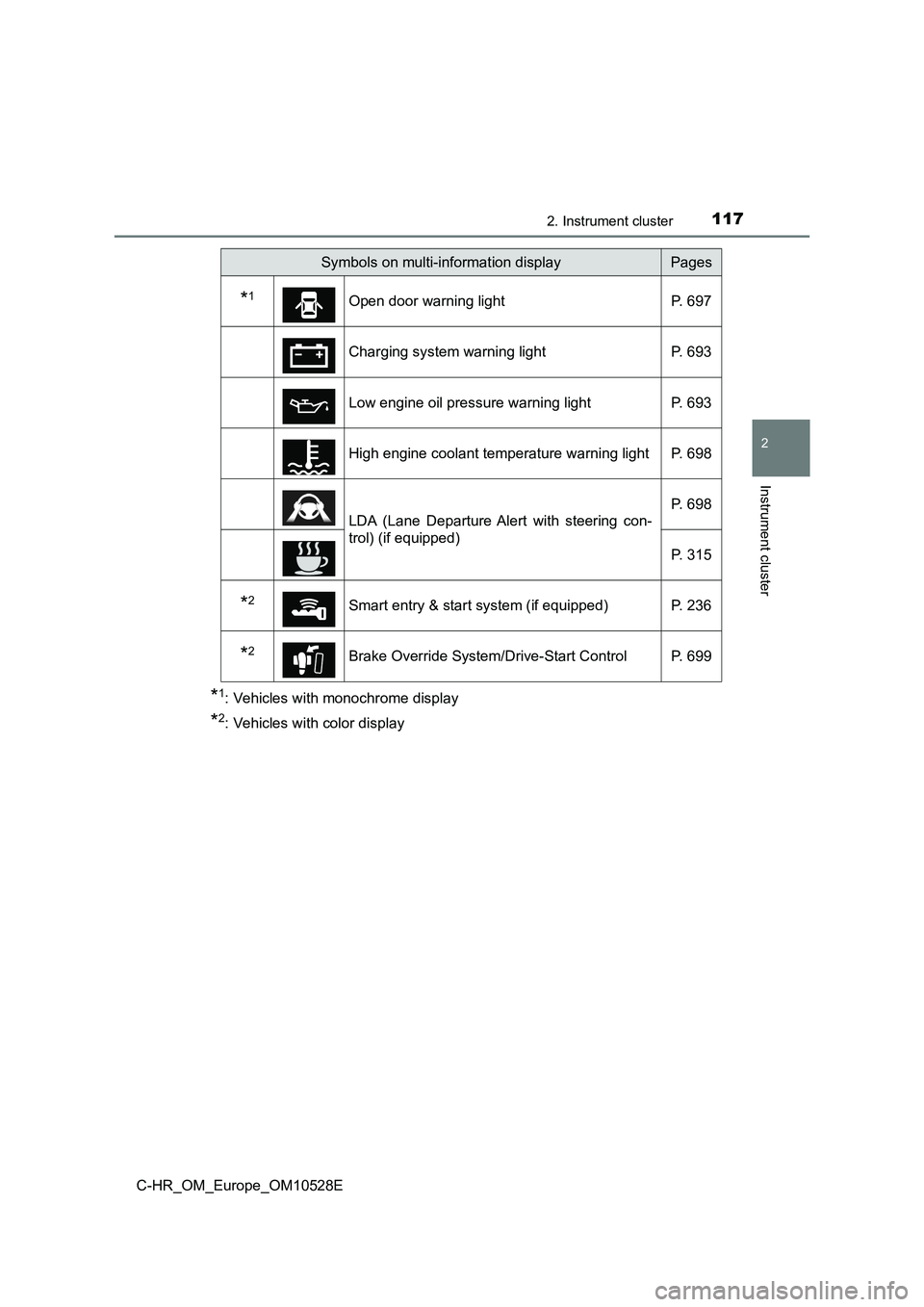

1172. Instrument cluster
2
Instrument cluster
C-HR_OM_Europe_OM10528E
*1: Vehicles with monochrome display
*2: Vehicles with color display
Symbols on multi-information displayPages
*1Open door warning light P. 697
Charging system warning light P. 693
Low engine oil pressure warning light P. 693
High engine coolant temperature warning light P. 698
LDA (Lane Departure Alert with steering con-
trol) (if equipped)
P. 698
P. 315
*2Smart entry & start system (if equipped) P. 236
*2Brake Override System/Drive-Start Control P. 699

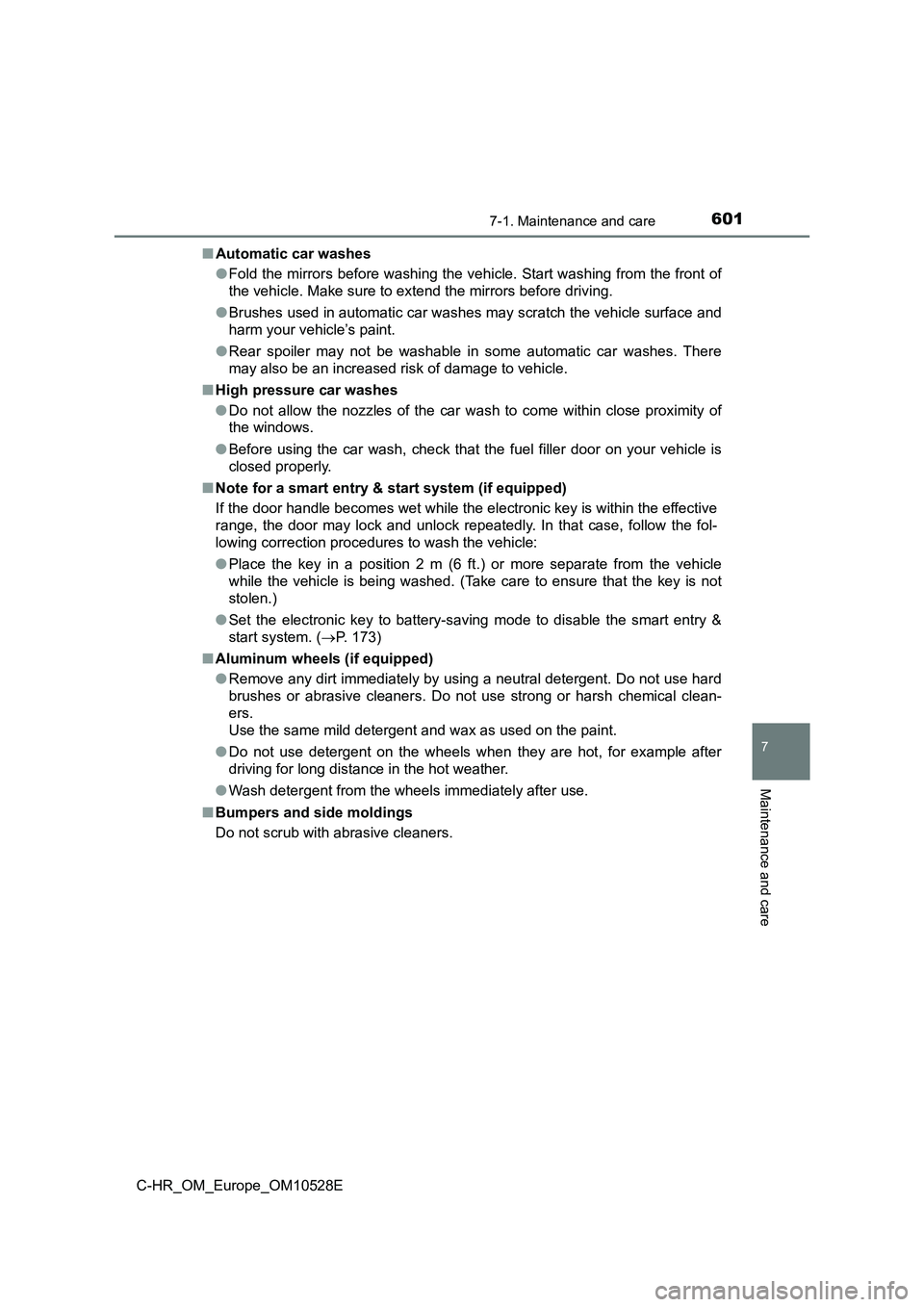

6017-1. Maintenance and care
7
Maintenance and care
C-HR_OM_Europe_OM10528E
■ Automatic car washes
● Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
● Rear spoiler may not be washable in some automatic car washes. There
may also be an increased risk of damage to vehicle.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ Note for a smart entry & start system (if equipped)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:
● Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is not
stolen.)
● Set the electronic key to battery-saving mode to disable the smart entry &
start system. ( P. 173)
■ Aluminum wheels (if equipped)
● Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical clean-
ers.
Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.

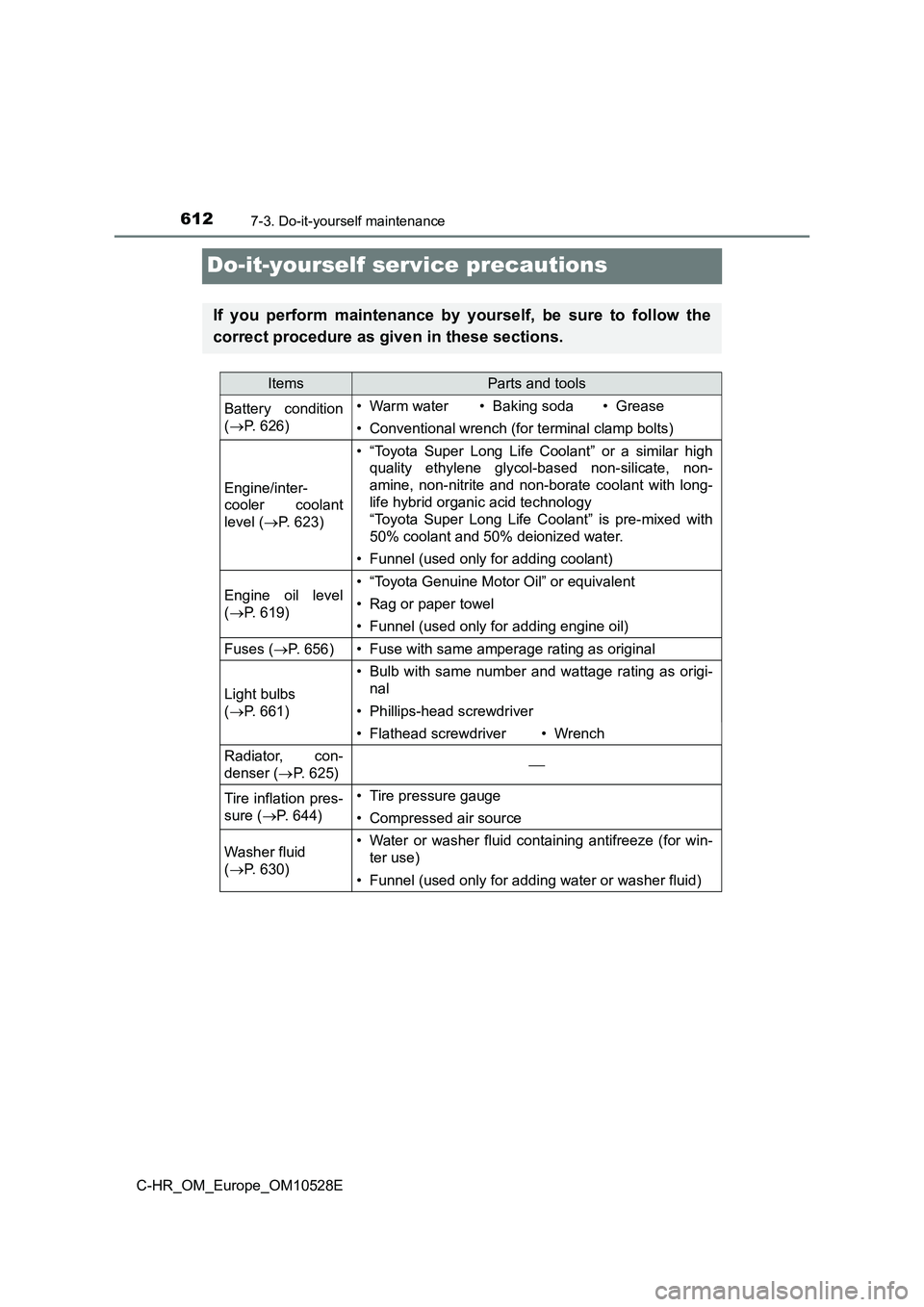

6127-3. Do-it-yourself maintenance
C-HR_OM_Europe_OM10528E
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
( P. 626)
•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Engine/inter-
cooler coolant
level ( P. 623)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 619)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 6 5 6 )• Fuse with same amperage rating as original
Light bulbs
( P. 661)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator, con-
denser ( P. 625)
Tire inflation pres-
sure ( P. 644)
• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 630)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

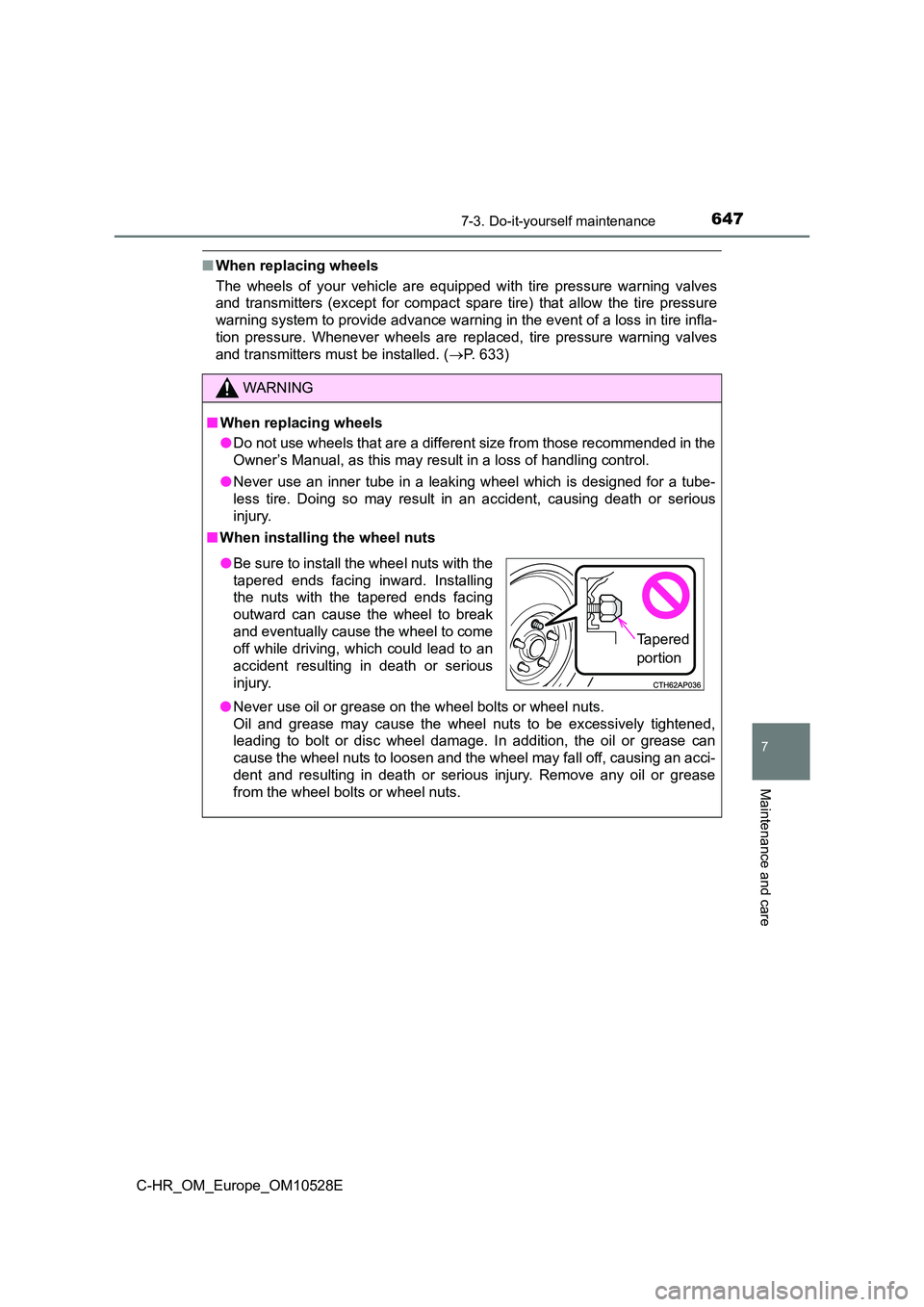

6477-3. Do-it-yourself maintenance
7
Maintenance and care
C-HR_OM_Europe_OM10528E
■When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves
and transmitters (except for compact spar e tire) that allow the tire pressure
warning system to provide advance warning in the event of a loss in tire infla-
tion pressure. Whenever wheels are repl aced, tire pressure warning valves
and transmitters must be installed. ( P. 633)
WARNING
■When replacing wheels
● Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
■ When installing the wheel nuts
● Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
● Be sure to install the wheel nuts with the
tapered ends facing inward. Installing
the nuts with the tapered ends facing
outward can cause the wheel to break
and eventually cause the wheel to come
off while driving, which could lead to an
accident resulting in death or serious
injury.
Tapered
portion

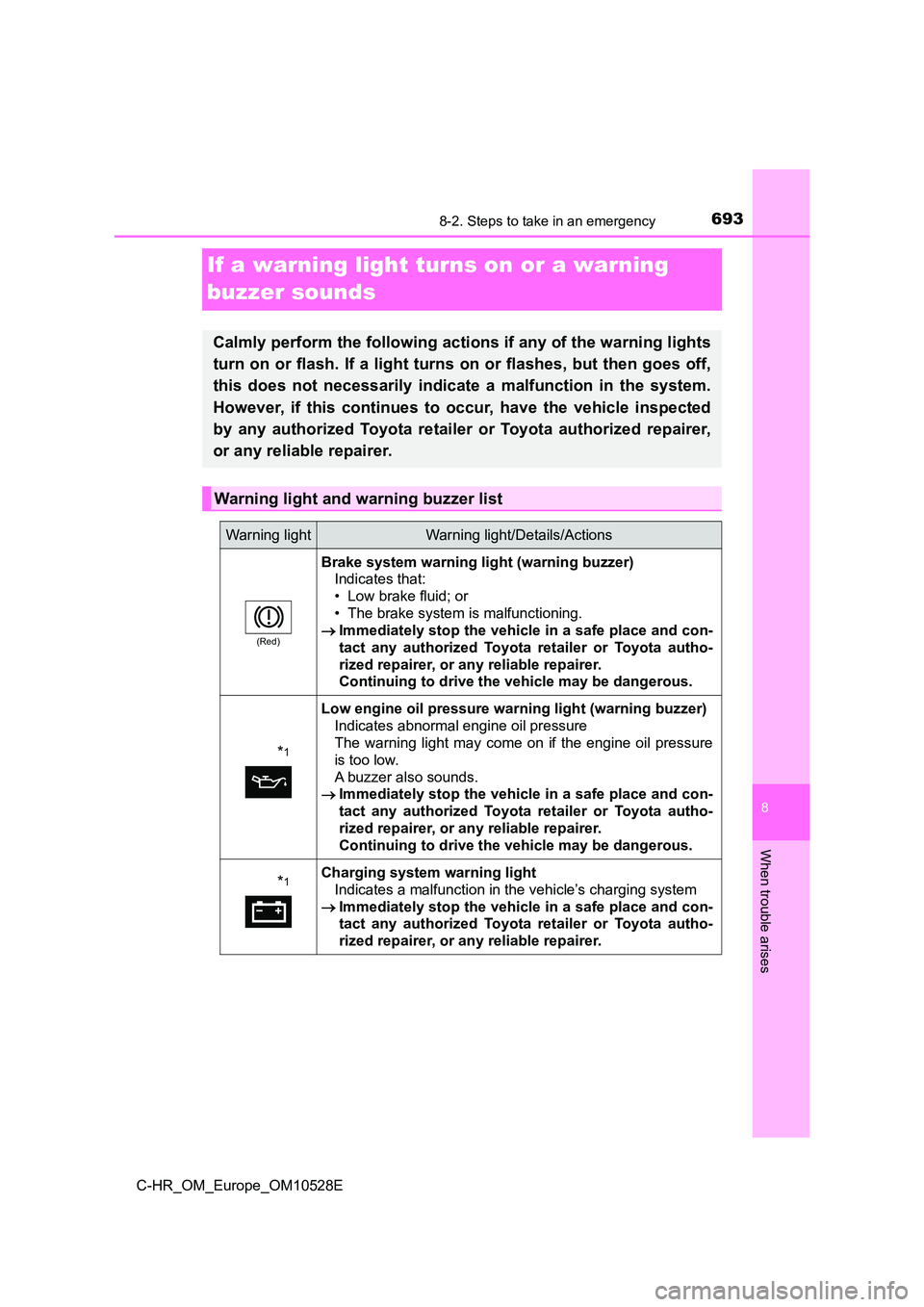

6938-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
turn on or flash. If a light turns on or flashes, but then goes off,
this does not necessarily indicate a malfunction in the system.
However, if this continues to occur, have the vehicle inspected
by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(Red)
Brake system warning light (warning buzzer)
Indicates that:
• Low brake fluid; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Continuing to drive the vehicle may be dangerous.
*1
Low engine oil pressure warning light (warning buzzer)
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pressure
is too low.
A buzzer also sounds.
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Continuing to drive the vehicle may be dangerous.
*1Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

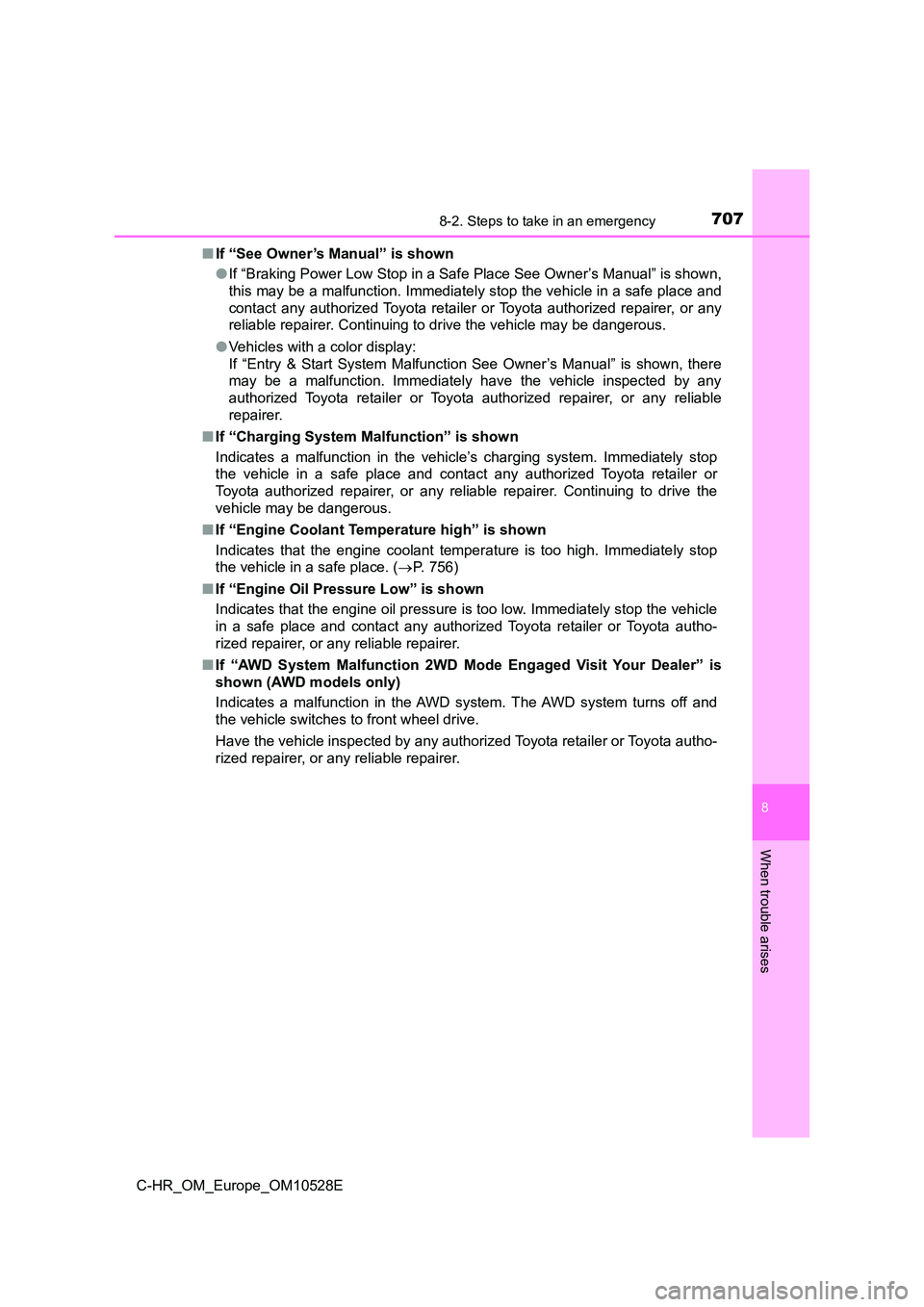

7078-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
■ If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dangerous.
● Vehicles with a color display:
If “Entry & Start System Malfunction See Owner’s Manual” is shown, there
may be a malfunction. Immediately have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ If “Charging System Malfunction” is shown
Indicates a malfunction in the vehicle’s charging system. Immediately stop
the vehicle in a safe place and contact any authorized Toyota retailer or
Toyota authorized repairer, or any reli able repairer. Continuing to drive the
vehicle may be dangerous.
■ If “Engine Coolant Temperature high” is shown
Indicates that the engine coolant temperature is too high. Immediately stop
the vehicle in a safe place. ( P. 756)
■ If “Engine Oil Pressure Low” is shown
Indicates that the engine oil pressure is too low. Immediately stop the vehicle
in a safe place and contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■ If “AWD System Malfunction 2WD Mode Engaged Visit Your Dealer” is
shown (AWD models only)
Indicates a malfunction in the AWD system. The AWD system turns off and
the vehicle switches to front wheel drive.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

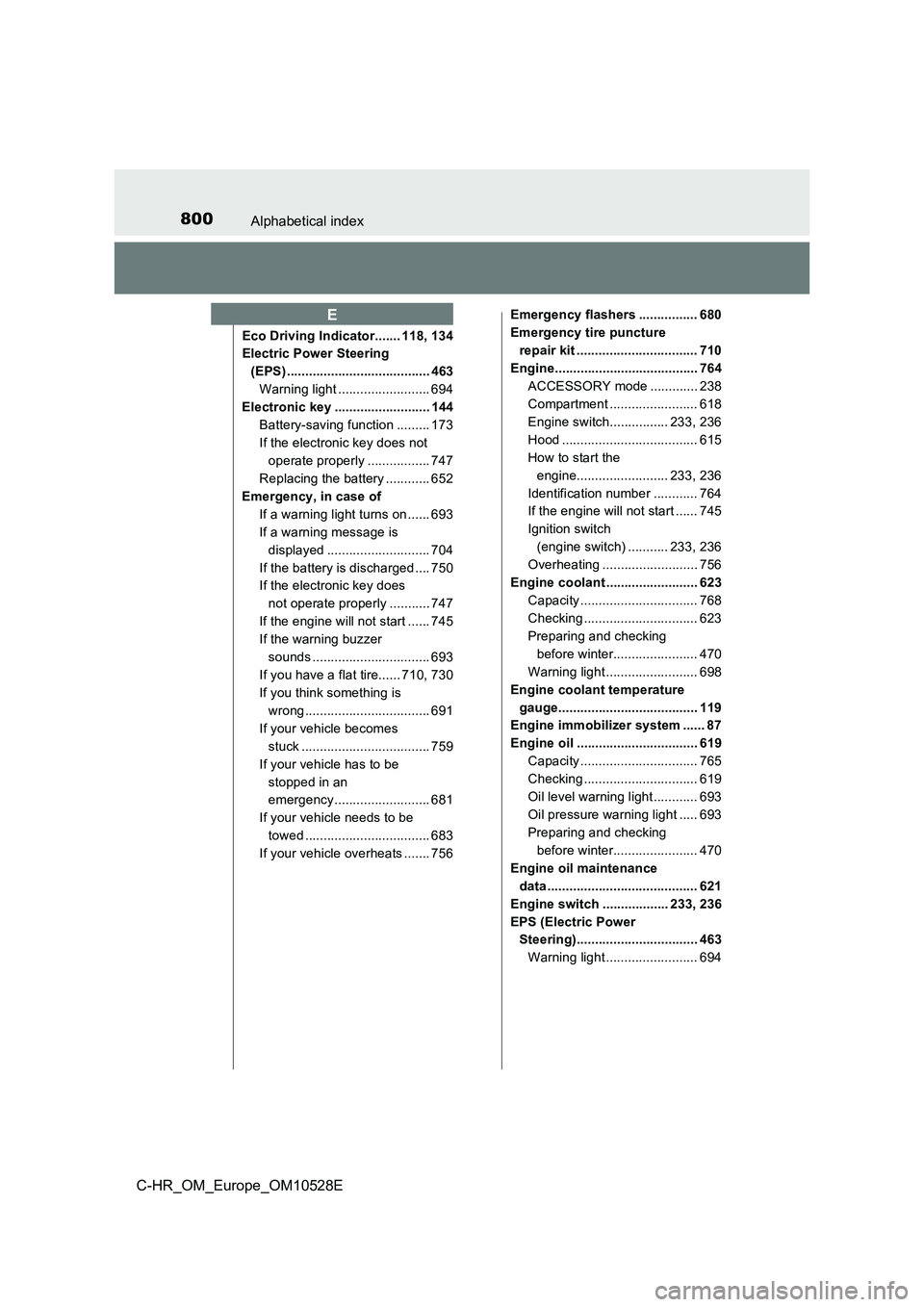

800Alphabetical index
C-HR_OM_Europe_OM10528E
Eco Driving Indicator....... 118, 134
Electric Power Steering
(EPS) ....................................... 463
Warning light ......................... 694
Electronic key .......................... 144
Battery-saving function ......... 173
If the electronic key does not
operate properly ................. 747
Replacing the battery ............ 652
Emergency, in case of
If a warning light turns on ...... 693
If a warning message is
displayed ............................ 704
If the battery is discharged .... 750
If the electronic key does
not operate properly ........... 747
If the engine will not start ...... 745
If the warning buzzer
sounds ................................ 693
If you have a flat tire...... 710, 730
If you think something is
wrong .................................. 691
If your vehicle becomes
stuck ................................... 759
If your vehicle has to be
stopped in an
emergency.......................... 681
If your vehicle needs to be
towed .................................. 683
If your vehicle overheats ....... 756
Emergency flashers ................ 680
Emergency tire puncture
repair kit ................................. 710
Engine....................................... 764
ACCESSORY mode ............. 238
Compartment ........................ 618
Engine switch................ 233, 236
Hood ..................................... 615
How to start the
engine......................... 233, 236
Identification number ............ 764
If the engine will not start ...... 745
Ignition switch
(engine switch) ........... 233, 236
Overheating .......................... 756
Engine coolant ......................... 623
Capacity ................................ 768
Checking ............................... 623
Preparing and checking
before winter....................... 470
Warning light ......................... 698
Engine coolant temperature
gauge...................................... 119
Engine immobilizer system ...... 87
Engine oil ................................. 619
Capacity ................................ 765
Checking ............................... 619
Oil level warning light ............ 693
Oil pressure warning light ..... 693
Preparing and checking
before winter....................... 470
Engine oil maintenance
data ......................................... 621
Engine switch .................. 233, 236
EPS (Electric Power
Steering)................................. 463
Warning light ......................... 694
E

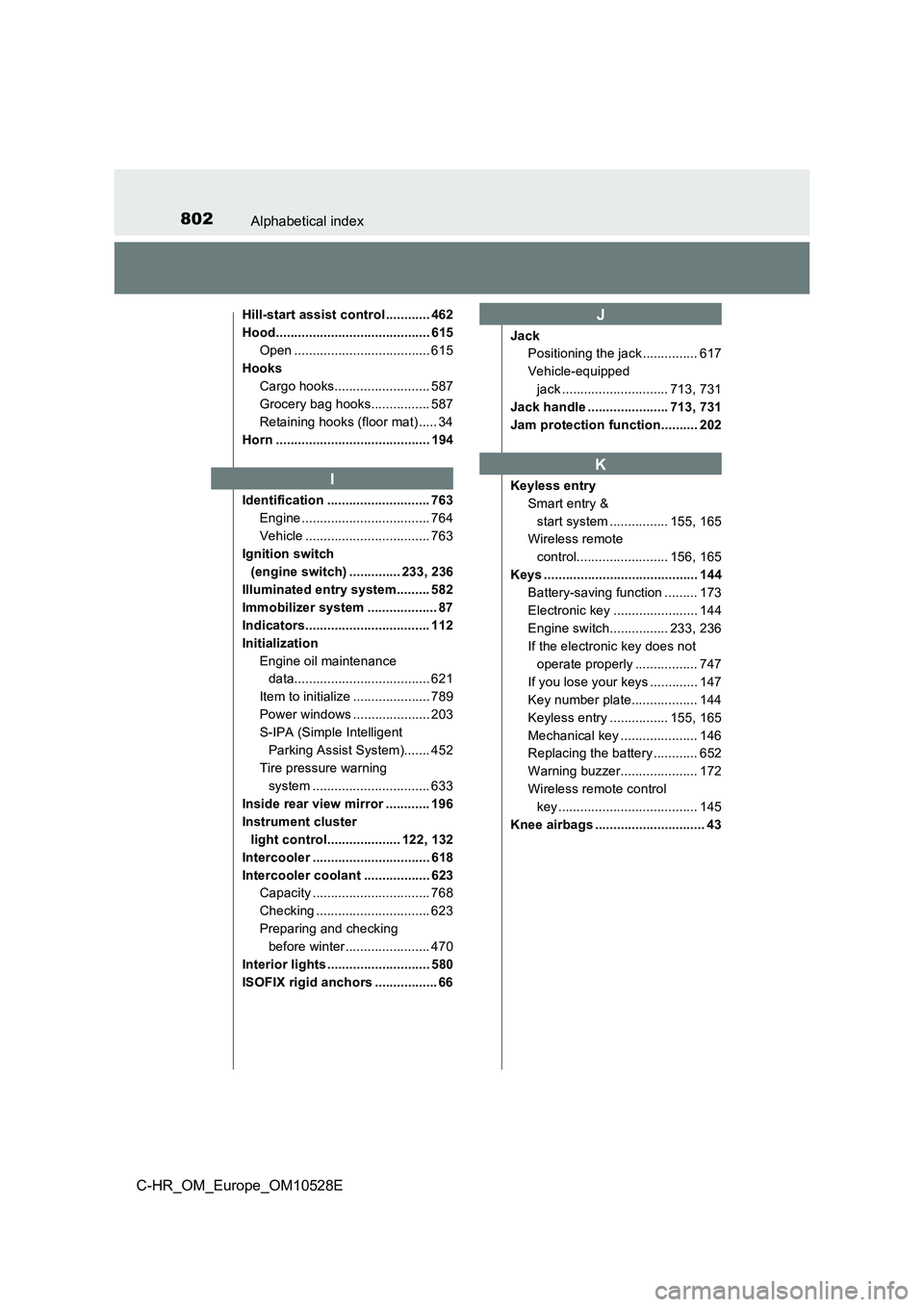

802Alphabetical index
C-HR_OM_Europe_OM10528E
Hill-start assist control ............ 462
Hood.......................................... 615
Open ..................................... 615
Hooks
Cargo hooks.......................... 587
Grocery bag hooks................ 587
Retaining hooks (floor mat) ..... 34
Horn .......................................... 194
Identification ............................ 763
Engine ................................... 764
Vehicle .................................. 763
Ignition switch
(engine switch) .............. 233, 236
Illuminated entry system......... 582
Immobilizer system ................... 87
Indicators.................................. 112
Initialization
Engine oil maintenance
data..................................... 621
Item to initialize ..................... 789
Power windows ..................... 203
S-IPA (Simple Intelligent
Parking Assist System)....... 452
Tire pressure warning
system ................................ 633
Inside rear view mirror ............ 196
Instrument cluster
light control.................... 122, 132
Intercooler ................................ 618
Intercooler coolant .................. 623
Capacity ................................ 768
Checking ............................... 623
Preparing and checking
before winter....................... 470
Interior lights ............................ 580
ISOFIX rigid anchors ................. 66
Jack
Positioning the jack ............... 617
Vehicle-equipped
jack ............................. 713, 731
Jack handle ...................... 713, 731
Jam protection function.......... 202
Keyless entry
Smart entry &
start system ................ 155, 165
Wireless remote
control......................... 156, 165
Keys .......................................... 144
Battery-saving function ......... 173
Electronic key ....................... 144
Engine switch................ 233, 236
If the electronic key does not
operate properly ................. 747
If you lose your keys ............. 147
Key number plate.................. 144
Keyless entry ................ 155, 165
Mechanical key ..................... 146
Replacing the battery ............ 652
Warning buzzer..................... 172
Wireless remote control
key...................................... 145
Knee airbags .............................. 43
I
J
K

809Alphabetical index
C-HR_OM_Europe_OM10528E
USB memory ............................ 512
USB port ................................... 481
Vanity lights ............................. 595
Wattage................................. 773
Vanity mirrors .......................... 595
Vehicle identification
number ................................... 763
Vehicle Stability Control
(VSC)....................................... 462
VSC (Vehicle Stability
Control) .................................. 462
Warning buzzers
Blind Spot Monitor (BSM) ..... 392
Brake system ........................ 693
Downshifting ......................... 247
Electric power steering
system ................................ 694
Engine coolant
temperature ........................ 698
Engine oil pressure ............... 693
Engine system ...................... 694
LDA (Lane Departure
Alert) ................................... 315
Open back door .................... 166
Open door ............................. 163
Pre-collision warning ............. 299
Radar cruise control ...... 345, 362
RSA (Road Sign Assist) ........ 330
Parking brake ........................ 260
Seat belt reminder................. 697
Stop & Start system .............. 378
Toyota parking
assist-sensor ...................... 408
Warning lights.......................... 108
ABS....................................... 694
Brake hold operated
indicator.............................. 695
Brake Override System......... 699
Brake system ........................ 693
Charging system ................... 693
Electric parking
brake .......................... 695, 697
Electric power steering
system ................................ 694
Engine oil pressure ............... 693
High engine coolant
temperature warning
light..................................... 698
LDA system .......................... 698
LDA indicator ........................ 696
Low fuel level ........................ 697
Malfunction indicator lamp .... 694
Master warning light.............. 698
Open door ............................. 697
PCS warning light ................. 696
Seat belt reminder light ......... 697
Slip indicator ......................... 695
SRS warning light ................. 694
Stop & Start indicator
light..................................... 697
Tire pressure warning
light..................................... 698
U
V
W
*: For vehicles with navigation system or multimedia system,
refer to “Navigation and multimedia system Owner’s manual”.
