TOYOTA C-HR 2020 (in English) Owner's Guide

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

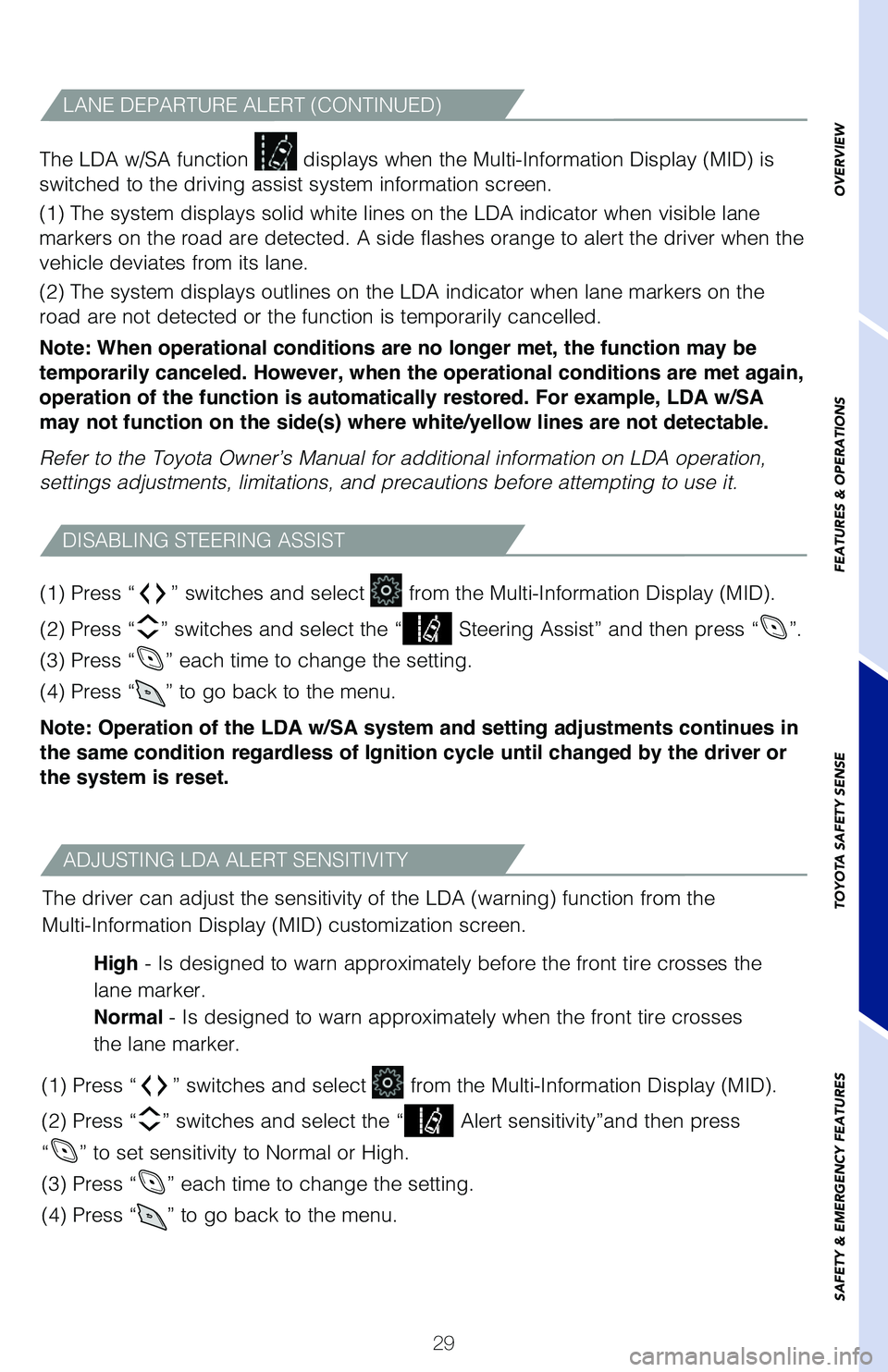

The LDA w/SA function displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lan\
e
markers on the road are detected. A side flashes orange to alert the driver whe\
n the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the
road are not detected or the function is temporarily cancelled.
Note: When operational conditions are no longer met, the function may be
temporarily canceled. However, when the operational conditions are met again,
operation of the function is automatically restored. For example, LDA w/SA
may not function on the side(s) where white/yellow lines are not detectable.
Refer to the Toyota Owner’s Manual for additional information on LDA opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.
LANE DEPARTURE ALERT (CONTINUED)
DISABLING STEERING ASSIST
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ Steering Assist” and then press “”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA w/SA system and setting adjustments continues in
the same condition regardless of Ignition cycle until changed by the driver or
the system is reset.
ADJUSTING LDA ALERT SENSITIVITY
The driver can adjust the sensitivity of the LDA (warning) function from \
the
Multi-Information Display (MID) customization screen.
High - Is designed to warn approximately before the front tire crosses the
lane marker.
Normal - Is designed to warn approximately when the front tire crosses
the lane marker.
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ Alert sensitivity”and then press
“
” to set sensitivity to Normal or High.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.

30
TOYOTA SAFETY SENSE™

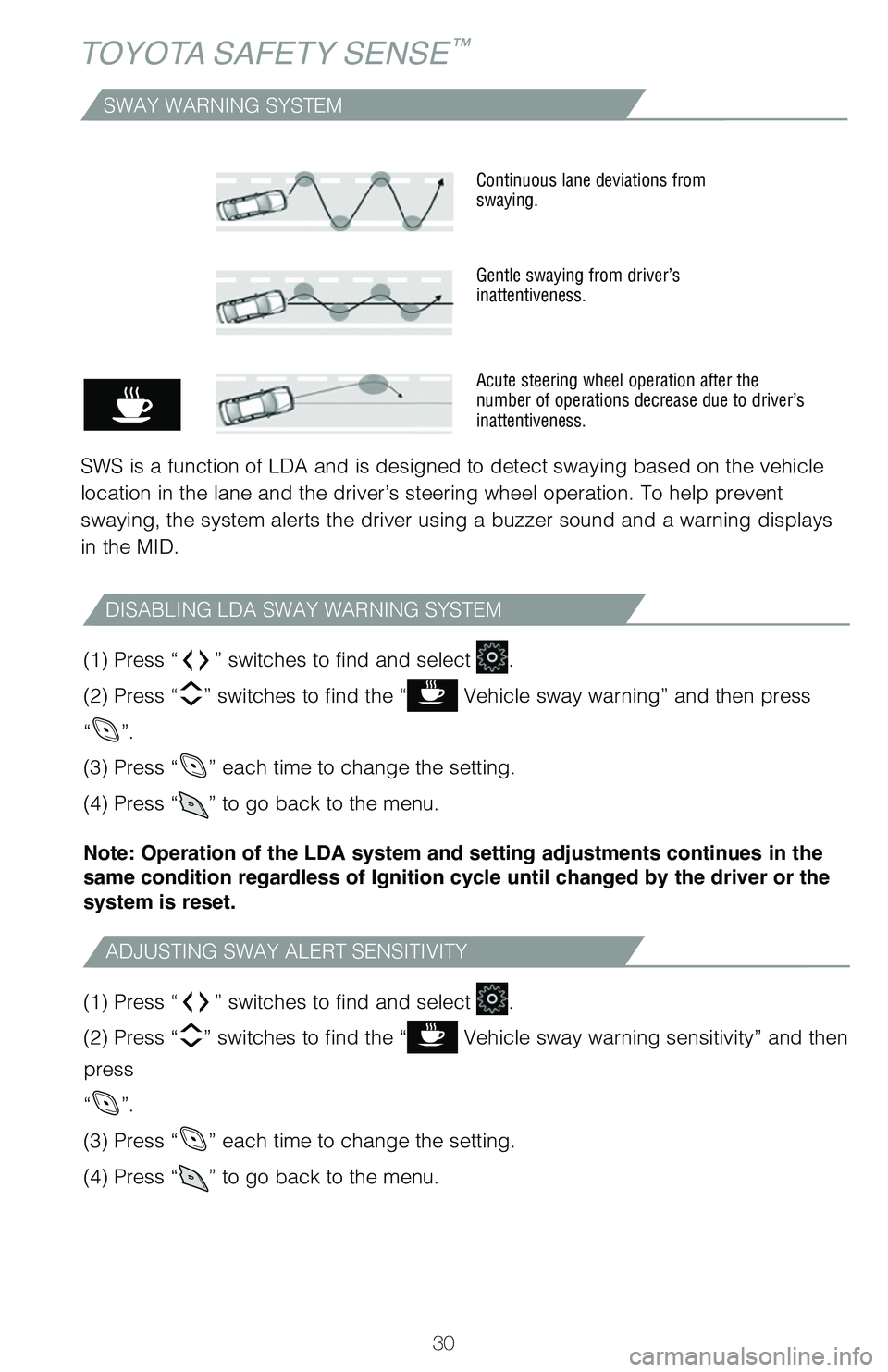

SWAY WARNING SYSTEM
SWS is a function of LDA and is designed to detect swaying based on the \
vehicle
location in the lane and the driver’s steering wheel operation. To he\
lp prevent
swaying, the system alerts the driver using a buzzer sound and a warning\
displays
in the MID.
Continuous lane deviations from
swaying.
Gentle swaying from driver’s
inattentiveness.
Acute steering wheel operation after the
number of operations decrease due to driver’s
inattentiveness.
(1) Press “” switches to find and select .
(2) Press “
” switches to find the “ Vehicle sway warning sensitivity” and then
press
“
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
(1) Press “
” switches to find and select .
(2) Press “
” switches to find the “ Vehicle sway warning” and then press
“
”.
(3) Press “
” each time to change the setting.
(4) Press “
” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
ADJUSTING SWAY ALERT SENSITIVITY
DISABLING LDA SWAY WARNING SYSTEM

31
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

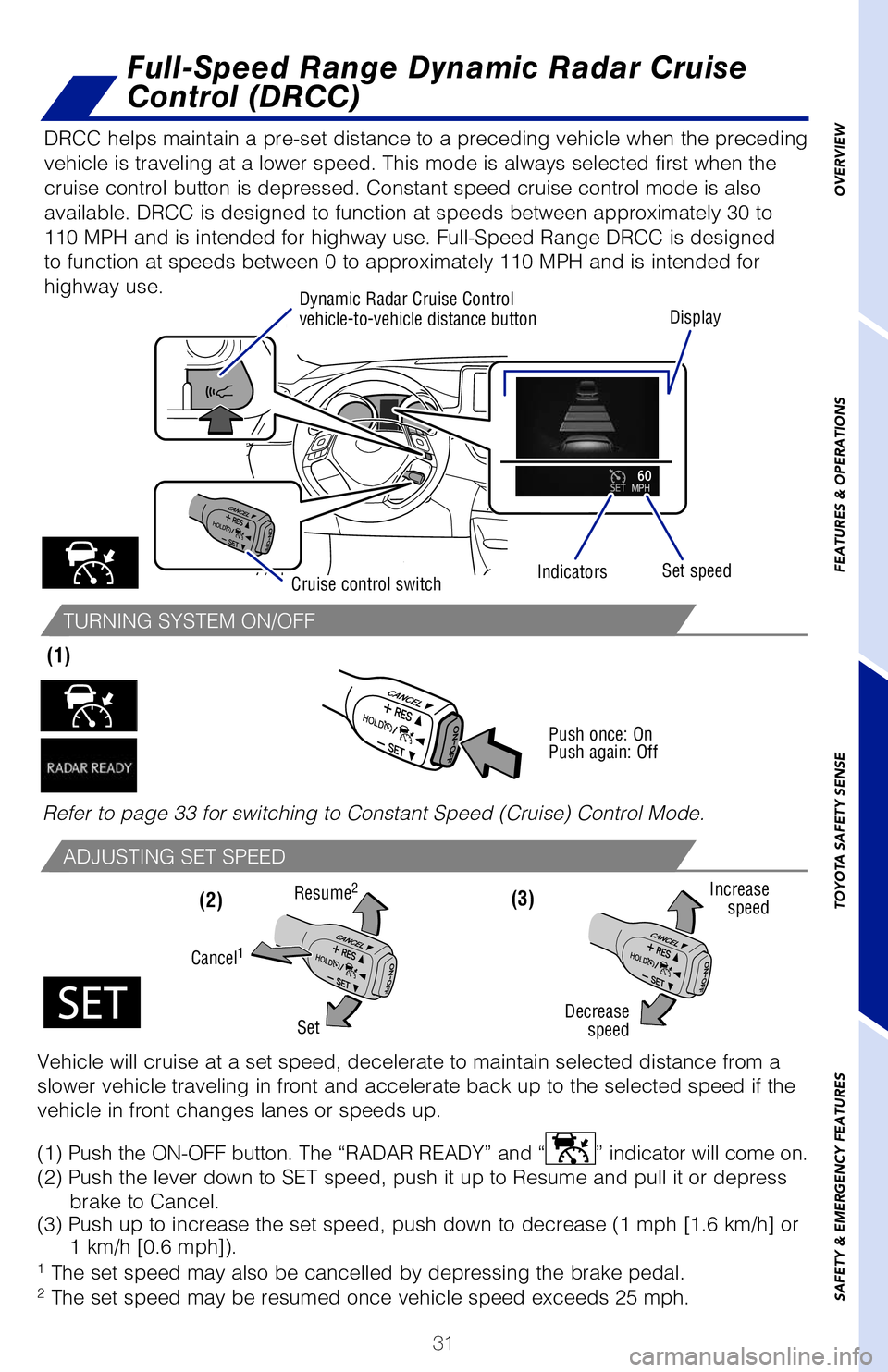

DRCC helps maintain a pre-set distance to a preceding vehicle when the prece\
ding
vehicle is traveling at a lower speed. This mode is always selected first when \
the
cruise control button is depressed. Constant speed cruise control mode is also\

available. DRCC is designed to function at speeds between approximately 30 to
110 MPH and is intended for highway use. Full-Speed Range DRCC is designed
to function at speeds between 0 to approximately 110 MPH and is intended f\
or
highway use.
Full-Speed Range Dynamic Radar Cruise
Control (DRCC)
Display
Set speed
Dynamic Radar Cruise Control
vehicle-to-vehicle distance button
Cruise control switch Indicators
(3)
Decrease
speed Increase
speed
Cancel1
Resume2
Set
TURNING SYSTEM ON/OFF
Refer to page 33 for switching to Constant Speed (Cruise) Control Mode.(1)
Push once: On
Push again: Off
ADJUSTING SET SPEED
1
The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Vehicle will cruise at a set speed, decelerate to maintain selected distance fr\
om a
slower vehicle traveling in front and accelerate back up to the selected speed\
if the
vehicle in front changes lanes or speeds up.

(1) Push the ON-OFF button. The “RADAR READY” and “
”
indicator will come on.
(2) Push the lever down to SET speed, push it up to Resume and pull it or d\
epress brake to Cancel.
(3) Push up to increase the set speed, push down to decrease (1 mph [1.6 k\
m/h] or 1 km/h [0.6 mph]).
(2)

32
TOYOTA SAFETY SENSE™

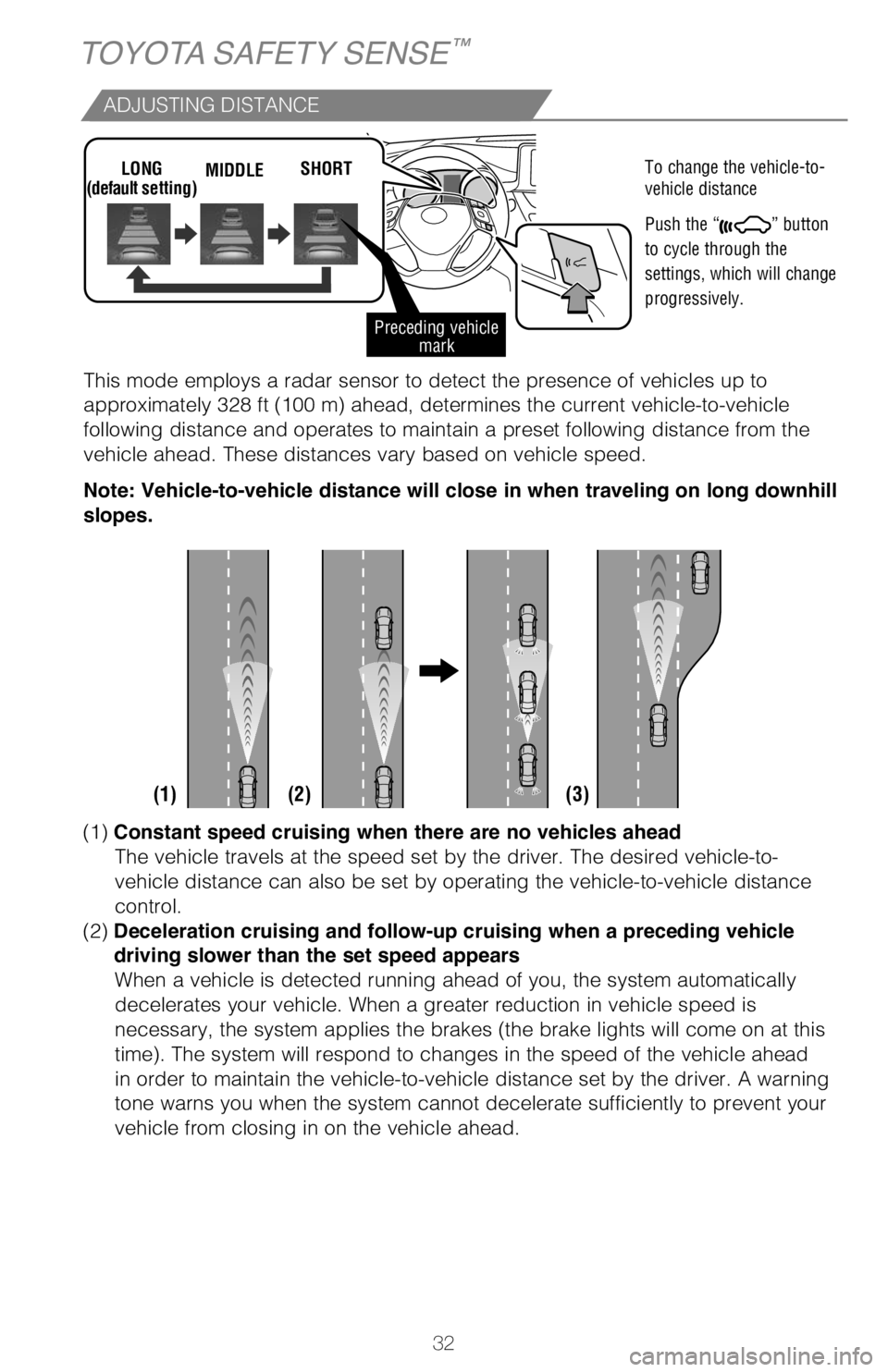

ADJUSTING DISTANCE
To change the vehicle-to-
vehicle distance

Push the “
” button
to cycle through the
settings, which will change
progressively.
This mode employs a radar sensor to detect the presence of vehicles up to
approximately 328 ft (100 m) ahead, determines the current vehicle-to-vehicle
following distance and operates to maintain a preset following distance from the
vehicle ahead. These distances vary based on vehicle speed.
Note: Vehicle-to-vehicle distance will close in when traveling on long downhill
slopes.
MIDDLE SHORT
(default setting) LONG
Preceding vehicle
mark
(1) Constant speed cruising when there are no vehicles ahead
The vehicle travels at the speed set by the driver. The desired vehicle-to-\

vehicle distance can also be set by operating the vehicle-to-vehicle distance
control.
(2) Deceleration cruising and follow-up cruising when a preceding vehicle
driving slower than the set speed appears
When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is
necessary, the system applies the brakes (the brake lights will come on at this
time). The system will respond to changes in the speed of the vehicle ahead
in order to maintain the vehicle-to-vehicle distance set by the driver. A \
warning
tone warns you when the system cannot decelerate sufficiently to prevent you\
r
vehicle from closing in on the vehicle ahead.
(1) (2) (3)

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

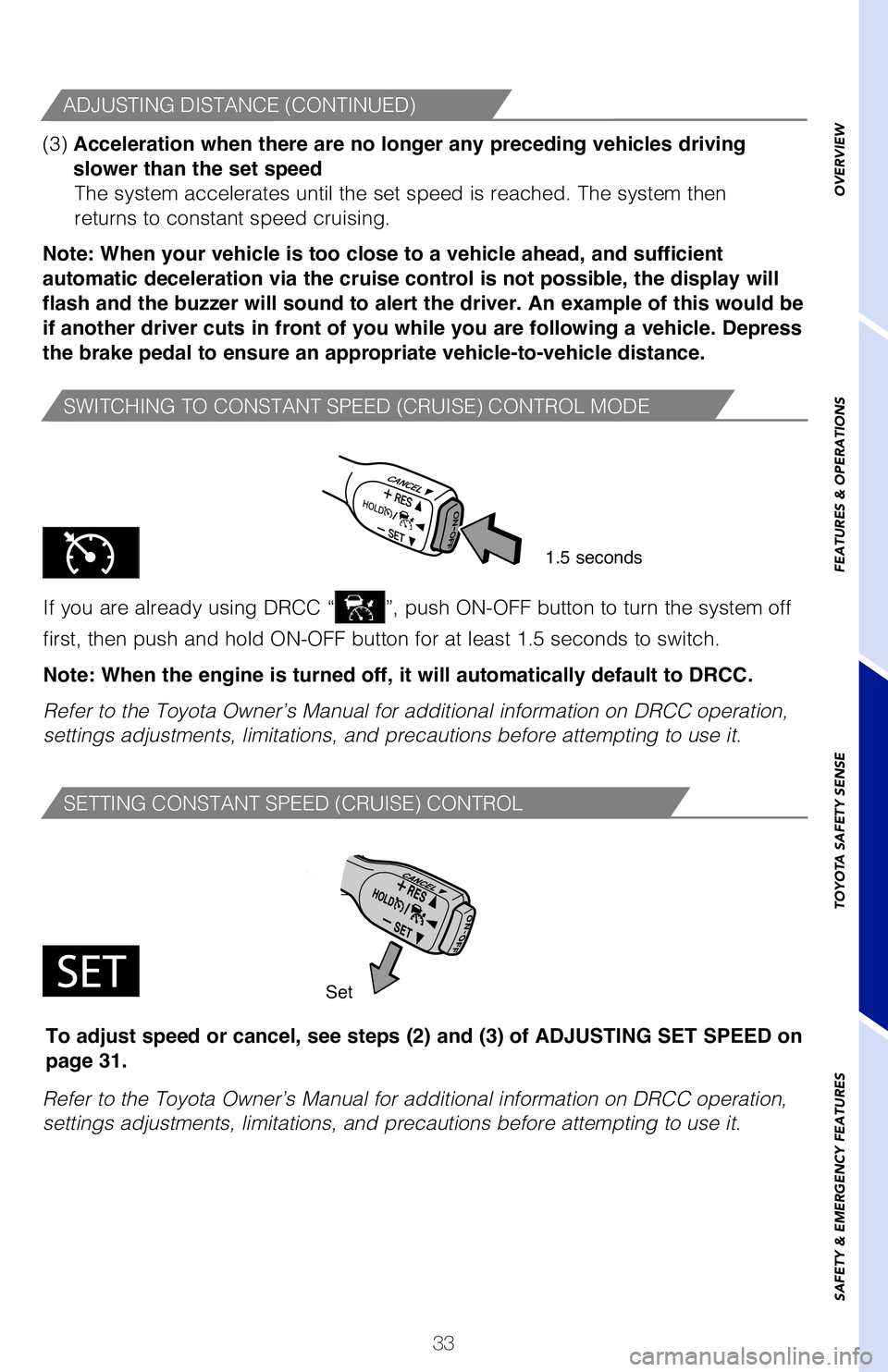

SWITCHING TO CONSTANT SPEED (CRUISE) CONTROL MODE
If you are already using DRCC “”, push ON-OFF button to turn the system off
first, then push and hold ON-OFF button for at least 1.5 seconds to switch.
Note: When the engine is turned off, it will automatically default to DRCC.
Refer to the Toyota Owner’s Manual for additional information on DRCC oper\
ation,
settings adjustments, limitations, and precautions before attempting to use it.
1.5 seconds
(3) Acceleration when there are no longer any preceding vehicles driving
slower than the set speed
The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead, and sufficient
automatic deceleration via the cruise control is not possible, the display will
flash and the buzzer will sound to alert the driver. An example of this would be
if another driver cuts in front of you while you are following a vehicle. Depress
the brake pedal to ensure an appropriate vehicle-to-vehicle distance.
ADJUSTING DISTANCE (CONTINUED)
SETTING CONSTANT SPEED (CRUISE) CONTROL
Refer to the Toyota Owner’s Manual for additional information on DRCC oper\
ation,
settings adjustments, limitations, and precautions before attempting to use it.
Set
To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on
page 31.

34
TOYOTA SAFETY SENSE™

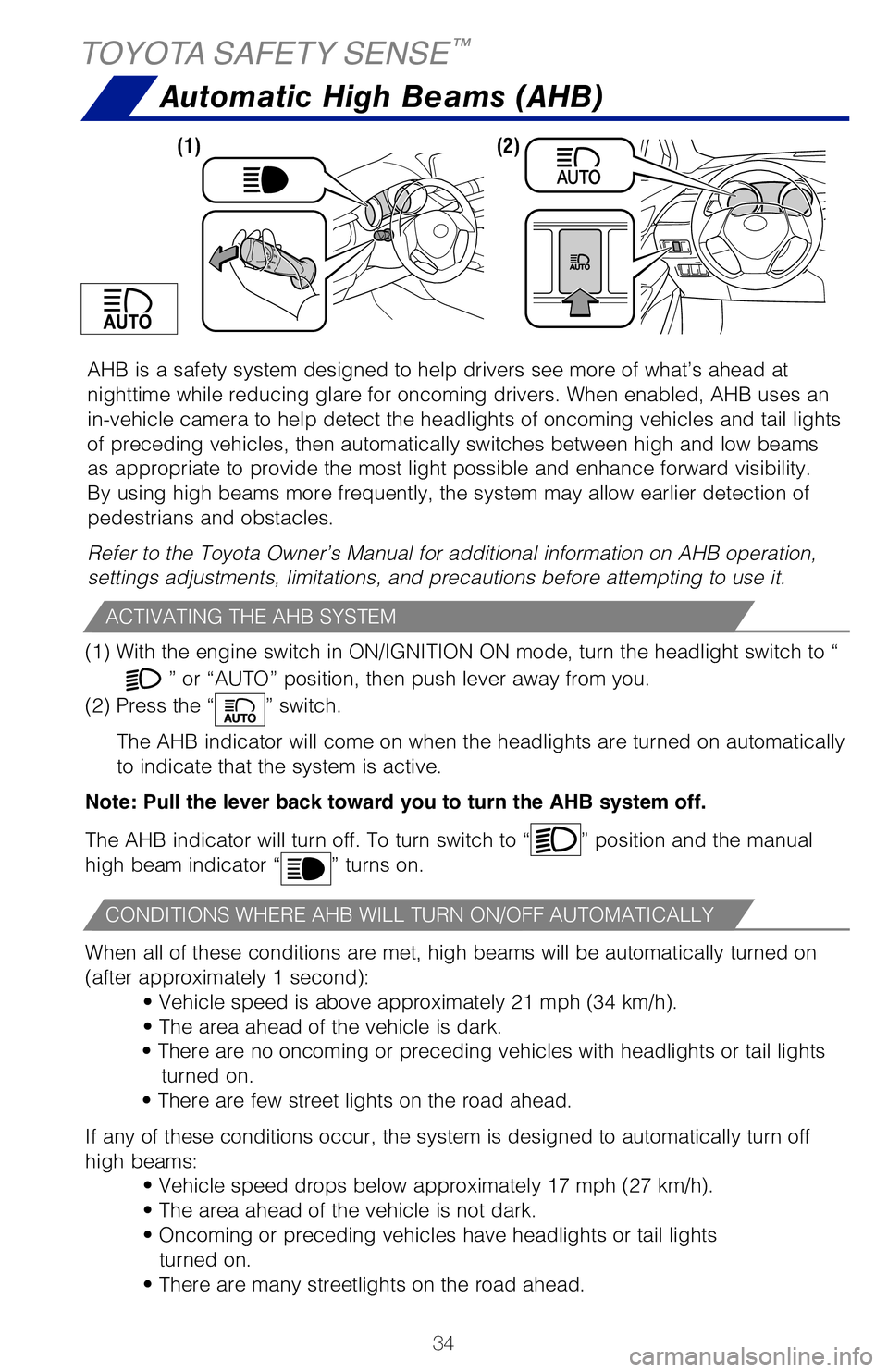

Automatic High Beams (AHB)
AHB is a safety system designed to help drivers see more of what’s ahead\
at
nighttime while reducing glare for oncoming drivers. When enabled, AHB uses an
in-vehicle camera to help detect the headlights of oncoming vehicles and tail ligh\
ts
of preceding vehicles, then automatically switches between high and low be\
ams
as appropriate to provide the most light possible and enhance forward visi\
bility.
By using high beams more frequently, the system may allow earlier detectio\
n of
pedestrians and obstacles.
Refer to the Toyota Owner’s Manual for additional information on AHB opera\
tion,
settings adjustments, limitations, and precautions before attempting to use it.
(1) With the engine switch in ON/IGNITION ON mode, turn the headlight switc\
h to “
” or “AUTO” position, then push lever away from you.
(2) Press the “
” switch.
The AHB indicator will come on when the headlights are turned on automatica\
lly
to indicate that the system is active.
Note: Pull the lever back toward you to turn the AHB system off.
The AHB indicator will turn off. To turn switch to “
” position and the manual
high beam indicator “
” turns on.
When all of these conditions are met, high beams will be automatically turne\
d on
(after approximately 1 second): • Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail lig\
hts turned on.
• There are few street lights on the road ahead.
If any of these conditions occur, the system is designed to automatically \
turn off
high beams: • Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lightsturned on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
(2) (1)

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SAFETY & EMERGENCY FEATURES

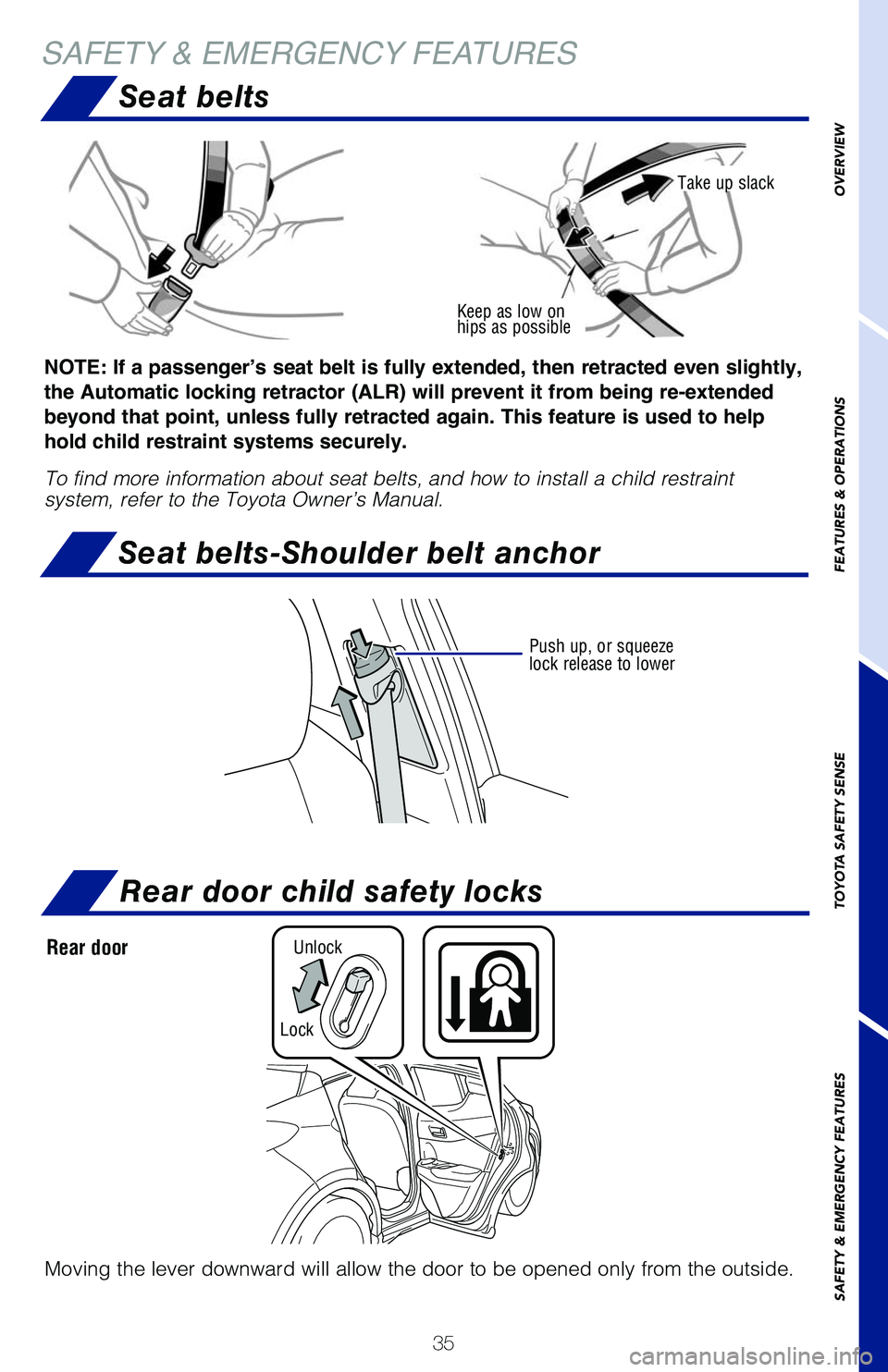

Rear door child safety locks
Keep as low on
hips as possible
Take up slack
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child rest\
raint
system, refer to the Toyota Owner’s Manual.
Moving the lever downward will allow the door to be opened only from the outsi\
de.
Push up, or squeeze
lock release to lower
Unlock
Lock
Seat belts-Shoulder belt anchor
Seat belts
Rear door

36
SAFETY & EMERGENCY FEATURES

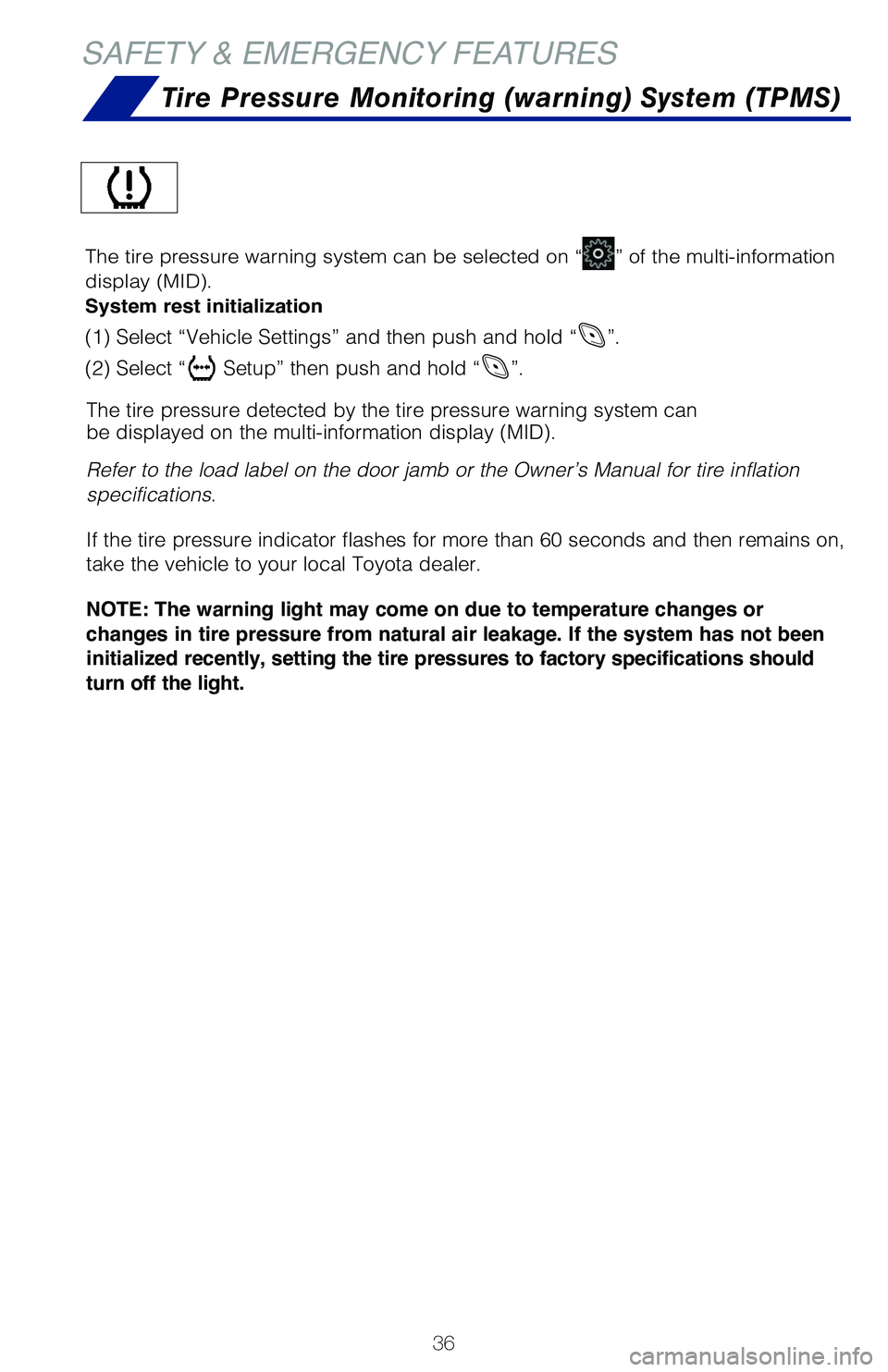

Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire in\
flation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then r\
emains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-information
display (MID).
System rest initialization
(1) Select “Vehicle Settings” and then push and hold “”.
(2) Select “
Setup” then push and hold “”.

37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

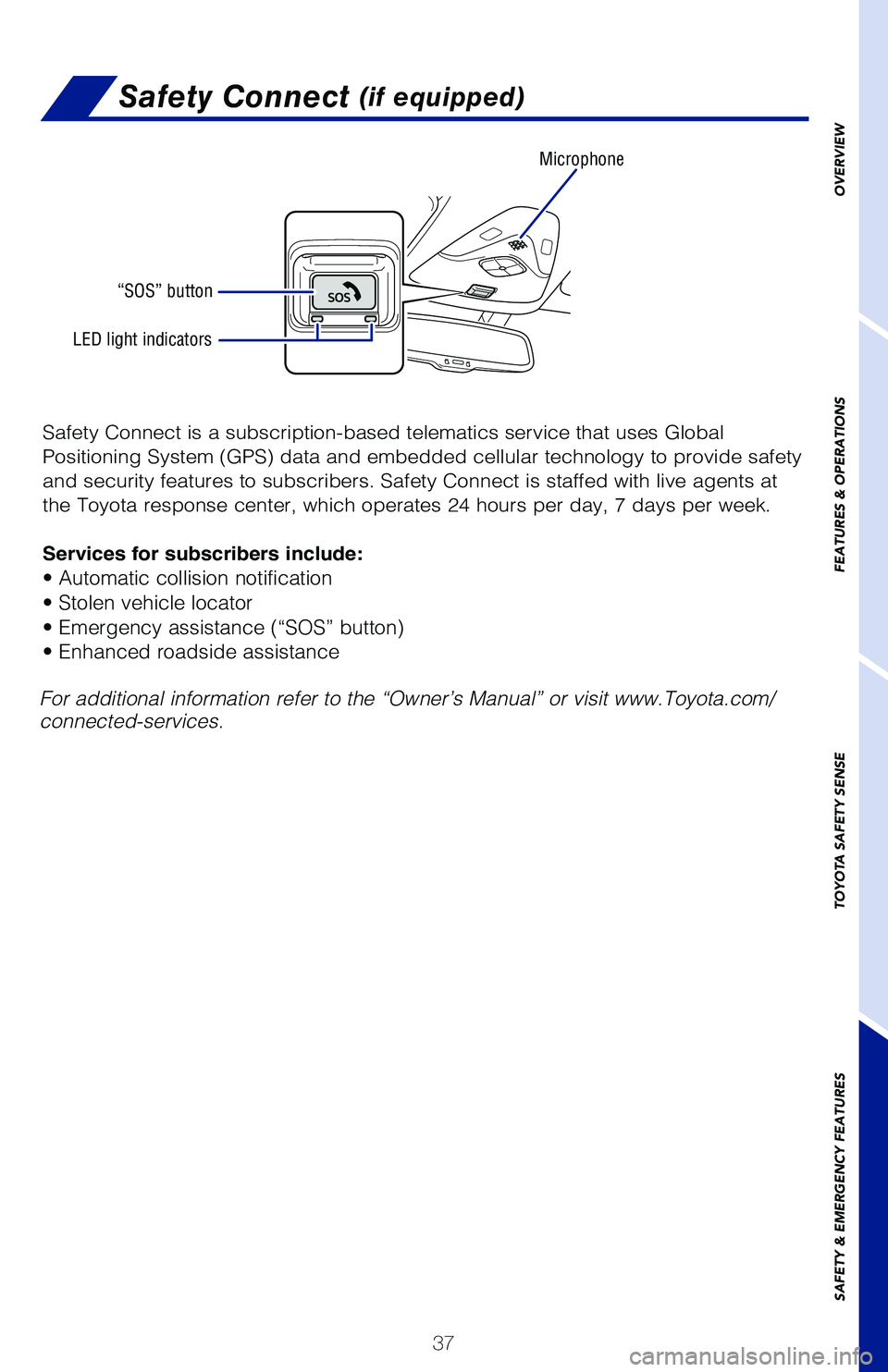

Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide safety
and security features to subscribers. Safety Connect is staffed with live a\
gents at
the Toyota response center, which operates 24 hours per day, 7 days per wee\
k.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
Microphone
LED light indicators
“SOS” button
For additional information refer to the “Owner’s Manual” or visit \
www.Toyota.com/
connected-services.

38

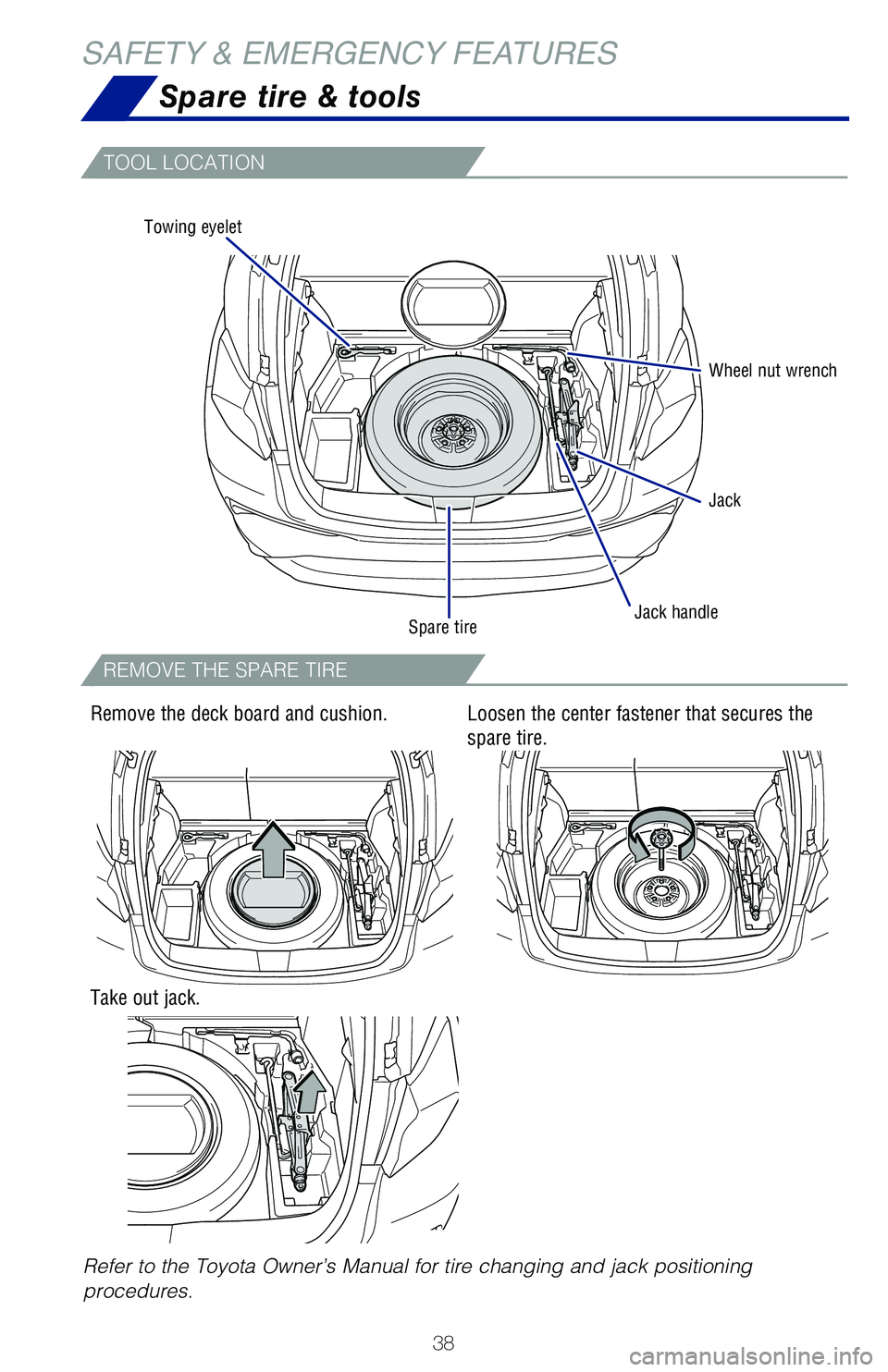

Spare tire & tools
SAFETY & EMERGENCY FEATURES
TOOL LOCATION
REMOVE THE SPARE TIRE
Refer to the Toyota Owner’s Manual for tire changing and jack positioning
procedures.
Remove the deck board and cushion.
Take out jack.
Loosen the center fastener that secures the
spare tire.
Towing eyeletWheel nut wrench
Jack
Jack handle
Spare tire
