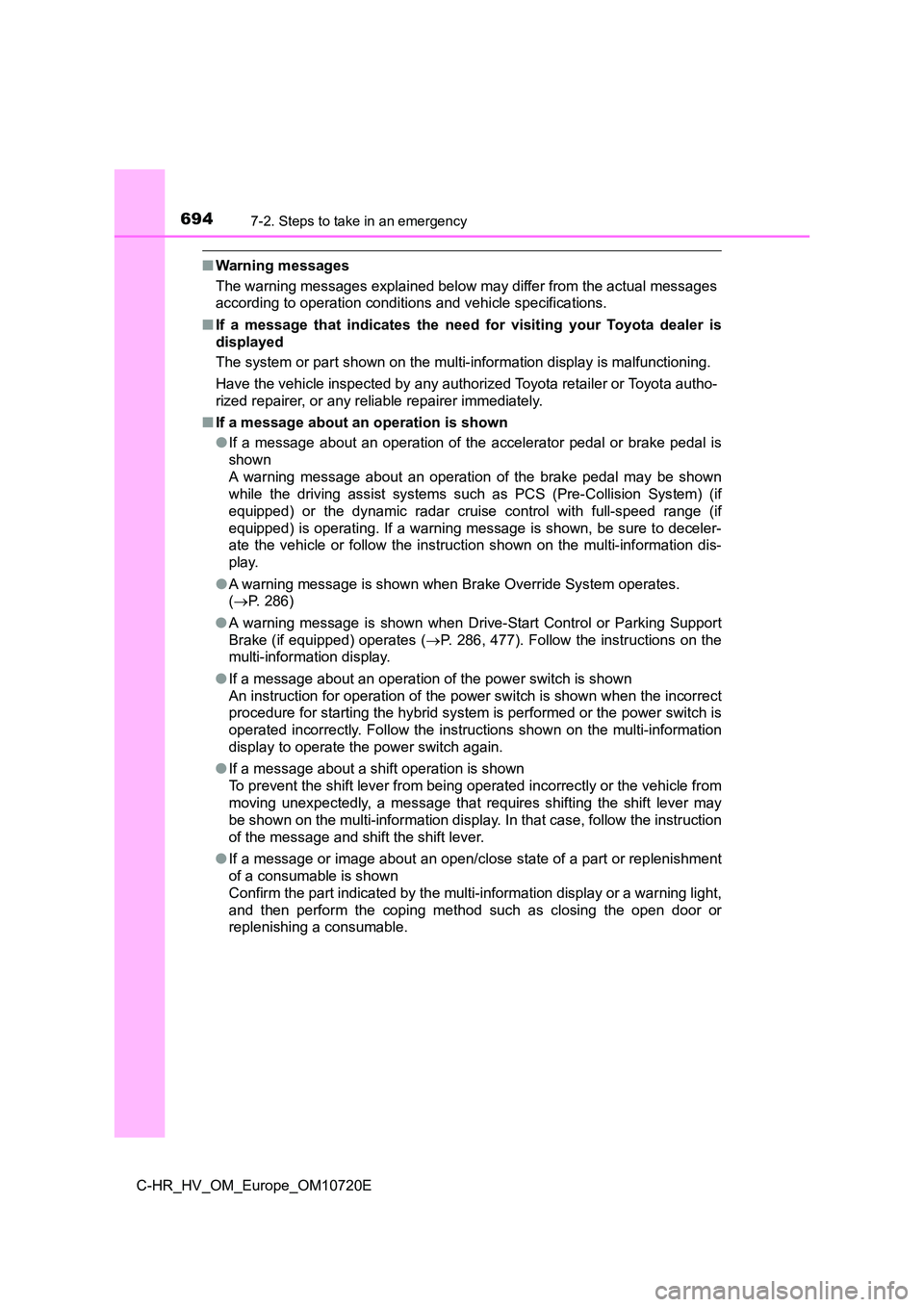

Page 696 of 818

6947-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
■Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ If a message that indicates the need for visiting your Toyota dealer is
displayed
The system or part shown on the multi-information display is ma lfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reli able repairer immediately.
■ If a message about an operation is shown
● If a message about an operation of the accelerator pedal or brake pedal is
shown
A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision Sys tem) (if
equipped) or the dynamic radar cruise control with full-speed r ange (if
equipped) is operating. If a warning message is shown, be sure to deceler-
ate the vehicle or follow the instruction shown on the multi-in formation dis-
play.
● A warning message is shown when Brake Override System operates.
( P. 286)
● A warning message is shown when Drive-Start Control or Parking Support
Brake (if equipped) operates ( P. 286, 477). Follow the instructions on the
multi-information display.
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the po wer switch is
operated incorrectly. Follow the instructions shown on the mult i-information
display to operate the power switch again.
● If a message about a shift operation is shown
To prevent the shift lever from being operated incorrectly or t he vehicle from
moving unexpectedly, a message that requires shifting the shift lever may
be shown on the multi-information display. In that case, follow the instruction
of the message and shift the shift lever.
● If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open doo r or
replenishing a consumable.

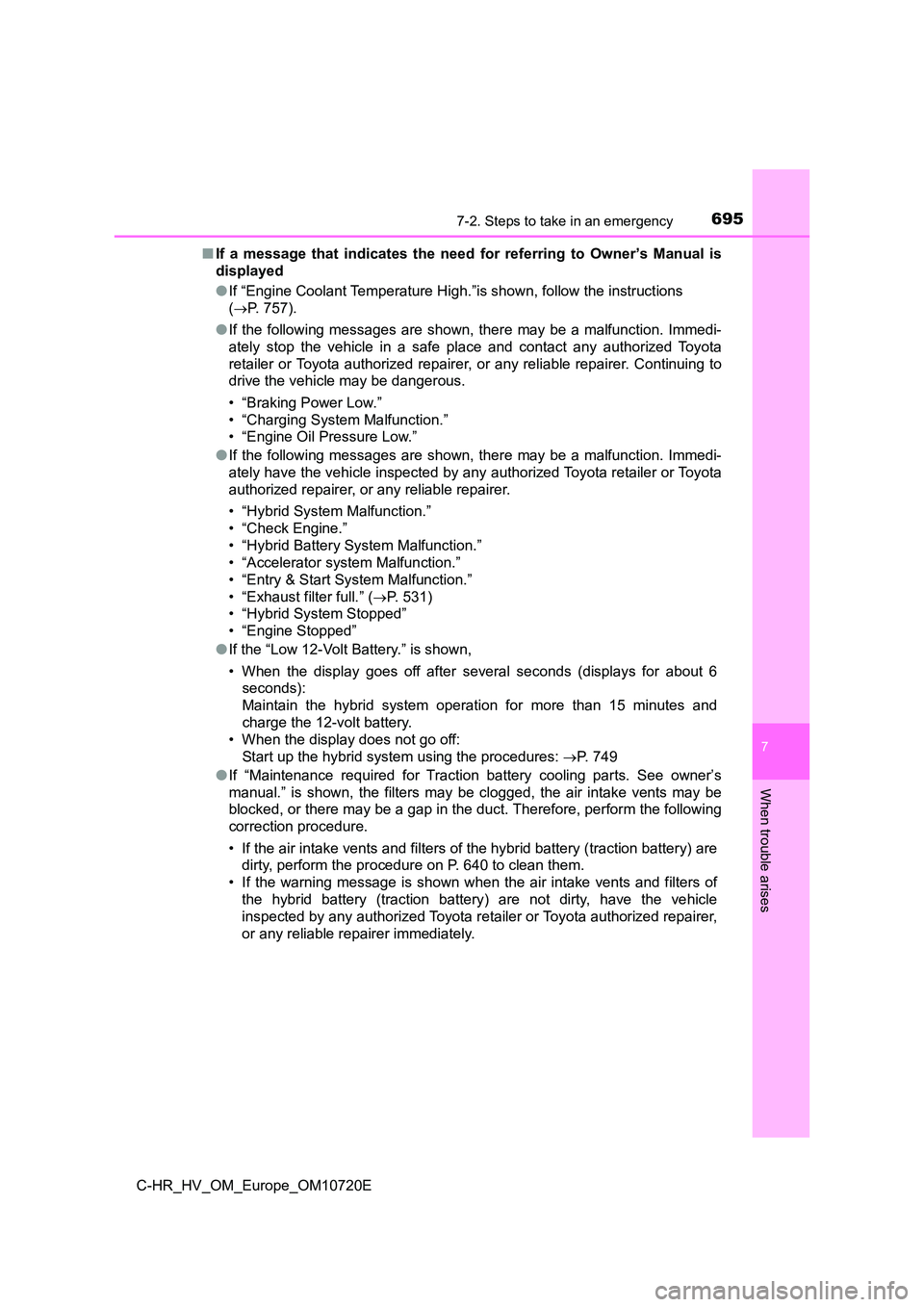

Page 697 of 818

6957-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■If a message that indicates the need for referring to Owner’s Manual is
displayed
● If “Engine Coolant Temperature High.”is shown, follow the instructions
(P. 757).
● If the following messages are shown, there may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authoriz ed Toyota
retailer or Toyota authorized repairer, or any reliable repaire r. Continuing to
drive the vehicle may be dangerous.
• “Braking Power Low.”
• “Charging System Malfunction.”
• “Engine Oil Pressure Low.”
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota retai ler or Toyota
authorized repairer, or any reliable repairer.
• “Hybrid System Malfunction.”
• “Check Engine.”
• “Hybrid Battery System Malfunction.”
• “Accelerator system Malfunction.”
• “Entry & Start System Malfunction.”
• “Exhaust filter full.” (P. 531)
• “Hybrid System Stopped”
• “Engine Stopped”
● If the “Low 12-Volt Battery.” is shown,
• When the display goes off after several seconds (displays for about 6
seconds):
Maintain the hybrid system operation for more than 15 minutes a nd
charge the 12-volt battery.
• When the display does not go off:
Start up the hybrid system using the procedures: P. 749
● If “Maintenance required for Traction battery cooling parts. See owner’s
manual.” is shown, the filters may be clogged, the air intake v ents may be
blocked, or there may be a gap i n the duct. Therefore, perform the following
correction procedure.
• If the air intake vents and filters of the hybrid battery (tra ction battery) are
dirty, perform the procedure on P. 640 to clean them.
• If the warning message is shown when the air intake vents and filters of
the hybrid battery (traction battery) are not dirty, have the v ehicle
inspected by any authorized Toyota retailer or Toyota authorize d repairer,
or any reliable repairer immediately.

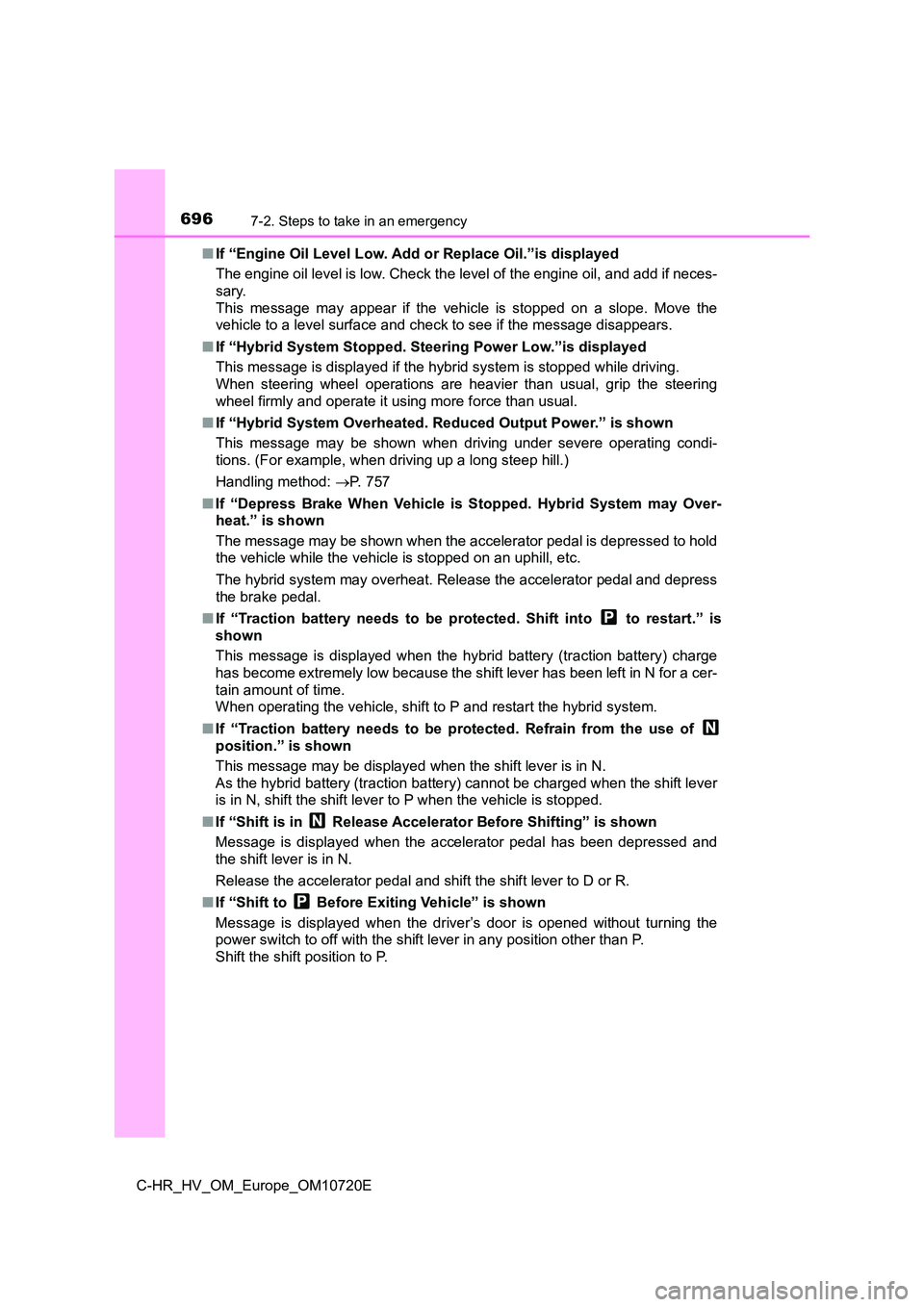

Page 698 of 818

6967-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
■ If “Engine Oil Level Low. Add or Replace Oil.”is displayed
The engine oil level is low. Check the level of the engine oil, and add if neces-
sary.
This message may appear if the vehicle is stopped on a slope. M ove the
vehicle to a level surface and check to see if the message disa ppears.
■ If “Hybrid System Stopped. Steering Power Low.”is displayed
This message is displayed if the hybrid system is stopped while driving.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.

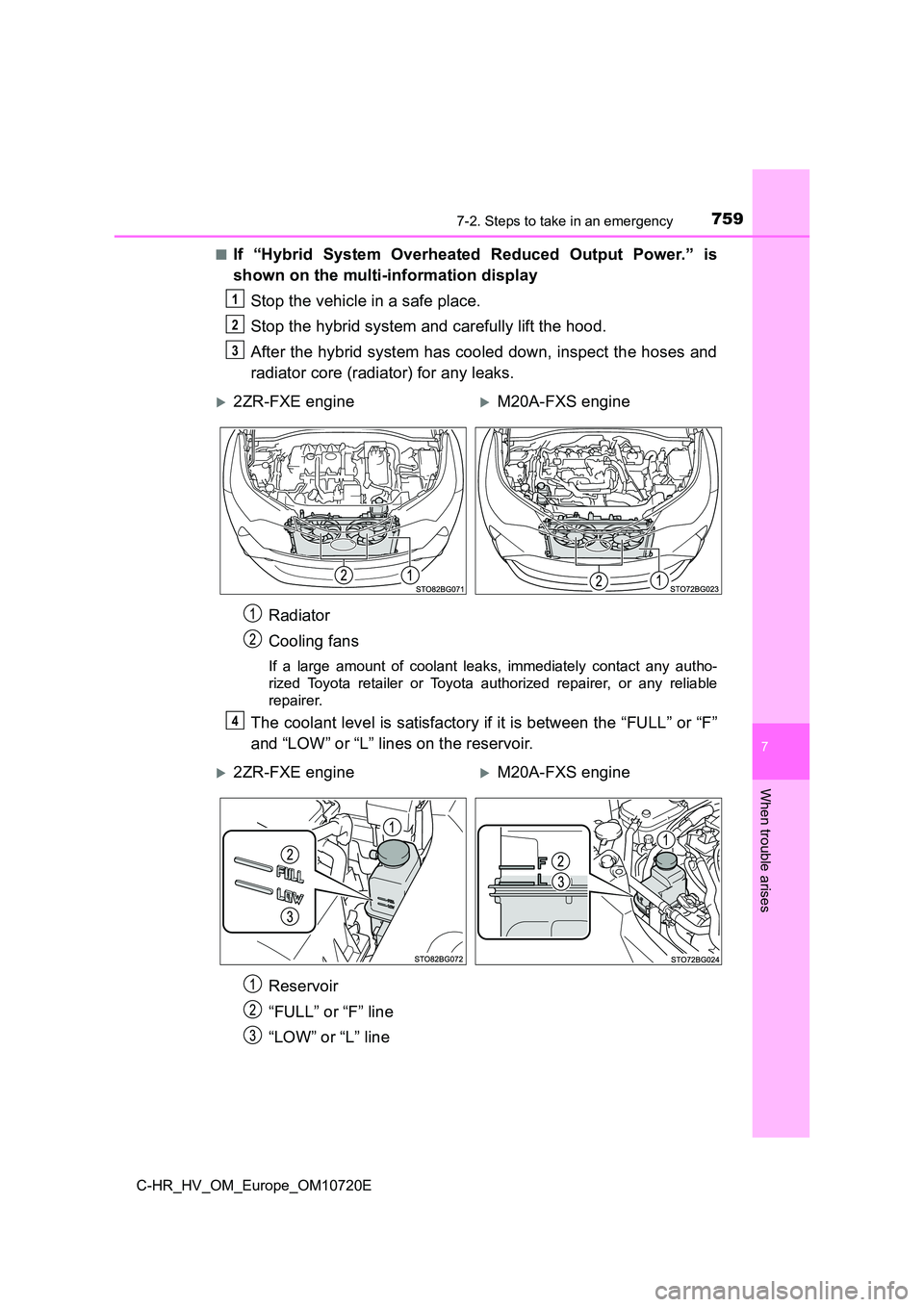

■ If “Hybrid System Overheated. Reduced Output Power.” is shown
This message may be shown when driving under severe operating c ondi-
tions. (For example, when driving up a long steep hill.)
Handling method: P. 757
■ If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depresse d to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal a nd depress
the brake pedal.
■ If “Traction battery needs to be protected. Shift into to restart.” is
shown
This message is displayed when the hybrid battery (traction bat tery) charge
has become extremely low because the shift lever has been left in N for a cer-
tain amount of time.
When operating the vehicle, shift to P and restart the hybrid s ystem.
■ If “Traction battery needs to be protected. Refrain from the use of
position.” is shown
This message may be displayed when the shift lever is in N.
As the hybrid battery (traction battery) cannot be charged when the shift lever
is in N, shift the shift lever to P when the vehicle is stopped .
■ If “Shift is in Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depres sed and
the shift lever is in N.
Release the accelerator pedal and shift the shift lever to D or R.
■ If “Shift to Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without t urning the
power switch to off with the shift lever in any position other than P.
Shift the shift position to P.

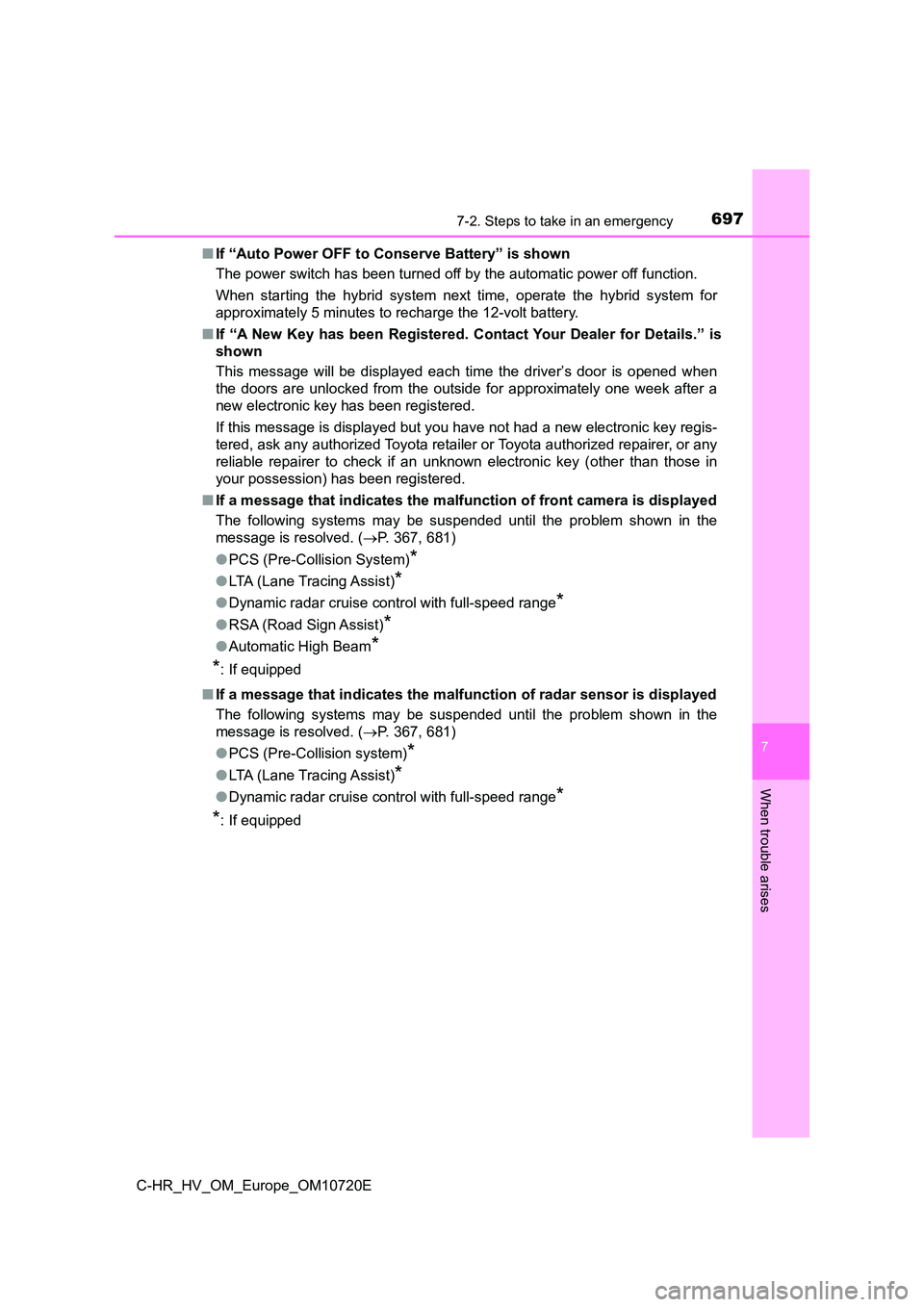

Page 699 of 818

6977-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■If “Auto Power OFF to Conserve Battery” is shown
The power switch has been turned off by the automatic power off function.
When starting the hybrid system next time, operate the hybrid s ystem for
approximately 5 minutes to recharge the 12-volt battery.
■ If “A New Key has been Registered. Contact Your Dealer for Details.” is
shown
This message will be displayed each time the driver’s door is o pened when
the doors are unlocked from the outside for approximately one w eek after a
new electronic key has been registered.
If this message is displayed but you have not had a new electro nic key regis-
tered, ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer to check if an unknown electronic key (other than those in
your possession) has been registered.
■ If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 367, 681)
● PCS (Pre-Collision System)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-speed range*
●RSA (Road Sign Assist)*
●Automatic High Beam*
*: If equipped
■ If a message that indicates the malfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. ( P. 367, 681)
● PCS (Pre-Collision system)*
●LTA (Lane Tracing Assist)*
●Dynamic radar cruise control with full-speed range*
*: If equipped

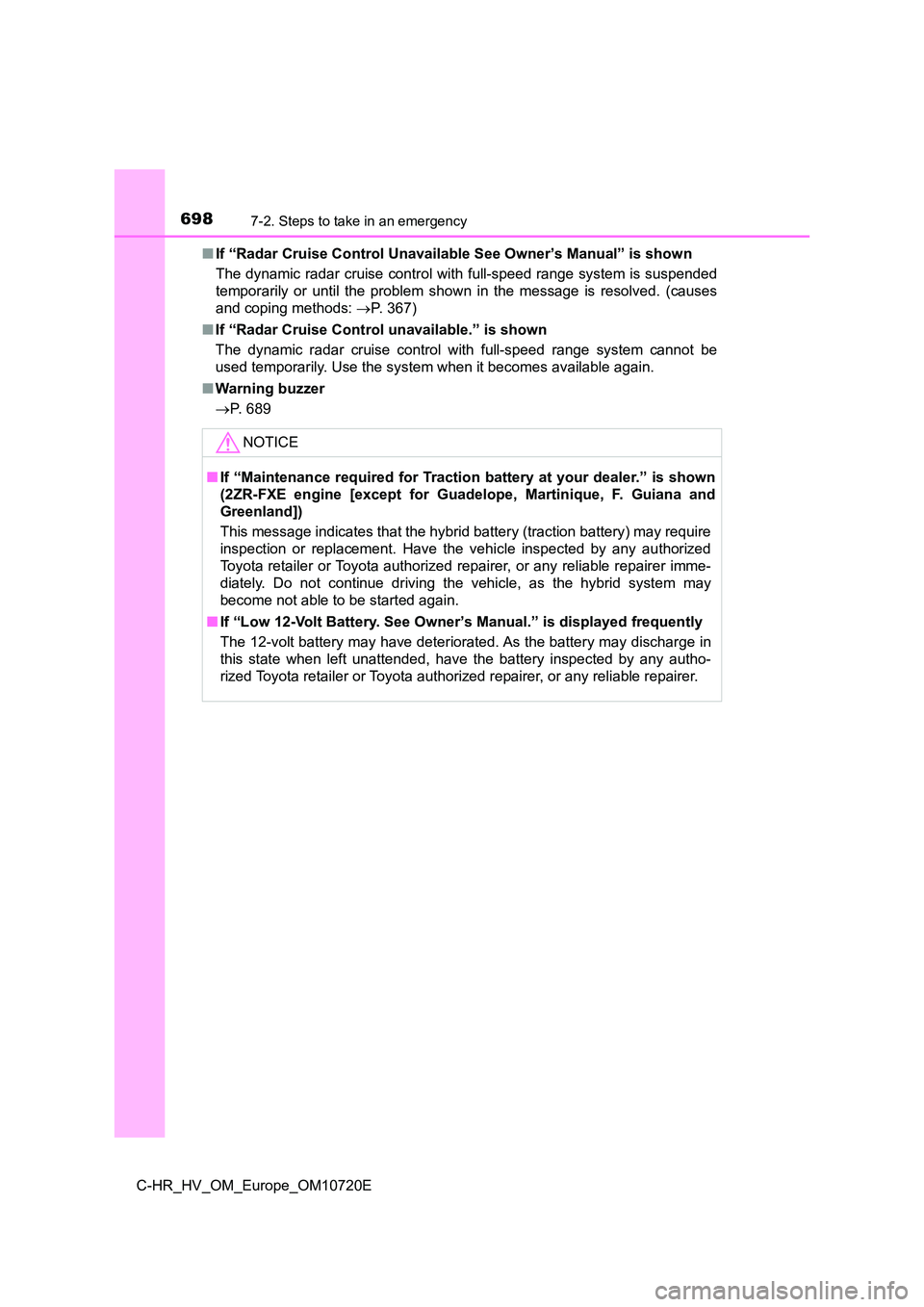

Page 700 of 818

6987-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
■ If “Radar Cruise Control Unavailable See Owner’s Manual” is shown
The dynamic radar cruise control with full-speed range system i s suspended
temporarily or until the problem shown in the message is resolv ed. (causes
and coping methods: P. 367)
■ If “Radar Cruise Control unavailable.” is shown
The dynamic radar cruise control with full-speed range system c annot be
used temporarily. Use the system when it becomes available agai n.
■ Warning buzzer
P. 689
NOTICE
■If “Maintenance required for Traction battery at your dealer.” is shown
(2ZR-FXE engine [except for Guadelope, Martinique, F. Guiana an d
Greenland])
This message indicates that the hybrid battery (traction batter y) may require
inspection or replacement. Have the vehicle inspected by any au thorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer imme-
diately. Do not continue driving the vehicle, as the hybrid sys tem may
become not able to be started again.
■ If “Low 12-Volt Battery. See Owner’s Manual.” is displayed frequently
The 12-volt battery may have deteriorated. As the battery may d ischarge in
this state when left unattended, have the battery inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.

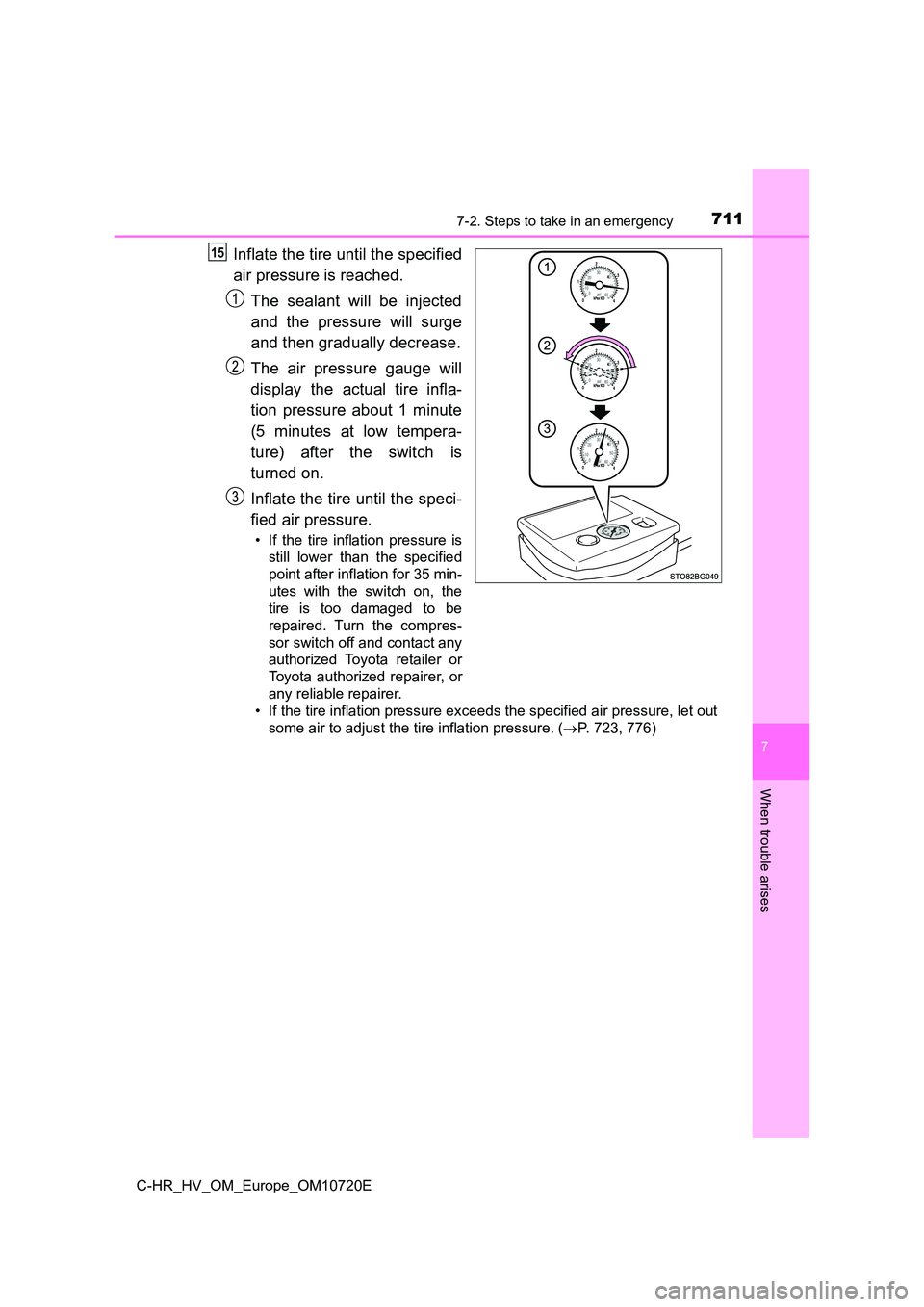

Page 713 of 818

7117-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the
tire is too damaged to be
repaired. Turn the compres-
sor switch off and contact any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
• If the tire inflation pressure exceeds the specified air press ure, let out
some air to adjust the tire inflation pressure. ( P. 723, 776)
15

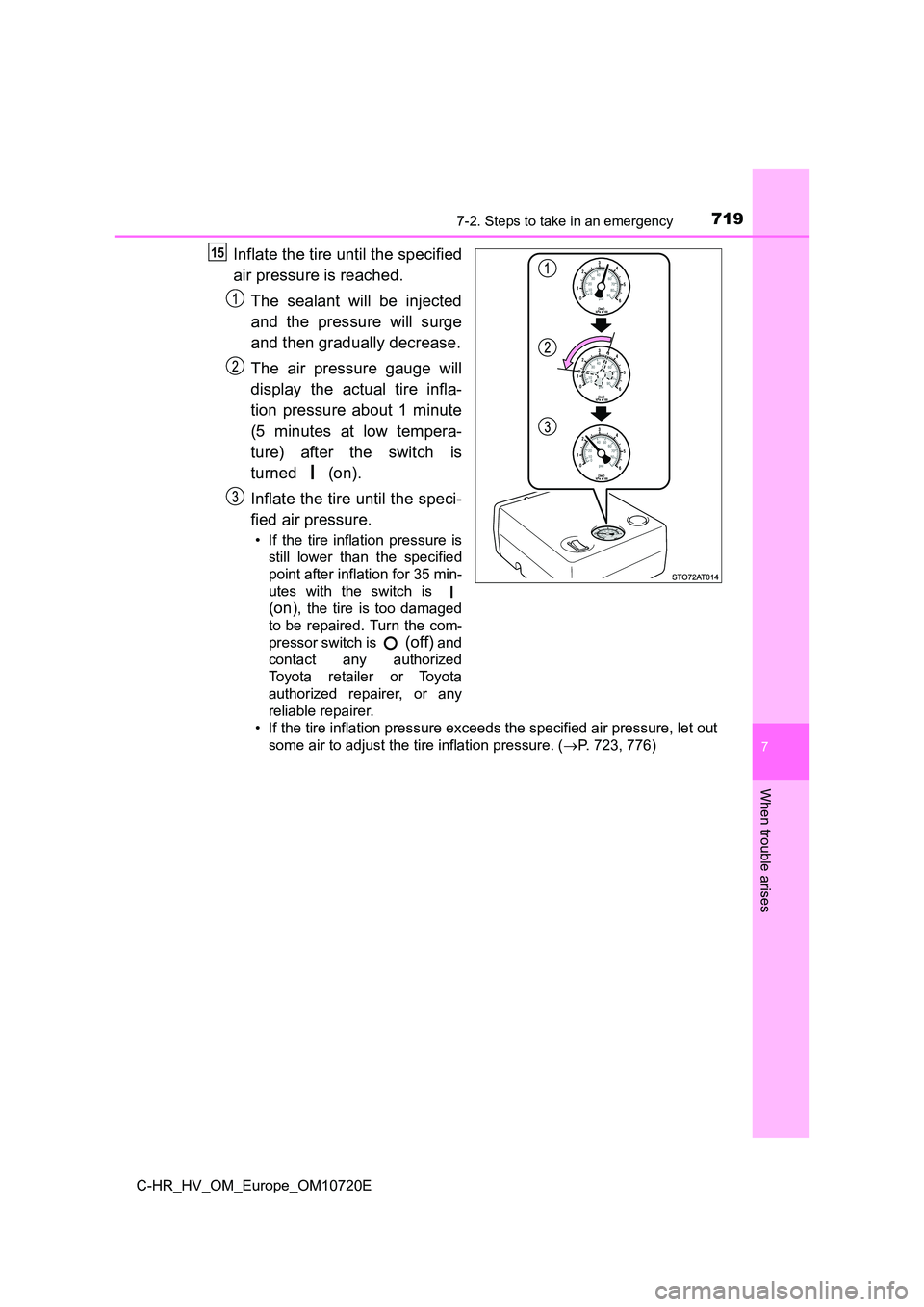

Page 721 of 818

7197-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned (on).
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch is
(on), the tire is too damaged
to be repaired. Turn the com-
pressor switch is (off) and
contact any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.
• If the tire inflation pressure exceeds the specified air press ure, let out
some air to adjust the tire inflation pressure. ( P. 723, 776)
15

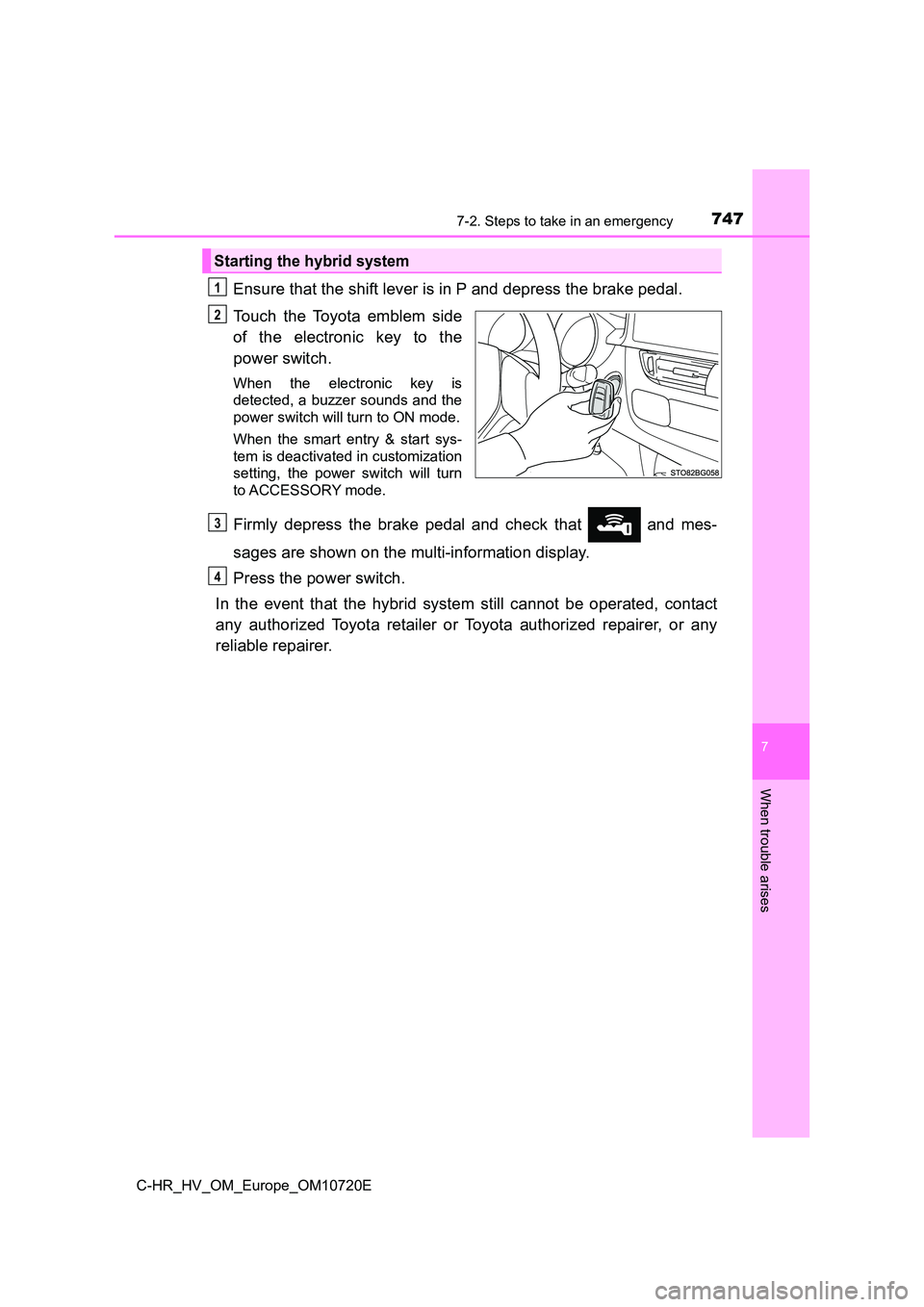

Page 749 of 818

7477-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
power switch.
When the electronic key is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the power switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal and check that and mes-
sages are shown on the multi-information display.
Press the power switch.
In the event that the hybrid system still cannot be operated, c ontact
any authorized Toyota retailer or Toyota authorized repairer, o r any
reliable repairer.
Starting the hybrid system
1
2
3
4
Page 759 of 818

7577-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
If your vehicle overheats
●The needle of the engine coolant temperature gauge (P. 1 6 6 )
enters the red zone or a loss of hybrid system power is experi-
enced. (For example, the vehicle speed does not increase.)
● “Hybrid System Overheated Reduced Output Power.” is shown on
the multi-information display.
● Steam comes out from under the hood.
■If the high coolant temperature warning light comes on
Stop the vehicle in a safe place and turn off the air condition ing
system, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect t he
hoses and radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immediately contact any aut ho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable
repairer.
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
2ZR-FXE engineM20A-FXS engine
Page 761 of 818

7597-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10720E
7
When trouble arises
■If “Hybrid System Overheated Reduced Output Power.” is
shown on the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immediately contact any aut ho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable
repairer.
The coolant level is satisfactory if it is between the “FULL” o r “F”
and “LOW” or “L” lines on the reservoir.
Reservoir
“FULL” or “F” line
“LOW” or “L” line
1
2
3
2ZR-FXE engineM20A-FXS engine
4
2ZR-FXE engineM20A-FXS engine
