lock TOYOTA CAMRY 2007 XV40 / 8.G Owners Manual

’07Camry_U (L/O 0608)
vii
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.
Spark ignition system of your Toyota
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference−Causing Equipment
Standard.
Installation of a mobile
twoway radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system, cruise
control system, anti−lock brake system, traction control
system, vehicle stability control system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to check
with your Toyota dealer for precautionary measures or
special instructions regarding installation.
Smart key system
Users of any electrical medical devices such as im-
planted pacemakers should consult the manufacturer of
the device for information about its operation under the
influence of radio waves. Radio waves could have unex-
pected effects on the operation of such medical devices.
For details, see “Keys” on page 16 in Section 1−2.

’07Camry_U (L/O 0608)
2
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Power door lock switches
6. Power window switches
7. Glove box
8. Cup holder
9. Rear console box
10. Parking brake lever
11. Manual transmission gear shift lever
12. Tilt and telescopic steering wheel lock
release lever
13. Hood lock release lever
14. Window lock switch
Instrument panel overview
Manual transmission models

’07Camry_U (L/O 0608)
3
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Power door lock switches
6. Power window switches
7. Glove box
8. Cup holder
9. Rear console box
10. Rear vents
11. Auxiliary box and/or power outlet
12. Automatic transmission selector lever
13. Seat heater switches
14. Tilt and telescopic steering wheel lock
release lever
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch Automatic transmission models

’07Camry_U (L/O 0608)
4
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Theft deterrent system/engine
immobilizer system indicator light
4. Clock
5. “AIRBAG ON” and “AIRBAG OFF”
indicator lights and front passenger ’s
seat belt reminder light
6. Emergency flasher switch
7. Audio system or navigation system
including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
8. Rear window and outside rear view
mirror defogger switch
9. Air conditioning controls
10. Tire pressure warning system reset
switch
11. AUX adapter
12. Power outlet
13. Auxiliary boxes
14. Ignition switch
15. Power rear view mirror control switches With manual air conditioning controls

’07Camry_U (L/O 0608)
5
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Theft deterrent system/engine
immobilizer system indicator light
4. Clock
5. “AIRBAG ON” and “AIRBAG OFF”
indicator lights and front passenger ’s
seat belt reminder light
6. Emergency flasher switch
7. Audio system or navigation system
including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
8. Air conditioning controls
9. Tire pressure warning system reset
switch
10. Rear window and outside rear view
mirror defogger switch
11. AUX adapter
12. Power outlet
13. Auxiliary boxes
14. Ignition switch (with smart key system)
15. Ignition switch
(with key cylinder type ignition switch)
16. Power rear view mirror control switches With automatic air conditioning controls

’07Camry_U (L/O 0608)
10
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Brake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Charging system warning light∗
1
Malfunction indicator lamp∗
1
Low engine oil pressure warning light∗
1
Anti−lock brake system warning light∗
1
Open door warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning
light∗
1
or
Front passenger ’s seat belt reminder light∗
1
Vehicle stability control system and traction
control system warning light∗
1
or
Low tire pressure warning light∗
1
or
Low fuel level warning light∗
1
Indicator symbols on the instrument panel

’07Camry_U (L/O 0608)
14
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

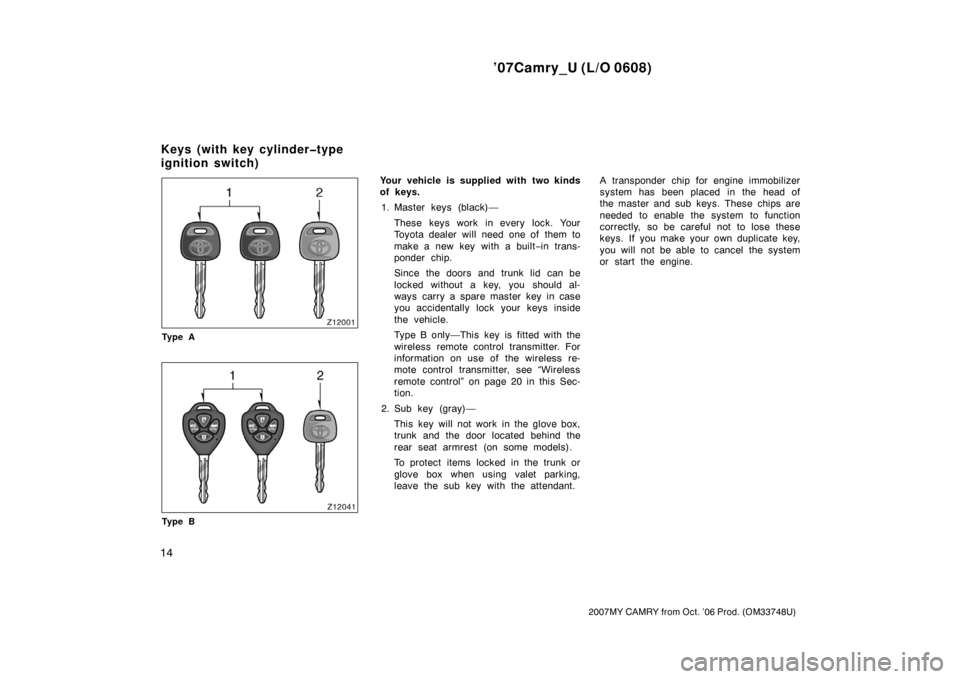

Ty p e A
Ty p e B
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—
These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built−in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Type B only—This key is fitted with the
wireless remote control transmitter. For
information on use of the wireless re-
mote control transmitter, see “Wireless
remote control” on page 20 in this Sec-
tion.
2. Sub key (gray)—
This key will not work in the glove box,
trunk and the door located behind the
rear seat armrest (on some models).
To protect items locked in the trunk or
glove box when using valet parking,
leave the sub key with the attendant.A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (with key cylindertype
ignition switch)

’07Camry_U (L/O 0608)
16
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.

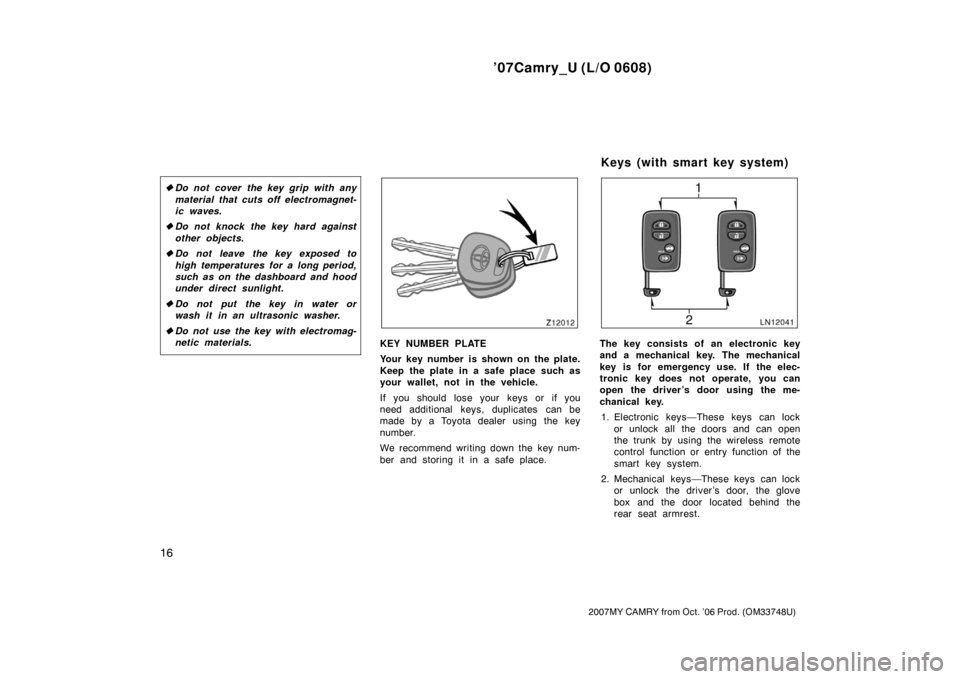

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.The key consists of an electronic key
and a mechanical key. The mechanical
key is for emergency use. If the elec-
tronic key does not operate, you can
open the driver ’s door using the me-
chanical key.
1. Electronic keys—These keys can lock
or unlock all the doors and can open
the trunk by using the wireless remote
control function or entry function of the
smart key system.
2. Mechanical keys—These keys can lock
or unlock the driver’s door, the glove
box and the door located behind the
rear seat armrest.
Keys (with smart key system)

’07Camry_U (L/O 0608)
17
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
Spare keys should not be left in the
cabin. In the event that a spare key is
left in the cabin, the smart key system
will remain actuated even after the
doors have been locked. Under these
circumstances, the trunk can be opened
even after the driver has exited and
locked the vehicle, increasing the dan-
ger of theft. (Refer to “OPENING
TRUNK WITH SMART KEY SYSTEM” on
page 46 in this Section.)
To protect items locked in the trunk or the
glove box when using valet parking, leave
the electronic key with the attendant. Keep
the mechanical key with you. For details
about locking the trunk opener switch, see
“—Luggage security system” on page 47
in this Section.
A transponder chip for engine immobilizer
system has been placed in the electronic
keys. These chips are needed to enable
the system to function correctly, so be
careful not to lose these keys.CAUTION
People with implanted pacemakers
or cardiac defibrillators should keep
away from the smart key system
antennas, because the radio waves
may affect the operation of such
devices. For the antenna locations
see “ANTENNA LOCATION” on page
32 in this Section.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the entry function can
be disabled. See “DISABLING THE
SMART KEY SYSTEM” on page 36
in this Section.
NOTICE
When using a electronic key contain-
ing a transponder chip, observe the
following precautions:
Do not affix any material that cuts
off electromagnetic waves (such as
a metal seal) on the electronic key.
Do not knock the electronic key
hard against other objects.
Do not leave the electronic key ex-
posed to high temperatures for a
long period, such as on the dash-
board or hood under direct sun-
light.
Do not put the electronic key in
water or wash it in an ultrasonic
washer.
Do not keep the electronic key to-
gether with the products emitting
electromagnetic waves such as a
cellular phone.

’07Camry_U (L/O 0608)
21
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
1. Indicator light
2. Lock switch
3. Alarm switch
4. Unlock switch
5. Trunk opener switchThe wireless remote control function is
designed to lock or unlock all the
doors, open the trunk lid, or activate
the alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
When the switch is operated, the indicator
light flashes once. If not, the battery may
be discharged. Replace the battery at the
earliest opportunity.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage the key.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol keys (for vehicles with key cylinder−
type ignition switch) or 5 wireless remote
control transmitters (for vehicles with
smart key system) for the same vehicle.
Contact your Toyota dealer for detailed
information.If the wireless remote control transmitter
does not actuate the doors, or does not
operate from a normal distance, or if the
indicator on the transmitter is dimmed or
does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on pages 26 or 28 in this Sec-
tion.
If you lose your wireless remote control
key, contact your Toyota dealer as soon
as possible to avoid the possibility of
theft, or an accident. (See “If you lose
your keys” on page 356 in Section 4.)
It is possible to disable the wireless re-
mote control system. For details, contact
your Toyota dealer.
