TOYOTA CAMRY CNG 2000 Service Manual

’00CAMRY CNG (L/O9908)
412000 CAMRY CNG (OM33519U)

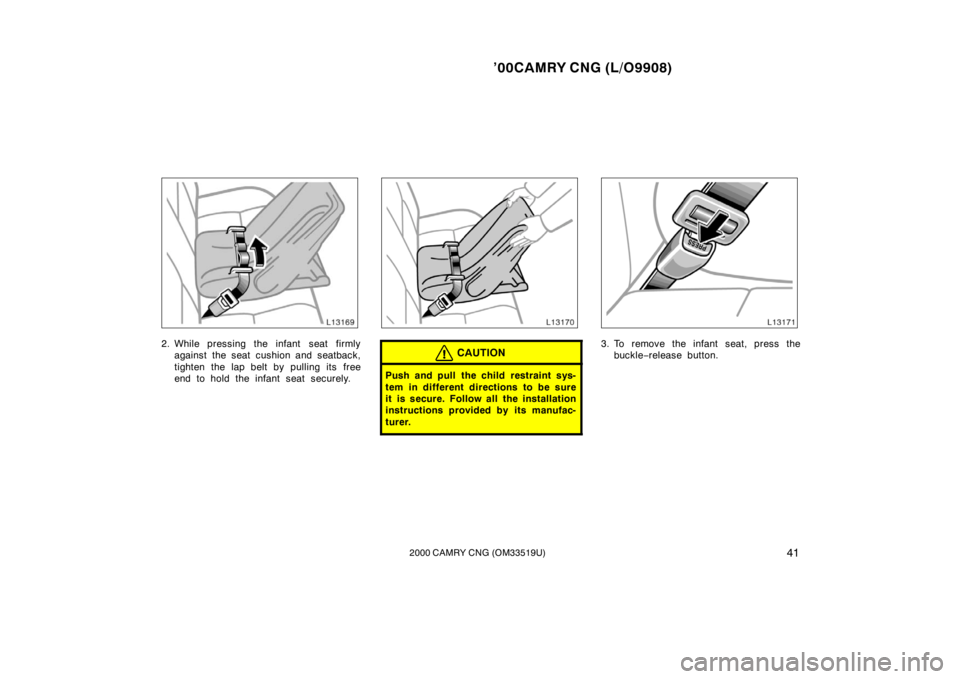

2. While pressing the infant seat firmly
against the seat cushion and seatback,
tighten the lap belt by pulling its free
end to hold the infant seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
3. To remove the infant seat, press the
buckle−release button.

’00CAMRY CNG (L/O9908)
422000 CAMRY CNG (OM33519U)

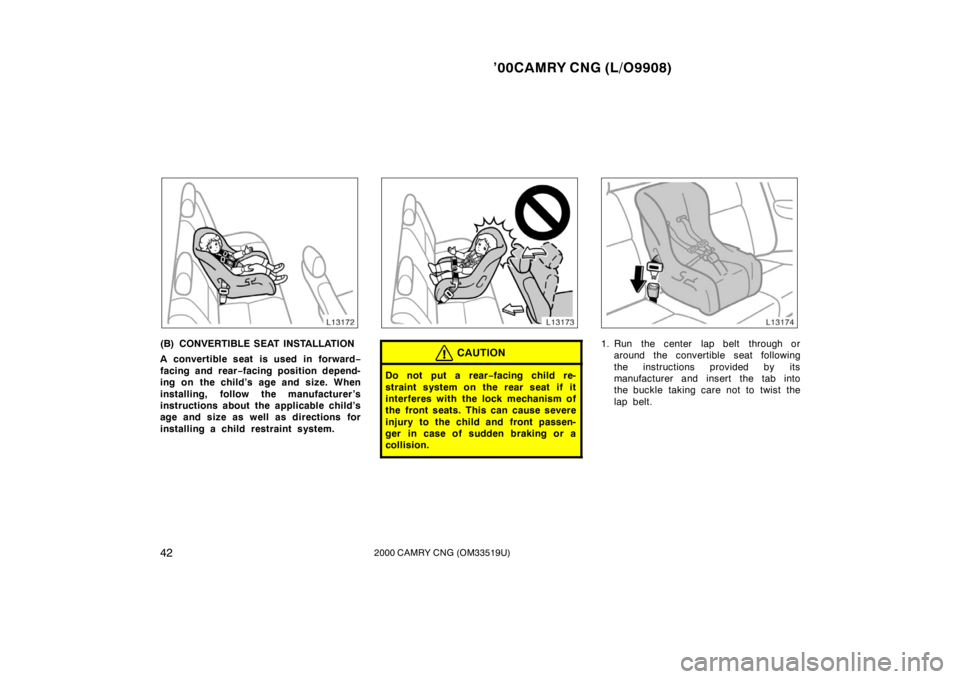

(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward−
facing and rear−facing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s
instructions about the applicable child’s
age and size as well as directions for
installing a child restraint system.CAUTION
Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism of
the front seats. This can cause severe
injury to the child and front passen-
ger in case of sudden braking or a
collision.
1. Run the center lap belt through or
around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
lap belt.

’00CAMRY CNG (L/O9908)
432000 CAMRY CNG (OM33519U)

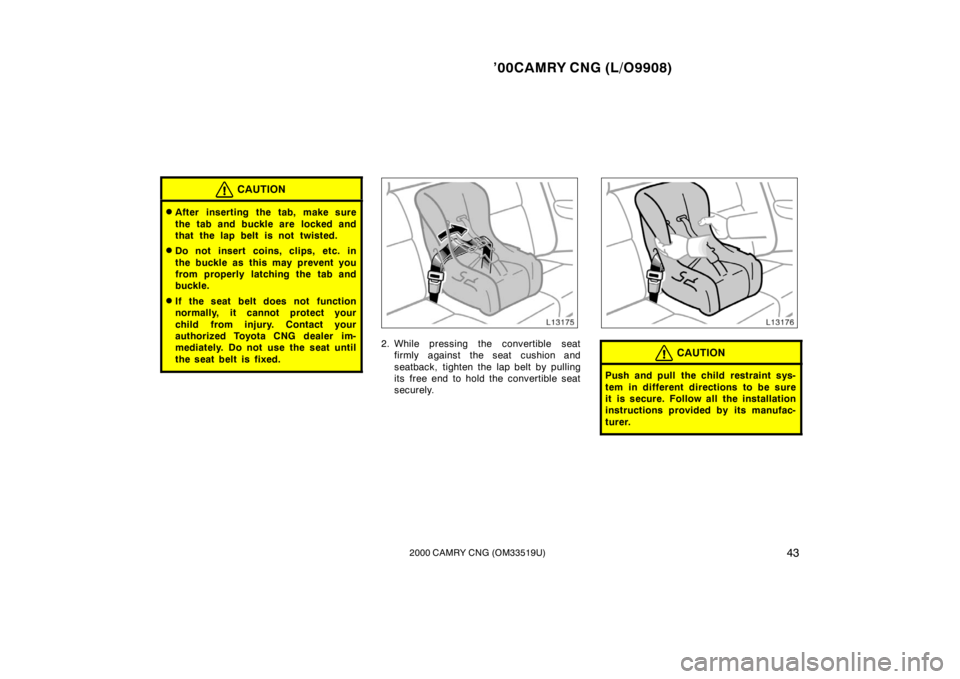

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
authorized Toyota CNG dealer im-
mediately. Do not use the seat until
the seat belt is fixed.
2. While pressing the convertible seat
firmly against the seat cushion and
seatback, tighten the lap belt by pulling
its free end to hold the convertible seat
securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’00CAMRY CNG (L/O9908)
442000 CAMRY CNG (OM33519U)

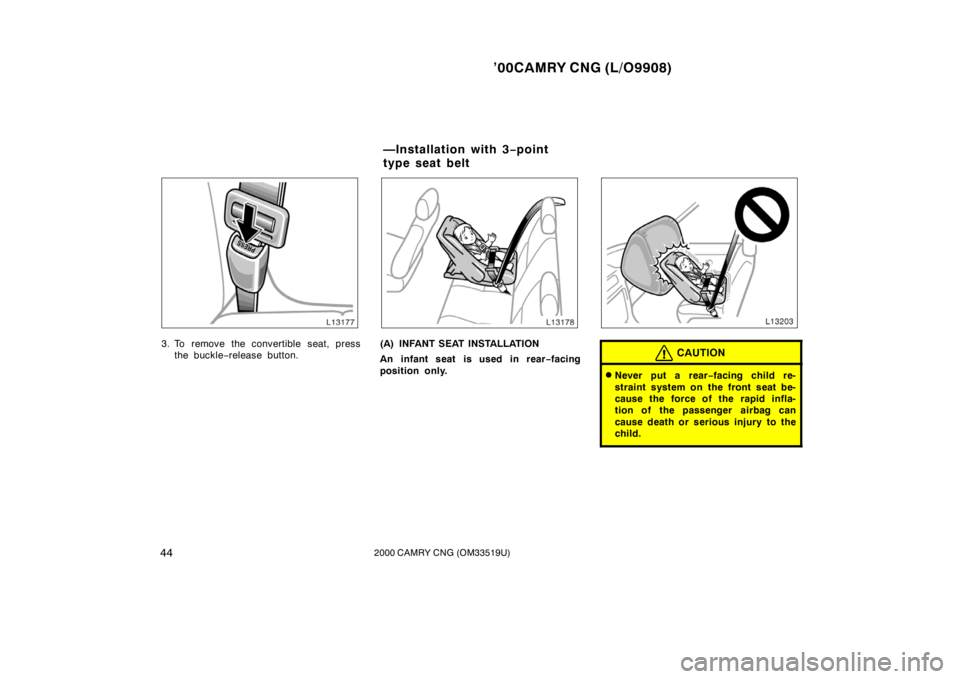

3. To remove the convertible seat, press
the buckle−release button.(A) INFANT SEAT INSTALLATION
An infant seat is used in rear−facing
position only.CAUTION
Never put a rear−facing child re-
straint system on the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.
—Installation with 3−point
type seat belt

’00CAMRY CNG (L/O9908)
452000 CAMRY CNG (OM33519U)
Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-

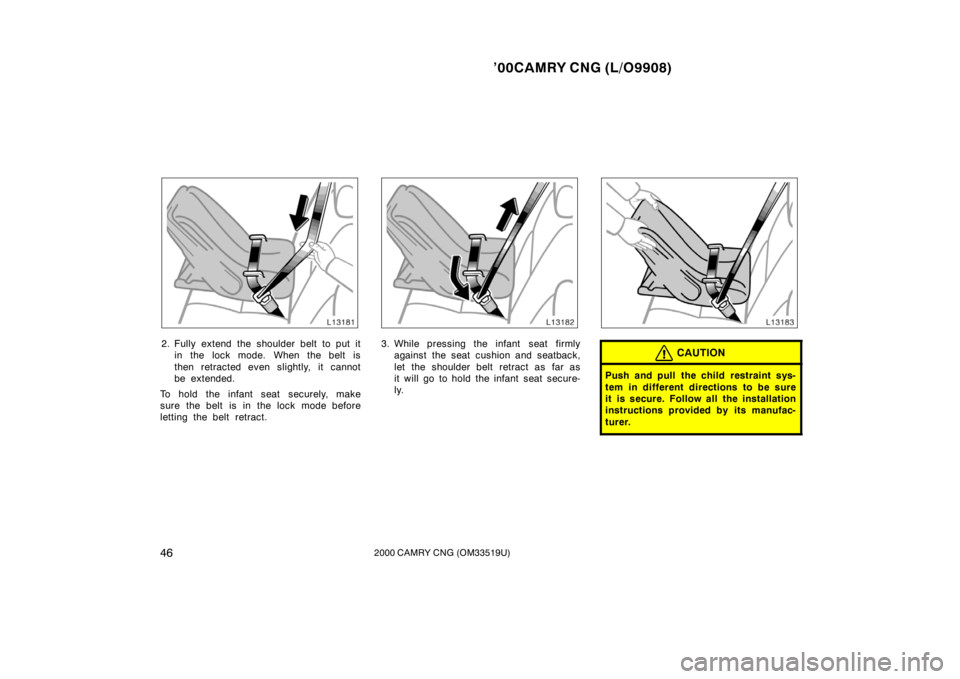

ing or a collision.1. Run the lap and shoulder belt through
or around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.

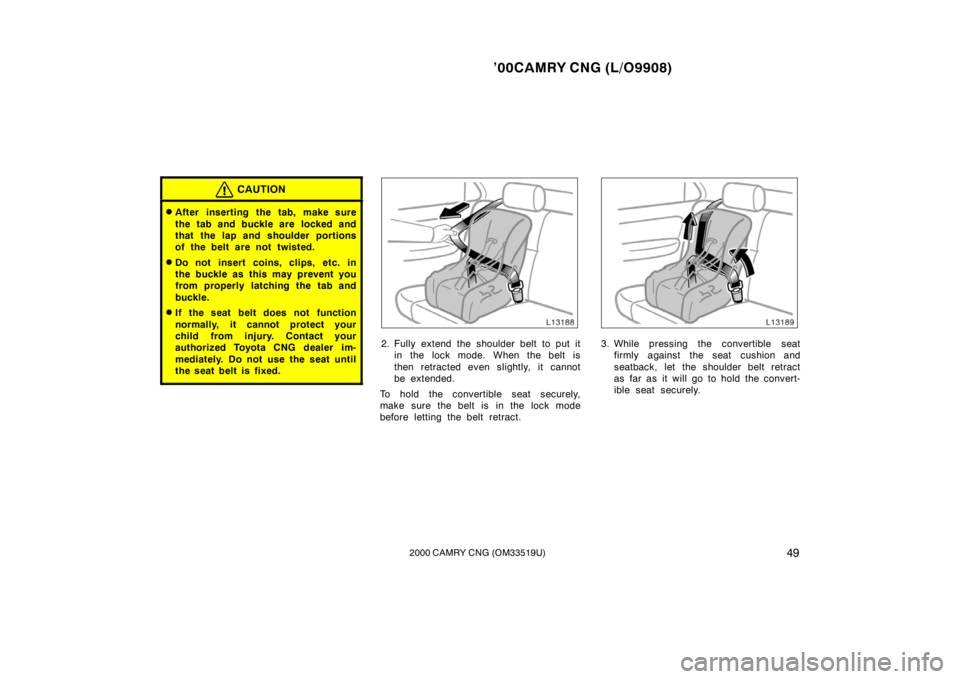

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
authorized Toyota CNG dealer im-
mediately. Do not use the seat until
the seat belt is fixed.

’00CAMRY CNG (L/O9908)
462000 CAMRY CNG (OM33519U)

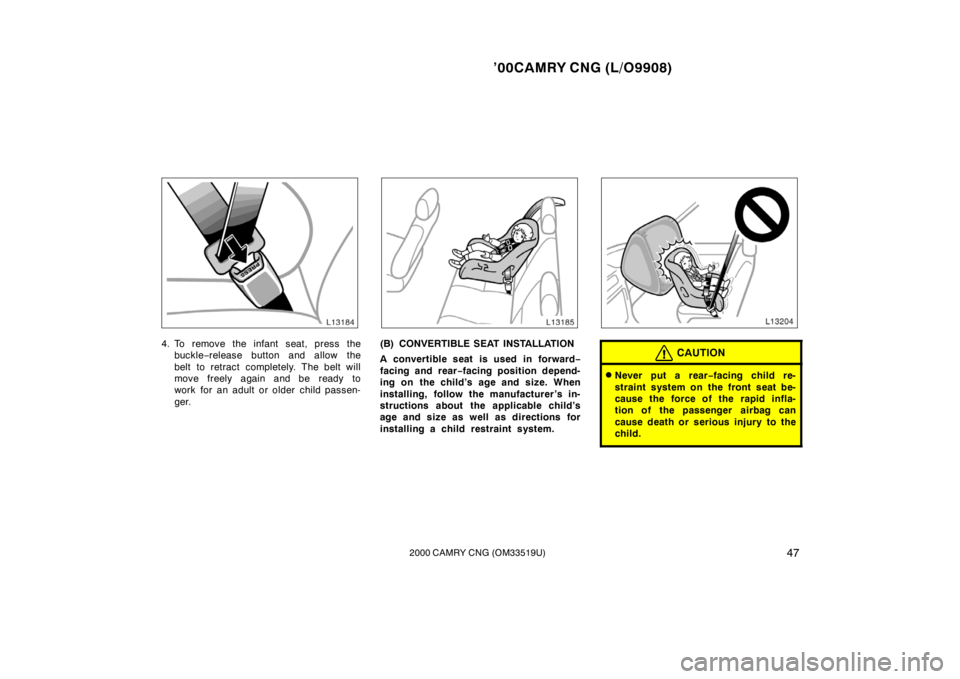

2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly
against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’00CAMRY CNG (L/O9908)
472000 CAMRY CNG (OM33519U)
4. To remove the infant seat, press the
buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward−
facing and rear−facing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
structions about the applicable child’s
age and size as well as directions for
installing a child restraint system.CAUTION
Never put a rear−facing child re-
straint system on the front seat be-
cause the force of the rapid infla-
tion of the passenger airbag can
cause death or serious injury to the
child.

’00CAMRY CNG (L/O9908)
482000 CAMRY CNG (OM33519U)

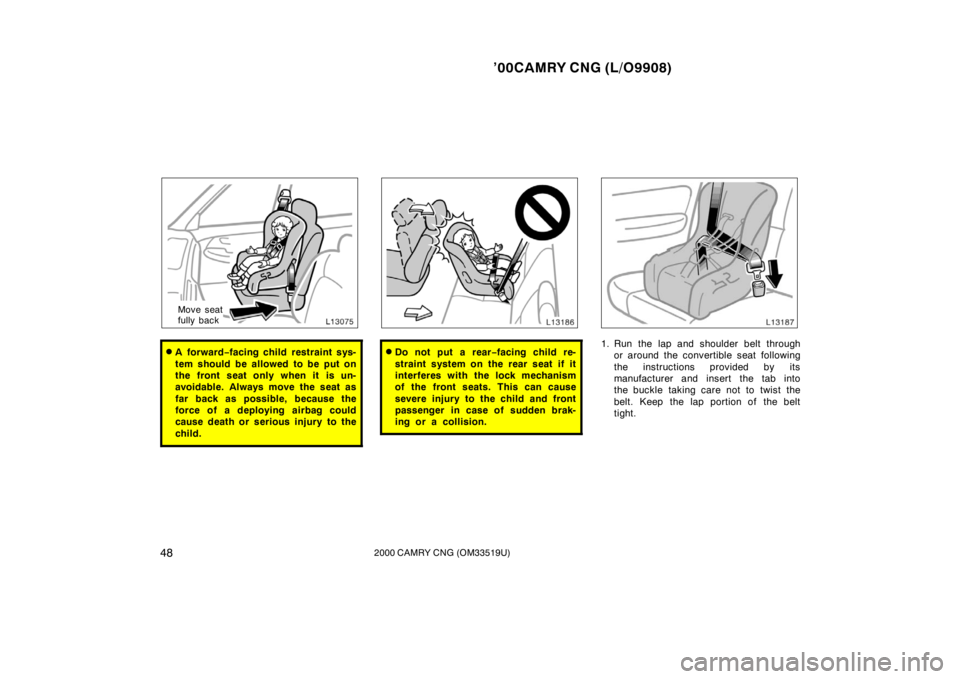

Move seat
fully back
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child.Do not put a rear−facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

’00CAMRY CNG (L/O9908)
492000 CAMRY CNG (OM33519U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
authorized Toyota CNG dealer im-
mediately. Do not use the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode

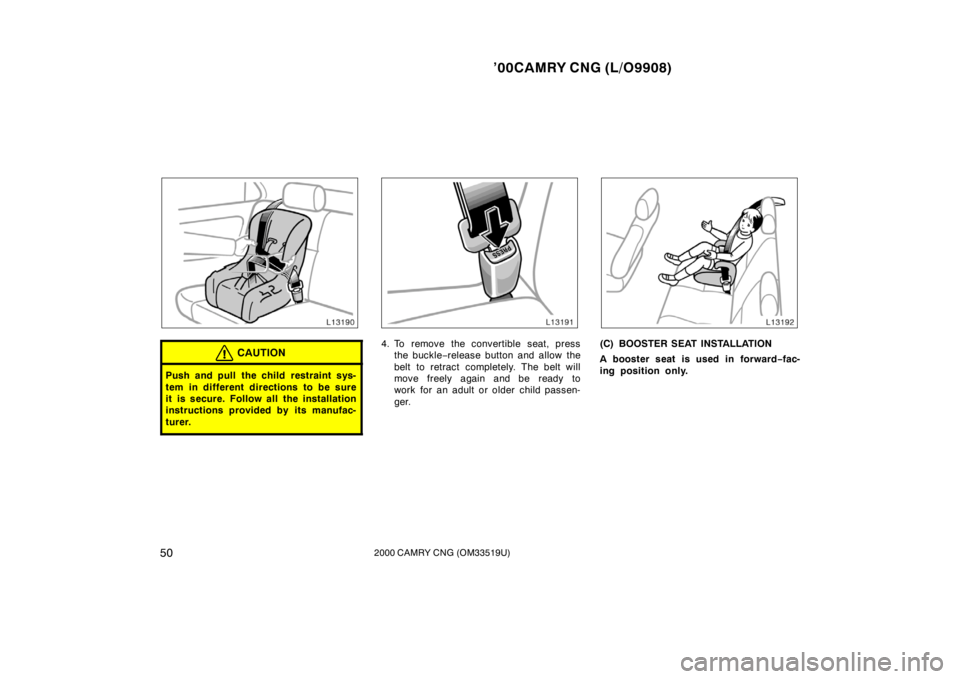

before letting the belt retract.3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

’00CAMRY CNG (L/O9908)
502000 CAMRY CNG (OM33519U)
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward−fac-
ing position only.
