TOYOTA CELICA 1996 Owners Manual

154
1. Engine oil level dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Fuse blocks
5. Battery
6. Engine coolant reservoir
7. Electric cooling fans
8. Engine oil filler cap
9. Windshield and rear window washer fluid tank
Engine compartment overview

7A-FE engine
ProCarManuals.com

155
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Fuse blocks
5. Battery
6. Engine coolant reservoir
7. Electric cooling fans
8. Engine oil level dipstick
9. Windshield and rear window washer fluid tank
Engine compartment overview

5S-FE engine
ProCarManuals.com

156
1 Passenger 's side kick panel
2 Instrument panel
3 Engine compartment (left)
4 Engine compartment(front-Canada only)
Fuse locations
ProCarManuals.com

157
If you perform maintenance by your-
self, be sure to follow the correct pro-
cedure given in this part.
You should be aware that improper or in-
complete servicing may result in operat-
ing problems.
Performing do-it-yourself maintenance
during the warranty period may affect
your warranty coverage. Read the sepa-
rate Toyota Warranty statement for details
and suggestions.
This part gives instructions only for those
items that are relatively easy for an owner
to perform. As explained in Part 6, there
are still a number of items that must be
done by a qualified technician with special
tools.
For information on tools and parts for do-
it-yourself maintenance, see Parts and
toolsº.

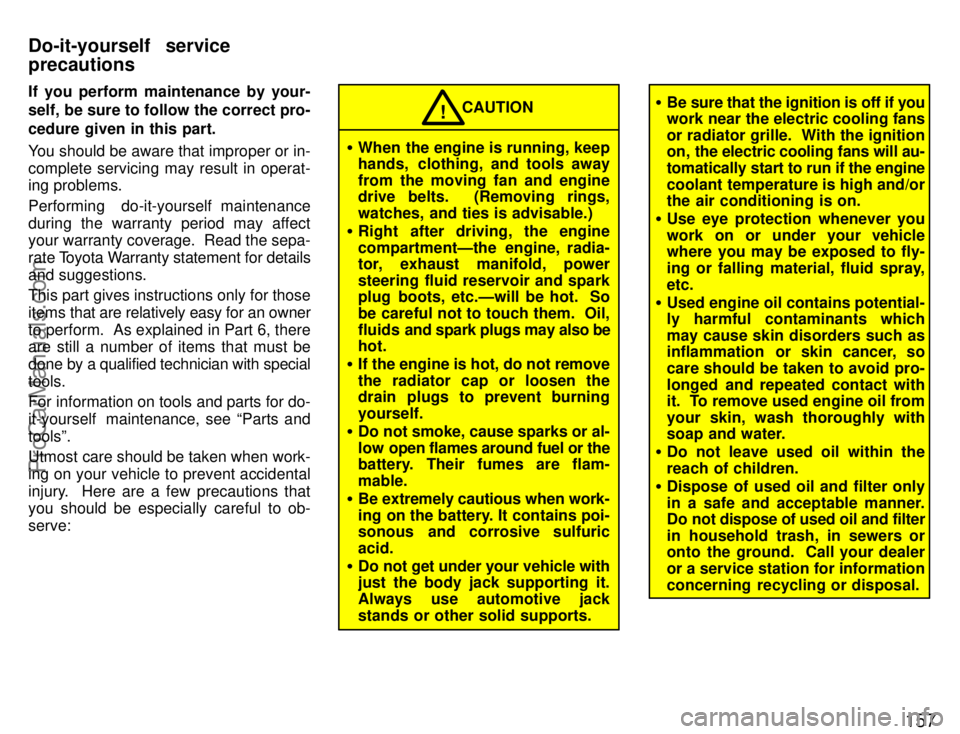

Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:
 When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
 Right after driving, the engine
compartmentÐthe engine, radia-
tor, exhaust manifold, power
steering fluid reservoir and spark
plug boots, etc.Ðwill be hot. So
be careful not to touch them. Oil,
fluids and spark plugs may also be
hot.
 If the engine is hot, do not remove
the radiator cap or loosen the
drain plugs to prevent burning
yourself.
 Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flam-
mable.
 Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric
acid.
 Do not get under your vehicle with
just the body jack supporting it.
Always use automotive jack
stands or other solid supports. CAUTION
!
Be sure that the ignition is off if you
work near the electric cooling fans
or radiator grille. With the ignition
on, the electric cooling fans will au-
tomatically start to run if the engine
coolant temperature is high and/or
the air conditioning is on.
 Use eye protection whenever you
work on or under your vehicle
where you may be exposed to fly-
ing or falling material, fluid spray,
etc.
 Used engine oil contains potential-
ly harmful contaminants which
may cause skin disorders such as
inflammation or skin cancer, so
care should be taken to avoid pro-
longed and repeated contact with
it. To remove used engine oil from
your skin, wash thoroughly with
soap and water.
 Do not leave used oil within the
reach of children.
 Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and filter
in household trash, in sewers or
onto the ground. Call your dealer
or a service station for information
concerning recycling or disposal.
Do-it-yourself service
precautions
ProCarManuals.com

158
NOTICE
Remember that battery and igni-tion cables carry high currents or
voltages. Be careful of accidental-ly causing a short circuit.
Add only demineralized or dis-tilled water to fill the radiator. Andif you spill some of the coolant, besure to wash it off with water to
prevent it from damaging theparts or paint.
Do not allow dirt or anything elseto fall through the spark plugholes.
Do not pry the outer electrode of aspark plug against the center elec-
trode.
Use only spark plugs of the speci- fied type. Using other types willcause engine damage, loss of per-
formance or radio noise.
Do not reuse platinum-tipped
spark plugs by cleaning or regap-ping.
Do not overfill automatic trans-
mission fluid, or the transmissioncould be damaged.
Do not drive with the air cleaner fil-ter removed, or excessive engine
wear could result. Also backfiringcould cause a fire in the enginecompartment.
Be careful not to scratch the glass
surface with the wiper frame.
When closing the engine hood,check to see that you have not for-gotten any tools, rags, etc.
Here is a list of parts and tools you will
need on performing do-it-yourself main-
tenance. Remember all Toyota parts are
designed in metric sizes, so your tools
must be metric.
Checking the engine oil level
Parts (if level is low):
 Engine oil API SH, Energy-Conserv-
ing IIº multigrade or ILSAC multigrade
having viscosity proper for your cli-
mate
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
 Ethylene-glycol antifreeze
 Demineralized or distilled water
Tools:
 Funnel (only for adding coolant)
Checking brake fluid
Parts (if level is low):
 SAE J1703 or FMVSS No. 116 DOT 3
brake fluid
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Parts and tools
ProCarManuals.com

159
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEX-
RON
[II or III
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking battery condition
Non-maintenance batteriesÐ
Tools:
 Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal
clamp bolts)
Maintenance type batteriesÐ
Parts (if level is low):
 Distilled water
Tools:
 Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal
clamp bolts)
 Coin (for vent plugs)
 Funnel (only for adding distilled water) Checking and replacing fuses
Parts (if replacement is necessary):

Fuse with the same amperage rating
as original
Tools:
 Screwdriver (for passenger's side kick
panel screw)
Adding washer fluid
Parts:
 Water
 Washer fluid containing antifreeze (for
winter use)
Tools:
 Funnel
Replacing light bulbs
Parts:
 Bulb with same number and wattage
rating as original (See charts in Re-
placing light bulbsº in Chapter 7-3.)
Tools:
 Screwdriver
 Conventional wrench
ProCarManuals.com

160ProCarManuals.com

Part 7Checking the engine oil level161
DO-IT-YOURSELF
MAINTENANCEÐ
Chapter 7-2
Engine and Chassis

Checking the engine oil level

Checking the engine coolant
level

Checking brake fluid

Checking power steering fluid

Checking tire pressure

Checking and replacing tires

Rotating tires

Installing snow tires and chains

Replacing wheels

Aluminum wheel precautions
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
1. To get a true reading, the vehicle
should be on a level spot. After turning off
the engine, wait a few minutes for the oil
to drain back into the bottom of the en-
gine.
2. Pull out the dipstick, and wipe it clean
with a rag.
3. Reinsert the dipstick 'push it in as far
as it will go, or the reading will not be cor-
rect.
4. Pull the dipstick out and look at the oil
level on the end.
CAUTION
Be careful not to touch the hot ex-
haust manifold.!
If the oil level is below or only slightly
above the low level line, add engine oil
of the same type as already in the en-
gine.
Remove the oil filter cap and add engine
oil in small quantities at a time, checking
the dipstick.
The approximate quantity of oil needed to
fill between the low level line and the full
level on the dipstick is indicated below for
reference.
When the level reaches within the correct
range, install the filler cap hand-tight.
Oil quantity, L (qt., Imp. qt.): 7A-FE engine 1.2 (1.3, 1.1)
5S-FE engine 1.0 (1.1, 0.9)

Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick
once again after adding the oil.
NOTICE
ProCarManuals.com

162
ENGINE OIL SELECTION
5S-FE engine- Use API SH, Energy-
Conserving IIº multigrade engine oil or IL-
SAC multigrade engine oil.
Recommended oil viscosity (SAE):
Temperature range anticipated before next oil change
60040-L02U
If you use SAE 10W-30 engine oil in
extremely low temperatures, the en-
gine may become difficult to start, so
SAE 5W-30 engine oil is recom-
mended. ENGINE OIL SELECTION
7A-FE engine- Use API SH, Energy-
Conserving IIº
multigrade engine oil or IL-
SAC multigrade engine oil.
Recommended oil viscosity (SAE):
Temperature range anticipated before next oil change
60040-L03U
SAE 5W-30 is the best choice for your
vehicle, for good fuel economy, and
good starting in cold weather.
If you use SAE 10W-30 engine oil in
extremely low temperatures, the en-
gine may become difficult to start, so
SAE 5W-30 engine oil is recom-
mended.API service symbol
ILSAC certification mark
ProCarManuals.com

163
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside of the container.
The top portion of the label shows the oil
quality by API (American Petroleum Insti-
tute) designations such as SH. The cen-
ter portion of the label shows the SAE vis-
cosity grade such as SAE 10W-30.
Energy-Conserving IIº shown in the low-
er portion, indicates that the oil has fuel-
saving capabilities. Oils marked Ener-
gy-Conserving IIº will have higher
fuel-saving capabilities than oil marked
Energy-Conservingº.
The ILSAC (International Lubricant Stan-
dardization and Approval Committee)
Certification Mark is displayed on the front
of the container. Look at the see-through coolant res-
ervoir when the engine is cold. The
coolant level is satisfactory if it is be-
tween the FULLº and LOWº lines on
the reservoir. If the level is low, add
ethylene-glycol type coolant.
The coolant level in the reservoir will vary
with engine temperature. However, if the
level is on or below the LOWº line, add
coolant. Bring the level up to the FULLº
line.
Use only ethylene-glycol type coolant.
See information in the next column.
If the coolant level drops within a short
time after replenishing, there may be a
leak in the system. Visually check the ra-
diator, hoses, radiator cap and drain cock
and water pump.
If you can find no leak, have your Toyota
dealer
test the cap pressure and check for
leaks in the cooling system.
To prevent burning yourself, do not
remove the radiator cap when the en-
gine is hot.
CAUTION!
Coolant type selection
Your coolant must contain ethylene-gly-
col antifreeze. In addition to preventing
freezing and subsequent damage to the
engine, this will also prevent corrosion.
Further supplemental inhibitors or addi-
tives are neither needed nor recom-
mended.
Read the antifreeze container for informa-
tion on freeze protection. Follow the
manufacturer 's directions for how much
to mix with water. The total capacity of the
cooling system is given in Part 8. We rec-
ommend 50% solution be used for your
Toyota, or a sufficient quantity to provide
protection to about -35 C (-31 F).
Do not use alcohol type antifreeze
or plain water alone.
NOTICE
Checking the engine coolant
level
ProCarManuals.com
