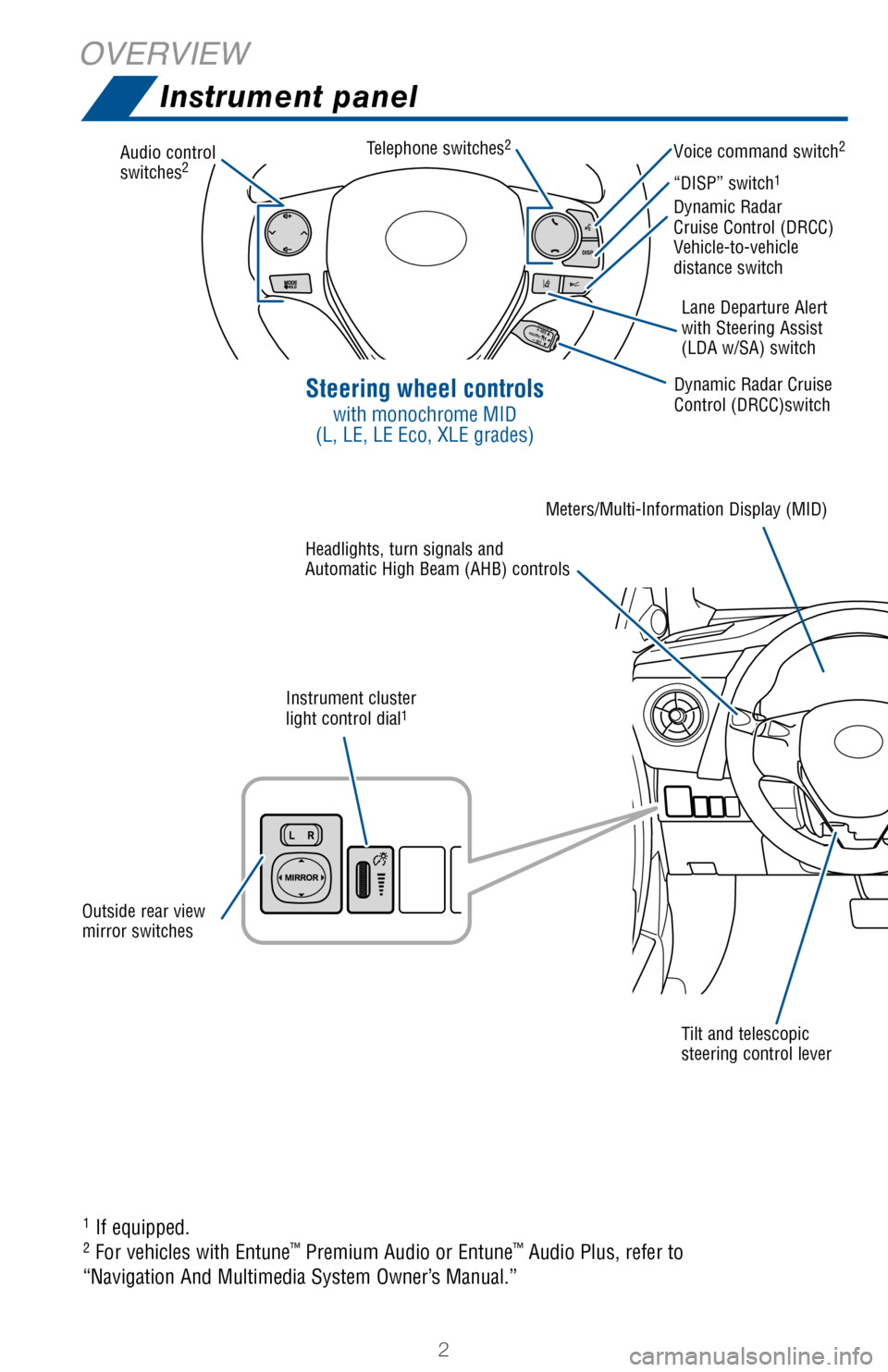

OVERVIEW
Instrument panel
1 If equipped.2 For vehicles with Entune™ Premium Audio or Entune™ Audio Plus, refer to
“Navigation And Multimedia System Owner’s Manual.”
Steering wheel controls
with monochrome MID(L, LE, LE Eco, XLE grades)
Audio control switches2Telephone switches2Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Meters/Multi-Information Display (MID)
Outside rear view mirror switches
Instrument cluster light control dial1
Tilt and telescopicsteering control lever
Dynamic RadarCruise Control (DRCC)Vehicle-to-vehicle distance switch
“DISP” switch1
Lane Departure Alert with Steering Assist (LDA w/SA) switch
Headlights, turn signals andAutomatic High Beam (AHB) controls
106535_2017_Corolla_QRG_D7_1_R1.indd 29/29/16 8:50 AM

18
FEATURES & OPERATIONS
ENTUNE™ AUDIO
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Bluetooth® hands-free system
AUDIO ButtonAccess to audio functions
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and layout will vary depending on selected set up.
SETUP ButtonPress this button to customize the function settings
APPS Button Access to connected navigation app
CAR Button Fuel consumption screen
HOME Button Access to Home screen
Push to turnON/OFF
Turn to tune radio stations manually or select tracks or files
Seek station/CD track select
Eject CD
Push to pause or resume playing
Touch screen display
1 Refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority while driving. Do not use the Entune system if it will distract you.
Audio
Map card insert1
Access to navigation system1
