3616-1. Using the air conditioning system and defogger
COROLLA HV_U
6
Interior features
mode.
●During use, various odors from
inside and outside the vehicle may
enter into and a ccumulate in the
air conditioning system. This may
then cause odor to be emitted
from the vents.
●To reduce potential odors from
occurring:
• It is recommended that the air
conditioning system be set to out-
side air mode prior to turning the
vehicle off.
• The start timing of the blower may
be delayed for a short period of
time immediately after the air con-
ditioning system is started in auto-
matic mode.
●When parking, the system auto-
matically switches to outside air
mode to encourage better air cir-
culation throughout the vehicle,
helping to reduce odors that occur
when starting the vehicle.
■Air conditioning filter
 P. 4 2 6
■Air conditioning system refrig-
erant

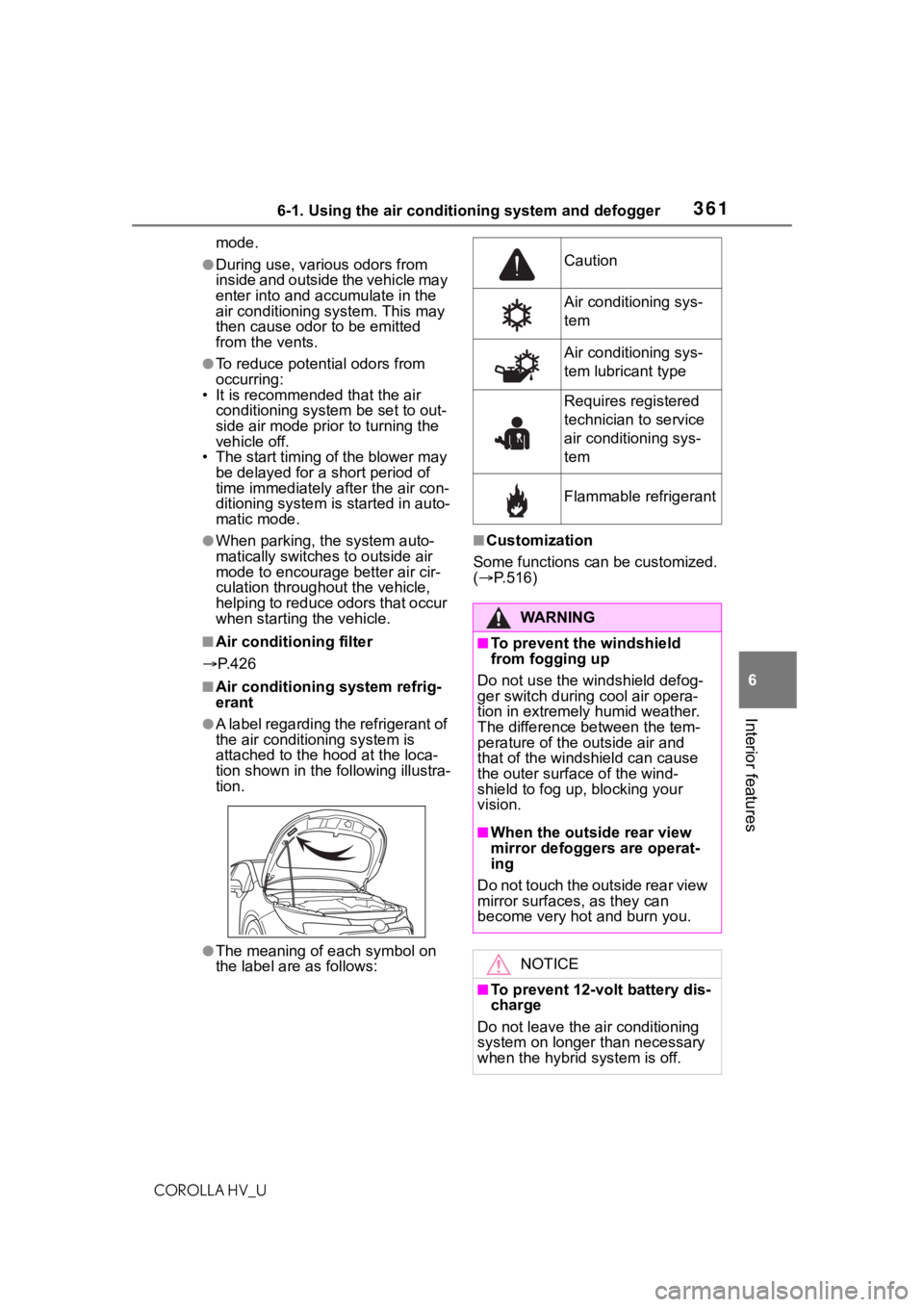

●A label regarding the refrigerant of
the air conditioning system is
attached to the ho od at the loca-
tion shown in the f ollowing illustra-
tion.
●The meaning of each symbol on
the label are as follows:
■Customization
Some functions can be customized.
(  P.516)
Caution
Air conditioning sys-
tem
Air conditioning sys-
tem lubricant type
Requires registered
technician to service
air conditioning sys-
tem
Flammable refrigerant

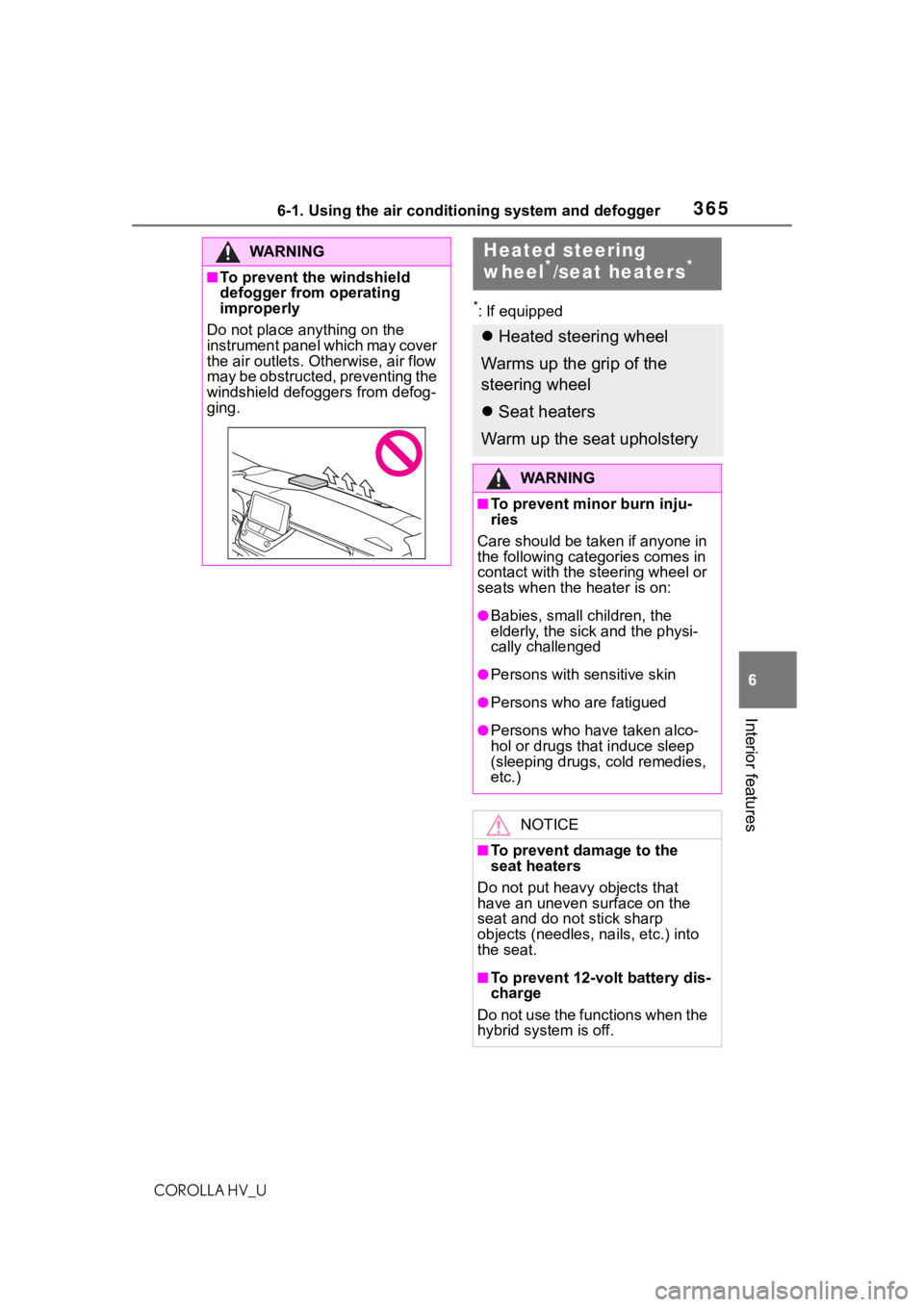

WA R N I N G
■To prevent the windshield
from fogging up
Do not use the windshield defog-
ger switch during cool air opera-
tion in extremely humid weather.
The difference between the tem-
perature of the outside air and
that of the windshield can cause
the outer surface of the wind-
shield to fog up, blocking your
vision.
■When the outside rear view
mirror defoggers are operat-
ing
D o n o t t o u c h t h e o u t s i d e r e a r v i e w
mirror surfaces, as they can
become very hot and burn you.
NOTICE
■To prevent 12-volt battery dis-
charge
Do not leave the air conditioning
system on longer than necessary
when the hybrid system is off.

3626-1. Using the air conditioning system and defogger
COROLLA HV_U
1Press the automatic mode
switch.
2 Adjust the temperature set-
ting.
3 To stop the operation, press
the off switch.
If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.
■Using automatic mode
Fan speed is adjusted automati-
cally according to the temperature
setting and the ambient conditions.
Therefore, the fan may stop for a
while until warm or cool air is ready
to flow immediately after the auto-
matic mode switch pressed.
Prevent ice from building up on
the windshield and wiper
blades.
When the windshield wiper de-icer
switch is on, the indicator illumi-
nates on the windshield wiper
de-icer switch.
The windshield wiper de-icer will
automatically turn off after a period
of time.
In S-FLOW mode, priority for the
airflow is given to the front
seats, reducing the airflow and
air conditioning effect on the
rear seats.
The following S-FLOW modes
are available:
Automatic S-FLOW mode
In this mode, when a passenger
NOTICE
■When repairing/replacing
parts of the air conditioning
system
Have repair/replacement per-
formed by your Toyota dealer.
When a part of the air conditioning
system, such as the evaporator, is
to be replaced, it must be
replaced with a new one.
Using automatic mode
Windshield wiper de-icer
(if equipped)
WA R N I N G
■To prevent burns
Do not touch the glass at lower
part of the windshield or to the
side of the front p illars when the
windshield wiper de-icer is on.
S-FLOW mode

3636-1. Using the air conditioning system and defogger
COROLLA HV_U
6
Interior features
is judged to be in a rear seat,
S-FLOW mode will be automati-
cally disabled.
When the S-FLOW mode is on, the
indicator illuminates on the
S-FLOW mode switch.
To enable/disable S-FLOW mode
and enter manual S-FLOW mode,
press the S-FLOW mode switch.
Manual S-FLOW mode
When the S-FLOW mode switch
is pressed, S-FLOW mode will
be manually enabled/ disabled.
When the S-FLOW mode is on, the
indicator illuminates on the
S-FLOW mode switch.
Operation in S-FLOW mode dif-
fers according to the following
conditions:
 Priority is given to the driver’s
seat only when:
Automatic S-FLOW mode
When no passengers are judged to
be in the front pa ssenger seat or
rear seats.
Manual S-FLOW mode
When no passenger is judged to be
in the front passenger seat.
 Priority is given to the front
seats when:
Manual S-FLOW mode is selected
or no passengers are judged to be
in the rear seats when in automatic
S-FLOW mode.
S-FLOW mode will be dis-
abled when:
A passenger is judged to be in a
rear seat when in automatic
S-FLOW mode.
Depending on the set tempera-
ture, operation in S-FLOW
mode may not change as
described above.
■How the system judges if a pas-
senger is in the vehicle when in
S-FLOW mode
In S-FLOW mode , the system
judges if a passenger is in the vehi-
cle as follows:
• Front passenger seat:
A passenger is judged to be in the
front passenger seat when the sys-
tem detects an object on the front
passenger seat, fastening of the
front passenger seat belt or the
opening and closing of the front pas-
senger door. (However, when only
opening and closing of the front pas-
senger door is detected, the system
will judge that a passenger is not in
the front passenger seat after the
vehicle speed reaches approxi-
mately 12 mph [2 0 km/h] or more.)
• Rear seats (automatic S-FLOW mode only):
A passenger is judged to be in a
rear seat when the system detects
the opening and cl osing of a rear
door.
If a passenger is judged to be in the
vehicle, the system will retain the
judgement for a ce rtain amount of
time after the power switch is turned
off.
■Operation of automatic S-FLOW
mode
When the system is operating in
automatic S-FLOW mode, if a rear
door is opened and then closed,
S-FLOW mode will be disabled. To
enable S-FLOW mode, press the
S-FLOW mode switch. (In this case,
the system will ope rate in manual

3646-1. Using the air conditioning system and defogger
COROLLA HV_US-FLOW mode.)
■Changing from manual S-FLOW
mode to automatic S-FLOW
mode
1 Press the S-FLOW mode switch
to disable S-FLOW mode.
2 Turn the power switch off.
3 Wait for 60 minutes or more and
change the power switch to ON.
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
:If equipped
■Adjusting the position of
and opening and closing
the air outlets
Front center
Direct air flow to th e left or right, up or down
Front right-hand side
Direct air flow to the
left or right, up
or down
Front left-hand side
Direct air flow to the left or right, up
or down

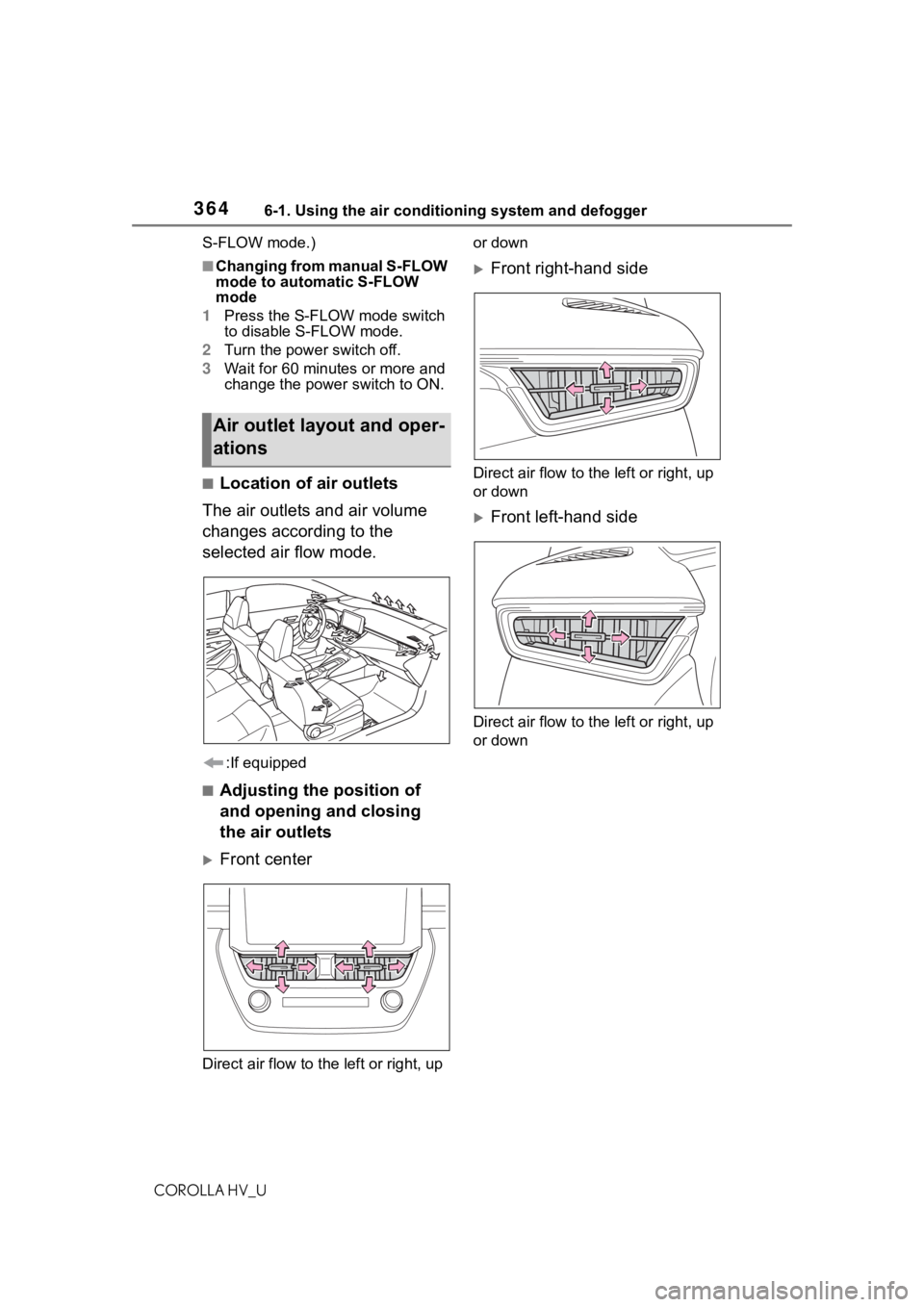

Air outlet layout and oper-
ations

3656-1. Using the air conditioning system and defogger
COROLLA HV_U
6
Interior features
*: If equipped
WA R N I N G
■To prevent the windshield
defogger from operating
improperly
Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
Heated steering
wheel*/seat heaters*
 Heated steering wheel
Warms up the grip of the
steering wheel
 Seat heaters
Warm up the seat upholstery
WA R N I N G
■To prevent minor burn inju-
ries
Care should be taken if anyone in
the following categories comes in
contact with the steering wheel or
seats when the heater is on:
●Babies, small children, the
elderly, the sick and the physi-
cally challenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alco-
hol or drugs that induce sleep
(sleeping drugs, cold remedies,
etc.)
NOTICE
■To prevent damage to the
seat heaters
Do not put heavy objects that
have an uneven surface on the
seat and do not stick sharp
objects (needles, nails, etc.) into
the seat.
■To prevent 12-volt battery dis-
charge
Do not use the functions when the
hybrid system is off.

3666-1. Using the air conditioning system and defogger
COROLLA HV_U
■Heated steering wheel
Turns heated steering wheel
on/off
When the heated steering wheel is
on, the indicator illuminates on the
heated steering wheel switch.
■Seat heaters
Front
Turns seat heaters on/off
1 High temperature
2 Low temperature
When the seat hea ter is on, the
indicator illumina tes on the seat
heater switch.
When not in use, put the switch in
the neutral position. The indicator
will turn off.
Rear
Turns seat heaters on/off
When the seat heater is on, the
indicator illuminates on the seat
heater switch.
■The heated steering wheel and
seat heaters can be used when
The power switch is in ON.

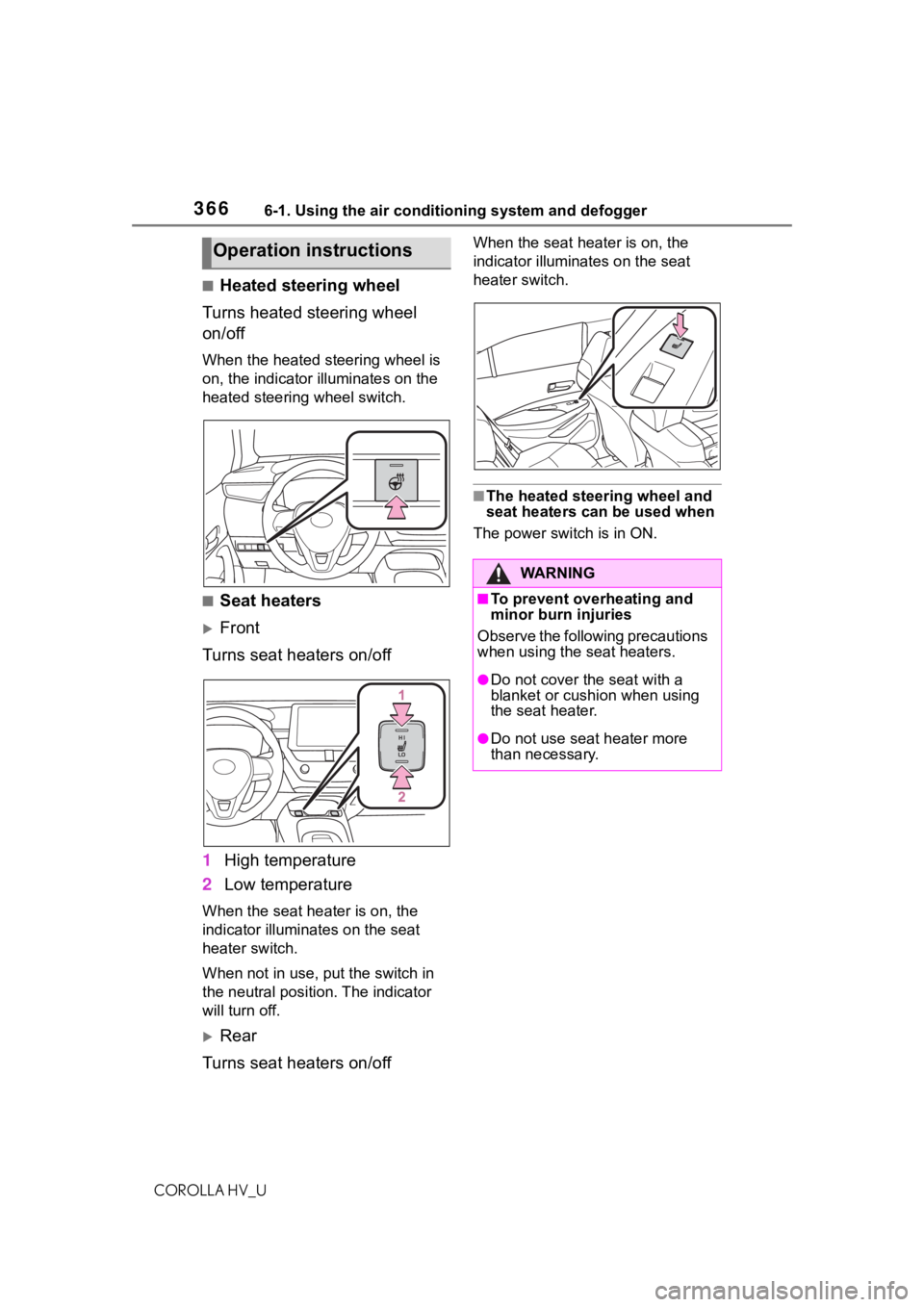

Operation instructions
WA R N I N G
■To prevent overheating and
minor burn injuries
Observe the following precautions
when using the seat heaters.
●Do not cover the seat with a
blanket or cushion when using
the seat heater.
●Do not use seat heater more
than necessary.

3676-2. Using the interior lights
COROLLA HV_U
6
Interior features
6-2.Using the interior lights
Rear interior light ( P.368)
Door trim lights (if equipped)
Front interior/personal lights ( P.367)
Center tray light (if equipped)
Cup holder lights (if equipped)
■Front
1Turns the door position on/off
When a door is opened while the
door position is on, the lights turn
on.

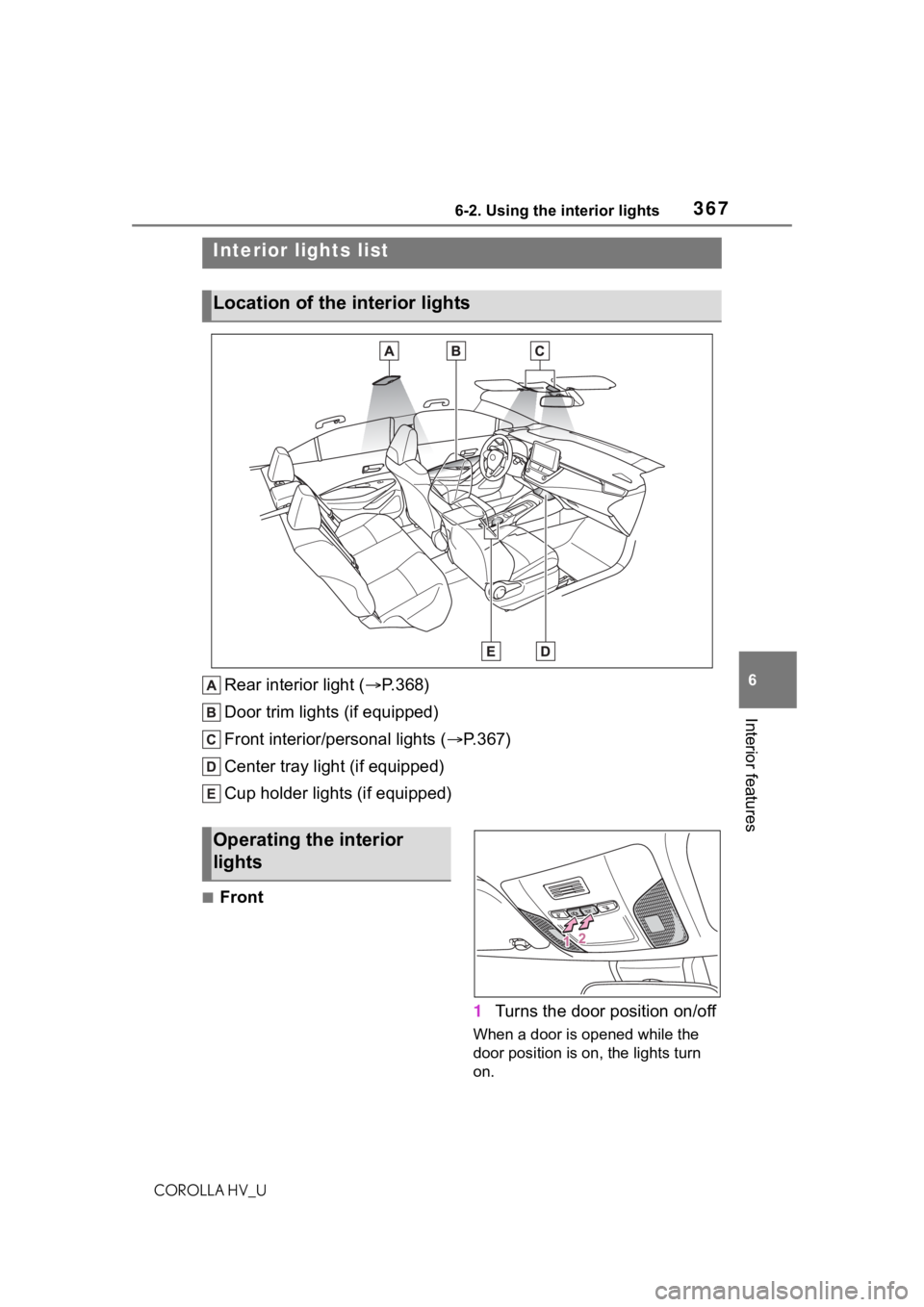

Interior lights list
Location of the i nterior lights

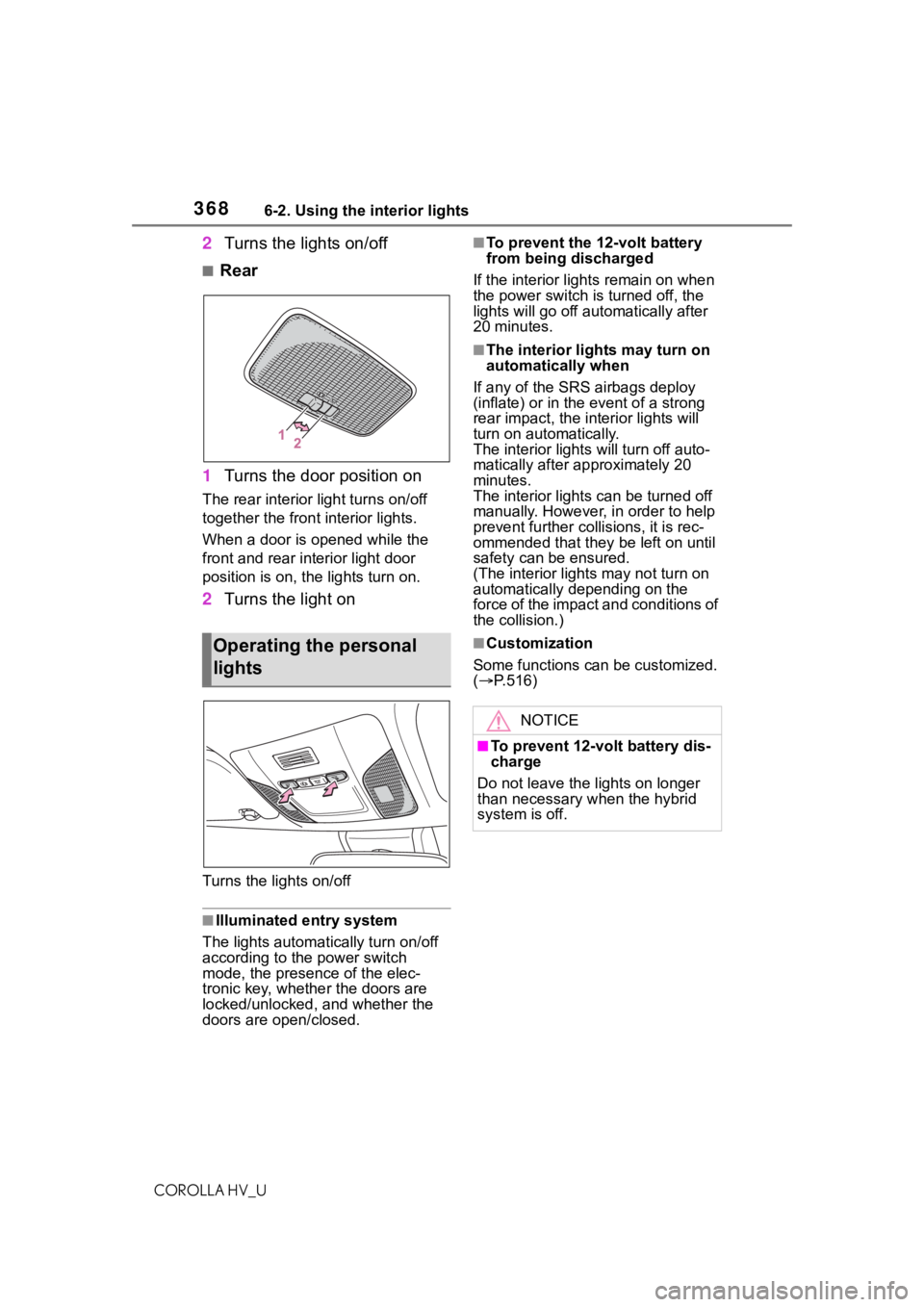

Operating the interior
lights

3686-2. Using the interior lights
COROLLA HV_U
2Turns the lights on/off
■Rear
1 Turns the door position on
The rear interior light turns on/off
together the front interior lights.
When a door is opened while the
front and rear interior light door
position is on, the lights turn on.
2Turns the light on
Turns the lights on/off
■Illuminated entry system
The lights automatically turn on/off
according to the power switch
mode, the presence of the elec-
tronic key, whether the doors are
locked/unlocked, and whether the
doors are open/closed.
■To prevent the 12-volt battery
from being discharged
If the interior light s remain on when
the power switch is turned off, the
lights will go off aut omatically after
20 minutes.
■The interior li ghts may turn on
automatically when
If any of the SRS airbags deploy
(inflate) or in the event of a strong
rear impact, the in terior lights will
turn on automatically.
The interior light s will turn off auto-
matically after approximately 20
minutes.
The interior lights can be turned off
manually. However, in order to help
prevent further co llisions, it is rec-
ommended that they be left on until
safety can be ensured.
(The interior lights may not turn on
automatically depending on the
force of the impact and conditions of
the collision.)
■Customization
Some functions can be customized.
(  P.516)Operating the personal
lights
NOTICE
■To prevent 12-volt battery dis-
charge
Do not leave the lights on longer
than necessary when the hybrid
system is off.

3696-3. Using the storage features
COROLLA HV_U
6
Interior features
6-3.Using the storage features
Bottle holders/door pockets ( P.370)
Open trays (if equipped) ( P.371)
Glove box ( P.370)
Cup holders ( P.370)
Console box ( P.371)

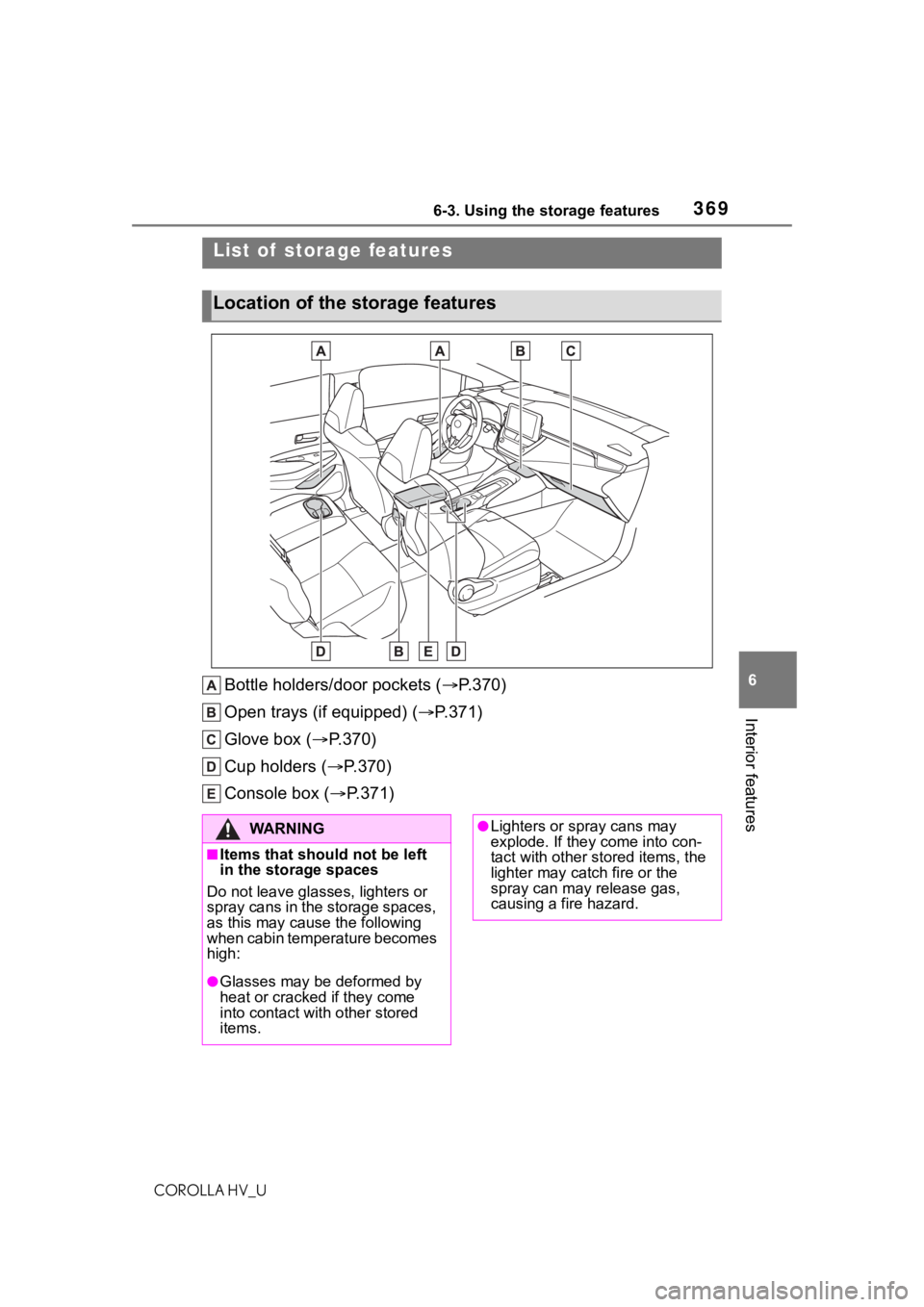

List of storage features
Location of the storage features
WA R N I N G
■Items that should not be left
in the storage spaces
Do not leave glasses, lighters or
spray cans in the storage spaces,
as this may cau se the following
when cabin temperature becomes
high:
●Glasses may be deformed by
heat or cracked if they come
into contact with other stored
items.
●Lighters or spray cans may
explode. If they come into con-
tact with other stored items, the
lighter may catch fire or the
spray can may release gas,
causing a fire hazard.

3706-3. Using the storage features
COROLLA HV_U
Pull up the lever to open the
glove box.
Front
Rear
Pull the armrest down.
Front
Rear
Glove box
WA R N I N G
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sud-
den swerving, an accident may
occur due to an occupant being
struck by the open glove box or
the items stored inside.
Cup holders
WA R N I N G
■Items unsuitable for the cup
holder
Do not place anyth ing other than
cups or beverage cans in the cup
holders.
Other items may be thrown out of
the holders in the event of an
accident or sudden braking and
cause injury. If possible, cover hot
drinks to pre vent burns.
Bottle holders
