TOYOTA GT86 2017 Owners Manual (in English)

261
2-5. Driving information
2
When driving
86_EE (OM18071E)
Selecting tire chains
We recommend that you consult any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for infor-
mation about the chains that you can use.
Regulations on the use of tire chainsRegulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before installing
chains.
■ Tire chains
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
● Install tire chains on the rear tires. Do not install tire chains on front tires.
● Install tire chains on rear tires as tightly as possible. Retighten chains
after driving approximately 100 m (328 ft.).
● Install tire chains following the instructions provided with the tire chains.
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size, and that are the same size, same maker,
same brand and tread pattern.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.

262
2-5. Driving information
86_EE (OM18071E)
WARNING
■
Driving with tire chains
●Vehicles with an emergency tire puncture repair kit: When any of the tires
are punctured, you can seal the tire temporarily. However, do not use the
tire chain on a sealed tire. If any of the rear tires are punctured although it
is required to use tire chains, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
• Do not drive in excess of the speed limit specified for the tire chains being used, or 30 km/h (19 mph), whichever is lower.
• Avoid driving on bumpy road surfaces or over potholes.
• Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations that cause sudden engine braking.
• Slow down sufficiently before entering a curve to ensure that vehicle con- trol is maintained.
Always use the utmost care when driving with tire chains - overconfidence
because you are driving with tire chains could easily lead to a serious acci-
dent.
NOTICE
■ Using the tire chains
Use only chains that are of the correct size for your tires so as not to damage
the vehicle body or suspension.
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

263
2-5. Driving information
2
When driving
86_EE (OM18071E)

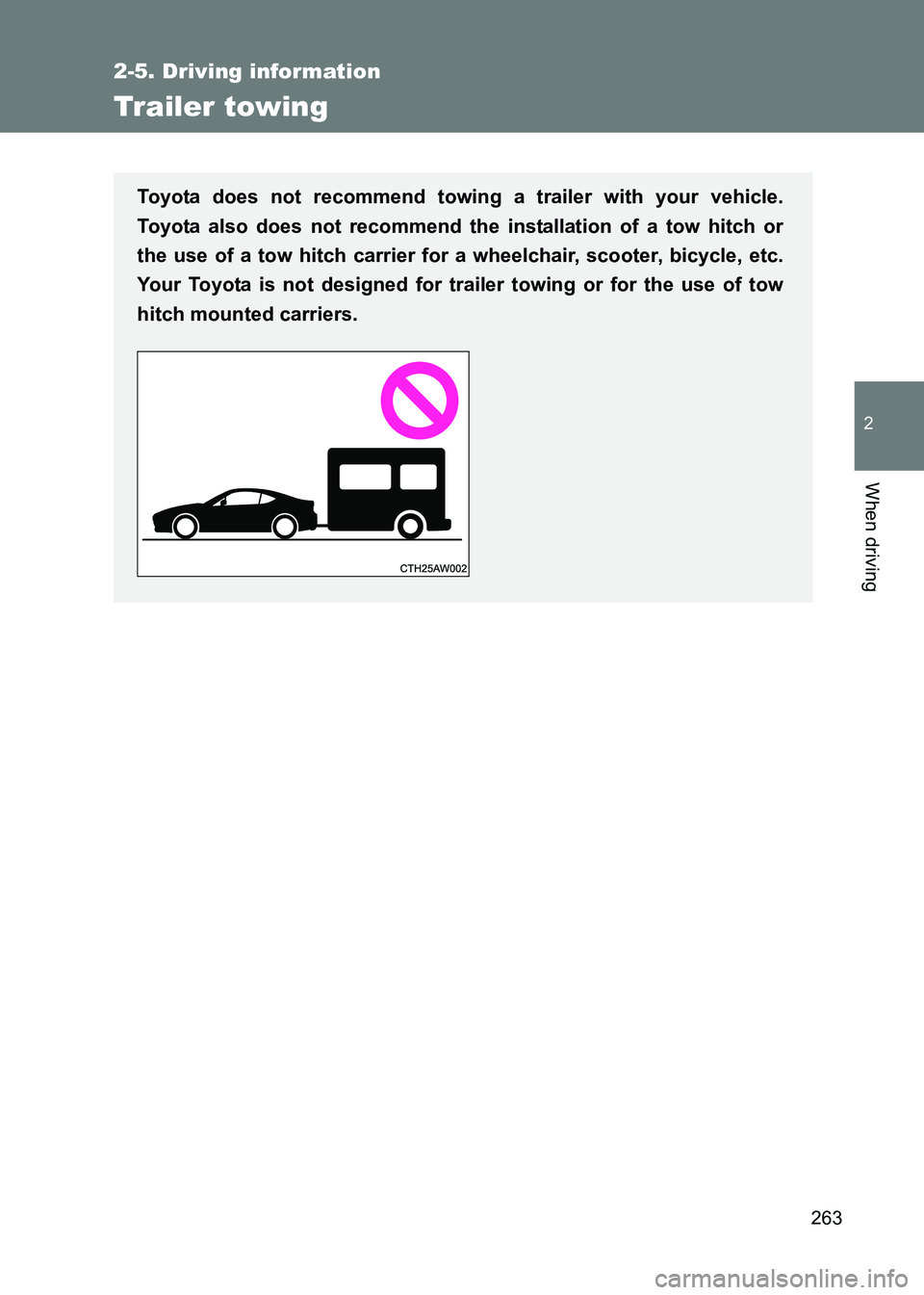

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.

264
2-5. Driving information
86_EE (OM18071E)

3Interior features
265
86_EE (OM18071E)
3-1. Using the air conditioning system and defogger
Manual air conditioning system ............................ 266
Automatic air conditioning system ............................ 274
Rear window and outside rear view mirror
defoggers ....................... 282
3-2. Using the audio system Using the AUX/USB port ................................. 284
Steering wheel audio switches .......................... 285
3-3. Using the interior lights Interior lights list................ 286
• Interior light ...................... 287 3-4. Using the storage
features
List of storage features ..... 288
• Glove box ........................ 289
• Bottle holders................... 290
• Cup holders/console tray................................... 291
3-5. Other interior features Sun visors ......................... 293
Vanity mirrors.................... 294
Clock ................................. 295
Ashtray.............................. 296
Power outlets .................... 297
Seat heaters ..................... 299
Floor mat........................... 301
Trunk features................... 304

266
86_EE (OM18071E)
3-1. Using the air conditioning system and defogger
Manual air conditioning system∗
Adjusting the settingsTo adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
Vehicles without the button: Turn the temperature con-
trol dial clockwise to increase the temperature.
∗: If equipped
Fan speed control dial
Air outlet selection dial
Air conditioning on/off button
(if equipped)Temperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2

267
3-1. Using the air conditioning system and defogger
3
Interior features
86_EE (OM18071E)
Vehicles with the button: To adjust the temperature
setting, turn the temperature control dial clockwise (warm) or
counterclockwise (cool).
is not pressed, the system wi
ll blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
STEP 2
STEP 3

268
3-1. Using the air conditioning system and defogger
86_EE (OM18071E)
Defogging the windshield
Set the air outlet selection dial to position.
If the recirculated air mode is
used, it will automatically switch
to the outside air mode.
Perform the following operations accordingly:
●To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● Vehicles with the button: If the dehumidification func-
tion is not operating, press to operate the dehumidifi-
cation function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.
STEP 1
STEP 2

269
3-1. Using the air conditioning system and defogger
3
Interior features
86_EE (OM18071E)
■

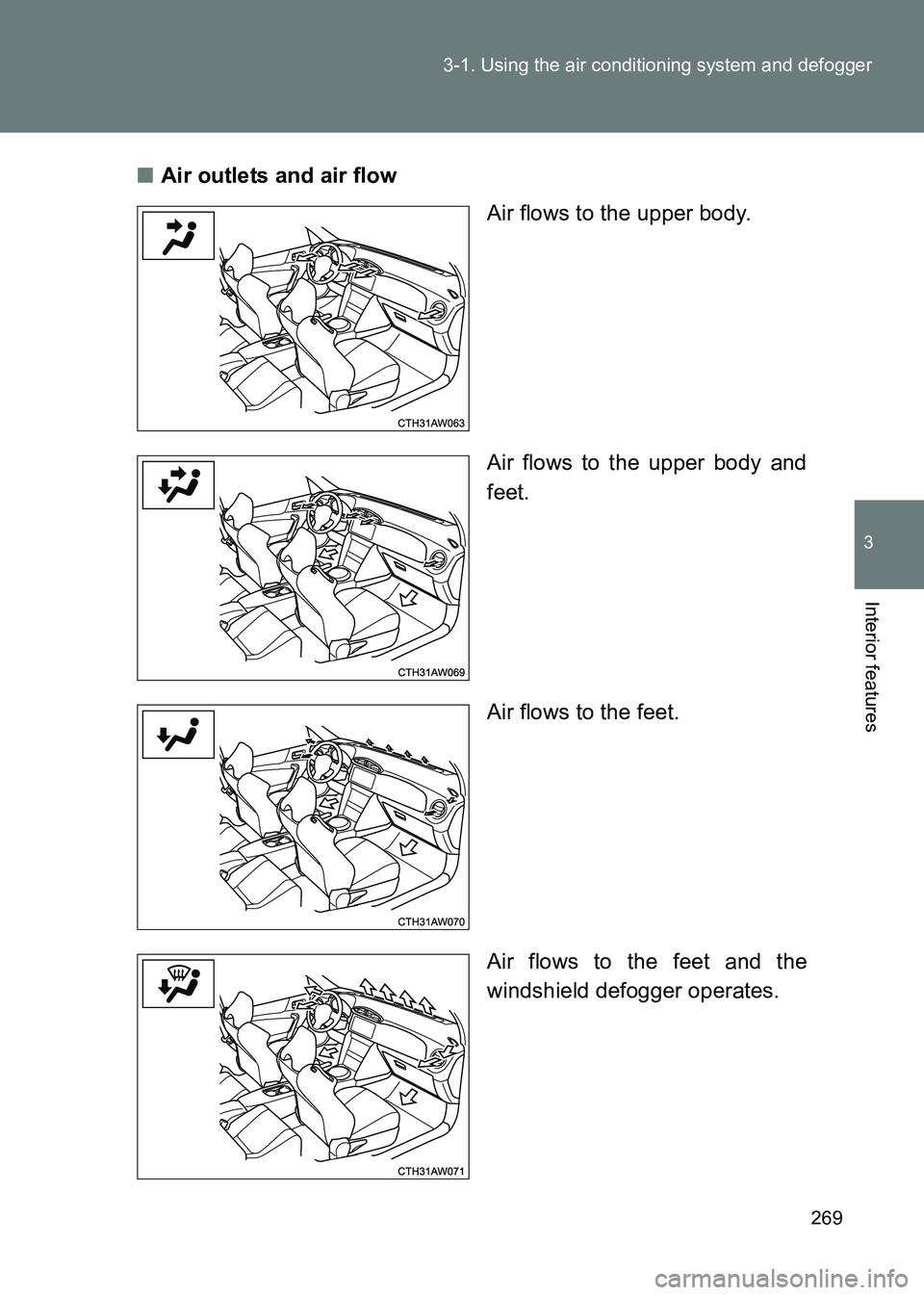

Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.

270
3-1. Using the air conditioning system and defogger
86_EE (OM18071E)

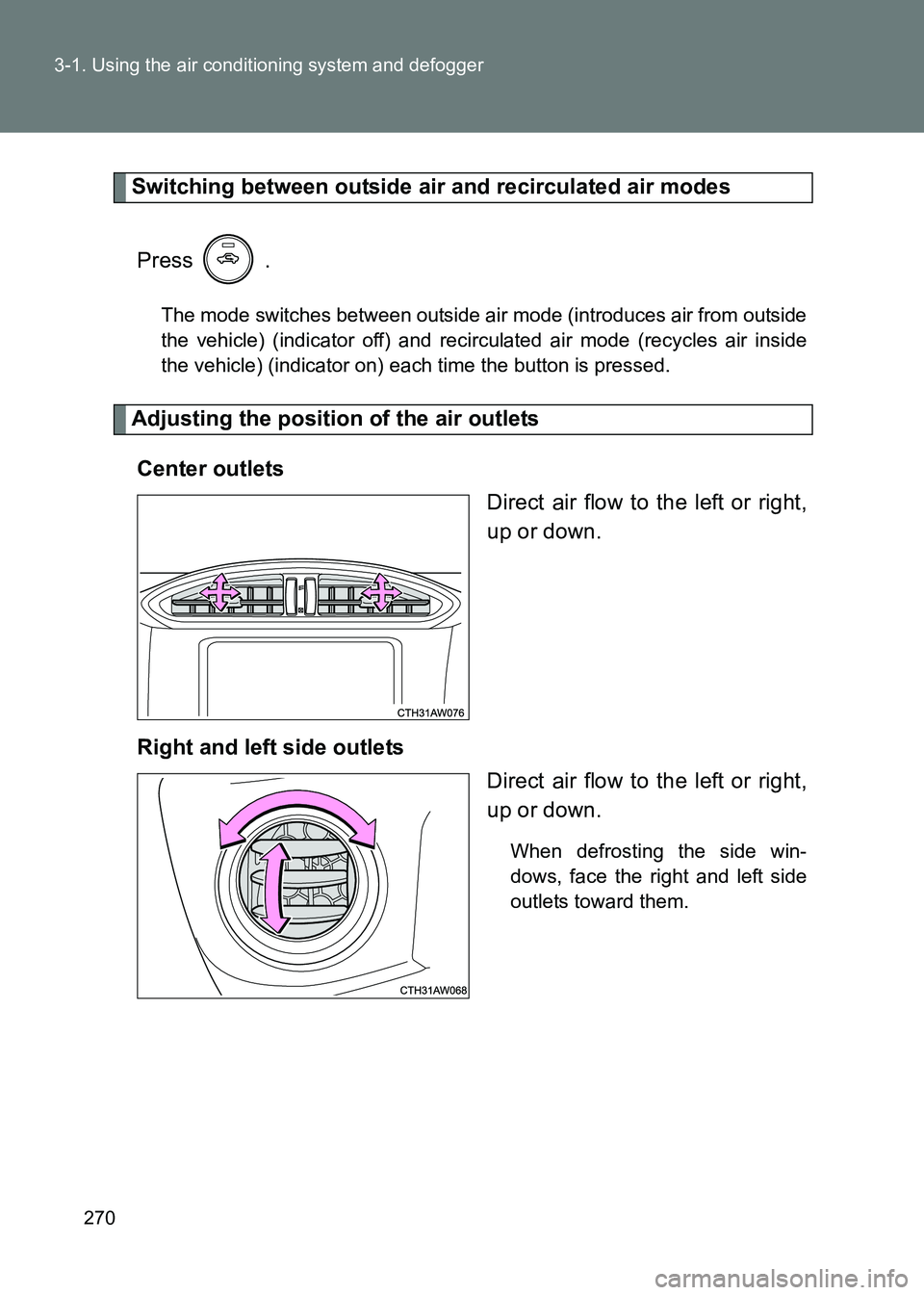

Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from outside
the vehicle) (indicator off) and reci rculated air mode (recycles air inside
the vehicle) (indicator on) each time the button is pressed.
Adjusting the position of the air outlets
Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or right,
up or down.
When defrosting the side win-
dows, face the right and left side
outlets toward them.
