'05 HIGHLANDER_U (L/O 0409)
301
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

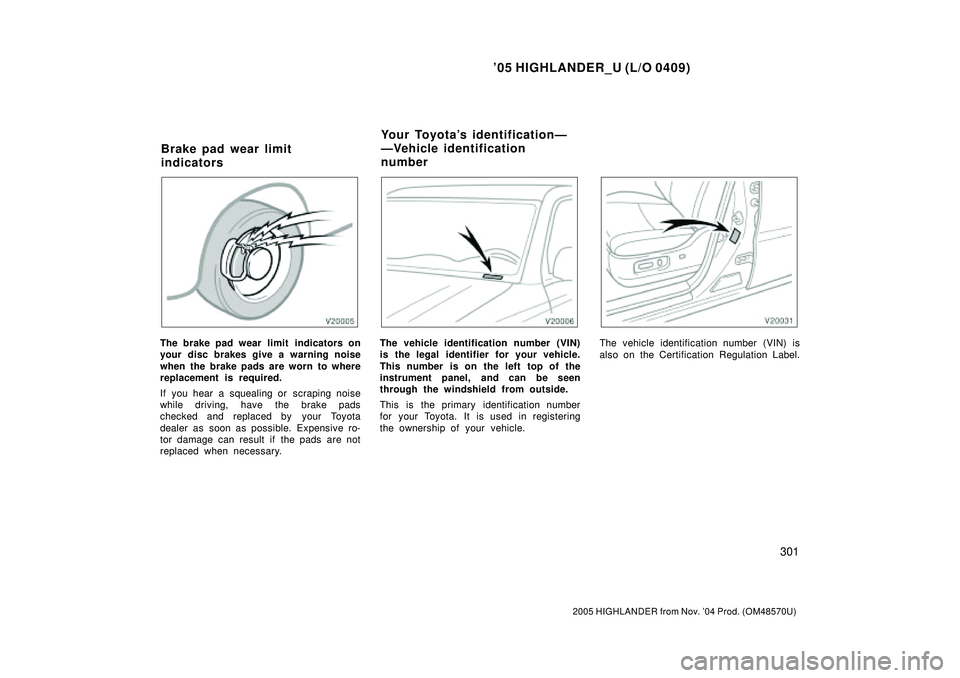

The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement is required.
If you hear a squealing or scraping noise
while driving, have the brake pads
checked and replaced by your Toyota
dealer as soon as possible. Expensive ro-
tor damage can result if the pads are not
replaced when necessary.The vehicle identification number (VIN)
is the legal identifier for your vehicle.
This number is on the left top of the
instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your Toyota. It is used in registering
the ownership of your vehicle.The vehicle identification number (VIN) is
also on the Certification Regulation Label.
Brake pad wear limit
indicatorsYour Toyota's identificationÐ
ÐVehicle identification
number
Page 32 of 2572

'05 HIGHLANDER_U (L/O 0409)
302
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

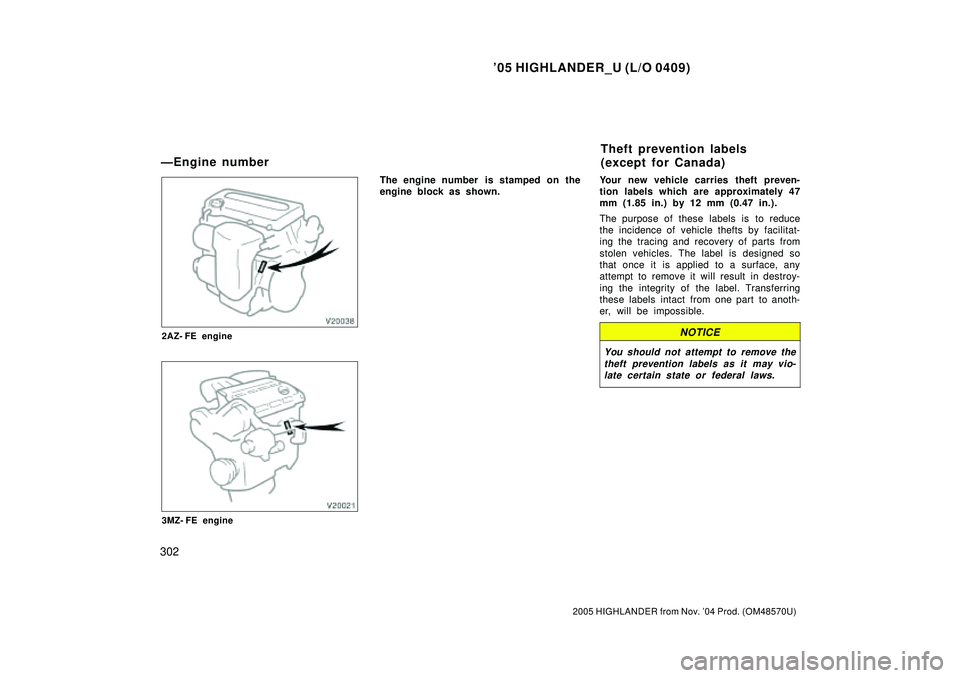

2AZ- FE engine
3MZ- FE engine
The engine number is stamped on the
engine block as shown.Your new vehicle carries theft preven-
tion labels which are approximately 47
mm (1.85 in.) by 12 mm (0.47 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that once it is applied to a surface, any
attempt to remove it will result in destroy-
ing the integrity of the label. Transferring
these labels intact from one part to anoth-
er, will be impossible.
NOTICE
You should not attempt to remove the
theft prevention labels as it may vio-
late certain state or federal laws.
ÐEngine numberTheft prevention labels
(except for Canada)
Page 33 of 2572

'05 HIGHLANDER_U (L/O 0409)
303
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

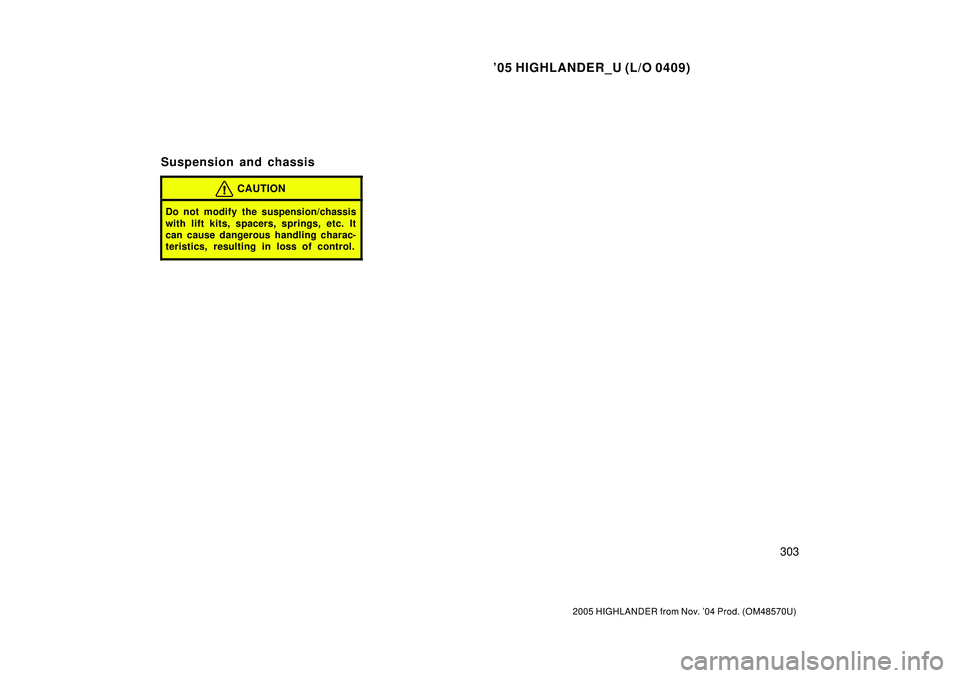

CAUTION
Do not modify the suspension/chassis
with lift kits, spacers, springs, etc. It
can cause dangerous handling charac-
teristics, resulting in loss of control.
Suspension and chassis
Page 34 of 2572

'05 HIGHLANDER_U (L/O 0409)
304
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

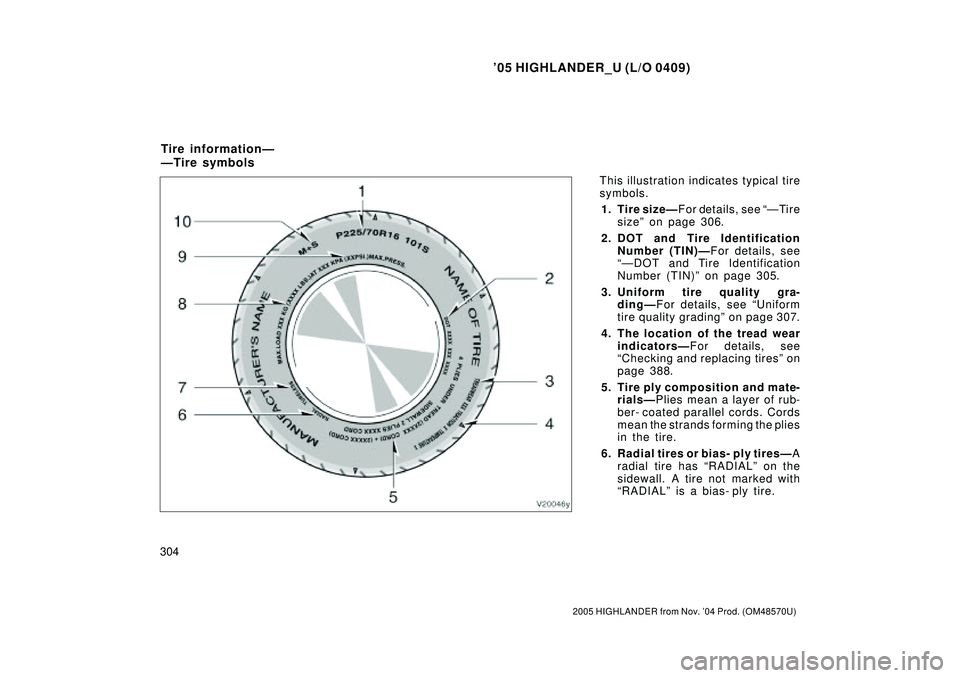

This illustration indicates typical tire
symbols.
1. Tire sizeÐF or det ails, see Ð Ti re
sizeº on page 306.
2. DOT and Tire Identification
Number (TIN)ÐFor details, see
ÐDOT and Tire Identification
Number (TIN)º on page 305.
3. Uniform tire quality gra-
dingÐFor details, see Uniform
tire quality gradingº on page 307.
4. The location of the tread wear
indicatorsÐFor details, see
Checking and replacing tiresº on
page 388.
5. Ti re pl y co mp o si t i o n an d mat e-
rialsÐPlies mean a layer of rub-
ber- coated parallel cords. Cords
mean the strands forming the plies
in the tire.
6. Radial tires or bias- ply tiresÐA
radial tire has RADIALº on the
sidewall. A tire not marked with
RADIALº is a bias- ply tire.
Tire informationÐ
ÐTire symbols
Page 35 of 2572

'05 HIGHLANDER_U (L/O 0409)
305
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
7. TUBELESSº or TUBE
TYPEºÐA tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
8. Load limit at maximum cold tire
inflation pressureÐFor details,
see Checking and replacing tiresº
on page 388.
9. Maximum cold tire inflation
pressureÐThis means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see Tiresº on page 410.
10.Summer tire or all season
tireÐAn all season tire has M+Sº
on the sidewall. The tire not
marked with M+Sº is a summer
tire. For details, see Types of
tiresº on page 315.

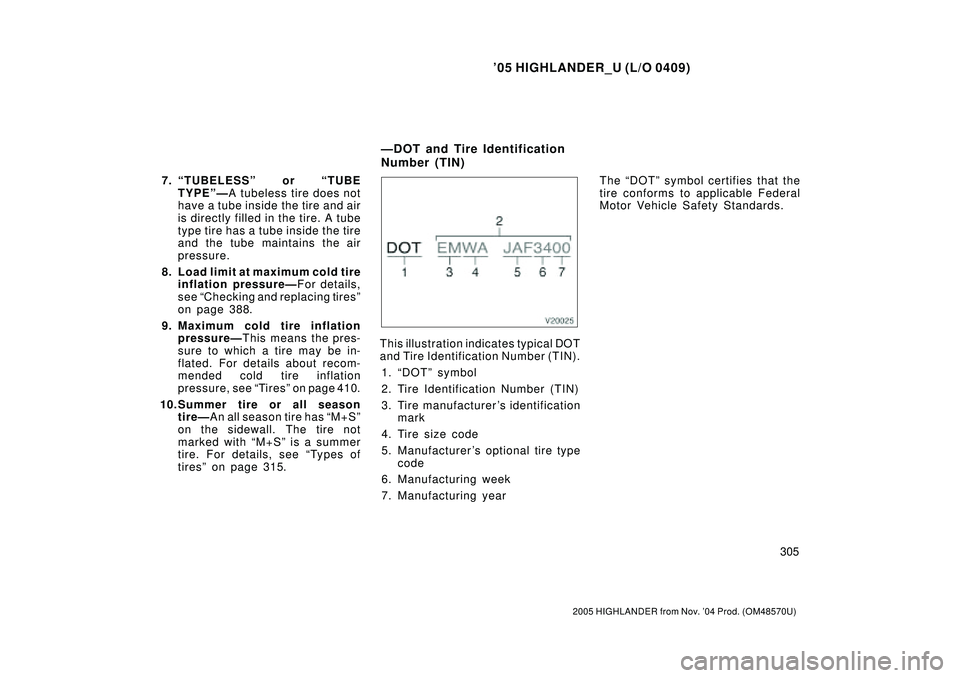

This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. DOTº symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer 's identification
mark
4. Tire size code
5. Manufacturer 's optional tire type
code
6. Manufacturing week
7. Manufacturing yearThe DOTº symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
ÐDOT and Tire Identification
Number (TIN)
Page 36 of 2572

'05 HIGHLANDER_U (L/O 0409)
306
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

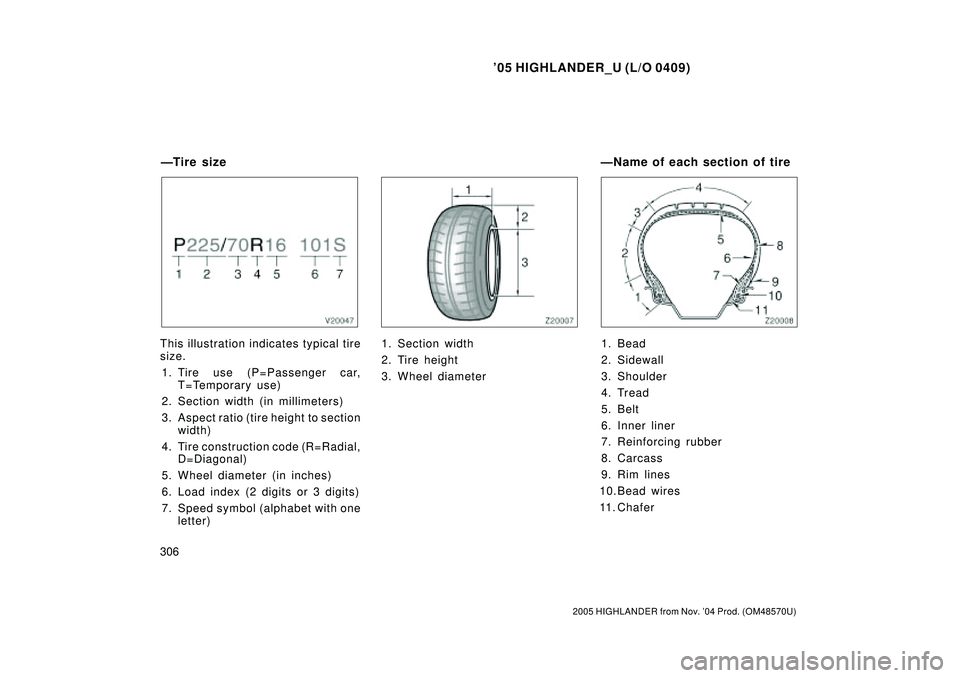

This illustration indicates typical tire
size.
1. Tire use (P=Passenger car,
T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section
width)
4. Tire construction code (R=Radial,
D=Diagonal)
5. Wheel diameter (in inches)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one
letter)1. Section width
2. Tire height
3. Wheel diameter1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10.Bead wires
11. Chafer
ÐTire size ÐName of each section of tire
Page 37 of 2572

'05 HIGHLANDER_U (L/O 0409)
307
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

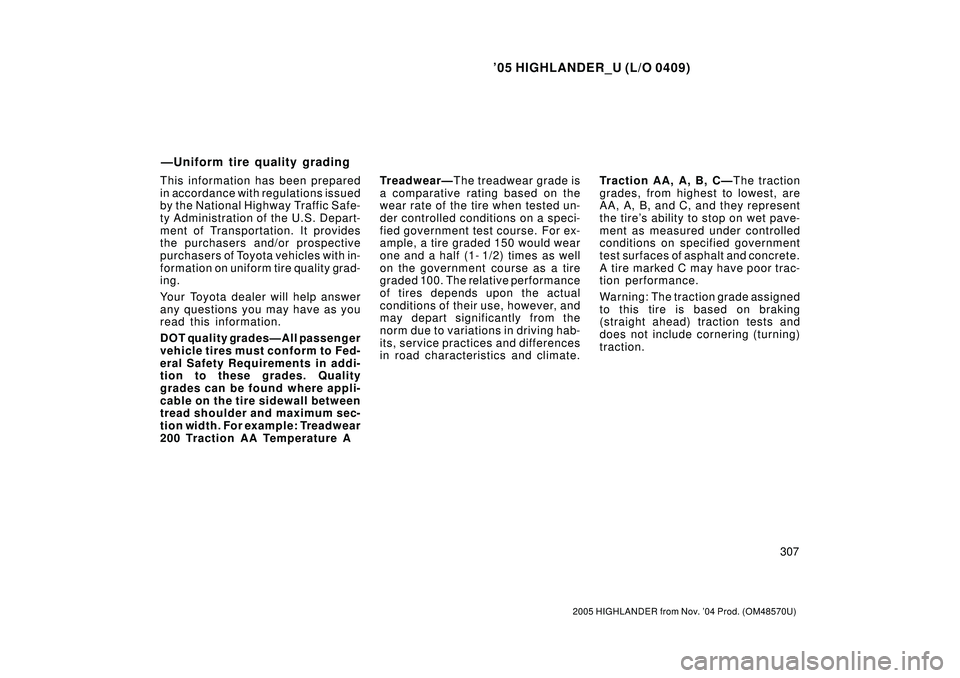

This information has been prepared
in accordance with regulations issued
by the National Highway Traffic Safe-
ty Administration of the U.S. Depart-
ment of Transportation. It provides
the purchasers and/or prospective
purchasers of Toyota vehicles with in-
formation on uniform tire quality grad-
ing.
Your Toyota dealer will help answer
any questions you may have as you
read this information.
DOT quality gradesÐAll passenger
vehicle tires must conform to Fed-
eral Safety Requirements in addi-
tion to these grades. Quality
grades can be found where appli-
cable on the tire sidewall between
tread shoulder and maximum sec-
tion width. For example: Treadwear
200 Traction AA Temperature ATreadwearÐThe treadwear grade is
a comparative rating based on the
wear rate of the tire when tested un-
der controlled conditions on a speci-
fied government test course. For ex-
ample, a tire graded 150 would wear
one and a half (1- 1/2) times as well
on the government course as a tire
graded 100. The relative performance
of tires depends upon the actual
conditions of their use, however, and
may depart significantly from the
norm due to variations in driving hab-
its, service practices and differences
in road characteristics and climate.Traction AA, A, B, CÐThe traction
grades, from highest to lowest, are
AA, A, B, and C, and they represent
the tire's ability to stop on wet pave-
ment as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor trac-
tion performance.
Warning: The traction grade assigned
to this tire is based on braking
(straight ahead) traction tests and
does not include cornering (turning)
traction.
ÐUniform tire quality grading
Page 38 of 2572

'05 HIGHLANDER_U (L/O 0409)
308
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

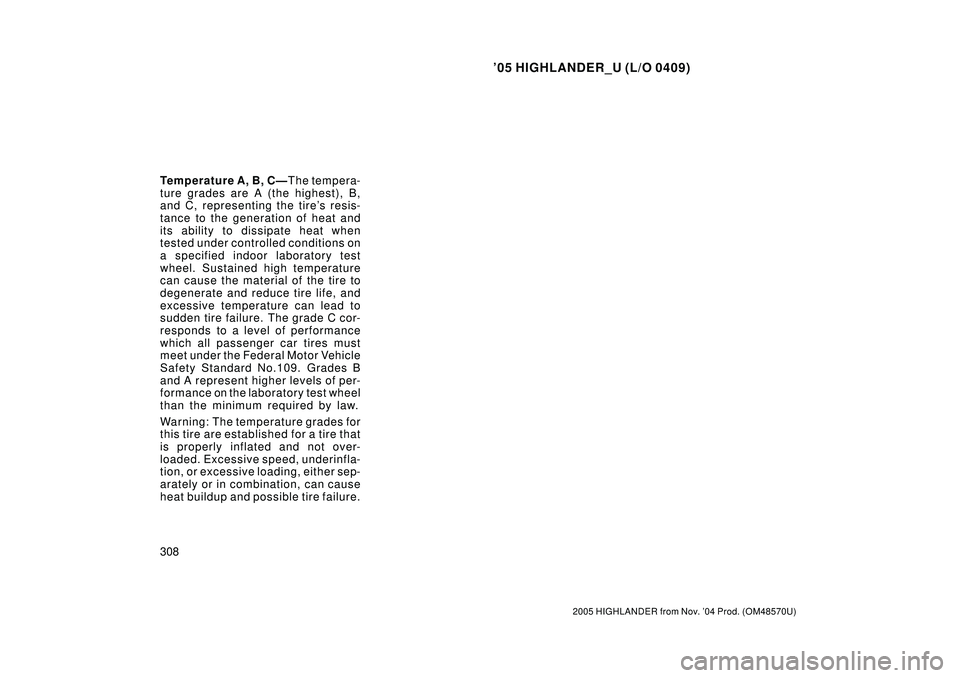

Temperature A, B, CÐT he tem per a-
ture grades are A (the highest), B,
and C, representing the tire's resis-
tance to the generation of heat and
its ability to dissipate heat when
tested under controlled conditions on
a specified indoor laboratory test
wheel. Sustained high temperature
can cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C cor-
responds to a level of performance
which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No.109. Grades B
and A represent higher levels of per-
formance on the laboratory test wheel
than the minimum required by law.
Warning: The temperature grades for
this tire are established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either sep-
arately or in combination, can cause
heat buildup and possible tire failure.
Page 39 of 2572

'05 HIGHLANDER_U (L/O 0409)
309
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

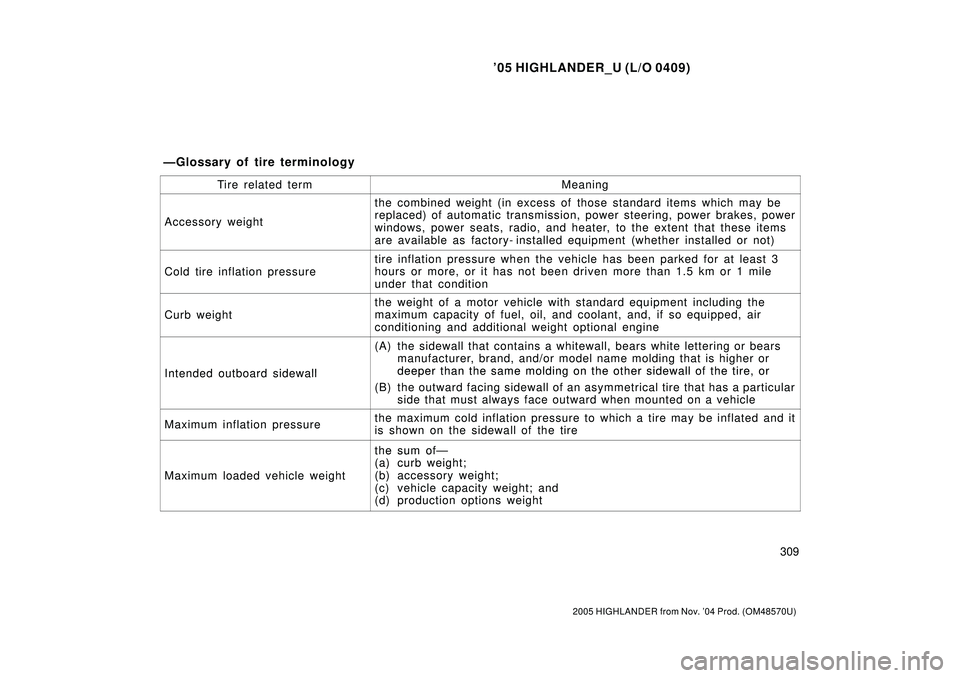

Ti r e relat ed ter mMeaning
Accessory weight
the combined weight (in excess of those standard items which may be
replaced) of automatic transmission, power steering, power brakes, power
windows, power seats, radio, and heater, to the extent that these items
are available as factory- installed equipment (whether installed or not)
Cold tire inflation pressure
tire inflation pressure when the vehicle has been parked for at least 3
hours or more, or it has not been driven more than 1.5 km or 1 mile
under that condition
Curb weight
the weight of a motor vehicle with standard equipment including the
maximum capacity of fuel, oil, and coolant, and, if so equipped, air
conditioning and additional weight optional engine
Intended outboard sidewall
(A) the sidewall that contains a whitewall, bears white lettering or bears
manufacturer, brand, and/or model name molding that is higher or
deeper than the same molding on the other sidewall of the tire orIntended outboard sidewalldeeper than the same molding on the other sidewall of the tire, or
(B) the outward facing sidewall of an asymmetrical tire that has a particular
side that must always face outward when mounted on a vehicle
Maximum inflation pressurethe maximum cold inflation pressure to which a tire may be inflated and it
is shown on the sidewall of the tire
the sum ofÐthe sum ofÐ
(a)curb weight;
Maximum loaded vehicle weight
(a) curb weight
(b) accessory weight;Maximum loaded vehicle weight(b) accessory weight
(c) vehicle capacity weight; and
(d) d ti ti i ht
() y g
(d) production options weight
ÐGlossary of tire terminology
Page 40 of 2572

'05 HIGHLANDER_U (L/O 0409)
310
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Ti r e relat ed ter mMeaning
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second
column of Table 1 that follows
Occupant distributiondistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
Production options weight
the combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace,
not previously considered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special
trim
Recommended inflation pressurecold tire inflation pressure recommended by a manufacturer
Rima metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer 's designation for a rim by style or code
Rim widthnominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle's desig-
nated seating capacity
Vehicle maximum load on the tirethe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two
