Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS

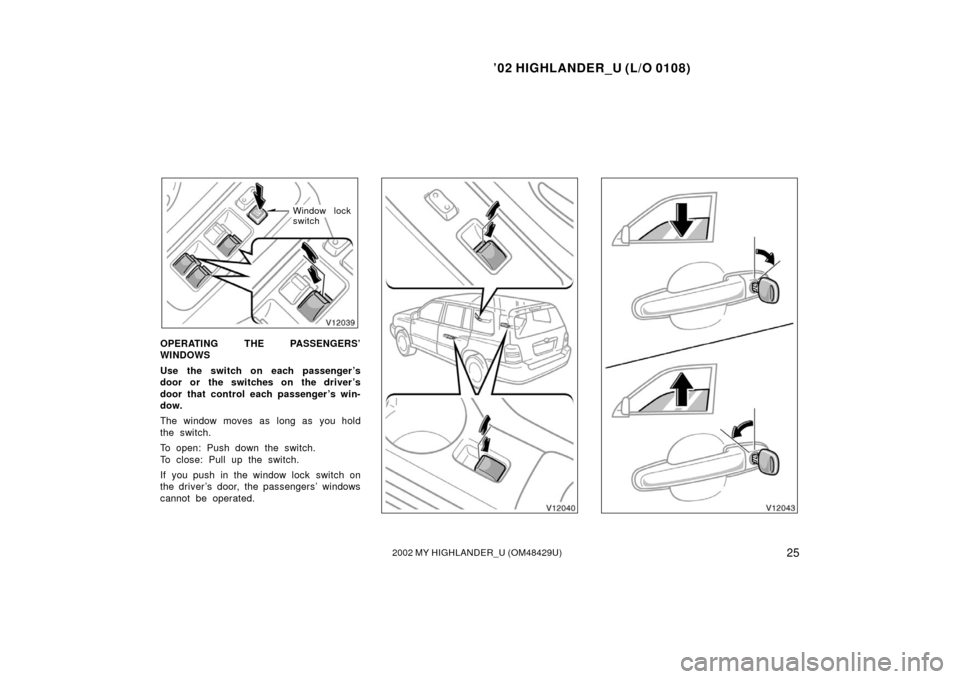

Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Page 32 of 298
’02 HIGHLANDER_U (L/O 0108)
262002 MY HIGHLANDER_U (OM48429U)
OPERATING THE DRIVER’S WINDOW
FROM OUTSIDE THE VEHICLE
The driver ’s window can be operated
with the key inserted in the driver’s
door keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This feature can be disabled. For details,
contact your Toyota dealer.CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.

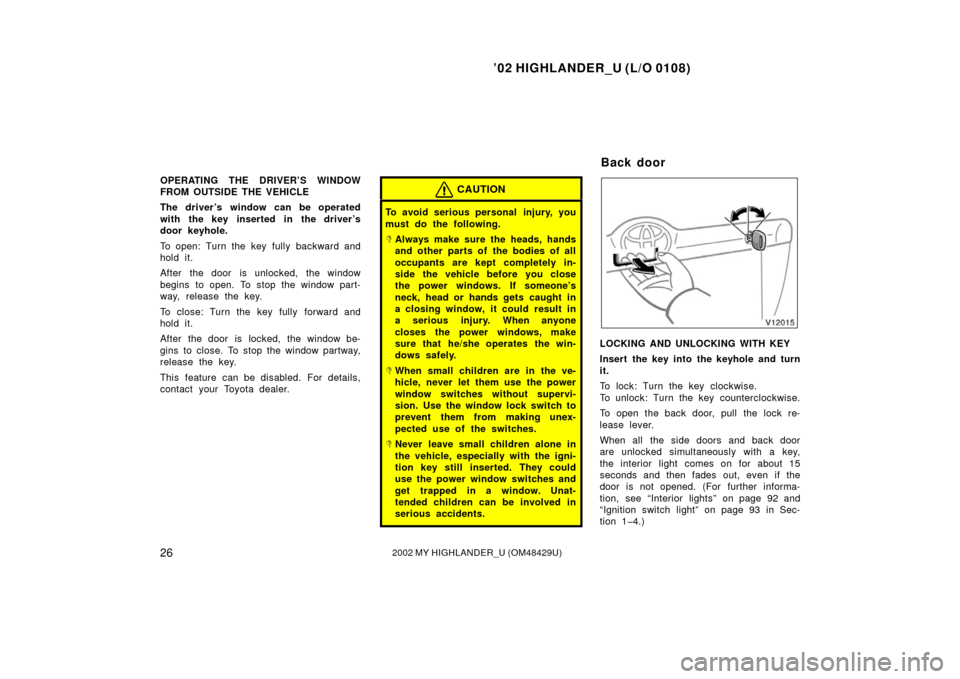

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
When all the side doors and back door
are unlocked simultaneously with a key,
the interior light comes on for about 15
seconds and then fades out, even if the
door is not opened. (For further informa-
tion, see “Interior lights” on page 92 and
“Ignition switch light” on page 93 in Sec-
tion 1 4.)
Back door
Page 33 of 298
’02 HIGHLANDER_U (L/O 0108)
272002 MY HIGHLANDER_U (OM48429U)
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door
(see “Side doors” on page 16 in this sec-
tion).
When closing the back door, make sure
it is fully closed.
See “Luggage stowage precautions” on
page 191 in Section 2 for precautions to
observe in loading luggage.

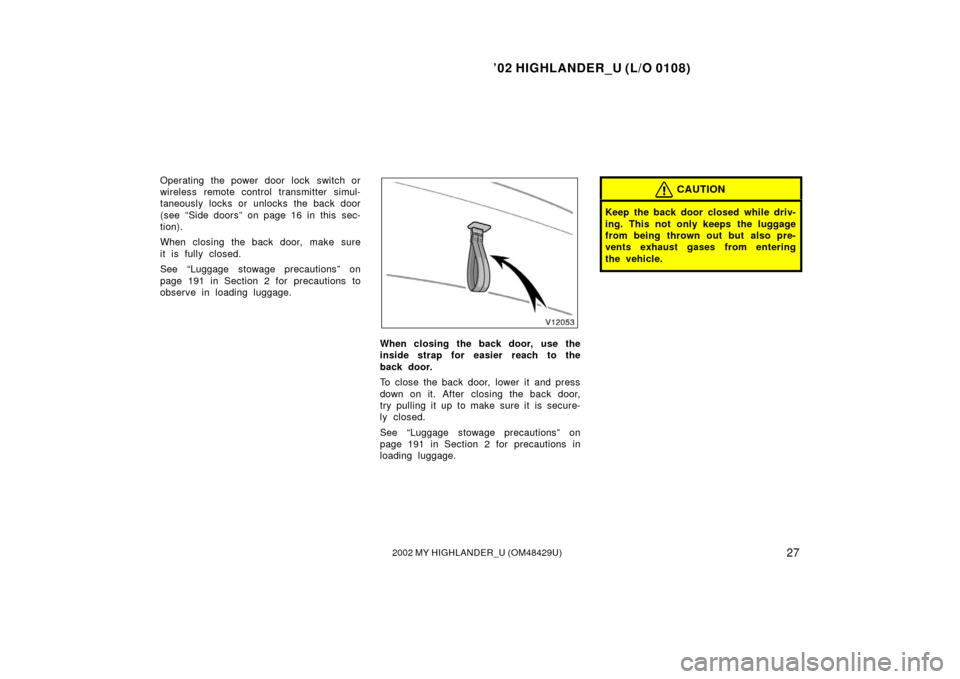

When closing the back door, use the
inside strap for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Luggage stowage precautions” on
page 191 in Section 2 for precautions in
loading luggage.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Page 34 of 298
’02 HIGHLANDER_U (L/O 0108)
282002 MY HIGHLANDER_U (OM48429U)

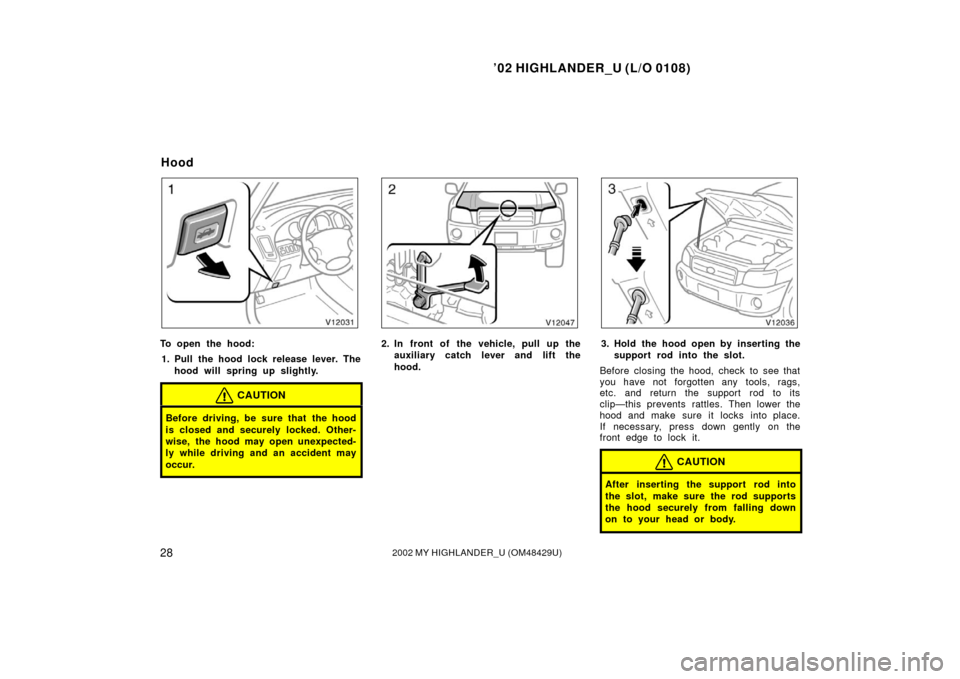

To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Hood
Page 35 of 298
’02 HIGHLANDER_U (L/O 0108)
292002 MY HIGHLANDER_U (OM48429U)
To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or the battery termi-
nal is disconnected and then recon-
nected when the system is set.
The alarm blows the horn intermittently
and flashes the headlights, tail lights, turn
signal lights and interior lights. If any of
the side doors and back door is unlocked
forcibly, all the side doors and back door
will be automatically locked.SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
on page 15 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:If any of the side doors and back door
is unlocked or the hood is forcibly
opened without the key or wireless re-
mote control transmitter.
If the battery terminal is disconnected
and then reconnected.
Hotwire the ignition.
The indicator light will come on when the
system is activating.
If any of the side doors and back door is
unlocked without the key or wireless re-
mote control transmitter, all the side doors
and back door will be automatically locked
again.
Theft deterrent system
Page 36 of 298
’02 HIGHLANDER_U (L/O 0108)
302002 MY HIGHLANDER_U (OM48429U)
After one minute, the alarm will automati-
cally stop and the indicator light will start
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
conditions:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 2 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light starts flash-
ing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap
Page 37 of 298
’02 HIGHLANDER_U (L/O 0108)
312002 MY HIGHLANDER_U (OM48429U)

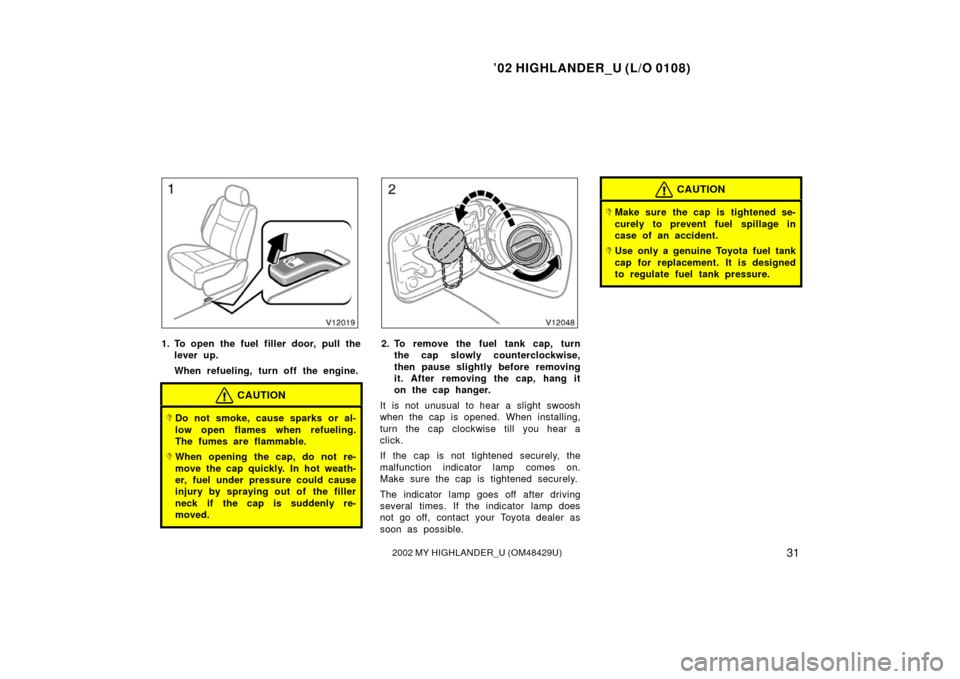

1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Page 38 of 298
’02 HIGHLANDER_U (L/O 0108)
322002 MY HIGHLANDER_U (OM48429U)
Sliding operation
Tilting operation

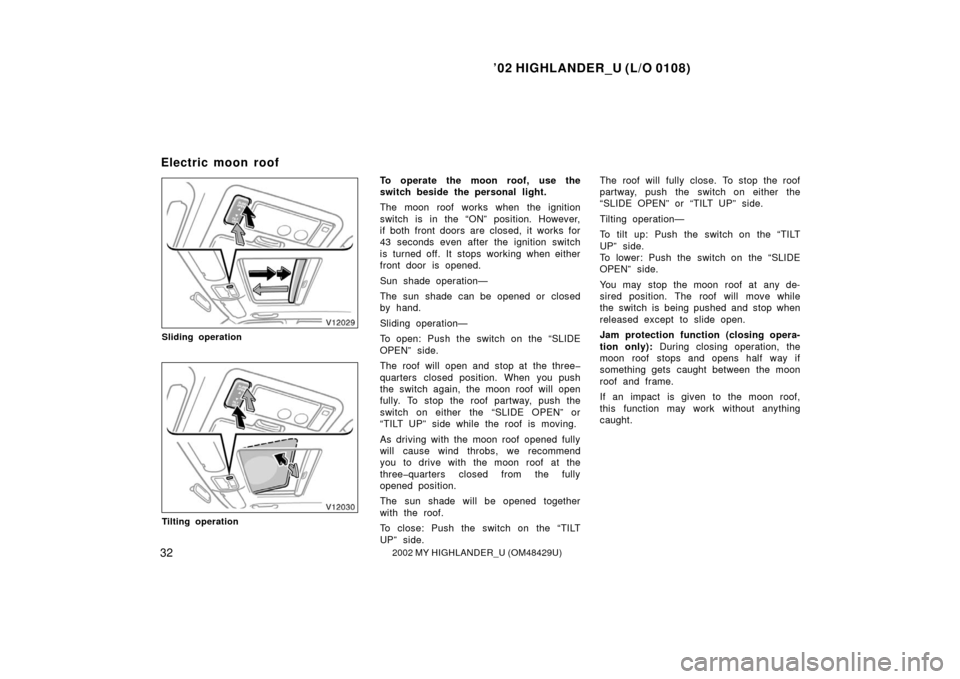

To operate the moon roof, use the
switch beside the personal light.
The moon roof works when the ignition
switch is in the “ON” position. However,
if both front doors are closed, it works for
43 seconds even after the ignition switch
is turned off. It stops working when either
front door is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will open and stop at the three
quarters closed position. When you push
the switch again, the moon roof will open
fully. To stop the roof partway, push the
switch on either the “SLIDE OPEN” or
“TILT UP” side while the roof is moving.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof at the
three quarters closed from the fully
opened position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “TILT
UP” side. The roof will fully close. To stop the roof
partway, push the switch on either the
“SLIDE OPEN” or “TILT UP” side.
Tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
To lower: Push the switch on the “SLIDE
OPEN” side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
Jam protection function (closing opera-
tion only):
During closing operation, the
moon roof stops and opens half way if
something gets caught between the moon
roof and frame.
If an impact is given to the moon roof,
this function may work without anything
caught.
Electric moon roof
Page 39 of 298
’02 HIGHLANDER_U (L/O 0108)
332002 MY HIGHLANDER_U (OM48429U)
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone close the roof, first make
sure it is safe to do so.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.
Page 40 of 298
’02 HIGHLANDER_U (L/O 0108)
342002 MY HIGHLANDER_U (OM48429U)
