TOYOTA HIGHLANDER 2008 XU40 / 2.G Owners Manual

460 4-3. Do-it-yourself maintenance
26 RADIO115 A Audio system
27 ECU-B 10 ASteering sensor, gauges and
meters, clock, air conditioning sys-
tem, main body ECU, wireless
remote control, smart key system,
power back door, on-board diagno-
sis system
28 DOME 10 AVanity lights, personal lights, inte-
rior light, gauges and meters,
engine switch light, door courtesy
lights, power back door
29 AMP 15 A Audio system
30 TOWING 30 A Trailer lights
31 IG2 25 A INJ NO.1, INJ NO.2
32 STR LOCK 20 A Steering lock system
33 EFI MAIN 25 A EFI NO.2, EFI NO.3
34 HAZ 15 A Turn signal lights
35 G/H 10 APower door lock system, multiplex
communication system
36 ALT-S 7.5 A Charging system
37 AM2 7.5 A Multiplex communication system
38 H-LP LH 15 A Left-hand headlight (high beam)
39 H-LP RH 15 A Right-hand headlight (high beam)
40 H-LP LL 15 A Left-hand headlight (low beam)
41 H-LP RL 15 A Right-hand headlight (low beam)
42 HORN 10 A Horn
43 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart key system
FuseAmpereCircuit

461
4-3. Do-it-yourself maintenance
4
Maintenance and care

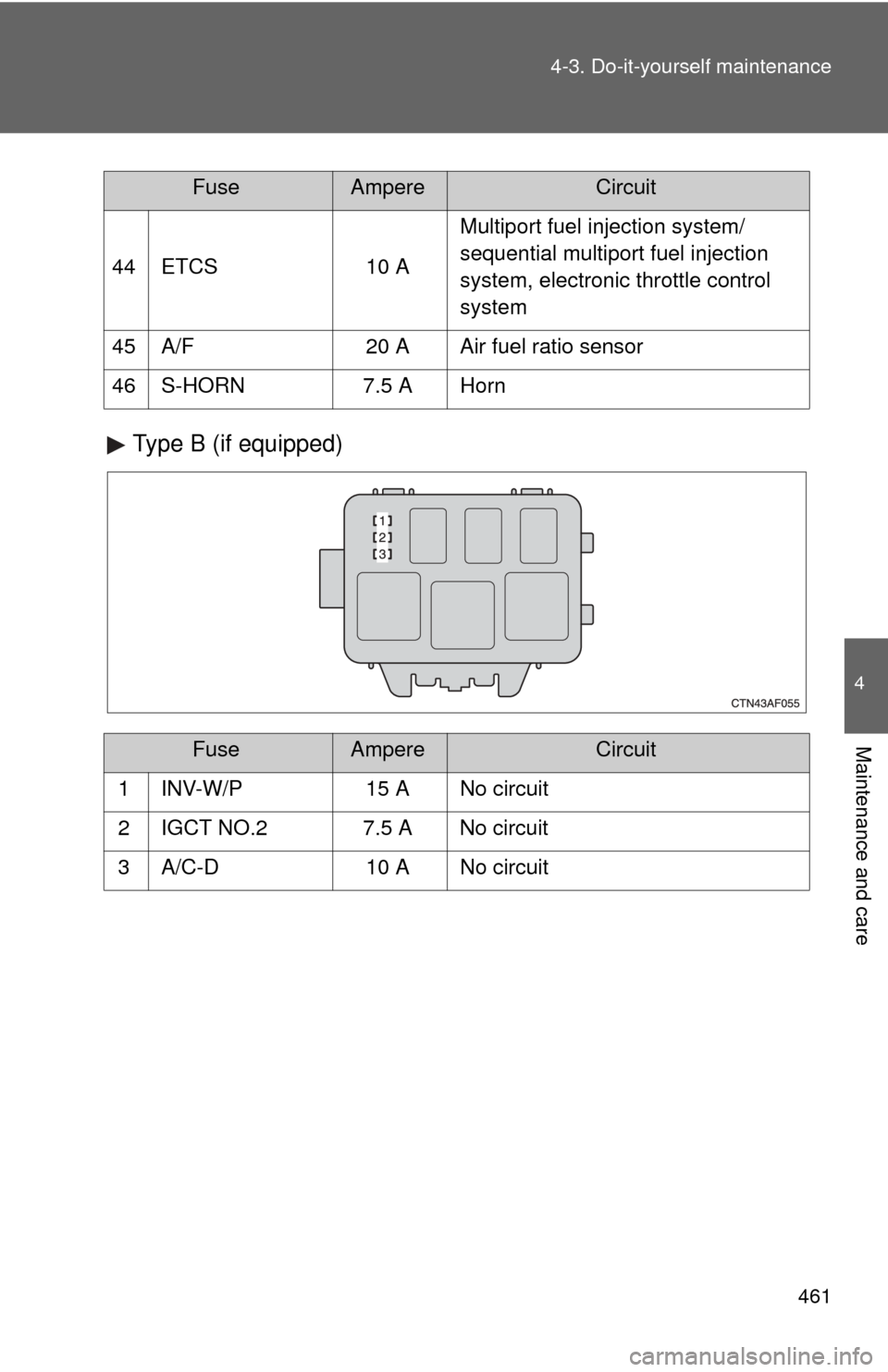

Type B (if equipped)
44 ETCS
10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
45 A/F 20 A Air fuel ratio sensor
46 S-HORN 7.5 A Horn
FuseAmpereCircuit
1 INV-W/P 15 A No circuit
2 IGCT NO.2 7.5 A No circuit
3 A/C-D 10 A No circuit
FuseAmpereCircuit

462 4-3. Do-it-yourself maintenance

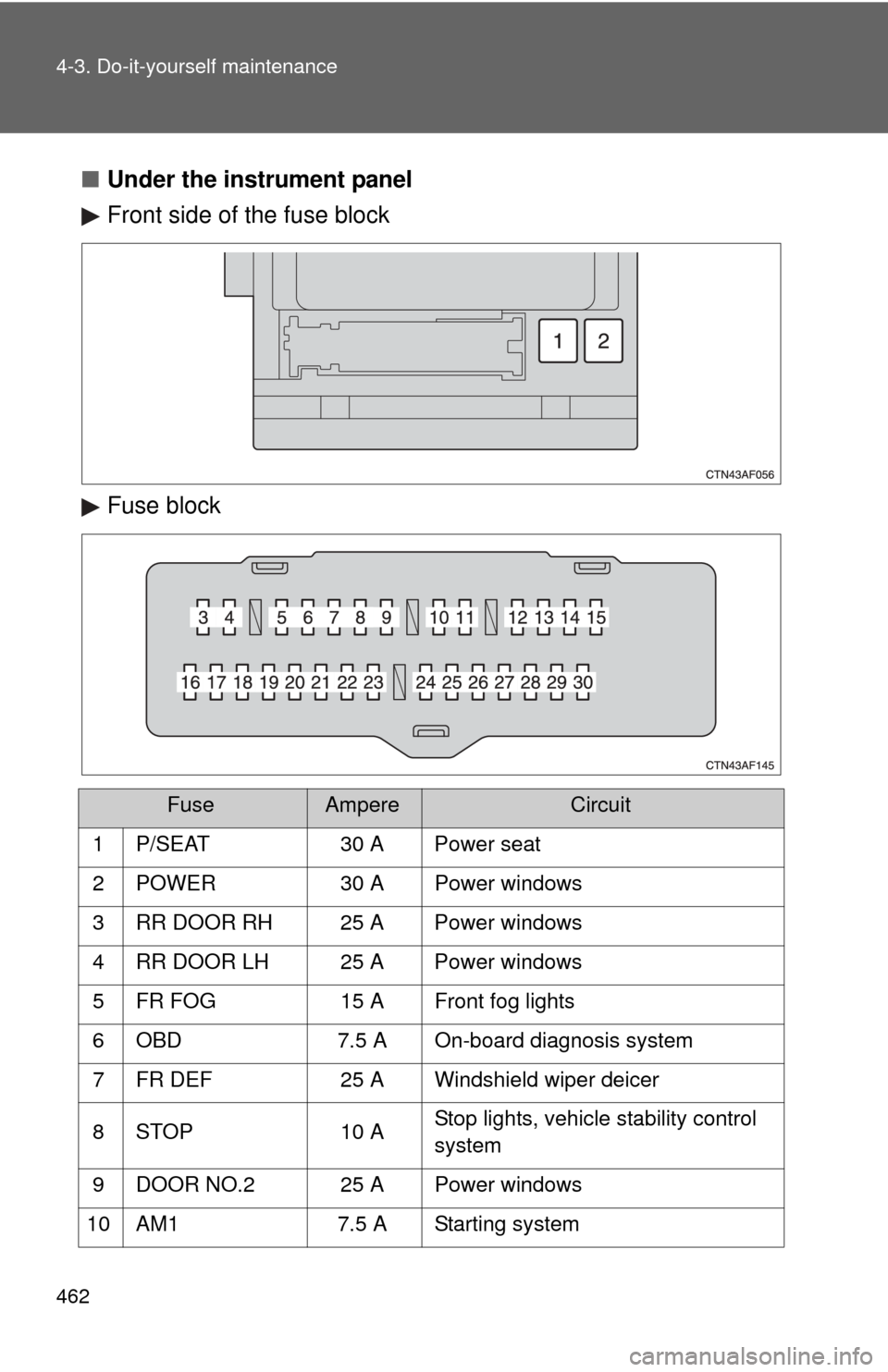

■Under the instrument panel
Front side of the fuse block
Fuse block
FuseAmpereCircuit
1 P/SEAT 30 A Power seat
2 POWER 30 A Power windows
3 RR DOOR RH 25 A Power windows
4 RR DOOR LH 25 A Power windows
5 FR FOG 15 A Front fog lights
6 OBD 7.5 A On-board diagnosis system
7 FR DEF 25 A Windshield wiper deicer
8 STOP 10 A Stop lights, vehicle stability control
system
9 DOOR NO.2 25 A Power windows
10 AM1 7.5 A Starting system

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
11 RR FOG
7.5 A No circuit
12 FUEL OPN 7.5 A No circuit
13 S/ROOF 30 A Electric moon roof
14 TAIL 15 AParking lights, tail lights, license
plate lights, front fog lights, trailer
lights
15 PANEL 7.5 AGlove box light, emergency flash-
ers, audio system, outside rear
view mirror defoggers, clock, power
door lock system, seat heaters,
rear seat entertainment system,
vehicle stability control system,
instrument panel light control dial,
electronic controlled transmission
switch, automatic transmission,
downhill assist control system,
steering switches
16 ECU IG NO.1 10 A Multiplex communication system,
electric moon roof, electronically
controlled automatic transmission
system, power back door, seat
heaters, tire pressure warning sys-
tem, electronic power steering,
automatic transmission
17 ECU IG NO.2 7.5 A Vehicle stability control system
18 A/C NO.2 10 A Air conditioning system
19 WASH 20 A Windshield wipers and washer
20 S-HTR 20 A Seat heaters
21 GAUGE NO.1 10 A Audio system, outside rear view
mirror defoggers, back-up lights,
charging system, emergency flash-
ers, traction control system, instru-
ment panel light control dial,
windshield wiper deicer
FuseAmpereCircuit

464 4-3. Do-it-yourself maintenance
22 FR WIP30 A Windshield wipers and washer
23 RR WIP 15 A Rear window wiper and washer
24 IGN 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, steering lock system, anti-
lock brake system, smart key sys-
tem, SRS airbag system
25 GAUGE NO.2 7.5 A Gauges and meters, back monitor
26 ECU-ACC 7.5 A Power rear view mirror, shift lock
system, smart key system
27 ACC SOCK
NO.1 10 A Power outlet
28 ACC SOCK
NO.2 20 A Power outlet
29 RADIO NO.2 7.5 A Audio system, clock, rear seat
entertainment system, charging
system, interior lights, personal
lights
30 MIR HTR 15 A Outside rear view mirror defoggers
FuseAmpereCircuit

465
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 466)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

466
4-3. Do-it-yourself maintenance

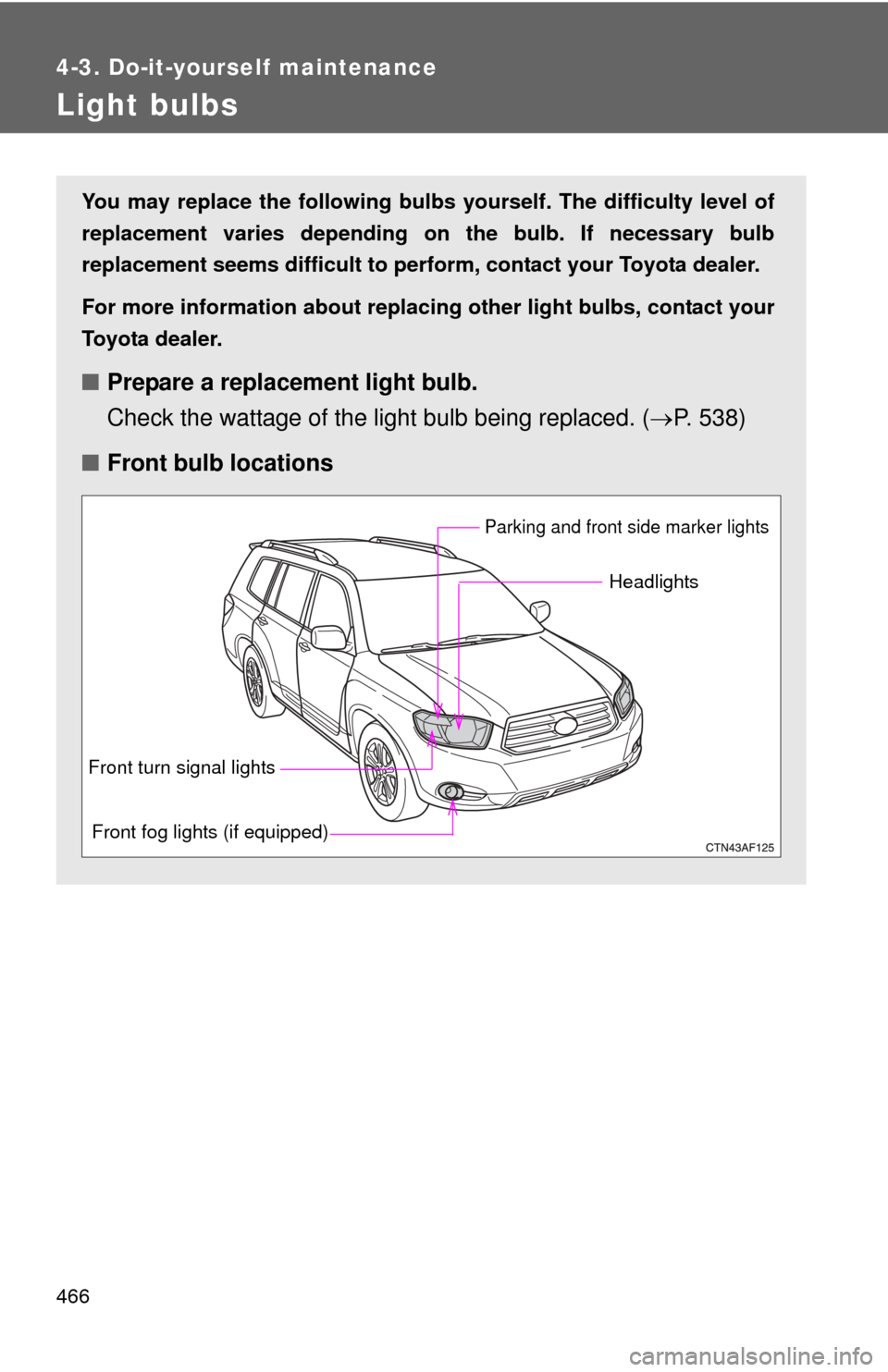

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 538)
■ Front bulb locations
Headlights
Parking and front side marker lights
Front fog lights (if equipped)
Front turn signal lights

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlights
Unplug the connector.
Remove the rubber cover.

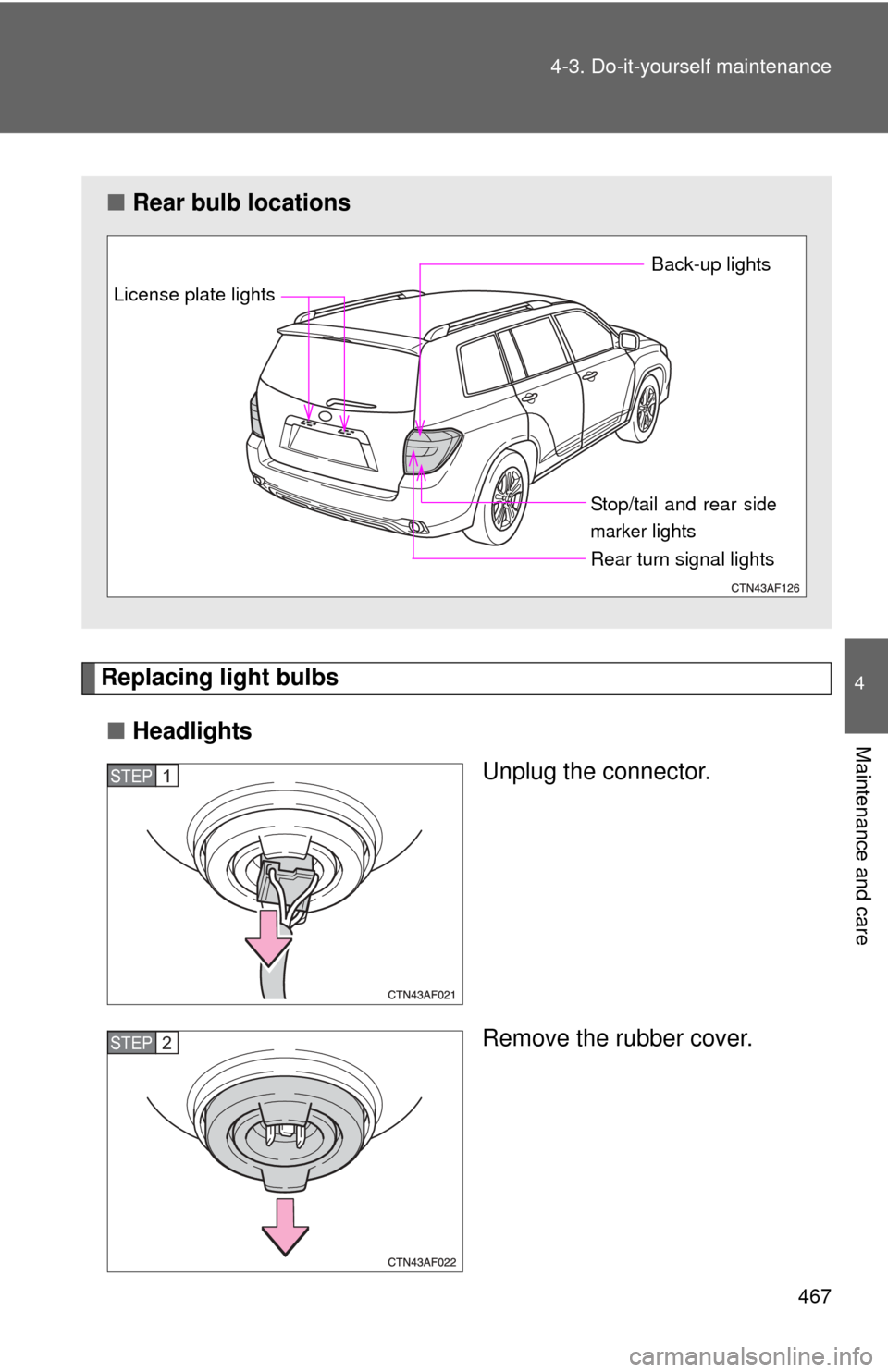

■Rear bulb locations
Back-up lights
Rear turn signal lights Stop/tail and rear
side
marker
lights
License plate lights
STEP1
STEP2

468 4-3. Do-it-yourself maintenance

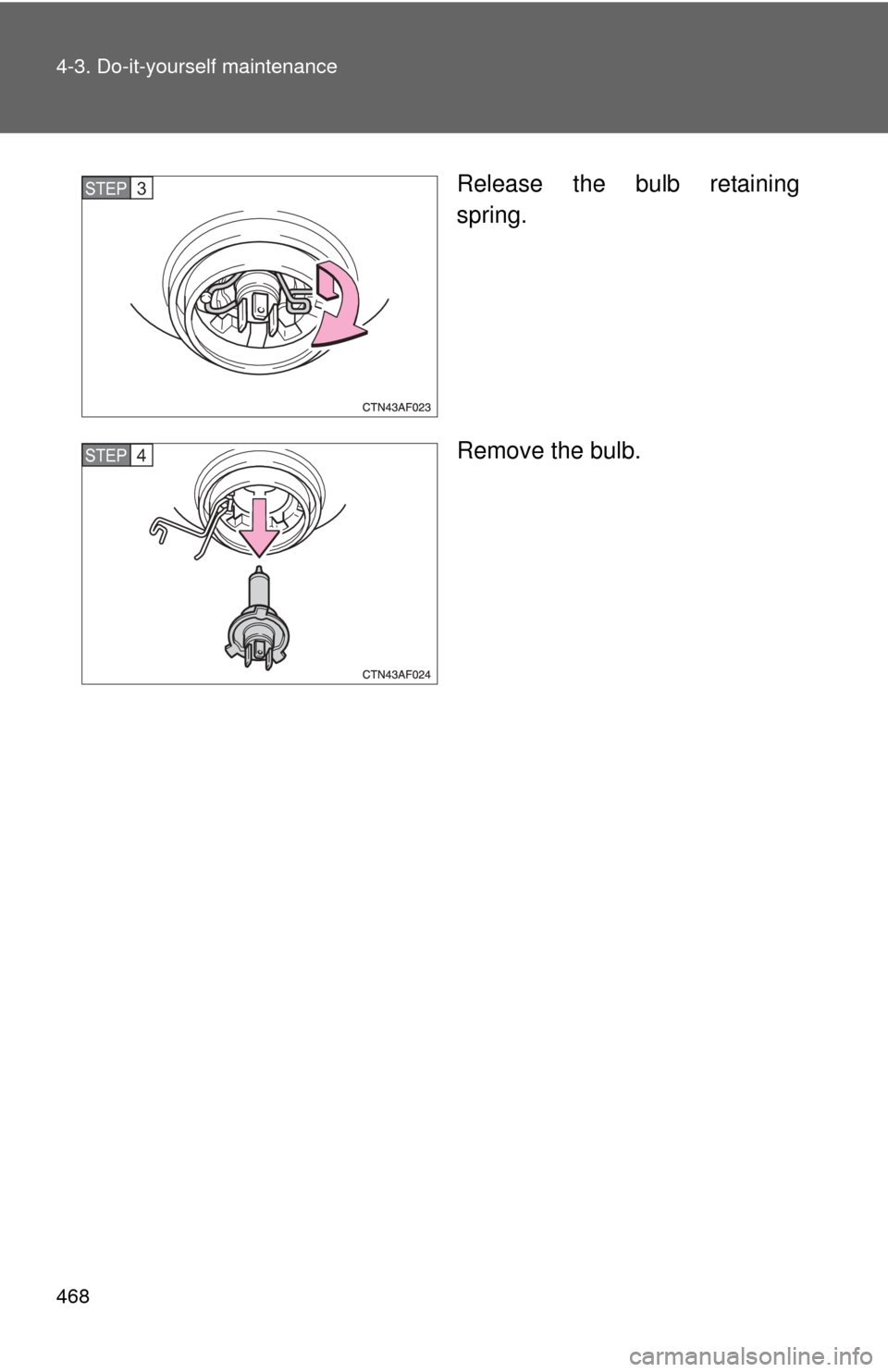

Release the bulb retaining
spring.
Remove the bulb.STEP3
STEP4

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

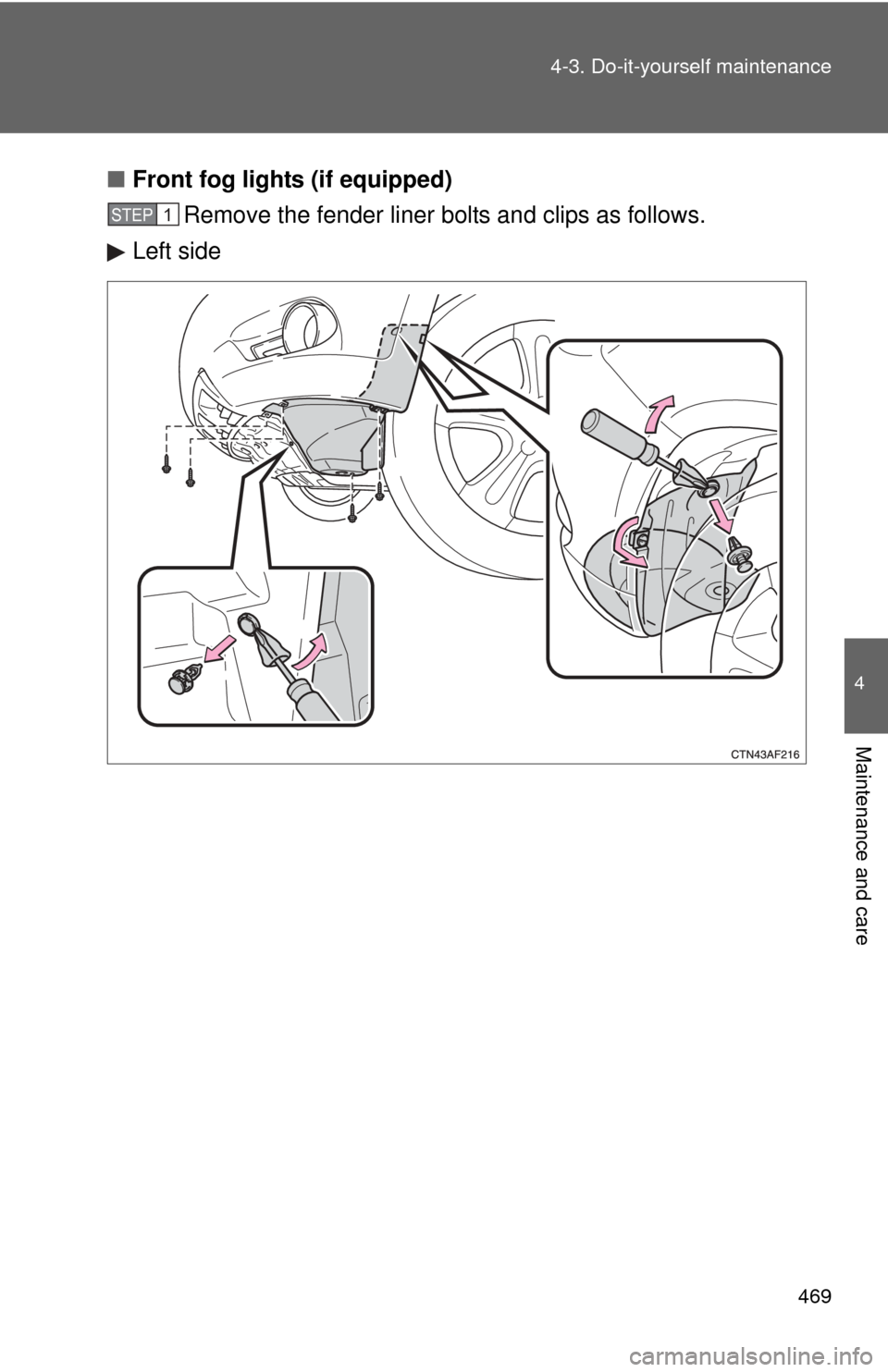

Front fog lights (if equipped)
Remove the fender liner bolts and clips as follows.
Left side
STEP1
