TOYOTA HIGHLANDER 2009 XU40 / 2.G Owners Manual

391
3-7. Other interior features
3
Interior features
Conversation mirror
■To use the overhead console from the conversation mirror state
Fully close the lid, then open it again. ( →P. 378)
Press in the lid.
Push the lid back up half way.

392
3-7. Other interior features

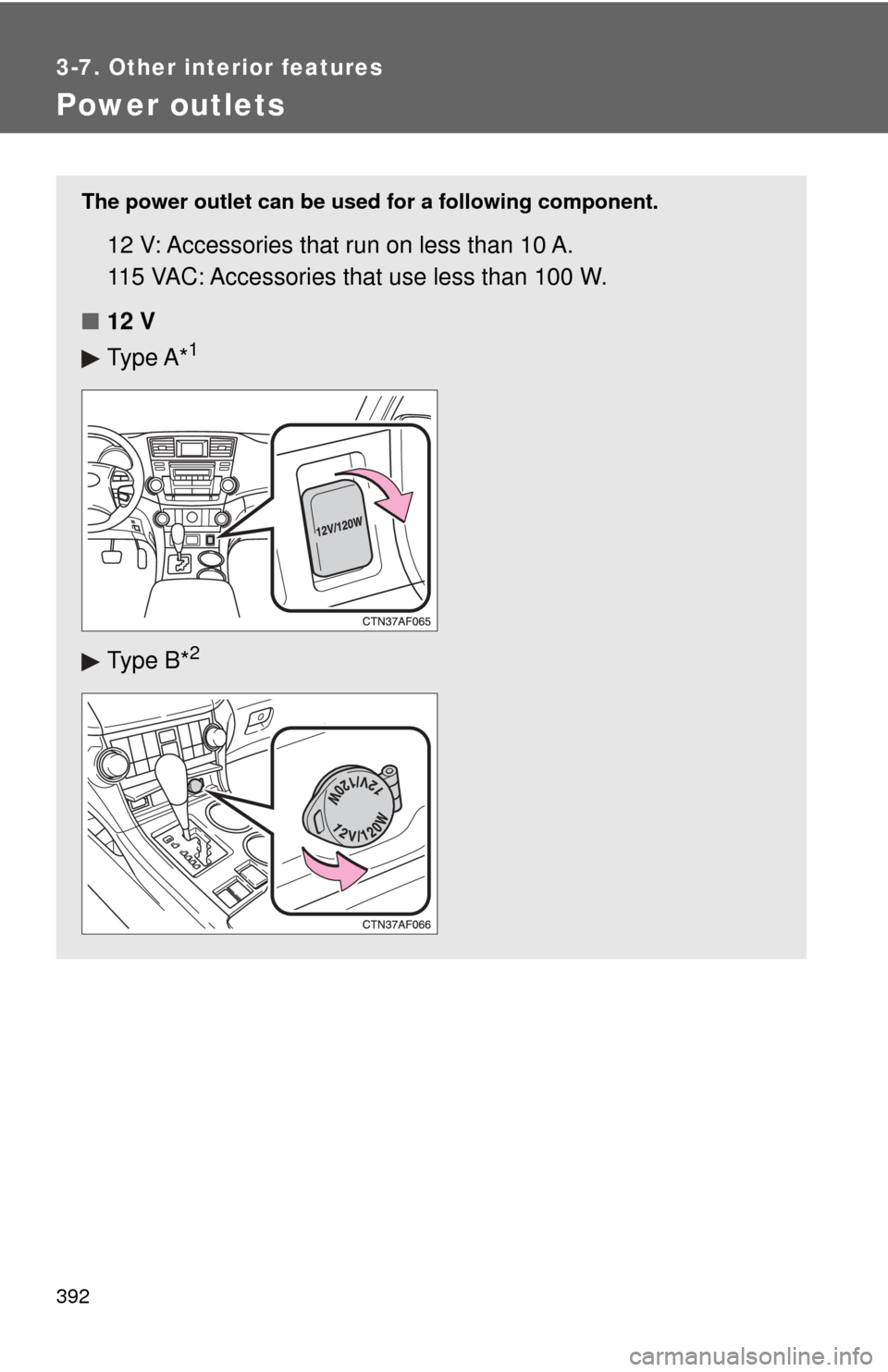

Power outlets
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 VAC: Accessories that use less than 100 W.
■ 12 V
Ty p e A *
1
Ty p e B *2

393
3-7. Other interior features
3
Interior features

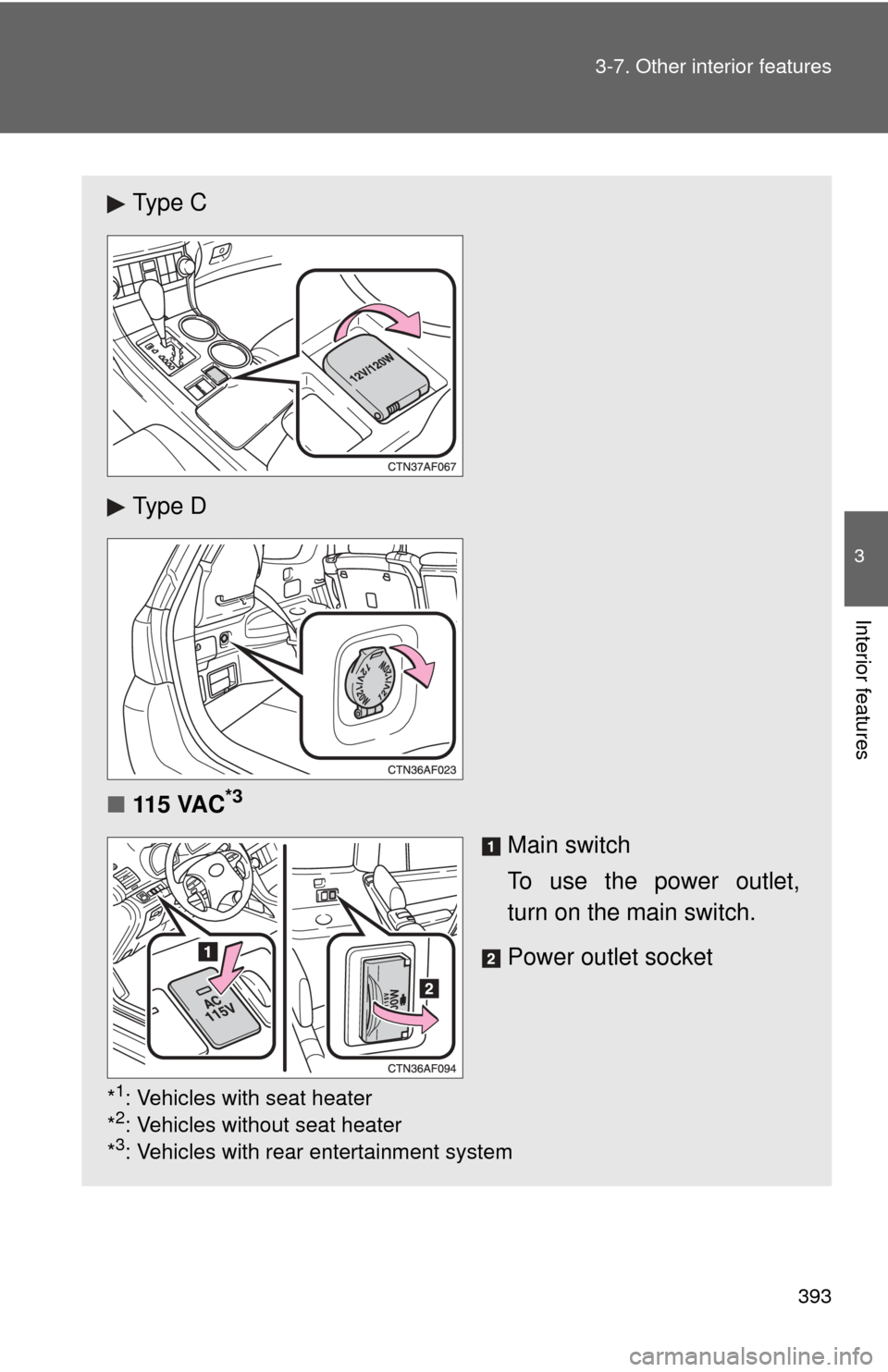

Ty p e C
Ty p e D
■ 11 5 VA C
*3
Main switch
To use the power outlet,
turn on the main switch.
Power outlet socket
*1: Vehicles with seat heater
*2: Vehicles without seat heater
*3: Vehicles with rear entertainment system

394 3-7. Other interior features
■The power outlet can be used when
12 V
Vehicles without smart key system:
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart key system:
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
115 VAC
Vehicles without smart key system:
The engine switch is in the “ON” position.
Vehicles with smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.

395
3-7. Other interior features
3
Interior features
NOTICE
■
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
115 VAC
Do not use a 115 VAC appliance that requires more than 100 W.
If a 115 VAC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery discharge
Do not use the power outlet longer than necessary when the engine is off.
■ Appliances that may not operate properly (115 VAC)
The following 115 VAC appliances may not operate properly even if their
power consumption is under 100 W.
●Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

396
3-7. Other interior features
Seat heaters∗
■The seat heaters can be used when
Vehicles without smart key system
The engine switch is in the “ON” position. Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When not in use
Turn the knob fully counterclockwise. The indicator light turns off.
Press the knob into the recessed position.
Pops the knob out
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.Front passenger's seat
Driver's seat
∗: If equipped

397
3-7. Other interior features
3
Interior features
CAUTION
■
Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

398
3-7. Other interior features
Armrests
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.

399
3-7. Other interior features
3
Interior features
Floor mat
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
●Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the driver's floor mat
using the hooks provided.

400
3-7. Other interior features

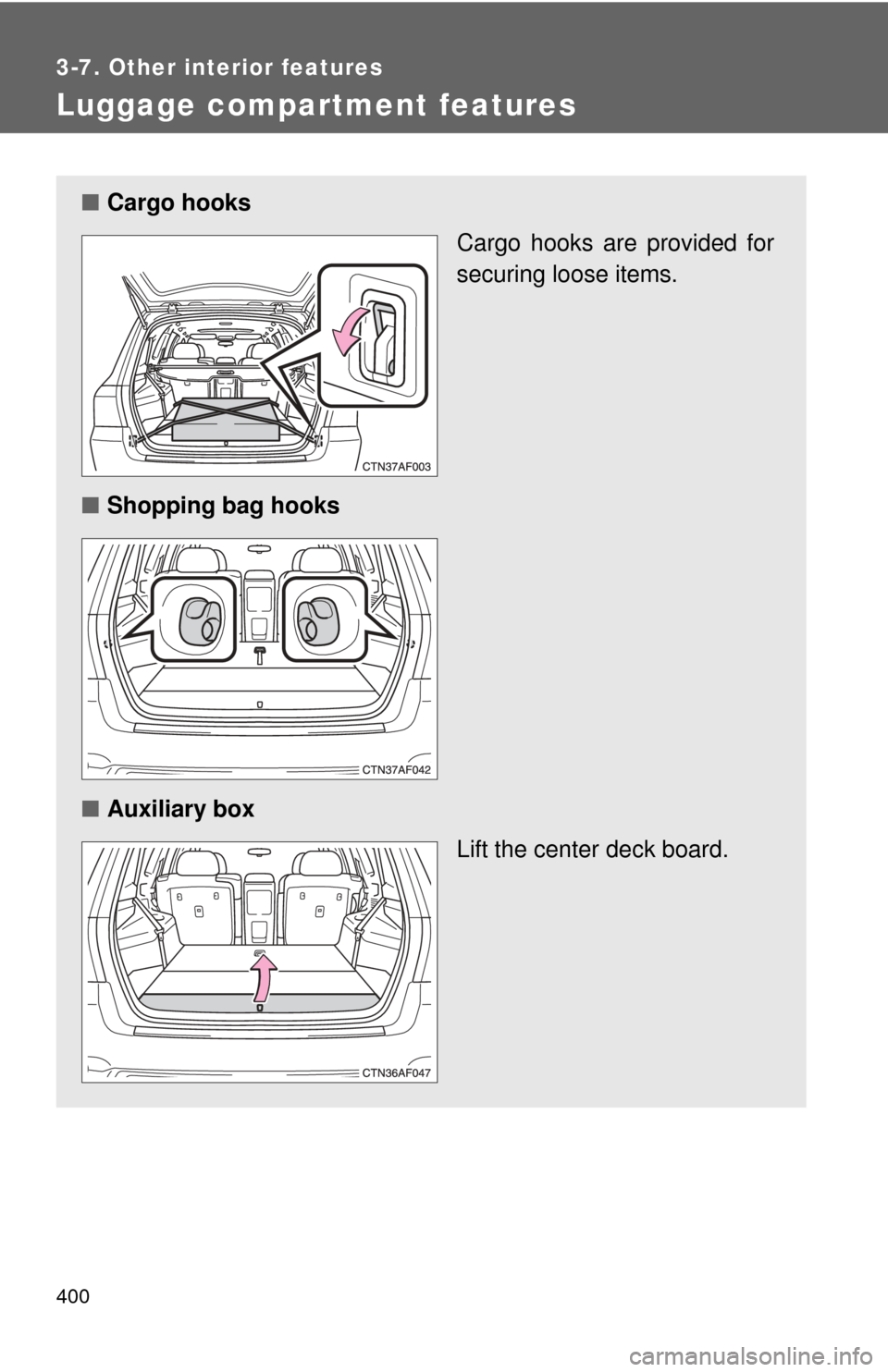

Luggage compartment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the center deck board.
