TOYOTA HIGHLANDER HYBRID 2013 XU50 / 3.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual , for more details.

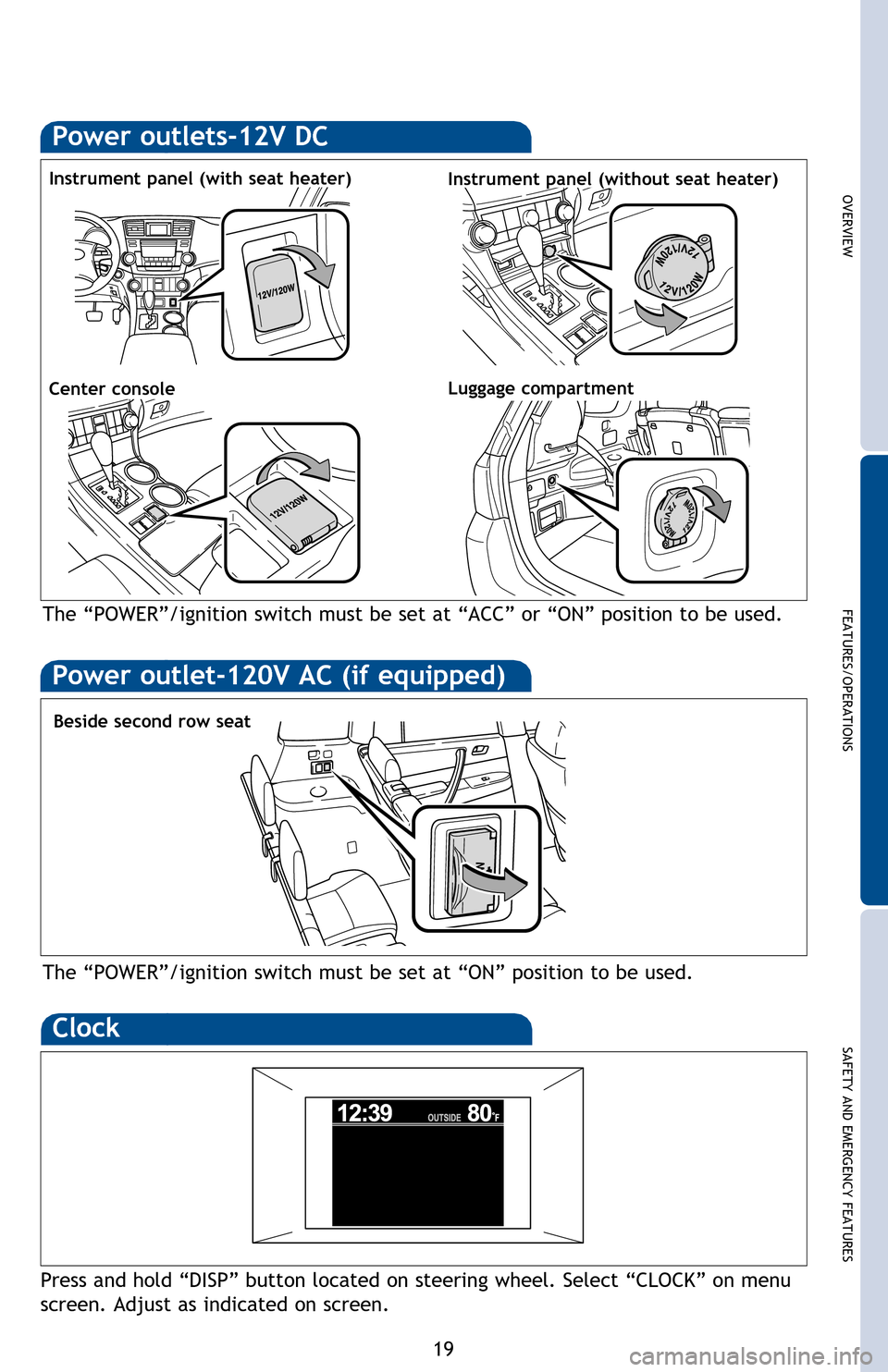

Power outlets-12V DC
Luggage compartment
Instrument panel (with seat heater)Instrument panel (without seat heater)
The “POWER”/ignition switch must be set at “ACC” or “ON” position to be used.
Power outlet-120V AC (if equipped)
Beside second row seat
Center console
The “POWER”/ignition switch must be set at “ON” position to be used.
Clock
Press and hold “DISP” button located on steering wheel. Select “CLOCK” on menu
screen. Adjust as indicated on screen.
2013Highlander-HV.indd 198/8/12 9:07 PM

20
FEATURES/OPERATIONS
Air Conditioning/Heating
Front manual Air Conditioning
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Temperature selector
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Use for quick cooling. Air intake will automatically be set to recirculate.
Rear Air Conditioning ON/OFF

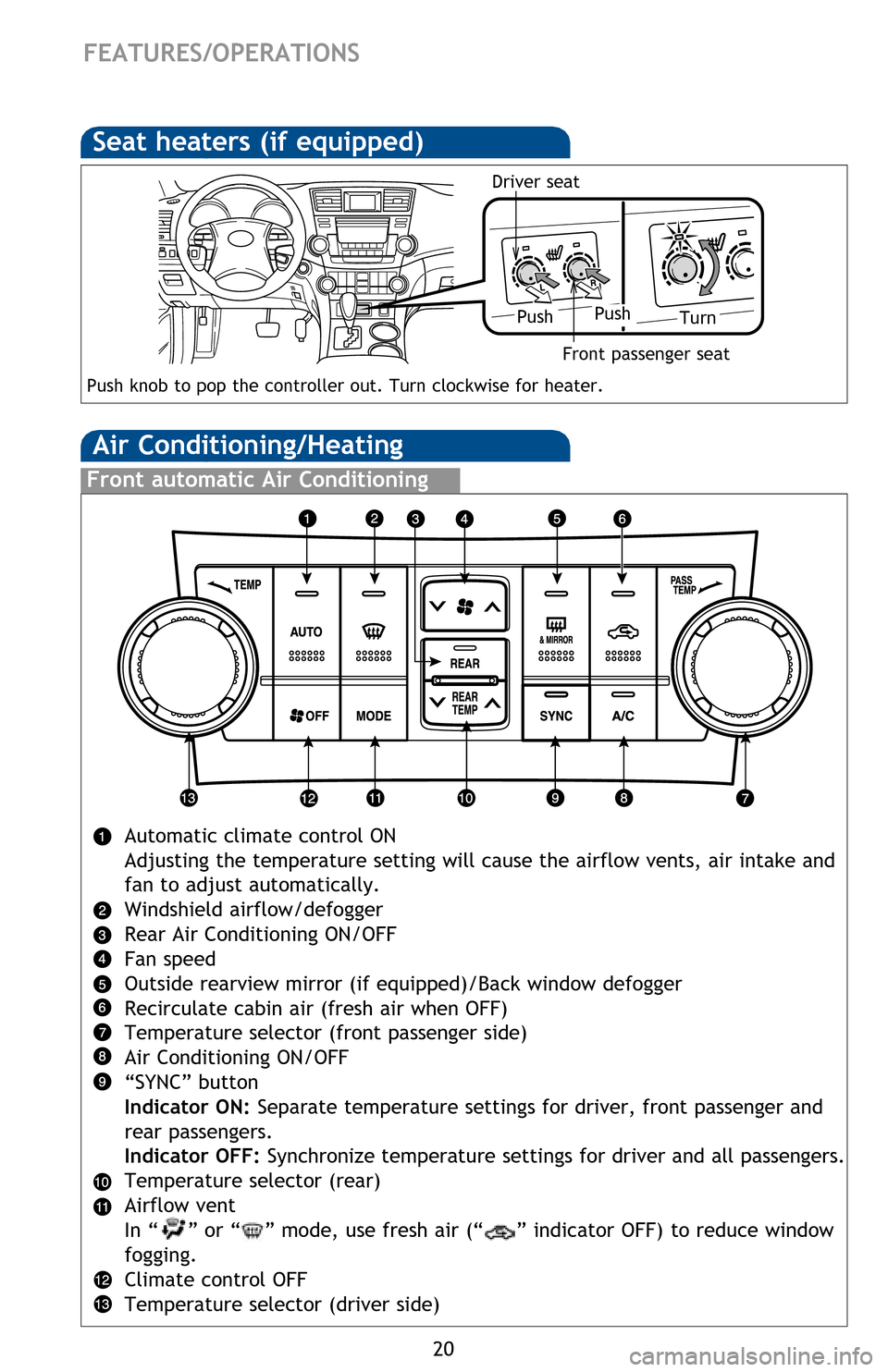

Front automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Recirculate cabin air (fresh air when OFF)
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“SYNC” button
Indicator ON: Separate temperature settings for driver, front passenger and
rear passengers.
Indicator OFF: Synchronize temperature settings for driver and all passengers.
Temperature selector (rear)
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Climate control OFF
Temperature selector (driver side)
Rear automatic Air Conditioning
Fan speed
Temperature selector
Airflow vent
Automatic climate control ON
Climate control OFF
Seat heaters (if equipped)
PushTurn
Push knob to pop the controller out. Turn clockwise for heater.
Push
Driver seat
Front passenger seat
2013Highlander-HV.indd 208/8/12 9:09 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21

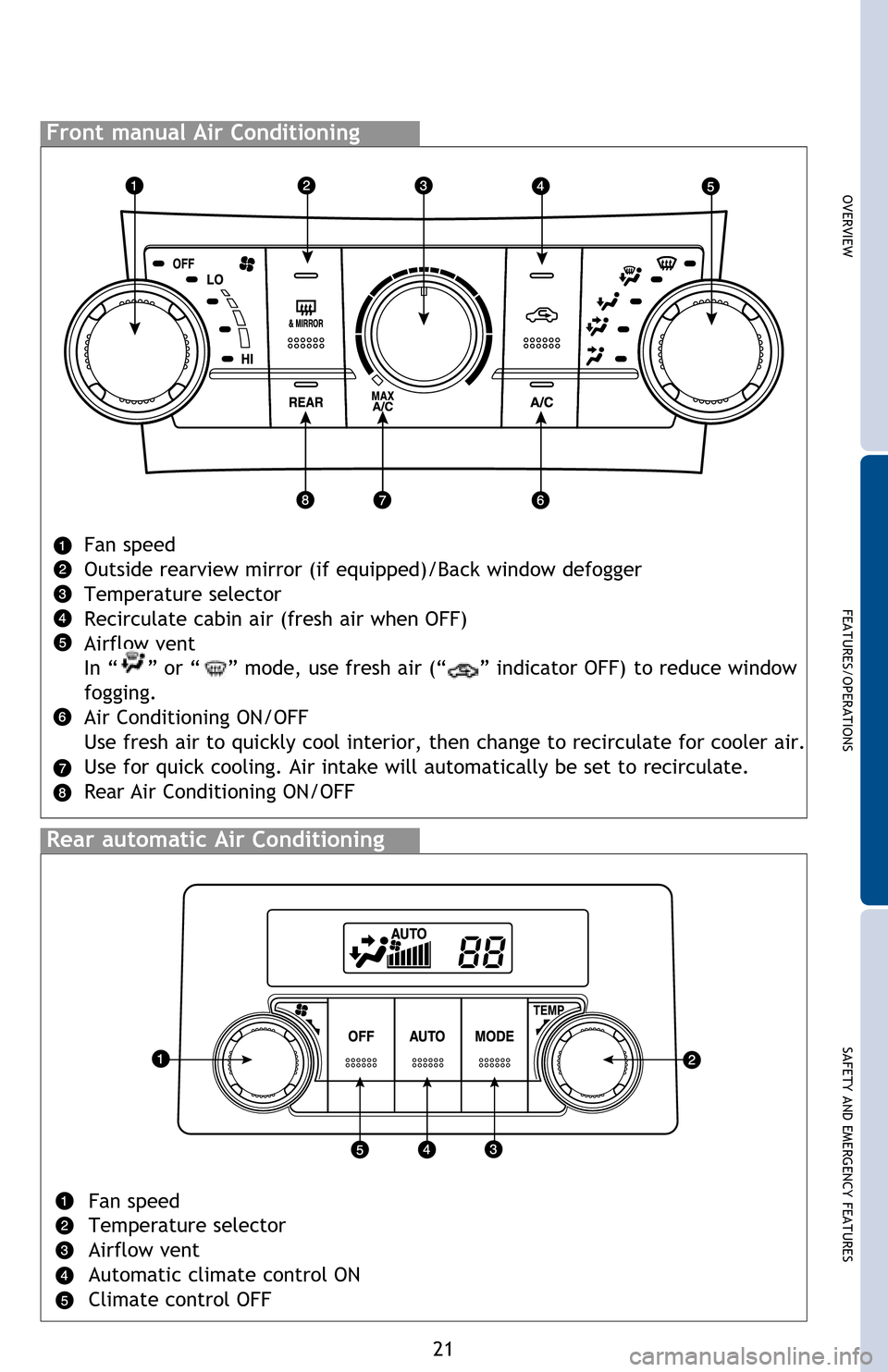

Front manual Air Conditioning
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Temperature selector
Recirculate cabin air (fresh air when OFF)
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for cooler air.
Use for quick cooling. Air intake will automatically be set to recirculate.
Rear Air Conditioning ON/OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Windshield airflow/defogger
Rear Air Conditioning ON/OFF
Fan speed
Outside rearview mirror (if equipped)/Back window defogger
Recirculate cabin air (fresh air when OFF)
Temperature selector (front passenger side)
Air Conditioning ON/OFF
“SYNC” button
Indicator ON: Separate temperature settings for driver, front passenger and
rear passengers.
Indicator OFF: Synchronize temperature settings for driver and all passengers.
Temperature selector (rear)
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Climate control OFF
Temperature selector (driver side)
Rear automatic Air Conditioning
Fan speed
Temperature selector
Airflow vent
Automatic climate control ON
Climate control OFF
2013Highlander-HV.indd 218/8/12 9:09 PM

22
FEATURES/OPERATIONS
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.

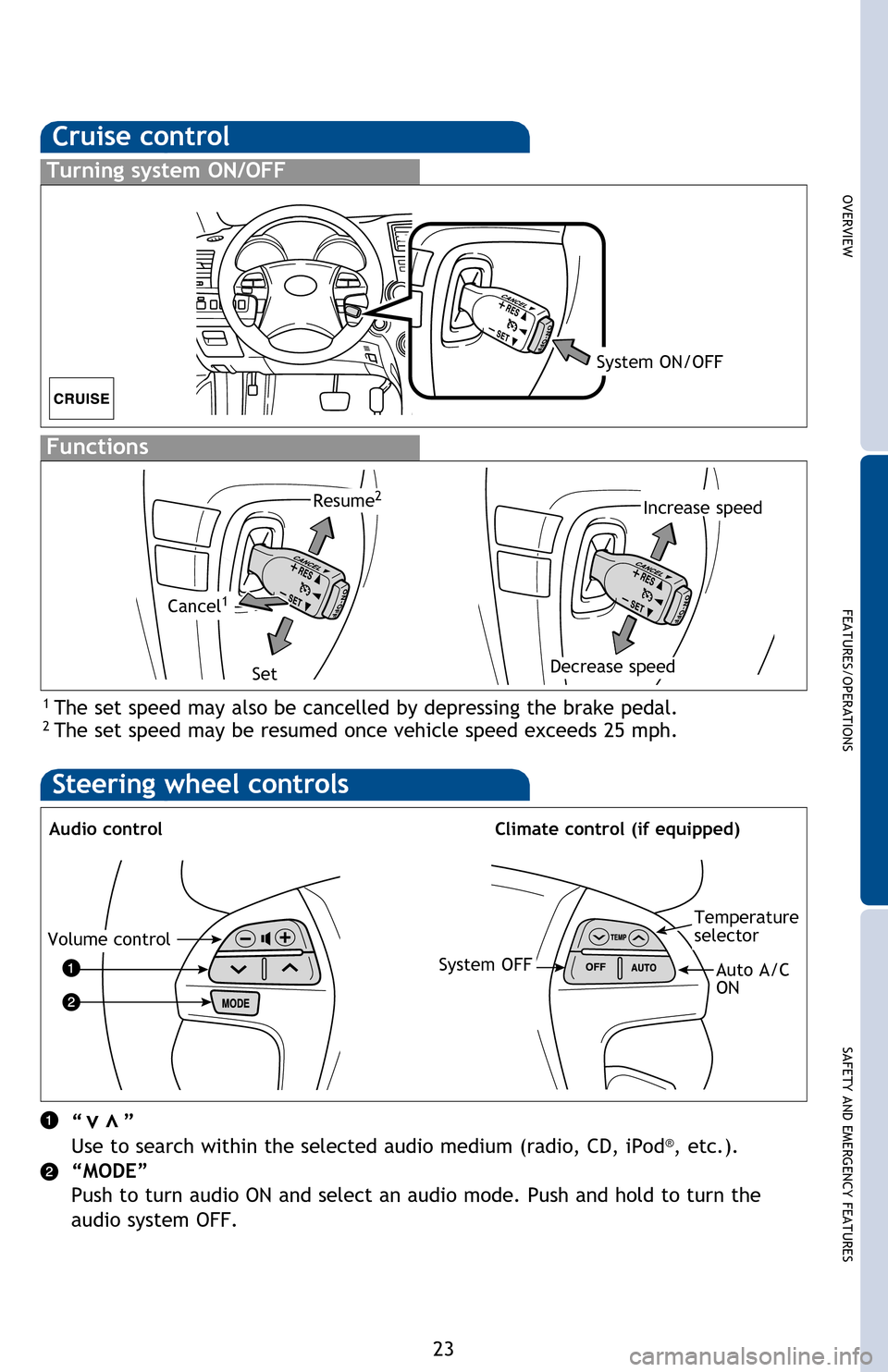

Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
Moonroof (if equipped)
Sliding operationTilting operation
Open
Tilt
CloseCloseRecommended open
position to minimize
wind noise.
Push once to open partway;
again to open completely.

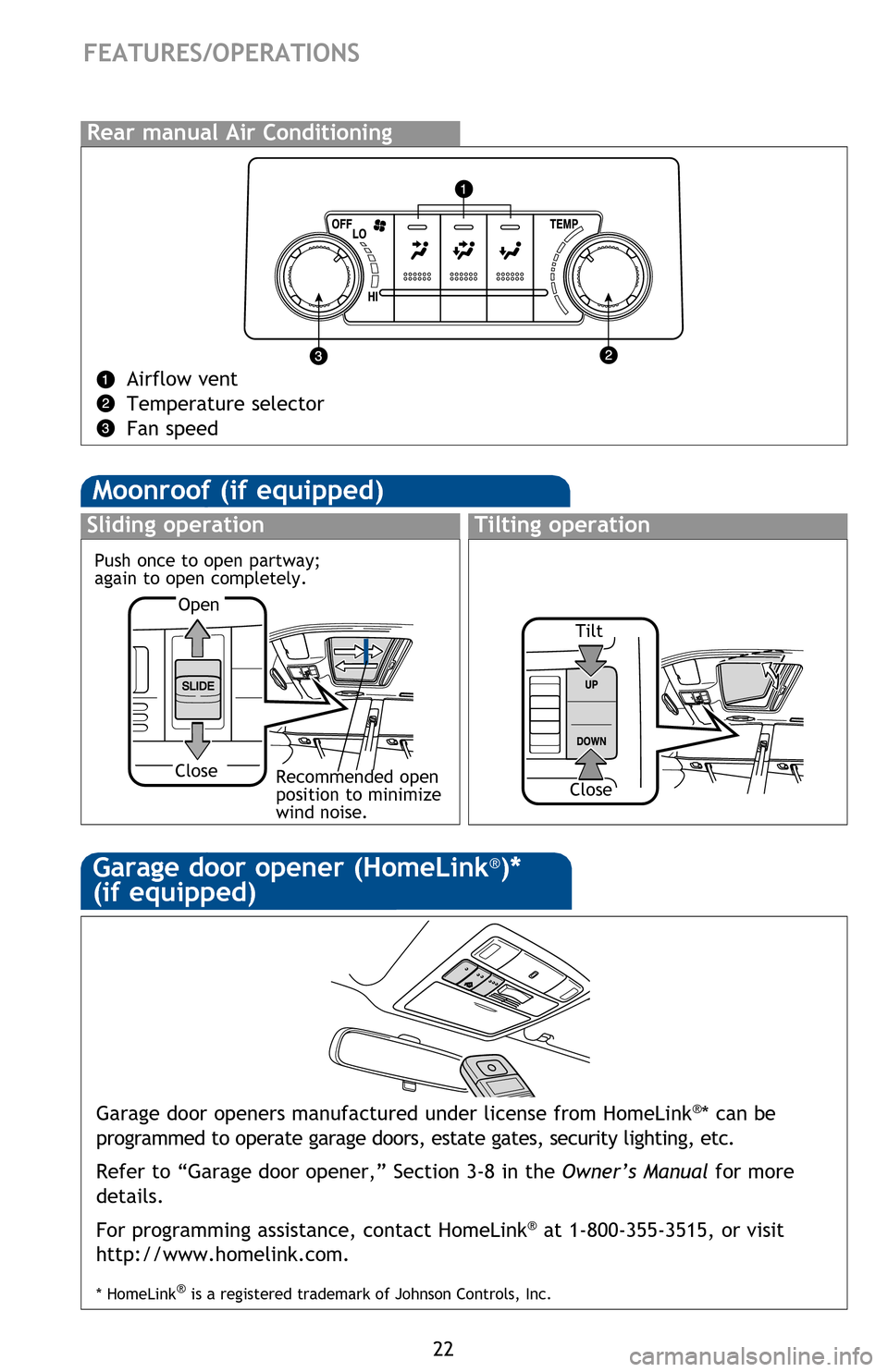

Rear manual Air Conditioning
Airflow vent
Temperature selector
Fan speed
Steering wheel controls
Audio control
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Volume control
2013Highlander-HV.indd 228/8/12 9:09 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 3-8 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
Steering wheel controls
Audio controlClimate control (if equipped)
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
vv
Volume controlTemperature
selector
Auto A/C
ONSystem OFF
2013Highlander-HV.indd 238/8/12 9:10 PM

24
FEATURES/OPERATIONS

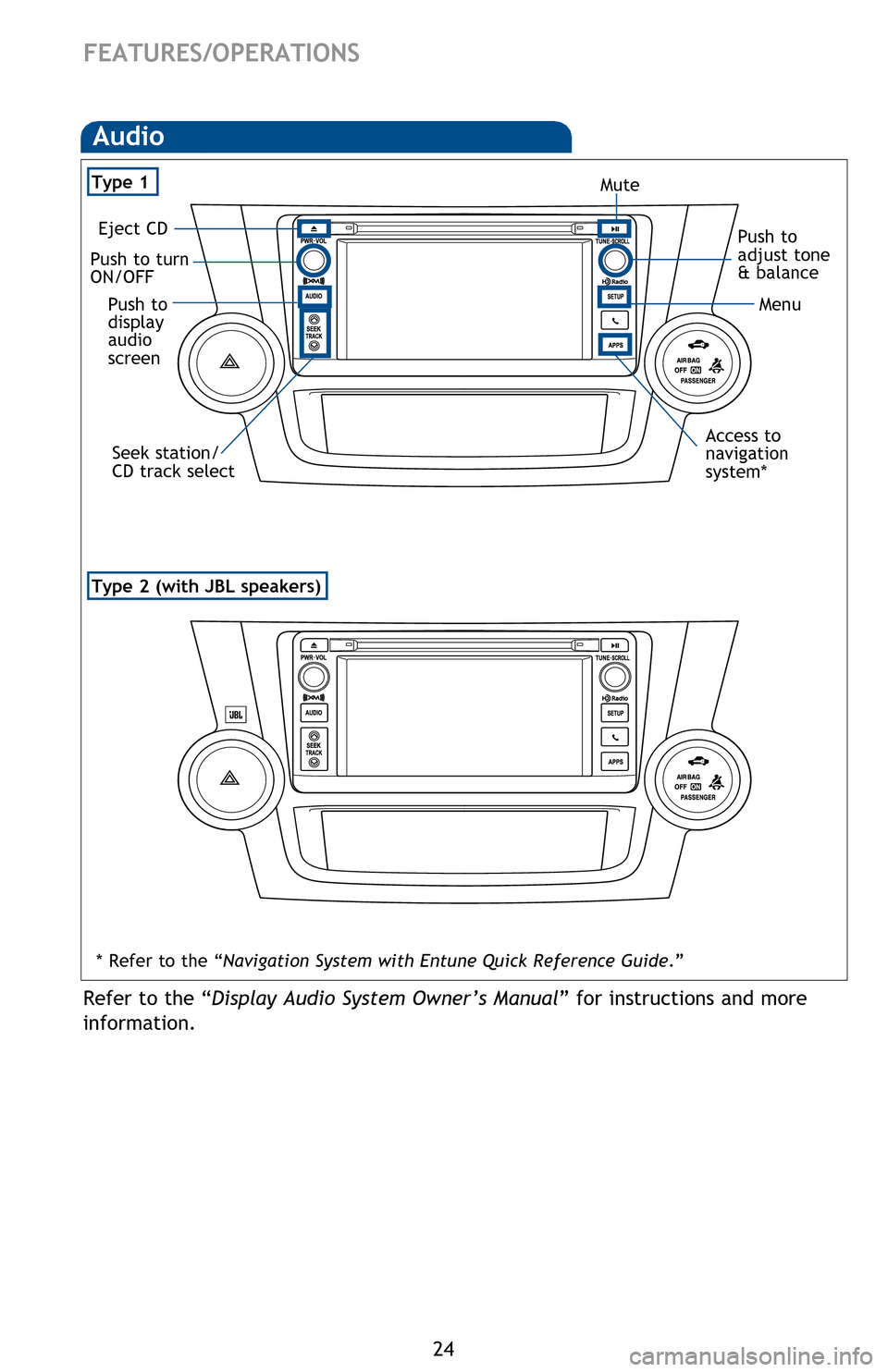

Audio
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX mode.
USB/AUX port
Type 2 (with JBL speakers)
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Type 1
Push to
adjust tone
& balance
Menu
Mute
Without seat heater

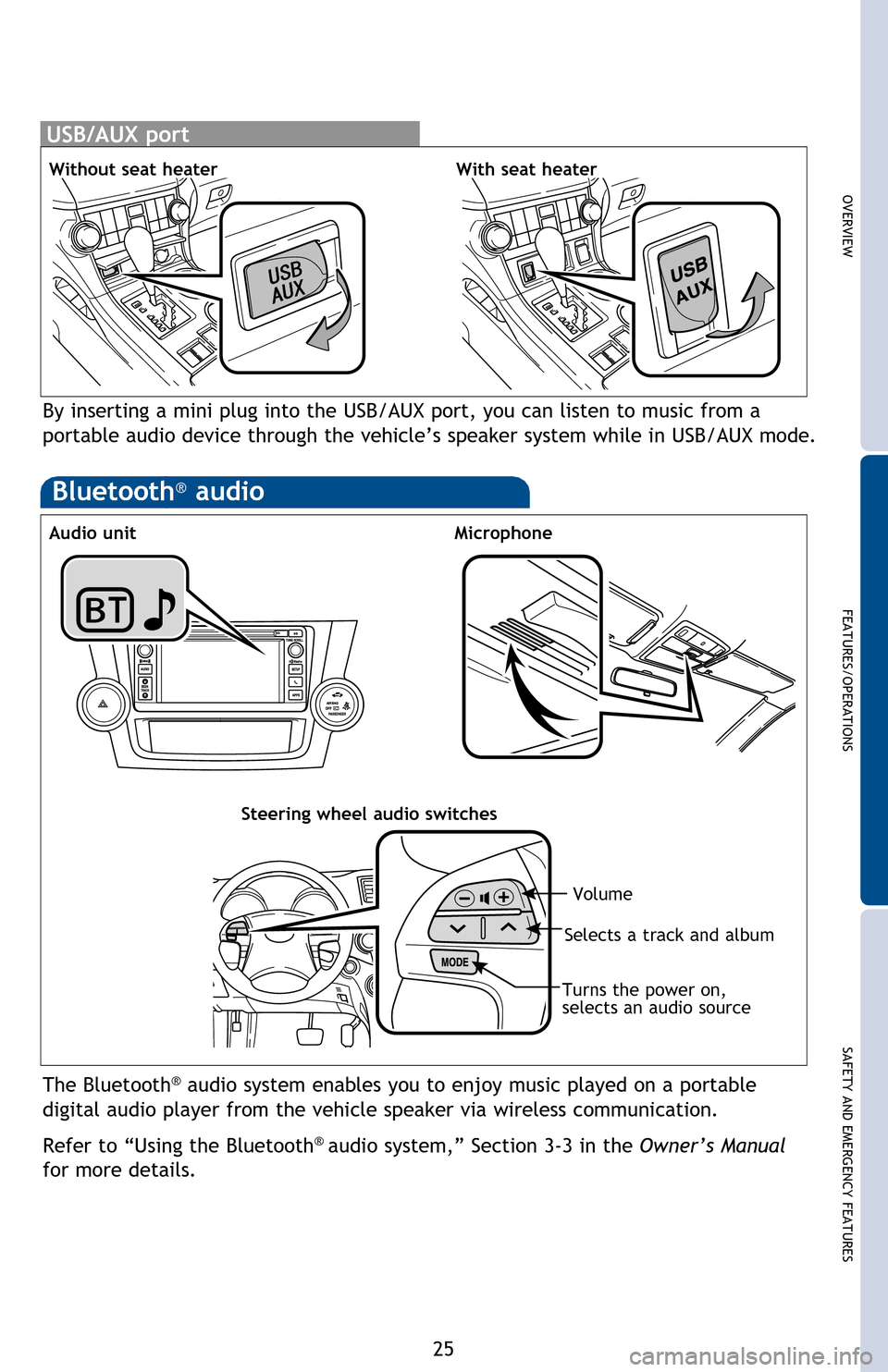

The Bluetooth® audio system enables you to enjoy music played on a portable

digital audio player from the vehicle speaker via wireless communication.
Refer to “Using the Bluetooth
® audio system,” Section 3-3 in the Owner’s Manual
for more details.
Audio unit
Bluetooth® audio
Access to
navigation
system*
Push to
display
audio
screen
* Refer to the “Navigation System with Entune Quick Reference Guide.”
Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
2013Highlander-HV.indd 248/8/12 9:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX mode.
USB/AUX port
Push to
adjust tone
& balance
Without seat heaterWith seat heater
The Bluetooth® audio system enables you to enjoy music played on a portable
digital audio player from the vehicle speaker via wireless communication.
Refer to “Using the Bluetooth
® audio system,” Section 3-3 in the Owner’s Manual
for more details.
Microphone
Audio unit
Steering wheel audio switches
Selects a track and album
Turns the power on,
selects an audio source
Volume
Bluetooth® audio
*
Refer to the “Navigation System with Entune Quick Reference Guide.”
Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
2013Highlander-HV.indd 258/8/12 9:10 PM

26
FEATURES/OPERATIONS
Cup holders
Front
Console box
Rear

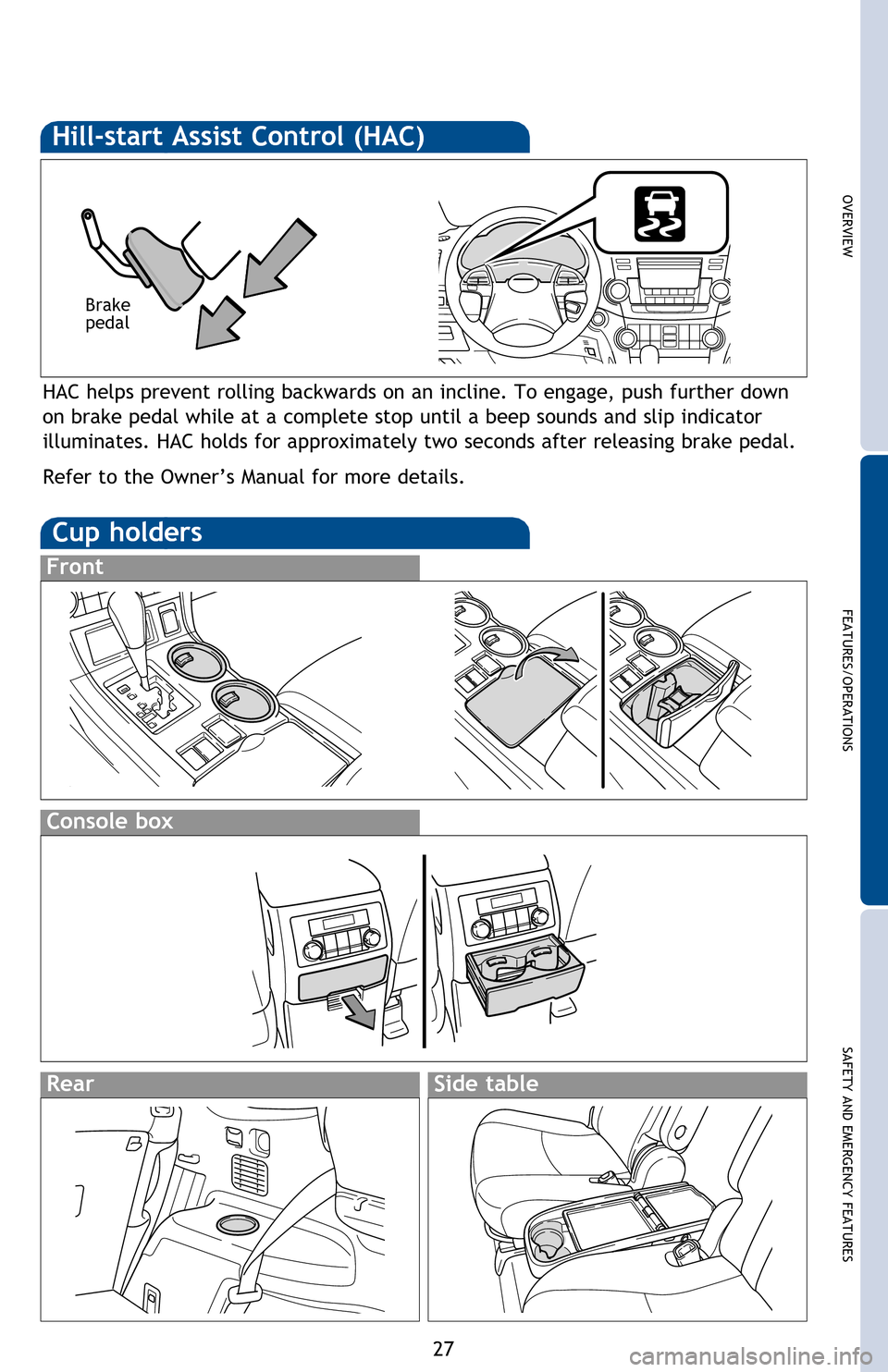

HAC helps prevent rolling backwards on an incline. To engage, push further down
on
brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates.
HAC holds for approximately two seconds after releasing brake pedal.
Refer
to the Owner’s Manual for more details.
Hill-start Assist Control (HAC)
Multi-Information Display
Push “DISP” to change information in the following:
(1)
Average gas mileage after refueling
(2)
Current gas mileage
(3)
Miles left on remaining fuel
(4)
Driving distance from Hybrid System start
(5)
Average gas mileage
(6)
Average gas mileage history
(7)
Current tire pressure
(8)
Energy monitor
Push
and hold “DISP” to set up the displays (including the rearview monitor
display).
Refer to Section 3-5 of the Owner’s Manual for more information.
For
vehicle with a navigation system, refer to the “ Navigation System Owner’s
Manual.
”
Display
Headphone jacks and headphone volume control
DVD
player
Remote
control
120V
AC power outlet
AV
input port

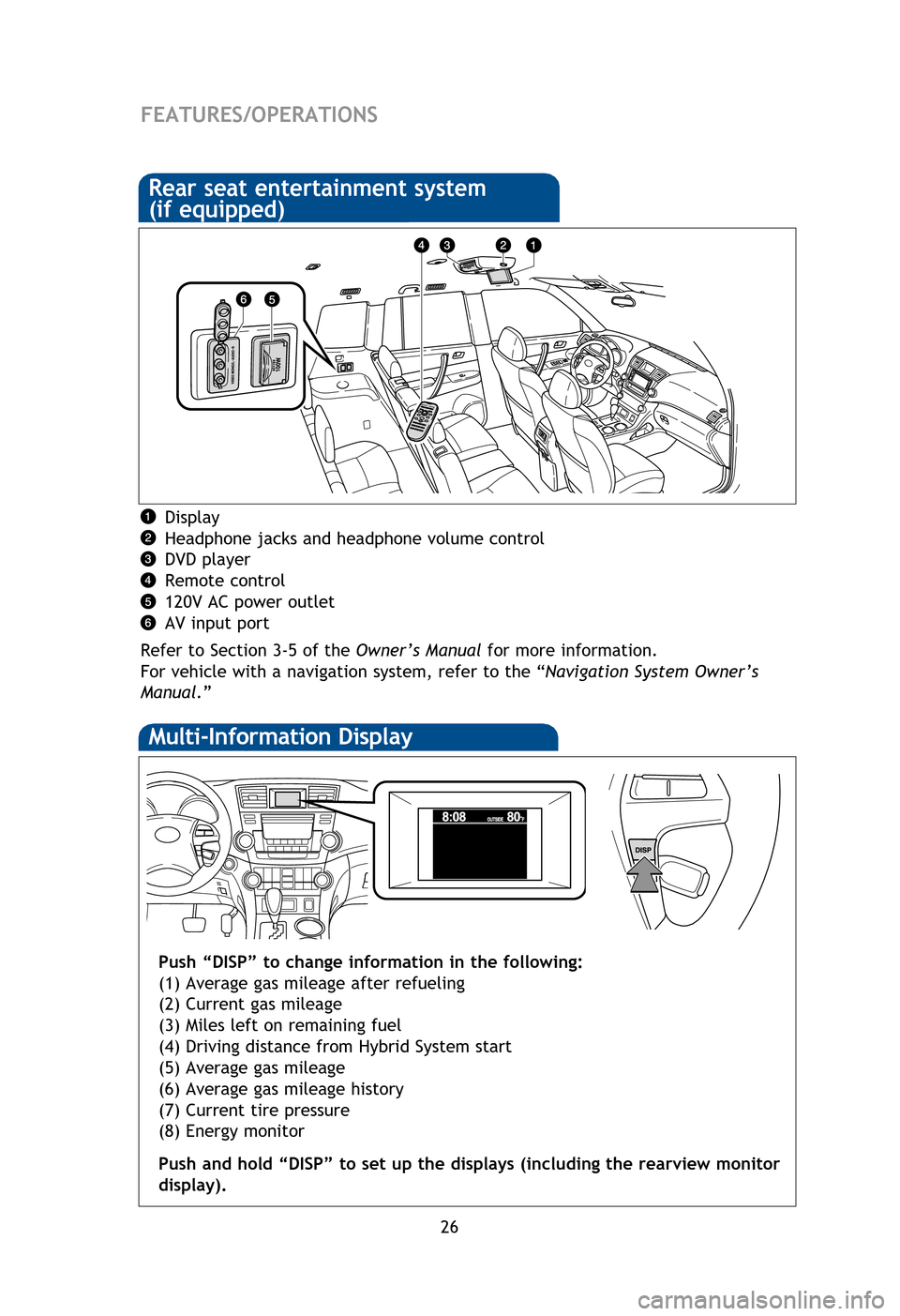

Rear seat entertainment system
(if
equipped)
2013Highlander-HV.indd 268/11/12 12:36 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27
Cup holders
Front
Console box
RearSide table
HAC helps prevent rolling backwards on an incline. To engage, push further down
on brake pedal while at a complete stop until a beep sounds and slip indicator
illuminates. HAC holds for approximately two seconds after releasing brake pedal.
Refer to the Owner’s Manual for more details.
Brake
pedal
Hill-start Assist Control (HAC)
Push “DISP” to change information in the following:
(1) Average gas mileage after refueling
(2) Current gas mileage
(3) Miles left on remaining fuel
(4) Driving distance from Hybrid System start
(5) Average gas mileage
(6) Average gas mileage history
(7) Current tire pressure
(8) Energy monitor
Push and hold “DISP” to set up the displays (including the rearview monitor
display).
Refer to Section 3-5 of the Owner’s Manual for more information.
For vehicle with a navigation system, refer to the “Navigation System Owner’s
Manual. ”
Display
Headphone jacks and headphone volume control
DVD player
Remote control
120V AC Power outlet
AV input port
2013Highlander-HV.indd 278/8/12 9:10 PM

28
SAFETY AND EMERGENCY FEATURES

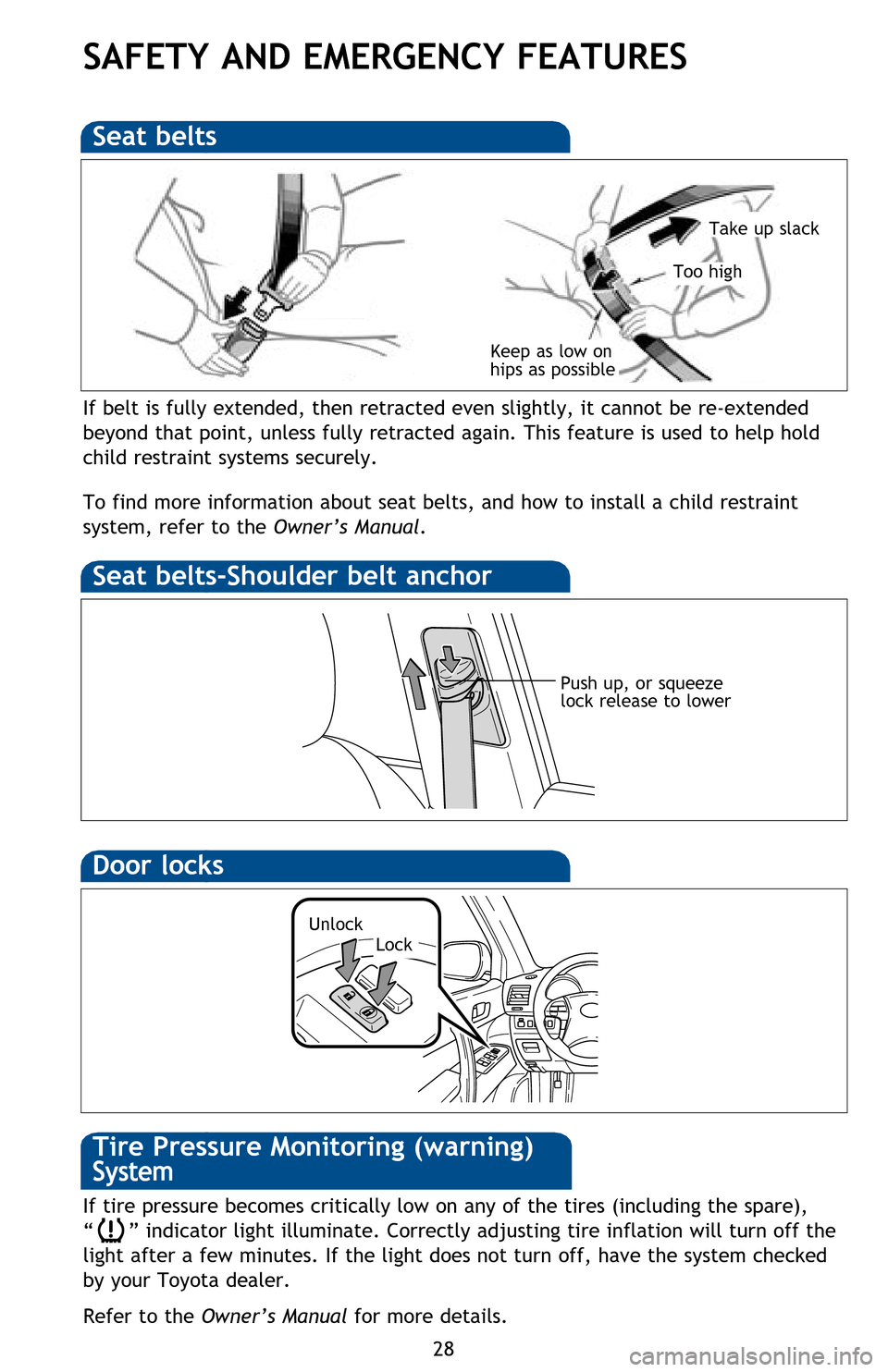

If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
Door locks
LockUnlock
If tire pressure becomes critically low on any of the tires (including the spare),
“
” indicator light illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the cover under the center deck board to find the spare tire clamp bolt.
(2) Assemble the jack handle.
(3) Put the socket adapter on the spare tire clamp bolt. Loosen the bolt by turning
it counterclockwise with the jack handle.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Moving the lever downward will allow the door to be opened only from the outside.
Doors-Child safety locks
(1)
Rear door
2013Highlander-HV.indd 288/8/12 9:10 PM
