4817-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

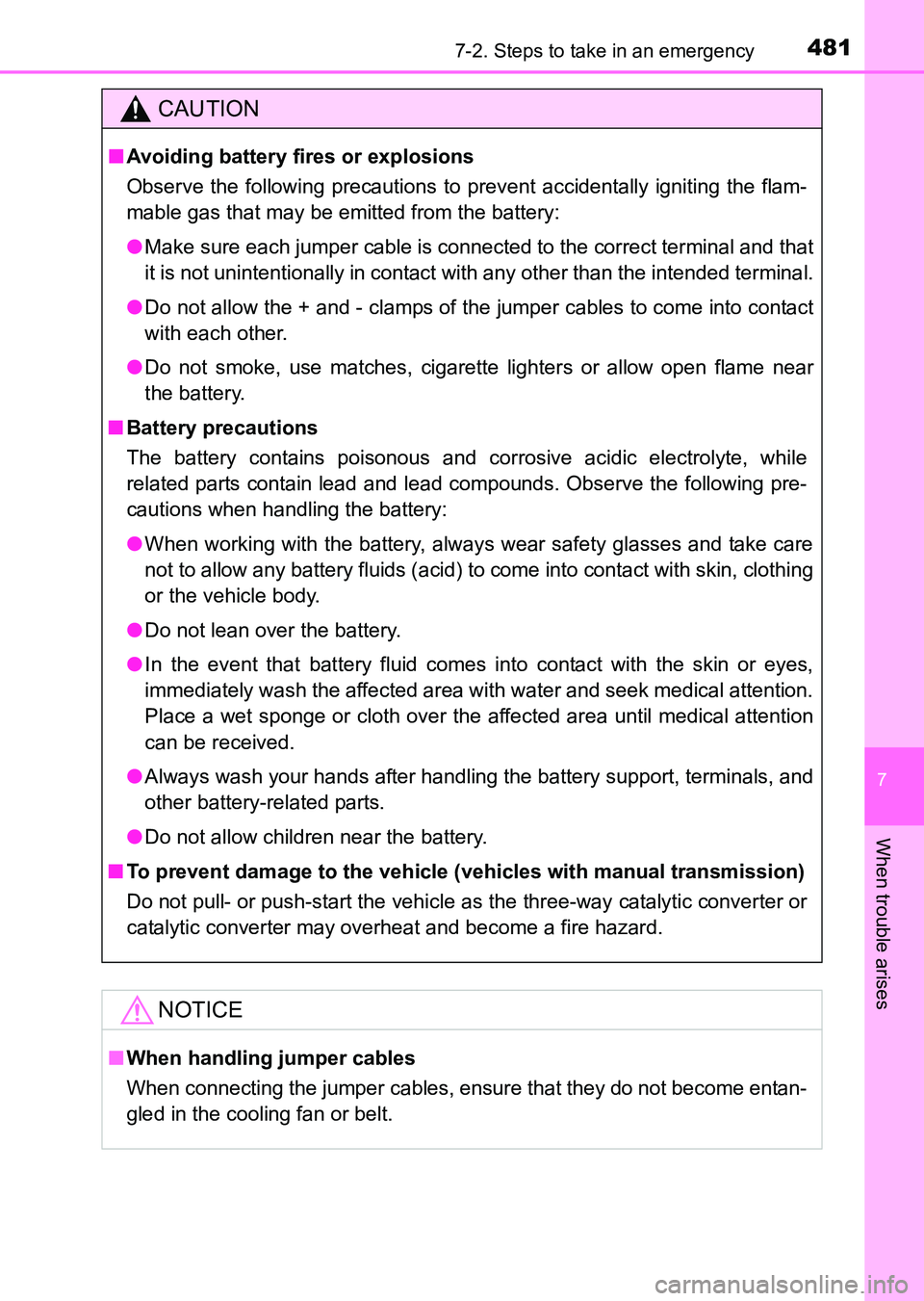

CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
● Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
● Do not allow children near the battery.
■ To prevent damage to the vehicle (vehicles with manual transmission)
Do not pull- or push-start the vehicle as the three-way catalytic converter or
catalytic converter may overheat and become a fire hazard.
NOTICE
■ When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or belt.
HILUX_OM_OM0K219E_(EE).book Page 481 Wednesday, May 14, 2014 3:06 PM

4827-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

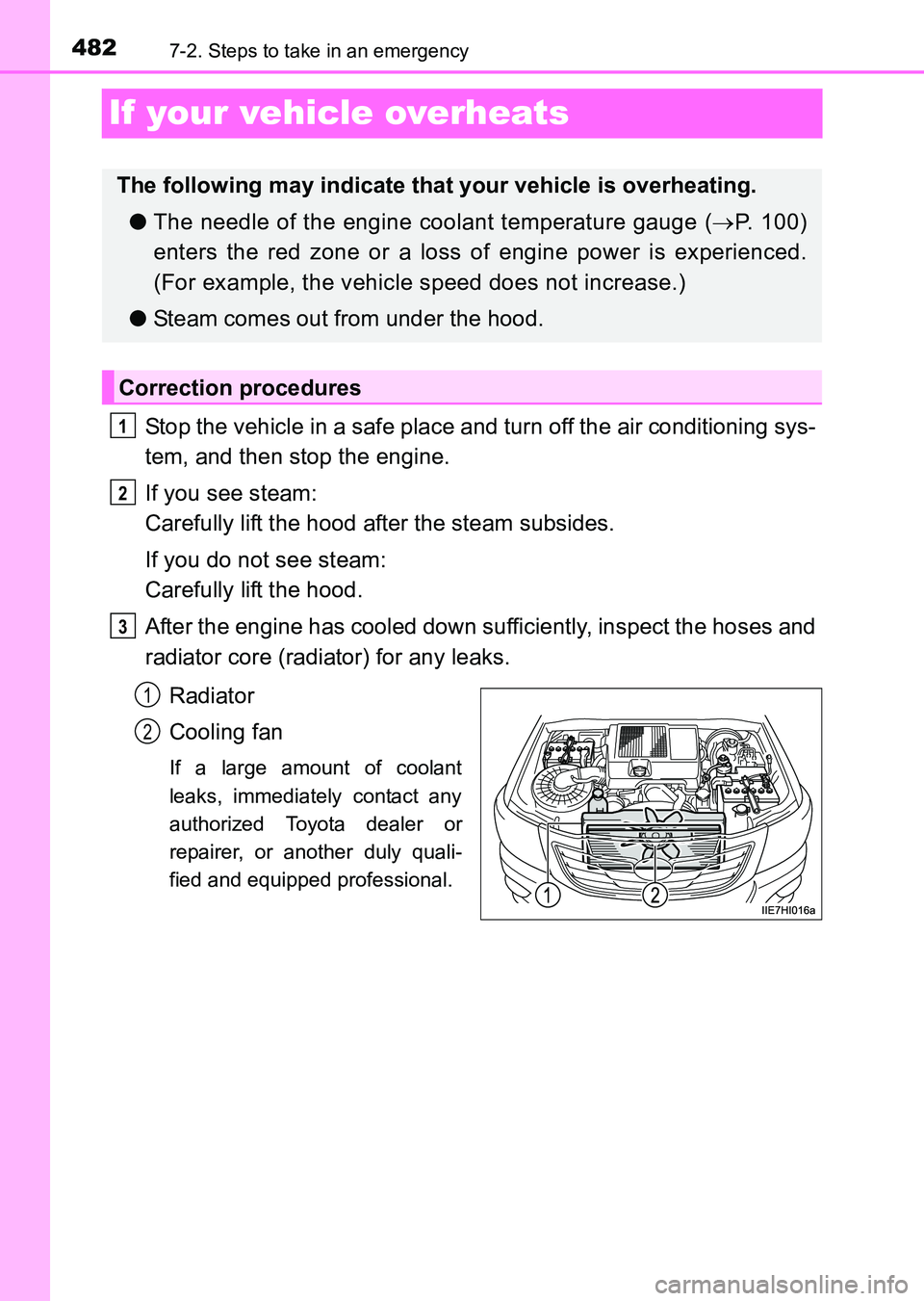

If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
The following may indicate that your vehicle is overheating.● The needle of the engine coolant temperature gauge ( →P. 100)
enters the red zone or a loss of engine power is experienced.
(For example, the vehicle speed does not increase.)
● Steam comes out from under the hood.
Correction procedures
1
2
3
1
2
HILUX_OM_OM0K219E_(EE).book Page 482 Wednesday, May 14, 2014 3:06 PM

4837-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

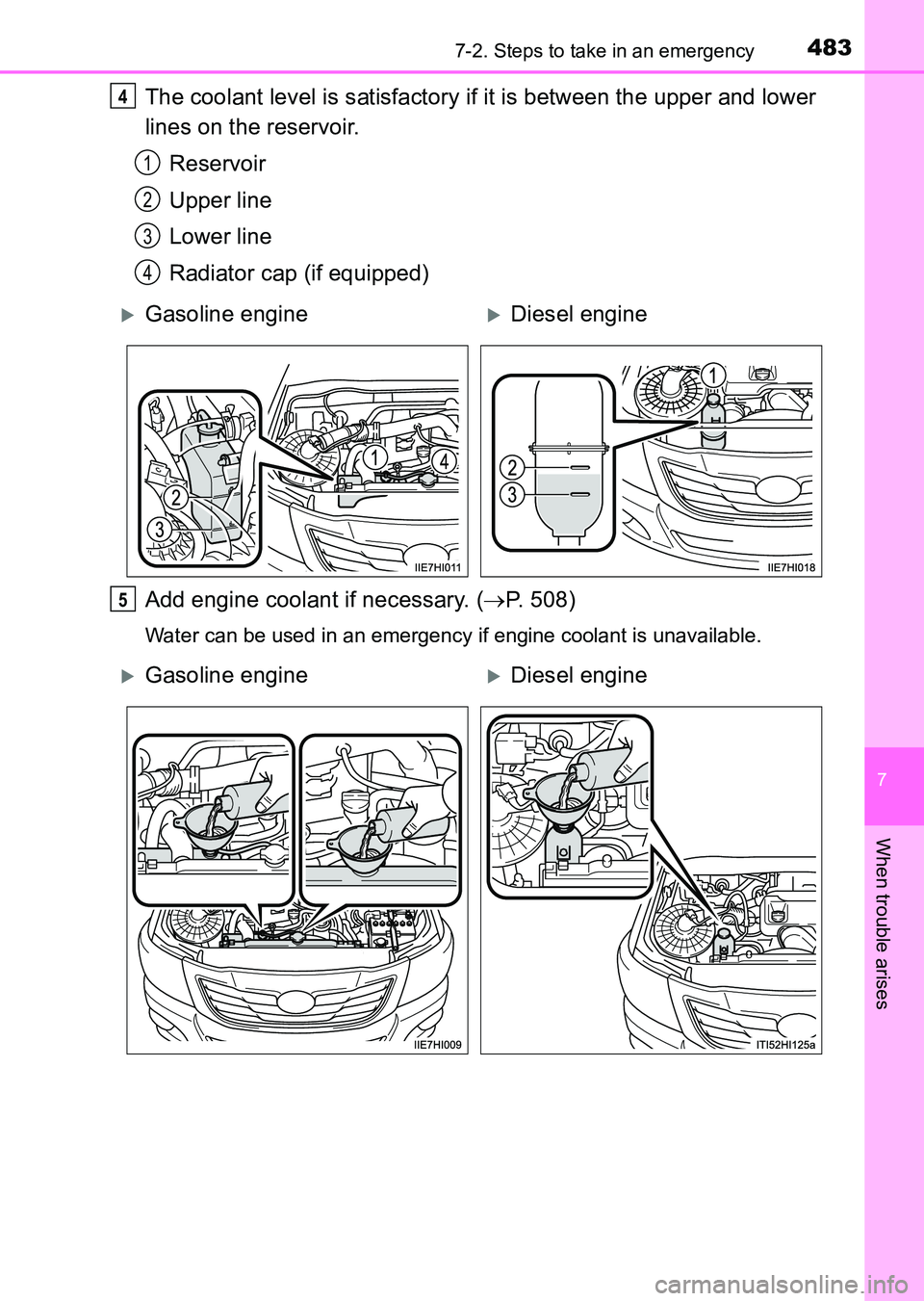

The coolant level is satisfactory if it is between the upper and lower
lines on the reservoir.Reservoir
Upper line
Lower line
Radiator cap (if equipped)
Add engine coolant if necessary. ( →P. 508)
Water can be used in an emergency if engine coolant is unavailable.
4
1
2
3
4
XGasoline engineXDiesel engine
5
XGasoline engineXDiesel engine
HILUX_OM_OM0K219E_(EE).book Page 483 Wednesday, May 14, 2014 3:06 PM

4847-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

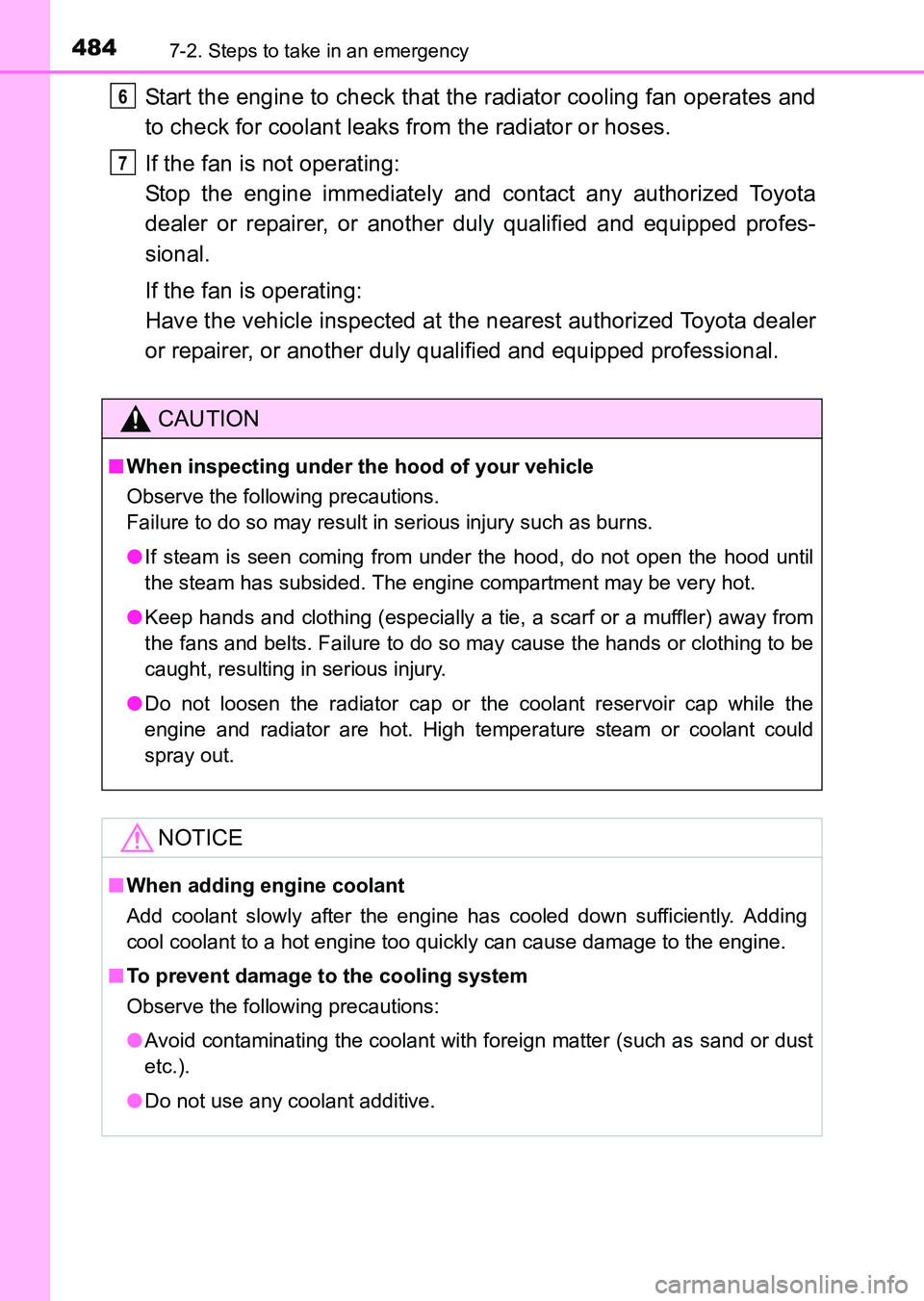

Start the engine to check that the radiator cooling fan operates and
to check for coolant leaks from the radiator or hoses.
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the radiator cap or the coolant reservoir cap while the
engine and radiator are hot. High tem perature steam or coolant could
spray out.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■
To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
6
7
HILUX_OM_OM0K219E_(EE).book Page 484 Wednesday, May 14, 2014 3:06 PM

485
7
7-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K219E_(EE)

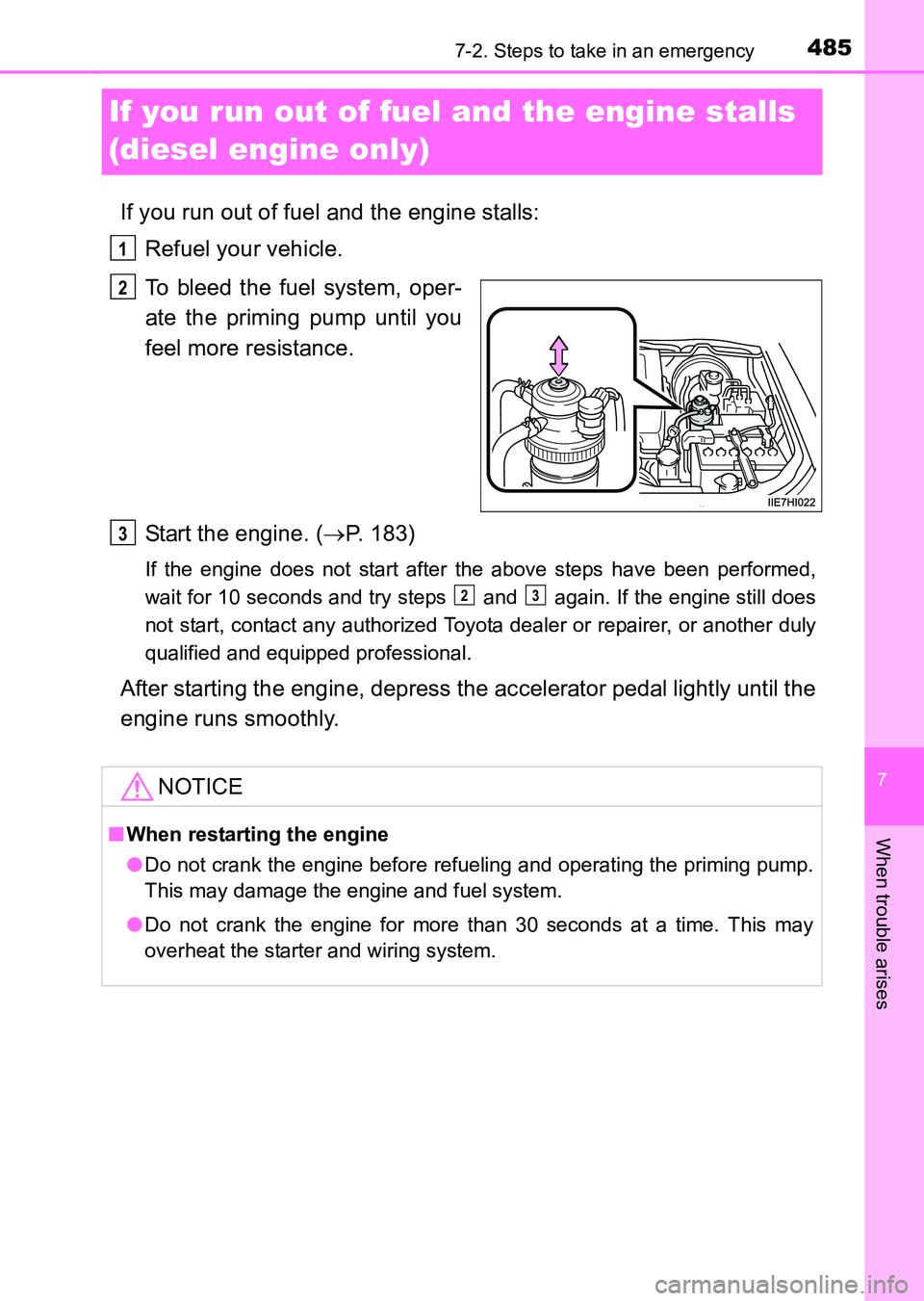

If you run out of fuel and the engine stalls
(diesel engine only)
If you run out of fuel and the engine stalls:Refuel your vehicle.
To bleed the fuel system, oper-
ate the priming pump until you
feel more resistance.
Start the engine. ( →P. 183)
If the engine does not start after the above steps have been performed,
wait for 10 seconds and try steps and again. If the engine still does
not start, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.
1
2
NOTICE
■When restarting the engine
● Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
● Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
3
23
HILUX_OM_OM0K219E_(EE).book Page 485 Wednesday, May 14, 2014 3:06 PM

4867-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)

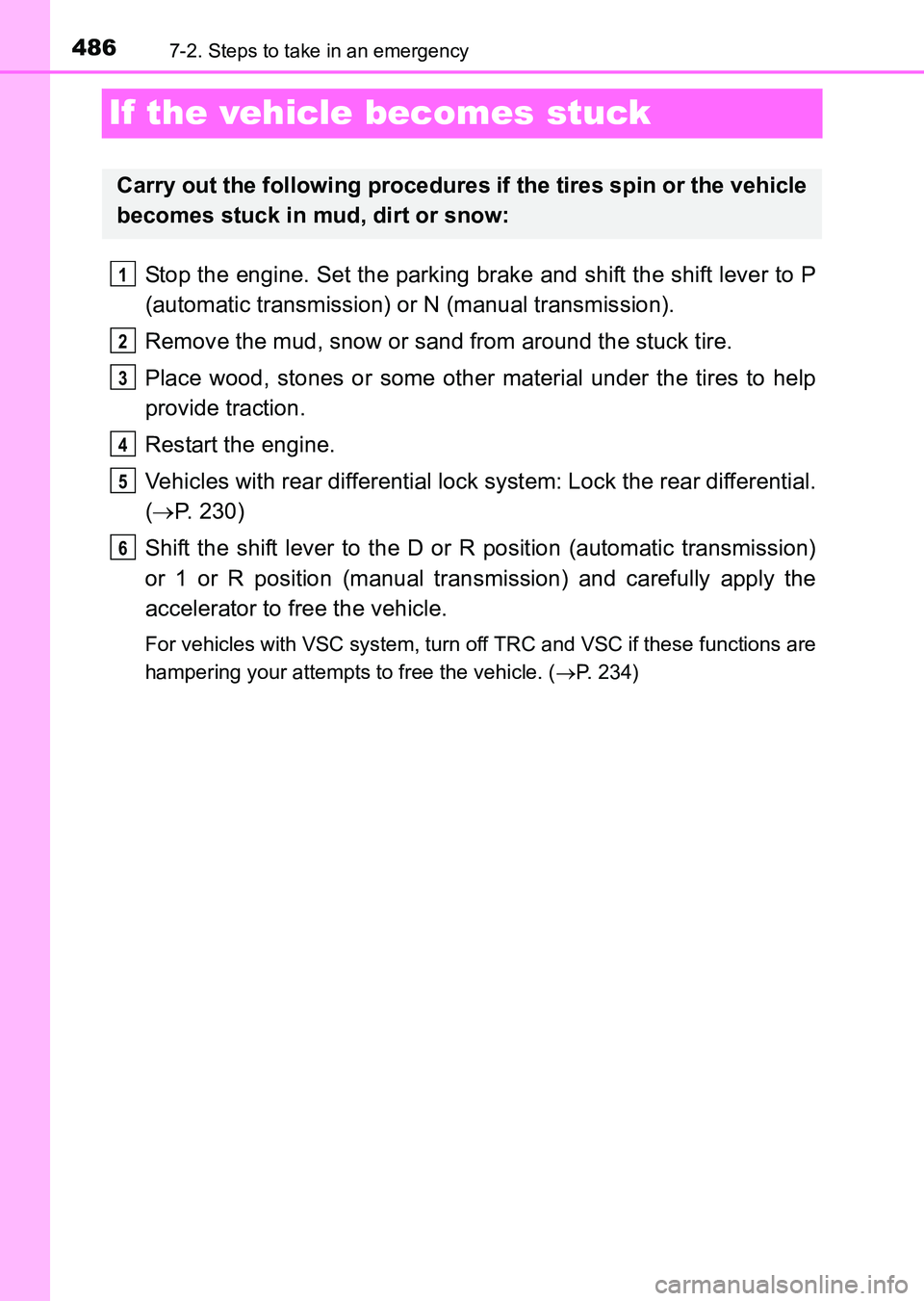

If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(automatic transmission) or N (manual transmission).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the engine.
Vehicles with rear differential lock system: Lock the rear differential.
(→ P. 230)
Shift the shift lever to the D or R position (automatic transmission)
or 1 or R position (manual transmission) and carefully apply the
accelerator to free the vehicle.
For vehicles with VSC system, turn off TRC and VSC if these functions are
hampering your attempts to free the vehicle. ( →P. 234)
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5
6
HILUX_OM_OM0K219E_(EE).book Page 486 Wednesday, May 14, 2014 3:06 PM

4877-2. Steps to take in an emergency
7
When trouble arises
HILUX_OM_OM0K219E_(EE)

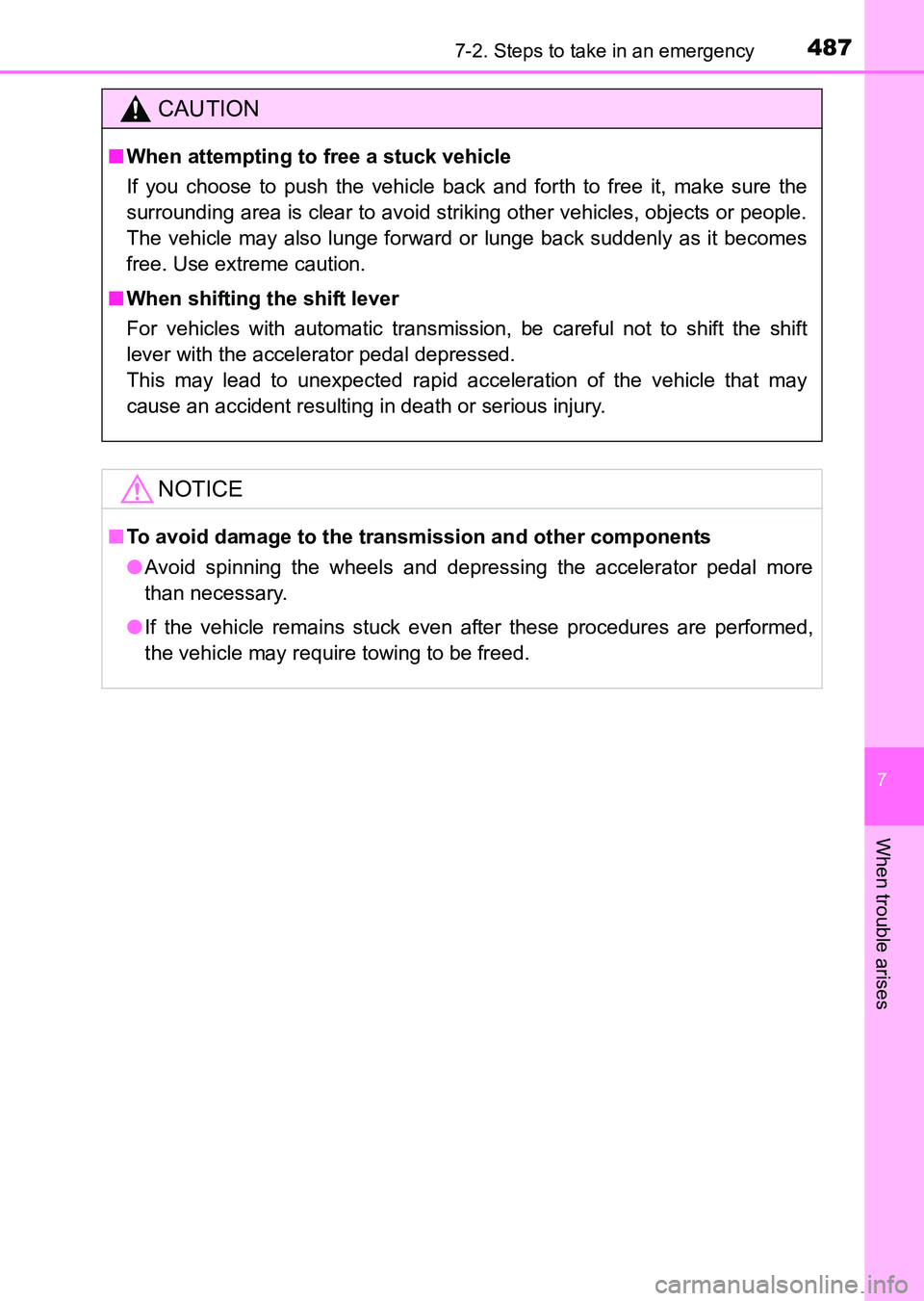

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■
When shifting the shift lever
For vehicles with automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
HILUX_OM_OM0K219E_(EE).book Page 487 Wednesday, May 14, 2014 3:06 PM

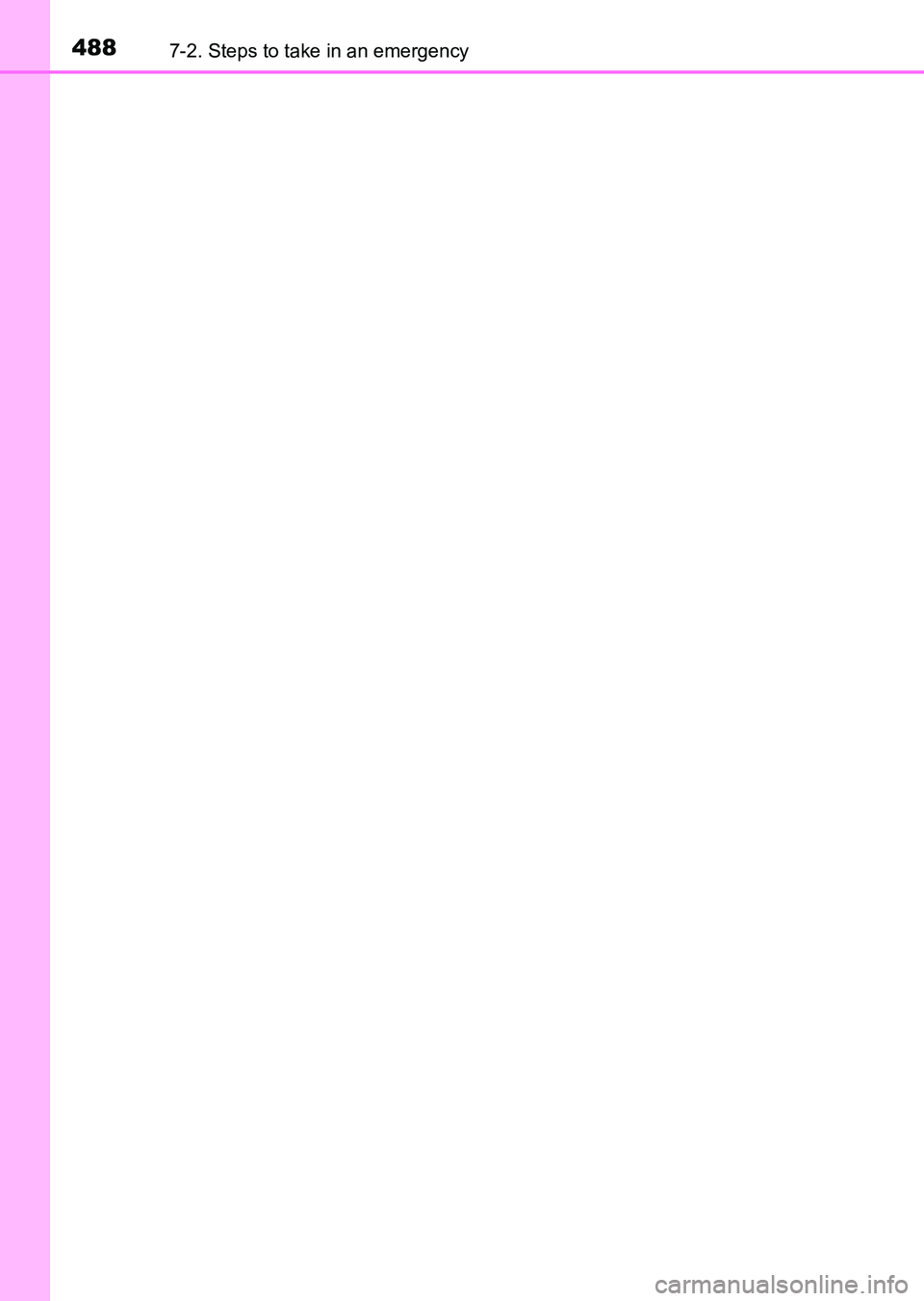

4887-2. Steps to take in an emergency
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 488 Wednesday, May 14, 2014 3:06 PM

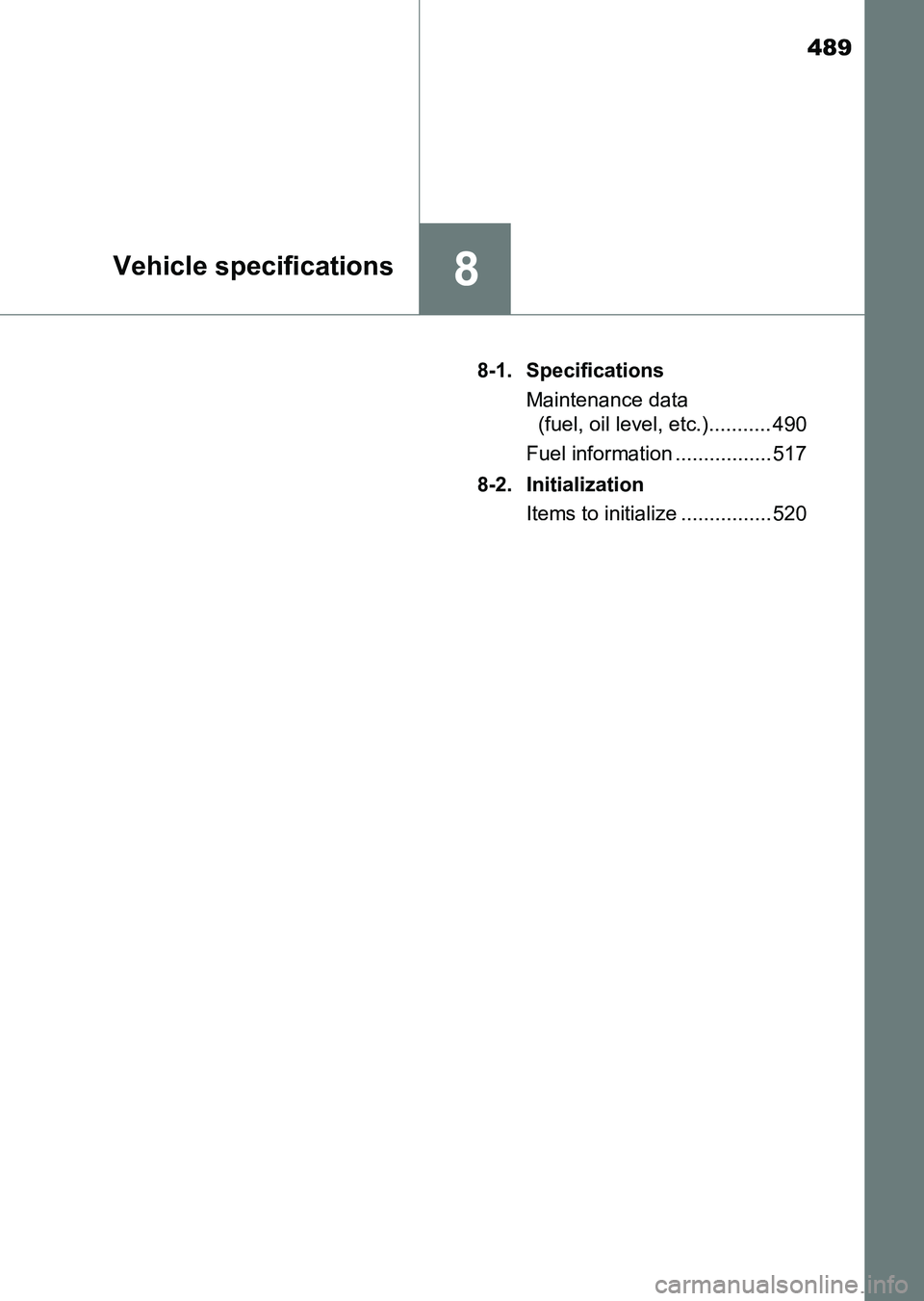

489
8Vehicle specifications
HILUX_OM_OM0K219E_(EE)8-1. Specifications
Maintenance data (fuel, oil level, etc.)........... 490
Fuel information ................. 517
8-2. Initialization Items to initialize ................520
HILUX_OM_OM0K219E_(EE).book Page 489 Wednesday, May 14, 2014 3:06 PM

4908-1. Specifications
HILUX_OM_OM0K219E_(EE)

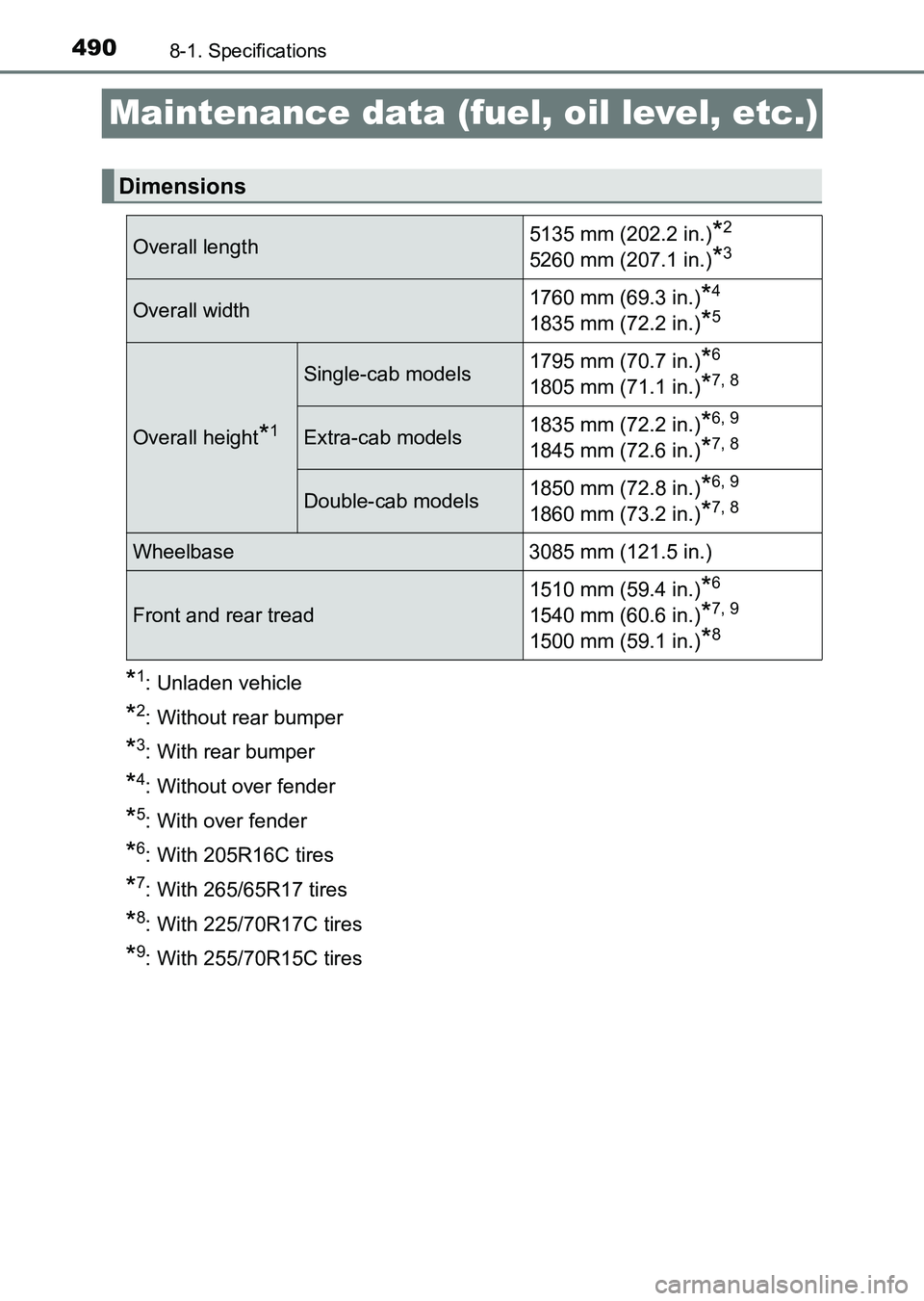

Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Without rear bumper
*3: With rear bumper
*4: Without over fender
*5: With over fender
*6: With 205R16C tires
*7: With 265/65R17 tires
*8: With 225/70R17C tires
*9: With 255/70R15C tires
Dimensions
Overall length5135 mm (202.2 in.)*2
5260 mm (207.1 in.)*3
Overall width1760 mm (69.3 in.)*4
1835 mm (72.2 in.)*5
Overall height*1
Single-cab models1795 mm (70.7 in.)*6
1805 mm (71.1 in.)*7, 8
Extra-cab models1835 mm (72.2 in.)*6, 9
1845 mm (72.6 in.)*7, 8
Double-cab models1850 mm (72.8 in.)*6, 9
1860 mm (73.2 in.)*7, 8
Wheelbase 3085 mm (121.5 in.)
Front and rear tread 1510 mm (59.4 in.)
*6
1540 mm (60.6 in.)*7, 9
1500 mm (59.1 in.)*8
HILUX_OM_OM0K219E_(EE).book Page 490 Wednesday, May 14, 2014
