TOYOTA HILUX 2023 Owners Manual

1392. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)
●Eco Saving
Select to set or change the fuel consumption comparison and
fuel price.
● Initialization
Registered or changed meter settings will be deleted or returned
to their default setting.
■ Pop-up display
The pop-up display is displayed on the multi-information display according to
the operating conditions of the following functions:
● Route guidance display of the navigation system-linked system (if equipped)
● Incoming call display of the hands-free phone system (if equipped)
● Stop & Start system operation time (if equipped)
● Stop & Start system operation status (if equipped)
The pop-up display function can be set on/off. ( P. 648)
■ Eco Score
Driving conditions are displayed in 5 stages and divided into 3 categories:
start, cruise and stop. Every time the vehicle is stopped, the score is dis-
played. (Every time the vehicle is accelerated the score that was last dis-
played is reset. Accumulative scores are not calculated.)
Eco cruise
Displays the eco level calculated from acceleration operation amount when
driving the vehicle
Eco stop
Displays the eco level calculated from time between releasing the accelera-
tor pedal and vehicle stop
Eco Score
Totals the counts of the eco start, eco
cruise and eco stop, and displays the
result.
Eco start
Displays the eco level calculated from
degree of acceleration when starting
the vehicle
1
2
3
4

1402. Instrument cluster
HILUX_OM_OM0K789E_(EE)
If the accelerator pedal is not depressed, such as when the vehicle is driven
using cruise control (if equipped) or dynamic radar cruise control (if
equipped), the driven distance is not included in the Eco Score.
The Eco Score evaluation differs depending on the driving conditions and
environmental factors. The Eco Score may not be linked to fuel consumption.
The Eco Score will not operate in the following conditions:
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
● The shift lever is in a position other than D. (vehicles with automatic trans-
mission)
● A paddle shift switch is operated. (vehicles with paddle shift switches)
● Front-wheel drive control switch is in L4. (if equipped)
● Downhill assist control system is operating. (if equipped)
● The vehicle is in the power mode. (if equipped)

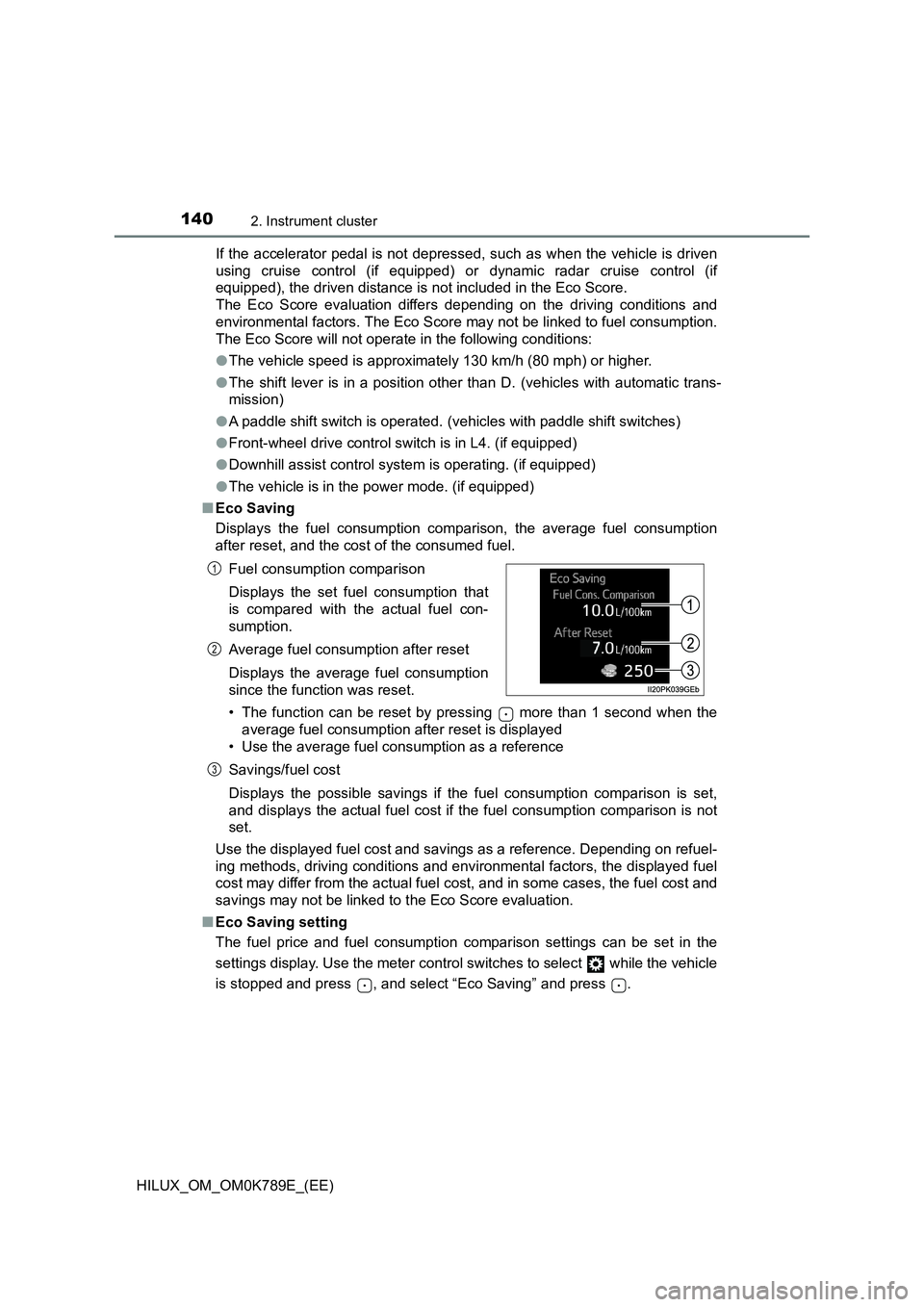

■ Eco Saving
Displays the fuel consumption comparison, the average fuel consumption
after reset, and the cost of the consumed fuel.
• The function can be reset by pressing more than 1 second when the
average fuel consumption after reset is displayed
• Use the average fuel consumption as a reference
Savings/fuel cost
Displays the possible savings if the fuel consumption comparison is set,
and displays the actual fuel cost if the fuel consumption comparison is not
set.
Use the displayed fuel cost and savings as a reference. Depending on refuel-
ing methods, driving conditions and environmental factors, the displayed fuel
cost may differ from the actual fuel cost, and in some cases, the fuel cost and
savings may not be linked to the Eco Score evaluation.
■ Eco Saving setting
The fuel price and fuel consumption comparison settings can be set in the
settings display. Use the meter control switches to select while the vehicle
is stopped and press , and select “Eco Saving” and press .
Fuel consumption comparison
Displays the set fuel consumption that
is compared with the actual fuel con-
sumption.
Average fuel consumption after reset
Displays the average fuel consumption
since the function was reset.
1
2
3

1412. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)

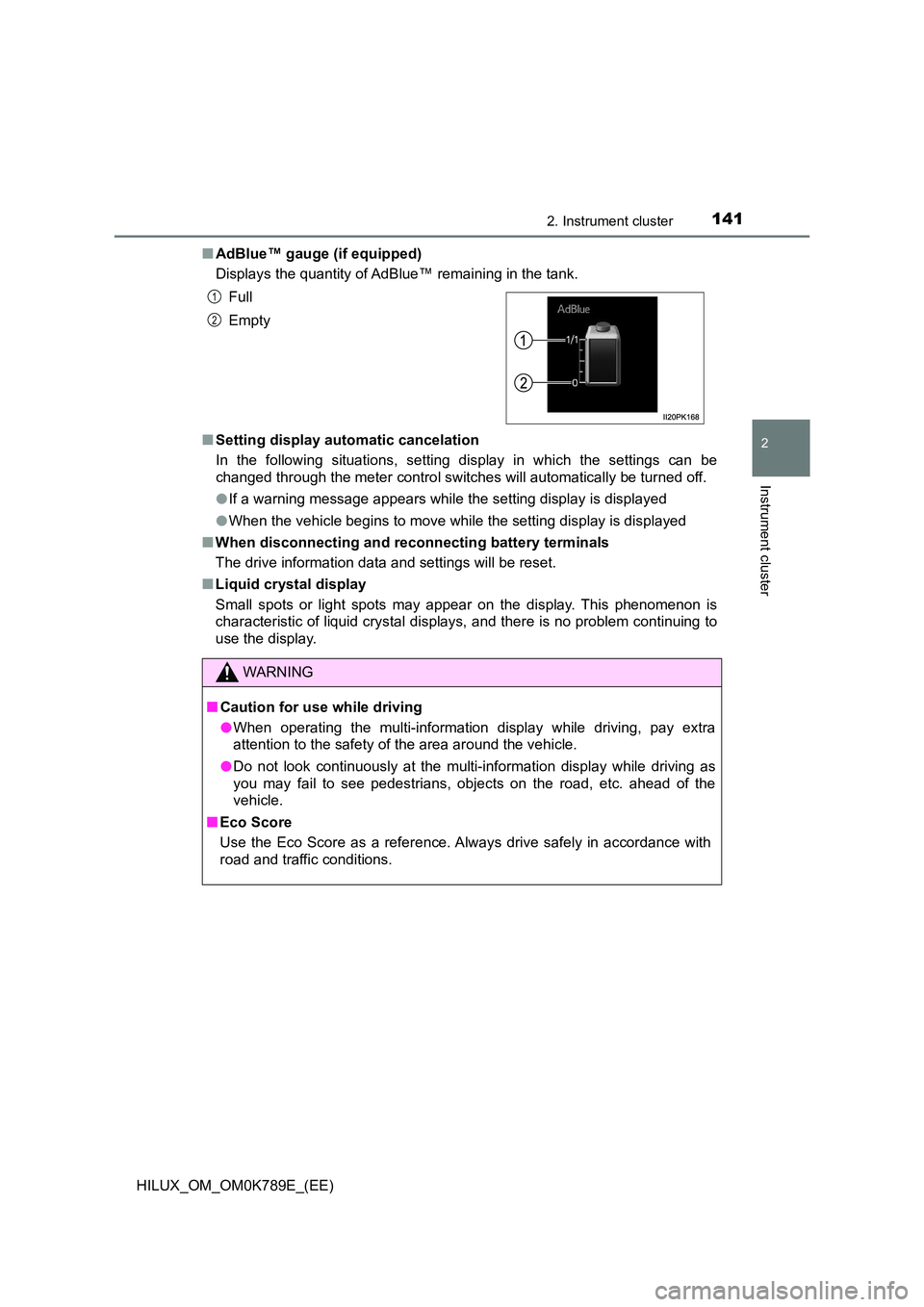

■ AdBlue™ gauge (if equipped)
Displays the quantity of AdBlue™ remaining in the tank.
■ Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the meter control switches will automatically be turned off.
● If a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■ When disconnecting and reconnecting battery terminals
The drive information data and settings will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Full
Empty
WARNING
■ Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ Eco Score
Use the Eco Score as a reference. Always drive safely in accordance with
road and traffic conditions.
1
2

1422. Instrument cluster
HILUX_OM_OM0K789E_(EE)

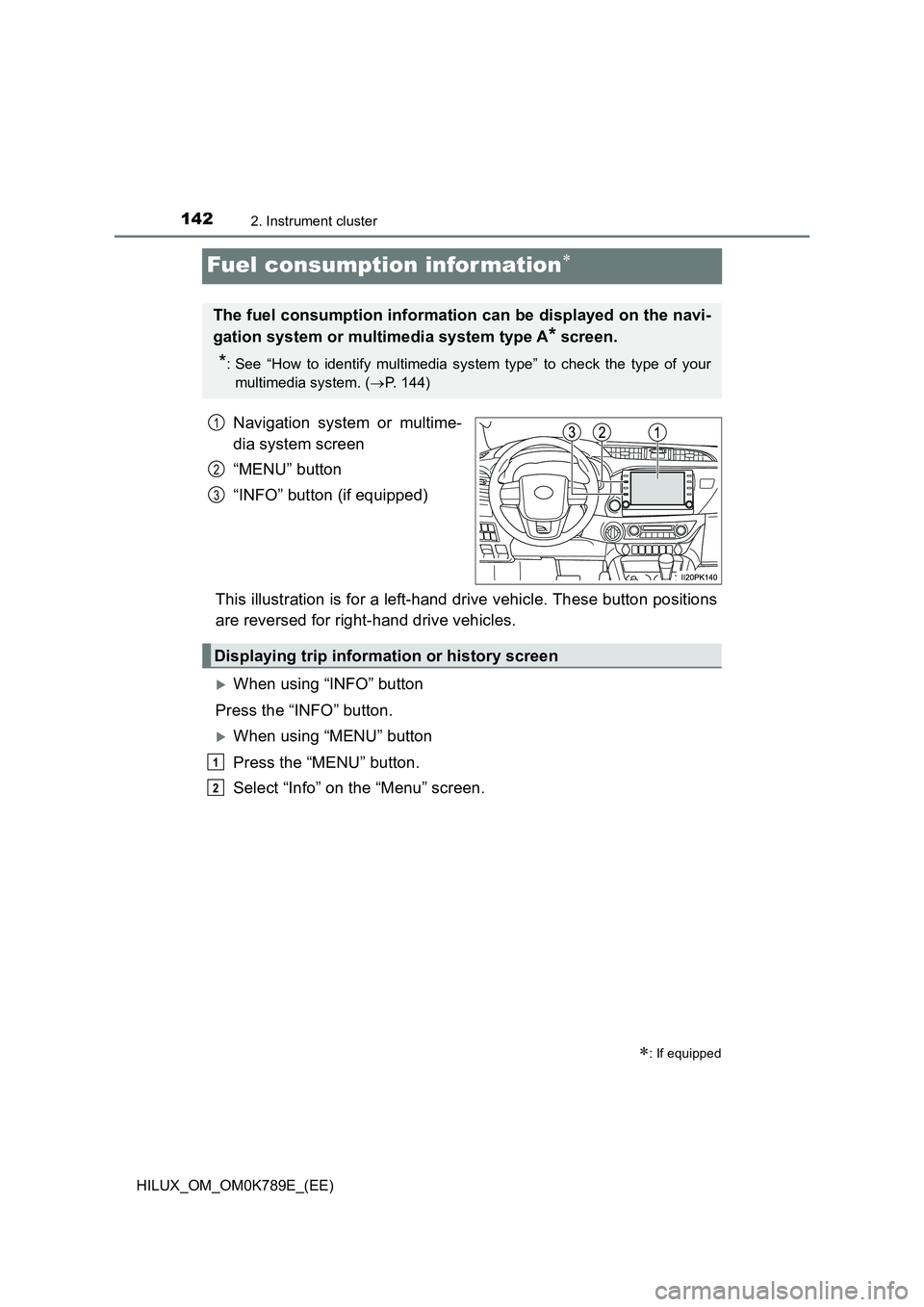

Fuel consumption infor mation
Navigation system or multime-
dia system screen
“MENU” button
“INFO” button (if equipped)
This illustration is for a left-hand drive vehicle. These button positions
are reversed for right-hand drive vehicles.
When using “INFO” button
Press the “INFO” button.
When using “MENU” button
Press the “MENU” button.
Select “Info” on the “Menu” screen.
: If equipped
The fuel consumption information can be displayed on the navi-
gation system or multimedia system type A* screen.
*: See “How to identify multimedia system type” to check the type of your
multimedia system. ( P. 144)
1
2
3
Displaying trip information or history screen
1
2

1432. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K789E_(EE)

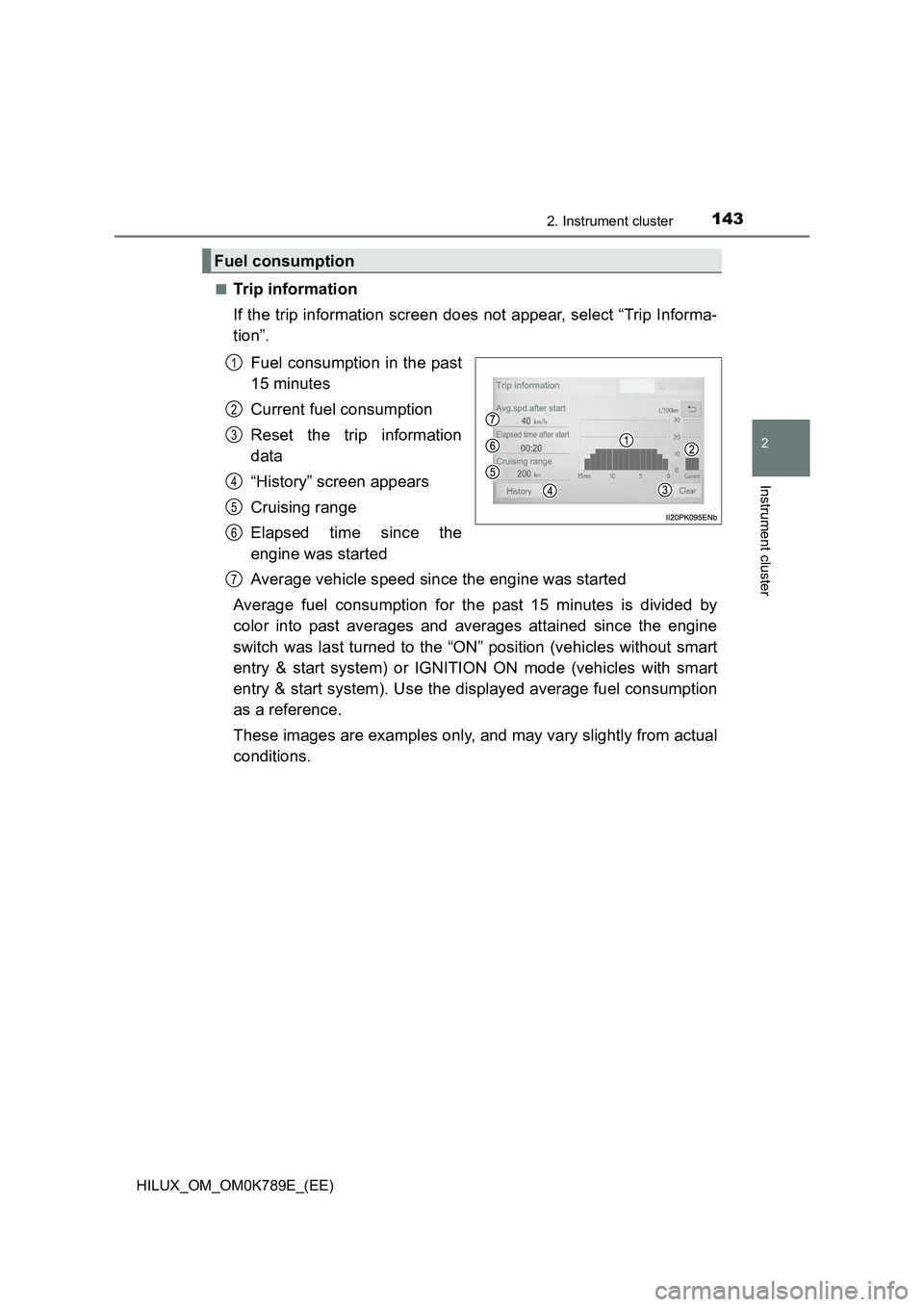

■Trip information
If the trip information screen does not appear, select “Trip Informa-
tion”.
Fuel consumption in the past
15 minutes
Current fuel consumption
Reset the trip information
data
“History” screen appears
Cruising range
Elapsed time since the
engine was started
Average vehicle speed since the engine was started
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position (vehicles without smart
entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system). Use the displayed average fuel consumption
as a reference.
These images are examples only, and may vary slightly from actual
conditions.
Fuel consumption
1
2
3
4
5
6
7

1442. Instrument cluster
HILUX_OM_OM0K789E_(EE)

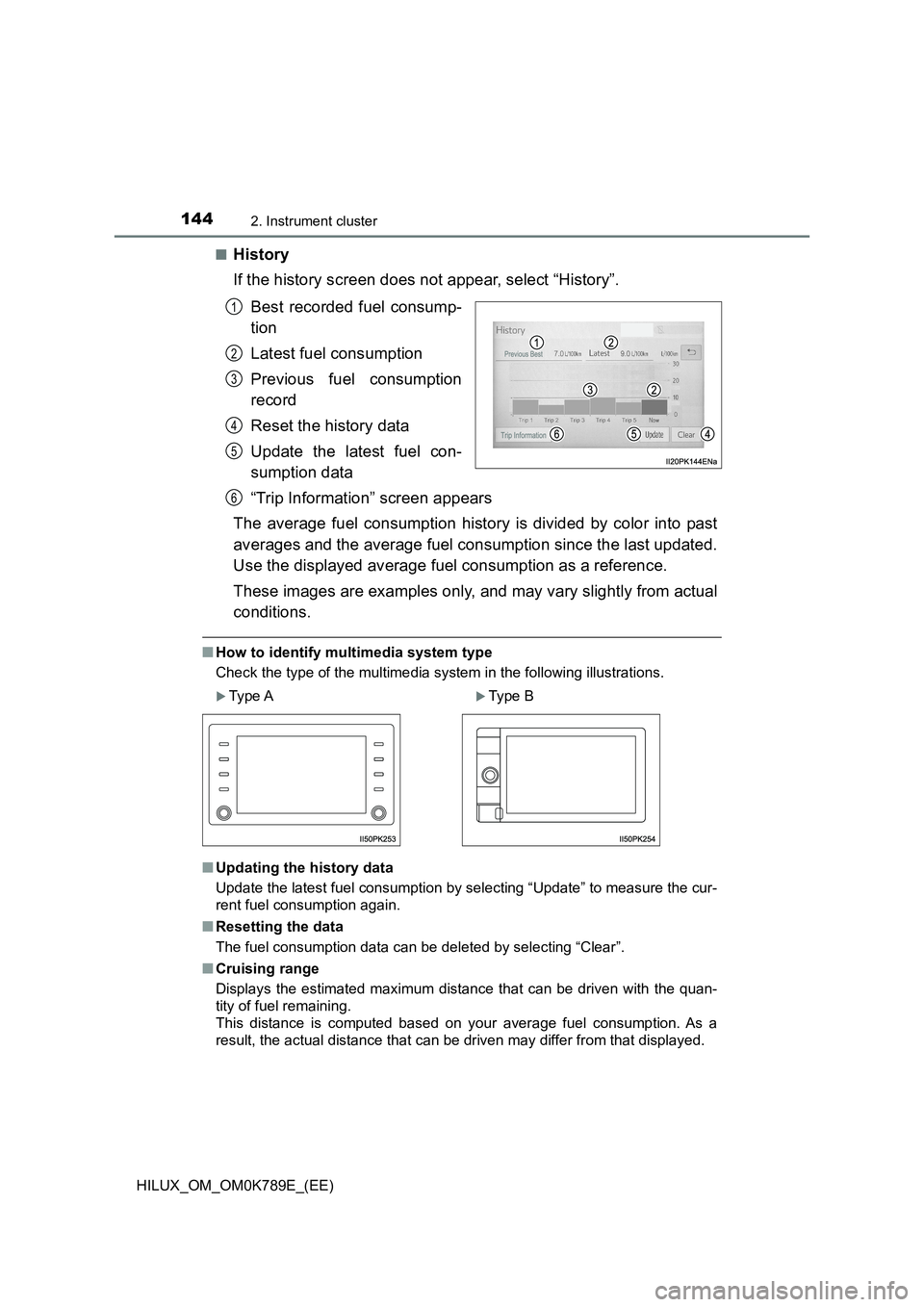

■History
If the history screen does not appear, select “History”.
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Reset the history data
Update the latest fuel con-
sumption data
“Trip Information” screen appears
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
These images are examples only, and may vary slightly from actual
conditions.
■ How to identify multimedia system type
Check the type of the multimedia system in the following illustrations.
■ Updating the history data
Update the latest fuel consumption by selecting “Update” to measure the cur-
rent fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
Type AType B
6

145
3
Operation of
each component
HILUX_OM_OM0K789E_(EE)
3-1. Key information
Keys ................................... 146
3-2. Opening, closing and
locking the doors
Side doors.......................... 151
Access panels (smart-cab
models only) .................... 157
Tailgate .............................. 158
Smart entry & start
system ............................. 161
3-3. Adjusting the seats
Front seats ......................... 168
Rear seats ......................... 170
Head restraints .................. 173
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 176
Inside rear view mirror ....... 178
Outside rear view
mirrors ............................. 180
3-5. Opening and closing
the windows
Power windows .................. 183
Quarter windows
(smart-cab models).......... 187

1463-1. Key information
HILUX_OM_OM0K789E_(EE)
Keys
