engine coolant TOYOTA iA 2016 Owners Manual (in English)

5
1
8 7
6 4 3
2
iA_OM_OM99M17z_(U)
5
5-1. Essential InformationIntroduction ....................... 418
5-2. Scheduled Maintenance Maintenance Monitor......... 420
5-3. Owner Maintenance Owner Maintenance Precautions ..................... 424
Hood.................................. 426
Engine Compartment Overview ......................... 428
Engine Oil.......................... 429
Engine Coolant.................. 431
Brake/Clutch Fluid ............. 434
Window Washer Fluid ....... 435
Body Lubrication ............... 436
Wiper Blades ..................... 437
Battery ............................... 440
Key Battery Replacement ................... 443
Tires .................................. 446
Light Bulbs ........................ 451
Fuses ................................ 460
5-4. Appearance Care Exterior Care ..................... 468
Interior Care ...................... 476 6-1. Parking in an Emergency
Parking in an Emergency ...................... 482
6-2. Flat Tire Spare Tire and Tool Storage ............................ 483
Changing a Flat Tire .......... 487
6-3. Battery Runs Out Jump-Starting .................... 497
6-4. Emergency Starting Starting a Flooded Engine ............................. 500
Push-Starting ..................... 501
6-5. Overheating Overheating ....................... 502
6-6. Emergency Towing Towing Description ............ 504
Tiedown Hooks .................. 505
6-7. Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes .................. 507
Message Indicated on Display............................. 520
Warning Sound is Activated.......................... 522
6-8. When Trunk Lid Cannot be Opened
When Trunk Lid Cannot be Opened....................... 525
5Maintenance and Care6If Trouble Arises

131
iA_OM_OM99M17z_(U)
2-8. Driving Tips
2
Before Driving
Winter Driving
Carry emergency gear, including tire chains, window scraper, flares, a
small shovel, jumper cables, a nd a small bag of sand or salt.
Ask your Scion dealer to check the following:
● Have the proper ratio of antifreeze in the radiator.
Refer to Engine Coolant on P. 431.
● Inspect the battery and its cables . Cold reduces battery capacity.
● Use an engine oil appropriate for the lowest ambient temperatures
that the vehicle will be driven in ( P. 429).
● Inspect the ignition sy stem for damage and loose connections.
● Use washer fluid made with antifreeze but do not use engine cool-
ant antifreeze for washer fluid ( P. 435).
●Do not use the parking brake in freezing weather as it may freeze. Instead,
shift to 1 or R with a manual transaxle and to P with an automatic transaxle.
Block the rear wheels.
● Remove snow before driving. Snow left on the windshield is dangerous as it
could obstruct vision.
● Do not apply excessive force to a window scraper when removing ice or fro-
zen snow on the mirror glass and windshield.
● Never use warm or hot water for removing snow or ice from windows and
mirrors as it could result in the glass cracking.
● Drive slowly. Braking performance can be adversely affected if snow or ice
adheres to the brake components. If this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal and lightly applying the brakes sev-
eral times until the brake performance returns to normal.

iA_OM_OM99M17z_(U)
1573-2. Combination Meter and Display
3
When Driving
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1: The light turns on when the ignition is switched on for an operation chec\
k, and turns off a few seconds later or when the engine is started. If the light
does not turn on or remains turned on, have the vehicle inspected at your
Scion dealer.
*2: The light turns on continuously when the parking brake is applied.
Warning Lights
*1Master Warning Light
(P. 507)*1Air Bag/Front Seat Belt
Pretensioner System
Warning Light ( P. 507)
*1, 2Brake System Warning
Light (P. 507) Low Fuel Warning Light
(
P. 507)
*1ABS Warning
Light ( P. 507)*1Check Fuel Cap
Warning Light ( P. 507)
*1Charging System
Warning Light (P. 507) Seat Belt Warning Light
(Front seat) (
P. 507)
*1Engine Oil Warning
Light (P. 507) Door-Ajar Warning Light
(
P. 507)
*1Check Engine Light
(P. 507)
(If equipped)
Low Washer Fluid Level
Warning Light ( P. 507)
*1
(Red)
High Engine Coolant
Temperature Warning
Light (P. 507)*1
(If equipped)
Tire Pressure Monitoring
System Warning Light
(P. 507)
*1
(If equipped)
Automatic Transaxle
Warning Light ( P. 507)*1
(Red)
KEY Warning Light
(P. 507)
*1Power Steering
Malfunction Indicator
Light ( P. 507)
(Amber)
(If equipped)
Smart City Brake
Support (SCBS)
Warning Light ( P. 507)

158
iA_OM_OM99M17z_(U)
3-2. Combination Meter and Display
These lights turn on or flash to notify the user of the system operation
status or a system malfunction.
*1: The light turns on when the ignition is switched on for an operation chec\
k, and turns off a few seconds later or when the engine is started. If the light
does not turn on or remains turned on, have the vehicle inspected at your
Scion dealer.

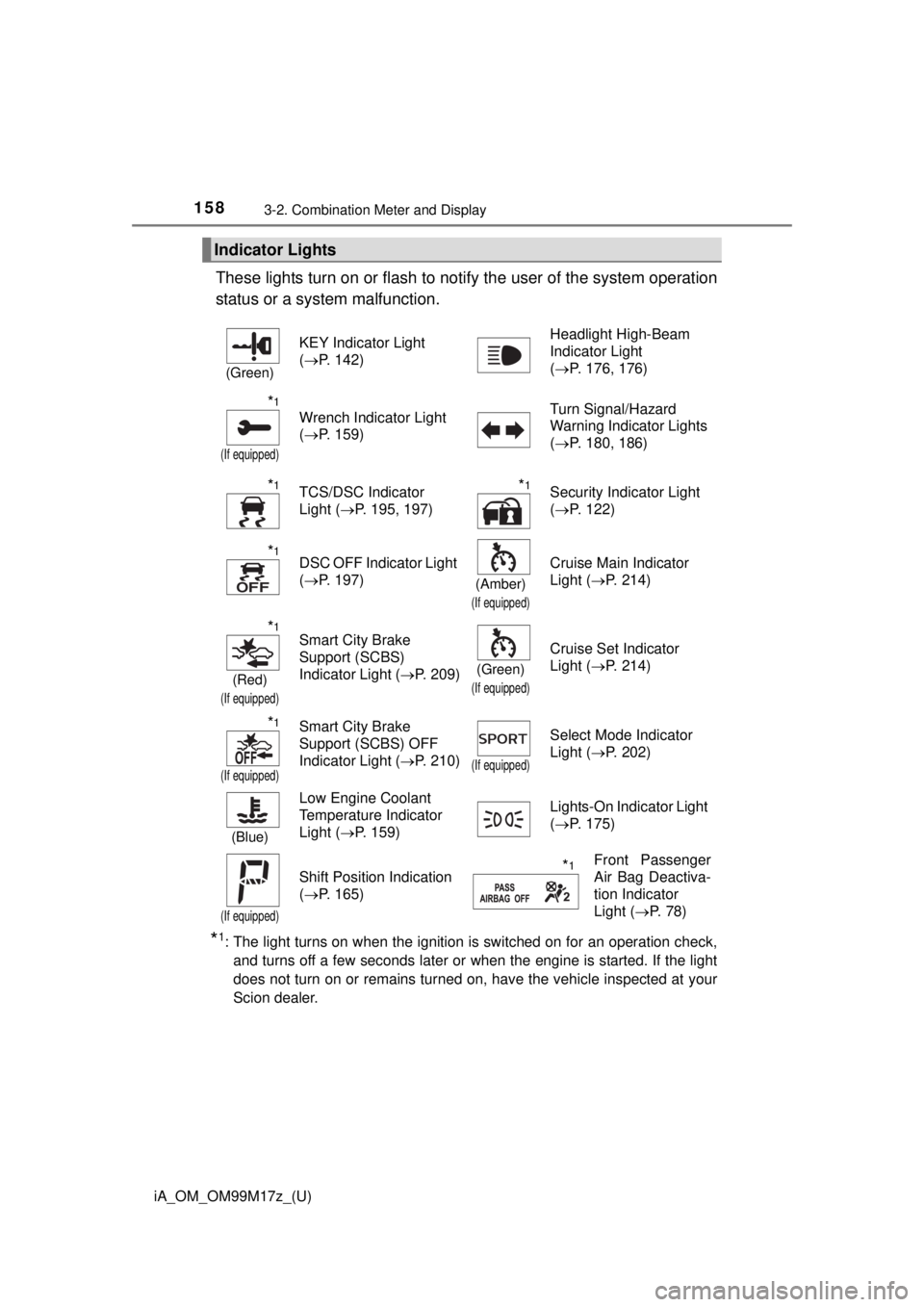

Indicator Lights
(Green)
KEY Indicator Light
(P. 142) Headlight High-Beam
Indicator Light
(
P. 176, 176)
*1
(If equipped)
Wrench Indicator Light
(P. 159) Turn Signal/Hazard
Warning Indicator Lights
(
P. 180, 186)
*1TCS/DSC Indicator
Light ( P. 195, 197)*1Security Indicator Light
(P. 122)
*1DSC OFF Indicator Light
(P. 197)
(Amber)
(If equipped)
Cruise Main Indicator
Light ( P. 214)
*1
(Red)
(If equipped)
Smart City Brake
Support (SCBS)
Indicator Light ( P. 209)
(Green)
(If equipped)
Cruise Set Indicator
Light (P. 214)
*1
(If equipped)
Smart City Brake
Support (SCBS) OFF
Indicator Light ( P. 210)
(If equipped)
Select Mode Indicator
Light (P. 202)
(Blue)
Low Engine Coolant
Temperature Indicator
Light (P. 159) Lights-On Indicator Light
(
P. 175)
(If equipped)
Shift Position Indication
(P. 165)*1Front Passenger
Air Bag Deactiva-
tion Indicator
Light ( P. 78)

iA_OM_OM99M17z_(U)
1593-2. Combination Meter and Display
3
When Driving

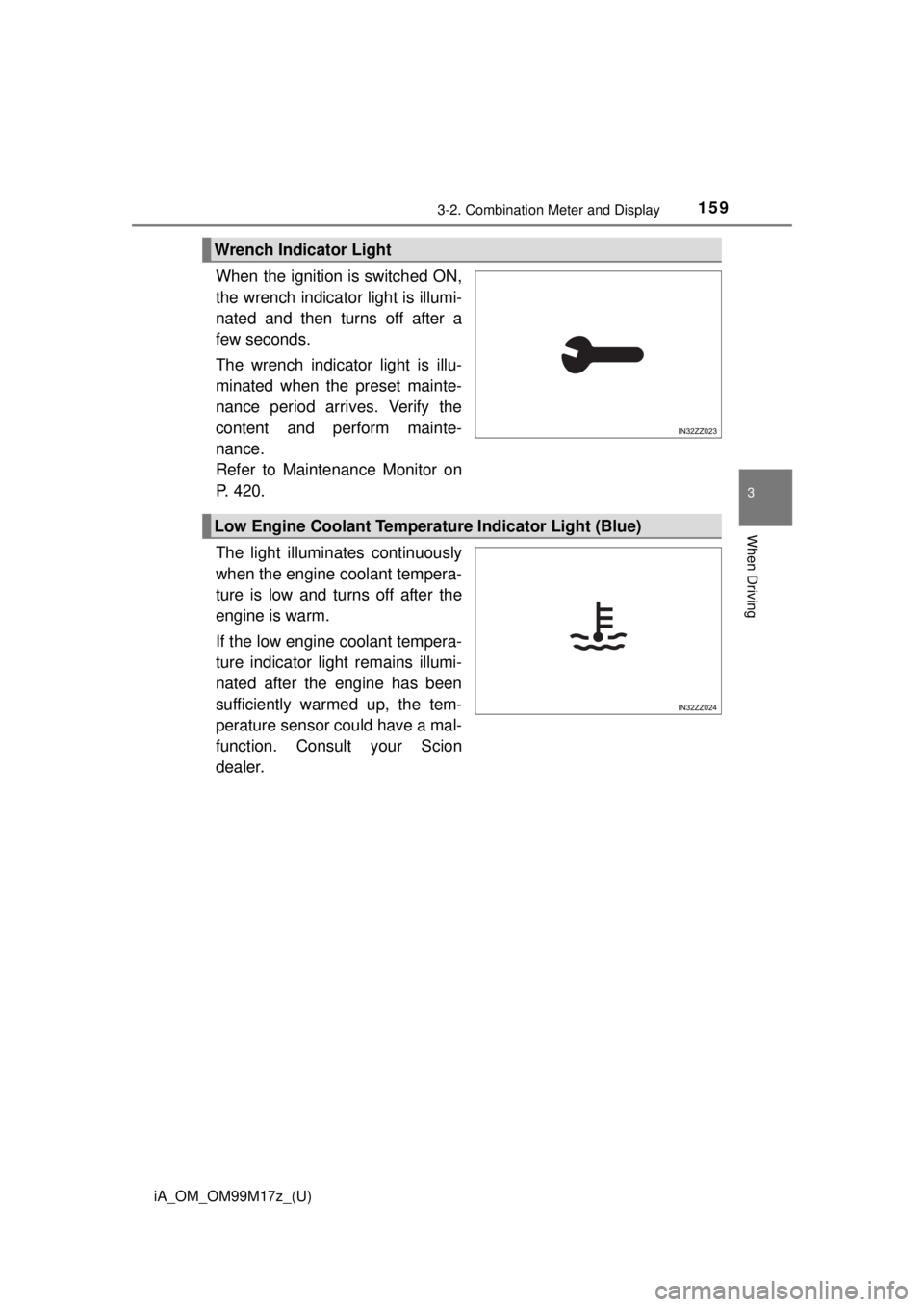

When the ignition is switched ON,
the wrench indicator light is illumi-
nated and then turns off after a
few seconds.
The wrench indicator light is illu-
minated when the preset mainte-
nance period arrives. Verify the
content and perform mainte-
nance.
Refer to Maintenance Monitor on
P. 420.
The light illuminates continuously
when the engine coolant tempera-
ture is low and turns off after the
engine is warm.
If the low engine coolant tempera-
ture indicator light remains illumi-
nated after the engine has been
sufficiently warmed up, the tem-
perature sensor could have a mal-
function. Consult your Scion
dealer.
Wrench Indicator Light
Low Engine Coolant Temperat ure Indicator Light (Blue)

iA_OM_OM99M17z_(U)
2414-1. Climate Control System
4
Interior Features
Set the mode selector dial to the position.
Set the temperature control dial to the cold position.
Set the fan control dial to the desired speed.
Turn on the air conditioner by pressing the A/C switch.
After cooling begins, adjust the f an control dial and temperature
control dial as needed to maintain maximum comfort.
■ Cooling
●When maximum cooling is desired, set the temperature control dial to the
extreme cold position and set the air intake selector to the recirculated air
position, then set the fan control dial to position 4.
● If warmer air is desired at floor level, set the mode selector dial to the
position and adjust the temperature control dial to maintain maximum com-
fort.
● The air to the floor is warmer than air to the face (except when the tempera-
ture control dial is set at the extreme hot or cold position).
Cooling
NOTICE
If the air conditioner is used while driving up long hills or in heavy traffic,
monitor the engine coolant temperature warning light to see if it is illumi-
nated or flashing ( P. 148).
The air conditioner may cause engine overheating. If the warning light is
illuminated or flashing, turn the air conditioning off ( P. 502).
1
2
3
4
5

417
iA_OM_OM99M17z_(U)
5Maintenance and Care
5-1. Essential InformationIntroduction ....................... 418
5-2. Scheduled Maintenance Maintenance Monitor ........ 420
5-3. Owner Maintenance Owner Maintenance Precautions ..................... 424
Hood ................................. 426
Engine Compartment Overview ......................... 428
Engine Oil ......................... 429
Engine Coolant ................. 431
Brake/Clutch Fluid............. 434
Window Washer Fluid ....... 435
Body Lubrication ............... 436
Wiper Blades..................... 437
Battery............................... 440
Key Battery Replacement ................... 443
Tires .................................. 446
Light Bulbs ........................ 451
Fuses ................................ 460
5-4. Appearance Care Exterior Care ..................... 468
Interior Care ...................... 476

424
iA_OM_OM99M17z_(U)
5-3. Owner Maintenance
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and dependable
operation.
Bring any problem to the attention of your Scion dealer or qualified
service technician as soon as possible.
■When Refueling
● Brake and clutch fluid level ( P. 434)
● Engine coolant level ( P. 431)
● Engine oil level ( P. 430)
● Washer fluid level ( P. 435)
■At Least Monthly
Tire inflation pressures ( P. 446)
■At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have
some mechanical ability and a few basic tools and if you closely fol-
low the directions in this manual.
● Engine coolant ( P. 431)
● Engine oil ( P. 429)
Improper or incomplete service ma y result in problems. This sec-
tion gives instructions only for items that are easy to perform.
As explained in the Introduction ( P. 418), several procedures can
be done only by a qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect
warranty coverage. Refer to Introduction ( P. 418) for owner’s
responsibility in protecting your investment. For details, read the
separate Scion Warranty and Maintenance Guide provided with the
vehicle. If you are unsure about an y servicing or maintenance pro-
cedure, have it done by your Scion dealer.
There are strict environmental laws regarding the disposal of waste
oil and fluids. Please dispose of your waste properly and with due
regard to the environment.
We recommend that you entrust the oil and fluid changes of your
vehicle to your Scion dealer.

428
iA_OM_OM99M17z_(U)
5-3. Owner Maintenance

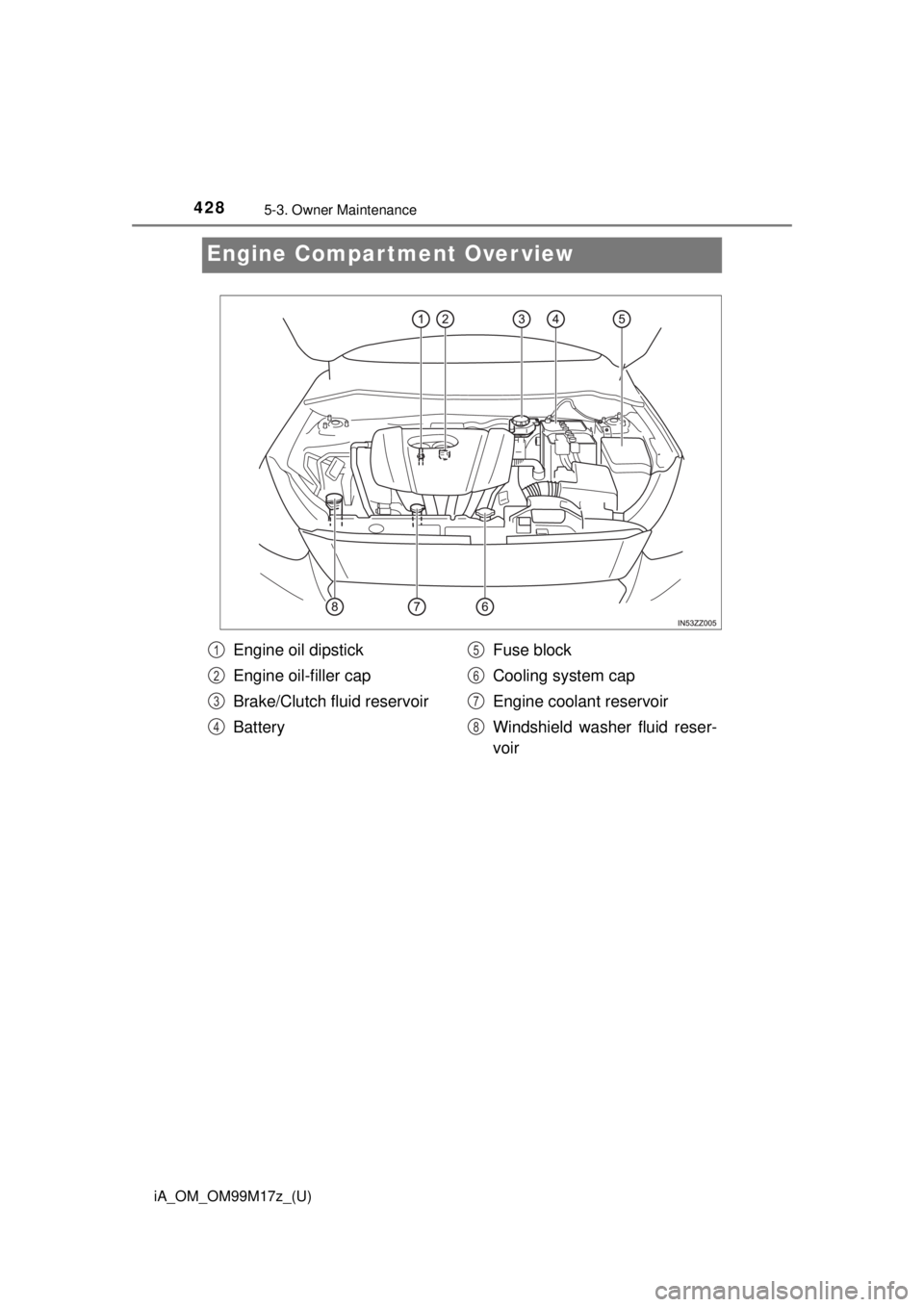

Engine Compartment Over view
Engine oil dipstick
Engine oil-filler cap
Brake/Clutch fluid reservoir
BatteryFuse block
Cooling system cap
Engine coolant reservoir
Windshield washer fluid reser-
voir1
2
3
4
5
6
7
8

431
iA_OM_OM99M17z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Engine Coolant
Inspect the antifreeze protection and coolant level in the coolant res-
ervoir at least once a year—at t he beginning of the winter season—
and before traveling where temperatures may drop below freezing.
Inspect the condition and connecti ons of all cooling system and
heater hoses.
Replace any that are swollen or deteriorated.
The coolant should be at full in the
radiator and between the F and L
marks on the coolant reservoir
when the engine is cool.
Cooling fan
Cooling system cap
Coolant reservoir
If it is at or near L, add enough coolant to the coolant reservoir to pro-
vide freezing and corrosion protecti on and to bring the level to F.
Securely tighten the coolant reserv oir tank cap after adding coolant.
If the coolant reservoir is empty or new coolant is required frequently,
consult your Scion dealer.
Changing the coolant should be done by your Scion dealer.
Inspecting Coolant Level
1
2
3
