navigation system TOYOTA LAND CRUISER 2005 J100 Navigation Manual

14
END USER NOTICE
PLEASE READ THIS NOTICE
CAREFULLY BEFORE USING THIS
NAVIGATION SYSTEM
The Point Of Interest Data (“POI” Data) in
the navigation system is in part provided
by infoUSA Inc. (“infoUSA”). By using
the POI Data, you accept and agree to all
terms and conditions set forth below.
1. Ownership
All rights, title and interest to the infoUSA
POI Data shall be retained by infoUSA.
2. Limitations on use
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or re−utilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the POI Data.
3. Transfer
You may not transfer the POI Data to third
parties, except together with the system
for which it was created, provided that
you do not retain any copy of the POI
Data.4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOUSA MAKES NO EXPRESS OR
IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, ANY
EXPRESS OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR
PURPOSE OR WARRANTY OF
MERCHANTABILITY.
5. Limitation of Liability
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE FOR
ANY INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES MADE OR
ALLEGED IN CONNECTION WITH
YOUR USE OF THE POI DATA.END USER LICENSE AGREEMENT
Personal Use Only. You agree to use this
information for solely personal,
non−commercial purposes, and not for
service bureau, time−sharing or other
similar purposes. You may not modify
the information or remove any copyright
notices that appear on the information in
any way. You may not decompile,
disassemble or reverse engineer any
portion of this information, and may not
transfer or distribute it in any form, for any
purpose. Without limiting the foregoing,
you may not use this information with any
products, systems, or applications
installed or otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet
management or similar applications.

16 There are two types of areas available for
route guidance. In one type of area, pri-
marily around metropolitan centers, de-
tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data (no
right turns, oneway traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc-
tion and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.
In order to provide you with as accurate map
information as possible, we are always gath-
ering information such as on road repairs and
carrying out on−site investigations. However,
the names of roads, streets, facilities, and
their locations are often changed. In some
places, construction on roads may be in pro-
gress. For that reason, information on some
areas in this system might be different from
the actual location.
1U020
The map database is normally updated once
a year. Contact your dealer for updating a
map database.
To confirm the database version and
disc coverage area
1. Push the
“MENU” button.
2. Touch the “Map DVD” switch.
Make sure the version of the database on this
screen. (The database version on the screen
above may be different from the actual
screen.)

33

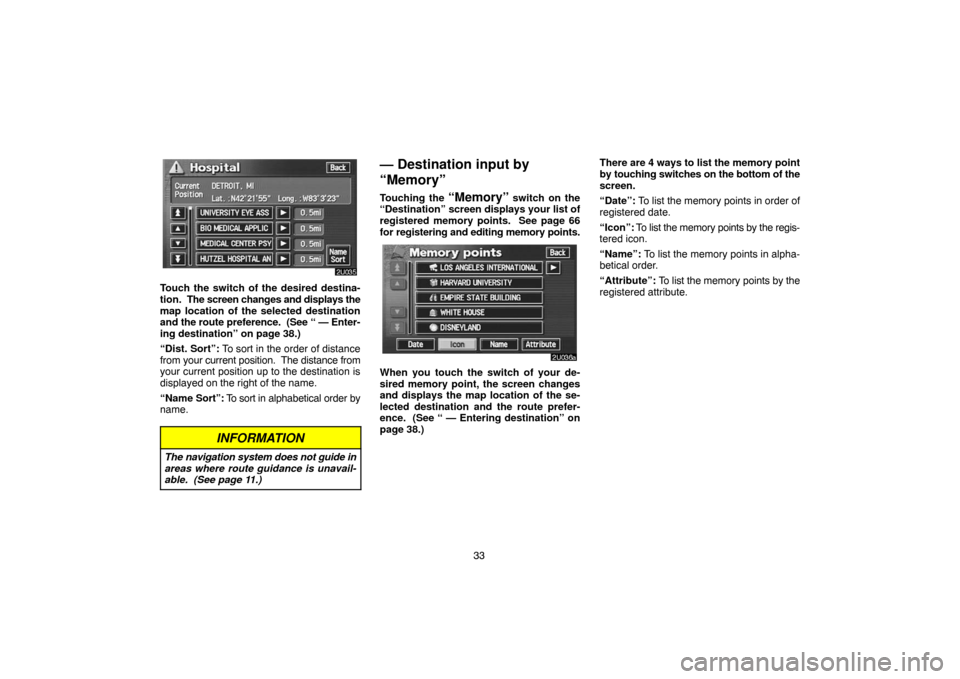

Touch the switch of the desired destina-
tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See
“ — Enter-
ing destination” on page 38.)
“Dist. Sort”: To sort in the order of distance
from your current position. The distance from
your current position up to the destination is
displayed on the right of the name.
“Name Sort”: To sort in alphabetical order by
name.
INFORMATION
The navigation system does not guide in
areas where route guidance is unavail-
able. (See page 11.)
— Destination input by
“Memory”
Touching the “Memory” switch on the
“Destination” screen displays your list of
registered memory points. See page 66
for registering and editing memory points.
When you touch the switch of your de-
sired memory point, the screen changes
and displays the map location of the se-
lected destination and the route prefer-
ence. (See “ — Entering destination” on
page 38.)There are 4 ways to list the memory point
by touching switches on the bottom of the
screen.
“Date”: To list the memory points in order of
registered date.
“Icon”: To list the memory points by the regis-
tered icon.
“Name”: To list the memory points in alpha-
betical order.
“Attribute”: To list the memory points by the
registered attribute.

63
Volume
You can use voice guidance when ap-
proaching a destination.
You can adjust the volume of the voice or turn
off voice guidance.
Push the “MENU” button to display the
“Menu” screen, and touch the “Volume”
switch.
To adjust the volume, select the desired level
by touching the appropriate number.
If you do not need voice guidance, touch the
“Off” switch.
The selected item is highlighted in green.
INFORMATION
During route guidance, the voice guid-
ance continues even if the navigation
screen is changed to other screens.
“Adaptive Volume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).
To turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.
User selection
The system can memorize the following
settings for up to three users.
Map direction
Map scale
Guidance mode
Setup
Volume
Language
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.

77 “Voice Guidance in All Modes”: You can set
the voice guidance in all modes.
“Notify Traffic Restriction”: You can select
notification of seasonal restrictions.
“Intersection Guidance”: You can select
ON or OFF to display of intersection guid-
ance.
“Guidance Screen on Freeway”: You can
select ON or OFF to display the guidance
screen on the freeway.
“Street Name on Scroll Map”: You can se-
lect ON or OFF to display the street name on
the scroll map.
“Display Building Shape”: You can select
ON or OFF to display the building shape on
the map screen.
“
Function”: You can set to display or
not to display each switches and current
street name on the map screen.
“Show POI Icons”: You can choose 6 icons
displayed on “Show POI Icons” top screen.
“Previous Point”: You can delete the pre-
vious destination.
“Map Color (Day)”: You can select the de-
sired map color.
“Map Color (Night)”: You can select the de-
sired map color.
“Screen Animation”: You can set some
screen displays to be animated.
Current position calibration
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
1. Push the “MENU” button to display
the “Menu” screen, and then touch the
“Setup” switch.
2. Touch the “Adjust” switch of “Cal-
ibration”.
3. Touch the “Position/Direction”
switch.
INFORMATION
For additional information on the accu-
racy of a current vehicle position, see
“Limitations of the navigation system”
on page 9.

96
Maintenance information
This system informs you when to replace
certain parts or components and shows
dealer information (if registered) on the
screen. (See “Information items” on page
97.) When the navigation system begins
operating after either the information
item’s preset data arrives or the driving
distance reaches a predetermined set-
ting, the “Information” screen will be dis-
played. This screen will appear every time
the system is turned on until you touch the
“Do not display this message
again”
switch.
To prevent this information screen from being
displayed again, touch the
“Do not dis-
play this message again”
switch.1. Push the
“INFO” button to display the
“Information Menu” screen and touch the
“Maintenance” switch.
5u004
2. Touch the desired icon and input the
conditions.
Notice of “Date”: You can input the next
maintenance date.
Notice of “Distance”: You can input the driv-
ing distance until the next maintenance
check.
When you touch the
switch on the
“Maintenance” screen, the screen changes to
the “Personal Event” screen. Touch the keys
to input the desired name and then input con-
ditions.
After you input the date and/or distance,
touch the
“OK” switch. The screen then re-
turns to the “Maintenance” screen.
The following switches appear.
“Delete All”: To cancel all conditions which
have been inputted.

101
(d) Set as destination
Touch the “Enter ” switch on the “Set
Dealer” screen. The screen changes and
displays the map location of the registered
dealer and the “Route Preference”. (See
“ — Entering Destination” on page 38.)
Calendar with memo
This system informs you of a memo entry.
At the specified date, the memo informa-
tion will be displayed when the navigation
system is in operation. The memo infor-
mation screen will appear every time the
system is turned on. To disable this
screen, touch the
“Do not display this
message again”
switch.1. Push the
“INFO” button to display the
“Information Menu” screen.
5u004
2. Touch the “Calendar” switch to dis-
play the “Calendar” screen.

11 0
By pushing the telephone button above,
you can receive a call or hang up without
taking your hands off the steering wheel.
unl303a
You can use the microphone above when
talking on the phone.The party’s voice outputs from the driver’s
speaker. When the received calls or received
voice outputs, the audio from the Audio sys-
tem or voice guidance from the Navigation
system will be muted.
INFORMATION
Talk alternately with your party on the
phone. If you talk at the same time, the
voice may not reach each other. (It is
not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
In the following situations, your voice
may not reach the party.
Driving on unpaved road. (Making
a traffic noise.)
Driving at the high speed.
The window is open.
Turning the airconditioning vents
towards the microphone.
The sound of the airconditioning
fan is loud.
1Indicates a condition of Bluetooth
connection.
“Blue” indicates excellent condition of Blue-
tooth connection.
“Yellow” indicates the condition easy to dis-
connect the Bluetooth, causing a deteriora-
tion in voice.
Not displayed: no connection to the Blue-
tooth.
2Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.

120
2. Touch the desired number to call. You
can change the page by touching
“1touch Dial 2” or “1touch Dial
3”
.
When you push the telephone button while
you are driving, the screen above appears.
Touch the desired name to call. (The tele-
phone number is not displayed.)
(vi) By POI call
You can call by operating a switch when
“Call” is displayed on the screen from
Navigation system. (See page 38 for de-
tails.)
(e) Receive on the Bluetooth
phone
When a call is received, this screen is dis-
played with a sound. Touch
“” or push
of the telephone button to talk on the
phone.
To hang up the phone:
Touch
“” or push of the
telephone button again.
To refuse to receive the call:
Touch
“” and hold it.
To adjust the volume of received call:
Touch
“–” or “+”.
On the international phone call, the party’s
name may not be displayed correctly depend-
ing on the cellular phone which you have.
(f) Talk on the Bluetooth phone
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the party’s voice:
Touch
“–” or “+” switch.
To hang up the phone:
Touch the
“” switch or push of
the telephone button.
To mute your voice:
Touch the
“Mute ON” switch.
To input the Key:
Touch the
“09” switch.

126
Delete the one touch dial
Touch the “Delete” switch of “1touch
Dial”.
Select the desired number from the list.
If you want to delete all the one touch dial
numbers, touch the
“Delete All” switch.
Touch “YES” switch.
Touch
“NO” switch and the previous screen
appears.
Speech command system
The speech command system allows you
to operate the navigation system without
your hands off the steering wheel.
UNL301
1. Push the speech command switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
