TOYOTA LAND CRUISER 2009 J200 Owners Manual

5
When trouble arises
471
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

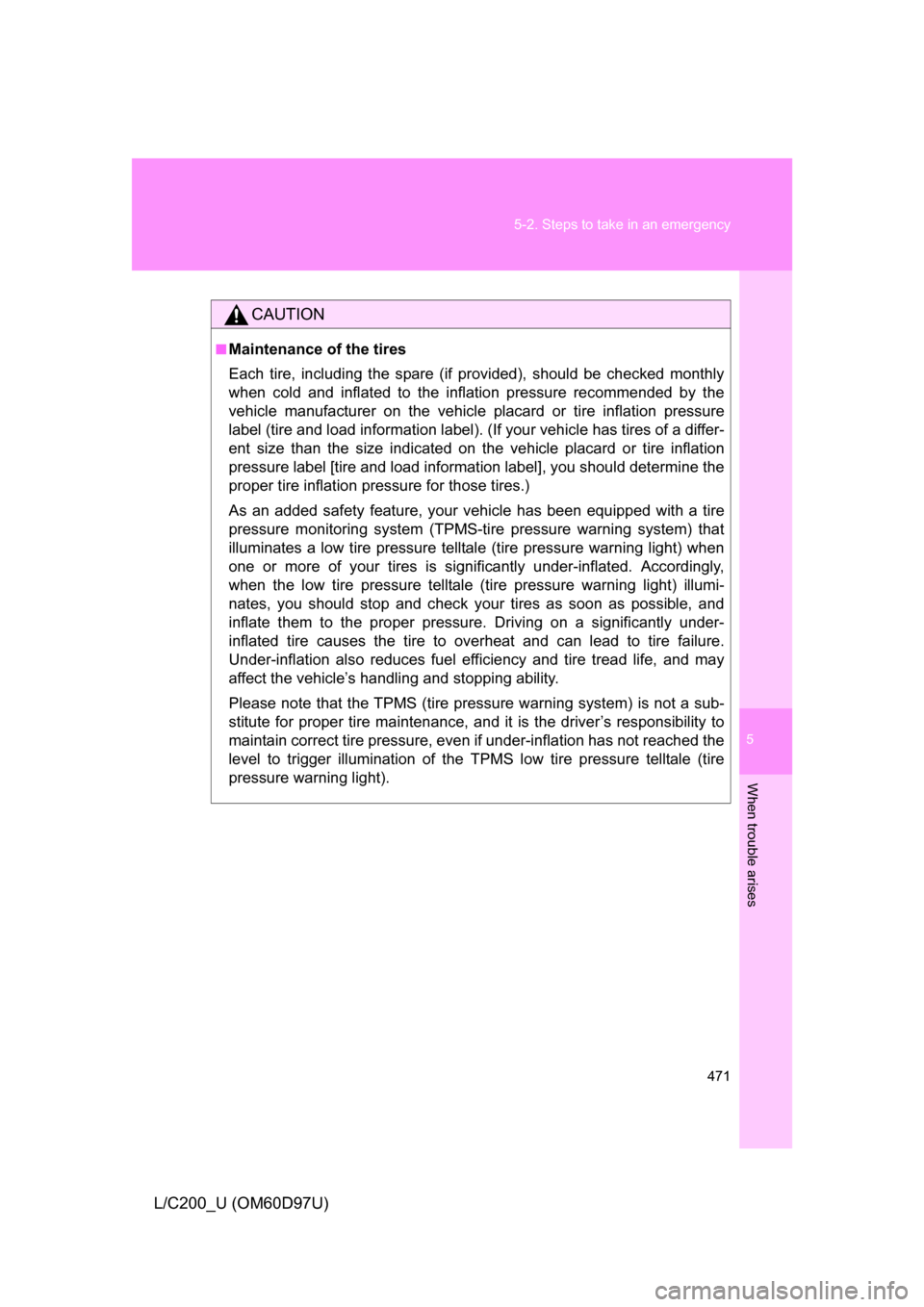

CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle
placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr essure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pre ssure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire ma intenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low ti re pressure telltale (tire
pressure warning light).

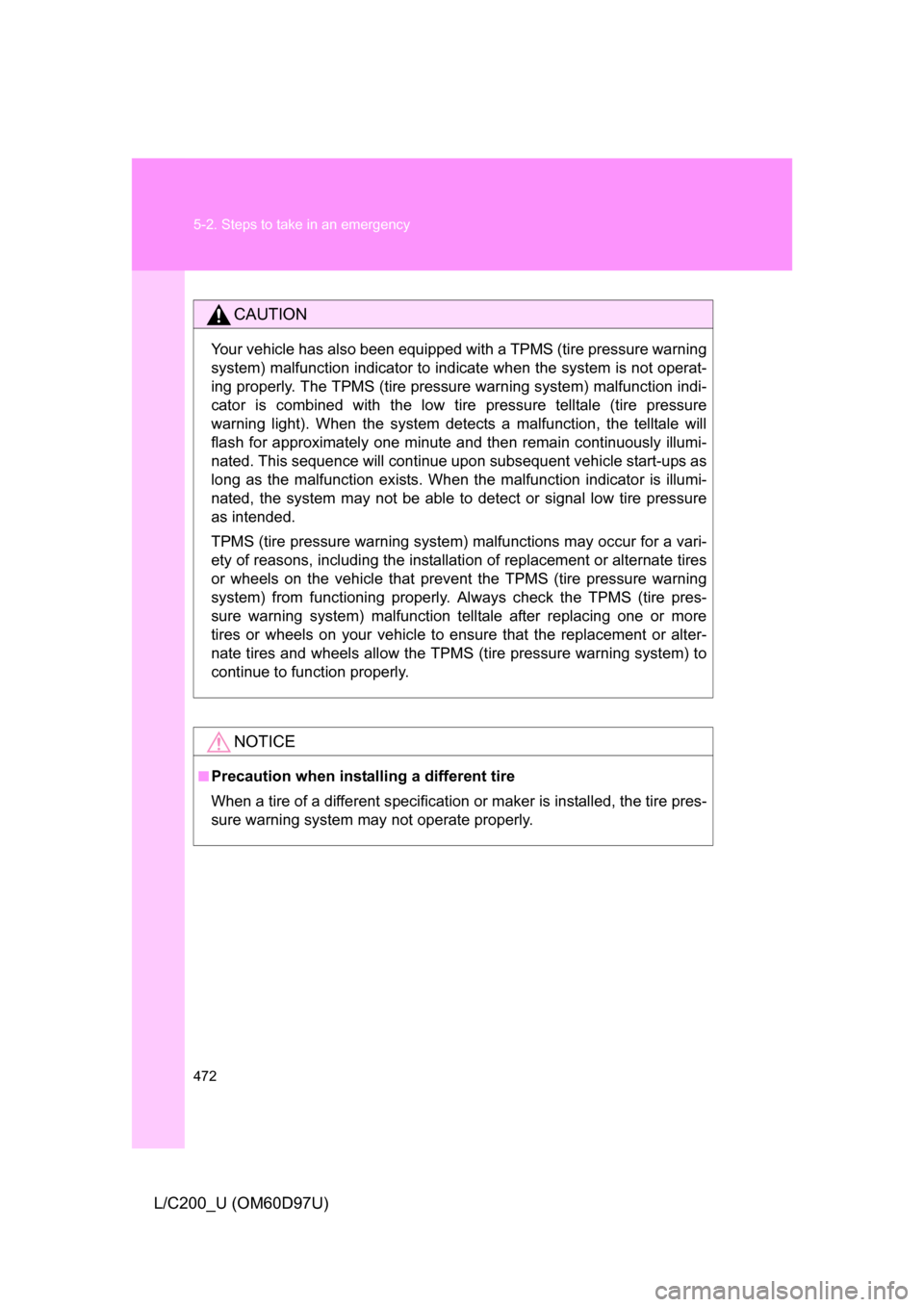

472 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indicate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.

5
When trouble arises
473
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

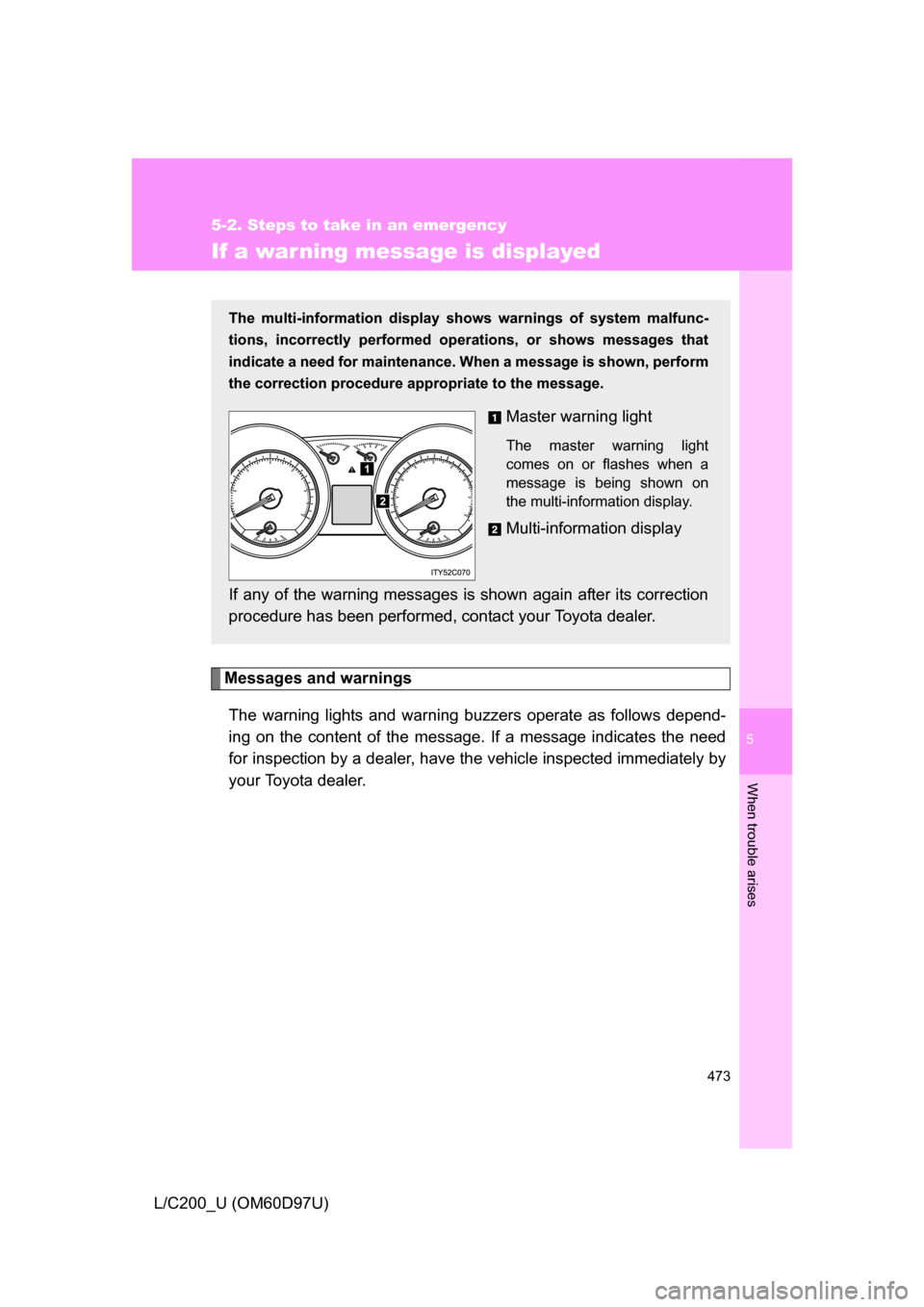

If a warning message is displayed
Messages and warningsThe warning lights and warning buzzers operate as follows depend-
ing on the content of the message. If a message indicates the need
for inspection by a dealer, have th e vehicle inspected immediately by
your Toyota dealer.
The multi-information display shows warnings of system malfunc-
tions, incorrectly performed op erations, or shows messages that
indicate a need for maintenance. When a message is shown, perform
the correction procedure appropriate to the message.
Master warning light
The master warning light
comes on or flashes when a
message is being shown on
the multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact your Toyota dealer.

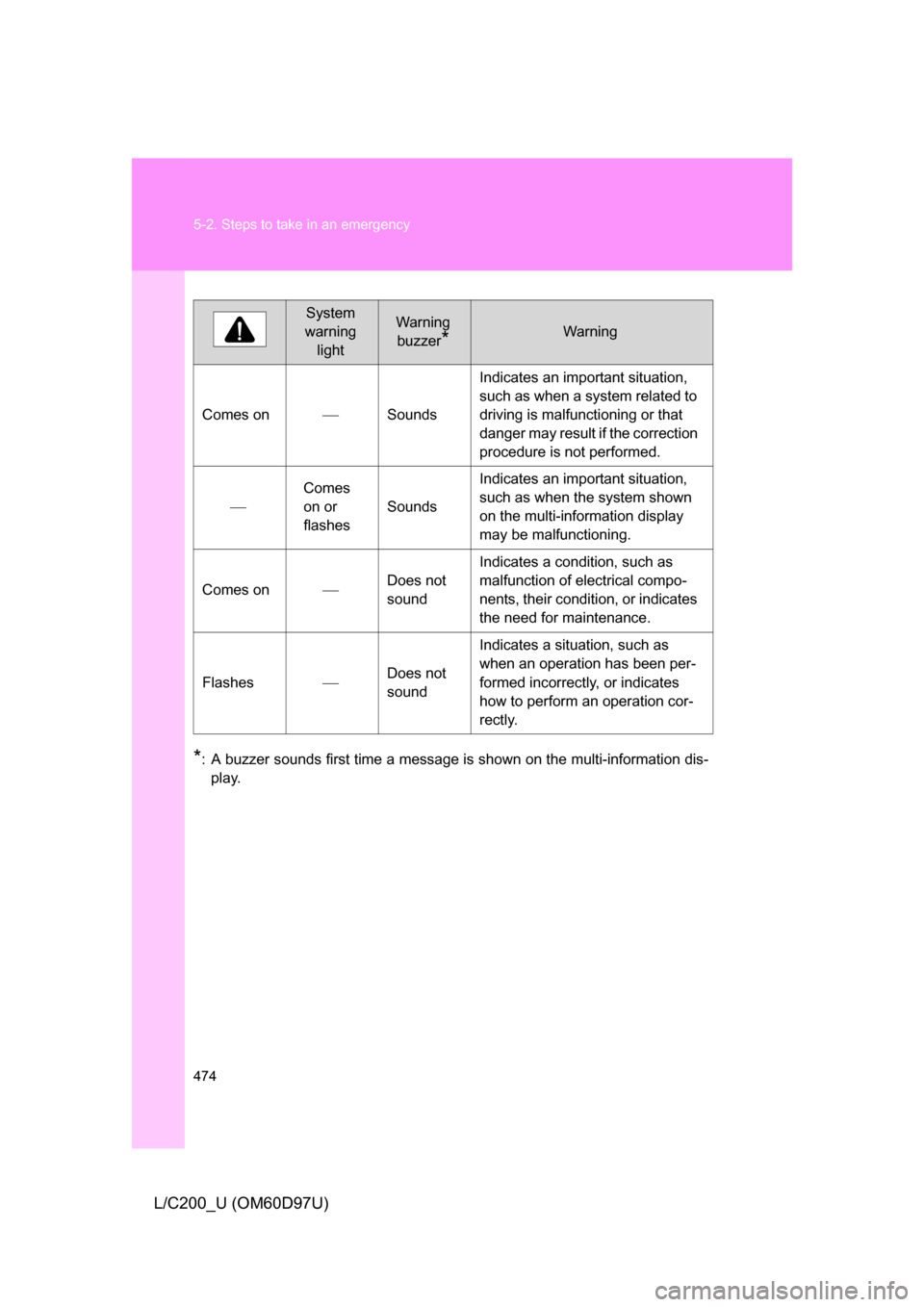

474 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
*: A buzzer sounds first time a message is shown on the multi-information dis-play.
System
warning lightWarning buzzer
*Warning
Comes on Sounds Indicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed.
 Comes
on or
flashes Sounds Indicates an important situation,
such as when the system shown
on the multi-information display
may be malfunctioning.
Comes on Does not
sound Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance.
Flashes Does not
sound Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly.

5
When trouble arises
475
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■

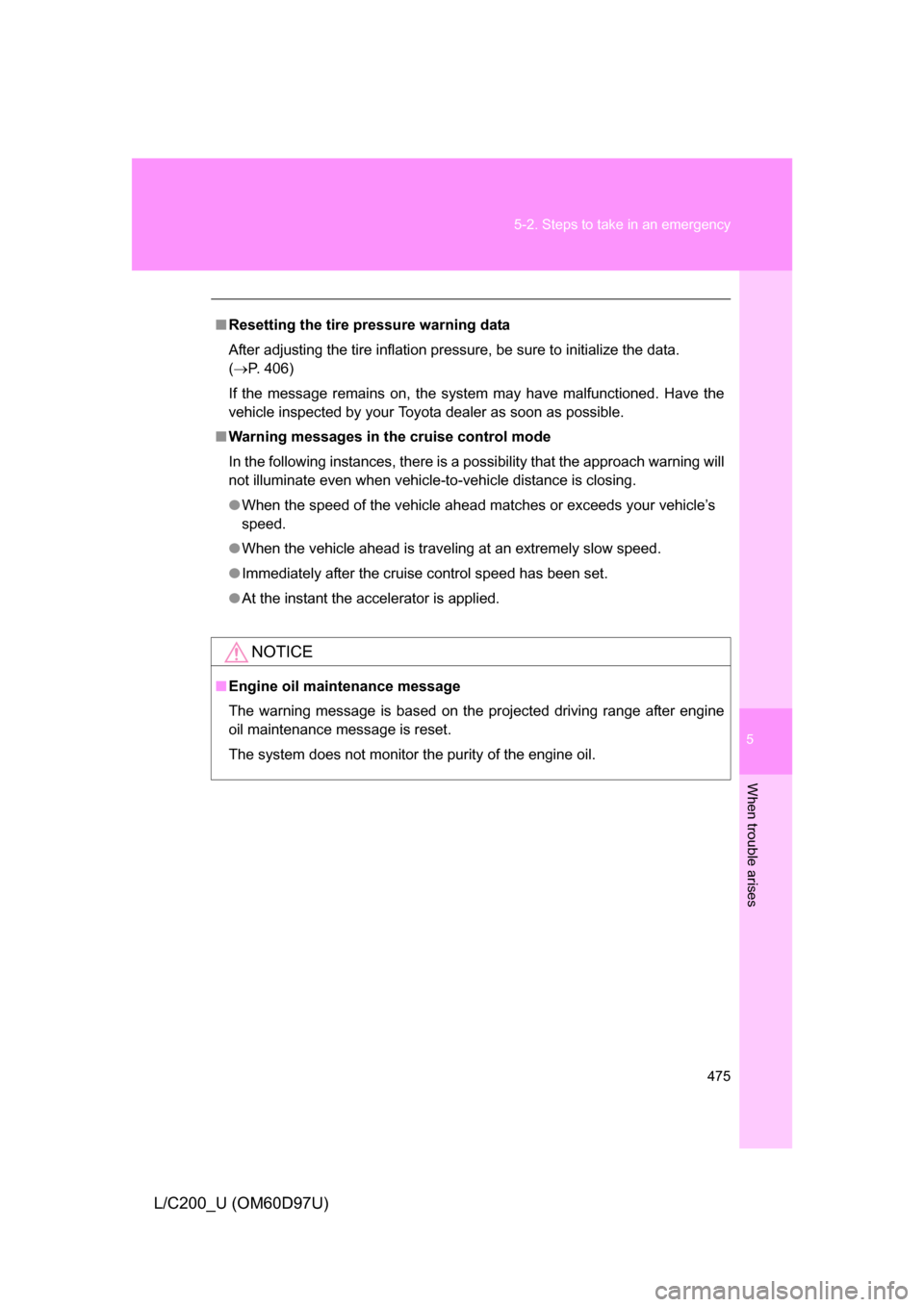

Resetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.
(P. 406)
If the message remains on, the system may have malfunctioned. Have the
vehicle inspected by your Toyota dealer as soon as possible.
■ Warning messages in th e cruise control mode
In the following instances, there is a possibility that the approach warning will
not illuminate even when vehicle-to-vehicle distance is closing.
● When the speed of the vehicle ahead matches or exceeds your vehicle’s
speed.
● When the vehicle ahead is traveling at an extremely slow speed.
● Immediately after the cruise control speed has been set.
● At the instant the accelerator is applied.
NOTICE
■Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

476
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

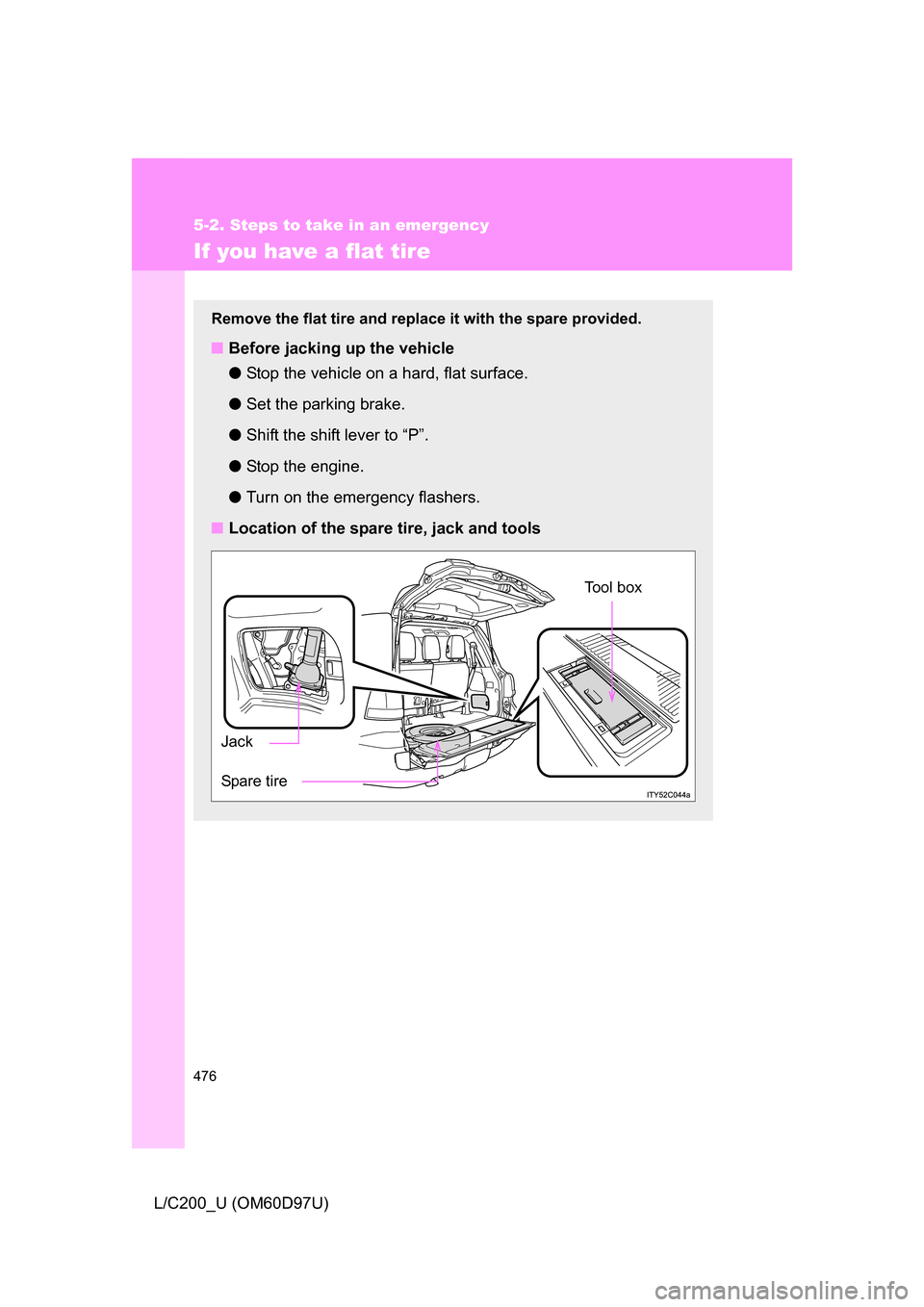

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Tool box
Spare tire Jack

5
When trouble arises
477
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

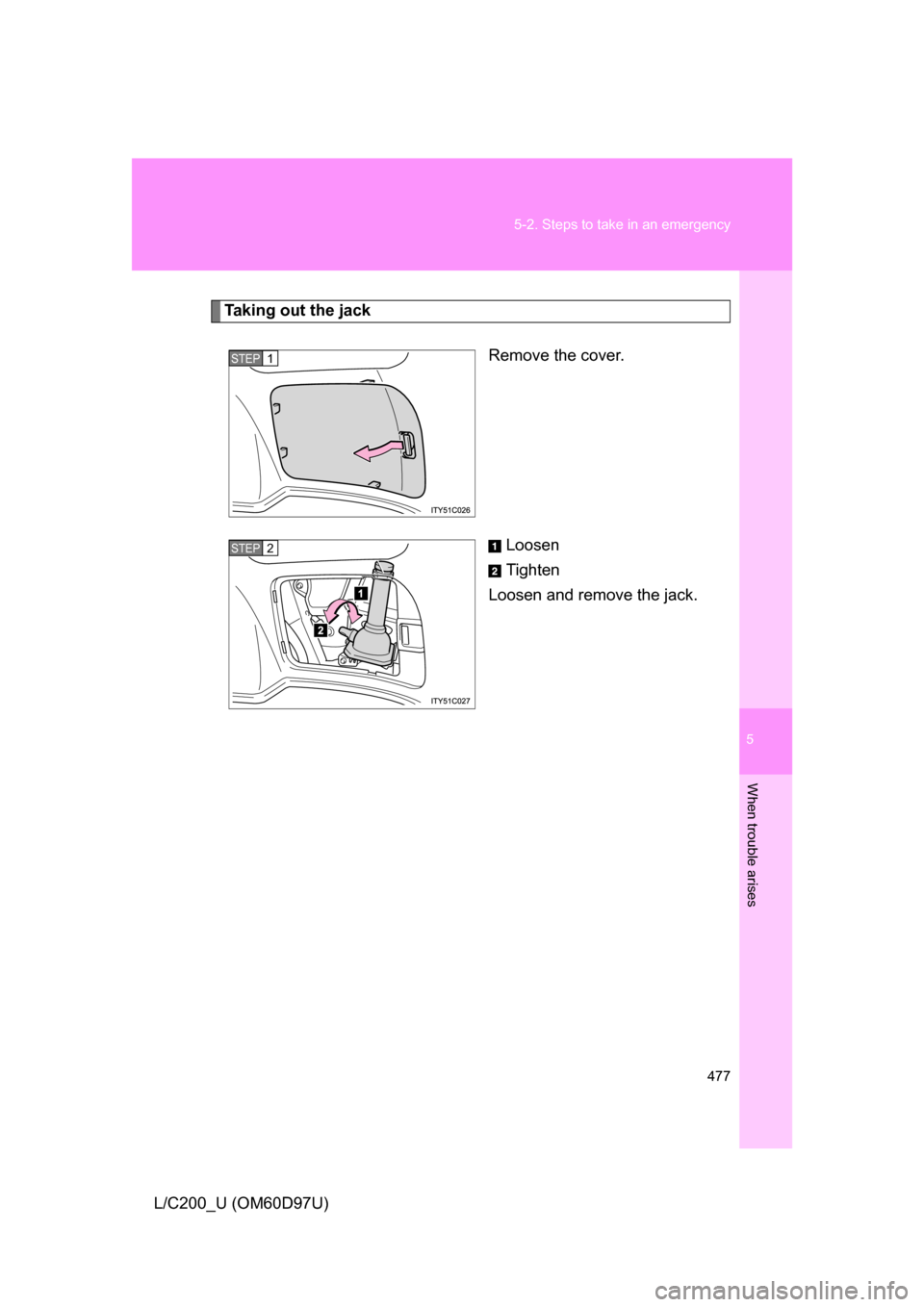

Taking out the jack
Remove the cover.
Loosen
Tighten
Loosen and remove the jack.
STEP1
STEP2

478 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
Taking out the tool boxRemove the cover.
Take out the tool box.
STEP1
STEP2

5
When trouble arises
479
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

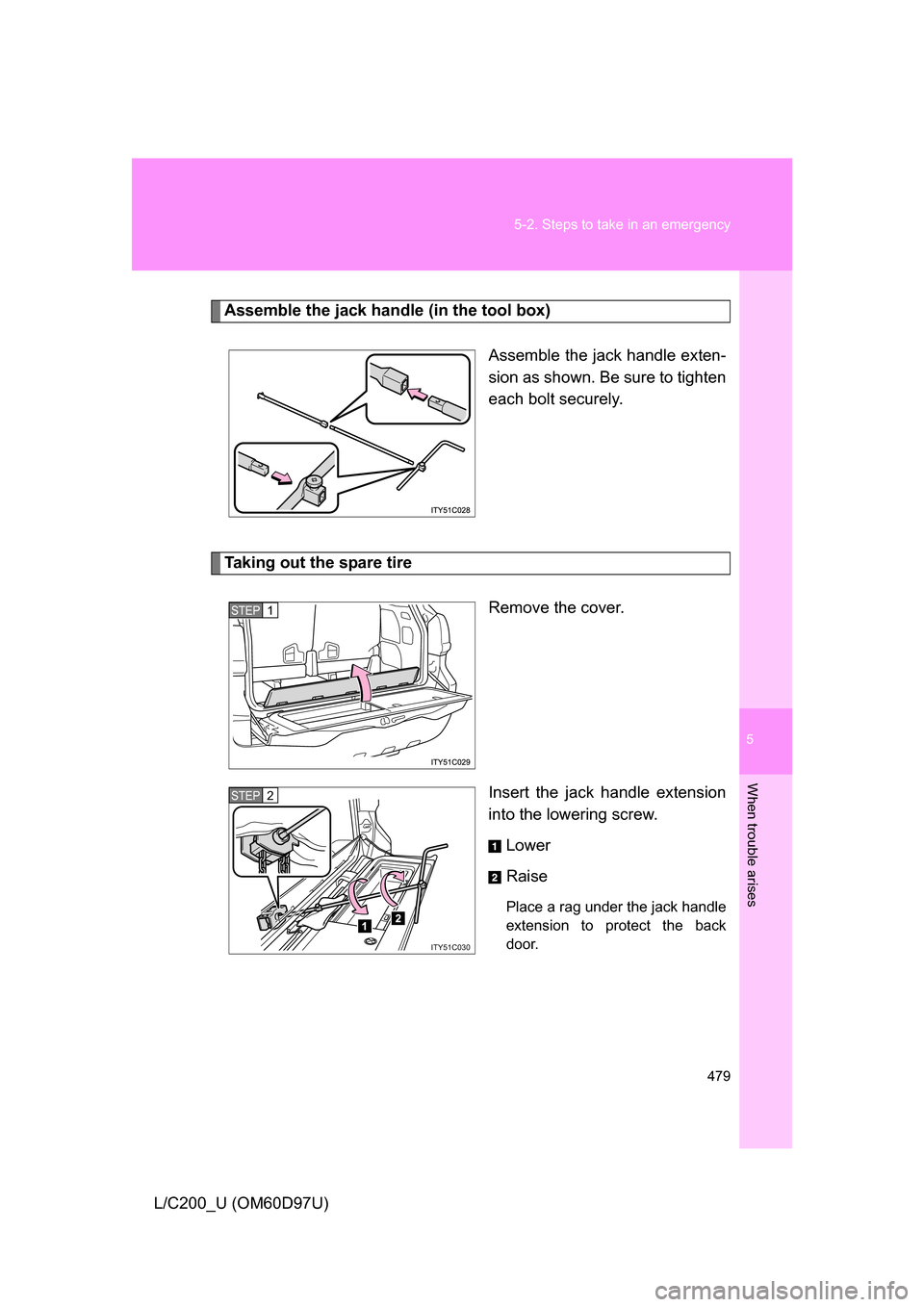

Assemble the jack handle (in the tool box)
Assemble the jack handle exten-
sion as shown. Be sure to tighten
each bolt securely.
Taking out the spare tire
Remove the cover.
Insert the jack handle extension
into the lowering screw.Lower
Raise
Place a rag under the jack handle
extension to protect the back
door.
STEP1
ITY51C030
STEP2

480 5-2. Steps to take in an emergency

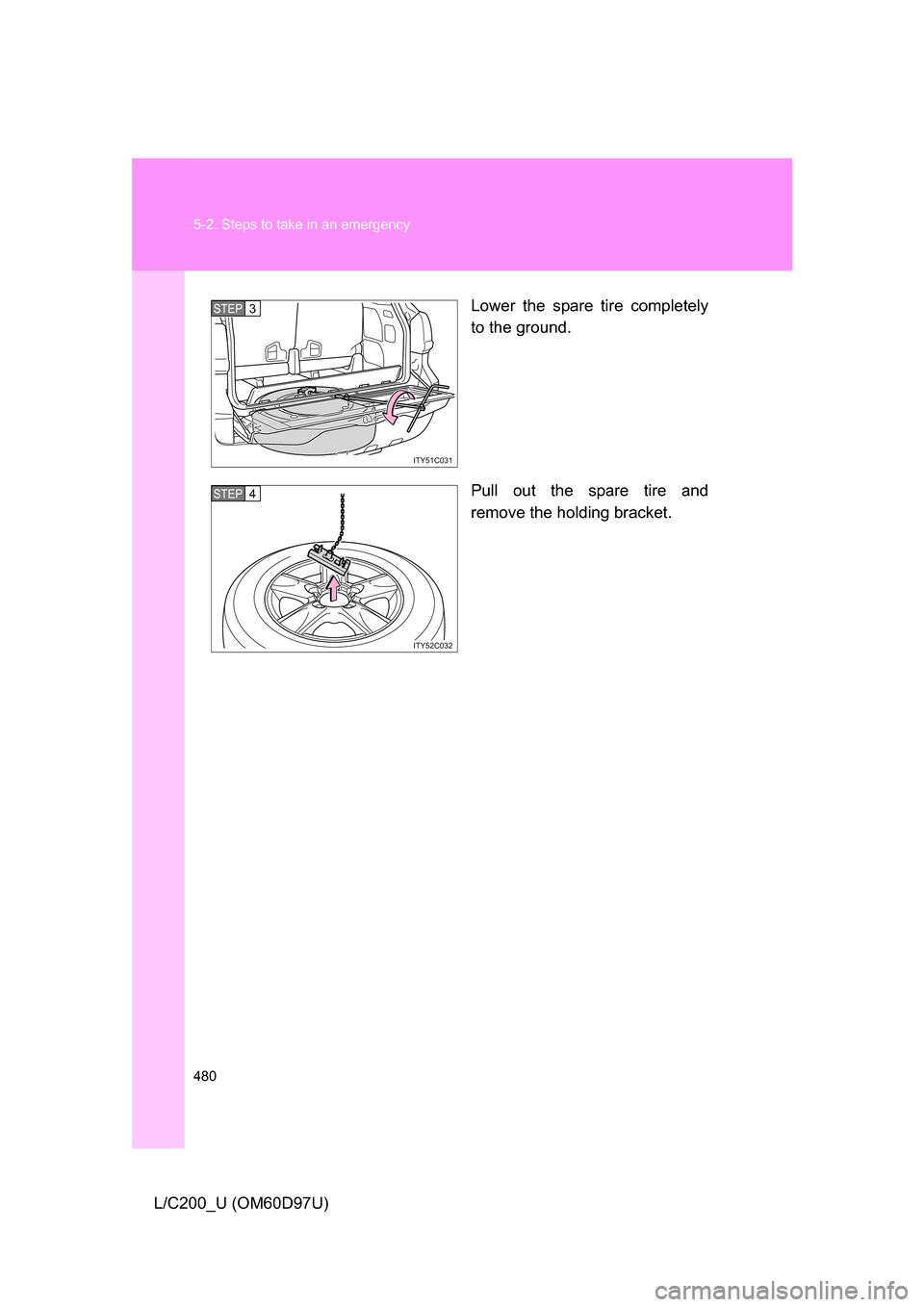

L/C200_U (OM60D97U)Lower the spare tire completely
to the ground.
Pull out the spare tire and
remove the holding bracket.
ITY51C031
STEP3
ITY52C032
STEP4
