OVERVIEW
Indicator symbols

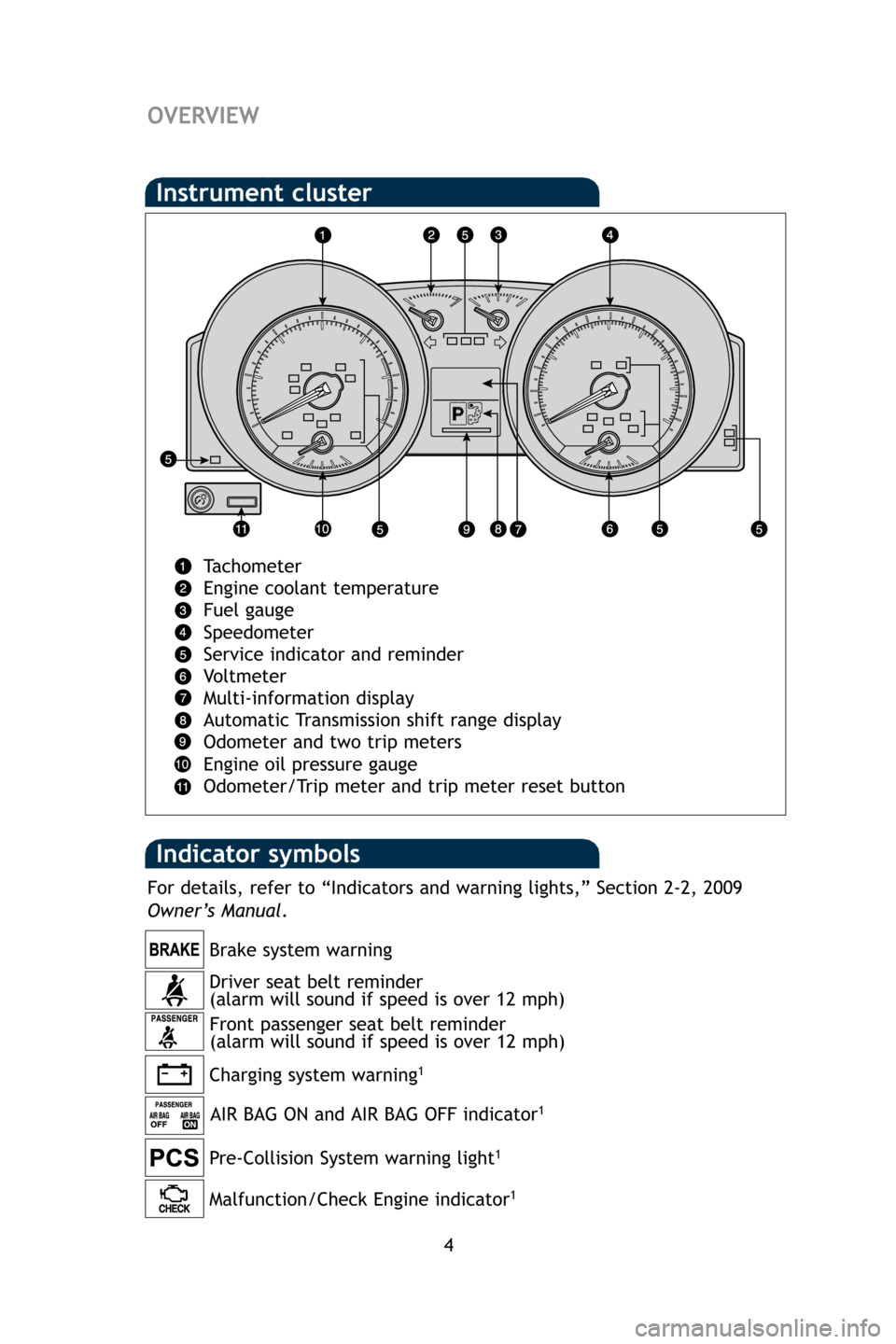

Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Vo l t m e t e r
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warningAIR BAG ON and AIR BAG OFF indicator
1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
M2.qxd 7/28/08 3:14 PM Page 4

8
Hood release
Pull up latch and
raise hood

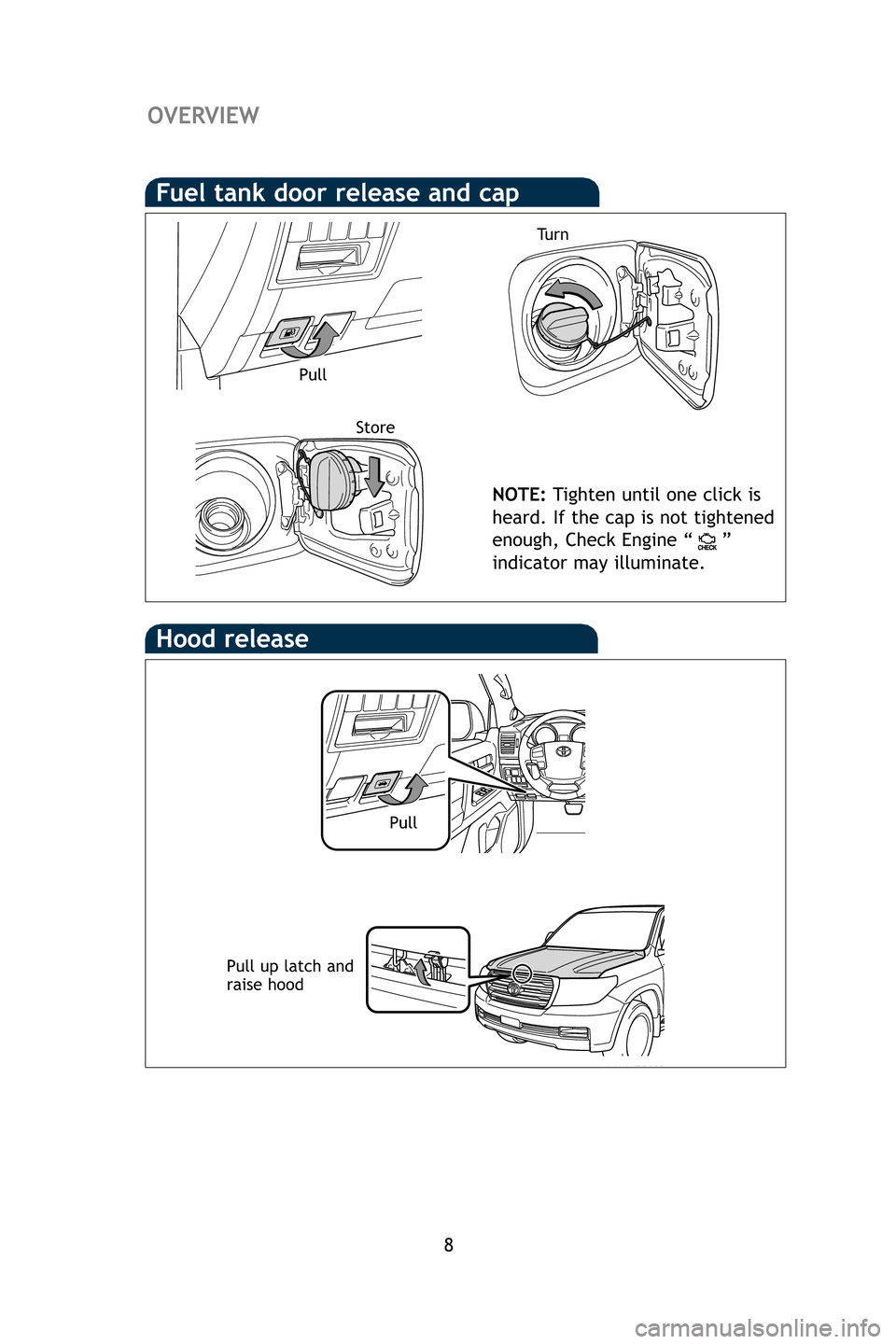

Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull Tu r n
Store
Pull
OVERVIEW
M2.qxd 7/28/08 3:14 PM Page 8
