CD player TOYOTA LAND CRUISER 2011 J200 Navigation Manual

8
7 Air Conditioning
Automatic air conditioning controls250
. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Rear View Monitor System
Rear view monitor system 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Setup
General settings 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Clock settings 273
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Voice settings 275
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Navigation settings 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Detailed navigation settings 278
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Telephone settings 287
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Volume setting 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Manage phone 289
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Phonebook 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Setting the phonebook 298
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speed dials setting 306
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting call history 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the voice tag 314
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth  318
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Details 323
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Audio settings 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Select portable player 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Bluetooth audio 328
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle settings 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Maintenance 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
10 Appendix
Limitations of the navigation system 340
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 342
. . . . . . . . . . . . . . . . . . .
Changing the map DVD −ROM 351
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 353
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

AUDIO/VIDEO SYSTEM
142
Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the screen. To display the audio screen, push the “AUDIO” button.
1Function menu tab
To control the radio, DVD changer,
Bluetooth audio player, AUX or USB
memory/iPod, touch the touch −
screen tabs. For details, see page
145.
2Function menu display screen
To control the radio, DVD changer,
Bluetooth  audio player, AUX or USB
memory/iPod, touch the touch −
screen buttons. For details, see page
145.
3“DISC” button
Push this button to play a DVD. For
details, see pages 145 and 167.
4“AUX·USB” button
Push this button to turn the
Bluetooth  audio player, AUX or USB
memory/iPod on. For details, see
pages 145, 151, 195 and 203.
5“LOAD” button
Push this button to insert the discs.
For details, see pages 150, 163 and
164.
6“TUNE·FILE” knob
Turn this knob to move the station
band and files up or down. For de-
tails, see pages 151, 157, 172 and
207.
Quick reference

AUDIO/VIDEO SYSTEM
144
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.
Laser products Do not take this unit apart or at-
tempt to make any changes
yourself. This is an intricate
unit that uses a laser pickup to
retrieve information from the
surface of compact discs. The
laser is carefully shielded so
that its rays remain inside the
cabinet. Therefore, never try to
disassemble the player or alter
any of its parts since you may
be exposed to laser rays and
dangerous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified here-
in may result in hazardous radi-
ation exposure.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio/video
system on longer than necessary
when the engine is not running.
(a) Speech command system
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the list of commands, see
pages 44 and 47.

AUDIO/VIDEO SYSTEM
147

The touchscreen buttons for radio,
DVD changer, Bluetooth audio player,
AUX and USB memory/iPod operation
are displayed on the screen when the
audio control mode is selected. Touch
them lightly and directly on the screen.
Touch the tab to select the desired mode
when the audio control mode is selected.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO/VIDEO SYSTEM
151
(h) AUX port
The sound of portable audio players
connected to the AUX port can be enjoyed.
Push the “AUX·USB” button, or push the
“AUDIO” button to display audio screen
and touch “AUX” tab to switch to AUX
mode. When the portable audio player is
not connected to the AUX port, the tab will
tone down. For details, refer to the
“Owner’s Manual”.
(i) USB port
It is available to connect a USB
memory/iPod device with the USB port.
When the USB memory/iPod is not
connected to the USB port, the tab will tone
down. For details , see “(a) Connecting a
USB memory or iPod” on page 204. (a) Listening to the radio
Push the “AM·FM” (Type A)/“AM” or
“FM” (T
ypeB) buttons, or push the “AU-
DIO” button to display audio screen
and touch “AM” or “FM” tabs to choose
either an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
Type A only —
When you push the “SAT” button or touch
“SAT” tab on AUDIO screen, “SAT1”,
“SAT2”, “SAT3” station appears on the
screen. For details about satellite radio
broadcast, see “— Radio operation (XM
Satellite Radio broadcast)” on page 156.
— Radio operation

AUDIO/VIDEO SYSTEM
176
(g) Operating a DVD disc
NOTE: The playback condition of some
DVD discs may be determined by a DVD
software producer. This DVD changer
plays a disc as the software producer
intended. So some functions may not
work properly. Be sure to read the
instruction manual for the DVD disc
separately provided. For the detailed
information about DVD video discs, see
“(j) DVD player and DVD video disc
information” on page 193.
Precautions on DVD video disc
When recording with a DVD video or video
CD, audio tracks may not record in some
cases while the menu is displayed. As au-
dio will not play in this case, verify that the
video tracks are playing and then activate
playback.
When playback of a disc is completed:
If an audio CD or MP3 disc is playing,
the first track or file starts.
If a DVD video or video CD is playing,
playback will stop or the menu screen
will be displayed.
The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.
CAUTION
Conversational speech on some
DVDs is recorded at a low volume to
emphasize the impact of sound ef-
fects. If you adjust the volume as-
suming that the conversations repre-
sent the maximum volume level that
the DVD will play, you may be startled
by louder sound effects or when you
change to a different audio source.
The louder sounds may have a signif-
icant impact on the human body or
pose a driving hazard. Keep this in
mind when you adjust the volume.

AUDIO/VIDEO SYSTEM
181
SELECTING A MENU ITEM
Enter the menu item using ,
, or , and touch
“Enter”. The player starts playing disc
for that menu item. Menu items can
also be touched using the pointer. (For
details, see the manual that comes with
the DVD disc provided separately.)
When you touch the any point on the
screen, the controls will disappear. To dis-
play them again, touch the any point on the
screen.
When you touch
, the previous
screen returns. SEARCHING BY TITLE
DVD video only —
Enter the title
number and touch “OK”.
The player starts playing video for that
title number.
When you push the “
” or “” button of
“SEEK·TRACK” , you can select a chap-
ter.
If you enter the wrong numbers, touch
to delete the numbers.
When you touch
, the previous
screen returns.

AUDIO/VIDEO SYSTEM
182

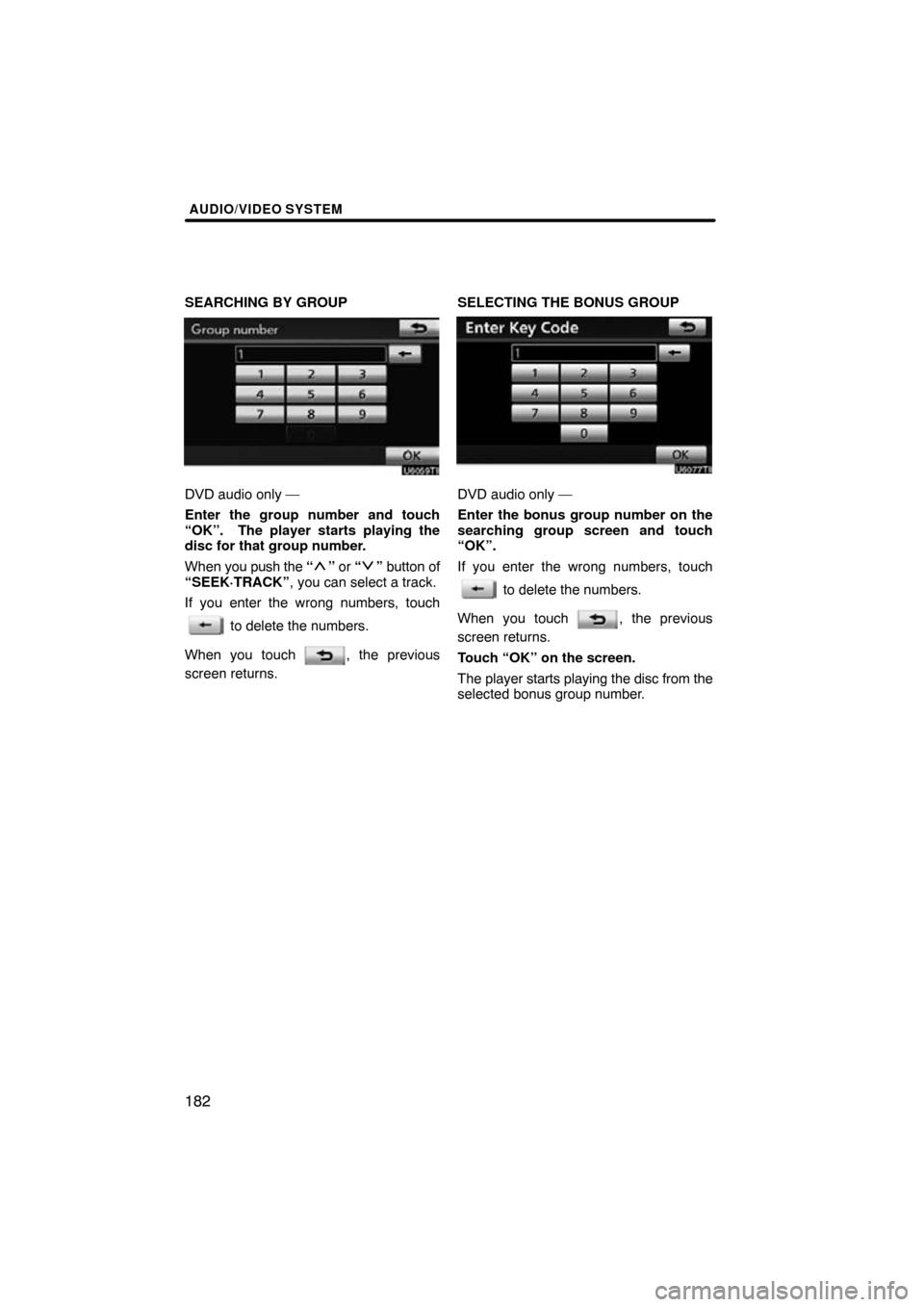

SEARCHING BY GROUP
DVD audio only —
Enter the group number and touch
“OK”. The player starts playing the
disc for that group number.
When you push the “
” or “” button of
“SEEK·TRACK” , you can select a track.
If you enter the wrong numbers, touch
to delete the numbers.
When you touch
, the previous
screen returns. SELECTING THE BONUS GROUP
DVD audio only —
Enter the bonus group number on the
searching group screen and touch
“OK”.
If you enter the wrong numbers, touch
to delete the numbers.
When you touch
, the previous
screen returns.
Touch “OK” on the screen.
The player starts playing the disc from the
selected bonus group number.

AUDIO/VIDEO SYSTEM
189
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish
2019Tsonga
2020Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu

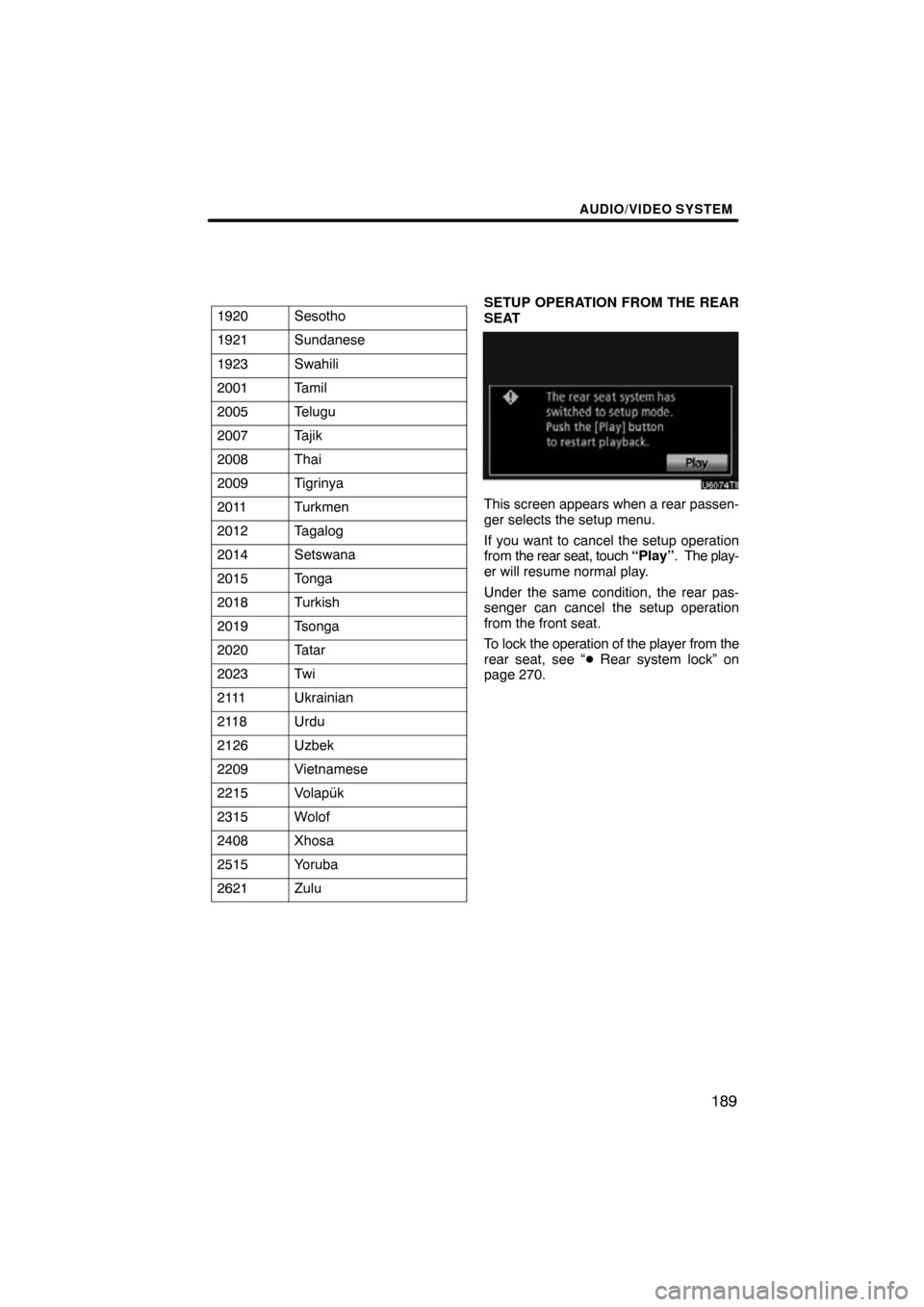

SETUP OPERATION FROM THE REAR
SEAT
U6074TI
This screen appears when a rear passen-
ger selects the setup menu.
If you want to cancel the setup operation
from the rear seat, touch “Play” . The play-
er will resume normal play.
Under the same condition, the rear pas-
senger can cancel the setup operation
from the front seat.
To lock the operation of the player from the
rear seat, see “ Rear system lock” on
page 270.

AUDIO/VIDEO SYSTEM
191
DESCRIPTION OF VIDEO CD
SETTINGS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCH-
ING BY TRACK” on page 192.)
“Prev. Page”: When you touch this while
the disc menu is displayed, the previous
page appears on the screen. If you touch
this while the player is playing video, the
previous track is searched and played.
“Next Page”: When you touch this while
the disc menu is displayed, the next page
appears on the display. If you touch this
while the player is playing video, the next
track is searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to
Main/Sub by touching this control.
“Return”: Touching this will display the
predetermined scene and start playing
from there.
“Wide”: The screen mode screen ap-
pears. DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not
located while you are watching video on
the video CD, video CD controls will ap-
pear.
If “
” appears on the display when you
touch a control, the operation is not per-
mitted.
