711-2. Child safety
LC200_OM_OM60T03U_(U)
1
For safety and security
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat b elt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors sh ould be
used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a booster seat is installed, always ensure that the should er belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child rest raint system
manufacturer.
● When securing some types of child restraint systems in second or third
row seats, it may not be possible to properly use the seat belt s in positions
next to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in de ath or serious
injury.
● When installing a child restraint system on the second center s eat, adjust
both seat cushions to the same position and align both seatback s at the
same angle. The seatbacks must be adjusted to the same angle. O ther-
wise, the child restraint system cannot be securely restrained and this may
cause death or serious injuries in the event of sudden braking, sudden
swerving or an accident.
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This c ould cause
injury or discomfort to the child. ( P. 36)
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.

721-2. Child safety
LC200_OM_OM60T03U_(U)■
Child restraint LATCH anchors
LATCH anchors are provided
for the second outboard seats.
(Buttons displaying the location
of the anchors are attached to
the seats.)
■When installing in the
second outboard seats
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
Adjust the seat
If there is a gap between the child seat and the seatback, adjust the
seatback angle until good contact is achieved.
If the head restraint interferes with the child restraint syste m
installation and the head restraint can be removed, remove the
head restraint. ( P. 158)
Take off the covers between
the seat cushion and seat-
back, then confirm the posi-
tion of the LATCH anchors
below the symbol in the seat-
back.
Child restraint system fixed with a child restraint LATCH ancho r
1
2
3

731-2. Child safety
LC200_OM_OM60T03U_(U)
1
For safety and security
With flexible lower attachments
Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connec-
tor system.
With rigid lower attachments
Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child
restraint system indicates the
presence of a lower connec-
tor system.
4
4

741-2. Child safety
LC200_OM_OM60T03U_(U)
If the child restraint has a top tether strap, follow the child
restraint manufacturer’s operation manual regarding the installa-
tion, using the top tether strap to latch onto the top tether s trap
anchor. ( P. 7 5 )
After installing the child restrai nt system, rock it back and forth to
ensure that it is in stalled securely. ( P. 71)
■Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225
Child restraint systems conforming to FMVSS213 can be used.
This vehicle is designed to conform to SAE J1819.
5
6

751-2. Child safety
LC200_OM_OM60T03U_(U)
1
For safety and security
■Anchor brackets (for top tether strap)
Anchor brackets are provided for all second seats.
Use anchor brackets when fix-
ing the top tether strap.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system.
● Follow all installation instructions provided by the child rest raint system
manufacturer.
● When securing some types of child restraint systems in second or third
row seats, it may not be possible to properly use the seat belt s in positions
next to the child restraint without interfering with it or affecting seat belt
effectiveness. Be sure your seat belt fits snugly across your shoulder and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in de ath or serious
injury.
● If the seat is adjusted, reconfirm the security of the child re straint system.
Using an anchor bracket (for top tether strap)

761-2. Child safety
LC200_OM_OM60T03U_(U)■
Fixing the top tether strap to the anchor bracket
Install the child restraint system in accordance to the operati
on
manual enclosed with the child restraint system.
Second outboard seats
Adjust the head restraint to
the upmost position.
If the head restraint interferes
with the child restraint system
installation and the head
restraint can be removed,
remove the head restraint.
(P. 158)
Open the anchor bracket
cover, latch the hook onto the
anchor bracket and tighten
the top tether strap.
Make sure the top tether strap is
securely latched. ( P. 71)
When installing the child
restraint system with the head
restraint being raised, be sure to
have the top tether strap pass
underneath the head restraint.
Adjust the head restraint to
the downmost position.
1
Hook
Top tether strapO
P

771-2. Child safety
LC200_OM_OM60T03U_(U)
1
For safety and security
Second center seat
Remove the head restraint.
( P. 158)
Open the anchor bracket
cover, latch the hook onto the
anchor bracket and tighten
the top tether strap.
Make sure the top tether strap is
securely latched.
Install the head restraint.
1
Hook
Top tether strapO
P

781-2. Child safety
LC200_OM_OM60T03U_(U)
■Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225
Child restraint systems conforming to FMVSS213 can be used.
This vehicle is designed to conform to SAE J1819.
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the top tether strap and make sure that the belt is not twisted.
● Do not attach the top tether strap to anything other than the anchor
bracket.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child rest raint system
manufacturer.
NOTICE
■ Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains o pen, the lid
may be damaged.

791-3. Emergency assistance
LC200_OM_OM60T03U_(U)
1
For safety and security

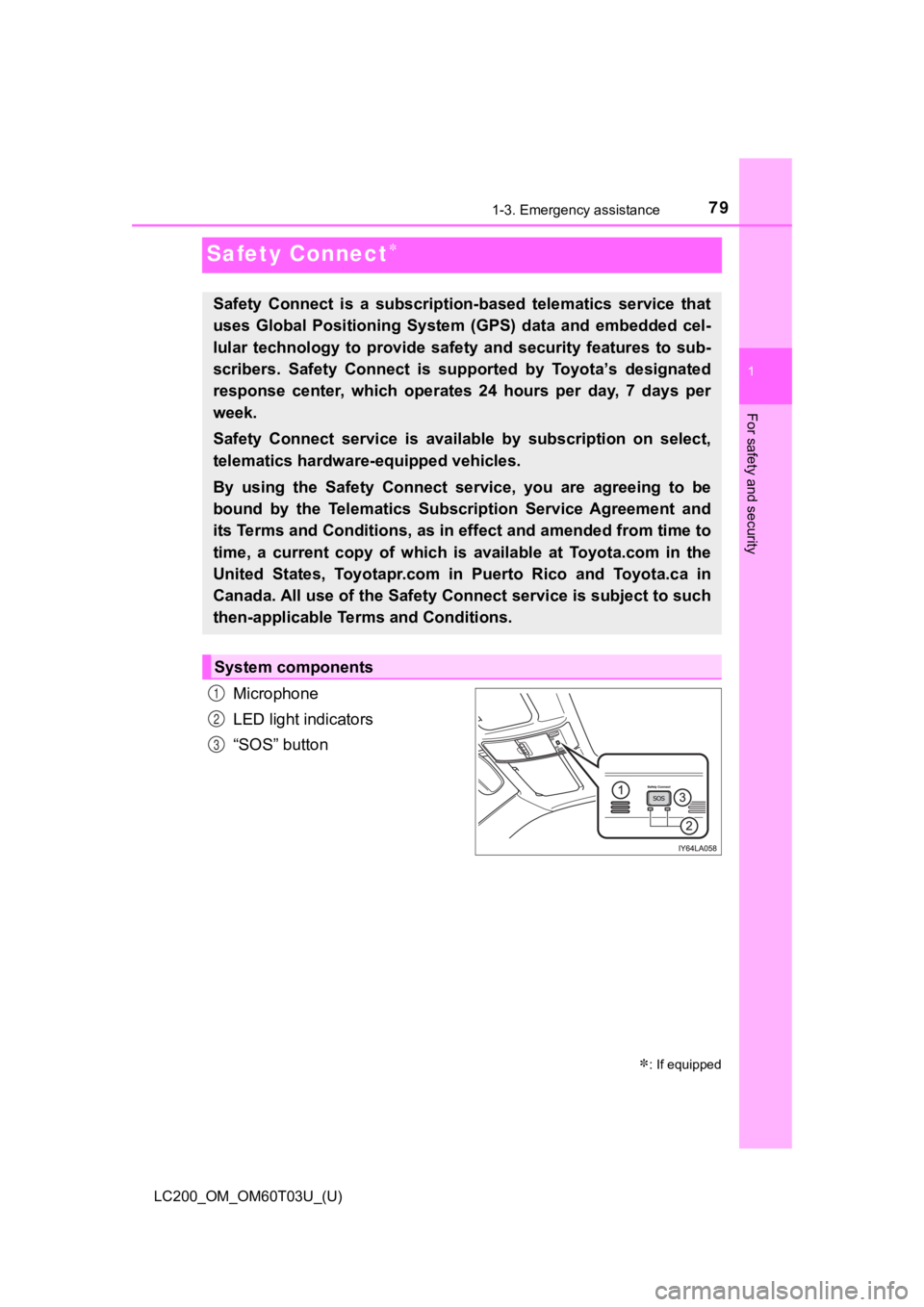

Safety Connect
Microphone
LED light indicators
“SOS” button
: If equipped
Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide saf ety and security features to sub -
scribers. Safety Connect is s upported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.
Safety Connect service is avai lable by subscription on select,
telematics hardware -equipped vehicles.
By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in e ffect and amended from time to
time, a current copy of which is available at Toyota.com in the
United States, Toyotapr.com in Puerto Rico and Toyota.ca in
Canada. All use of the Safety Connect service is subject to suc h
then-applicable Terms and Conditions.
System components
1
2
3

801-3. Emergency assistance
LC200_OM_OM60T03U_(U)
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification
*
Helps drivers receive necessary response from emergency service
providers. ( P. 8 2 )
*: U.S. Patent No. 7,508,298 B2
● Stolen Vehicle Location
Helps drivers in the event of vehicle theft. ( P. 82)
● Emergency Assistance Button (SOS)
Connects drivers to response-center support. ( P. 8 2 )
● Roadside Assistance
Provides drivers various on-road assistance. (P. 8 2 )
After you have signed the Telema tics Subscription Service Agreement
and are enrolled, you can begin receiving services.
A variety of subscription terms is available for purchase. Cont act your
Toyota dealer, call the following appropriate Customer Experien ce
Center, or push the “SOS” button in your vehicle for further subscrip-
tion details. • The United States
1-800-331-4331 • Canada
1-888-869-6828 • Puerto Rico
1-877-855-8377
■ Safety Connect Services Information
●Phone calls using the vehicles Bluetooth® technology will not be possible
when Safety Connect is active and in use.
● Safety Connect is available beginning Fall 2009 on select Toyot a models (in
the contiguous United States only). Contact with the Safety Con nect
response center is dependent upon the telematics device being i n operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or rec eive emer-
gency service support. Enrollment and Telematics Subscription S ervice
Agreement required. A variety of subscription terms is availabl e; charges
vary by subscription term selected and location.
Services
Subscription
