’03 MATRIX_U (L/O 0201)
1502003 MY COROLLA MATRIX_U (OM12767U)
Ty p e A
Ty p e B
The digital clock indicates the time
when the key is in the “ACC” or “ON”
position. Even when the ignition switch
is off, you can turn on the clock dis-
play for a few seconds by pushing the
“RCL” button.
Type A—To set the time, push and hold
the “HR” or “MIN” button until the “:”
starts flashing. Then set the time by push-
ing the “HR” (hour) and the “MIN” (minute)
buttons. If the time is before 12 noon,
“AM” appears on the display when the
time being set.
Type B—To set the time, push and hold
the “H” or “M” button until the “:” starts
flashing. Then set the time by pushing the
“H” (hour) and the “M” (minute) buttons.
When the time is being set, “AM” or “PM”
appears on the display.
RDS CLOCK UPDATE FUNCTION
You can update the clock with RDS
(Radio Data System) data. Push and hold
the “HR” and “MIN” (type A) or “H” and
“M” (type B) buttons at least 2 seconds
while receiving an RDS station. “TIME
UPDATED” will appear on the display with
a beep and the clock will be updated. If
setting could not be completed
successfully, “NO UPDATED” will appear
on the display.
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ClockCigarette lighter and portable
ashtray

’03 MATRIX_U (L/O 0201)
2602003 MY COROLLA MATRIX_U (OM12767U)

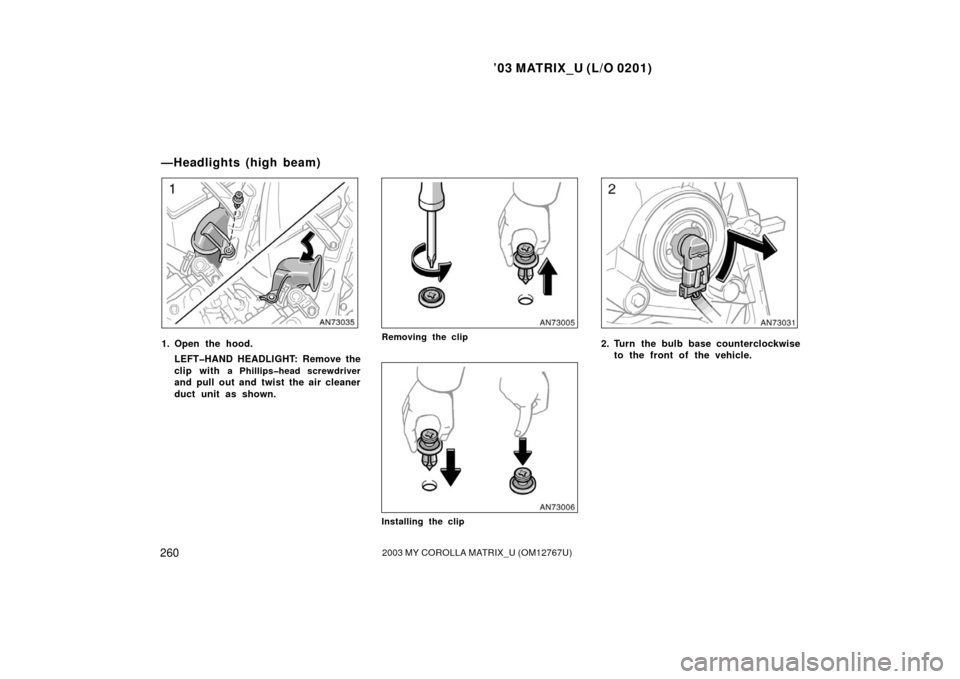

1. Open the hood.LEFTHAND HEADLIGHT: Remove the
clip with
a Phillipshead screwdriver
and pull out and twist the air cleaner
duct unit as shown.
Removing the clip
Installing the clip
2. Turn the bulb base counterclockwiseto the front of the vehicle.
—Headlights (high beam)
