Page 14 of 44
12

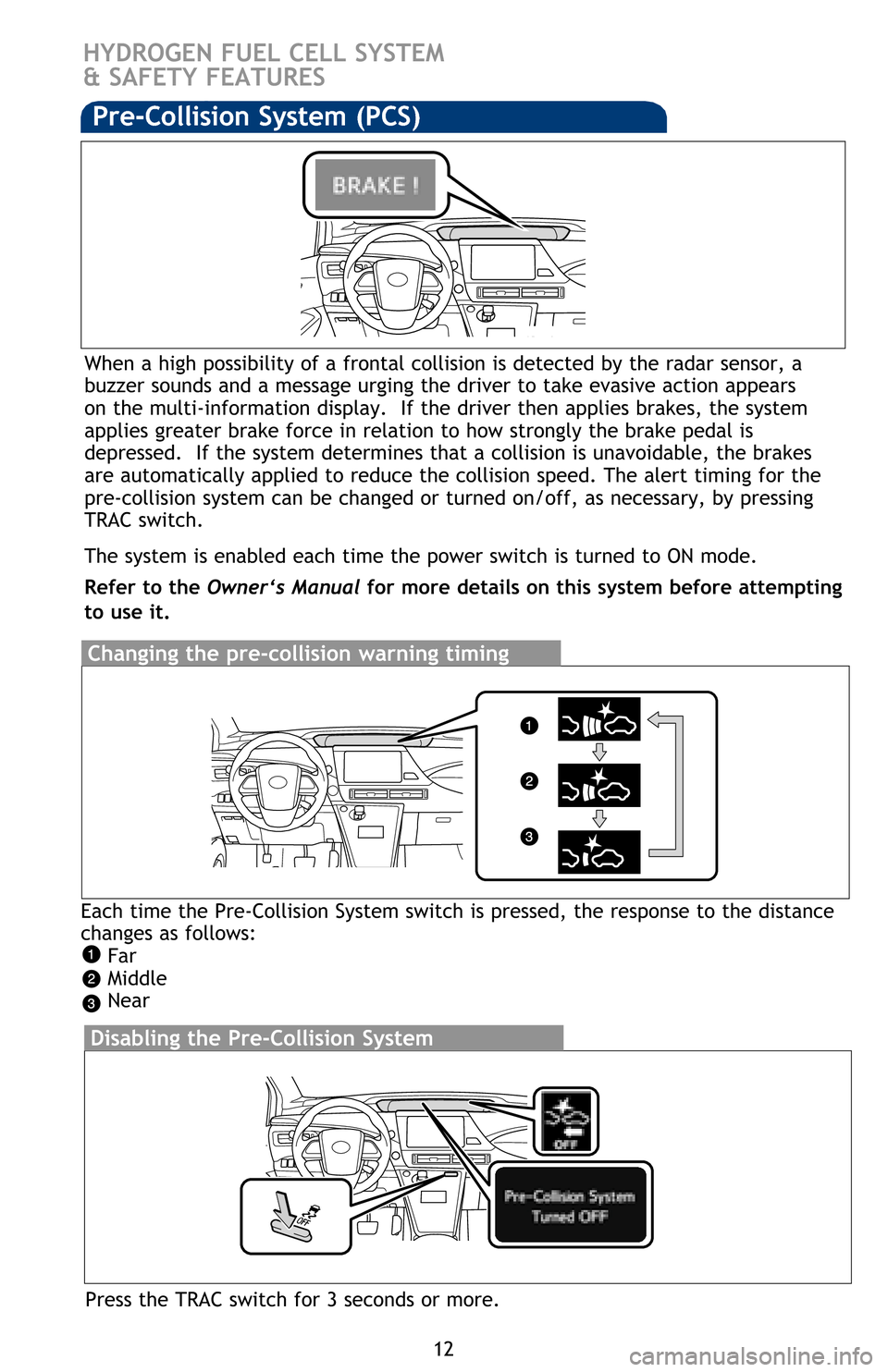

HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
Pre-Collision System (PCS)
When a high possibility of a frontal collision is detected by the radar sensor, a
buzzer sounds and a message urging the driver to take evasive action appears
on the multi-information display. If the driver then applies brakes, the system
applies greater brake force in relation to how strongly the brake pedal is
depressed. If the system determines that a collision is unavoidable, the brakes
are automatically applied to reduce the collision speed. The alert timing for the
pre-collision system can be changed or turned on/off, as necessary, by pressing
TRAC switch.
The system is enabled each time the power switch is turned to ON mode.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Each time the Pre-Collision System switch is pressed, the response to the distance
changes as follows:
Far
Middle
Near
Press the TRAC switch for 3 seconds or more.
Changing the pre-collision warning timing
Disabling the Pre-Collision System
Page 31 of 44
29

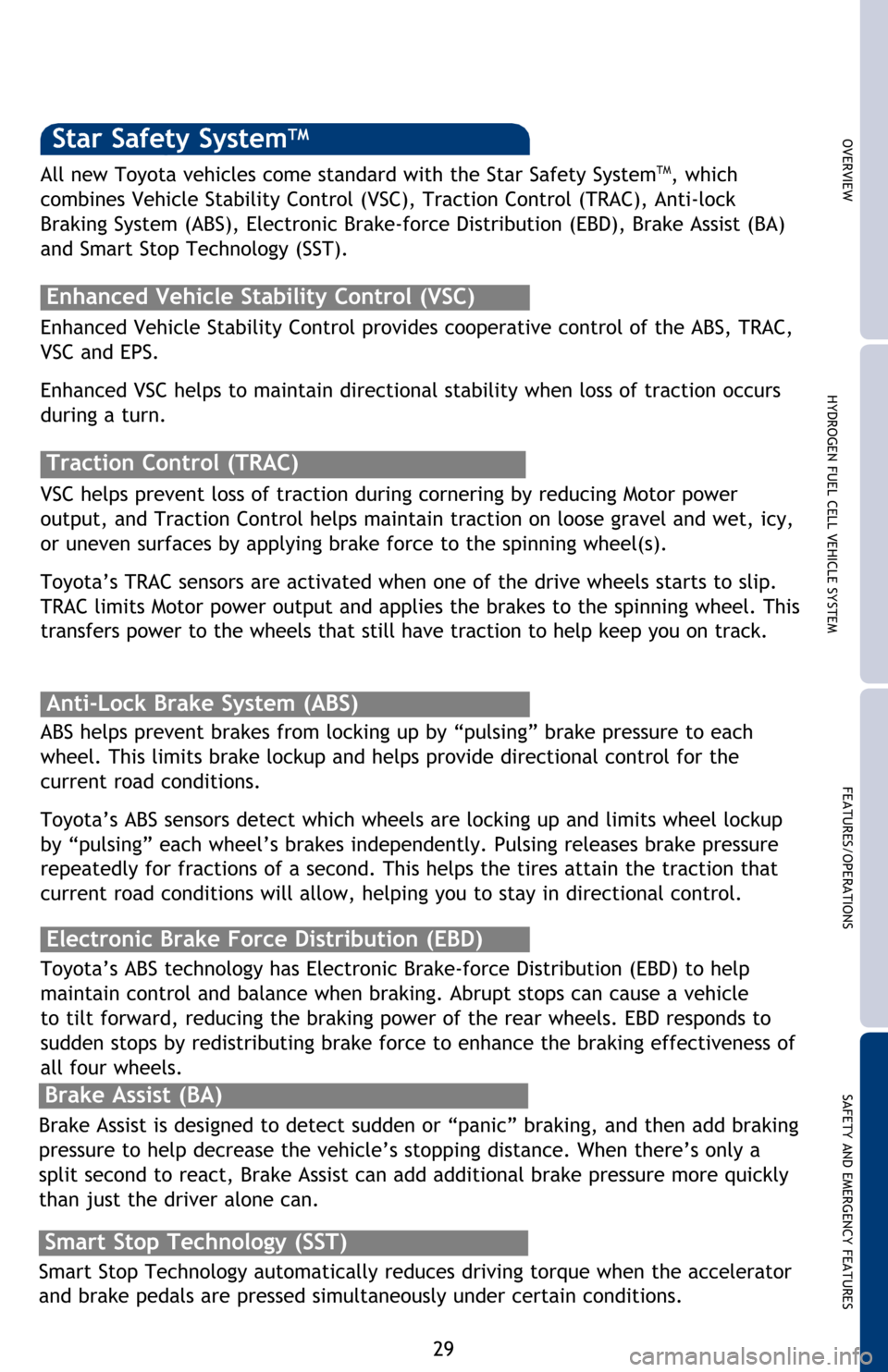

OVERVIEW
HYDROGEN FUEL CELL VEHICLE SYSTEMFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
( Q K D Q F H G 9 H K L F O H 6 W D E L O L W \ & R Q W U R O S U R Y L G H V F R R S H U D W L Y H F R Q W U R O R I W K H $ % 6 7 5 $ &
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occurs
during a turn.
( Q K D Q F H G 9 H K L F O H 6 W D E L O L W \ & R Q W U R O 9 6 &
VSC helps prevent loss of traction during cornering by reducing Motor power
R X W S X W D Q G 7 U D F W L R Q & R Q W U R O K H O S V P D L Q W D L Q W U D F W L R Q R Q O R R V H J U D Y H O D Q G Z H W L F \
or uneven surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits Motor power output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
7 U D F W L R Q & R Q W U R O 7 5 $ &
$ Q W L / R F N % U D N H 6 \ V W H P $ % 6
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
F X U U H Q W U R D G F R Q G L W L R Q V Z L O O D O O R Z K H O S L Q J \ R X W R V W D \ L Q G L U H F W L R Q D O F R Q W U R O
( O H F W U R Q L F % U D N H ) R U F H ' L V W U L E X W L R Q ( % '
7 R \ R W D
