59

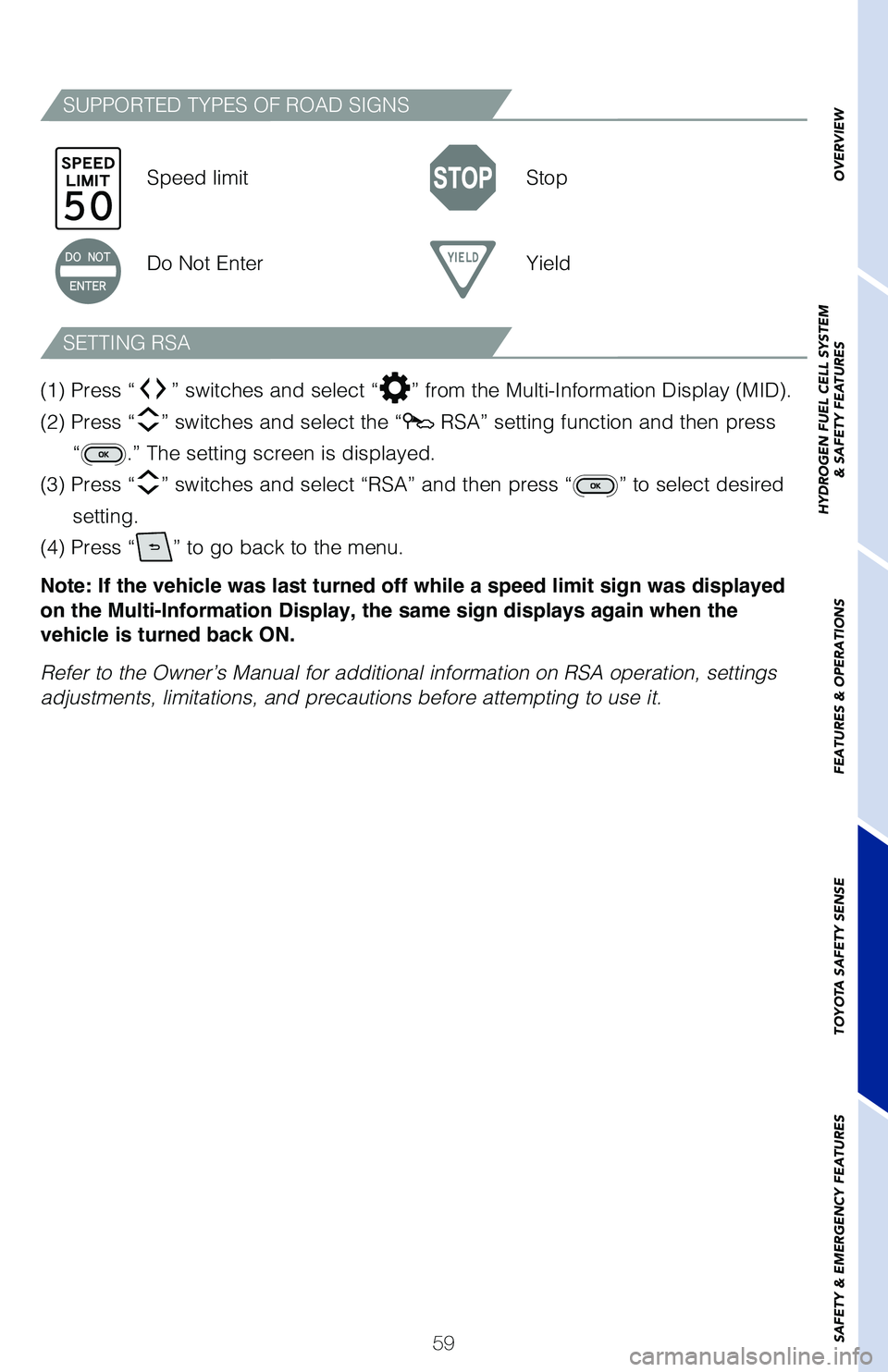

SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
Speed limitStop
Do Not Enter Yield
(1) Press “
” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select the “ RSA” setting function and then press
“
.” The setting screen is displayed.
(3) Press “
” switches and select “RSA” and then press “” to select desired
setting.
(4) Press “
” to go back to the menu.
Note: If the vehicle was last turned off while a speed limit sign was displayed
on the Multi-Information Display, the same sign displays again when the
vehicle is turned back ON.
Refer to the Owner’s Manual for additional information on RSA operati\
on, settings
adjustments, limitations, and precautions before attempting to use it.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

60
SAFETY & EMERGENCY FEATURES
Safety Connect®
Safety Connect is a subscription-based telematics service that uses Glob\
al
Positioning System (GPS) data and embedded cellular technology to prov\
ide safety
and security features to subscribers. Safety Connect is staffed with liv\
e agents at
the Toyota response center, which operates 24 hours per day, 7 days per \
week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
For limitations and additional information, refer to the “Owner’s \
Manual” or visit
www.toyota.com/connected-services.
Microphone
Speaker
LED light indicators
(Green is Active) “SOS” button
Rear door child safety locks
Moving the lever downward will allow the door to be opened only from the\
outside.
Rear doorUnlock
Lock

61
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

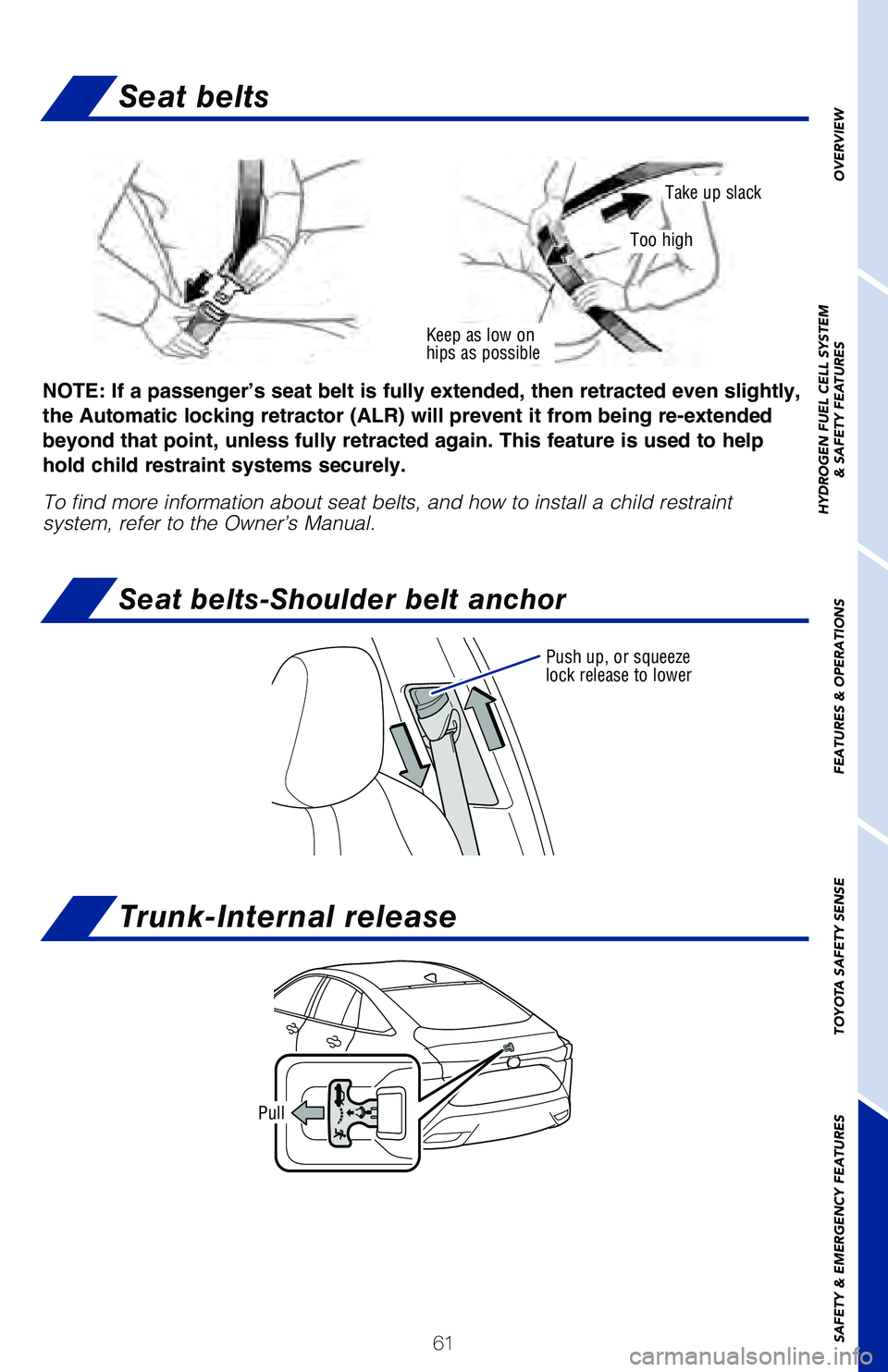

Seat belts
Seat belts-Shoulder belt anchor
Keep as low on
hips as possible
Take up slack
Too high
Push up, or squeeze
lock release to lower
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
Pull
Trunk-Internal release

62
SAFETY & EMERGENCY FEATURES
Emergency tire puncture repair kit
Your vehicle is not equipped with a spare tire, but instead is equipped \
with an
emergency tire puncture repair kit (bottle of sealant and compressor).\

After temporarily repairing the tire with the repair kit, have the tire \
repaired or
replaced by your Toyota dealer.
Refer to the Owner’s Manual for tire changing procedures.
TOOL LOCATION
Sticker
Air release cap
Hose
Air pressure
gauge
Power plug Compressor switch
TIRE REPAIR KIT COMPONENTS
Towing eyeletEmergency tire puncture repair kit
BottleCompressor

63
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

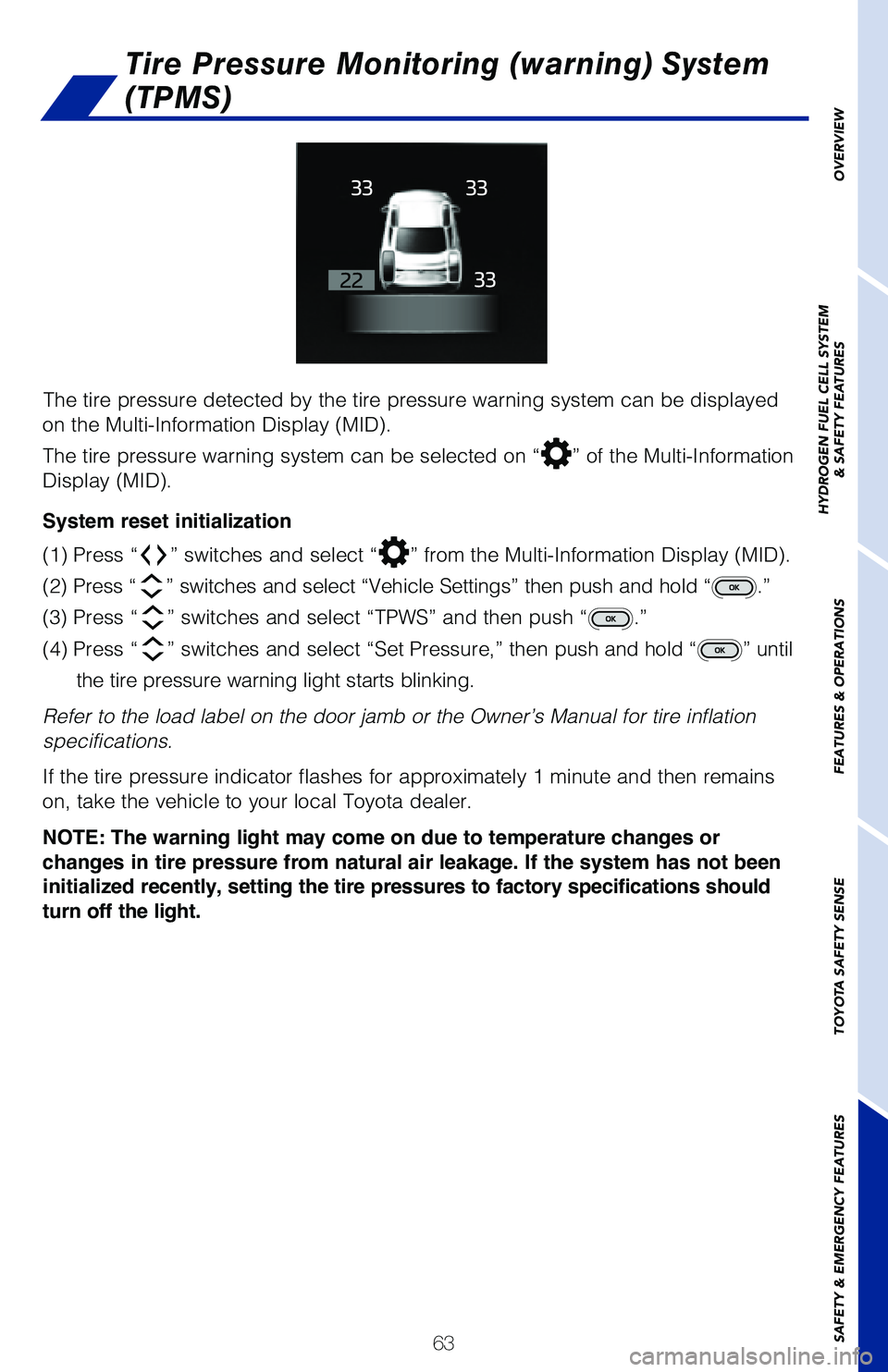

Tire Pressure Monitoring (warning) System
(TPMS)
The tire pressure detected by the tire pressure warning system can be di\
splayed
on the Multi-Information Display (MID).
The tire pressure warning system can be selected on “
” of the Multi-Information
Display (MID).
System reset initialization
(1) Press “
” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “Vehicle Settings” then push and hold “.”
(3) Press “
” switches and select “TPWS” and then push “.”
(4) Press “
” switches and select “Set Pressure,” then push and hold “” until
the tire pressure warning light starts blinking.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for approximately 1 minute and th\
en remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.

64
Star Safety System™
SAFETY & EMERGENCY FEATURES
Your vehicle comes standard with the Star Safety SystemTM, which combines
Anti-lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force
Distribution (EBD), Smart Stop Technology (SST), Traction Control (\
TRAC) and
Vehicle Stability Control (VSC).
Refer to the Owner’s Manual for more details and important informatio\
n on
limitations to these systems.
Enhanced Vehicle Stability Control provides cooperative control of the A\
BS, TRAC,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of tracti\
on occurs
during a turn.
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Toyota’s ABS sensors detect which wheels are locking up and limits wh\
eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\
s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\
action that
current road conditions will allow, helping you to stay in directional c\
ontrol.
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\
) to help
maintain control and balance when braking. EBD responds to sudden stops \
by
redistributing brake force to enhance the braking effectiveness of all f\
our wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Brake Assist is designed to detect sudden or “panic” braking, and \
then add braking
pressure to help decrease the vehicle’s stopping distance. When there\
’s only a split
second to react, Brake Assist can add additional brake pressure more qui\
ckly than
just the driver alone can.
BRAKE ASSIST (BA)
SMART STOP TECHNOLOGY (SST)
Smart Stop Technology automatically reduces motor power when the acceler\
ator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\
pplied
firmly for longer than one-half second at speeds greater than five miles\
per hour.
SST doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling
backward.

65
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the \
mat in
place.
• Install floor mats right side up.
VSC helps prevent loss of traction during cornering by reducing Motor po\
wer
output, and Traction Control helps maintain traction on loose gravel and\
wet, icy, or
uneven surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\
ts to slip.
TRAC limits Motor power output and applies the brakes to the spinning wh\
eel.
This
transfers power to the wheels that still have traction to help keep you \
on track.
TRACTION CONTROL (TRAC)
Always align the Δ marks

66
BLUETOOTH® DEVICE PAIRING
SECTION
Do not attempt the Bluetooth® Pairing process while driving.

67
To begin the Bluetooth® Pairing process, press the HOME button.
Bluetooth® Pairing for your phone
Select "Bluetooth," then select
"Add New Device" on display
screen.
Ensure Bluetooth is turned on for
your phone.
Select “Phone Name."
iPhone bluetooth MenuAndroid bluetooth Menu
1
Some Android devices may have slightly different SETTINGS screen layout\
depending on manufacturer of device and Android OS version.
Check the display on your
phone. Does the PIN XXXX
match the PIN displayed?
If it does, select "Pair."
Press [MENU], then select “Setup” on display screen.STEP 1
STEP 2
STEP 4
STEP 3
STEP 5
Pairing your phone is the first step in connecting with your Toyota. Thi\
s pairing
process is quick and easy. All you have to do is setup the phone and mul\
timedia
system to form a connection.
1
Premium Audio

68
BLUETOOTH® DEVICE PAIRING
Bluetooth® Pairing for your phone (cont.)
"Connecting" displays while
phone is forming the connection
to the multimedia system.Enable Notifications (text
message). While pairing your
phone, a message will be
displayed:
"You may need to allow
message access on your
phone."
Note: You may also select
"Skip" on display screen to skip
enabling notifications. If skipped,
proceed to Step 8.
Turn on "Show Notifications" for
iPhone or "ON" for Android.
A confirmation will appear once
your phone has been paired and
connected.
iPhoneAndroid
STEP 6
STEP 8
STEP 7
STEP 9
