TOYOTA PRIUS V 2015 ZVW40 / 1.G Owners Manual

PRIUS v_OM_OM47887U_(U)
1112. Instrument cluster
2
Instrument cluster
These images are examples only, and may vary slightly from actual
conditions.

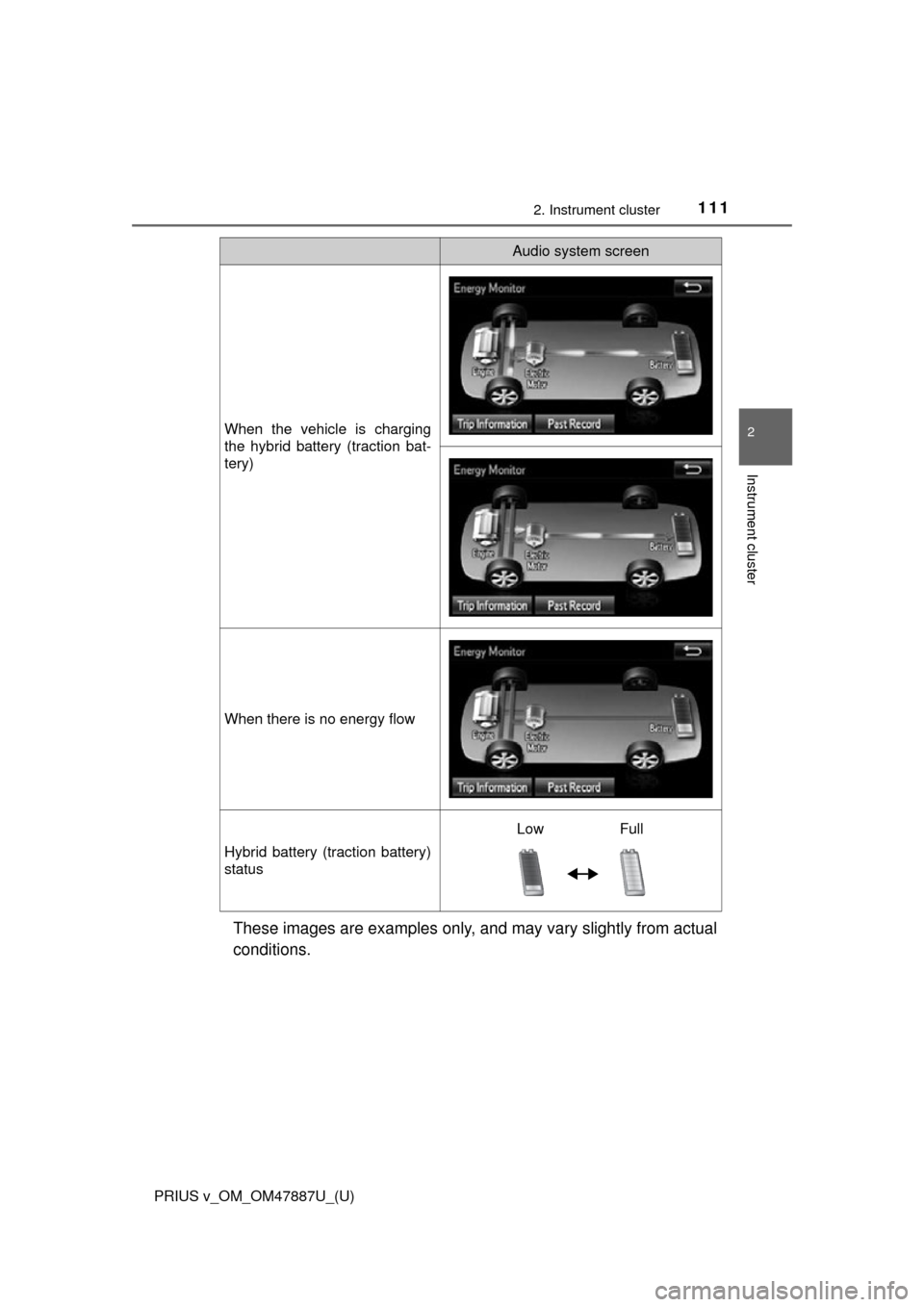

When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Hybrid battery (traction battery)
status
Audio system screen
LowFull

112
PRIUS v_OM_OM47887U_(U)
2. Instrument cluster
Audio system with “CAR” button
Press the “CAR” button. (P. 108)
Audio system with “APPS” button
Press the “APPS” button. ( P. 108)
Select “ECO” on the “APPS”
screen
If “Energy Monitor” screen is dis-
played, touch “Fuel Consumption”.
If “Past Record” screen is dis-
played, touch “Trip information”.
Resetting the consumption
data
Fuel consumption in the past 15 minutes
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Cruising range ( P. 11 3 )
Elapsed time since the hybrid system was started.
Average vehicle speed since th e hybrid system was started.
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
Trip information
1
1
2
1
2
3
4
5
6

PRIUS v_OM_OM47887U_(U)
1132. Instrument cluster
2
Instrument cluster
Audio system with “CAR” button
Press the “CAR” button. (P. 108)
Audio system with “APPS” button
Press the “APPS” button. ( P. 108)
Select “ECO” on the “APPS”
screen.
If “Energy Monitor” screen is dis-
played, touch “Fuel Consumption”.
If “Trip information” screen is dis-
played, touch “Past Record”.
Best recorded fuel consump-
tion
Resetting the past record data
Average fuel consumption
Previous fuel c onsumption record
Updating the average fu el consumption data
The average fuel consumption history is divided by color into past
averages and the average fuel cons umption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
Past record
1
1
2
1
2
3
4
5

114
PRIUS v_OM_OM47887U_(U)
2. Instrument cluster

115
PRIUS v_OM_OM47887U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................. 116
3-2. Opening, closing and locking the doors
Side doors ......................... 120
Back door .......................... 125
Smart key system ............. 130
3-3. Adjusting the seats Front seats ........................ 137
Rear seats......................... 141
Head restraints.................. 144
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 146
Inside rear view mirror ...... 148
Outside rear view mirrors ............................. 150
3-5. Opening and closing the windows
Power windows ................. 152

116
PRIUS v_OM_OM47887U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system (P. 130)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks all the doors ( P. 120)
Check that the door is securely
locked.
Unlocks all the doors ( P. 120)
Sounds the alarm ( P. 117)
The keys
1
2
3
Wireless remote control
1
2
3

PRIUS v_OM_OM47887U_(U)
1173-1. Key information
3
Operation of each component
To take out the mechanical key,
press the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 534)
■ Panic mode
■ If you lose your mechanical keys
New genuine mechanical keys can be made by your Toyota dealer using
another mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press
any buttons on the electronic key while inside the aircraft cabin. If you are
carrying an electronic key in your bag etc., ensure that the buttons are not
likely to be pressed accidentally. Pressing a button may cause the electronic
key to emit radio waves that could interfere with the operation of the aircraft.
Using the mechanical key
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

118
PRIUS v_OM_OM47887U_(U)
3-1. Key information
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin and a message
will be displayed on the multi-information display (if equipped) when the
hybrid system stops. ( P. 517)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. ( P. 459)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft.
(1 m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ Replacing the battery
P. 459
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.

PRIUS v_OM_OM47887U_(U)
1193-1. Key information
3
Operation of each component
NOTICE
■To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cooker s, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer imm ediately with all remaining electronic
keys that were provided with your vehicle.

120
PRIUS v_OM_OM47887U_(U)
3-2. Opening, closing and locking the doors
Side doors
◆Smart key system
Carry the electronic key to enable this function.Grip the driver’s door handle
or front passenger door han-
dle with the sensor (if
equipped) to unlock the door.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the indentation on the upper part of the
front door handle) to lock the doors.
Check that the door is securely locked.
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
The vehicle can be locked and unlocked using the entry func-
tion, wireless remote c ontrol or door lock switch.
Unlocking and locking the doors from the outside
1
2
1
2
