6428-2. Steps to take in an emergency

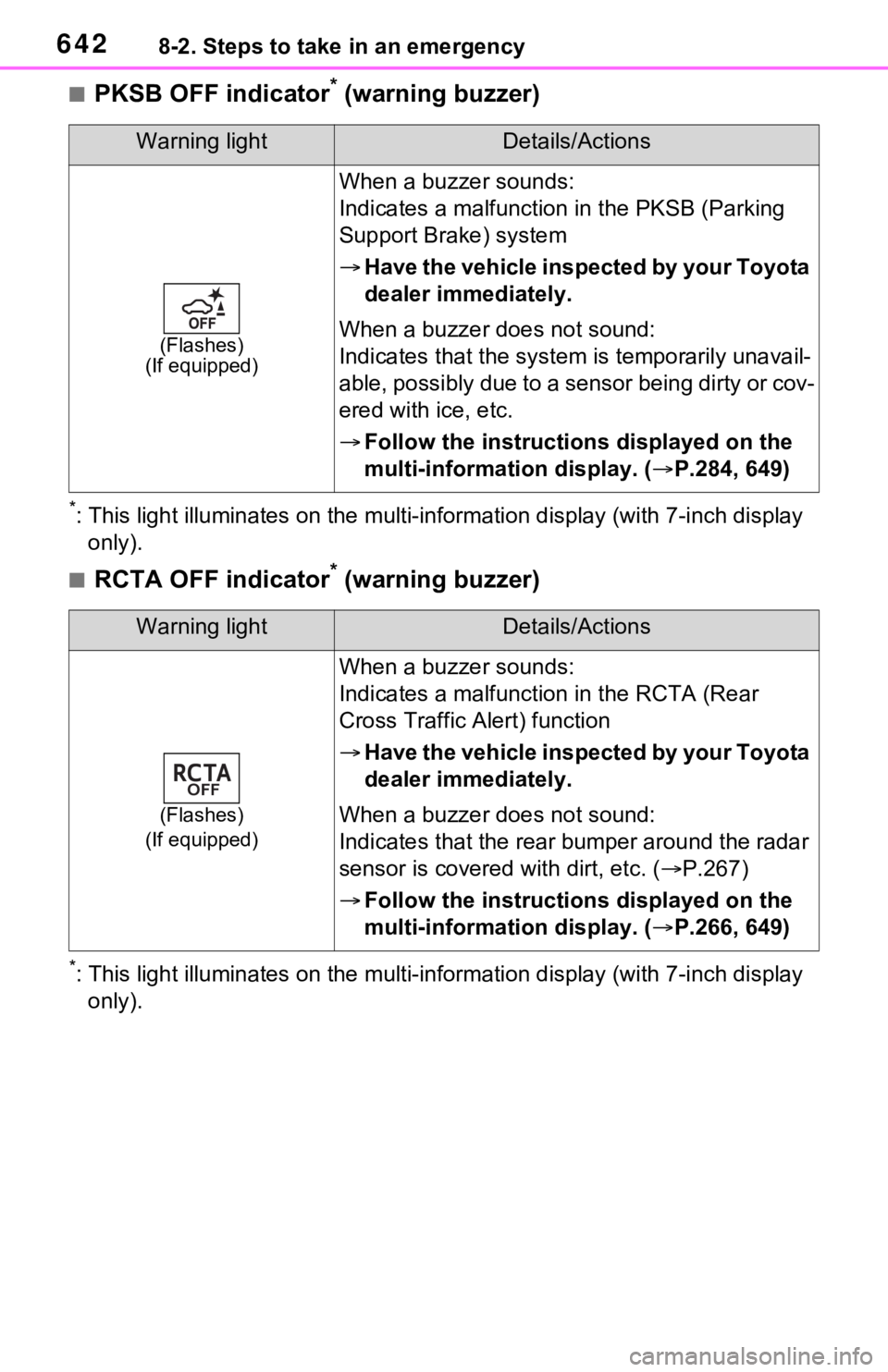

■PKSB OFF indicator* (warning buzzer)
*: This light illuminates on the mu lti-information display (with 7-inch display
only).
■RCTA OFF indicator* (warning buzzer)
*: This light illuminates on the mu lti-information display (with 7-inch display
only).
Warning lightDetails/Actions
(Flashes)
(If equipped)
When a buzzer sounds:
Indicates a malfunctio n in the PKSB (Parking
Support Brake) system
 Have the vehicle inspected by your Toyota
dealer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavail-
able, possibly due to a sensor being dirty or cov-
ered with ice, etc.
 Follow the instructions displayed on the
multi-information display. ( P.284, 649)
Warning lightDetails/Actions
(Flashes)
(If equipped)
When a buzzer sounds:
Indicates a malfunctio n in the RCTA (Rear
Cross Traffic Alert) function
 Have the vehicle inspected by your Toyota
dealer immediately.
When a buzzer does not sound:
Indicates that the rear bumper around the radar
sensor is covered with dirt, etc. ( P.267)
 Follow the instructions displayed on the
multi-information display. ( P.266, 649)

6458-2. Steps to take in an emergency
8
When trouble arises

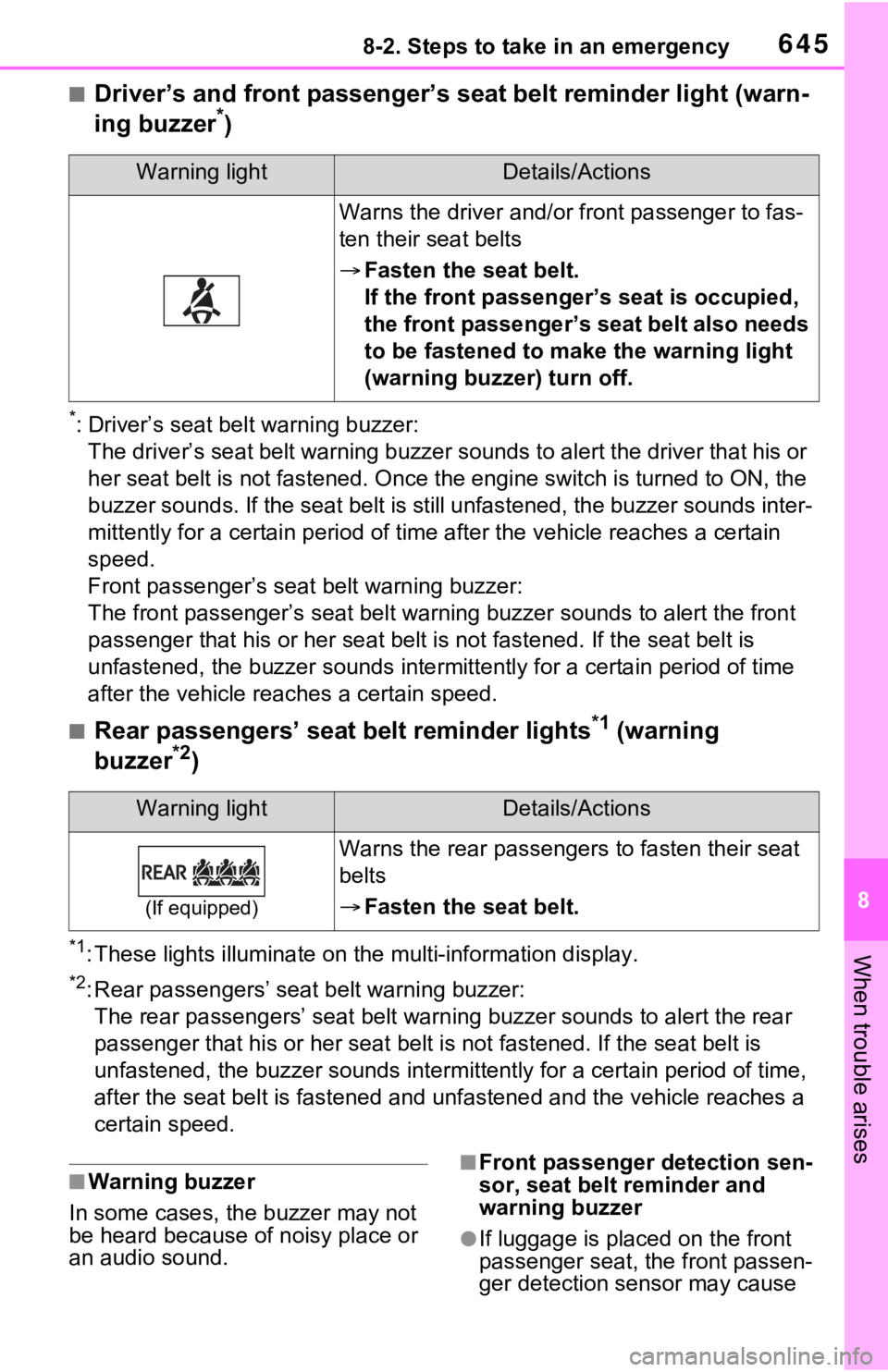

■Driver’s and front passenger’s seat belt reminder light (warn-
ing buzzer*)
*: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to alert the drive r that his or
her seat belt is not fastened. Once the engine switch is turned to ON, the
buzzer sounds. If the seat belt is still unfastened, the buzzer sounds inter-
mittently for a certain period o f time after the vehicle reaches a certain
speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the sea t belt is
unfastened, the buzzer sounds int ermittently for a certain period of time
after the vehicle reaches a certain speed.
■Rear passengers’ seat belt reminder lights*1 (warning
buzzer*2)
*1: These lights illumina te on the multi-information display.
*2: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt w arning buzzer sounds to alert the rear
passenger that his or her seat belt is not fastened. If the seat belt is
unfastened, the buzzer sounds intermittently for a certain peri od of time,
after the seat belt is fastened and unfastened and the vehicle reaches a
certain speed.
■Warning buzzer
In some cases, the buzzer may not
be heard because of noisy place or
an audio sound.■Front passenger detection sen-
sor, seat belt reminder and
warning buzzer
●If luggage is placed on the front
passenger seat, the front passen-
ger detection sensor may cause
Warning lightDetails/Actions
Warns the driver and/or front passenger to fas-
ten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied,
the front passenger’s seat belt also needs
to be fastened to m ake the warning light
(warning buzzer) turn off.
Warning lightDetails/Actions
(If equipped)
Warns the rear passengers to fasten their seat
belts
 Fasten the seat belt.

6468-2. Steps to take in an emergency
the warning light to flash and the
warning buzzer to sound even if a
passenger is not sitting in the
seat.
●If a cushion is placed on the seat,
the sensor may not detect a pas-
senger, and the warning light may
not operate properly.
■SRS warning light
This warning light system monitors
the airbag sensor assembly, front
impact sensors, side impact sensors
(front door), side impact sensors
(front), driver’s seat position sen-
sor, driver’s seat belt buckle switch,
front passenger occupant classifica-
tion system (ECU and sensors),
“AIR BAG ON” indicator light, “AIR
BAG OFF” indicator light, front pas-
senger’s seat belt buckle switch,
driver’s seat belt p retensioner, front
passenger’s seat be lt pretensioner
and force limiter, airbags, intercon-
necting wiring and power sources.
(  P.34)
■If the malfunction indicator
lamp comes on while driving
First check the following:
●Is the fuel t ank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go o ff after several
driving trips.
If the light does not go off even after
several trips, contact your Toyota
dealer as soon as possible.
■Electric power steering system
warning light (warning buzzer)
When the battery charge becomes
insufficient or the voltage temporar-
ily drops, the electric power steering
system warning light may come on
and the warning buzzer may sound.
■When the tire pressure warning
light comes on ( vehicles with
tire pressure warning system)
Inspect the tires to check if a tire is
punctured.
If a tire is punctured: P.653
If none of the tires are punctured:
Turn the engine switch to OFF then
turn it to ON. Check if the tire pres-
sure warning light comes on or
blinks.
If the tire pressur e warning light
blinks for approximately 1 minute
then stays on
There may be a malfunction in the
tire pressure warning system. Have
the vehicle inspected by your
Toyota dealer immediately.
If the tire pressur e warning light
comes on
1 After the temperature of the tires
has lowered sufficiently, check
the inflation pressure of each tire
and adjust them to the specified
level.
2 If the warning light does not turn
off even after several minutes
have elapsed, check that the
inflation pressure of each tire is
at the specified level and perform
initialization. ( P.599)
■The tire pressure warning light
may come on due to natural
causes (vehicles with tire pres-
sure warning system)
The tire pressure warning light may
come on due to natural causes such
as natural air leaks and tire inflation
pressure changes caused by tem-
perature. In this ca se, adjusting the
tire inflation pressure will turn off the
warning ligh t (after a few minutes).
■When a tire is replaced with a
compact spare tire (vehicles
with tire pressure warning sys-
tem)
The compact spare tire is not
equipped with a tire pressure warn-

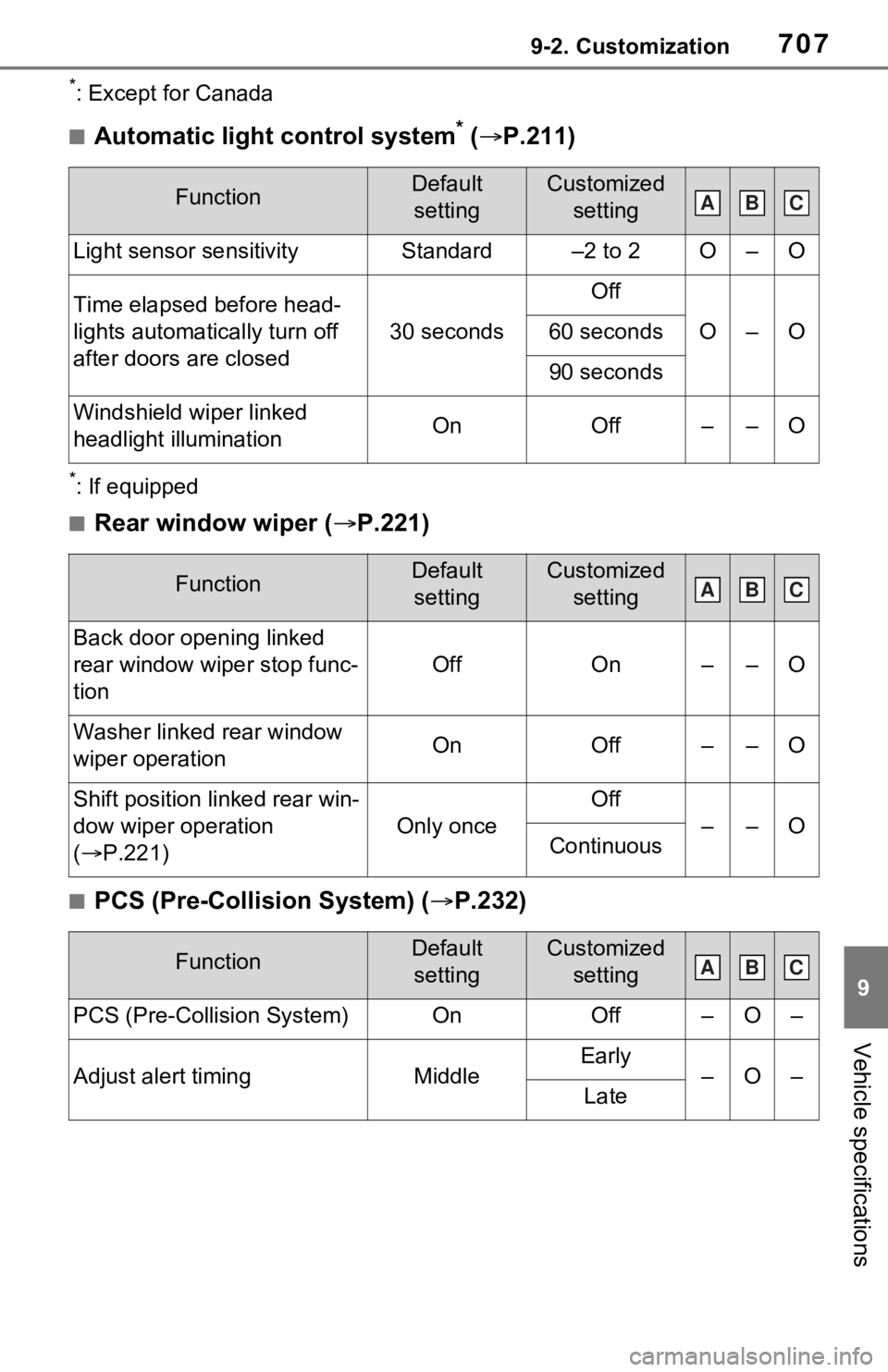

7079-2. Customization
9
Vehicle specifications
*: Except for Canada
■Automatic light control system* ( P.211)
*: If equipped
■Rear window wiper ( P.221)
■PCS (Pre-Collision System) ( P.232)
FunctionDefault
settingCustomized setting
Light sensor sensitivityStandard–2 to 2O–O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O–O60 seconds
90 seconds
Windshield wiper linked
headlight illuminationOnOff––O
FunctionDefault settingCustomized setting
Back door opening linked
rear window wiper stop func-
tion
OffOn––O
Washer linked rear window
wiper operationOnOff––O
Shift position linked rear win-
dow wiper operation
(  P.221)
Only once
Off
––OContinuous
FunctionDefault
settingCustomized setting
PCS (Pre-Collision System)OnOff–O–
Adjust alert timingMiddleEarly–O–Late
ABC
ABC
ABC

728What to do if... (Troubleshooting)
may also sound. (P.638, 649)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.73)
To stop the alarm, turn the engine
switch to ON or start the engine.
 Is the message displayed on
the multi-information display?
Check the message on the
multi-information display.
( P.649)
 When a warning light turns on
or a warning message is dis-
played, refer to P.638, 649.
 Stop the vehicle in a safe
place and replace the flat tire
with the spare tire. ( P.653)
Try the procedure for when
the vehicle becomes stuck in
mud, dirt, or snow. ( P.672)
An alarm is activated and
the horn sounds (if
equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed
When a problem has
occurred
If you have a flat tire
The vehicle becomes
stuck

Alphabetical Index731
control ............................ 84, 88
BSM (Blind Spot Monitor) ...... 264 Blind Spot Monitor function .. 268
Rear Cross Traffic Alert function........................................... 270
C
Care Aluminum wheels ................. 566
Exterior ................................. 566
Interior .................................. 569
Seat belts ............................. 569
Cargo capacity ............... 177, 180
Cargo hooks ........................... 539
Chains ..................................... 373
Child-protectors ..................... 114
Child restraint s ystem ............. 50
Fixed with a LATCH system ... 59
Fixed with a seat belt ............. 54
Front passenger occupant clas- sification system ................... 43
Points to remember ................ 50
Riding with children ................ 49
Types of child restraint system installation met hod ............... 52
Using an anchor bracket ........ 61
Child safety ............................... 49 Airbag precautions ................. 38
Back door precautions ......... 115
Battery precautions ...... 588, 669
Child restraint system............. 52
Heated steering wheel and seat
heater precautions ............. 529
How your child should wear the seat belt................................ 30
Moon roof precau tions ......... 162
Panoramic moon roof precau- tions.................................... 166
Power window lock switch.... 160
Power window precautions .. 159
Rear door child-protectors.... 114
Seat belt extender precautions .............................................30
Seat belt precautions..............29
Seat heater precautions .......529
Cleaning ..........................566, 569 Aluminum wheels .................566
Exterior .................................566
Interior ..................................569
Radar sensor ........................227
Seat belts .............................569
Clock ....................................84, 88
Coat hooks ..............................556
Condenser ............. ..................585
Connected Service s ...............501
Console box ............................536
Consumption screen ................99
Coolant Checking ..............................584
Preparing and checking before winter ..................................371
Warning light ........................639
Cooling system .......................584 Engine overheating ..............670
Cruise control (Dynamic radar
cruise control with full-speed
range).....................................253
Cup holders.............................536
Current fuel consumption........99
Current fuel economy ..............91
Curtain shield airbags ..............33
Customizable featu res ...........700
D
Daytime running light system212
Replacing light bulbs ............619
DCM .................502, 504, 505, 508
Deck board ..............................539
Defogger Outside rear view mirrors ...517, 524
Rear window.................517, 524
Windshield ....................517, 524
Differential ...............................681

Alphabetical Index737
Mud & Sand mode .................. 357
Multi-information displayAudio system-linked display ... 93
Changing the display.............. 90
Display contents ..................... 89
Driving informatio n display ..... 91
Driving support system informa- tion display ........................... 93
Dynamic radar cruise control with full-speed range .......... 253
Eco Driving Indicator .............. 92
Intuitive parking assist-sensor ........................................... 273
Language ....................... 96, 701
LTA (Lane-Tracing Assist) ... 246
Menu icons ............................. 90
Meter control switches ........... 90
Navigation system-linked display ............................................. 93
PCS (Pre-Collision System) . 232
Pop-up display ....................... 96
Settings .......................... 94, 701
Suggestion function................ 98
Tire pressure ........................ 592
Units ............................... 96, 701
Vehicle information display .... 93
Warning message display ...... 98
Warning messages .............. 649
Multi-terrain Select ................. 357
N
Navigation system-linked display ................................................. 93
Noise from under vehicle .......... 8
Normal mode .................. 355, 358
O
Odometer ............................ 82, 85
Odometer and trip meter display “ODO TRIP” switch .......... 84, 88
“ODO TRIP”switch ............. 84, 88 Oil
Engine oil..............................678
Rear differential oil ...............681
Transfer oil ...........................681
Opener Back door .....................117, 119
Fuel filler door.......................224
Hood .....................................579
Outer foot lights Replacing light bulbs ............619
Wattage ................................682
Outside rear view mirrors ......156 Adjusting and folding ............156
BSM (Blind Spot M onitor) .....265
Outside rear view mirror defog- gers ............................517, 524
Outside temperature display ...............................83, 87
Overheating.............................670
P
Panic mode .............................105
Panoramic moon roof Jam protection function ........165
Operation..............................164
Warning message . ...............166
Panoramic view monitor ........317 Camera switch......................319
Checking around the vehicle 322
Checking the front and around the vehicle ..........................323
Checking the rear and around the vehicle ..........................328
Checking the sides of the vehicle ...........................................325
Customizing the panoramic view
monitor ...............................336
Display..................................319
Driving precautions ...............317
How to switch the display .....320
Magnifying function ..............336
Panoramic view monitor precau-

738Alphabetical Index
tions.................................... 337
Things you should know....... 346
When folding the outside rear view mirrors ........................ 335
Parking assist sensors (intuitive parking assist) ...................... 273
Parking brake Operation ............................. 205
Parking brake engaged warning buzzer ................................ 207
Warning light ........................ 644
Warning message ................ 207
Parking lights Light switch .......................... 211
Replacing light bulbs ............ 619
Wattage ................................ 682
Parking Support Brake (PKSB) ............................................... 281Indicator ................................. 79
Parking Support Brake function (rear-crossing vehicles) ...... 292
Parking Support Brake function (static objects) .................... 286
Warning light ........................ 642
Warning message ................ 284
PCS (Pre-Collision System) Enabling/disabling the pre-colli-sion system ........................ 234
Function ............................... 232
Warning light ........................ 640
Warning message ........ 230, 651
Personal lights ....................... 533 Switch................................... 533
Wattage ................................ 682
Phone ...................................... 471 About the contacts in the contact list ....................................... 475
Phone screen operation ....... 471
Registering/Connecting a
Bluetooth
® phone ............... 473
Some basics......................... 472
Troubleshooting ................... 497 Voice command system .......475
When selling or disposing of the
vehicle ................................475
Phone button (Menu screen) .381
Phone button (Setup screen) 384
Phone button ........ ..................471
Phone settings ...... ..................487
Contacts/Call history settings489
Message settings .................495
Notifications/display settings 488
Sounds settings ....................487
PKSB (Parking Support Brake) ...............................................281Indicator..................................79
Parking Support Brake function (rear-crossing vehicles) ......292
Parking Support Brake function (static objects) ....................286
Warning light ........................642
Warning message . ...............284
Placing a call using the
Bluetooth
® hands-free system
...............................................476 By call history .......................476
By contacts list .....................477
By favorites list .....................477
By home screen ...................479
By keypad.............................478
Power back door switch 119, 120
Power outlets ..........................544
Power steering (Electric Power Steering system)...................364Warning light ........................640
POWER VOLUME knob ..........425
Power windows Door lock linked window opera-tion......................................159
Jam protection function ........158
Operation..............................158
Window lock switch ..............160
Pre-Collision System (PCS) Enabling/disabling the pre-colli-

740Alphabetical Index
Child restraint system installation............................................. 54
Cleaning and maintaining the seat belt.............................. 569
Emergency Locking Retractor 31
How to wear your seat belt..... 30
How your child should wear the seat belt................................ 30
Pregnant women, proper seat belt use................................. 29
Reminder light and buzzer ................................ 645
Seat belt extender .................. 30
Seat belt instructions for Cana- dian owners ........................ 715
Seat belt pretensioners .......... 32
SRS warning light................. 639
Seat heaters ............................ 529
Seating capacity ..................... 180
Seat position memory ............ 138
Seats Adjustment precautions 135, 136
Adjustment ................... 135, 136
Child restraint system installation............................................. 50
Cleaning ............................... 569
Driving position memory....... 138
Folding down the rear seatbacks ........................................... 137
Head restraint....................... 141
Properly sitting in the seat ...... 27
Seat heaters ......................... 529
Seat position memory .......... 138
Seat ventilators .................... 529
Seat ventilators ...................... 529
Secondary Collision Brake .... 365
Sensor Automatic headlight system . 212
Automatic High Beam system........................................... 214
BSM (Blind Spot Monitor)..... 267
Digital Rear-view Mirror........ 151 Inside rear view mirror ..........146
Intuitive parking assist ..........273
LTA (Lane Traci
ng Assist) ....240
Parking Support Brake function (rear-crossing vehicles) ......267
Parking Support Brake function (static objects) ....................273
Rain-sensing windshield wipers ...........................................220
RCTA ....................................267
Toyota Safety Sense 2.0 ......226
Service Connect ... ..................509
Service reminder message ....573
Setup button (Menu screen) ...............381, 384
Setup screen ...........................384
Shift lever ................................201 Automatic transm ission ........201
If th e s hif t le ver ca n no t b e s hif te d from P .................................202
Shift lock system ....................202
Side airbags ..............................33
Side auxiliary box ...................541
Side doors ............. ..................109
Side marker lights Light switch...........................211
Replacing light bulbs ............619
Wattage ................................682
Side mirrors ............................156 Adjustment ...........................156
BSM (Blind Spot M onitor) .....265
Folding..................................156
Heaters .........................517, 524
Side turn signal lights Replacing light bulbs ............619
Turn signal lever . ..................204
Side windows ..........................158
Smart key system ...................129 Antenna location...................129
Entry functions..............109, 116
Starting the engine ...............196
Warning message . ...............649
