6508-2. Steps to take in an emergency
3Firmly depress the brake
pedal and check that is
displayed on the multi-infor-
mation display.
4 Press the engine switch
shortly and firmly.
In the event that the engine still
cannot be started, contact your
Toyota dealer.
■Stopping the engine
Shift the shift lever to P, set the
parking brake and press the engine
switch as you no rmally do when
stopping the engine.
■Replacing the key battery
As the above proc edure is a tempo-
rary measure, it is recommended
that the electronic key battery be
replaced immediate ly when the bat-
tery is depleted. ( P.597)
■Alarm (if equipped) (for Canada)
Using the mechanical key to lock
the doors will not set the alarm sys-
tem.
If a door is unlocked using the
mechanical key when the alarm sys-
tem is set, the alarm may be trig-
gered.
■Changing engine switch modes
Release the brake pedal and press
the engine switch in step 3 above.
The engine does not start and
modes will be cha nged each time
the switch is pressed. ( P.195)
If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.
1Vehicles with alarm: Confirm
that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and the doors locked. ( P.74)
2 Open the hood. ( P.569)
If the vehicle battery
is discharged
The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your
Toyota dealer or a qualified
repair shop.
Restarting the engine

6558-2. Steps to take in an emergency
8
When trouble arises
3After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
4The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be us ed in an emer-
gency if coolant is unavailable.
If water was added in an emer-
gency, have the vehicle inspected at your Toyota dealer as soon as
possible.
6
Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.
The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is operating by check-
ing the fan sound and air flow. If it is
difficult to check th ese, turn the air
conditioning system on and off
repeatedly. (The fa n may not oper-
ate in freezing temperatures.)
7 If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.
8 Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”
is shown on the multi-infor-
mation display.
If the message does not disappear:
Stop the engine and contact your
Toyota dealer.
If the message is not displayed:
Have the vehicle inspected at the
A
B
A
B
C

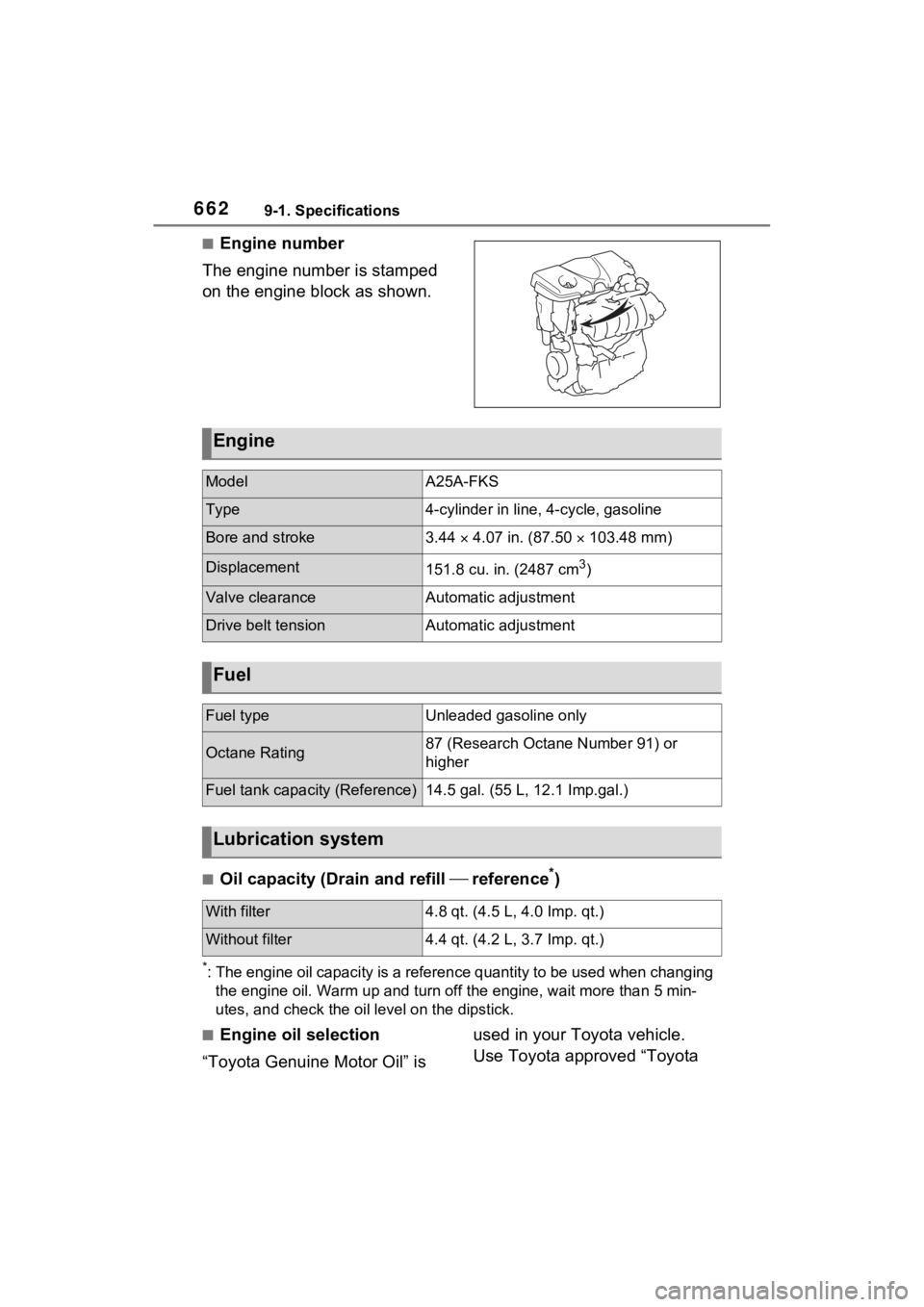

6629-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
■Oil capacity (Drain and refill  reference*)
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up and turn off the engine, wait more than 5 min-
utes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle.
Use Toyota approved “Toyota
Engine
ModelA25A-FKS
Type4-cylinder in line
, 4-cycle, gasoline
Bore and stroke3.44  4.07 in. (87.50  103.48 mm)
Displacement151.8 cu. in. (2487 cm3)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or
higher
Fuel tank capacity (Reference)14.5 gal. (55 L, 12.1 Imp.gal.)
Lubrication system
With filter4.8 qt. (4.5 L , 4.0 Imp. qt.)
Without filter4.4 qt. (4.2 L, 3.7 Imp. qt.)

712What to do if... (Troubleshooting)
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
If you lose your keys or
mechanical keys, new genu-
ine keys or mechanical keys
can be made by your Toyota
dealer. ( P.648)
 Vehicles with smart key sys-
tem:
If you lose your electronic
keys, the risk of vehicle theft
increases significantly. Con-
tact your Toyota dealer imme-
diately. ( P.648)
 Is the key battery weak or
depleted? ( P.597)
 Vehicles with smart key sys-
tem:
Is the engine switch in ON?
When locking the doors, turn
the engine switch to OFF.
( P.195) 
Vehicles with smart key sys-
tem:
Is the electronic key left inside
the vehicle?
When locking the doors,
make sure that you have the
electronic key on your person.
 The function may not operate
properly due to the condition
of the radio wave. ( P.105,
128)
 Is the child-protector lock set?
The rear door cannot be
opened from inside the vehi-
cle when the lock is set. Open
the rear door from outside
and then unlock the child-pro-
tector lock. ( P.112)
 Is the shift lever in P?
( P.191)
 Is the battery discharged?
( P.650)
 Did you press the engine
If you have a problem,
check the following before
contacting your Toyota
dealer.
The doors cannot be
locked, unlocked, opened
or closed
You lose your keys
The doors cannot be
locked or unlocked
The rear door cannot be
opened
If you think something is
wrong
The engine does not start
(vehicles without smart
key system)
The engine does not start
(vehicles with smart key
system)

714What to do if... (Troubleshooting)
Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( P.72)
To stop the alarm, turn the engine
switch to ON or start the engine.
 Is the message displayed on
the multi-information display?
Check the message on the
multi-information display.
( P.633)
 When a warning light turns on
or a warning message is dis-
played, refer to P.622, 633.
 Stop the vehicle in a safe
place and replace the flat tire
with the spare tire. ( P.637)
Try the procedure for when
the vehicle becomes stuck in
mud, dirt, or snow. ( P.656)
An alarm is activated and
the horn sounds (if
equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on
or a warning message is
displayed
When a problem has
occurred
If you have a flat tire
The vehicle becomes
stuck

Alphabetical Index717
88
BSM (Blind Spot Monitor) ...... 259 Blind Spot Monitor function .. 263
Rear Cross Traffic Alert function........................................... 266
C
Care Aluminum wheels ................. 556
Exterior ................................. 556
Interior .................................. 559
Seat belts ............................. 559
Cargo capacity ............... 173, 176
Cargo hooks ........................... 531
Chains ..................................... 364
Child-protectors ..................... 112
Child restraint s ystem ............. 52
Fixed with a LATCH system ... 61
Fixed with a seat belt ............. 56
Front passenger occupant clas- sification system ................... 45
Points to remember ................ 52
Riding with children ................ 51
Types of child restraint system installation met hod ............... 54
Using an anchor bracket ........ 63
Child safety ............................... 51 Airbag precautions ................. 40
Back door precautions ......... 113
Battery precautions ...... 577, 653
Child restraint system............. 54
Heated steering wheel and seat
heater precautions ............. 521
How your child should wear the seat belt................................ 32
Moon roof precau tions ......... 159
Panoramic moon roof precau- tions.................................... 163
Power window lock switch.... 157
Power window precautions .. 156
Rear door child-protectors.... 112
Seat belt extender precautions .............................................32
Seat belt precautions..............31
Seat heater precautions .......521
Cleaning ..........................556, 559 Aluminum wheels .................556
Exterior .................................556
Interior ..................................559
Radar sensor ........................223
Seat belts .............................559
Clock ....................................84, 88
Coat hooks ..............................545
Condenser ............. ..................575
Connected Service s ...............493
Console box ............................528
Consumption screen ................99
Convenience Services (Sugges- tion function)...........................98
Coolant Checking ..............................574
Preparing and checking before winter ..................................362
Warning light ........................623
Cooling system .......................574 Engine overheating ..............654
Cruise control (Dynamic radar cruise control with full-speed
range).....................................248
Cup holders.............................528
Current fuel consumption........99
Current fuel economy ..............91
Curtain shield airbags ..............35
Customizable featu res ...........684
D
Daytime running light system208
Replacing light bulbs ............604
DCM .................494, 496, 497, 500
Deck board ..............................531
Defogger Outside rear view mirrors ...509, 516
Rear window.................509, 516

Alphabetical Index719
Operation ............................. 161
Emergency, in case of If a warning buzzer sounds .. 622
If a warning light turns on ..... 622
If a warning message is dis-played................................. 633
If the electronic key does not operate properly ................. 648
If the engin e will not start ..... 646
If the vehicle battery is dis- charged .............................. 650
If the vehicle is submerged or water on the road is rising .. 613
If you have a flat tire ............. 637
If you lose your keys ............ 648
If you think something is wrong ........................................... 620
If your vehicle becomes stuck ........................................... 656
If your vehicle has to be stopped in an emergency................. 612
If your vehicle needs to be towed ........................................... 615
If your vehicle overheats ...... 654
Emergency flashers ............... 612
Engine ACC.............................. 191, 195
Compartment ....................... 572
Engine switch ............... 191, 192
Fuel pump shut off system ... 621
Hood..................................... 569
How to start the engine 191, 192
Identification number ............ 662
If the engin e will not start ..... 646
If your vehicle has to be stopped in an emergency................. 612
Ignition switch (Engine switch) ................................... 191, 192
Overheating.......................... 654
Tachometer ...................... 82, 85
Engine coolant Capacity ............................... 664 Checking ..............................574
Preparing and checking before
winter ..................................362
Warning light ........................623
Engine coolant temperature gauge .................................82, 85
Engine immobilizer system .....71
Engine oil Capacity ...............................662
Checking ..............................572
Preparing and checking before winter ..................................362
Warning light ........................623
Engine switch .................191, 192 Auto power off fun ction.........195
Changing the engine switch modes.................................195
Changing the engine switch positions .............................191
If your vehicle has to be stopped in an emergency .................612
Enhanced Vehicle Stability Con- trol (Enhanced VSC ) .............356
Enhanced VSC (Enhanced Vehi- cle Stability Control).............356
Entering letters and numbers/list screen operation...................381Entering letters and numbers381
List screen ............................382
EPS (Electric Po wer Steering)
Function................................356
Warning light ........................624
Establishing an Android Auto connection .......... ..................404
Establishing an Apple CarPlay connection .......... ..................403
Event data recorder (EDR) .......10
F
Flat tire.....................................637 Tire pressure warning system...........................................582

Alphabetical Index723
Jam protection function ........ 158
Operation ............................. 158
Warning message ................ 159
Mud & Sand mode .................. 349
Multi-information display Audio system-linked display ... 93
Changing the display.............. 90
Convenience Services (Sugges-tion function)......................... 98
Display contents ..................... 89
Driving informatio n display ..... 91
Driving support system informa- tion display ........................... 93
Dynamic radar cruise control with full-speed range .......... 248
Eco Driving Indicator .............. 92
Intuitive parking assist-sensor ........................................... 270
Language ....................... 96, 685
LTA (Lane-Tracing Assist) ... 241
Menu icons ............................. 90
Meter control switches ........... 90
Navigation system-linked display ............................................. 93
PCS (Pre-Collision System) . 227
Pop-up display ............... 96, 685
Settings .......................... 94, 685
Tire pressure ........................ 582
Units ............................... 96, 685
Vehicle information display .... 93
Warning message display ...... 98
Warning messages .............. 633
Multi-terrain Select ................. 349
N
Navigation system-linked display ................................................. 93
Noise from under vehicle .......... 8
Normal mode .................. 347, 350
O
Odometer.............................82, 85
Odometer and trip meter display “ODO TRIP” switch ...........84, 88
“ODO TRIP” switch ............84, 88
Oil Engine oil..............................662
Rear differential oil ...............666
Transfer oil ...........................665
Opener Back door .....................115, 117
Fuel filler door.......................220
Hood .....................................569
Outer foot lights Replacing light bulbs ............604
Wattage ................................670
Outside rear view mirrors ......153 Adjusting and folding ............153
BSM (Blind Spot M onitor) .....260
Outside rear view mirror defog- gers ............................509, 516
Outside temperature display .83, 87
Overheating.............................654
P
Panic mode .............................105
Panoramic moon roof Jam protection function ........162
Operation..............................161
Warning message . ...............163
Panoramic view monitor ........309 Camera switch......................311
Checking around the vehicle 314
Checking the front and around the vehicle ..........................315
Checking the rear and around the vehicle ..........................320
Checking the sides of the vehicle ...........................................317
Customizing the panoramic view

728Alphabetical Index
Tire pressure warning reset switch ................................. 584
Vehicle-to-vehicle distance switch ................................. 248
VSC OFF switch................... 357
Window lock switch .............. 157
Windshield defogger switch 509, 516
Windshield wipers and washer switch ................................. 214
Wireless charger switch ....... 539
T
Tachometer ......................... 82, 85
Tail lights Light switch .......................... 207
Replacing light bulbs ............ 604
Talking on the Bluetooth
®
hands-free system ............... 472 Call screen operation ........... 472
Incoming call waiting ............ 474
Sending tones ...................... 473
Transmit volume setting ....... 473
Theft deterrent system Alarm ...................................... 72
Engine immobilizer system .... 71
Tire inflati on pressure
Maintenance data................. 667
Tire inflation pressure display function............................... 582
Warning light ........................ 628
Tire information ...................... 674 Glossary ............................... 678
Size ...................................... 676
Tire identification number ..... 675
Tire section names ............... 676
Tire pressure warning system Function ............................... 582
Initializing ............................. 584
Installing tire pressure warning valves and transmitters ...... 583 Registering ID codes ............586
Warning light ........................628
Tires .........................................579 Chains ..................................364
Checking ..............................579
Glossary ...............................678
If you have a flat tire .............637
Inflation pressure ..................588
Information ......... ..................674
Replacing .............................637
Rotating tires ........................581
Size ......................................667
Snow tires.............................362
Spare tire ..............................637
Tire identification number .....675
Tire inflation pressure display function ...............................582
Tire pressure warning system ...........................................582
Uniform Tire Qua lity Grading 677
Warning light ........................628
Tools ........................................638
Top tether strap ........................63
Total load capacity .........173, 176
Touch screen ..........................378 Touch screen gestures .........378
Touch screen operation........379
Towing Dinghy towing .......................189
Emergency towing ................618
Towing eyelet ...............618, 638
Trailer sway control ..............356
Trailer towing ........................177
Toyota Apps ............................502 Entering keyword ..................504
Toyota Apps button (Setup screen) ...................................376
Toyota Apps setting s .............506
Toyota parking assist monitor ...............................................296Distance guide line display mode ...........................................301

730Alphabetical Index
LTA indicator ........................ 625
Open door ............................ 111
Open hood ........................... 111
Open window ....................... 156
PKSB OFF indicator ............. 626
Pre-collision warning ............ 227
RCTA (Rear Cross Traffic Alert) ........................................... 260
RCTA OFF indicator............. 626
Seat belt reminder ................ 629
Vehicle sway warning........... 239
Warning lights ABS ...................................... 624
Brake hold operated indicator........................................... 627
Brake Override System ........ 627
Brake system ....................... 622
Charging system .................. 622
Drive-Start Control ............... 627
Electric power steering ......... 624
Engine .................................. 623
High coolant temperature ..... 623
Inappropriate pedal operation ........................................... 627
Intuitive parking assist OFF indi- cator ................................... 625
Low engine oil pressure ....... 623
Low fuel level ....................... 628
LTA indicator ........................ 625
Malfunction indicator lamp ... 623
Parking brake indicator ........ 628
PCS warning light................. 624
PKSB (Parking Support Brake) ........................................... 626
PKSB OFF indicato r ............. 626
RCTA OFF indicator............. 626
Seat belt reminder light ........ 629
Slip indicator......................... 627
SRS ...................................... 623
Stop & Start cancel indicator 625
Tire pressure ........................ 628
Warning messages ................ 633 Washer
Checking ..............................578
Low washer fluid warning mes-sage............................578, 633
Preparing and checking before winter ..................................362
Switch ...........................214, 217
Washing and waxing ..............556
Weight Cargo capacity .............173, 176
Load limits ............................176
Weight ..................................660
Wheels .....................................590 Replacing wheels .................590
Size ......................................667
Wi-Fi
®.......................................398
Connecting a device to the in- vehicle access point ...........398
Operating hints .....................401
Wi-Fi
® button (Setup screen) 376
Wi-Fi
® Hotspot ........................398
Window glasses Power windows ....................155
Window lock switch ...............157
Windows Power windows ....................155
Rear window defogger .509, 516
Washer .........................214, 217
Windshield defog ger ......509, 516
Windshield wipers Intermittent windshield wipers...........................................214
Position.........................214, 217
Rain-sensing windshield wipers ...........................................214
Replacing the wiper insert ....594
Winter driving tips ..................362
Wiper insert .............................594
Wireless charger.....................539
Wireless remote control.........104 Battery-saving function .........128
Locking/Unlocking ................104
