5027-3. Do-it-yourself maintenance
oil level on the dipstick.
■Checking the engine oil
1 Park the vehicle on level
ground. After warming up the
engine and turning off the hybrid
system, wait more than 5 min -
utes for the oil to drain back into
the bottom o f the engine.
2 Holding a rag under the end,
pull the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end,
pull the dipstick out and check
the oil level.
Low
Normal
Excessive
The shape of the dip stick may differ
depending on the type of vehicle or
engine.
6 Wipe the dipstick and reinsert it
fully.
■Checking the oil type and pre -
paring the items needed
Make sure to check the oil type and
prepare the items needed before
adding oil.
 Engine oil selection
→P.621
Oil quantity (Low → Full)
1.5 L (1.6 qt., 1.3 Imp. qt.)
Item
Clean funnel
■Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of the
same type as that already in the
engine.
1 Remove the oil filler cap by turn-
ing it counterclockwise.
2 Add engine oil slowly, checking
the dipstick.
3 Install the oil filler cap by turning
it clockwise.
A
B
C

621
9
9-1. Specifications
Vehicle specifications
■Oil capacity (Drain and refill ⎯ reference*)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turning off the hybrid system, wait more than
5 minutes, and check the oi l level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota veh icle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual -
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv -
ing” or SN PLUS “Resource-Con -
serving” multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving”, SN
“Resource-Conserving” or SN
PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
Recommended visc osity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in cold
weather.
If SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How -
ever, it should be replaced with
SAE 0W-16 at the next oil change.
Preferred
Temperature range anticipated
Hybrid battery (traction battery)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity51 Ah
Quantity96 cells
Nominal voltage355.2 V
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.2 L (4.4 qt., 3.7 Imp. qt.)
A
B

6229-1. Specifications
before next oil change
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the
characteristic o f the oil which
allows cold startability. Oils with
a lower value before the W allow
for easier starting of the engine
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera -
ture. An oil with a higher viscos -
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SN” means
the oil quality designation by American
Petroleum Institute (API).
Center porti on: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica -
tion Advisory Committee (ILSAC) Certi -
fication Mark is displayed on the front of
the container.
*: The coolant capacity is t he quantity of reference.
If replacement is necessary, cont act any authorized Toyota retailer or Toyota
A
B
Cooling system
Capacity*
Gasoline
engine7.4 L (7.8 qt. , 6.5 Imp. qt.)
Power con-
trol unit2.0 L (2.1 qt. , 1.8 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine , non-nitrite, and non-
borate coolant with long -life hybrid organic
acid technology
Do not use plain water alone.

664

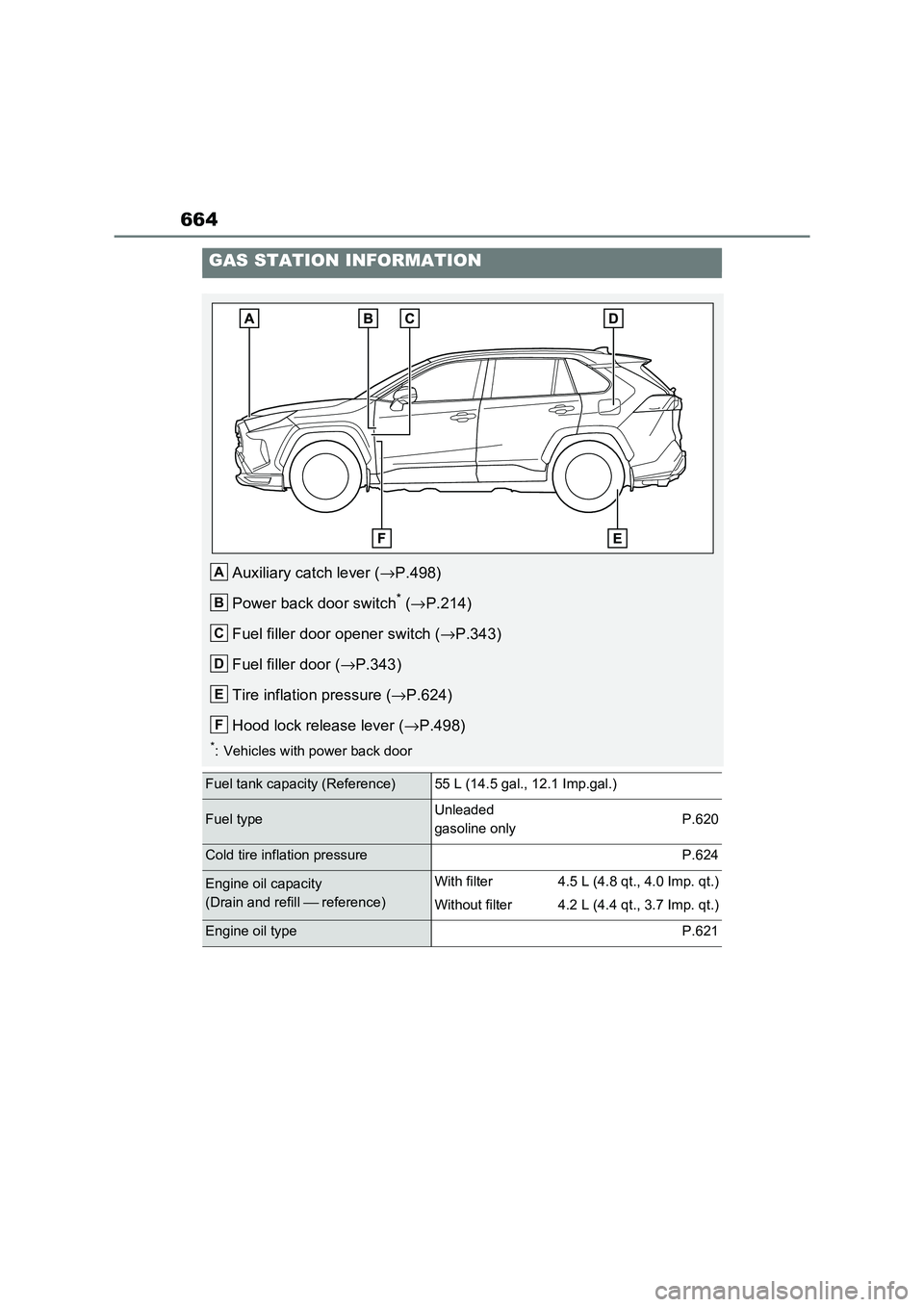

GAS STATION INFORMATION
Auxiliary catch lever (→P.498)
Power back door switch* ( →P.214)
Fuel filler door opener switch ( →P.343)
Fuel filler door ( →P.343)
Tire inflation pressure ( →P.624)
Hood lock release lever ( →P.498)
*: Vehicles with power back door
Fuel tank capacity (Reference)55 L (14.5 gal., 12.1 Imp.gal.)
Fuel typeUnleaded
gasoline onlyP.620
Cold tire inflation pressureP.624
Engine oil capacity
(Drain and refill ⎯ reference)
With filter
Without filter
4.5 L (4.8 qt., 4.0 Imp. qt.)
4.2 L (4.4 qt., 3.7 Imp. qt.)
Engine oil typeP.621
A
B
C
D
E
F
