5127-3. Do-it-yourself maintenance
3Press or of the meter
control switches on the steering
wheel and select .
4 Press or of the meter
control switches and select
“Vehicle Settings”, and then
press and hold .
5 Press or of the meter
control switches and select
“TPWS”, and then press .
6 Press or to select “Set-
ting Unit”.
7 Press or to select the
desired unit and then press .
■Routine tire inflation pressure checks
The tire pressure w arning system does
not replace routine tire inflation pressure checks. Make sure to check tire inflation
pressure as part of your routine of daily
vehicle checks.
■Tire inflation pressure
●It may take a few minutes to display
the tire inflation pressure after the
power switch is turned to ON. It may also take a few minutes to display the
tire inflation pressu re after inflation
pressure has been adjusted.
●Tire inflation pre ssure changes with
temperature. The displayed values may also be different from the values
measured using a tire pressure
gauge.
■Situations in which the tire pres - sure warning system may not oper -
ate properly
●In the following cases, the tire pres -
sure warning system may not operate
properly. • If non-genuine Toyota wheels are
used.
• A tire has been r eplaced with a tire that is not an OE (Original Equipment)
tire.
• A tire has been r eplaced with a tire that is not of the specified size.
• Tire chains, etc. are equipped.
• An auxiliary-supporte d run-flat tire is equipped.
• If a window tint tha t affects the radio
wave signals is installed. • If there is a lot of snow or ice on the
vehicle, particularly around the wheels
or wheel housings. • If the tire inflation pressure is
extremely higher t han the specified
level. • If wheels without tire pressure warning
valves and transmitters are used.
• If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning
computer.
●Performance may be affected in the
following situations. • Near a TV tower, electric power plant,
gas station, radio station, large dis -
play, airport or ot her facility that gen- erates strong radio waves or electrical
noise
• When carrying a port able radio, cellu-
lar phone, cordless phone or other wireless communication device
If tire position information is not cor -
rectly displayed due to the radio wave conditions, the display may be cor -
rected by driving and changing the
radio wave conditions.
●When the vehicle is parked, the time

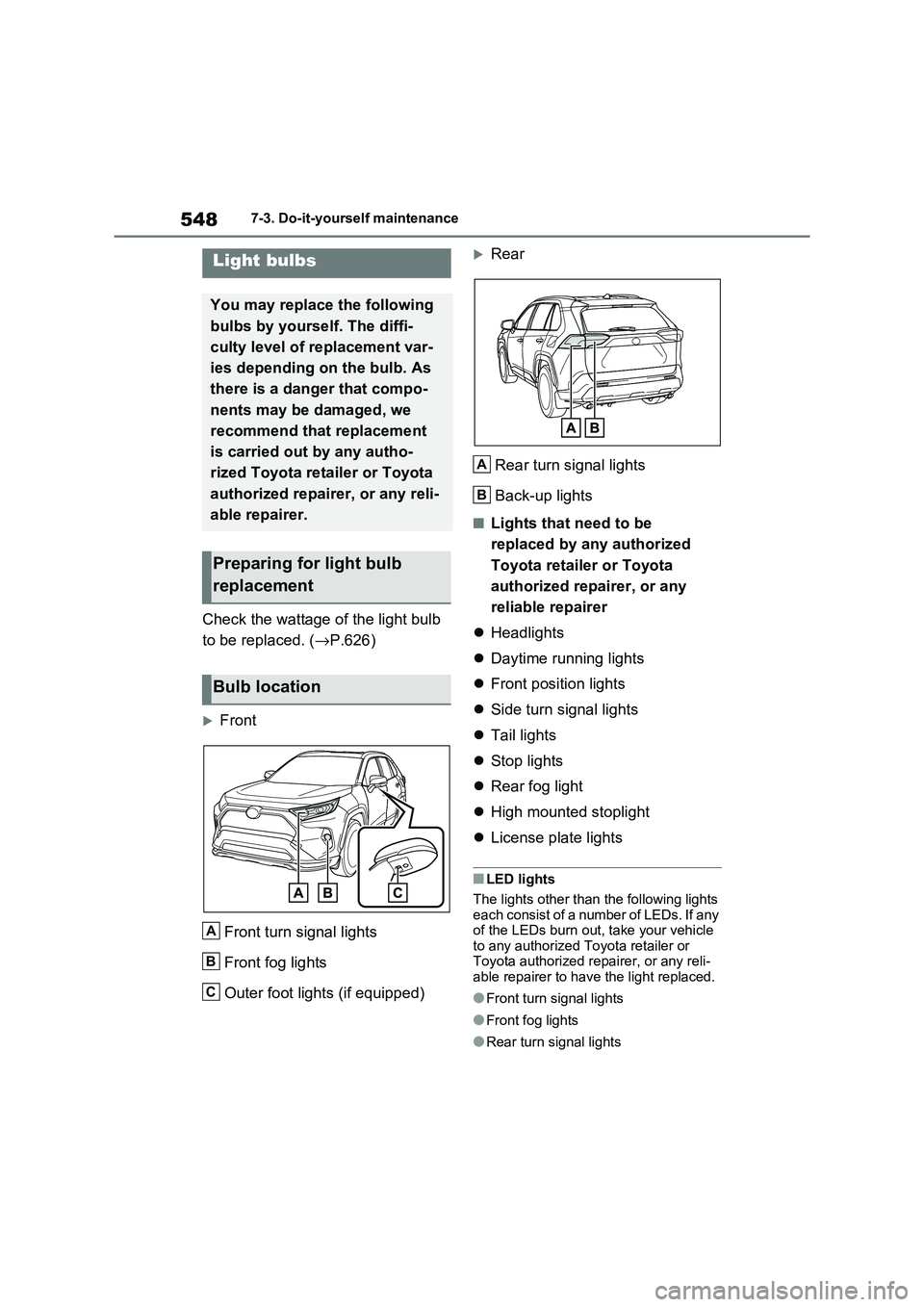

5487-3. Do-it-yourself maintenance
Check the wattage of the light bulb
to be replaced. ( →P.626)
Front
Front turn signal lights
Front fog lights
Outer foot lights (if equipped)
Rear
Rear turn signal lights
Back-up lights
■Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
 Headlights
 Daytime running lights
 Front position lights
 Side turn signal lights
 Tail lights
 Stop lights
 Rear fog light
 High mounted stoplight
 License plate lights
■LED lights
The lights other than the following lights each consist of a number of LEDs. If any
of the LEDs burn ou t, take your vehicle
to any authorized To yota retailer or Toyota authorized repairer, or any reli -
able repairer to have the light replaced.
●Front turn signal lights
●Front fog lights
●Rear turn signal lights
Light bulbs
You may replace the following
bulbs by yourself. The diffi -
culty level of replacement var -
ies depending on the bulb. As
there is a danger that compo -
nents may be damaged, we
recommend that replacement
is carried out by any autho -
rized Toyota retailer or Toyota
authorized repairer, or any reli -
able repairer.
Preparing for light bulb
replacement
Bulb location
A
B
C
A
B

549
7

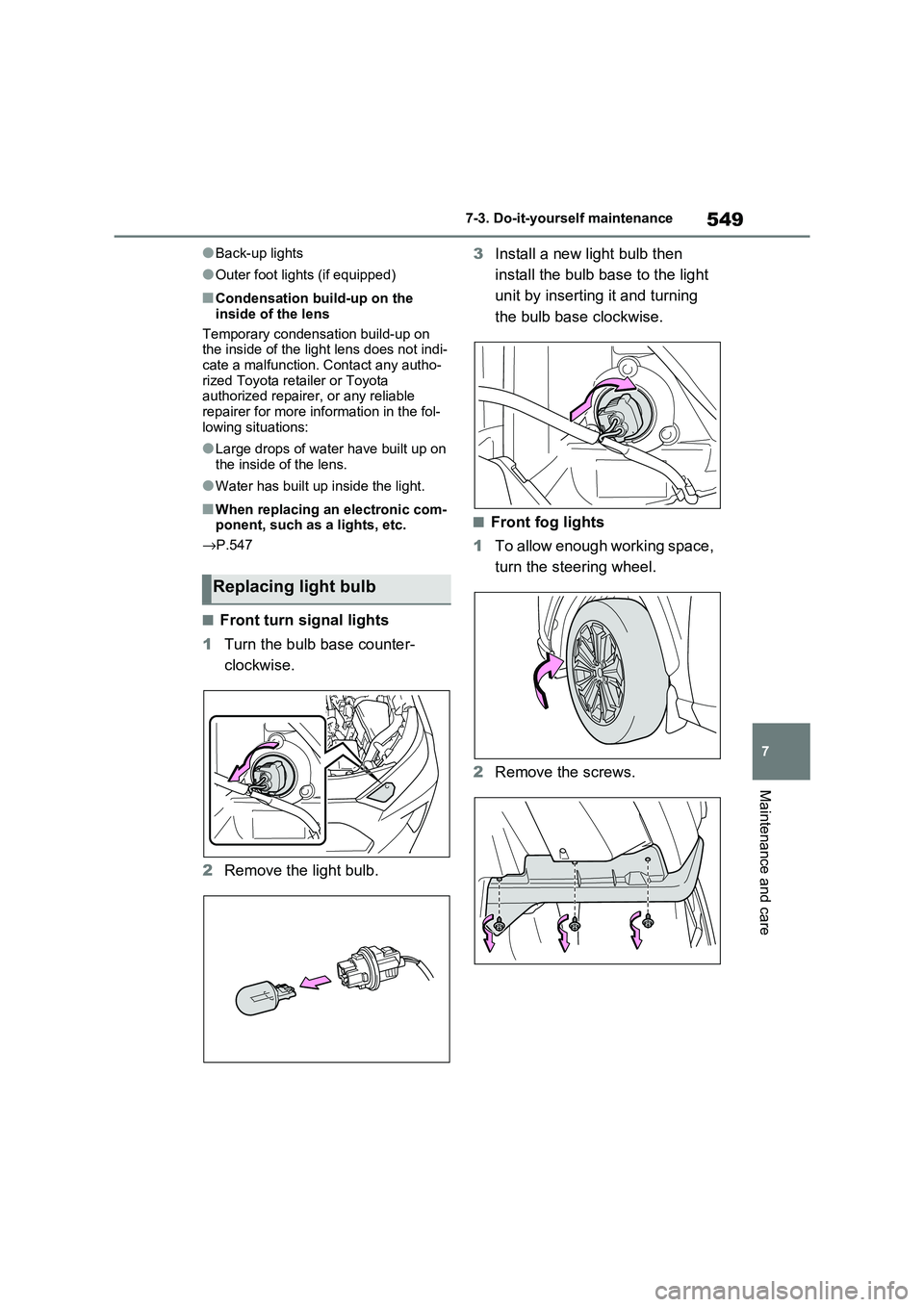

7-3. Do-it-yours elf maintenance
Maintenance and care
●Back-up lights
●Outer foot lights (if equipped)
■Condensation build-up on the
inside of the lens
Temporary condensation build-up on the inside of the lig ht lens does not indi-
cate a malfunction. Contact any autho -
rized Toyota ret ailer or Toyota authorized repairer, or any reliable
repairer for more inf ormation in the fol-
lowing situations:
●Large drops of wat er have built up on
the inside of the lens.
●Water has built up inside the light.
■When replacing an electronic com -
ponent, such as a lights, etc.
→ P.547
■Front turn signal lights
1 Turn the bulb base counter-
clockwise.
2 Remove the light bulb.
3 Install a new light bulb then
install the bulb base to the light
unit by inserting it and turning
the bulb base clockwise.
■Front fog lights
1 To allow enough working space,
turn the steering wheel.
2 Remove the screws.
Replacing light bulb

551
7

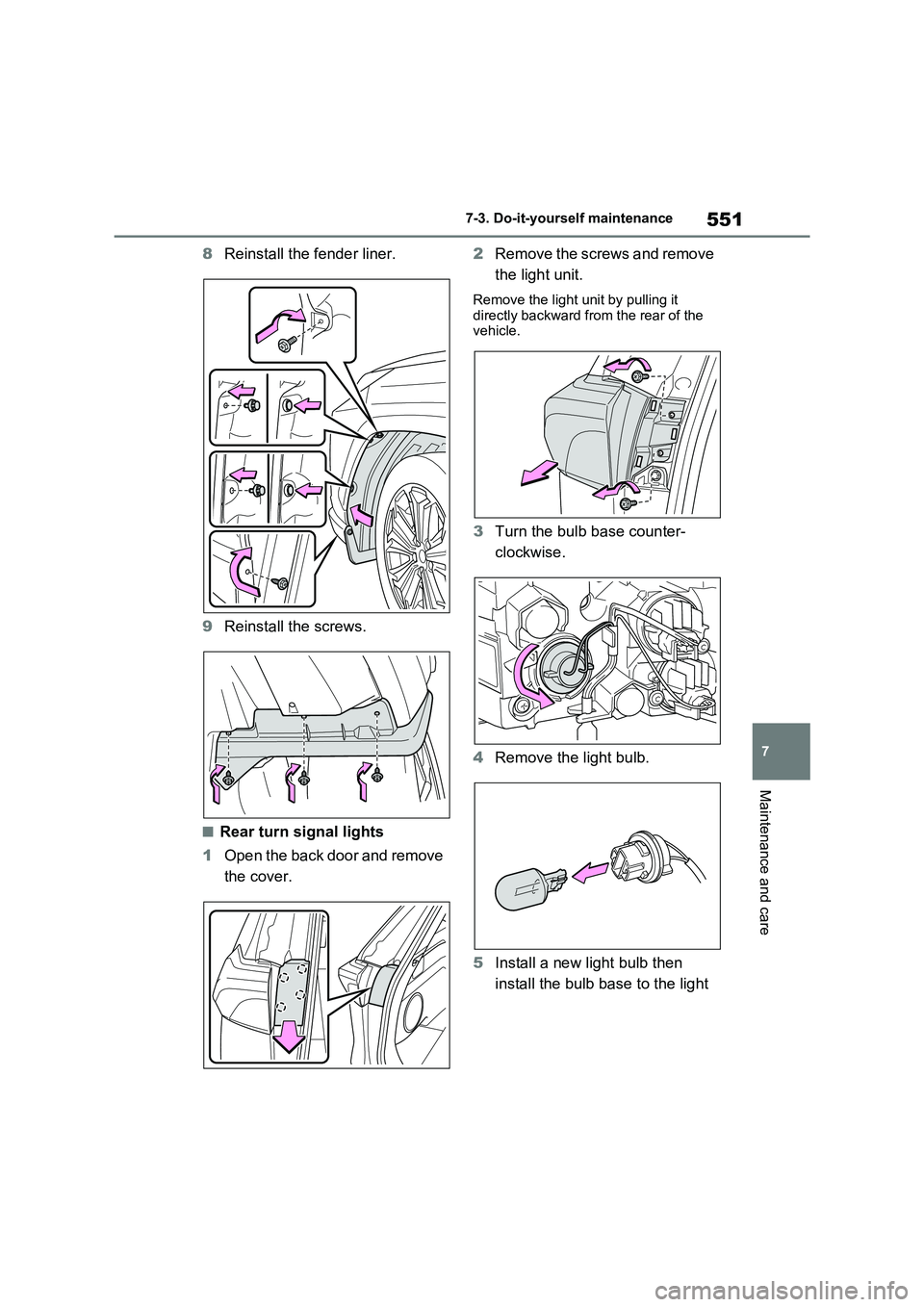

7-3. Do-it-yours elf maintenance
Maintenance and care
8Reinstall the fender liner.
9 Reinstall the screws.
■Rear turn signal lights
1 Open the back door and remove
the cover.
2 Remove the screws and remove
the light unit.
Remove the light unit by pulling it
directly backward from the rear of the vehicle.
3 Turn the bulb base counter-
clockwise.
4 Remove the light bulb.
5 Install a new light bulb then
install the bulb base to the light

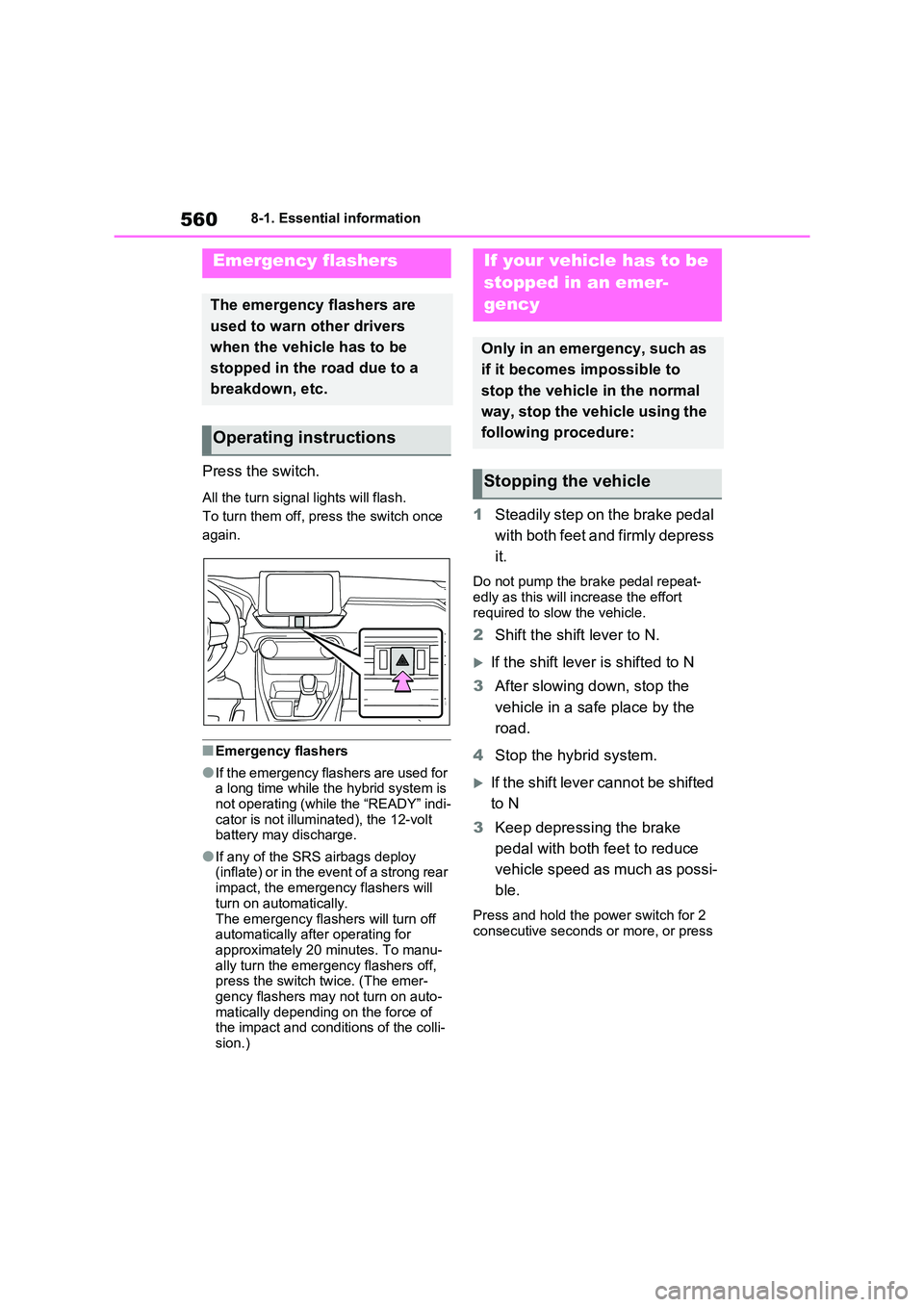

5608-1. Essential information
8-1.Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indi -
cator is not illumi nated), the 12-volt battery may discharge.
●If any of the SRS airbags deploy (inflate) or in the event of a strong rear
impact, the emergency flashers will
turn on automatically.
The emergency flashers will turn off automatically after operating for
approximately 20 m inutes. To manu-
ally turn the emerg ency flashers off, press the switch twice. (The emer -
gency flashers may not turn on auto -
matically depending on the force of the impact and co nditions of the colli-
sion.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat -
edly as this will in crease the effort required to slow the vehicle.
2 Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the
vehicle in a saf e place by the
road.
4 Stop the hybrid system.
If th e s hif t le ver ca nn o t b e s hif te d
to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi -
ble.
Press and hold the power switch for 2
consecutive seconds or more, or press
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle

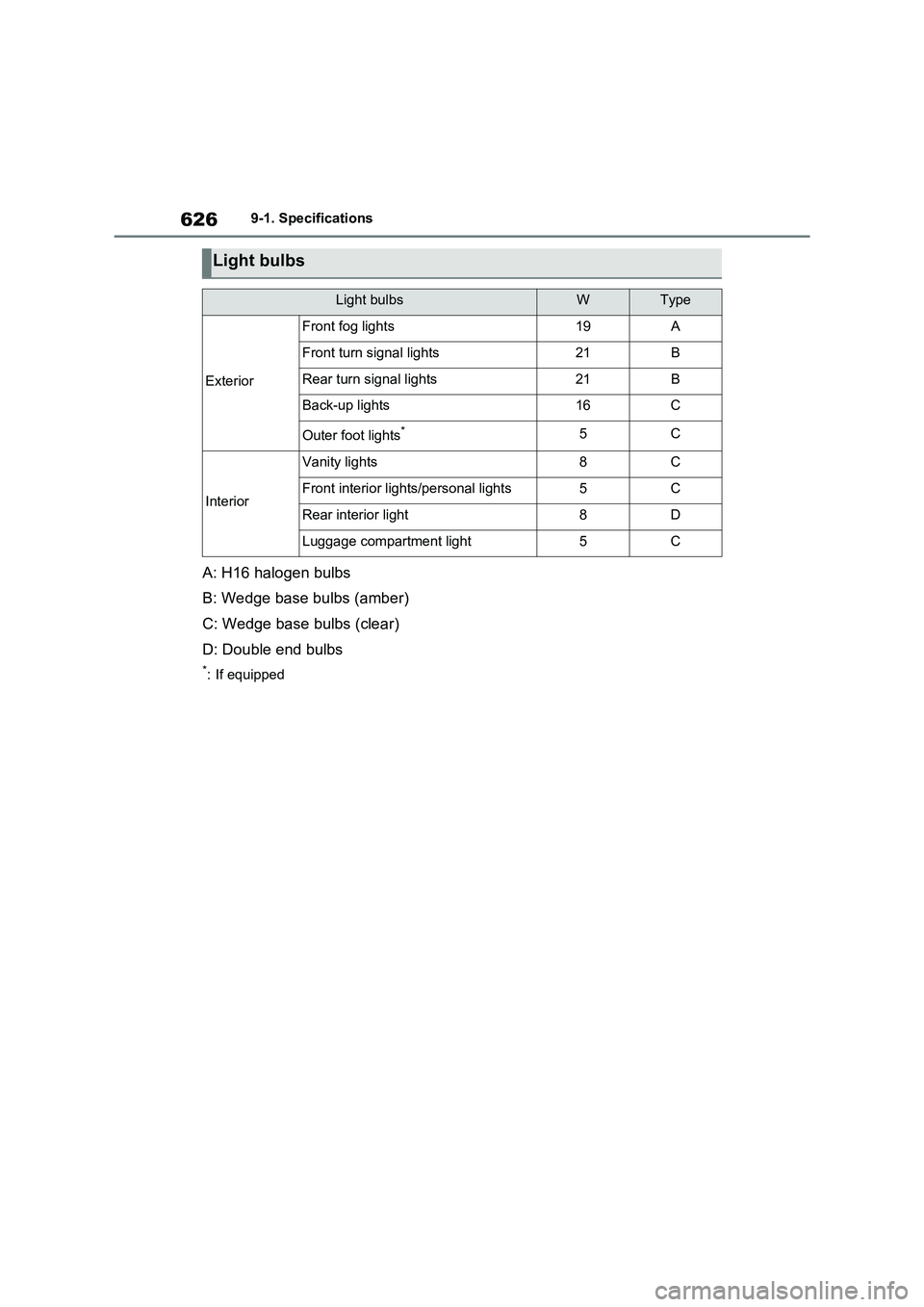

6269-1. Specifications
A: H16 halogen bulbs
B: Wedge base bulbs (amber)
C: Wedge base bulbs (clear)
D: Double end bulbs
*: If equipped
Light bulbs
Light bulbsWType
Exterior
Front fog lights19A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights16C
Outer foot lights*5C
Interior
Vanity lights8C
Front interior lights/personal lights5C
Rear interior light8D
Luggage compartment light5C

653Alphabetical Index
If a warning light turns on ........... 568
If a warning message is displayed
................................................. 578
If the 12-volt batt ery is discharged
................................................. 606
If the electronic key does not operate
properly .................................... 604
If the fuel filler door cannot be
opened..................................... 603
If the hybrid system will not start 601
If the vehicle is trapped in rising
water ........................................ 561
If you have a flat tire........... 582, 593
If you lose your keys .................. 603
If you think something is wrong.. 566
If your vehicle becomes stuck .... 615
If your vehicle has to be stopped in
an emergency .......................... 560
If your vehicle needs to be towed
................................................. 563
If your vehicle overheats ............ 611
Emergency brake signal .............. 439
Emergency flashers ..................... 560
Emergency tire puncture repair kit
..................................................... 582
Energy monitor ............................. 195
Engine
Compartment ............................. 501
Exhaust gas precautions.............. 47
Hood .......................................... 498
How to start the hybrid system... 317
Identification number.................. 619
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Overheating ............................... 611
Power switch .............................. 317
Engine coolant
Capacity ................ ..................... 622
Checking .................................... 503
High coolant temperature warning
light .......................................... 569
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Engine coolant temperature gauge
..................................................... 174
Engine oil
Capacity .....................................621
Checking .................................... 501
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
EPS (Electric Power Steering)
Function .....................................438
Warning light ..............................570
EV/HV mode selection switch........ 86
EV driving range ...........................102
EV mode .......................................... 85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 333
F
Flat tire ...................................582, 593
Tire pressure war ning system ....511
Floor mats ....................................... 32
Fluid
Brake .......................................... 624
Hybrid transmission.................... 623
Rear differential ..........................624
Washer ....................................... 505
Fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Footwell lights............................... 465
Front fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Front passenger’s seat belt reminder

654Alphabetical Index
light.............................................. 575
Front position lights
Light switch ................................ 332
Replacing light bulbs .................. 548
Front seat concentrated airflow
mode (S-FLOW) .......................... 457
Front seat heaters ........................ 462
Front seats .................................... 270
Adjustment ................................. 270
Cleaning ..................................... 491
Correct driving posture................. 33
Driving position memory ............ 273
Head restraints........ ................... 276
Memory recall function ............... 274
Seat heaters............................... 462
Seat position memory ................ 273
Seat ventilators .......................... 462
Front turn signal lights
Replacing light bulbs .................. 548
Turn signal lever ........................ 325
Wattage...................................... 626
Fuel
Capacity ................ ..................... 620
Fuel gauge ................................. 174
Gas station information .............. 664
Information ................................. 627
Refueling .................................... 342
Type ........................................... 620
Warning light .............................. 575
Fuel consumption information
Average fuel consumption ......... 198
Current fuel consumption ........... 198
Fuel filler door .............................. 343
If the fuel filler door cannot be
opened..................................... 603
Opener ....................................... 343
Refueling .................................... 342
Fuel gauge .................................... 174
Fuses ............................................. 545
G
Gas station information ...............664
Gauges...........................................174
Glove box ......................................469
GPF (Gasoline Part iculate Filter)
system ........... ..............................437
H
Headlight cleaner ..........................338
Headlights .....................................332
Automatic headlight leveling ...... 333
Automatic High Beam (AHB)...... 334
Extended Headlight Lighting system
.................................................333
Light switch ................................332
Replacing light bulbs ..................548
Head restraints..............................276
Head-up display ............................ 191
Heated steering wheel ..................462
Heated Windshield Defroster.......457
Heaters
Automatic air conditioning system
.................................................452
Heated steering wheel ...............462
Hybrid battery (traction battery).. 128
Outside rear view mirrors ........... 454
Seat heaters ............................... 462
High coolant temperature warning
light ..............................................569
High mounted stoplight
Replacing light bulbs ..................548
High voltage components .............. 94
Hill-start assist control ................. 438
Hood............................................... 498
Warning message ...................... 578
Hooks
Cargo hooks ............. .................. 472
Coat hooks ................................. 484
Retaining hooks (floor mat) .......... 32
Horn ............................................... 278

656Alphabetical Index
properly .................................... 604
If you lose your keys .................. 603
Key number plate ....................... 202
Keyless entry ..................... 203, 223
Mechanical key .......................... 204
Power switch .............................. 317
Replacing the battery ................. 543
Warning buzzer .......................... 224
Wireless remote control key....... 203
Knee airbags ................................... 39
L
Lane Tracing Assist (LTA) ........... 362
Operation ................................... 362
Warning messages .... ................ 371
Language (multi-information dis -
play) ..................................... 188, 631
Lever
Auxiliary catch lever ................... 498
Hood lock release l ever ............. 498
Shift lever ................................... 321
Tilt and telescopic steering lock
release lever ............................ 278
Turn signal lever ........................ 325
Wiper lever ......................... 338, 340
License plate lights
Light switch ................................ 332
Replacing light bulbs .................. 548
Light bulbs
Replacing ................................... 548
Wattage...................................... 626
Lights
Automatic High Beam system .... 334
Emergency flasher switch .......... 560
Extended Headlight Lighting system
................................................. 333
Fog light switch .......................... 337
Front interior lights ..................... 465
Headlight switch ...... ................... 332
Illuminated entry system ............ 466
Interior lights .............................. 465
Luggage compartment light........ 212
Personal lights............................ 466
Rear interior light ........................466
Replacing light bulbs ..................548
Turn signal lever......................... 325
Vanity lights ................................476
Wattage ......................................626
Lock steering column................... 318
LTA (Lane Tracing Assist) ........... 362
Operation ...................................362
Warning messages .................... 371
Luggage compartment light 212, 216
Wattage ......................................626
Luggage cover ..............................473
M
Maintenance
Do-it-yourself maintenance ........ 496
Maintenance data..... ..................618
Maintenance requirements......... 494
Malfunction indicator lamp ..........570
Menu icons .................................... 180
Meter
“ODO TRIP” switch .................... 178
Clock .......................................... 179
Head-up display ......................... 191
Indicators.................................... 168
Meter control switches ...............180
Meters ........................................174
Multi-information display ............179
Settings ..............................186, 631
Units ...........................................188
Warning lights .................... 568, 578
Warning messages .................... 189
Meter contro l switches ................. 180
Mirrors
Digital Rear-view Mirror.............. 280
Inside rear view mirror................279
Outside rear view mirror defoggers
.................................................454
Outside rear view mirrors ........... 289

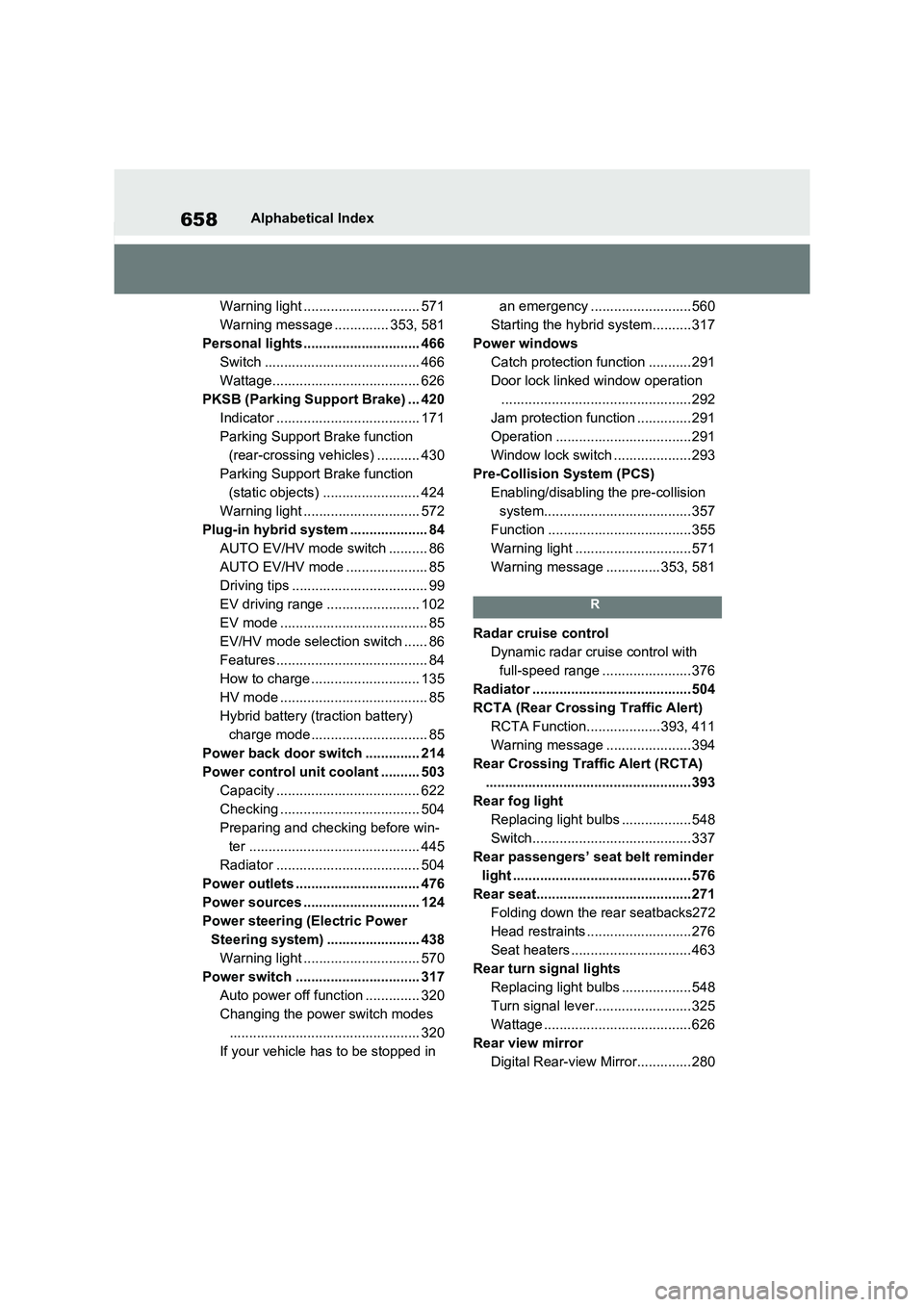

658Alphabetical Index
Warning light .............................. 571
Warning message .............. 353, 581
Personal lights.............................. 466
Switch ........................................ 466
Wattage...................................... 626
PKSB (Parking Supp ort Brake) ... 420
Indicator ..................................... 171
Parking Support Brake function
(rear-crossing vehicles) ........... 430
Parking Support Brake function
(static objects) ......................... 424
Warning light .............................. 572
Plug-in hybrid system .................... 84
AUTO EV/HV mode switch .......... 86
AUTO EV/HV mode ..................... 85
Driving tips ................................... 99
EV driving range ..... ................... 102
EV mode ...................................... 85
EV/HV mode selection switch ...... 86
Features ....................................... 84
How to charge ............................ 135
HV mode ...................................... 85
Hybrid battery (traction battery)
charge mode.............................. 85
Power back door switch .............. 214
Power control unit coolant .......... 503
Capacity ................ ..................... 622
Checking .................................... 504
Preparing and c hecking before win-
ter ............................................ 445
Radiator ..................................... 504
Power outlets ................................ 476
Power sources .............................. 124
Power steering (E lectric Power
Steering system) ........................ 438
Warning light .............................. 570
Power switch ................................ 317
Auto power off function .............. 320
Changing the powe r switch modes
................................................. 320
If your vehicle has to be stopped in
an emergency ..........................560
Starting the hybrid system..........317
Power windows
Catch protection function ........... 291
Door lock linked window operation
.................................................292
Jam protection function .............. 291
Operation ...................................291
Window lock switch .................... 293
Pre-Collision System (PCS)
Enabling/disabling the pre-collision
system......................................357
Function .....................................355
Warning light ..............................571
Warning message .............. 353, 581
R
Radar cruise control
Dynamic radar cruise control with
full-speed range .......................376
Radiator .........................................504
RCTA (Rear Crossing Traffic Alert)
RCTA Function...................393, 411
Warning message ...................... 394
Rear Crossing Traffic Alert (RCTA)
..................................................... 393
Rear fog light
Replacing light bulbs ..................548
Switch.........................................337
Rear passengers’ seat belt reminder
light ..............................................576
Rear seat........................................271
Folding down the rear seatbacks272
Head restraints ...........................276
Seat heaters ............................... 463
Rear turn signal lights
Replacing light bulbs ..................548
Turn signal lever......................... 325
Wattage ......................................626
Rear view mirror
Digital Rear-view Mirror.............. 280
